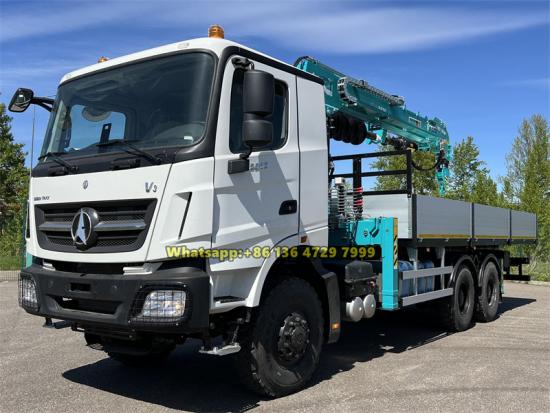

The BEIBEN V3 6×6 truck-mounted crane is a large-scale, multifunctional engineering vehicle that integrates efficient transportation, heavy lifting, and professional drilling capabilities. Built on the BEIBEN 2543 6×6 drive chassis, it is powered by a robust Weichai WP12.430E50 engine delivering 430 horsepower, paired with a manual 12-speed gearbox.

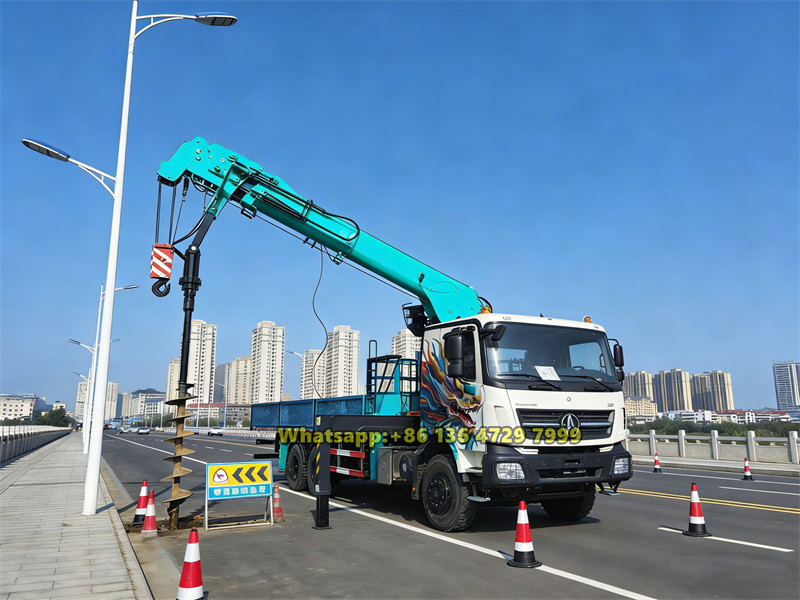

The core of the vehicle's superstructure is the SQS200-4 telescopic boom crane, which provides a maximum lifting capacity of 8 tons and a lifting height of 15 meters, with full 360-degree rotation capability. Through the addition of a specialized auger drill bit, the functionality of this Beiben 6x6 boom crane truck extends beyond traditional lifting and transportation to include foundation piling, tree planting, and other drilling applications

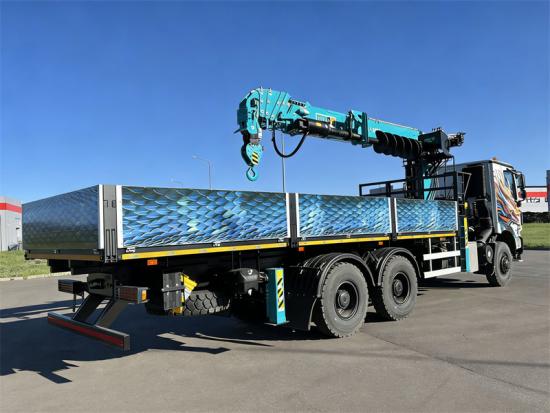

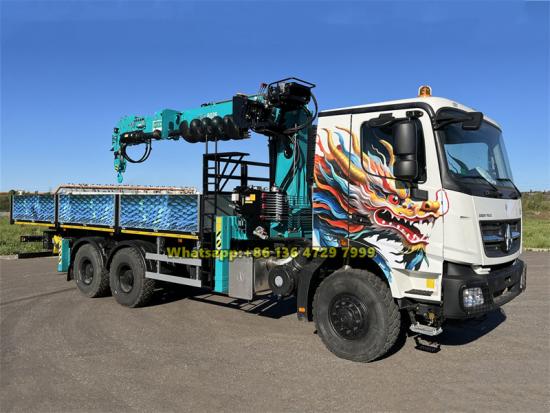

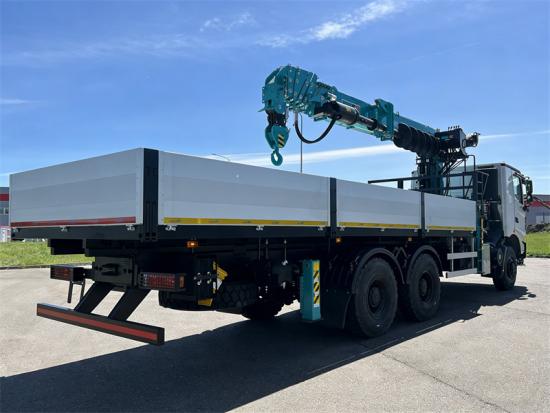

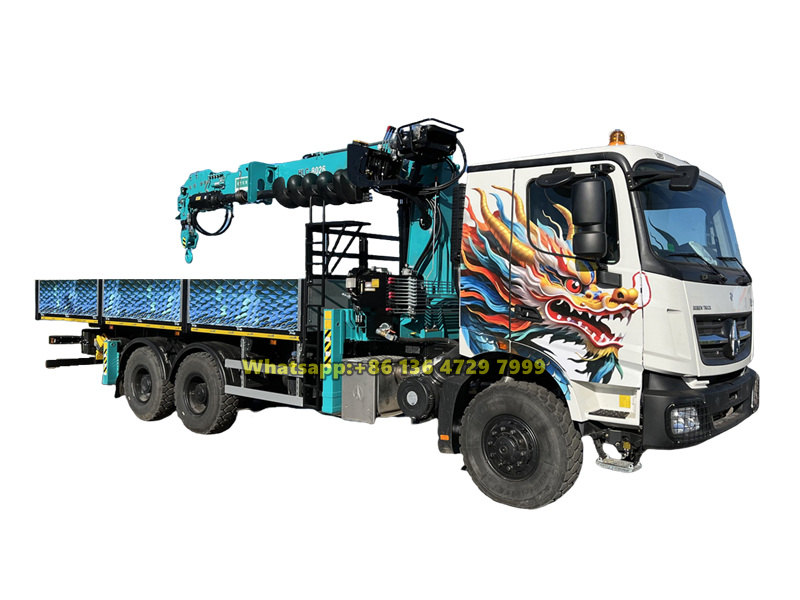

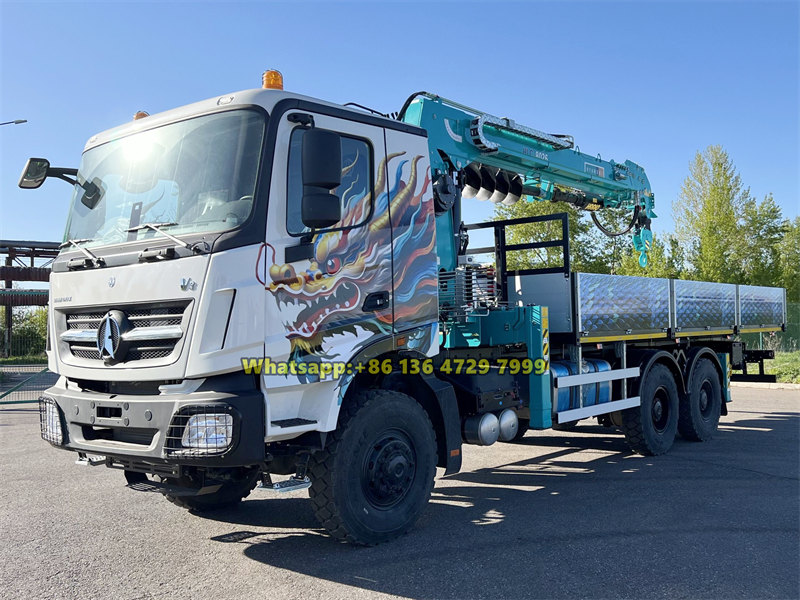

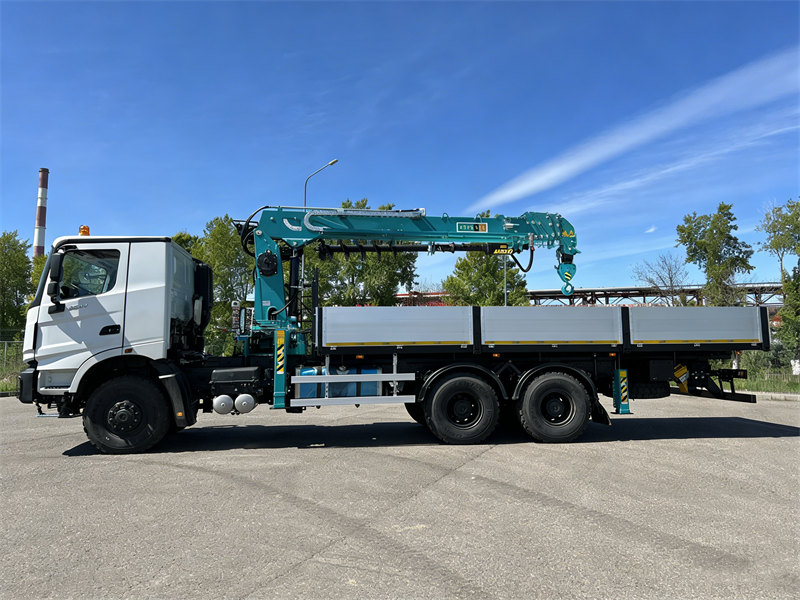

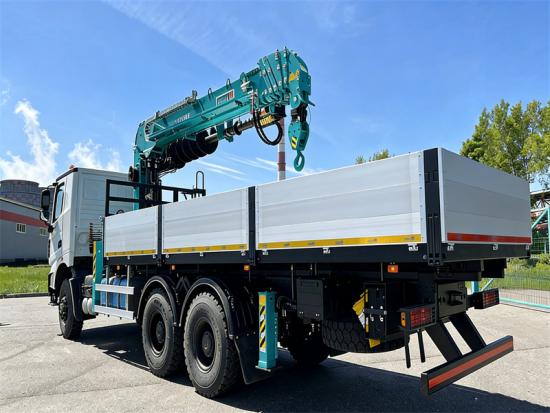

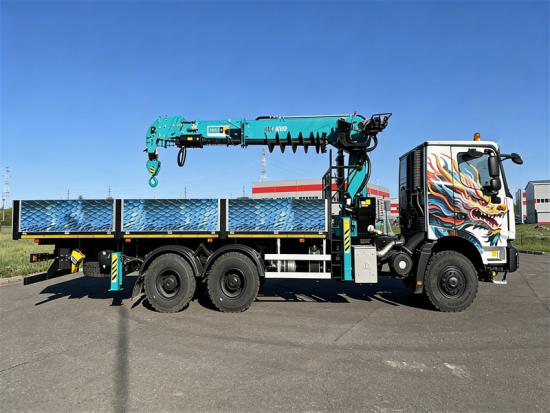

*Beiben 6×6 telescopic boom crane truck*
CEEC factory is authorized supplier on beiben hydraulic crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS

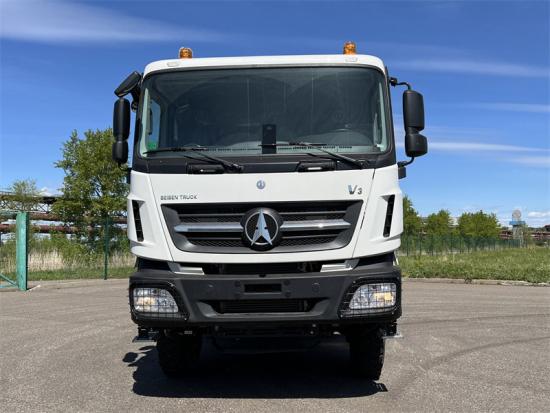

▶ Chassis: Beiben 6×6 chassis, V3 cabin, Weichai 430HP diesel engine, Fast 12-speed gearbox
▶ Crane model: CEEC SQS200-4
▶ Crane lifting capacity: 8 tons
▶ Cargo box dimensions: 7000×2500×600 mm
▶ Tires: 14.00R20, 6+1 pcs
» Ⅱ. Product Specifications:
|
BEIBEN V3 6×6 Telescopic Boom Crane Truck Specifications
|
|
Vehicle Model
|
Beiben 2543
|
|
Basic Vehicle Parameters
|
Drive Type
|
6×6
|
|
Total Weight (kg)
|
25000
|
|
Curb Weight(kg)
|
12800
|
|
Vehicle Appearance Parameters
|
Length (mm)
|
9950
|
|
Width (mm)
|
2550
|
|
Height (mm)
|
3750
|
|
Wheelbase (mm)
|
4450+1450
|
|
Performance Parameters
|
Maximum Speed (km/h)
|
80
|
|
Maximum Climbing Grade (°)
|
30%
|
|
Chassis Parameters
|
Engine
|
Model
|
WP12.430E50
|
|
Engine Emission Standards
|
Euro 5
|
|
Brand
|
WEICHAI
|
|
Displacement(L)
|
11.596
|
|
Rated speed (RPM)
|
1900
|
|
Rated Power (Kw)
|
316 kW
|
|
Max. hose power
|
430 HP
|
|
Cab
|
Type
|
Flat Roof Cab, with one sleeper berth
|
|
Model
|
V3
|
|
Standard Configuration
|
Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel
|
|
Gearbox
|
Gearbox Type
|
Manual, FAST 12-speed
|
|
Front Axle
|
Type
|
Drum Brake
|
|
Loadable Weight (Kg)
|
7000
|
|
Rear Axle
|
Gearbox Type
|
Drum Brake
|
|
Loadable Weight (Kg)
|
13000+13000
|
|
Speed Ratio
|
5.263
|
|
Frame
|
Section Size (mm)
|
300×80×8 Full Three-Layer Outsourcing
|
|
Leaf Spring
|
Number of pieces
|
10 Front Springs, 12 Rear Springs
|
|
Tire
|
Type
|
Radial tire
|
|
Quantity
|
6+1
|
|
Model
|
14.00R20
|
|
Steering System
|
Type
|
Hydraulic Power Steering System
|
|
Braking System
|
Brake Type
|
Drum Brakes With ABS Anti-Lock Braking System
|
|
Service Brake System Type
|
Dual Circuit Air Brake
|
|
Parking Brake System Type
|
Spring Brake
|
|
Parking Control Type
|
Manual Brake Operation
|
|
Electrical System
|
System Voltage
|
24V
|
|
Battery
|
165AH Dual Battery
|
|
Upper Body Parameters
|
Crane
|
Brand
|
CEEC (PALFINGER, XCMG, UNIC is optional)
|
|
Model
|
SQS200-4
|
|
Rated lifting capacity (Kg)
|
8000 kg
|
|
Maximum Lifting Height (M)
|
15 m
|
|
Rotation Angle (°)
|
360
|
|
Working Pressure (MPa)
|
26
|
|
Outrigger span (mm)
|
5675
|
|
Cargo Box
|
Cargo Box Size (mm)
|
7000×2500×600
|
|
Material
|
Q235 carbon steel
|
|
Material Thickness
|
Wall thickness 4; Bottom thickness 5
|
» Ⅲ. Chassis Advantages:
Beiben Axles
Front axle: Beiben 7 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263

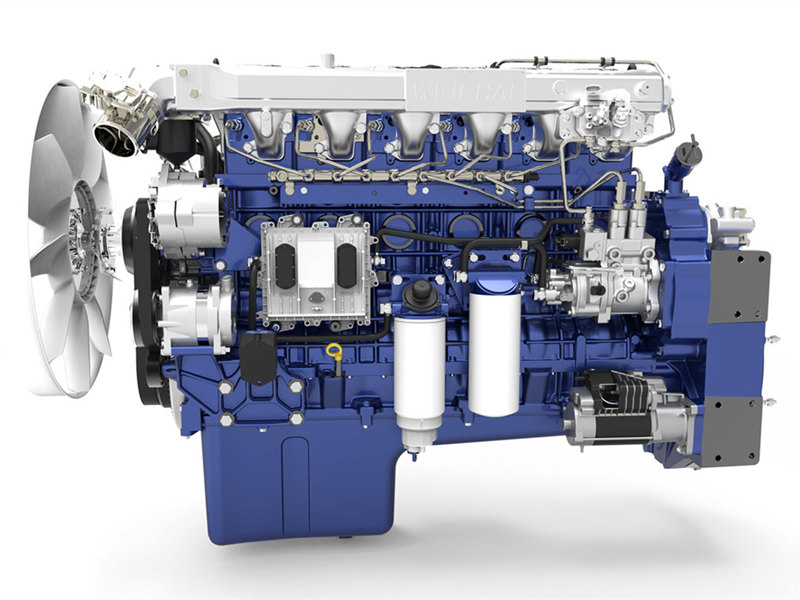

Weichai Engine
Model: WP12.430E50
Number of cylinders: 6
Power: 430HP/316KW
Displacement: 11596ml
Rated speed: 1900 rpm
Max. torque: 2060 N.m
FAST Gearbox
Model: 12JS180T
Gear: 12-speed forwards and 2 reverse
Opeartion: manual
Rated input torque: 1800 N.m

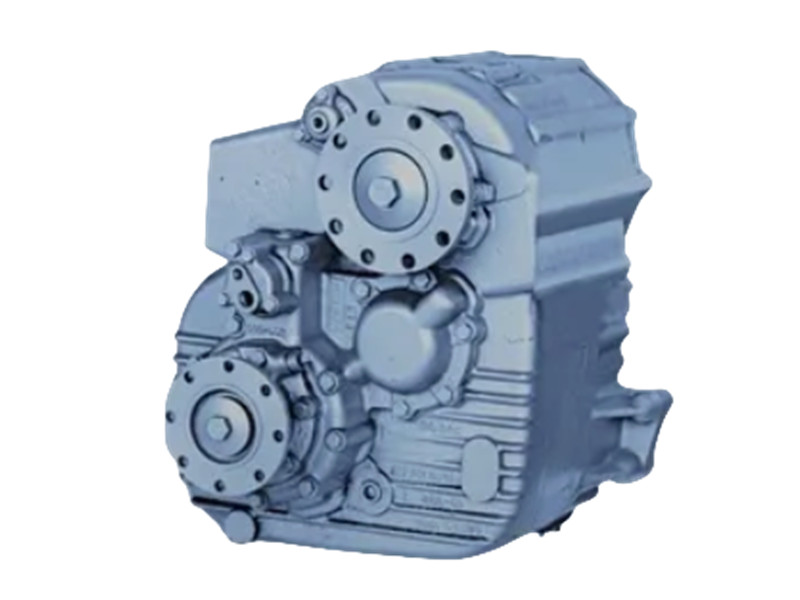

Transfer case
Model: LF200
Max. input torque: 25000 Nm
Speed ratio (low speed): 1.536
Speed ratio (high speed):0.89
» Ⅳ. Crane specifications:
|
Item
|
Unit
|
SQS200-4
|
|
Max. lifting moment
|
kN · m
|
200
|
|
Max. lifting capacity
|
kg
|
8000
|
|
Max. outreach
|
m
|
13
|
|
Max. lifting height
|
m
|
15
|
|
Rated Flow of Hydraulic System
|
L/min
|
63
|
|
Hydraulic oil tank capacity
|
L
|
150
|
|
Rated Pressure of Hydraulic System
|
MPa
|
26
|
|
Recommend Power
|
kw
|
30
|
|
Installation space
|
mm
|
920
|
|
Slewing angle
|
°
|
360°
|
|
Crane Weight
|
kg
|
3800
|
|
Boom section
|
|
Octagon
|
|
Leg structure
|
|
Double-cavity telescopic square outriggers
|

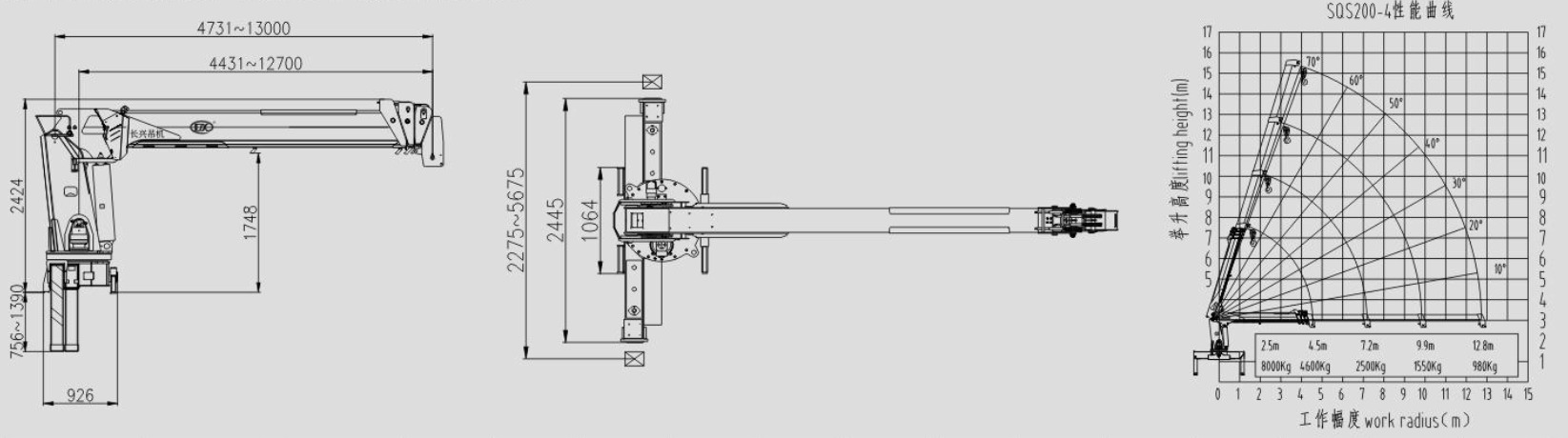

» Ⅴ. Crane drawing:
|
SQS200-4
|
Work Radius (m)
|
2.5
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
12.8
|
|
Outreach (m)
|
4.5
|
8000
|
6000
|
4800
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
7.2
|
-
|
5150
|
3950
|
3550
|
3050
|
2600
|
-
|
-
|
-
|
-
|
-
|
-
|
|
9.9
|
-
|
-
|
3150
|
2700
|
2000
|
1950
|
1800
|
1700
|
1500
|
-
|
-
|
-
|
|
12.8
|
-
|
-
|
-
|
2050
|
1880
|
1750
|
1630
|
1550
|
1350
|
1250
|
1120
|
980
|
» Ⅵ. Crane Truck Workshop Show:

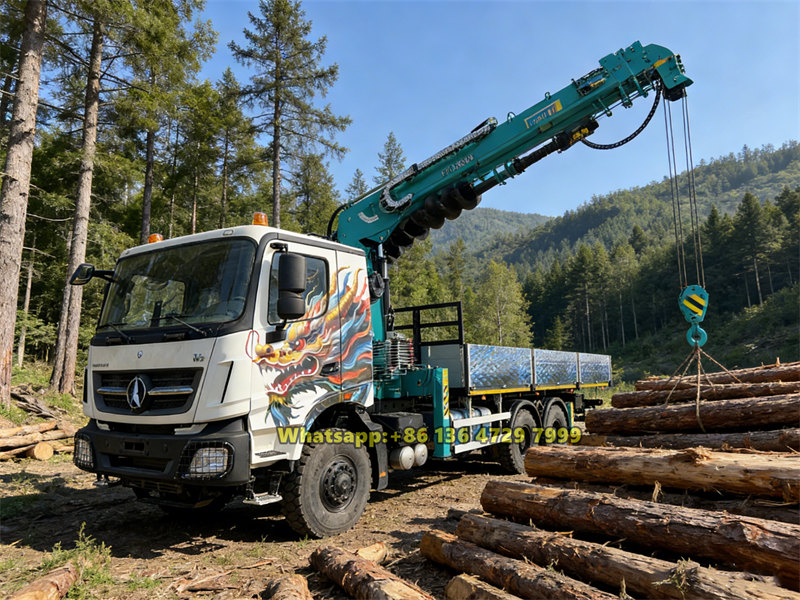

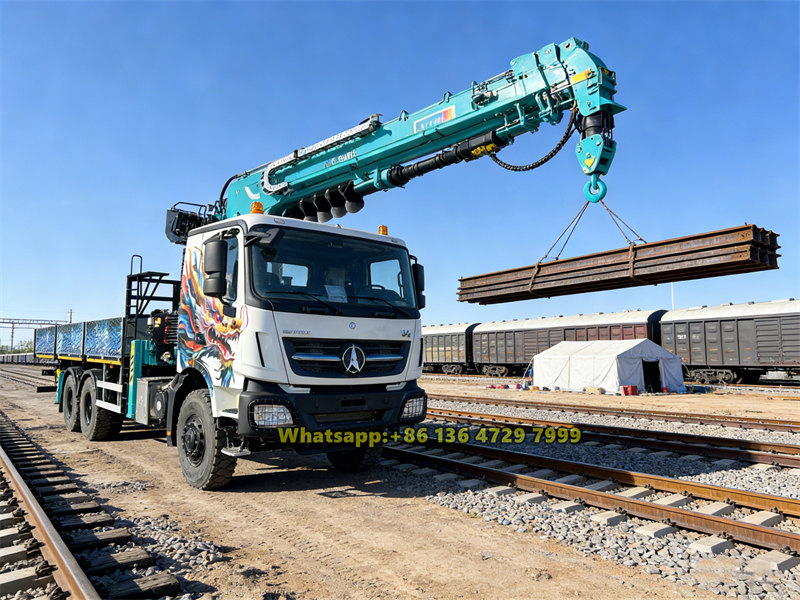

» Ⅶ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
Guarantee--7days + 24hours Safetify Service!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
