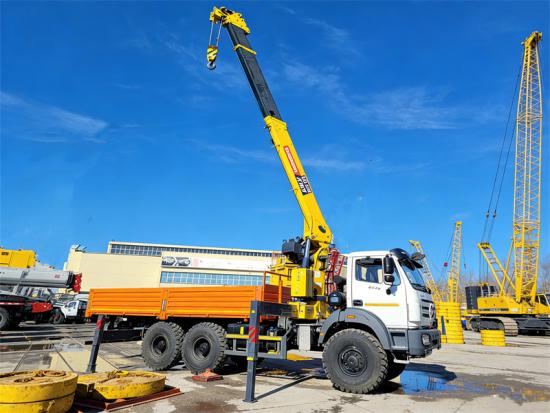

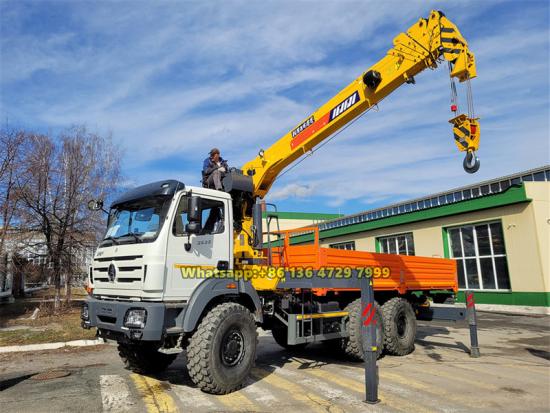

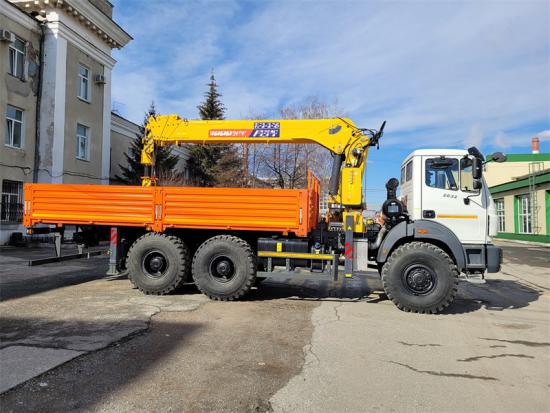

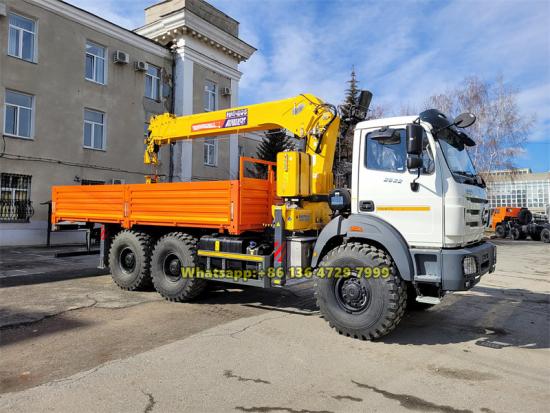

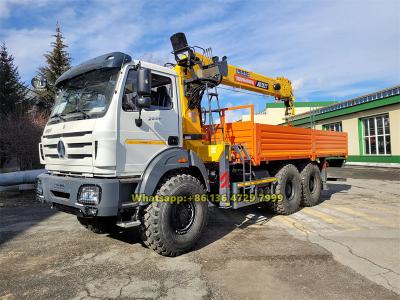

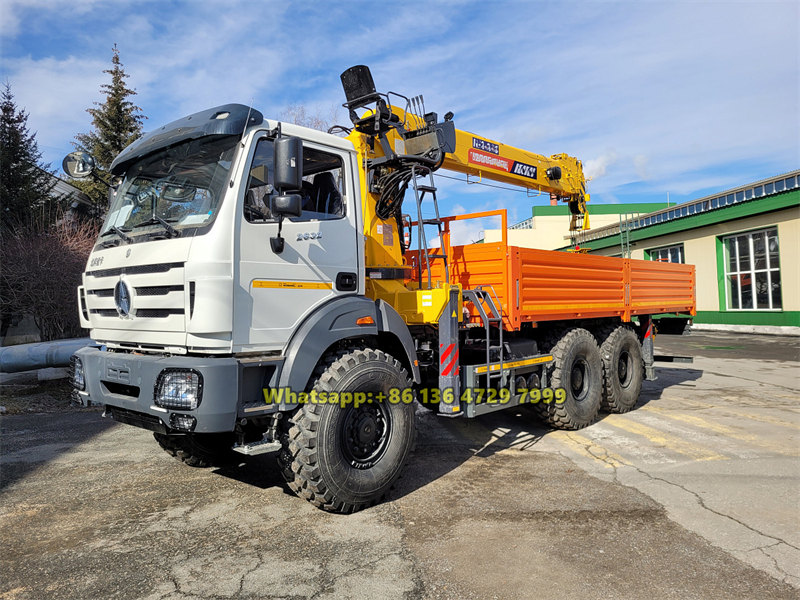

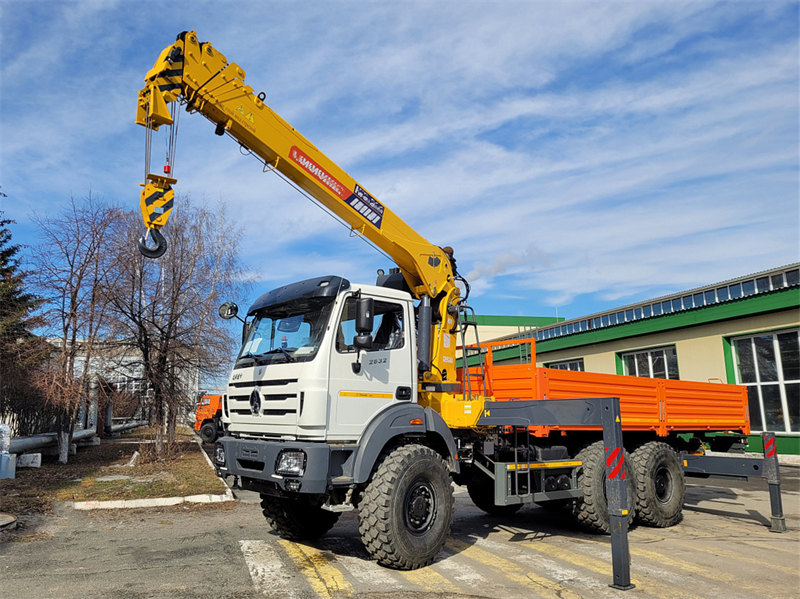

The Beiben 6×6 off-road service boom truck is a large engineering vehicle that integrates a heavy-duty off-road chassis with efficient lifting capabilities. Based on a robust 340-horsepower engine, all-wheel-drive system, and a professional off-road chassis, it ensures excellent mobility across complex terrains. Equipped with the SQS200 telescopic crane, it boasts a maximum lifting capacity of 8 tons and a working height of up to 16.7 meters. Coupled with a dual-pump combined hydraulic system, it enables efficient and flexible lifting operations, making it a reliable solution for heavy-duty tasks in remote areas and construction sites.
Market Price:
$35000Working Capcity:
8000 kgCabin Type:
NG80B short cabin, 2 seatsDimension ( mm ) :
9800×2500×3980Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
340HP/WP10.340E32Gear Box:
12JS200TRemark:

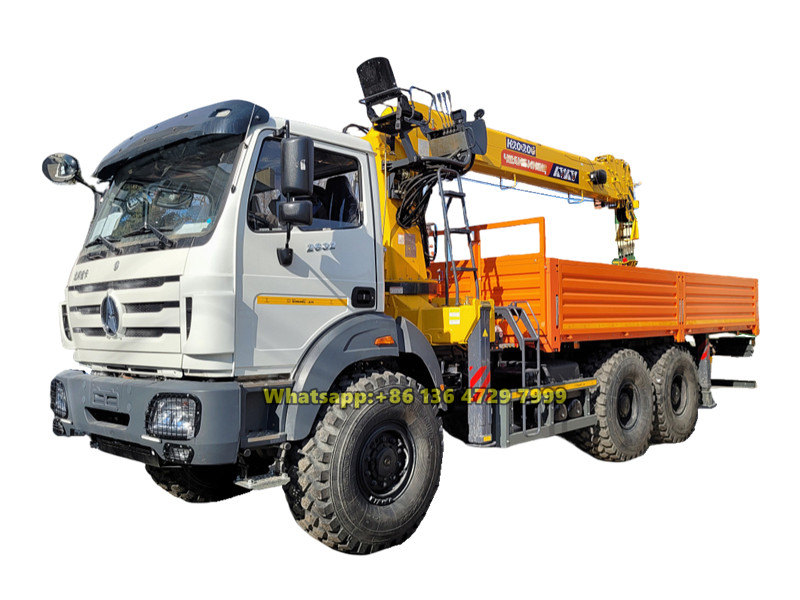

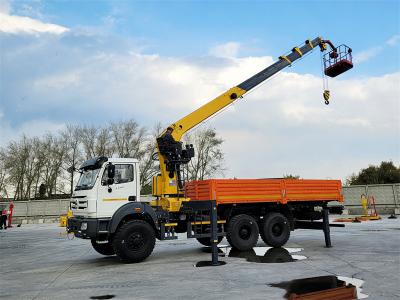

14.00R20 tires, XCMG, palfinger/unic crane for optionThe Beiben 6×6 all-wheel-drive truck-mounted crane is a large engineering vehicle that combines heavy-duty off-road transportation with efficient lifting functionality. It is built around the Beiben 2634 chassis and powered by a robust 340HP Weichai diesel engine. The vehicle excels in load-bearing capacity and, with its all-wheel-drive system, FAST 12-speed transmission, and sturdy axle suspension, ensures exceptional off-road mobility and stable load handling under harsh conditions.

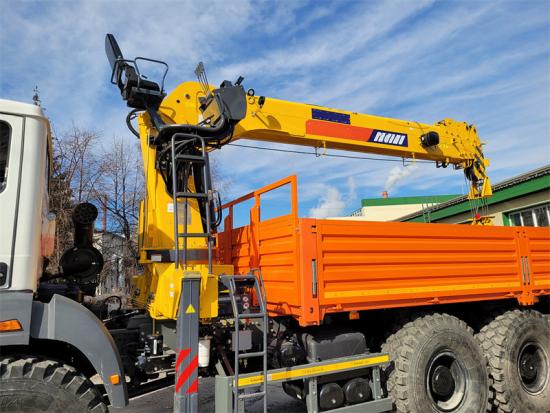

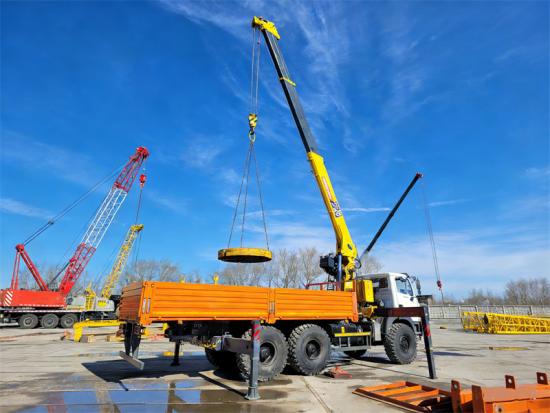

The XCMG SQS200 four-section telescopic crane offers a maximum lifting capacity of 8 tons and a lifting moment of 20 ton-meters, with an operating height of up to 16.7 meters. Its dual-pump combined hydraulic system enhances the efficiency and flexibility of combined operations. Beiben 6×6 vehicle mounted hydraulic crane demonstrates a high degree of professionalism. The crane features a classic hexagonal boom structure and a single-cylinder wire rope synchronous telescoping mechanism, balancing structural strength with operational efficiency.
CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B short cabin, Weichai 340HP diesel engine, Fast 12-speed gearbox
▶ Crane model: SQS200-4
▶ Crane lifting capacity: 8 tons
▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 7000×2500×600 mm
» Ⅱ. Product Specifications:
|
Product Technical Specifications |
||
|
Product Name |
Beiben 6×6 off road vehicle mounted hydraulic crane |
|
|
Chassis Model |
Beiben 2634 |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 3 |
|
|
Cabin |
Beiben NG80B |
|
|

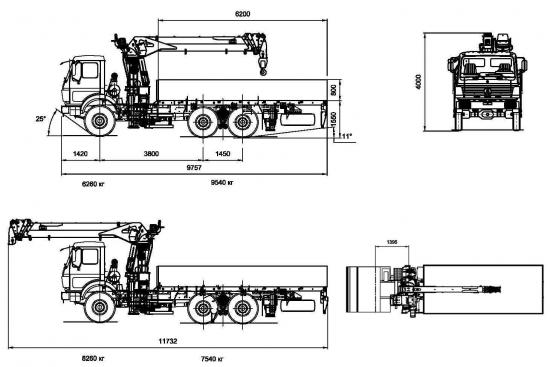

Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) |
9800*2500*3980 |
|
Cargo box dimensions |
7000*2500*600 |
|
|
Wheelbase |
4450+1450 |
|
|
Front overhang |
1420 |
|
|
Rear overhang |
2850 |
|
|
Weight data (kg) |
G.V.W |
26000 |
|
Curb weight (chassis) |
14800 |
|
|
Max payload |
20000-25000 |
|
|
Vehicle main performance |
Max. speed (km/h) |
80 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Model |
WP10.340E32 |
|
Maximum power |
250kw / 340hp |
|
|
Number of cylinders |
6 |
|
|
Displacement (L) |
9.726 |
|
|
Engine Manufacturer |
WEICHAI |
|
|
Gear box |
Brand |
FAST |
|
Type |
Manual, 12JS200T |
|
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Axle |
Front load capacity |
7000 kg |
|
Rear load capacity |
13000+13000 kg |
|
|
Suspension |
Front/rear leaf spring |
10/13 |
|
Steering Wheel |
left/right hand drive |
LHD |
|
Brake system |
Service brake |
Air brake |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
14.00R20, 6+1 pcs |
|
|
Crane Specifications |
||
|
Model |
SQS200 |
|
|
Type |
Telescopic boom crane, 4 sections |
|
|
Max Lifting Capacity (kg) |
8000 |
|
|
Maximum lift height (m) |
16.7 |
|
|
Working radius (m) |
15 |
|
|
Max Lifting Moment (t.m) |
20 |
|
|
Flow of Hydraulic System (L/min) |
55+55 |
|
|
Pressure of Hydraulic System (MPa) |
25 |
|
|
Hydraulic Oil Tank Capacity (L) |
200 |
|
|
Rotation Angle (°) |
360° all rotation |
|
|
Crane Weight (kg) |
3370 |
|
|
Installation Space (mm) |
1300 |
|
|
Outriggers |
2 front and 2 rear |
|
|
Outrigger span (mm) |
2318~5908 |
|

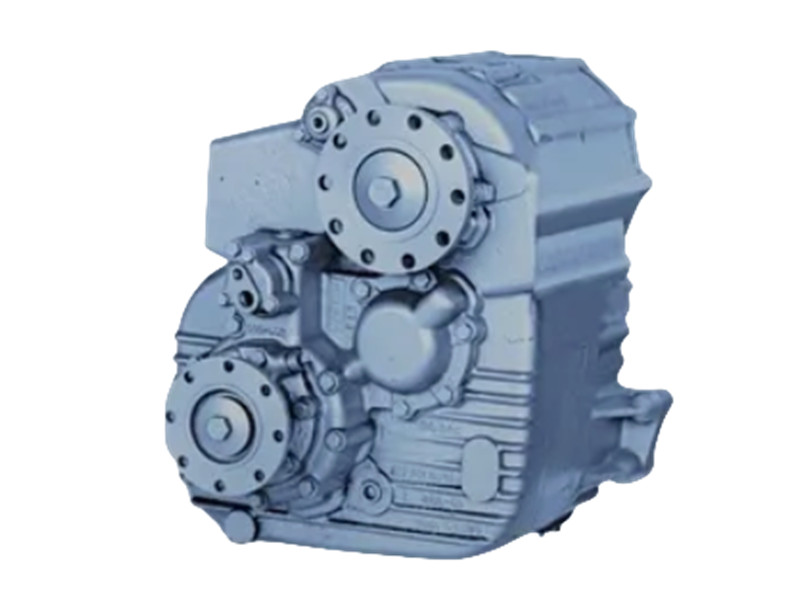

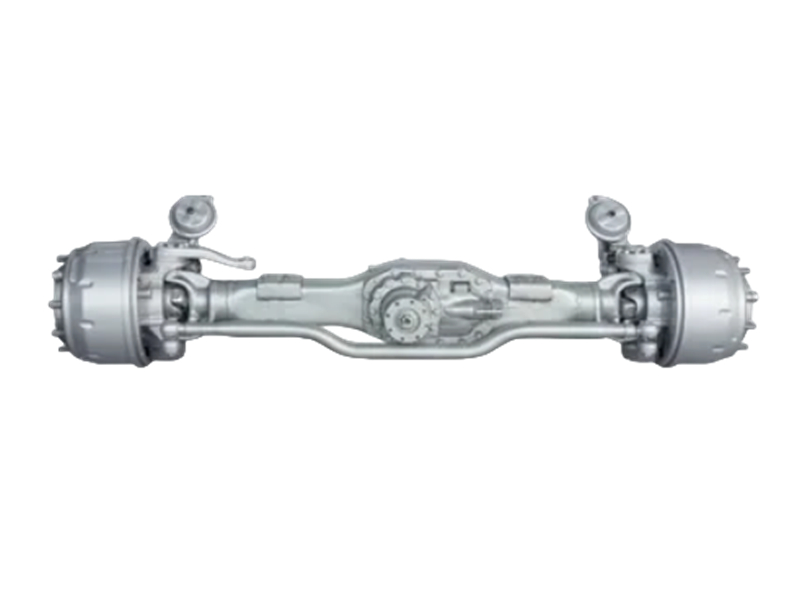

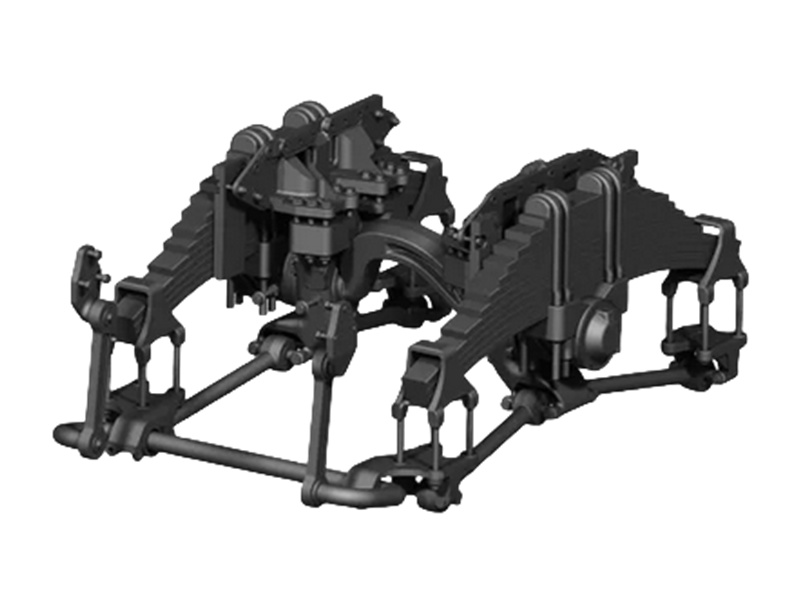

» Ⅲ. Chassis Advantages:
» Ⅳ. SQS200-4 Crane Specifications:
Crane parameters:
|
Item |
Unit |
SQS200-4 |
|
Max. lifting capacity |
kg |
8000 |
|
Max. lifting moment |
T.M |
20 |
|
Recommended power |
kw |
45 |
|
Max oil flow of hydraulic system |
L/MIN |
55+55 |
|
Max pressure of hydraulic system |
Mpa |
25 |
|
Oil tank capacity |
L |
200 |
|
Crane weight |
kg |
3370 |
|
Installation space |
mm |
1300 |
|
Rotation angle |
° |
All rotation |

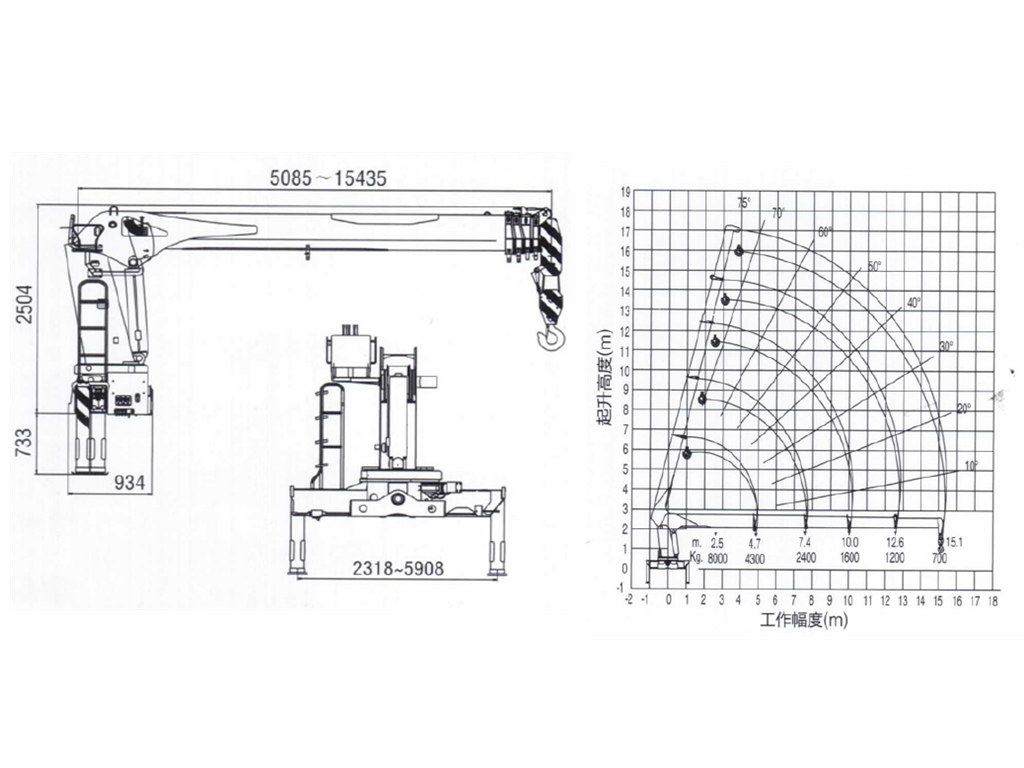

Rated lifting load
|
SQS200-4 |
|||||
|
working radius(M) |
Max lifted load(kg) of different arm lengths |
||||
|
5.1m |
7.7m |
10.3m |
12.8m |
15.4m |
|
|
5.00 |
4300 |
3800 |
3400 |
3270 |
2700 |
|
7.50 |
|
2400 |
2350 |
2250 |
1990 |
|
10.00 |
|
|
1660 |
1580 |
1500 |
|
12.50 |
|
|
|
1200 |
1100 |
|
15.50 |
|
|
|
|
700 |
» Ⅴ. Crane features and options:

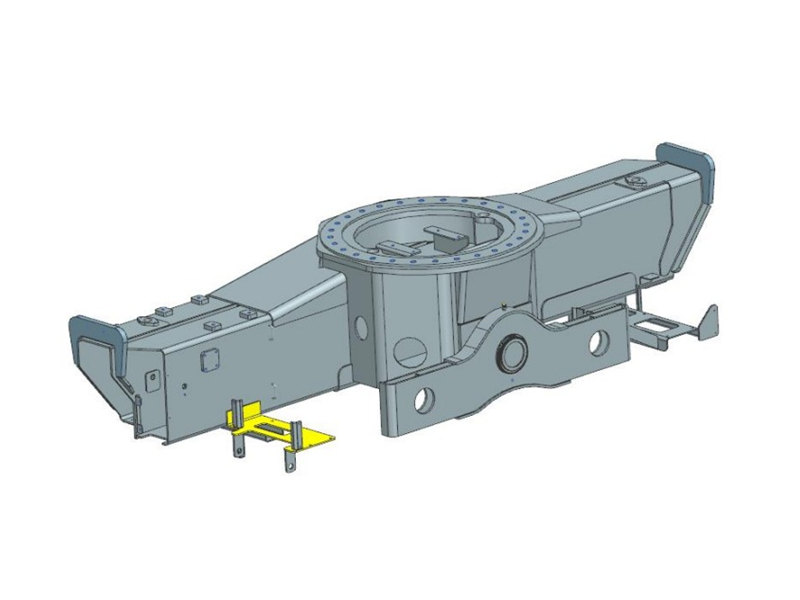

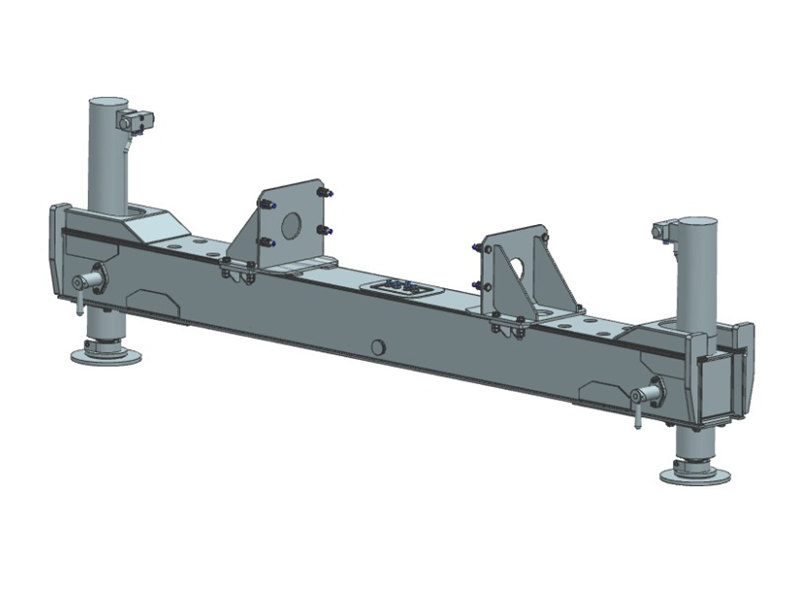

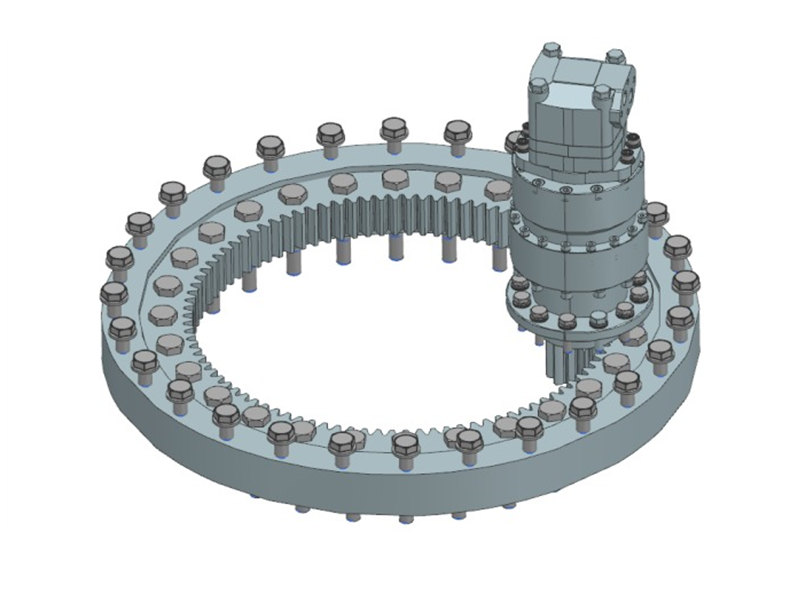

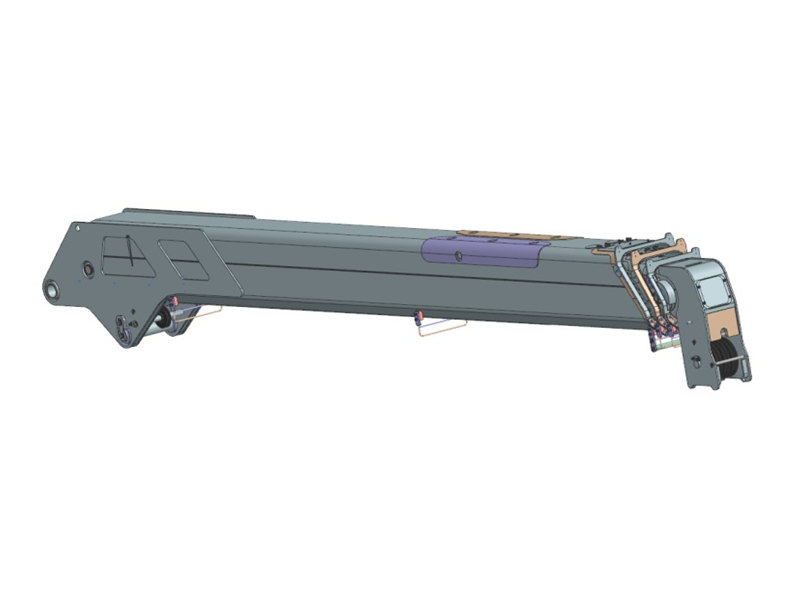

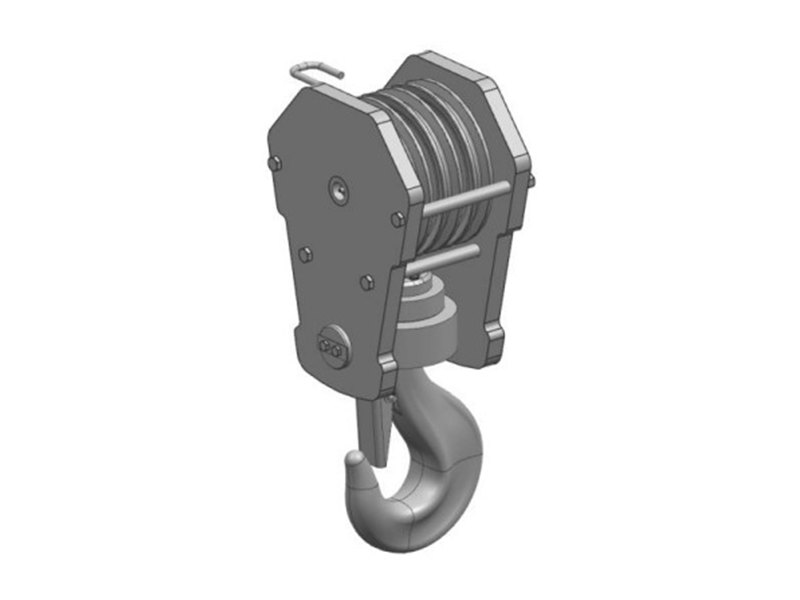

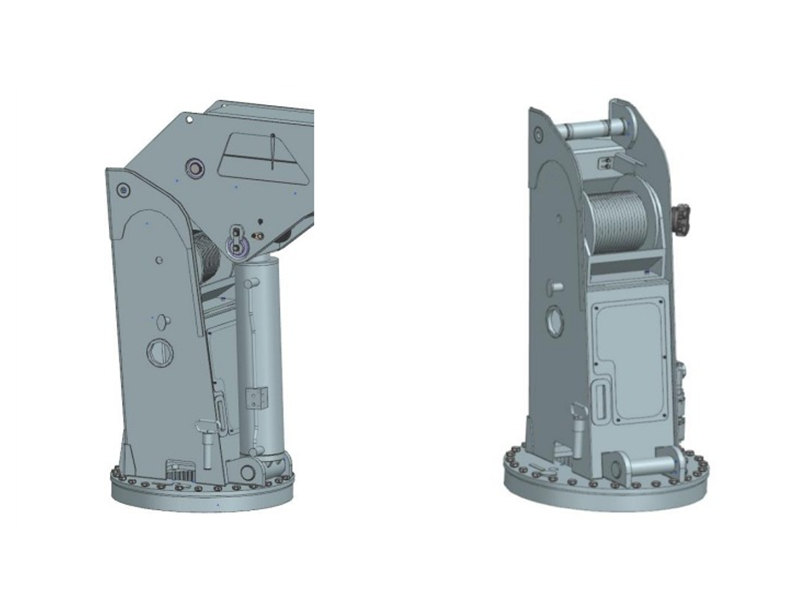

» Ⅵ. Crane Structure:

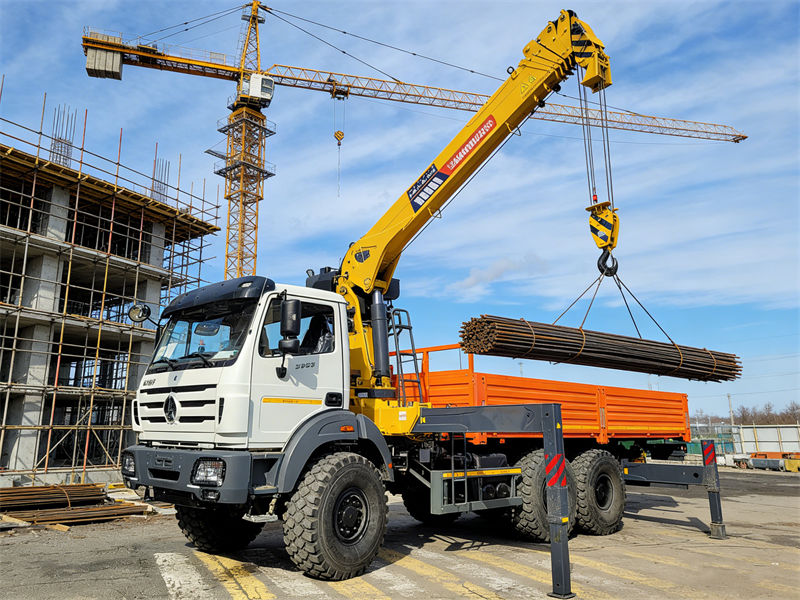

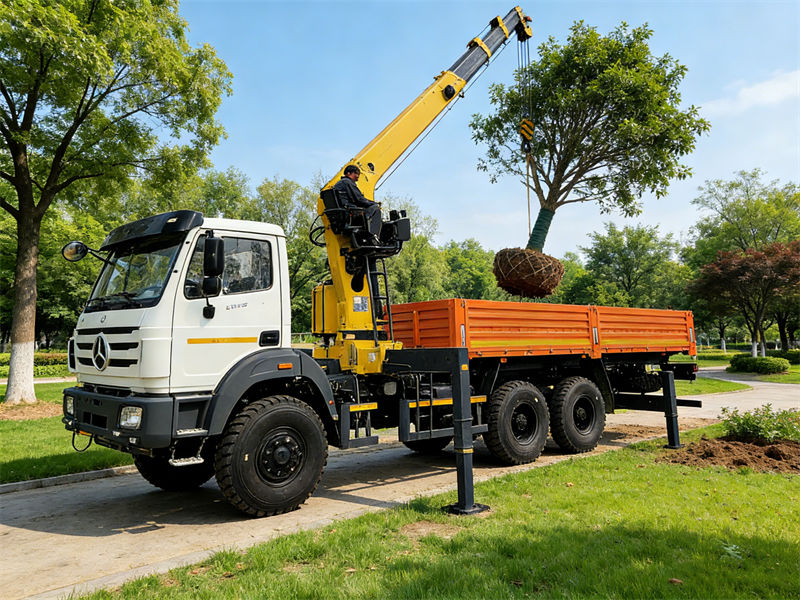

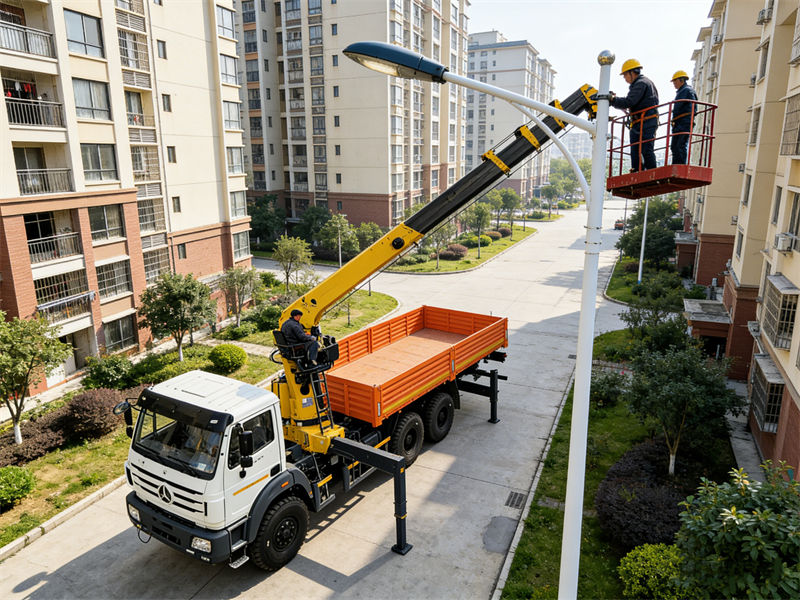

» Ⅶ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
