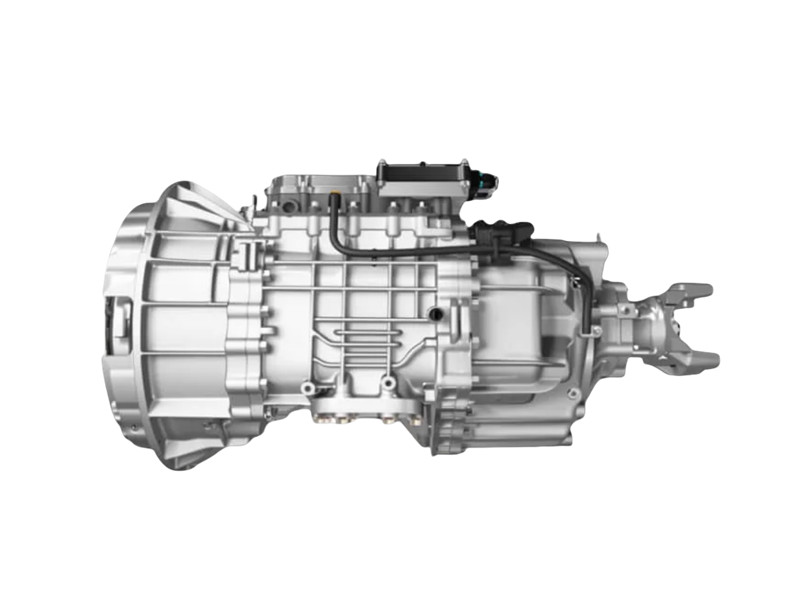

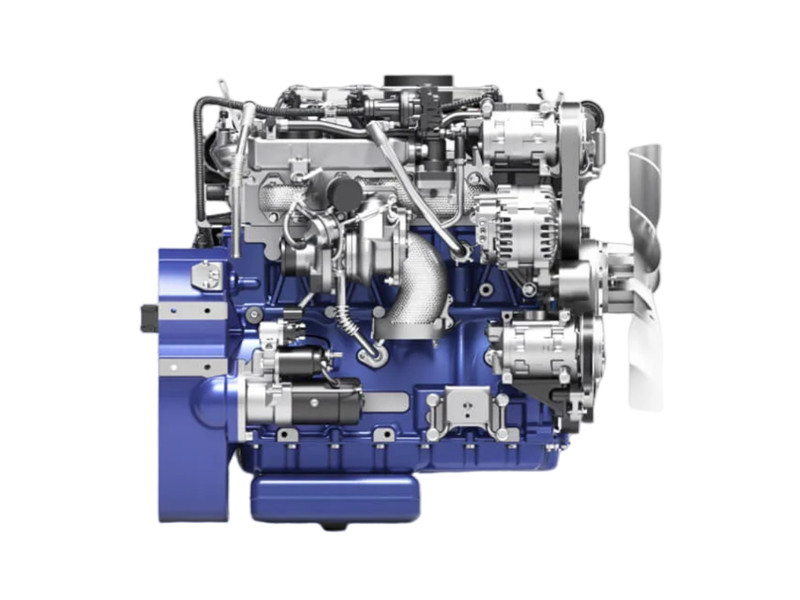

The Beiben 6×6 Lorry Crane is a heavy-duty special operation vehicle that combines a robust off-road chassis with an efficient lifting function. It is powered by a Weichai 430-horsepower China V (National V) emission standard engine, paired with a FAST 12-speed transmission and a 6×6 drive system, granting it outstanding performance on complex road conditions. The chassis employs a combination of a 7-ton front axle and a 13-ton rear axle, with a gross vehicle mass of 25 tons. This configuration ensures load-bearing stability while providing 14 tons of effective payload capacity, adaptable to various engineering and transport requirements.

The Beiben 6×6 Stiff Boom Crane Truck is outfitted with an S2505 hexagonal telescopic boom crane, boasting a maximum lifting torque of 25 ton-meters, a working height of 21.4 meters, and a coverage radius of 18.6 meters. It comes with dual-stage telescopic front outriggers. Its hydraulic system utilizes imported multi-valve blocks and piston pumps, enabling precise combined movements and efficient energy conversion. Combined with the 18.6-meter boom length and a single crane design, it is particularly suited for lifting tasks in confined spaces. Overall, the vehicle strikes a balance between off-road maneuverability and on-site operational efficiency.

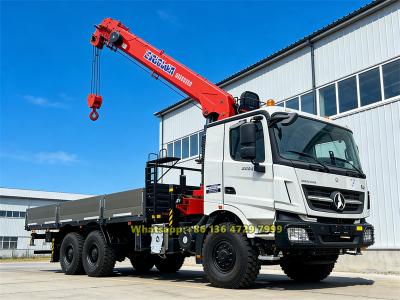

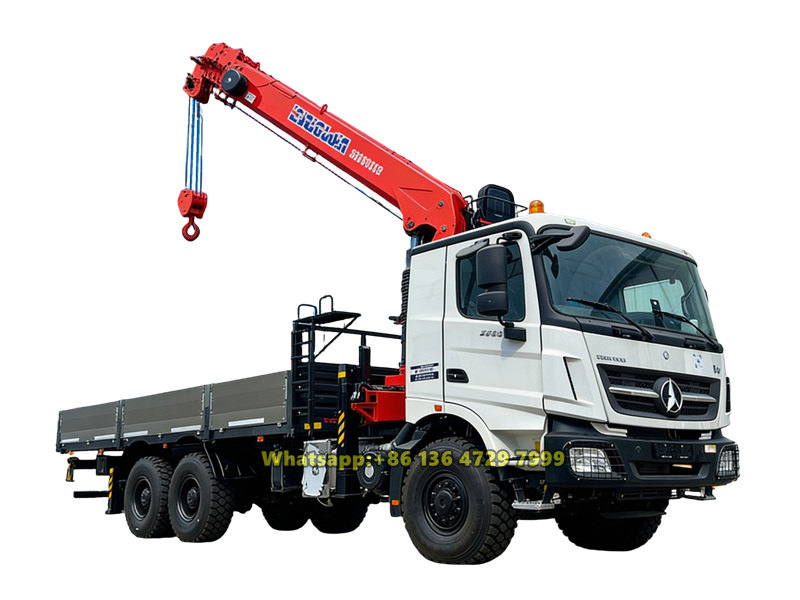

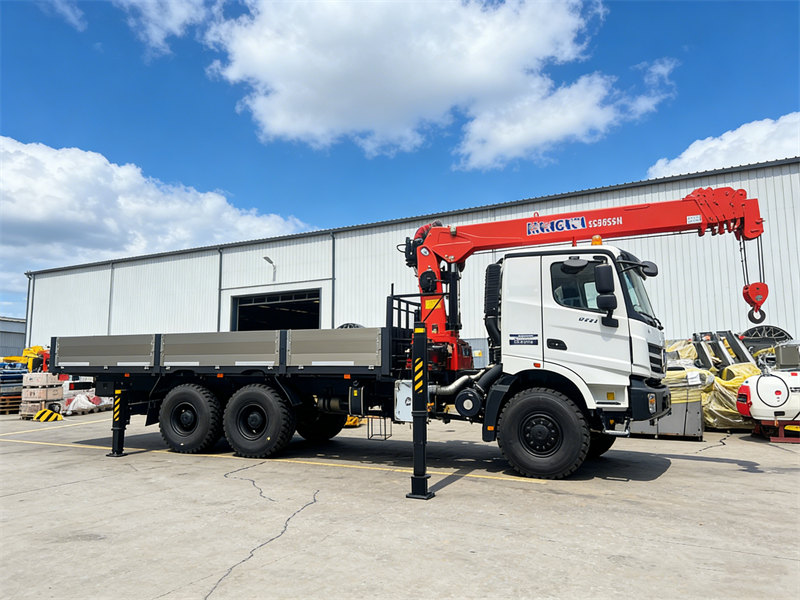

*Beiben 6×6 utility truck with crane*

CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.

» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

▶ Chassis: Beiben 6×6 chassis, V3 cabin, Weichai 430HP diesel engine, 14.00R20 single tires

▶ Crane model: S2505, 5 sections

▶ Crane lifting capacity: 10 tons

▶ Outriggers: 2 front outriggers and 2 rear outriggers

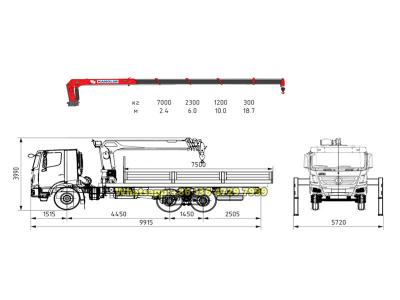

▶ Cargo box dimensions: 7200×2550×600 mm

» Ⅱ. Product Specifications:

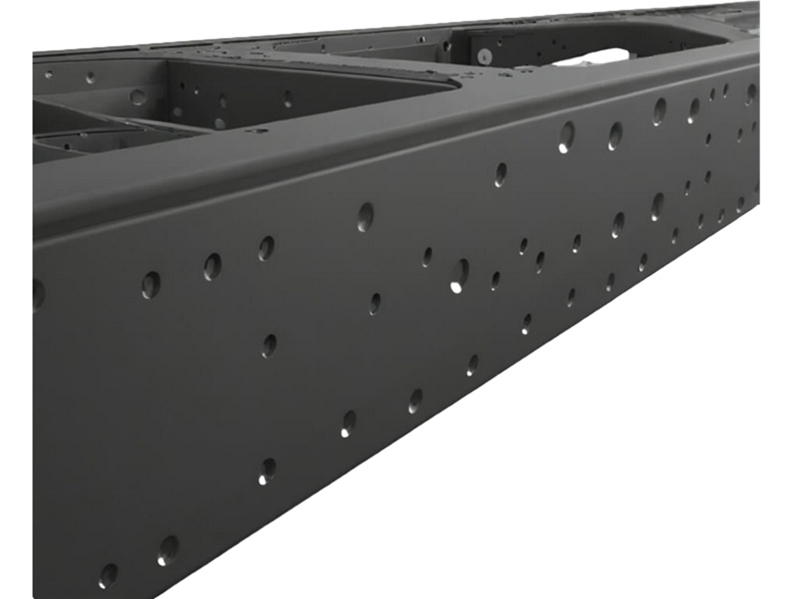

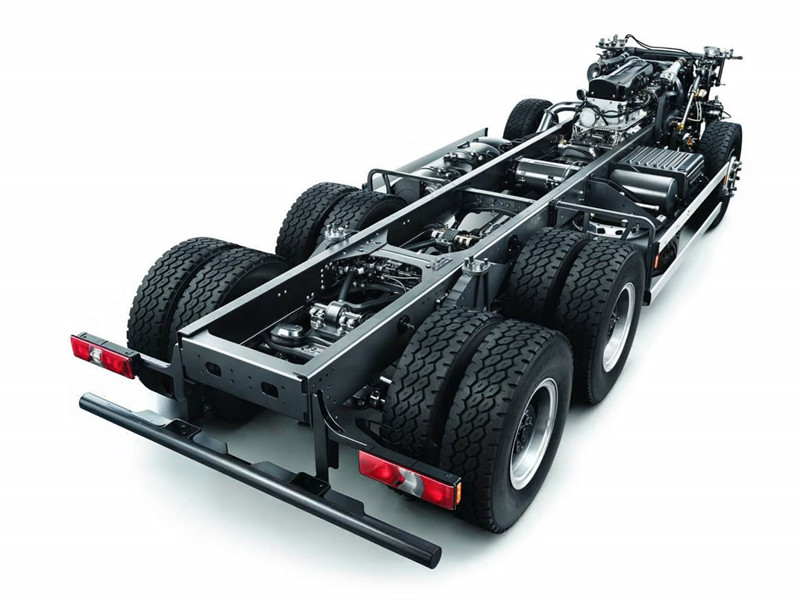

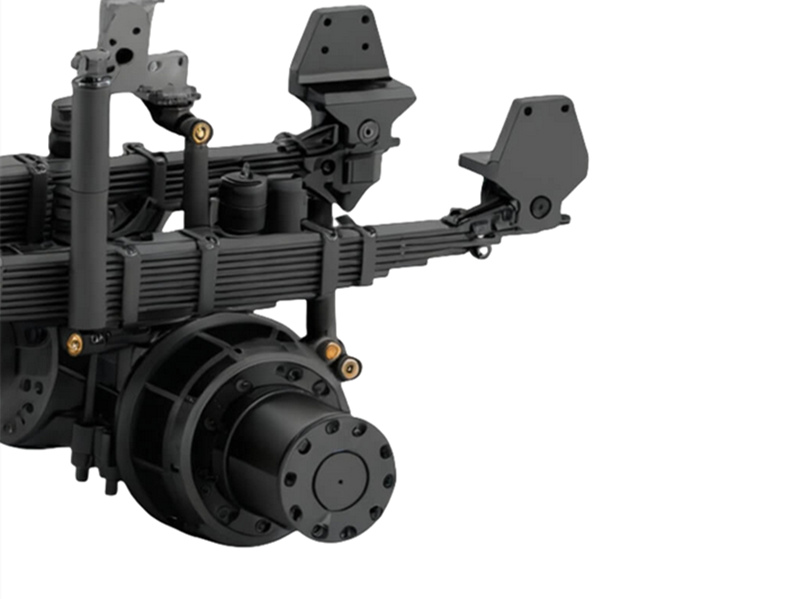

» Ⅲ. Chassis Advantages:

» Ⅳ. S2505 Crane Specifications:

Crane Advantages:

1. Extensive Application Scope: An 18.6-meter boom length and a single crane height of 2500 mm after installation ensure adaptability to various narrow road conditions and strong passability.

2. Dual-Stage Outriggers: The unique dual-stage front outrigger structure offers fast extension/retraction speed and a generous 7000 mm span.

3. High Operational Efficiency: The system features imported main valves for better combined operation and fine control. Standard imported piston pumps ensure excellent kinetic energy conversion and high work efficiency.



Crane parameters:

Key Parameter	Parameter Value
Max. Lifting Capacity	10000
Rated Lifting Moment	25
Max. Working Radius	18.6
Max. Lifting Height	21.4
Boom Sections	5
Max. Elevation Angle	80
Slewing Angle	360
Outrigger Span	7000
System Flow Rate	65
Crane Dead Weight	4300
Rated System Pressure	30

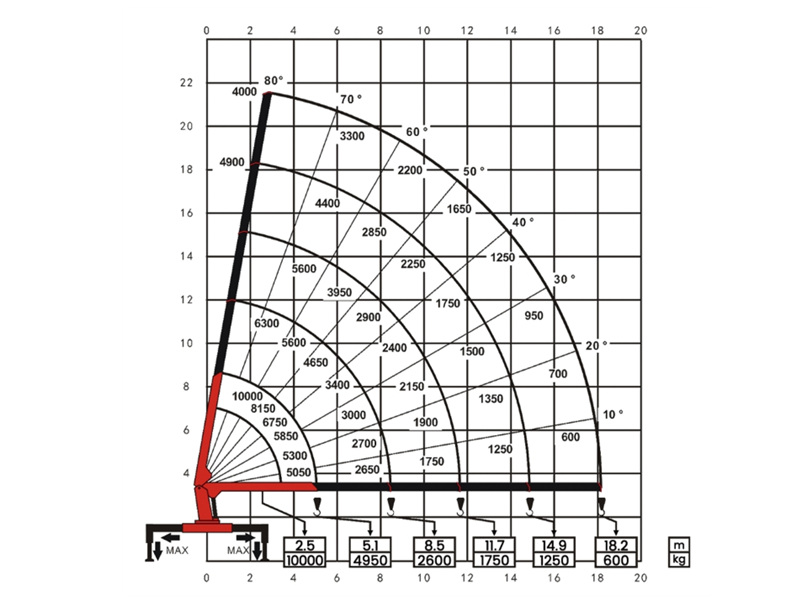

Rated lifting load

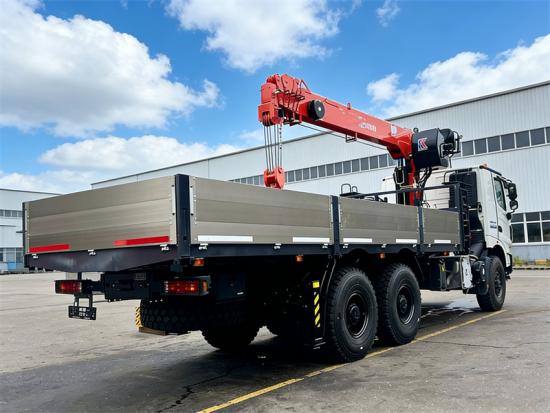

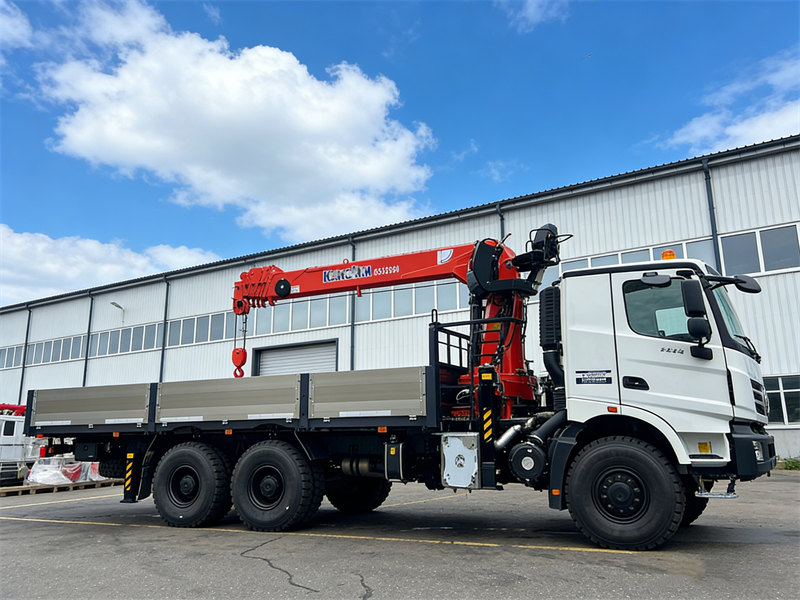

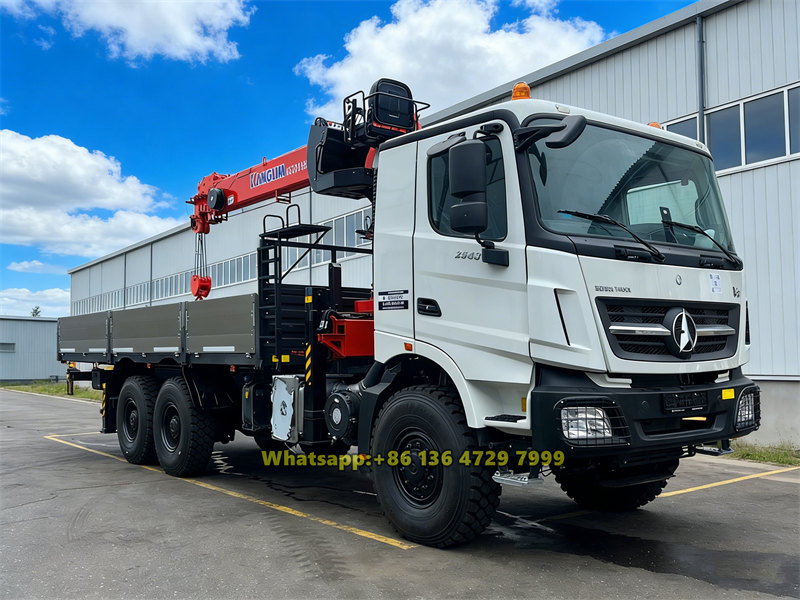

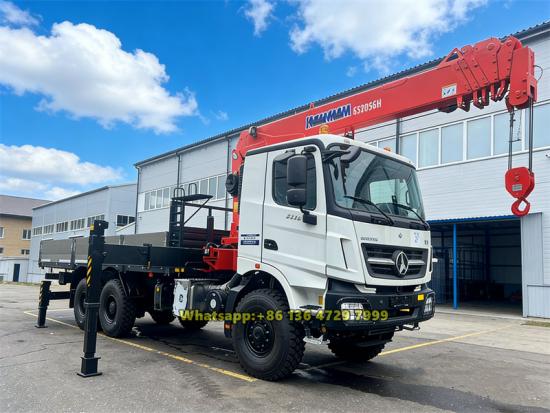

» Ⅴ. Product Pictures:

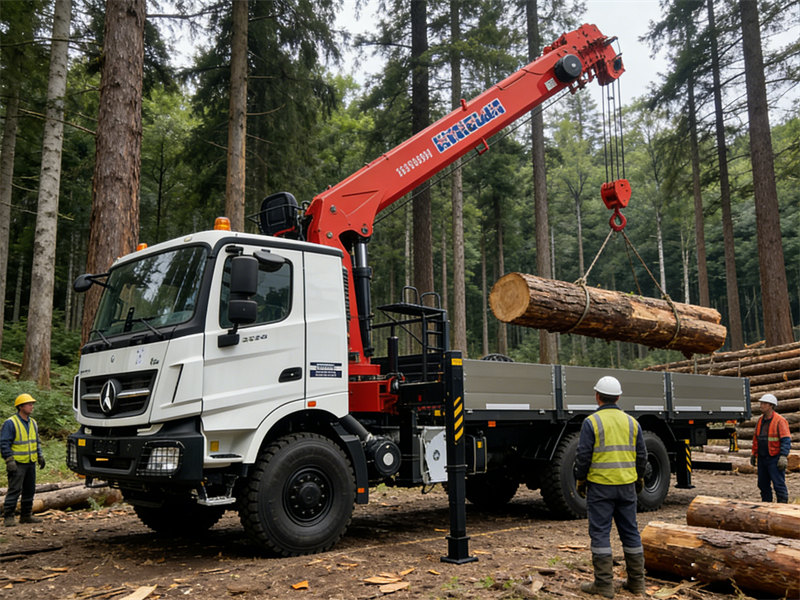

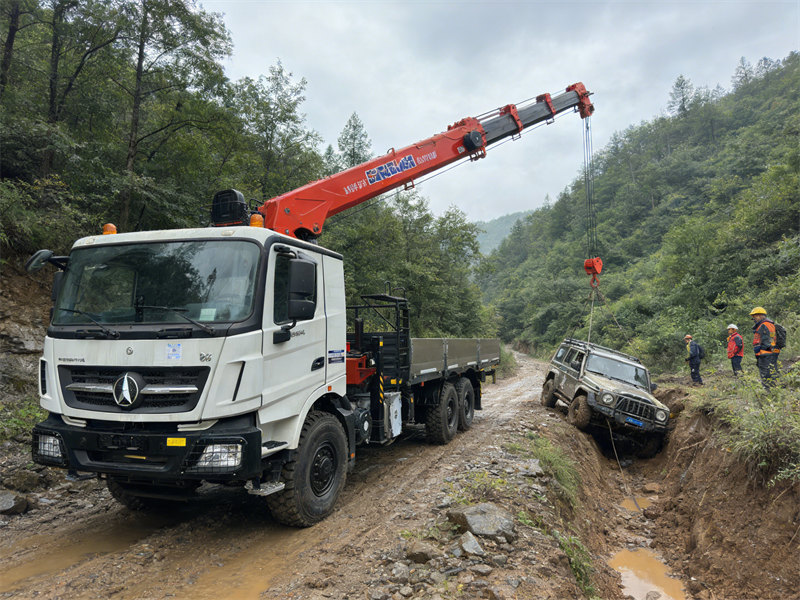

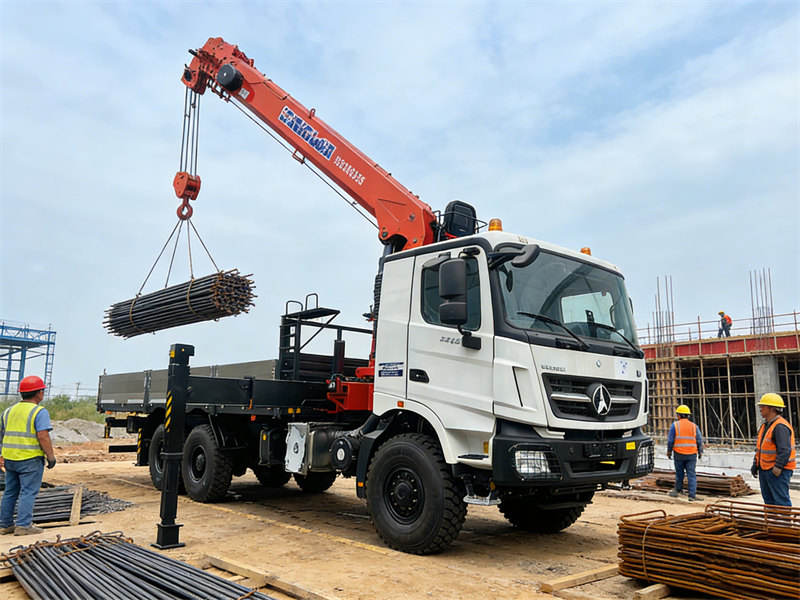

» Ⅵ. Product Applications:
