The Beiben 6×6 all-wheel drive crane truck is a heavy-duty engineering vehicle that integrates robust transport capabilities with efficient lifting performance. At its core are the WP10.380 engine and an all-wheel drive chassis, providing outstanding power and off-road capability. The vehicle is equipped with a Palfinger SPS20000 straight-arm crane, offering a rated lifting capacity of 8 tons and a maximum lifting height of 16.1 meters. Designed with high-strength steel and wide-span outriggers, it ensures stable and reliable operation even in complex working conditions.
Market Price:
$36500Working Capcity:
8000 kgCabin Type:
Beiben NG80B cabinDimension ( mm ) :
9915×2550×3900Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS180TRemark:
14.00R20 tires, XCMG, palfinger/unic crane for optionThe Beiben 6×6 truck-mounted crane is built on the BEIBEN 2538 chassis, renowned for its exceptional load-bearing capacity and off-road performance. Powered by a Weichai WP10.380 high-torque diesel engine and paired with a FAST 12-speed manual transmission, it delivers robust and reliable power. With a 6×6 drive configuration, well-distributed axle loads, and a chassis designed to support up to 25 tons, combined with large 14.00R20 tires, the vehicle ensures steady operation in challenging terrains.
This Beiben 6×6 truck loader crane features a Palfinger SPS20000 four-section telescopic boom, capable of lifting up to 8 tons and reaching heights exceeding 16 meters. The octagonal boom, constructed from high-strength steel, achieves both weight reduction and enhanced structural integrity. Complemented by wide-span outriggers, a high-pressure filtration hydraulic system, and maintenance-free steel cables, the crane significantly improves operational stability and reduces maintenance needs, making it suitable for a wide range of heavy-duty material handling scenarios.
CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B cabin, Weichai 380HP diesel engine, 14.00R20 single tires
▶ Crane model: SPS20000, telescopic boom with 4 sections
▶ Crane lifting capacity: 8 tons
▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 7000×2550×600 mm
» Ⅱ. Product Specifications:
|
Chassis brand |
BEIBEN |
|
Model |
2538 |
|
Emission standard |
Euro 3 |
|
Drive type |
6×6 |
|
Cabin |
Beiben NG80B long cabin, all-metal, two-door, two-seat, one sleeper berth, with A/C |
|
Overall dimensions, mm |
9915×2500×3900 |
|
Wheelbase, mm |
4450 + 1450 |
|
Chassis weight, kg |
9500 |
|
GVW, kg |
25,000 |
|
Load capacity, kg |
14,000 – 16,500 |
|
Technically permissible maximum mass per each axle of the vehicle, kg |
- first axle: 7000 kg - second axle: 9000 kg - third axle: 9000 kg |
|
Engine |
Brand: WEICHAI Model: WP10.380E32 Type: Four-stroke turbocharged diesel |
|
- Quantity and location cylinders |
6, in-line |
|
- Displacement |
9.726L |
|
- Compression ratio |
16:1 |
|
- Maximum power, kW |
280 |
|
- Maximum torque, Nm |
1600 |
|
Fuel |
Diesel |
|
Fuel tank capacity |
400 L |
|
Gearbox (brand, type) |
FAST 12JS180T |
|
Mechanical, with manual control |
|
|
Steering (brand, type) |
8098, steering gear "screw-nut on recirculating balls-rack-sector", steering drive with hydraulic booster |
|
Tires |
14.00R20, 6+1 pcs |
|
Cargo box size |
6500×2500×600 mm |
|
Crane |
|
|
Brand |
Palfinger |
|
Model |
SPS20000 |
|
Rated Lifting Capacity |
8000 kg |
|
Max. Lifting Height |
16.1 m |
|
Max. Outreach |
14.0 m |
|
Numbers of the Boom |
4 |
|
Outrigger Span |
5600 mm |
|
Range of the Boom Lifting Angle |
0~75° |
|
Slewing Angle |
Continuous |
» Ⅲ. Chassis Advantages:

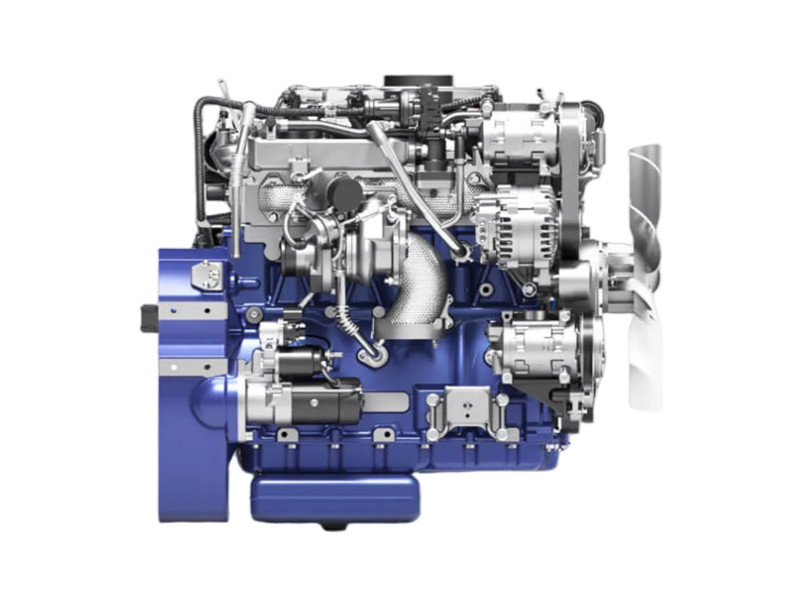

Weichai Engine
• 6-cylinder
• 340HP~560HP power
• Emission standard: Euro 3 or Euro 5

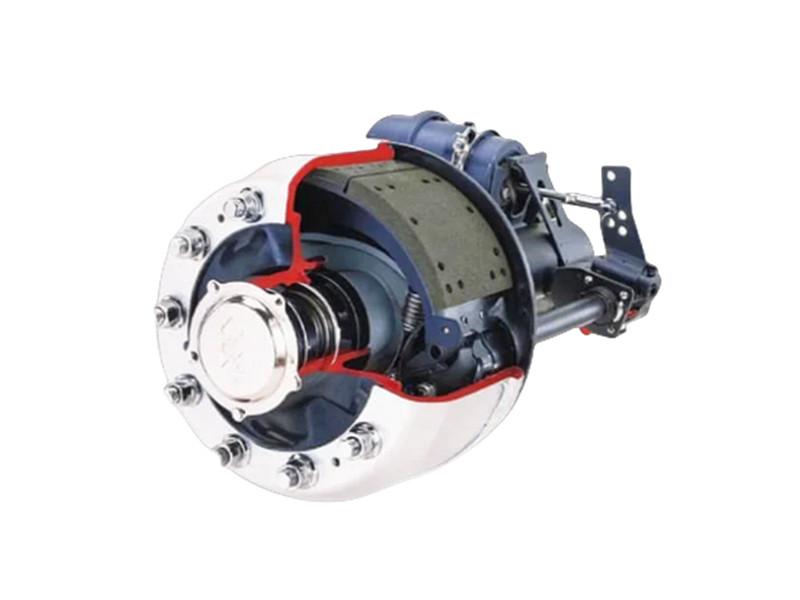

Brake system
• Pneumatic-assisted dual-shoe braking system
• Ductile iron body with final drive wheels
• Reliable braking performance

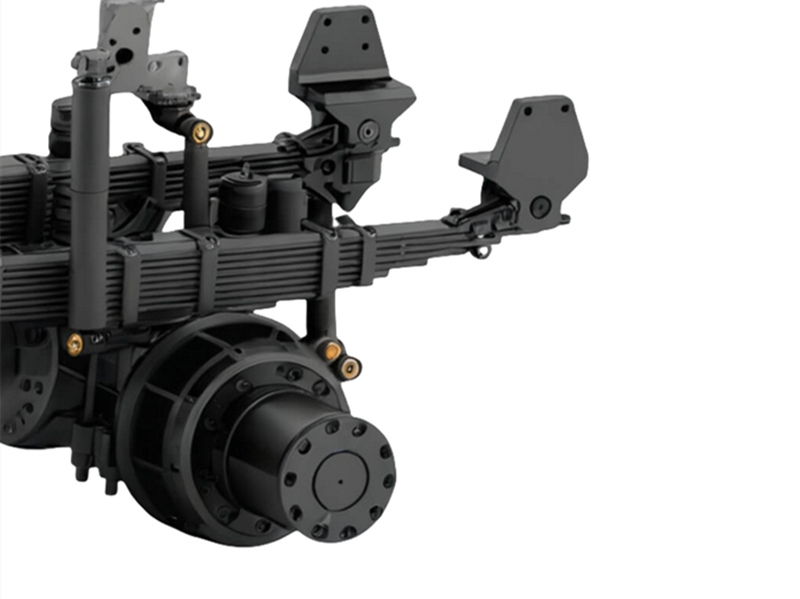

Suspension System
• Equipped with an integrated balance suspension system.
• Utilizing a combination of leaf springs, balance suspension, thrust bars, and stabilizer bars, it ensures stability under load.
• It features high load-bearing capacity and excellent long-term reliability.
» Ⅳ. Palfinger SPS20000 Crane Specifications:
Crane Features:
1. Featuring an octagonal crane cross-section design for enhanced lifting capacity;
2. Constructed with HG785 and SG960 high-strength steel, reducing crane weight while improving load-bearing capability;
3. Equipped with a high-pressure filter to extend the service life of the hydraulic system;
4. Wide-span outriggers provide superior overall machine stability;
5. Utilizes maintenance-free hoisting wire rope, offering a service life three times longer than standard wire ropes.

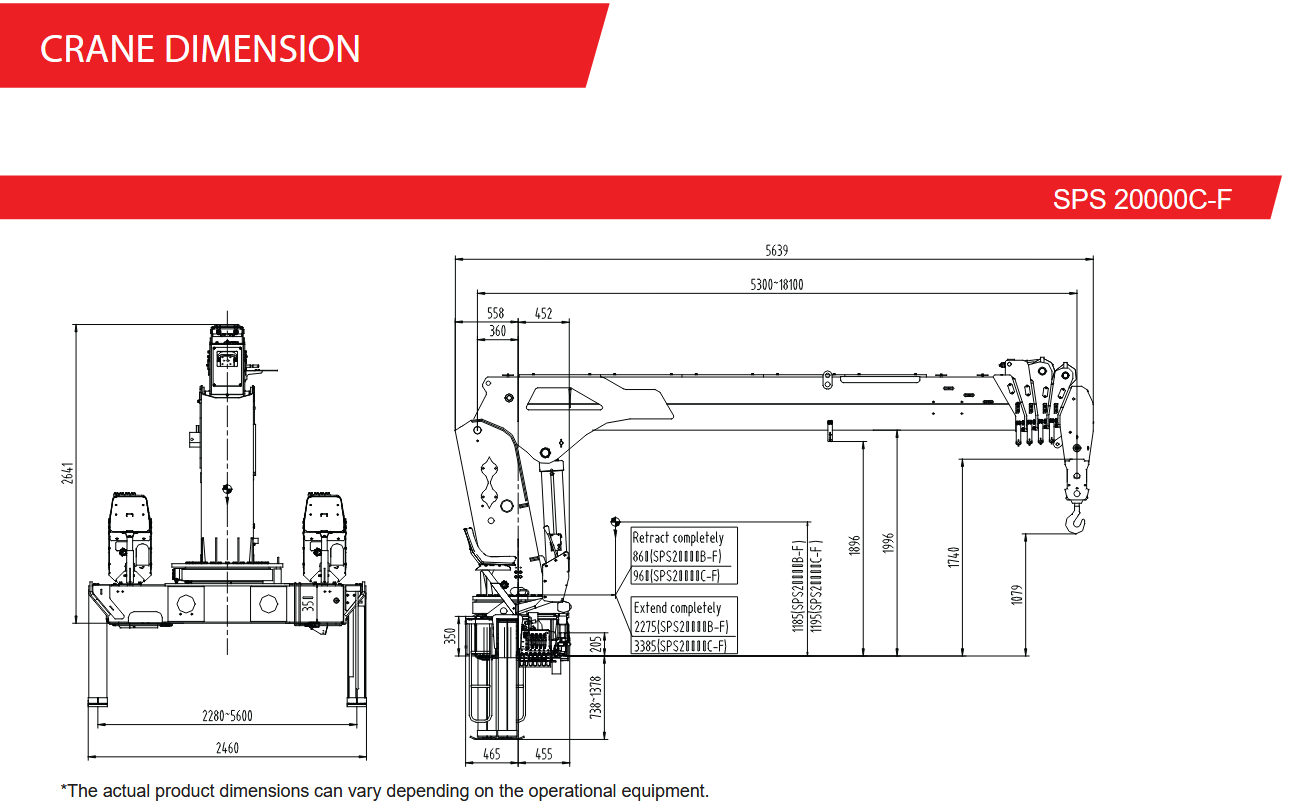

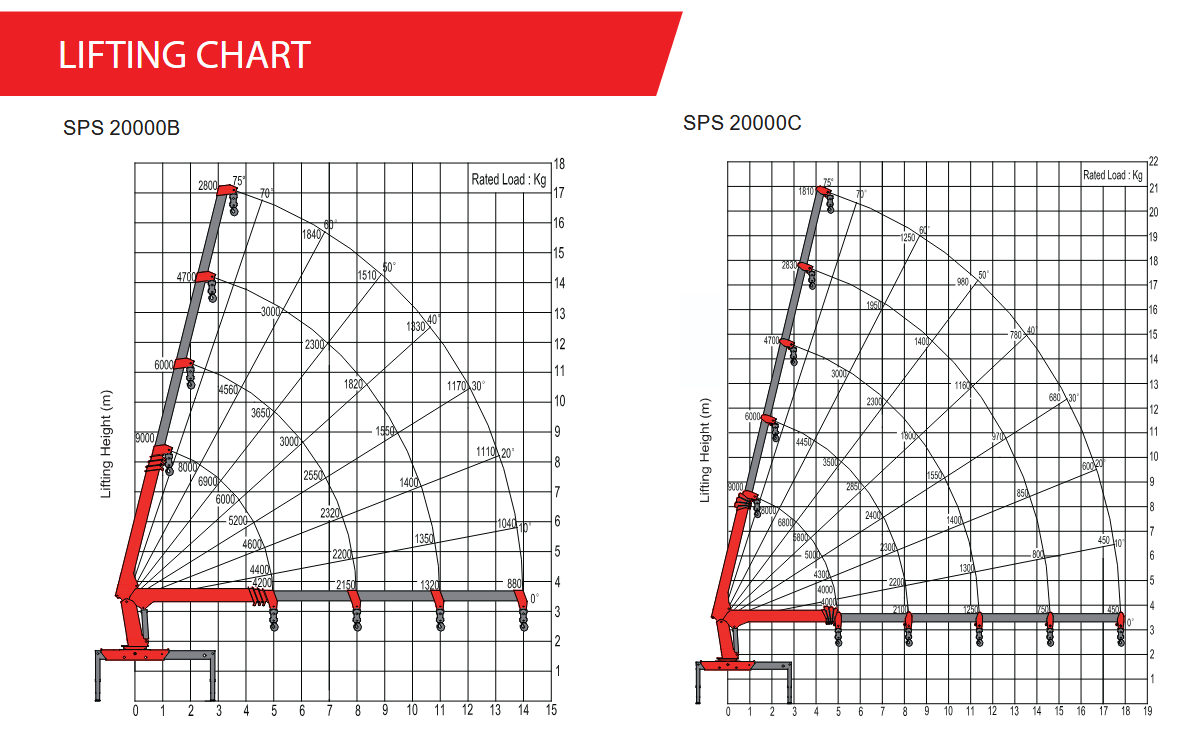

Crane Specifications
|
Basic Data |
SPS 20000B |
SPS 20000C |
|
Rated lifting moment |
20 mt |
20 mt |
|
Rated lifting capacity |
8000 kg (2.5 m) |
8000 kg (2.5 m) |
|
Max. outreach |
14.0 m |
17.7 m |
|
Max. lines of the hook |
4 |
4 |
|
Slewing angle |
Continuous |
Continuous |
|
Boom raising angle |
0 ~ 75° |
0 ~ 75° |
|
Max. lifting height |
16.1 m |
20.1 m |
|
Length of the boom system (retracted) |
5.3 m |
5.3 m |
|
Length of the boom system (fully extended) |
14.3 m |
18.1 m |
|
Boom sections |
4 |
5 |
|
Outrigger span (fully extended) |
5600 (mm) |
5600 (mm) |
|
Recommended flow rate |
45 ~ 70 L/min |
45 ~ 70 L/min |
|
Operating pressure |
31 Mpa |
31 Mpa |
|
Recommended oil tank capacity |
200 L |
200 L |
|
Crane moment (dynamic) |
334.3 kNm |
350.2 kNm |
|
34.1 mt |
35.7 mt |
|
|
Torsional moment (dynamic) |
21.0 kNm |
21.0 kNm |
|
2.1 mt |
2.1 mt |
|
|
Crane weight |
3820 kg (Floor control) |
4110 kg (Floor control) |
|
3850 kg (High seat) |
4130 kg (High seat) |

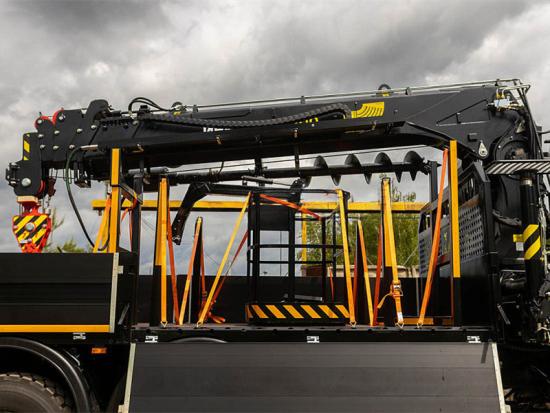

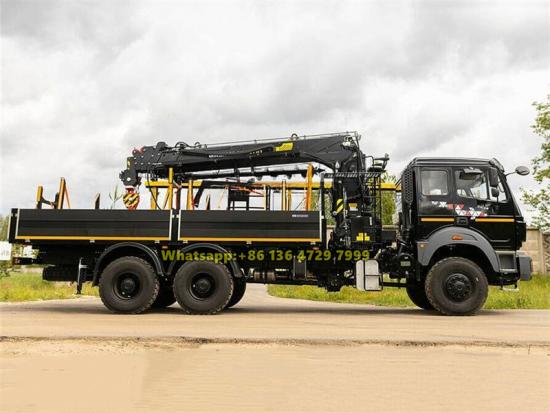

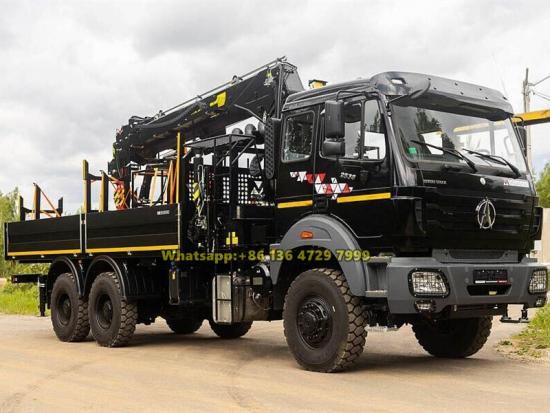

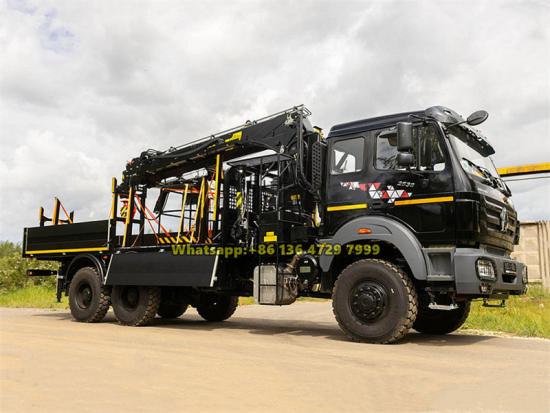

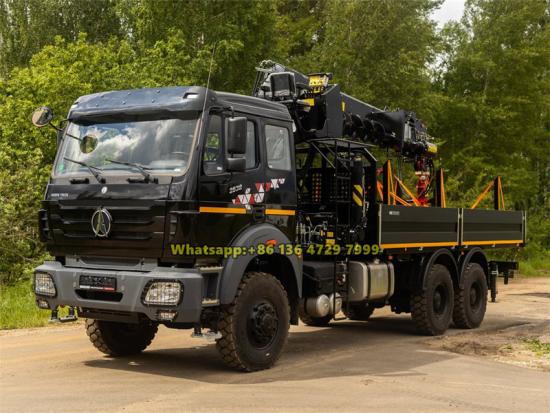

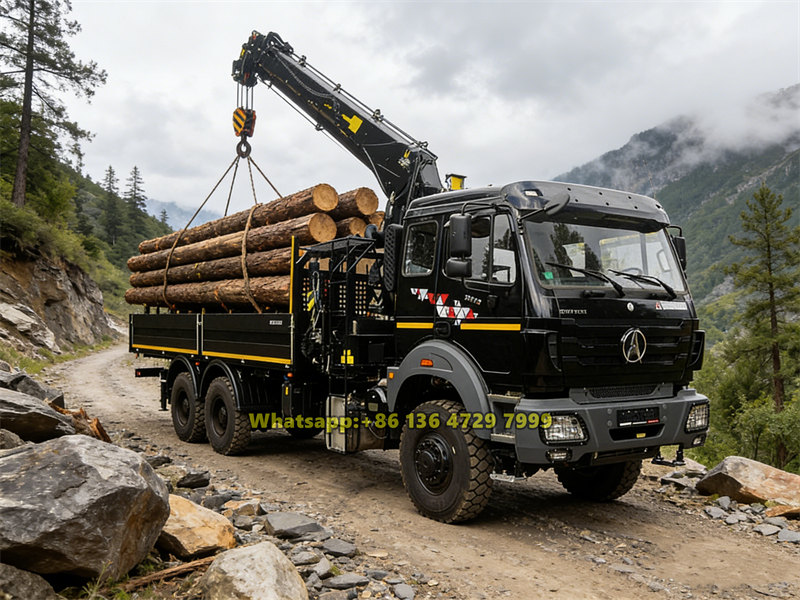

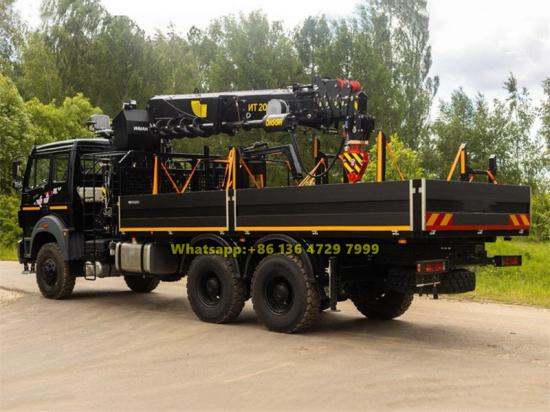

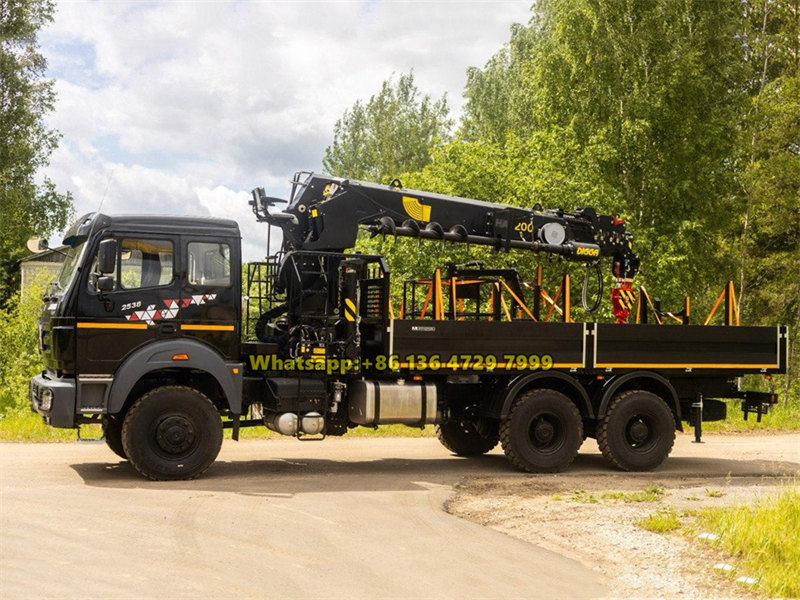

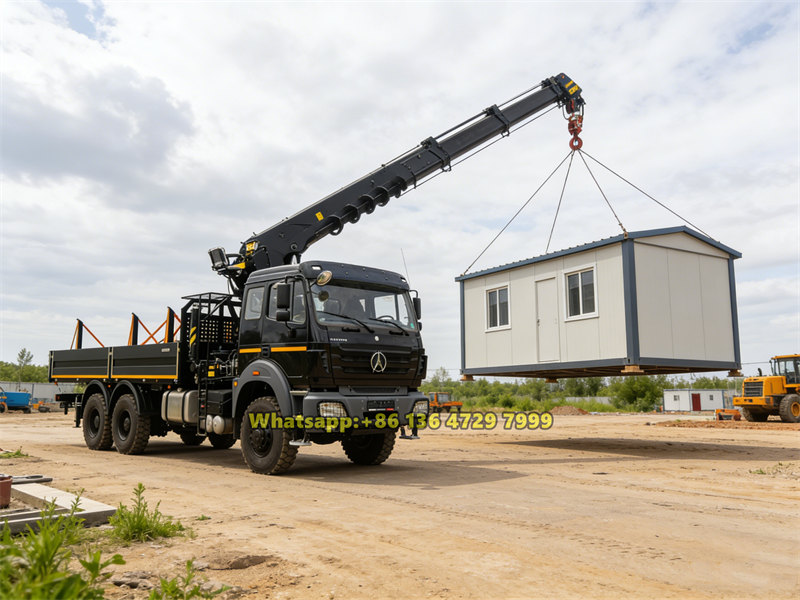

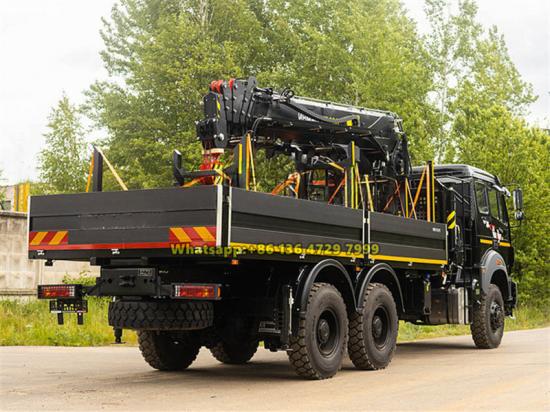

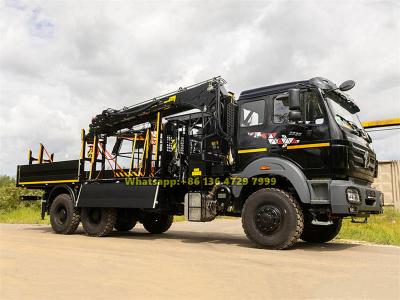

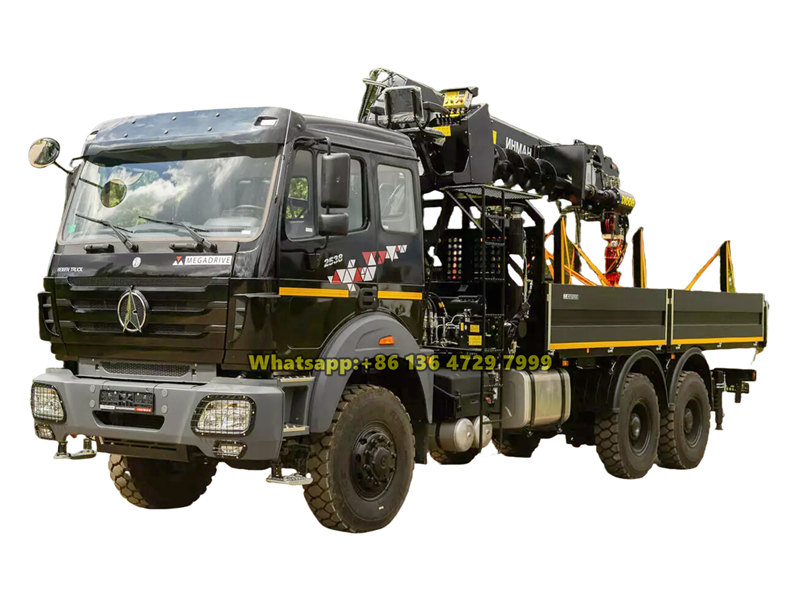

» Ⅴ. Product Pictures:

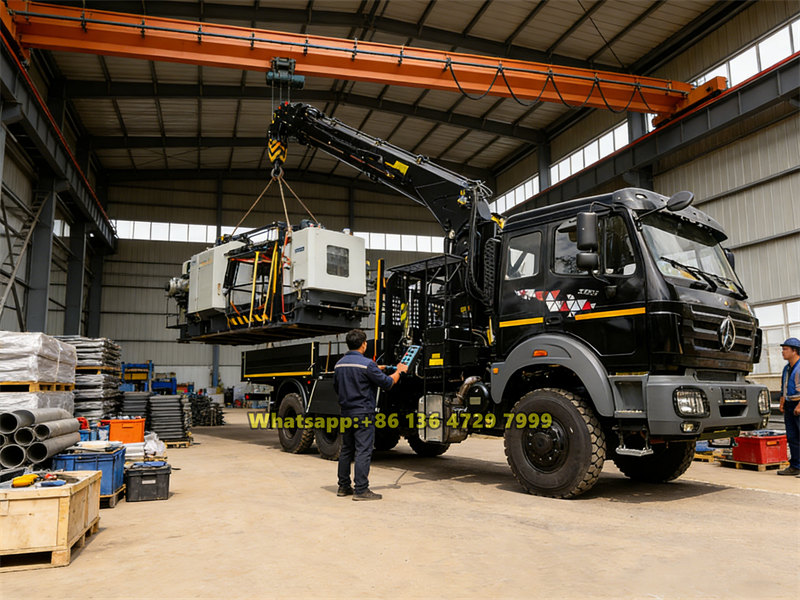

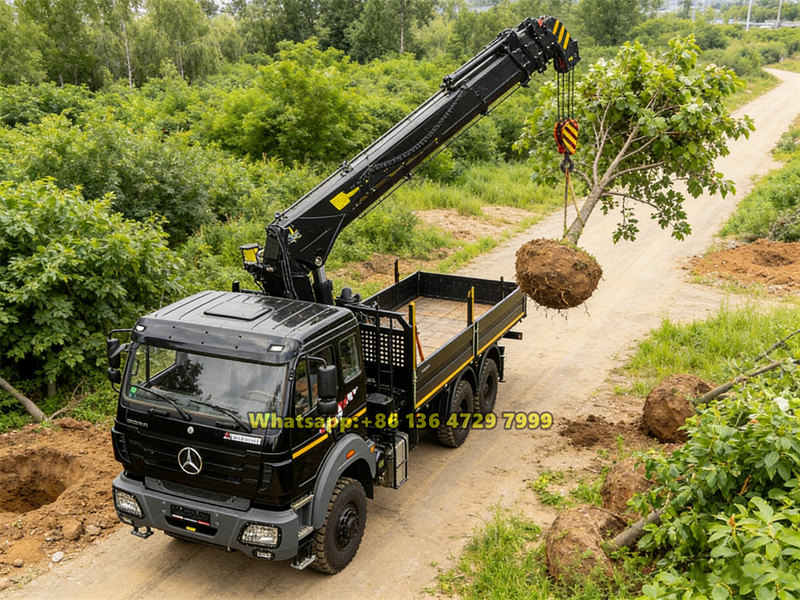

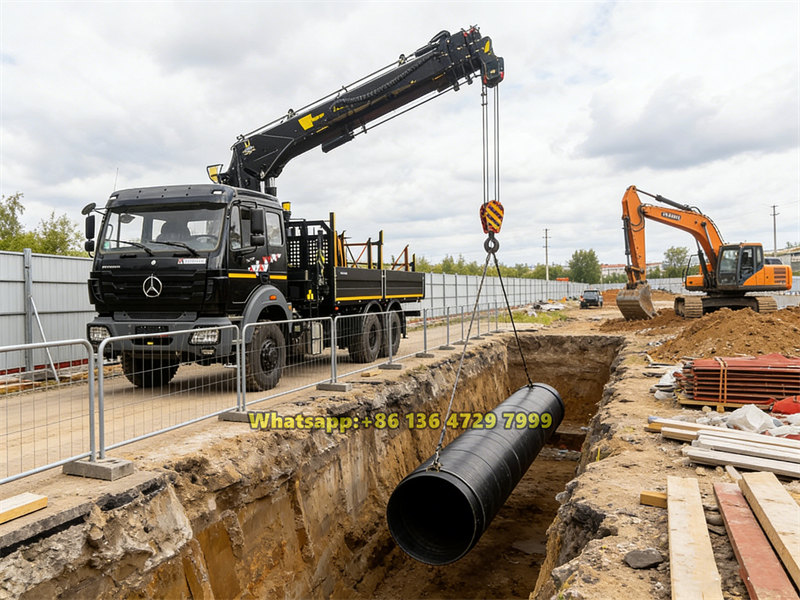

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
