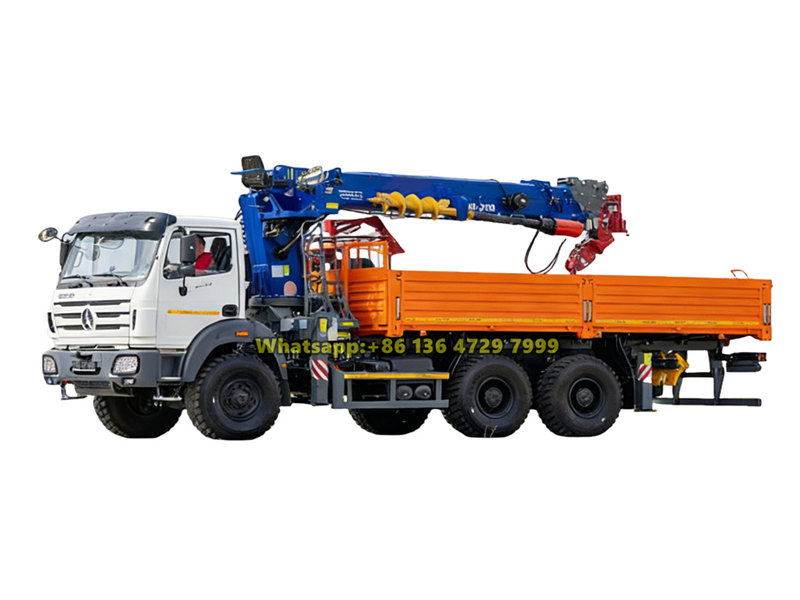

The Beiben 6×6 truck-mounted crane is a versatile engineering vehicle that combines heavy-duty transport with efficient lifting capabilities. Built on the Beiben 6×6 all-wheel-drive chassis, it is powered by a Weichai 380-horsepower engine and equipped with a UNIC 10-ton, four-section telescopic crane, achieving a maximum working radius of 13.69 meters. With excellent off-road maneuverability and a gross vehicle weight of 26 tons, it is widely used in construction sites, logistics transportation, and other fields requiring lifting and transport operations.
Working Capcity:
10000 kgCabin Type:
Beiben NG80B cabinDimension ( mm ) :
10100×2550×3970Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TTyres:
12.00R24Remark:
14.00R20 tires, XCMG, palfinger/unic crane for optionThe Beiben 6×6 telescopic boom truck is a heavy-duty engineering vehicle based on the Beiben off-road chassis and integrated with a UNIC 10-ton crane. Featuring a 6×6 all-wheel-drive configuration, it delivers outstanding off-road performance and adaptability to complex road conditions. Powered by the Weichai WP10.380E32 diesel engine, which provides a robust 380 horsepower, and paired with a FAST 12-speed manual transmission, it ensures reliability and efficiency in various operational environments. With a total weight of 26 tons, the vehicle offers compliant load capacity while maintaining stability during heavy-duty operations, thanks to its reinforced frame and dual-reduction drive axle structure.
The core highlight of this vehicle is the UNIC URV1004 four-section telescopic crane, which has a maximum lifting capacity of 10.1 tons, a maximum working radius of 13.69 meters, and outriggers with a span of 5.7 meters, supporting 360-degree continuous rotation. By integrating a powerful off-road chassis with an efficient lifting system, the Beiben 6×6 hydraulic crane truck serves as a multifunctional heavy-duty tool ideal for engineering construction, material transport, and related applications.
CEEC factory is authorized supplier on beiben boom crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B cabin, Weichai 380HP diesel engine, 14.00R20 single tires
▶ Crane model:UNIC URV1004, telescopic boom, 4 sections
▶ Crane lifting capacity: 10 tons
▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 6200×2550×600 mm
» Ⅱ. Product Specifications:
|
BEIBEN 6x6 truck with UNIC 10-ton crane |
|||
|
Emission standard |
EUR 3 |
||
|
Chassis brand |
Beiben |
||
|
Driving Type |
6×6, left hand drive |
||
|
Crane lifting capacity |
10000 kg |
||
|
Dimensions |
|||
|
Wheelbase(mm) |
4450+1450 |
||
|
Overall Dimension(mm) |
10100×2550×3970 |
||
|
Cargo box dimension(mm) |
6200x2500x600 |
||
|
Weight parameters |
|||
|
GVW(kg) |
26,000kgs |
||
|
Curb weight(kg) |
14,500kgs |
||
|
Rated load weight(kg) |
11,500kgs |
||
|
Chassis parameter |
|||
|
Front axle |
7000 kg, driving axle, differential lock |
||
|
Rear/middle axle |
13000kg+13000kg, double reduction driving axle, differential lock |
||
|
Front wheel track (mm) |
1995 |
||
|
Rear wheel track (mm) |
1800/1800 |
||
|
Front/rear overhang(mm) |
1515/3085 |
||
|
Approach angle (°) |
23 |
||
|
Departure angle (°) |
11 |
||
|
Max speed(km/h) |
80 |
||
|
Suspension |
Leaf spring suspension, front 10 pcs, rear 13 pcs |
||
|
Engine performance |
|||
|
Brand |
Weichai |
||
|
Engine model |
WP10.380E32 |
||
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine |
||
|
No. of cylinders |
Straight-6 cylinders |
||
|
Displacement(L) |
9.726 L |
||
|
Max. Output (KW) |
280kw |
||
|
Fuel type |
Diesel |
||
|
Max. output (Ps) |
380 ps |
||
|
Rated speed (rpm) |
2200 rpm |
||
|
Max. torque (N.m) |
1600 N.m |
||
|
Fuel tank (L) |
400 |
||
|
Tires |
|||
|
Tire specifications |
14.00R20 |
||
|
Number of tires |
6 pcs and one spare tire |
||
|
Drive Line |
|||
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
||
|
Transmission |
FAST 12JS180T, 12 forwarders, 2 reverse gear, synchronous meshing, manual |
||
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
||
|
Suspension system |
|||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
||
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
||
|
Electrical Equipment |
|||
|
Voltage |
24V |
||
|
Batteries |
2X12V/135Ah |
||
|
Starter |
6.2Kw/24V |
||
|
Cab description |
|||
|
NG80 cab short cab, cool and heating air-conditioner, Hydraulic suspension driver's seat, TAS85 steering wheel, With FM/AM radio player, USB interface, |
|||
|
Unic 10-ton telescopic boom crane specifications |
|||
|
Crane model |
URV1004 |
Unit |
|
|
Max lifting capacity |
10100 |
kg |
|
|
Max hook height |
15.6 |
m |
|
|
Max working raduis |
13.69 |
m |
|
|
Boom sections |
4 |
||
|
Boom length |
5.0~14.0 |
m |
|
|
Outrigger span |
5.7 |
m |
|
|
Slewing angle (continuous) |
360 |
° |
|
|
Hydraulic oil tank capacity |
120 |
L |
|
» Ⅲ. Chassis Advantages:
 |
 |

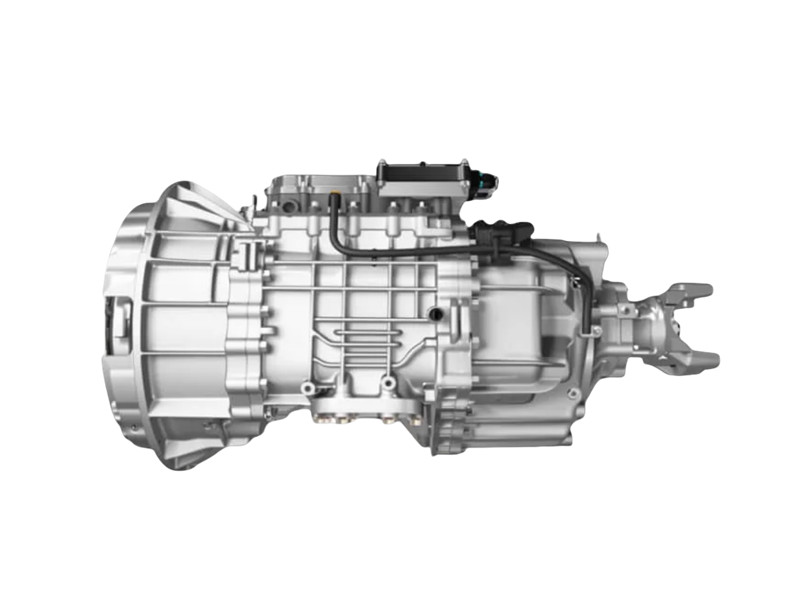

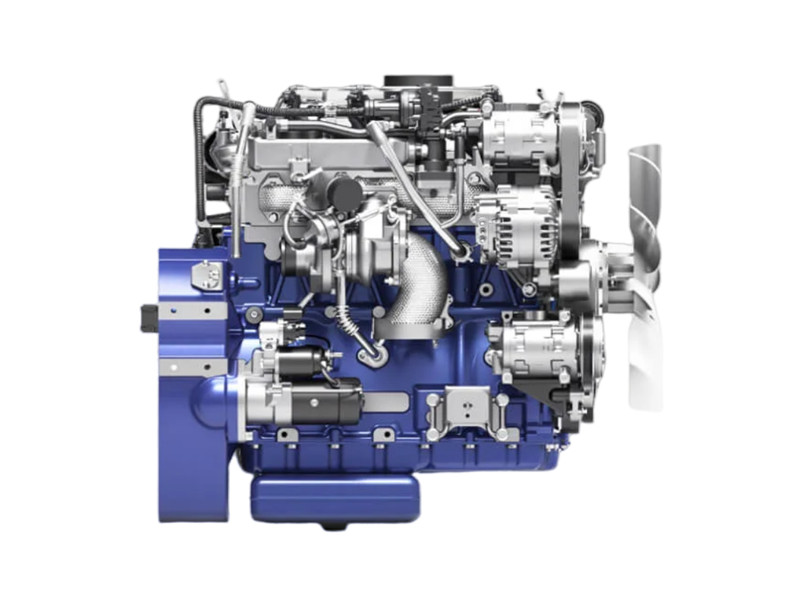

| Weichai 380HP diesel engine | FAST 12-speed gearbox |
 |
 |

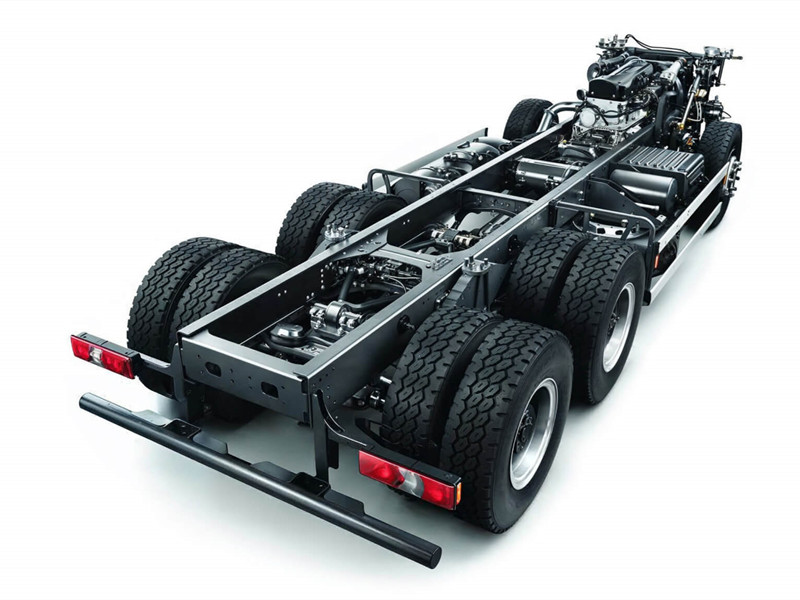

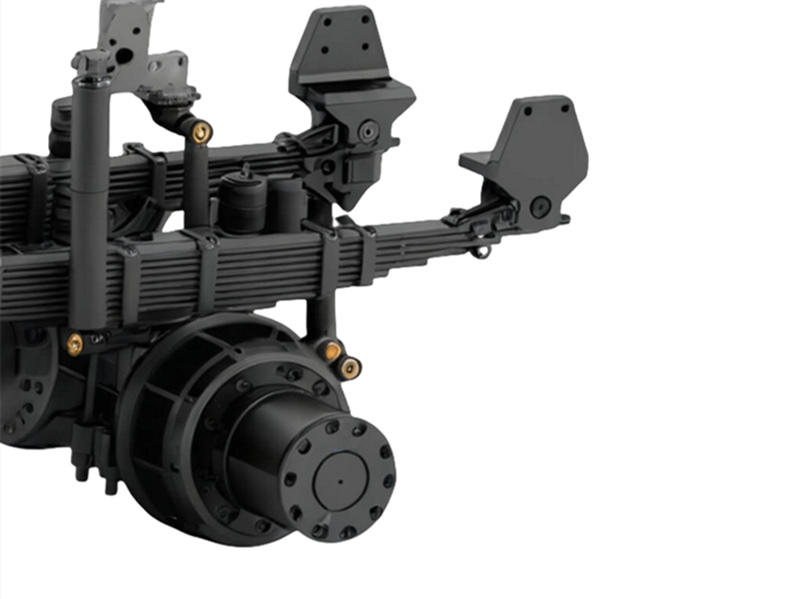

| Reliable chassis | Reinforced suspension system |

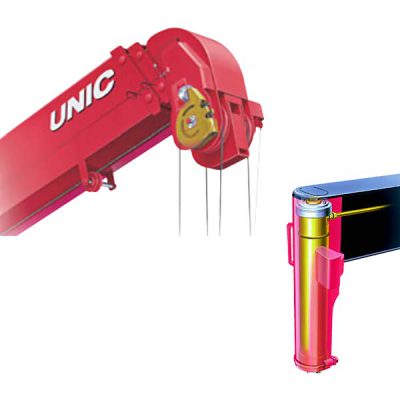

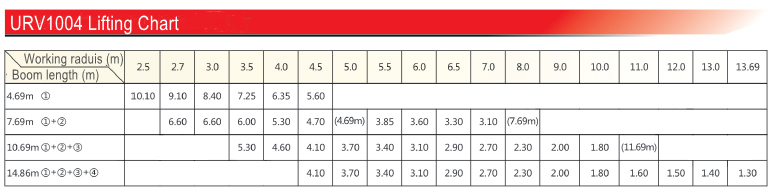

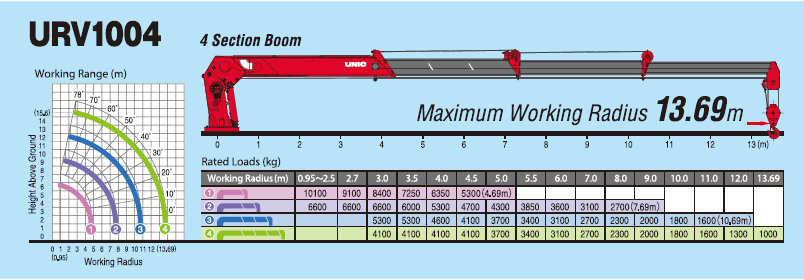

» Ⅳ. UNIC URV1004 Crane Specifications:
Crane Specifications
|
MODEL |
URV1004-CNCTS |
URV1004-CNCT |
|
Control Type |
Top Seat-Control |
Base-Control |
|
Max. Lifting Capacity |
10,100 kg at 2.5 m |
10,100 kg at 2.5 m |
|
Max. Hook Height |
15.6 m |
15.6 m |
|
Max. Working Radius |
13.69 m |
13.69 m |
|
Max. Boom Length |
14.0 m |
14.0 m |
|
Min. Boom Length |
5.0 m |
5.0 m |
|
Boom Sections |
4 |
4 |
|
Outrigger Span |
5.7 m |
5.7 m |
|
Boom Raising Angle |
Min. -0.6° to Max. 78° |
Min. -0.6° to Max. 78° |
|
Slewing Angle |
360° Continuous |
360° Continuous |

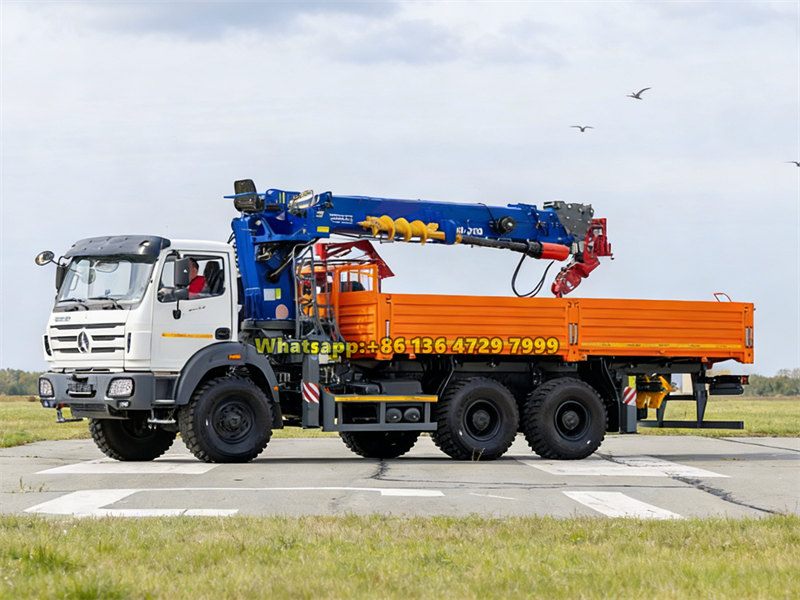

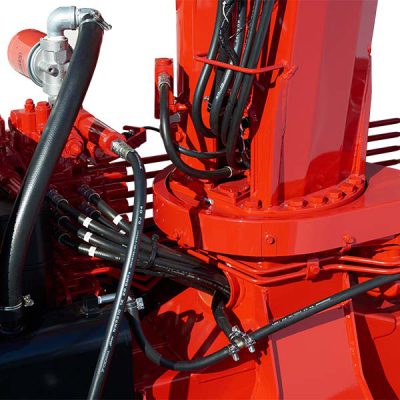

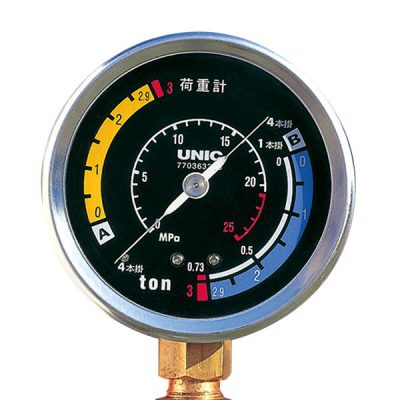

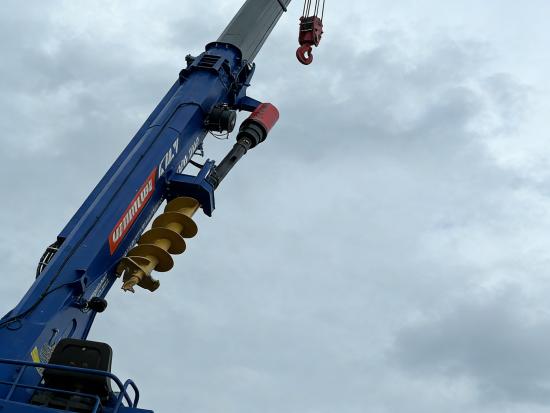

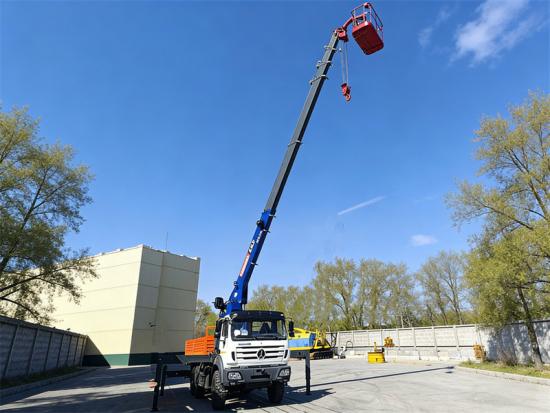

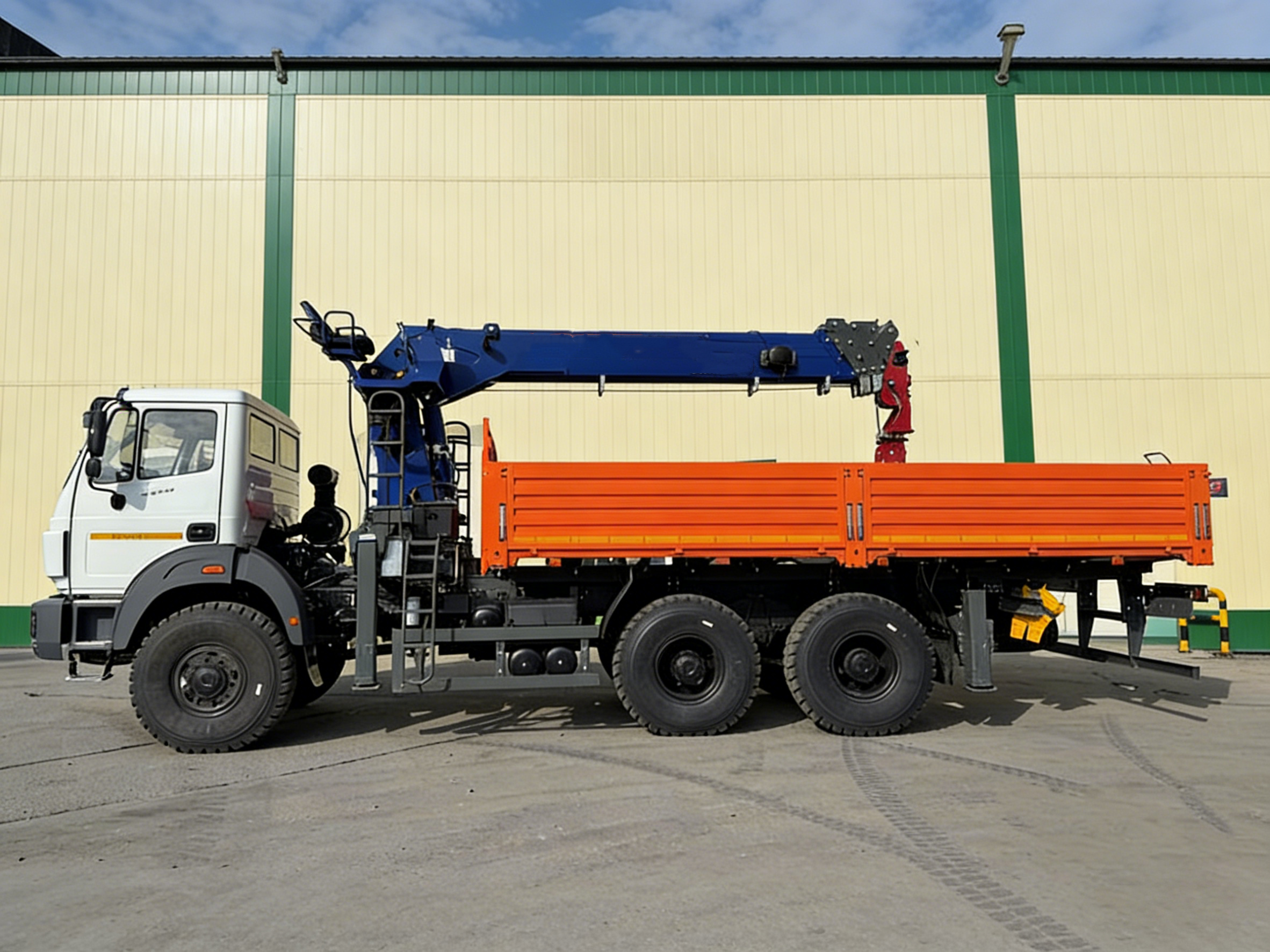

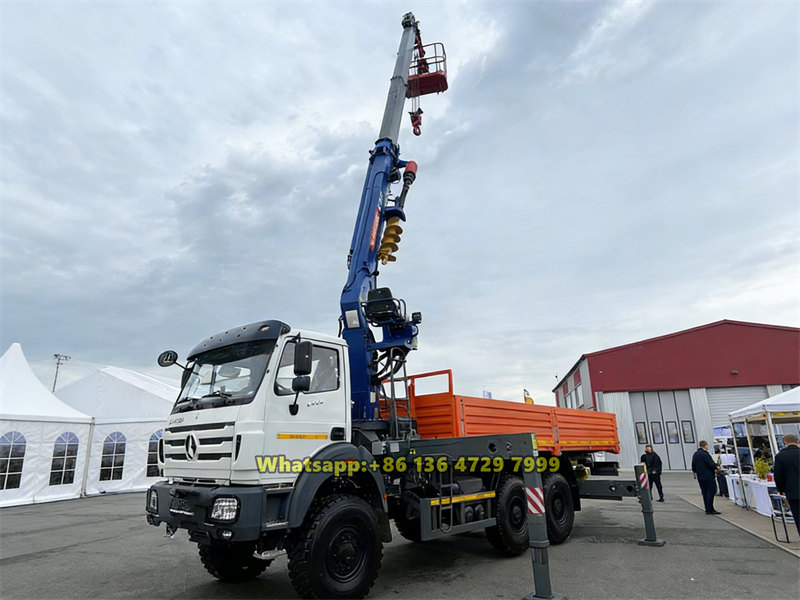

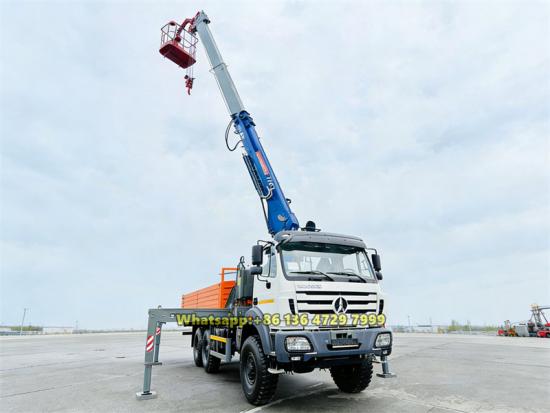

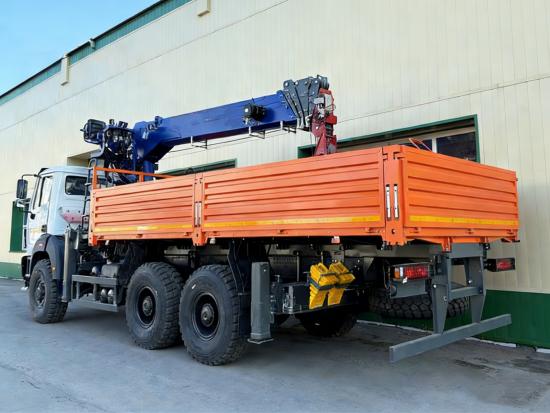

» Ⅴ. Product Pictures:

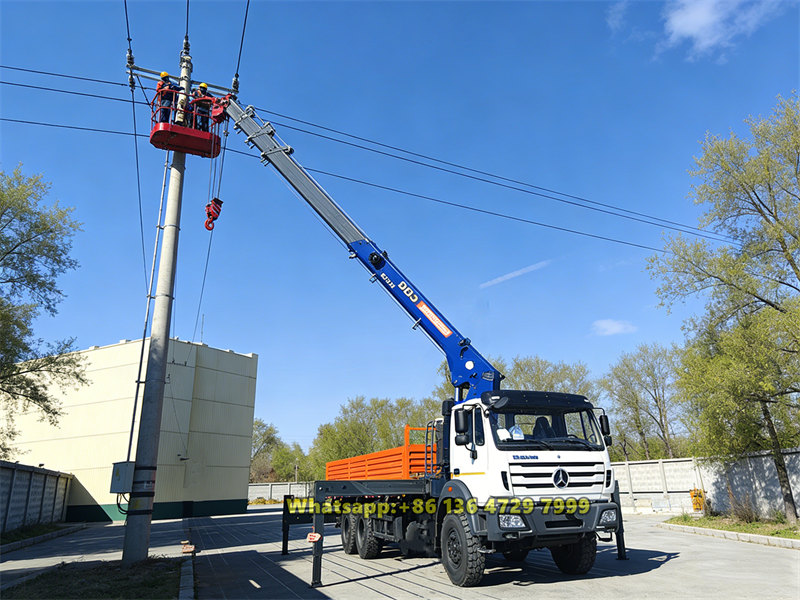

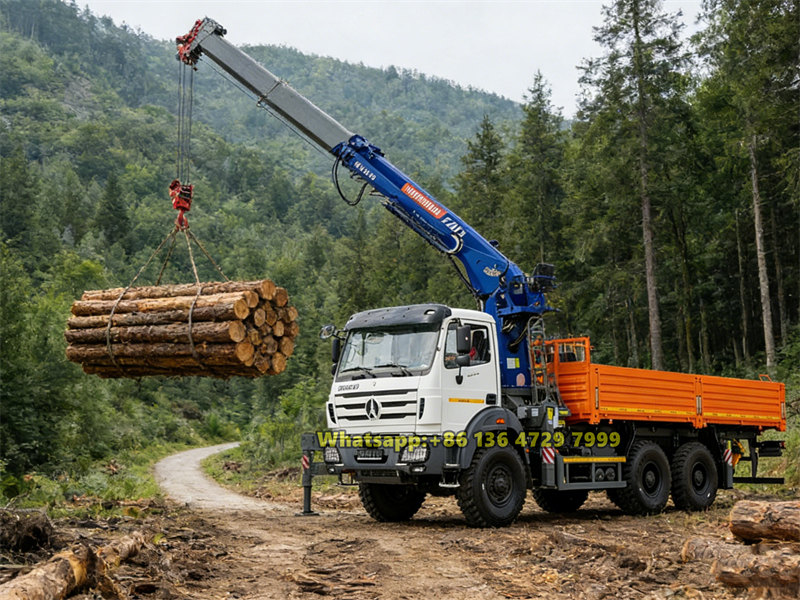

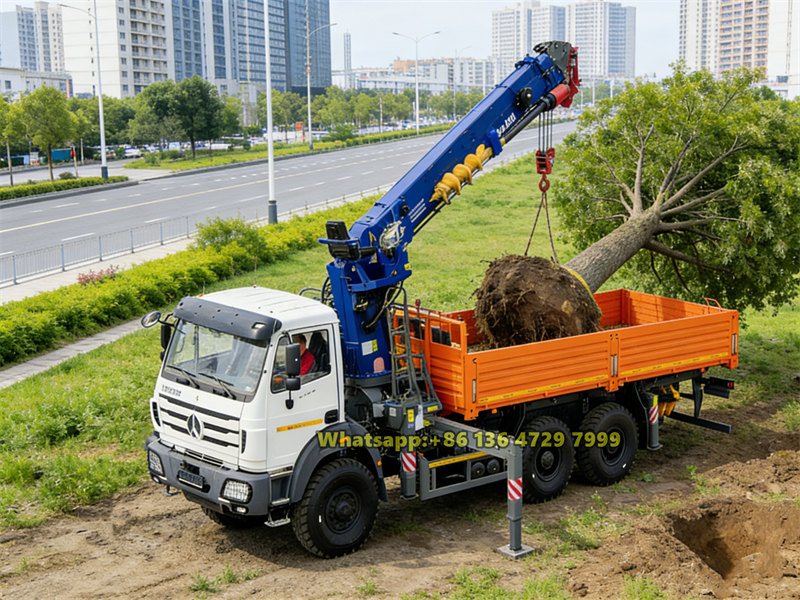

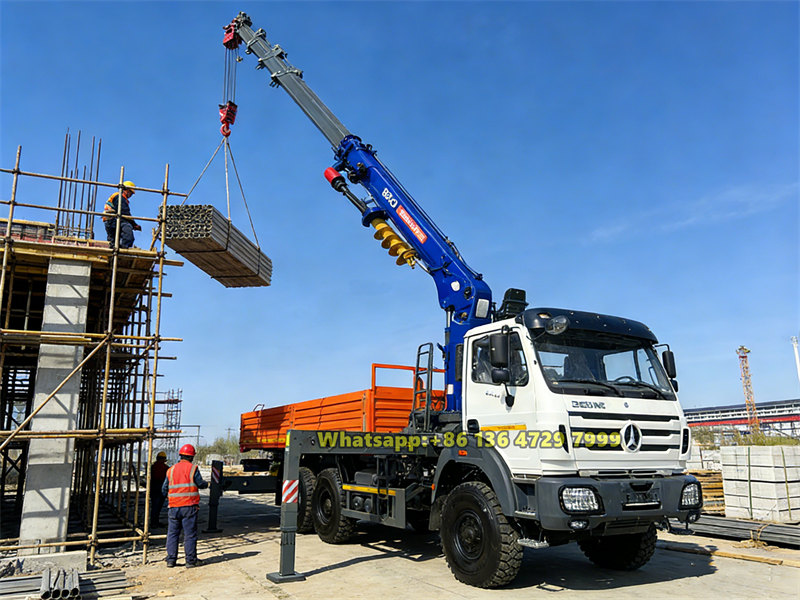

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
