The Beiben 6x4 heavy-duty dump truck chassis is engineered for high-intensity construction transportation, equipped with a Weichai WP10.380E32 engine (380 HP/1600 N·m), paired with a 9-speed transmission and a 13-ton cast rear axle, delivering robust power and reliable load-bearing capacity. Featuring an all-steel skeleton cab, a fish-belly variable cross-section frame, and reinforced bolts, it ensures durability in harsh working conditions. With dual-circuit air brakes, EVB exhaust brakes, and reinforced leaf spring suspension, it is tailored for heavy-load scenarios like mining and earthmoving. Boasting a 20-ton rated load capacity, it balances efficiency and safety, making it a formidable choice in the engineering transport sector.
Working capcity:
50 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
8900×2485×3250Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200ARemark:
6×6, RHD is optionalIn today's construction industry, a high-performance dump truck chassis is crucial for ensuring project efficiency. The Beiben 6×4 heavy-duty dump truck chassis, a star product of the Beiben truck family, has become the preferred choice for many construction users due to its outstanding design, reliable performance, and versatile applications. This chassis, specifically designed for dump trucks, embodies Beiben's decades of expertise and experience in truck manufacturing, providing solid and powerful transport support for various engineering projects.
Structurally, the Beiben 6×4 heavy construction tipper chassis demonstrates exceptional professionalism and reliability. The cab adopts an all-steel skeleton structure with double-layer steel plates, significantly enhancing strength and safety while effectively resisting external impacts, offering comprehensive protection for drivers. Additionally, the cab can tilt forward, greatly facilitating daily maintenance and repairs, saving time and costs. At the heart of the vehicle lies the engine—a diesel 4-stroke direct-injection, 6-cylinder in-line, turbocharged, intercooled WP10.380E32 model. With a maximum power of 380 HP/280 KW and a displacement of 9,726 ml, this engine delivers formidable performance, effortlessly tackling complex terrains and heavy-load transport tasks.
Product Specifications
|
Model |
Beiben 6x4 heavy chassis for dump truck |
|
|
Cabin |
Full steel skeleton structure, covered with double layer steel plate; can be tipped forwardly |
|
|
Engine |
Type: Diesel 4-stoke Direct injection, 6-cylinder in line, Turbocharged, Inner cooling. |
|
|
Model: |
WP12.420E32 |
|
|
Max horsepower |
420HP/305KW |
|
|
Displacement |
11926 ml |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2200 rpm |
|
|
Max torque |
1600 N.m |
|
|
Speed at max torque |
1500-1800rpm |
|
|
Bore×stoke |
126mm×130mm |
|
|
Gear box |
Model: |
9JS150A, mechanism |
|
Speed: |
9 speed forward, 1 reverse |
|
|
Axle |
Front |
7.5T, double-shoe pneumatic brake, non-driving steering axle |
|
Rear |
13T, double-shoe pneumatic brake, casting, double reduction driving axle |
|
|
Clutch |
Single dry frictional disc, Hydraulic boosting |
|
|
Brake |
Service brake: Double circulation air brake system |
|
|
Parking brake: Potential springs pressing on middle and rear wheels |
||
|
Engine brake: Engine exhaust brake (EVB) |
||
|
Steering |
TAS85, driver sit at the left-hand side |
|
|
Electric equipment |
Operating voltage: |
24V negative grounded |
|
Starter: |
24V, 5.4KW |
|
|
Alternator |
28V, 758W |
|
|
Battery voltage |
12V/135Ah, cigar lighter |
|
|
Frame |
Fish belly, shape, variable width, variable sections, side beam structure. |
|
|
Tyre |
10+1 spare tyre with rim |
|
|
12.00R24 （off-road tires） |
||
|
Suspension system |
Strengthen heavy duty leaf spring type |
|
|
Front/rear |
||
|
Wheel track |
Front/Rear |
2045/1872 |
|
Angle |
Approach/Departure |
26/27 |
|
Overhang |
Front /Rear overhang |
1410/2020 |
|
Dump box body |
Cargo box size |
5600x2500x1500 mm |
|
Material |
High strength steel, side 8mm thickness, bottom 10mm thickness |
|
|
Lifting type |
Front lifting |
|
|
Gross vehicle weight |
25000 kg |
|
|
Fuel tank capacity |
400L Aluminum alloy fuel tank |
|
|
Max driving speed |
90km/h |
|

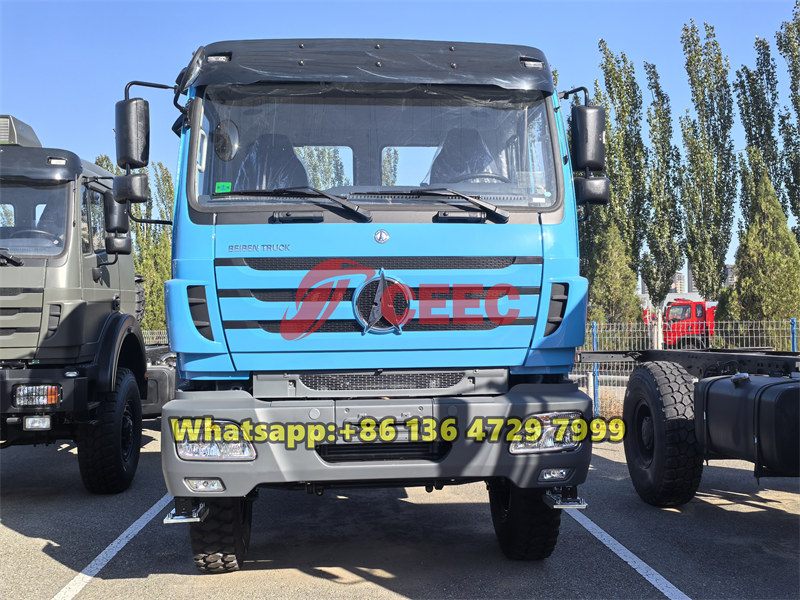

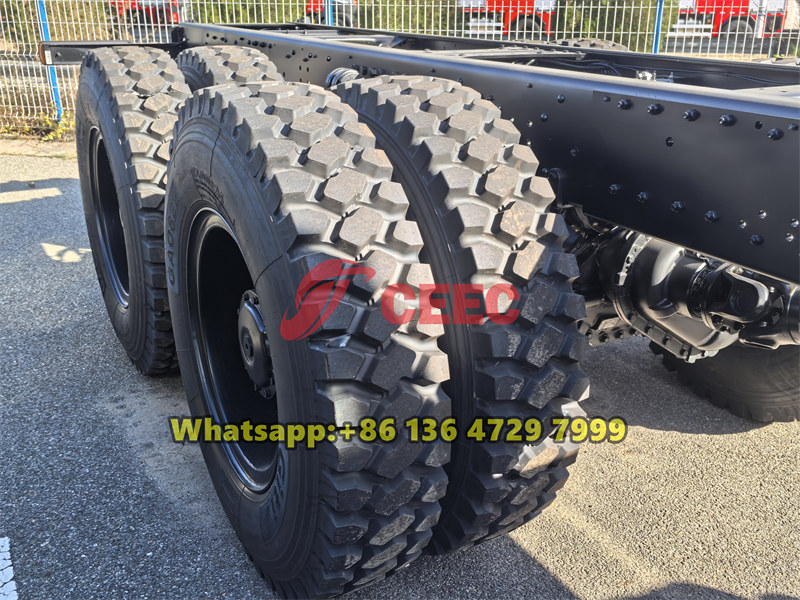

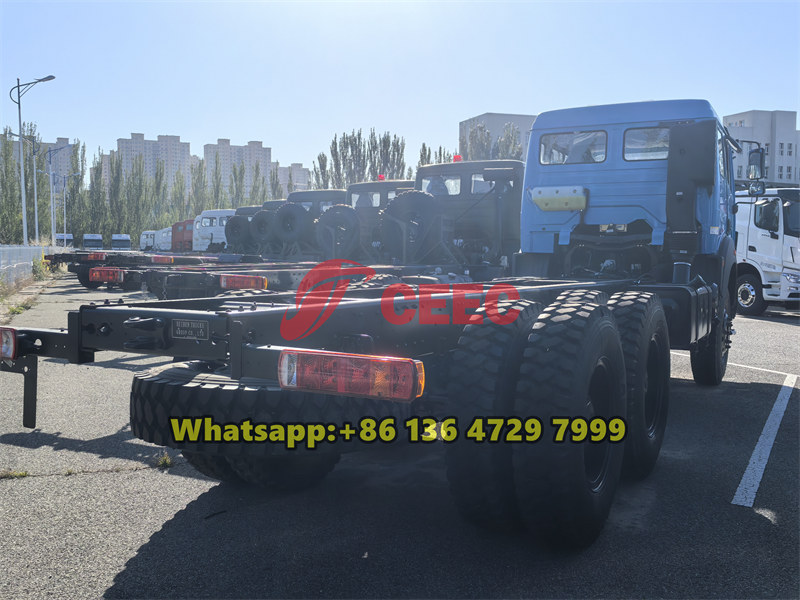

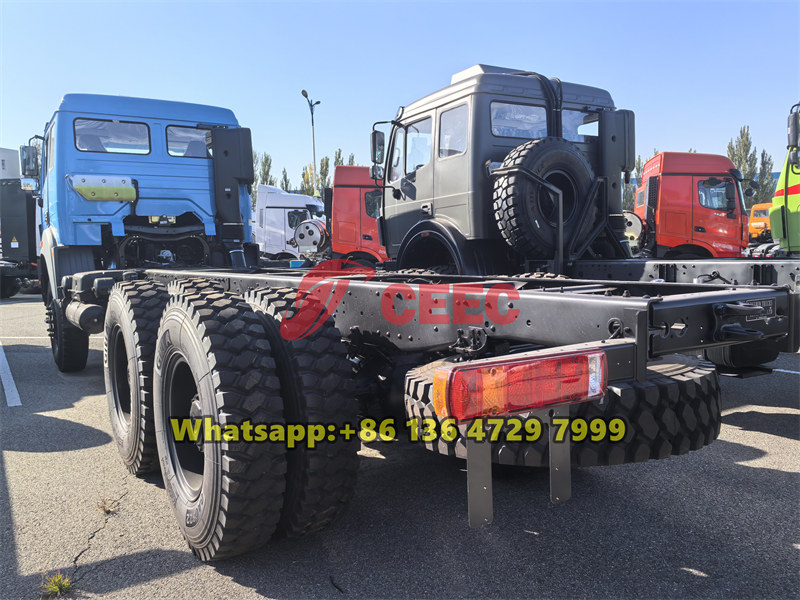

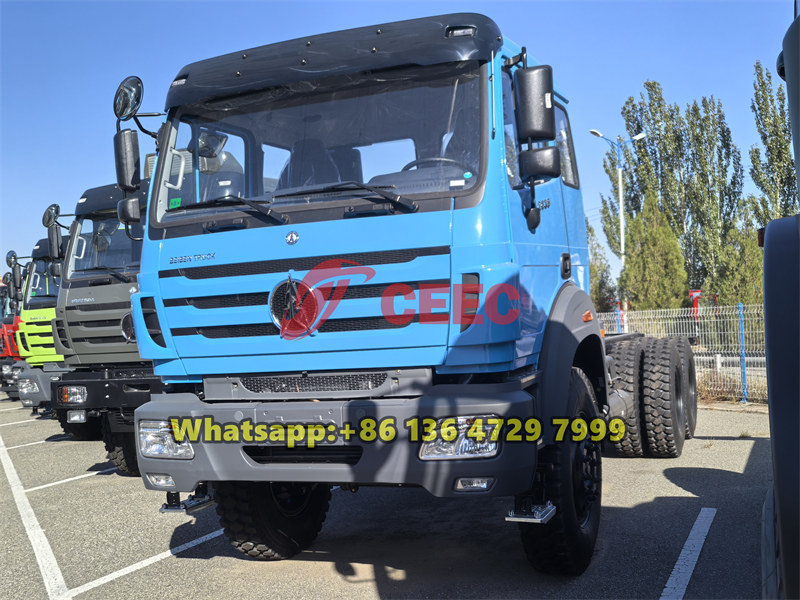

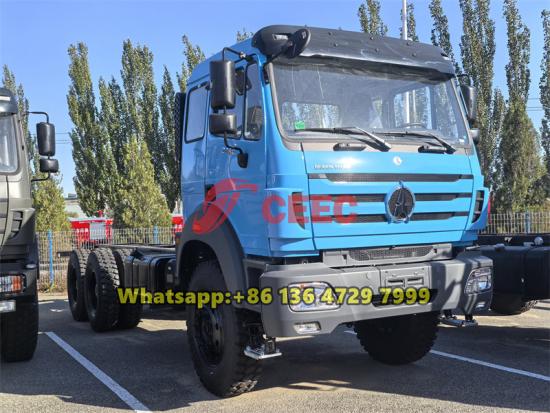

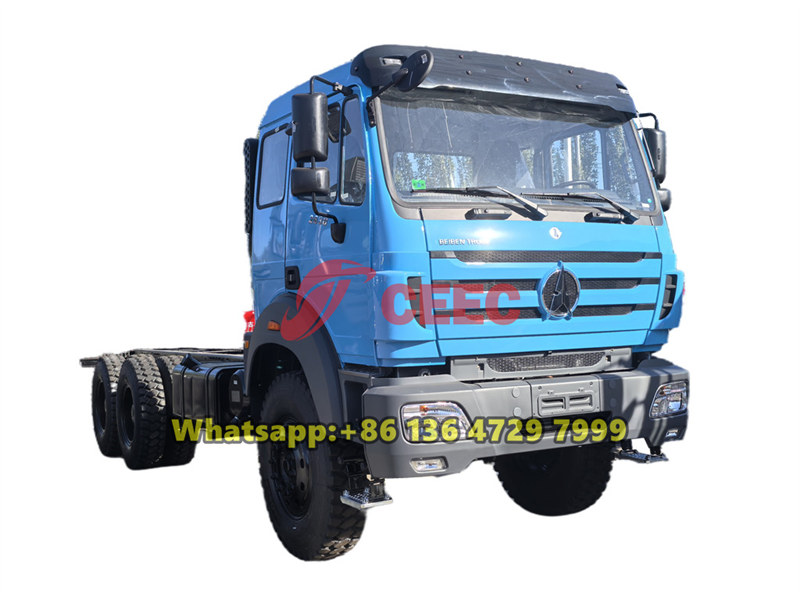

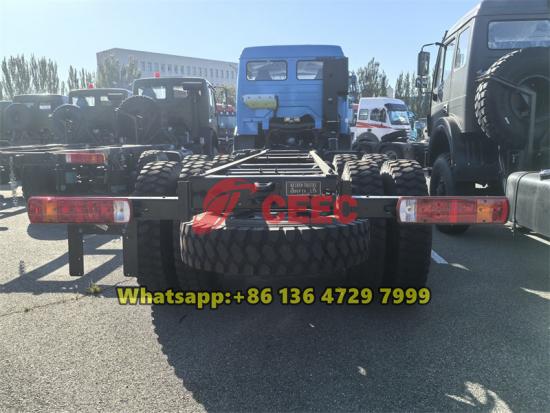

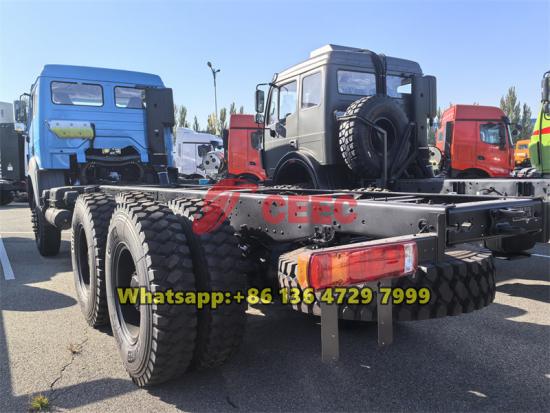

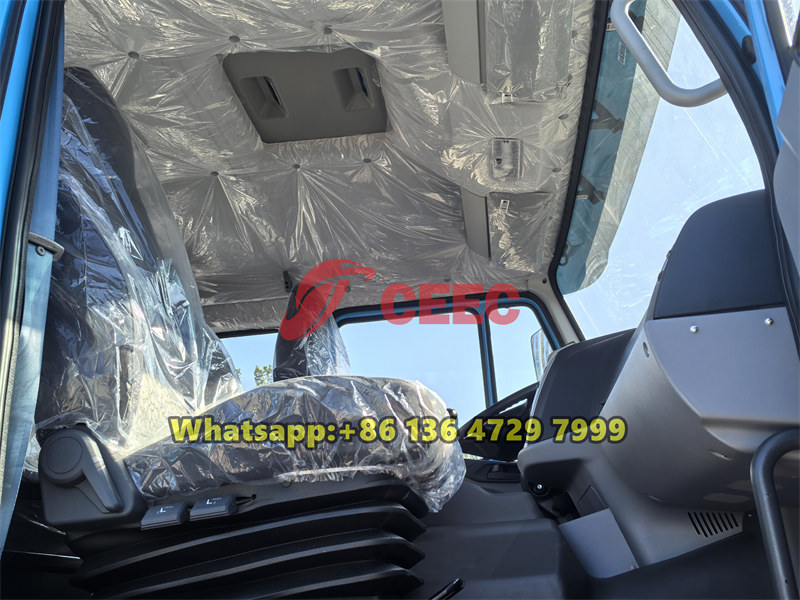

Product Pictures
