6x6 drivetrain (all six wheels are powered) gives it excellent traction, making it ideal for off-road and rough terrain use. Beiben 6x6 off road V3 truck is commonly used in regions or industries where road infrastructure is poor or where vehicles need to travel across fields, mud, sand, snow, and unpaved terrain. Beiben V3 V3 6x6 variant is often adapted for military purposes, serving as troop carriers, equipment transports, or even as platforms for specialized military hardware.
Working capcity:
30 tonsCabin type:
Beiben V3 cabin, with sleeper bedDimension ( mm ) :
9700 x 2500 x 3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
430 HP / WP13.430E6Gear Box:
12JS200TA, FAST 12-speedRemark:
460 Hp engine avaiableThe Beiben V3 cabin all wheel drive truck is heavy duty truck , which is specilized used for forest and sand situation. Beiben V3 off-road trucks are built with reinforced chassis, high ground clearance, robust drivetrains (including common 6x6 or 8x8 layouts), and powerful Weichai diesel engines (often licensed Weichai or earlier Mercedes-powerplants) suitable for harsh terrains: mining sites, construction, desert, oil fields, or military applications. “Beiben V3 cabin off road truck” is a rugged, long-distance, heavy-duty vehicle combining a comfortable and modern V3 cab with a high-performance, off-road chassis, meant for extreme environments and challenging logistics tasks.
CEEC factory is professional manufacturer in beiben 6x6 truck area,
guarantee all beiben trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Low fuel consumption and economy: WEICHAI WP12.430E6 engine + 9-speed gearbox, excellent fuel economy.
2. 6x6 off road drive system: 100% suitable for forest, sand, military using.
3. Mercedes benz technology Cabin: Benz technolgy V3 cabin, convenient and comfortable.
Product Specifications
Wheelbase(mm) |
4450+1450 |
|
L*W*H |
9500X2500X3300 |
|
Gross vehicle weight(kg) |
25000 |
|
Approach angle/Departure angle(°) |
26/20 |
|
Max Speed (Km/h) |
≤85 |
|
Engine |
Model |
WP13.430E5 |
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Power (r/min) |
319Kw(430HP) |
|
Rated speed |
2100 rpm |
|
Emission standard |
EURO 6 |
|
Maximum Torque (r/min) |
1750Nm |
|
Speed at max. torque |
1200-1500 rpm |
|
Displacement(ml) |
11.596 |
|
Fuel tanker capacity(L) |
400L Iron |
|
Transfer case |
LF200 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-70A |
|
Starter |
5.58Kw/24V |
|
Cab |
NG80B left hand drive |
|
Interior trimming: |
||
Exterior trimming: |
||
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |
Beiben V3 cabin 6x6 drive truck is a versatile heavy-duty vehicle designed to excel in challenging conditions. Its major applications can be outlined as follows:
Construction and Engineering Support:
With its powerful 6x6 drivetrain and reinforced structure, the Beiben V3 is ideally suited for transporting construction materials, machinery, and crews to and from work sites. Its ability to navigate rugged terrain ensures reliable operation in both urban and remote infrastructure projects.
Military and Defense Logistics:
The truck's durability and off-road capabilities make it an excellent choice for defense forces. It is frequently used to move troops, equipment, and supplies across varied and difficult landscapes, supporting both combat and peacekeeping operations.
Mining and Oilfield Service:
In extractive industries such as mining and oil exploration, the Beiben V3 is employed to haul heavy loads, including minerals, drilling equipment, and other essential resources. Its sturdy design and high payload capacity enable efficient operation in harsh, off-road environments.
Emergency Response and Disaster Relief:
The Beiben V3 plays a vital role in delivering relief materials and rescue teams to disaster-stricken or hard-to-reach locations. Its all-wheel-drive configuration allows it to overcome obstacles such as floodwaters, debris, and unpaved roads, making it indispensable during emergencies.

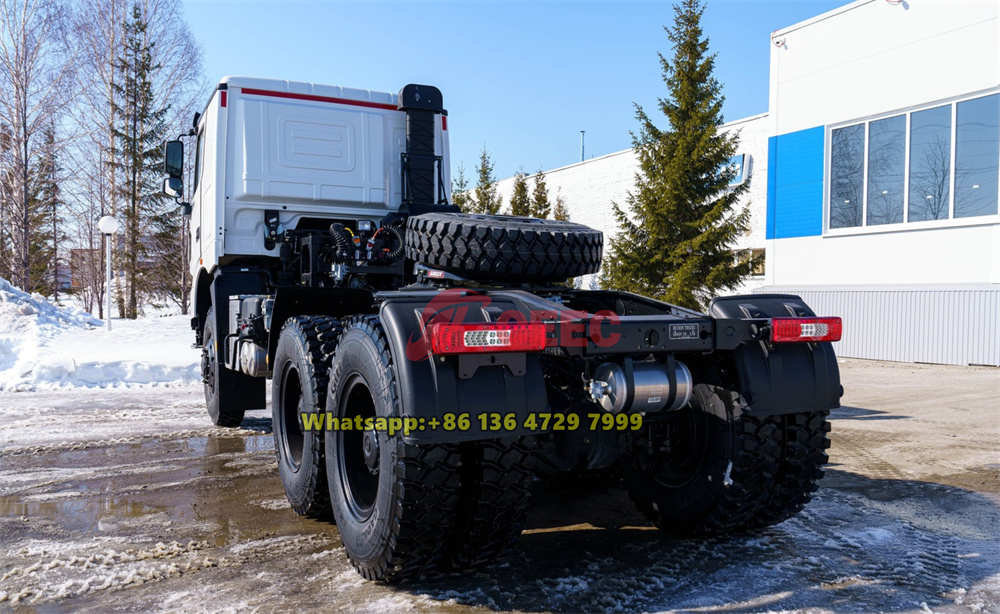

Beiben 6x6 all wheel drive truck chassis
Product Advantages
Beiben V3 cabin 6x6 drive truck is a heavy-duty, all-wheel-drive vehicle manufactured by Beiben (North Benz), a Chinese truck company. Here’s a breakdown of its usage and features:

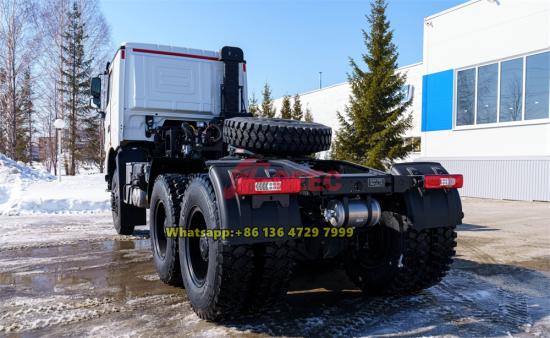

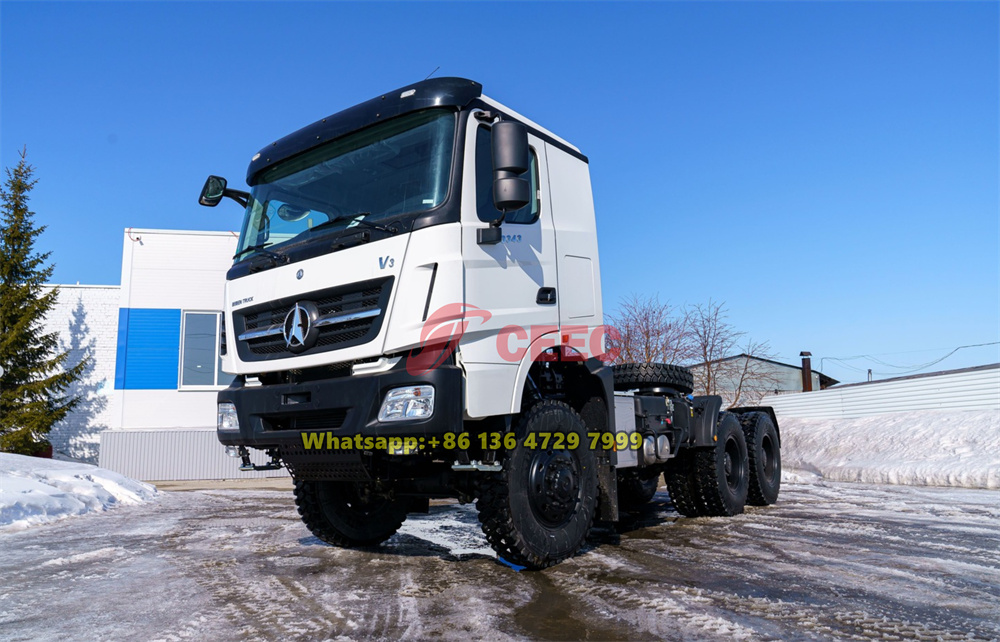

beiben V3 cabin all wheel drive truck

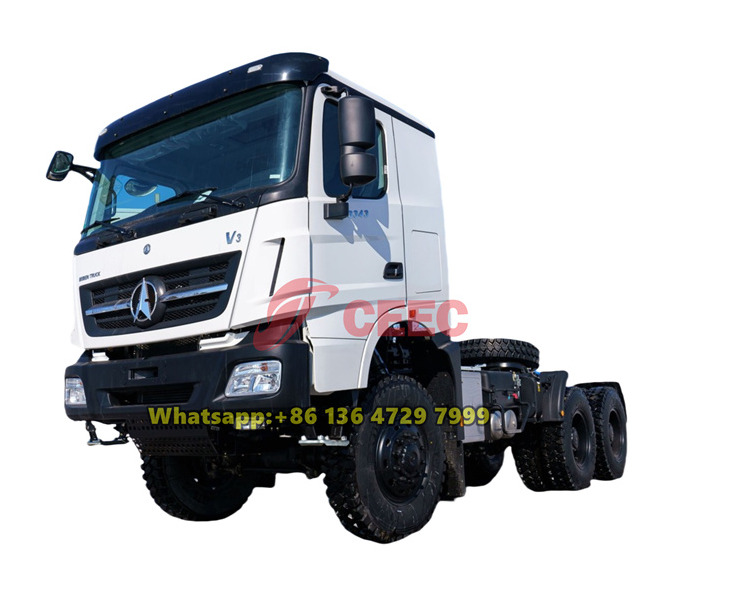

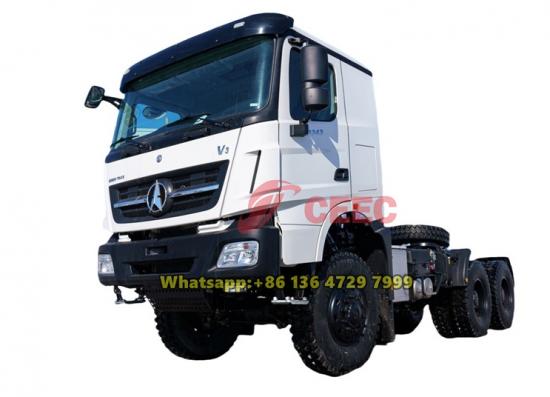

china beiben V3 all wheel drive truck chassis

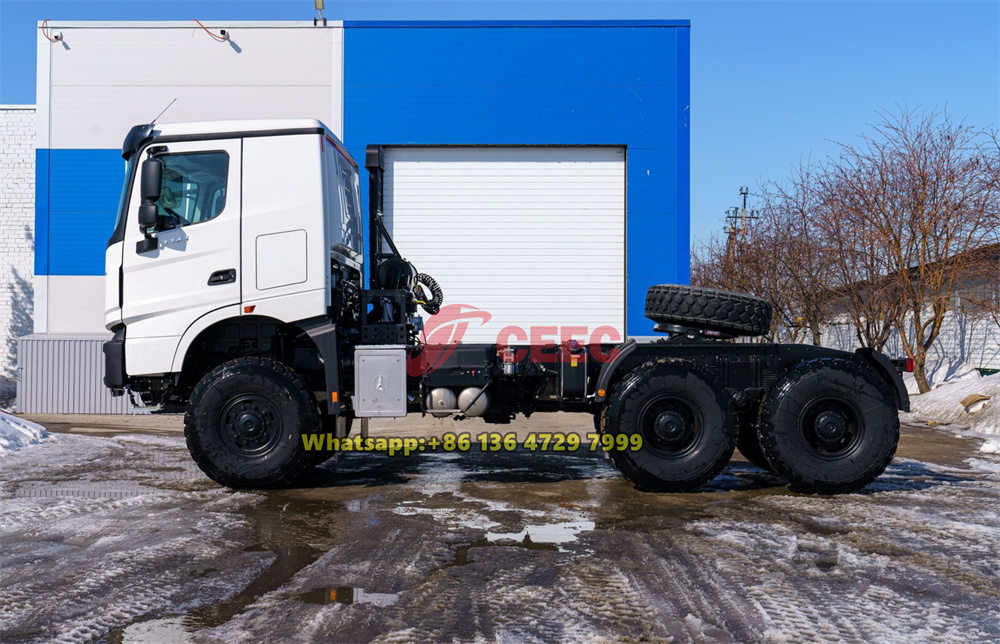

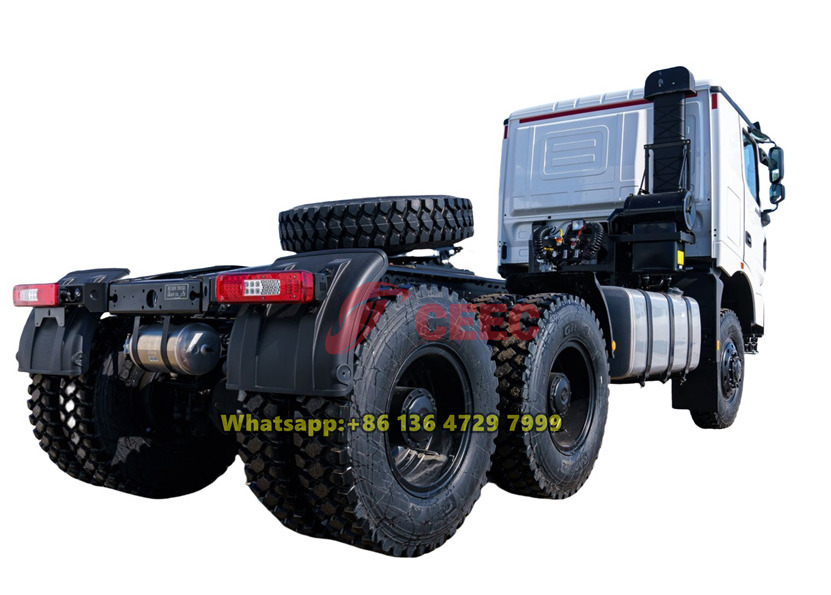

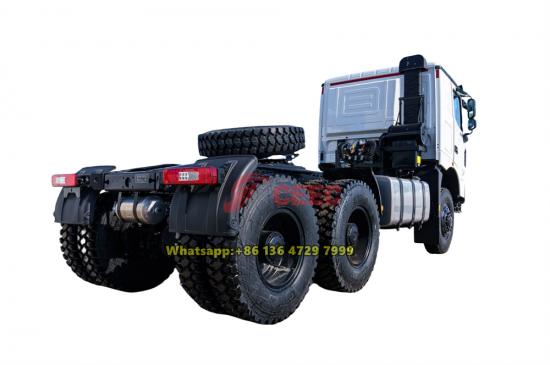

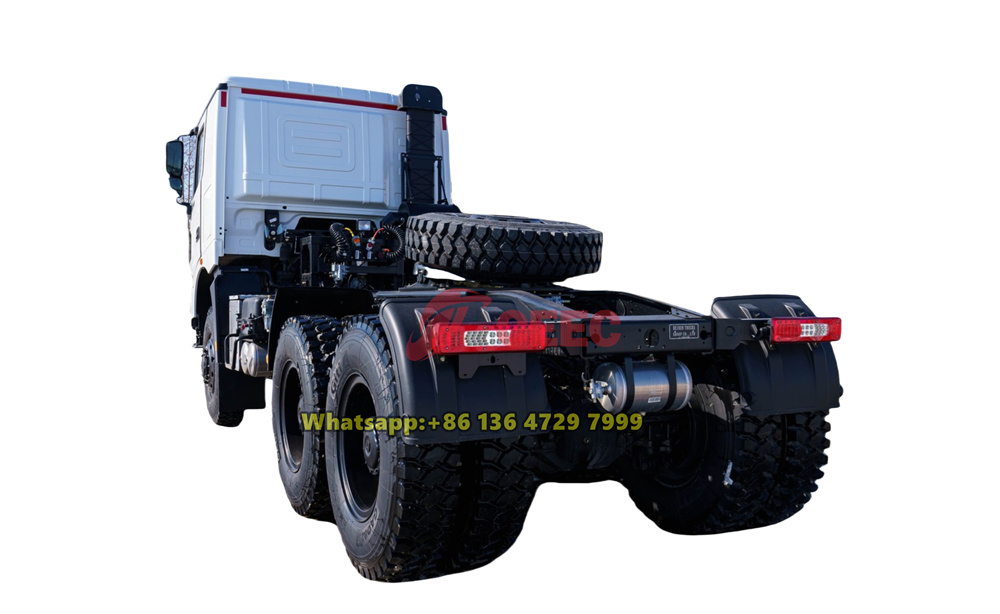

beiben V3 off road truck chassis
beiben 420 Hp engine 6x6 drive truck

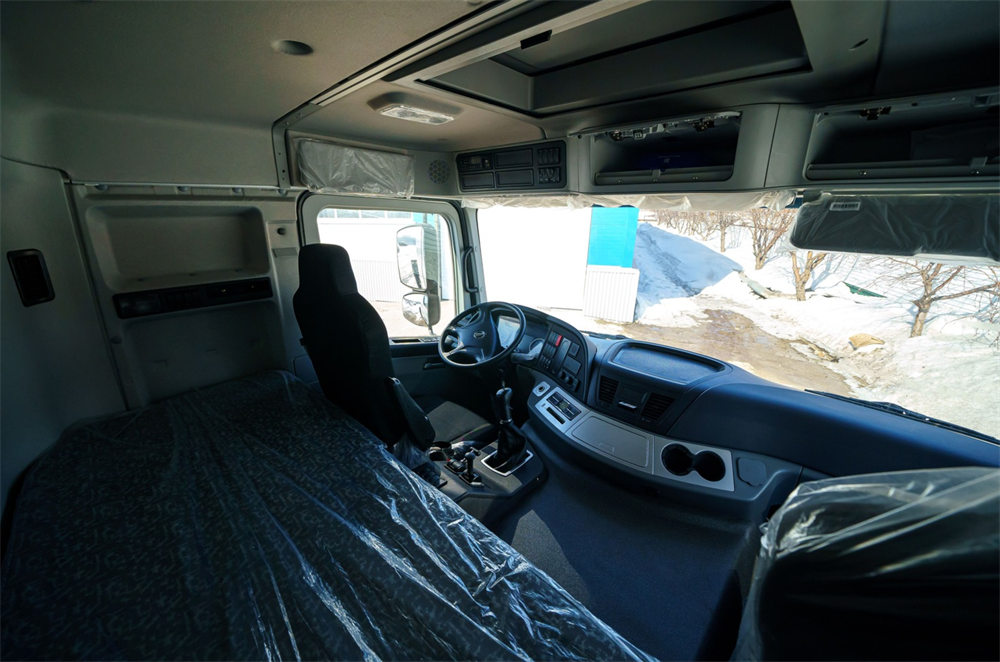

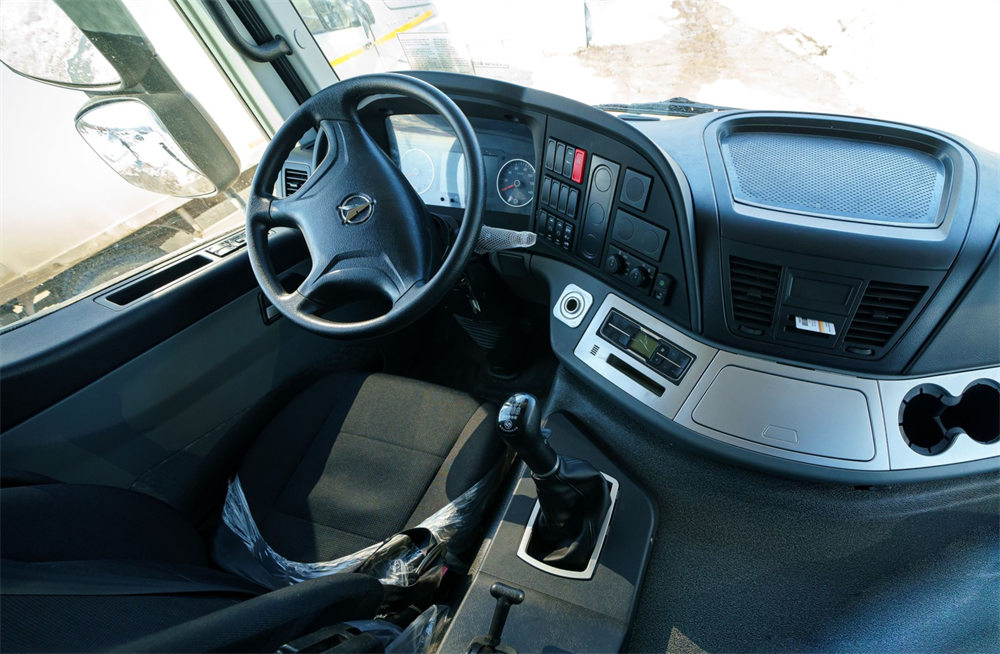

super design for beiben V3 cabin interior
