Beiben 6x6 drive tractor truck is a heavy-duty truck manufactured by Beiben (also known as North Benz), beiben 6x6 tractor truck is equipped with WEICHAI 380 hp diesel engine, Fast 12JS200T transmission, BENZ 7.5 T front axle, benz 13 T double rear axle, mercedes benz technology NG80B cabin. It suitable for difficult terrains and off-road applications. The primary function is to serve as tractor unit, meaning it is used to tow semi-trailers, tankers, and other heavy equipment. It provides the power and traction needed to haul large and heavy load.
Working Capcity:
50 tonsCabin Type:
NG80B long cabinn, with sleeper bed, A/CDimension ( mm ) :
9860 x 2500 x 3300Drive System:
6×6Wheelbase (mm):
3450+1450Engine Power:
380 HP / WP10.380E32Gear Box:
12JS200TA, FAST 12-speedRemark:
12.00R24, 14.00R20 tyre, RHD driveBeiben 6x6 drive tractor truck is 6 wheeler all wheel drive tractor truck , which is designed for heavy duty application. Usually beiben 6x6 drive prime mover is widely used in construction, mining, oilfields, logging transporation, military logisitic. In terms of military off road drive system, beiben 6x6 drive tractor truck has extremely superior traction on difficult surfaces such as mud, sand, snow, rocky road.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Super strong engine : Euro 3 engine, super suitable for AFRICA, low fuel consumption, low mainteance expense
2. 6x6 off road drive system: challenge every tough road, forest, desert, muddy road, rocky terrain.
3. Mercedes benz technology axle: Benz 7 T front axle and 13 T rear axle, with wheel differencial. Ratio 4.7 , 5,93
4, Gold combination of Gear box: Fast 12JS200T transmission, perfect combination
Product Specifications
|
Wheelbase(mm) |
3450+1450 |
|
|
L*W*H |
9500X2500X3300 |
|
|
Gross vehicle weight(kg) |
55000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|

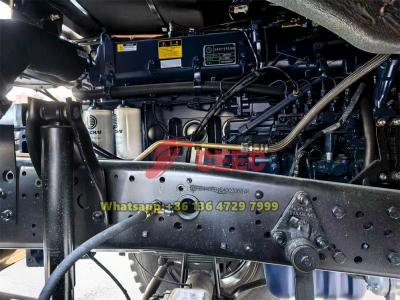

Engine |
Model |
WP10.380E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
279 Kw(380HP) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
9.726 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|

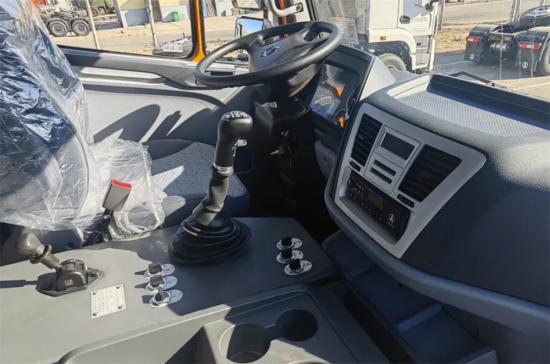

Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
(reference) |
|
Beiben 6x6 drive tractor truck is off road towing tractor vehicle designed for heavy-duty hauling tasks. beiben 6x6 towing tractor is best suited for extreme conditions. Main fields that require Beiben 6x6 drive tractor trucks include:
1. Heavy duty Mining Operations
Hauling 50 ton- 100 ton heavy equipment, machinery, ore, and other materials in mines, where access roads are rough, steep, and often muddy or rocky.
2. Oil & Gas Industry
Beiben 6x6 tractor truck is Serving in oilfields and pipeline construction sites that are often located in remote deserts, wetlands, or tundras with few paved roads.
Transporting drilling rigs, pipes, and oversized loads.
3. Forestry & Logging
Beiben 6x6 trailer tractor head is Hauling felled logs, forestry machinery, and supply trailers into/out of poorly maintained forest roads, often in wet, slippery, or hilly conditions.
4. Heavy Transport & Oversized Loads
Moving construction machinery, modular buildings, wind turbine parts, and other large components where the access routes are not paved or are in undeveloped areas.

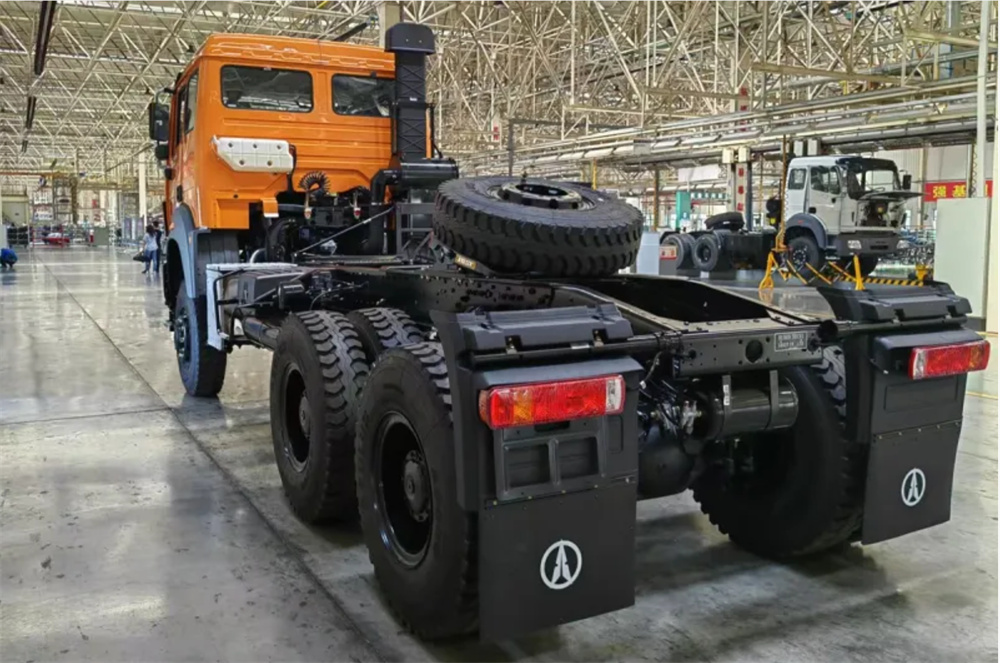

Beiben 6x6 all wheel drive truck chassis
Product Advantages
Beiben 6x6 drive tractor truck is a heavy-duty, all-wheel-drive vehicle manufactured by Beiben (North Benz), a Chinese truck company. Here’s a breakdown of its usage and features:

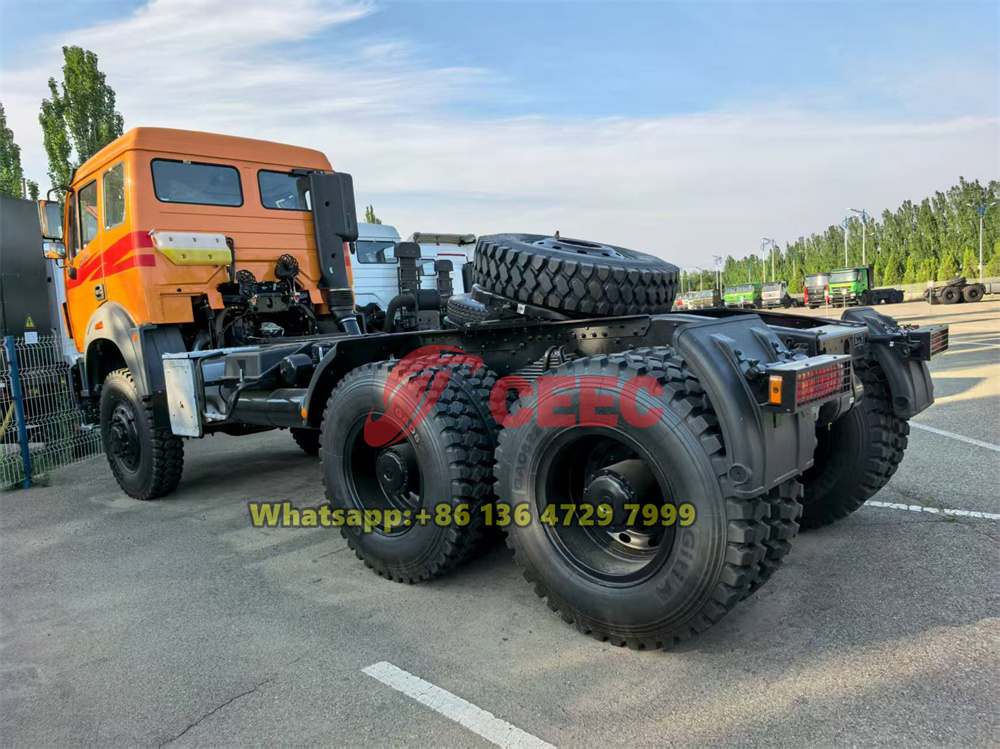

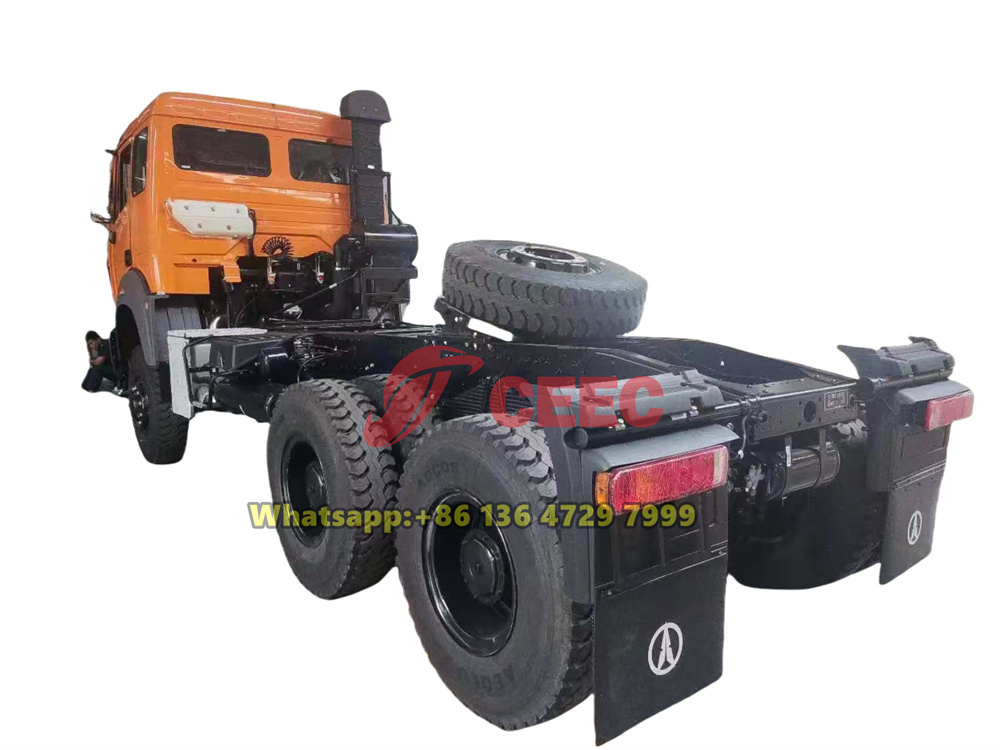

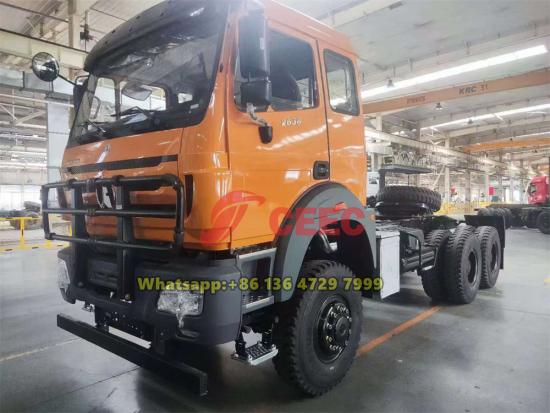

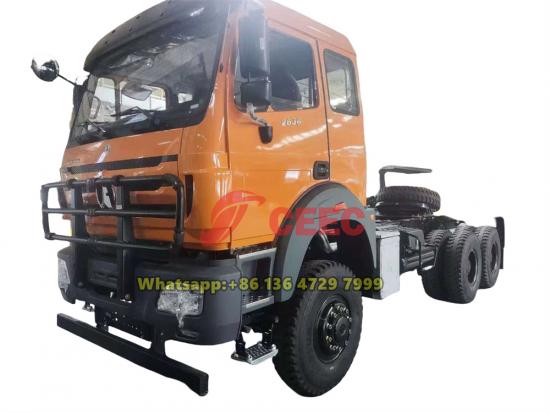

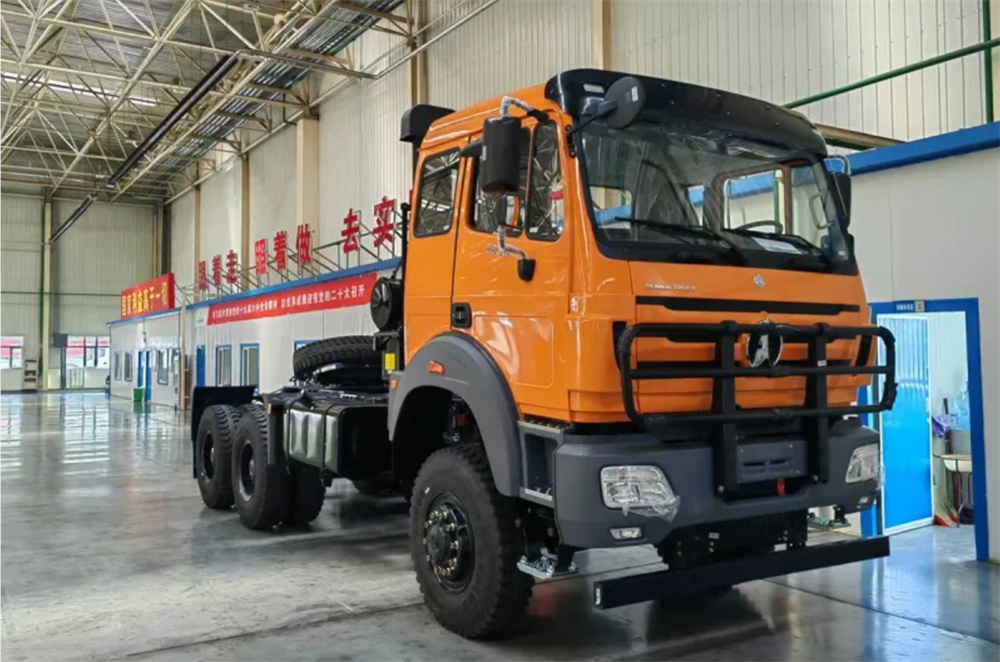

beiben 6x6 drive off road tractor truck

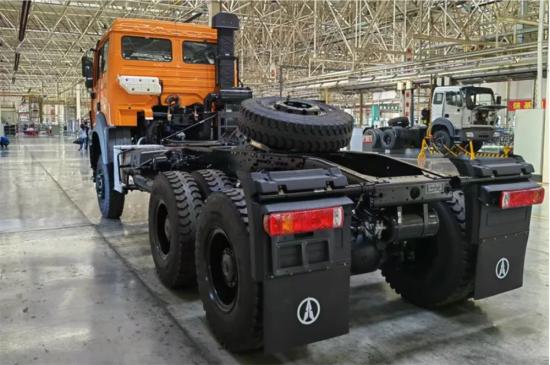

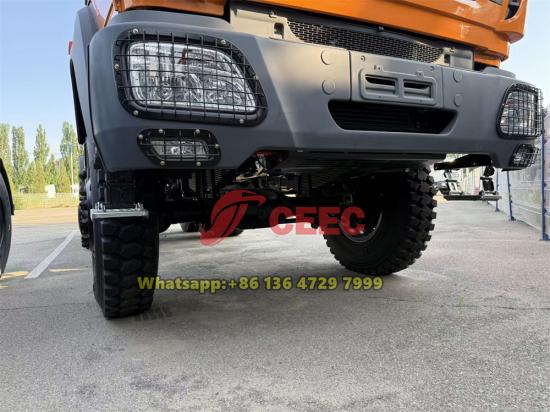

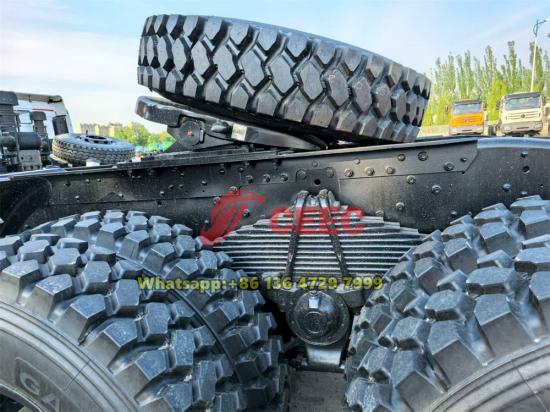

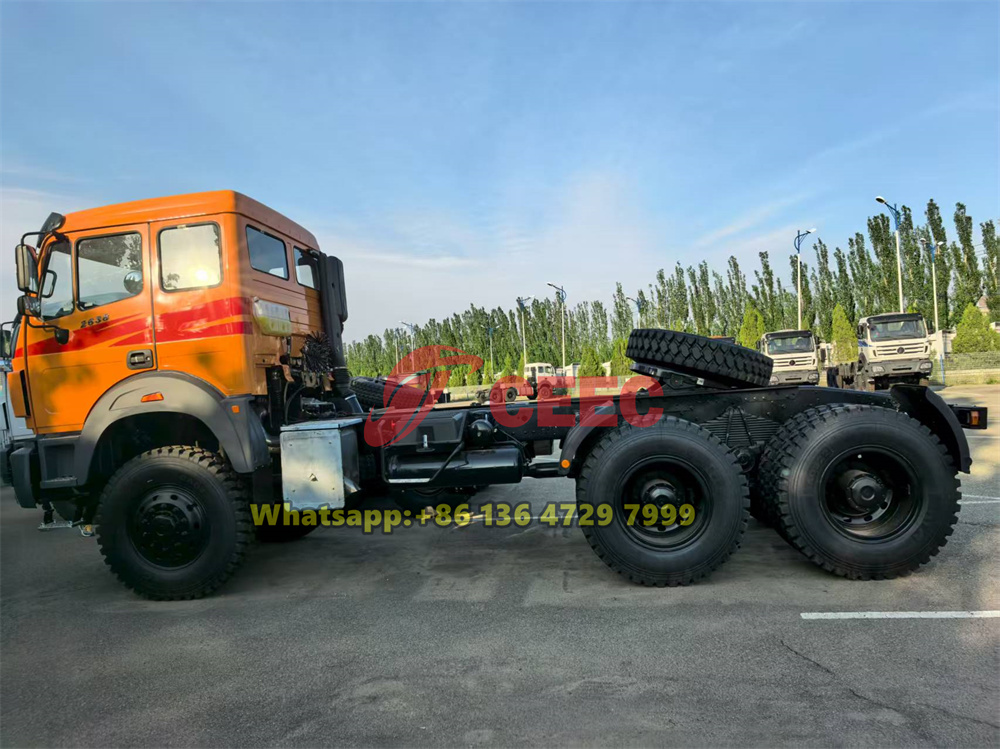

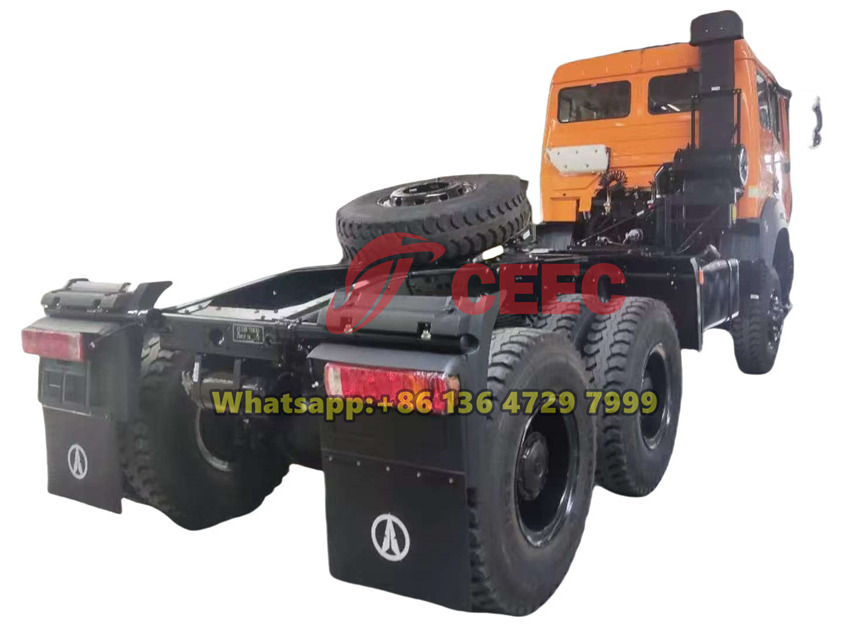

beiben 6x6 drive tractor head truck with 12.00R24 tyres

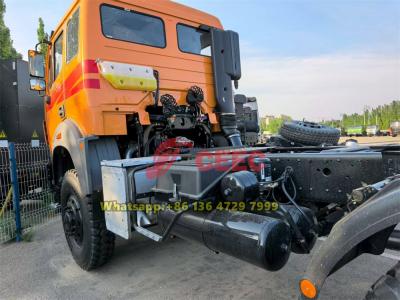

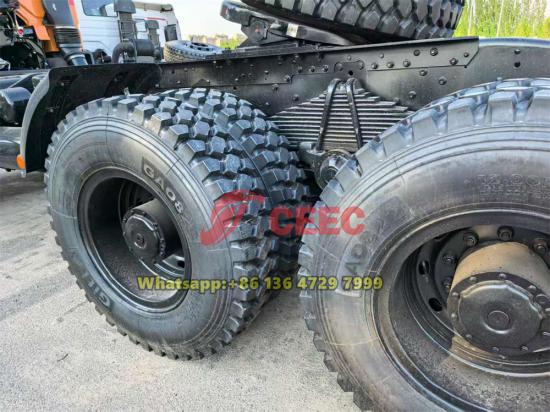

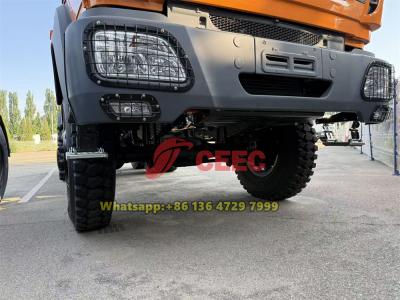

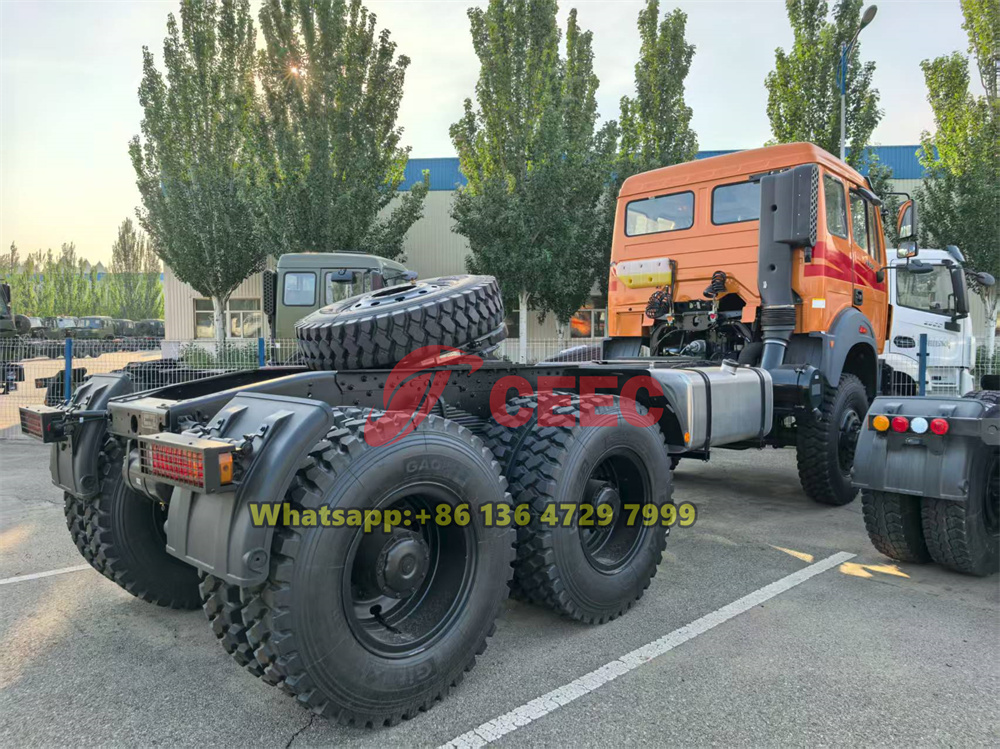

beiben 6x6 off road trailer tractor head with 12.00R24 tyres

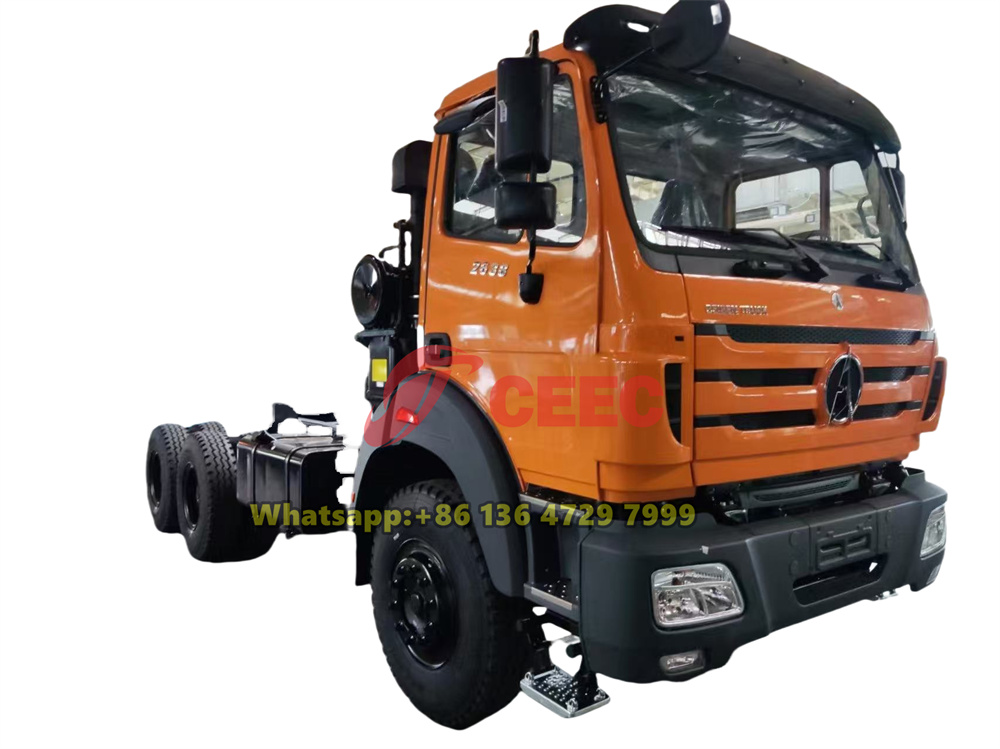

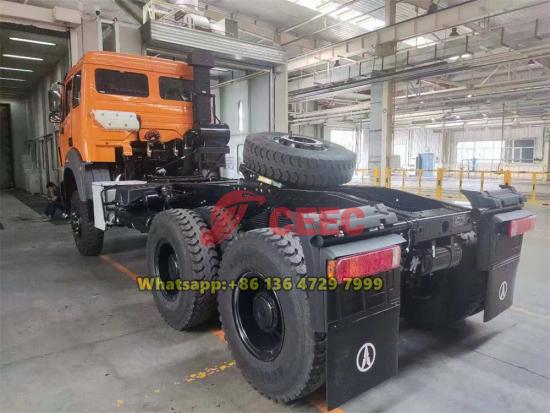

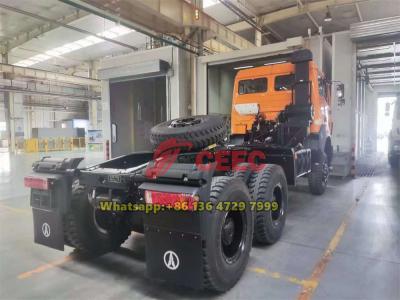

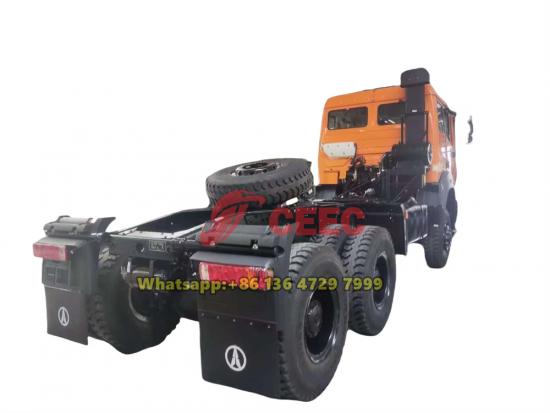

beiben 6x6 drive towing tractor head

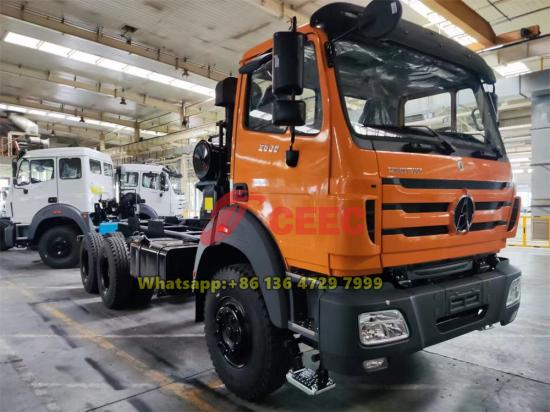

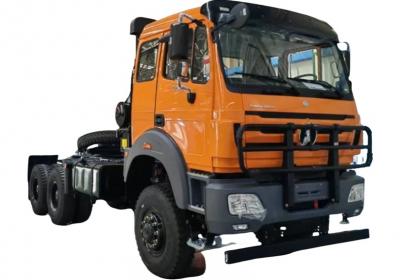

Beiben 6x6 off road tractor truck
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive tractor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
The Beiben 6×6 RHD truck chassis is a high-performance all-wheel-drive commercial chassis specifically developed for right-hand drive markets. Featuring a 6×6 drive configuration, it is equipped with a high-power diesel engine and a full-time six-wheel-drive system, delivering outstanding off-road capability and heavy-load transportation performance. Its high-strength frame, differential lock configuration, and optimized suspension design enable it to easily handle challenging terrains such as mines and mountainous areas. The chassis supports various body modifications, making it suitable for engineering transport, firefighting, military applications, and other fields. Combining reliability and adaptability, it is an ideal choice for heavy-duty operational vehicles in right-hand drive regions.
6x6 drivetrain (all six wheels are powered) gives it excellent traction, making it ideal for off-road and rough terrain use. Beiben 6x6 off road V3 truck is commonly used in regions or industries where road infrastructure is poor or where vehicles need to travel across fields, mud, sand, snow, and unpaved terrain. Beiben V3 V3 6x6 variant is often adapted for military purposes, serving as troop carriers, equipment transports, or even as platforms for specialized military hardware.
