Order(MOQ):
1Weight:
12000

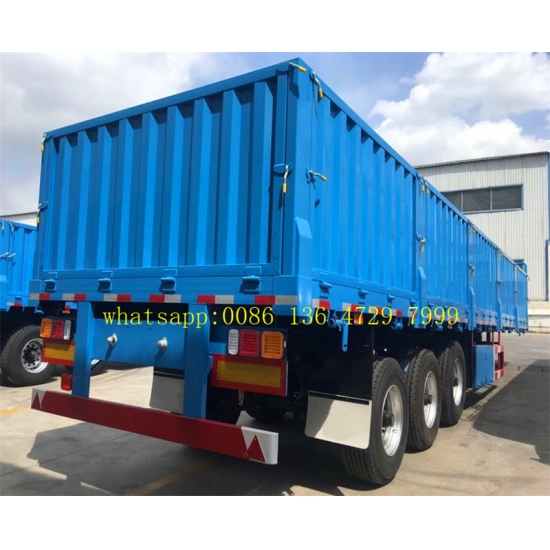

3 axle cargo semitrailer
Applications:
3 axle cargo semitrailer ,also called as 40ft cargo semitrailer, china 3 axles bulk cargo semitrailer, Africa cargo semitrailer 40 ft type also can be used for bulk cargo, rice, vegetable, animal, and other low density material transportation.
CEEC 3 axle cargo semitrailer is Equips the Axles, tires and other accessories of the well-known products which supplied by the domestic and foreign professional manufacturers. Like BPW Axles, FUWA Axles. Triangle tires, Double-Coin Tires. Meanwhile, they can be equipped with airbag suspension and super single tires as your requirement.
The carg
o truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 200 horned customer , export more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
|
3 axle cargo semitrailer |
||
|
General |
Vehicle Brand |
CEEC |
|
Chassis Brand |
CEEC 9042TJZX |
|
|
Overall Dimension |
12600*2500*2300 mm |
|
|
Kerb Weight |
8,000 kgs |
|
|
Pay loading weight |
40,000 kgs |
|
|
Chassis system |
Frame |
Heavy duty reinforced |
|
Material |
Q345B |
|
|
Front wing thickness |
16 mm |
|
|
Under wing thickeness |
18 mm |
|
|
Axle |
Fuwa 13 T *3 |
|
|
Kingpin |
Jost 2 inch |
|
|
Land gear |
Jost 2 speed |
|
|
Suspension |
Fuwa 8 Pc leaf spring |
|
|
Superstructure |
Container locks |
12 sets |
|
Pay loading type |
1x20GP, 2x20GP,1x40HQ |
|
|
Braking system |
WABCO |
|
|
Electric system |
24V 7 pin ISO standard |
|
|
Tire size |
12.00R22.5 |
|
|
Rim size |
9.00-22.5 |
|
|
Painting |
SA 2.5 standard sandblasting |
|
|
All standard accessories: basic tool kit, English manual…… |
||
|
Optional |
** colour , white, red, orange, blue.. ** tyres can be customized ** cargo box can be customized as requirement. |
|
china cheapest price 40FT cargo semitrailer, factory 3 axles cargo semitrailer
Welcome all customer order 3 axle cargo semitrailer from us.
60 T bogie suspenison container semitrailer are based on 32 T bogie suspenion, can payload at least 60 T heavy duty goods in africa tough road. we are the best bogie suspension semitrailer, to suitbale for beiben 4*2 tractor truck and 6*4 tractor trucks.
60 T heavy duty semi remorque, 32 T 2 axle bogie suspension, with heavy duty trailer frame, JOST A400T land gear, with 50# kinpin, 12.00R20 tyre.
CHINA good quality Beiben 20m3 tanker truck capacity water tanker truck for sale , beiben 2638 RHD truck chassis, 6*6 drive, 4450+1350 mm wheel base, 20 CBM water tanker capacity.
The Beiben 8×8 All-Wheel-Drive Cargo Truck Chassis is a professional-grade all-terrain transport platform, equipped with a 350HP Weichai engine and a 12-speed transmission. Featuring Mercedes-Benz technology axles and a full-time four-wheel-drive system, it comes with three differential locks and a central tire inflation system. With a 31-ton load capacity and 400mm ground clearance, it effortlessly handles harsh conditions in oil fields and mines. The V3 cab meets European safety standards, and the chassis offers abundant modification interfaces, making it an ideal choice for special equipment transport and field engineering operations—combining German-quality standards with Chinese cost-effectiveness.
The Beiben 2638 tractor truck is equipped with a 380-horsepower Weichai WP10.380E32 engine, boasts dimensions of 7150×2500×3200mm, and has a wheelbase of 3450+1450mm. It features a fully steel frame structure for enhanced durability and robustness. The truck is fitted with a FAST 12JS200T transmission, offering 12 forward gears for smooth and effortless shifting. With excellent safety performance, it comes with a Mercedes-Benz technology braking system and a ZF8098 steering system. The cab is spacious and comfortable, making it an ideal choice for efficient logistics transportation in the Congo market.
Using Mercedes-Benz Technology China beiben 30 ton dump truck sale Product Description Model 6x4 dump truck Cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. Model: WP10. 380E32 WEICHAI Diesel engine MAX Horse power: 380HP/280KW Displacement(L): 9.726liter (Euro 2 standard) Max torque: 1500NM@1200-1600rpm Bore/stoke: 126mm/130mm Gear box Max torque:2000NM Model: 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization Speed: 12speed,2reverse Axle(front/rear) Front axle Double-shoe pneumatic brake, non-driving steering axle Tandem Double-shoe pneumatic brake, casting, double reduction driving axle Clutch Single dry frictional disc,Hydraulic boosting Brake Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and rear wheels Engine brake: Engine exhaust brake(EVB) Steering TAS85, driver sit at the left hand side Electric Equipment Operating voltage: 24Vnegative grounded Starter: 24V,5.4KW Alternator 28V,758W Battery voltage 12V/135Ah,cigar lighter Frame Fish belly, shape, variable width, variable sections, side beam structure. Tyre 12+1 spare tyre with rim 12.00-R20 Suspension system: strongthen heavy duty Leaf spring type Front/Rear 12/12/13 Dump body: Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel Lifting type: Front lifter “T” type hydraulic system. Overall dimension(mm): 11730x2500x3484(Length x width x height) Wheelbase 1950+4600+1450mm Track: Front/Rear 2045/1872 Approach/Departure angle 26/27 Front /Rear overhang 1410/2320 Max speed 90km/h Kerb weight: 15500kg Oil tank capacity 300L fuel tank
BEIBEN tank truck/20cbm tanker/oil tank truck camion, the best beiben 20 T fuel tanker truck manufacturer, supply the best quality beiben tanker truck.
Beiben V3 6x4 Truck For Sale Cheap Tractor Mercedes Benz Technology Good parts supply Short delivery time
North benz 2638 tracteur camion, Germany benz original technology, World famous weichai WD615.38 engine, fast 9JS160T shift transmission, 3450+1450 mm wheelbase, 12.00R20 tyre. best supplier of congo North benz 2638 tracteur camion.
