The Beiben 6×6 RHD truck chassis is a high-performance all-wheel-drive commercial chassis specifically developed for right-hand drive markets. Featuring a 6×6 drive configuration, it is equipped with a high-power diesel engine and a full-time six-wheel-drive system, delivering outstanding off-road capability and heavy-load transportation performance. Its high-strength frame, differential lock configuration, and optimized suspension design enable it to easily handle challenging terrains such as mines and mountainous areas. The chassis supports various body modifications, making it suitable for engineering transport, firefighting, military applications, and other fields. Combining reliability and adaptability, it is an ideal choice for heavy-duty operational vehicles in right-hand drive regions.
Working Capcity:
20 tonsCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9960×2500×3348Drive System:
6×6, RHDWheelbase (mm):
4450+1450Engine Power:
420 HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8 drive is optionalⅠ. Product Descriptions
The Beiben 6×6 AWD truck chassis is a high-performance all-wheel-drive commercial vehicle chassis developed based on Beiben Trucks' technological platform. With a 6×6 drive configuration, it delivers exceptional off-road load-bearing capacity and adaptability to complex road conditions. Designed specifically for right-hand drive markets (such as Southeast Asia, Africa, and Oceania), this chassis is widely applicable in engineering transport, mining operations, military logistics, and specialized vehicle modifications. Its core strengths lie in its high-strength frame structure, high-torque powertrain, and full-time six-wheel-drive technology, meeting the demands of heavy-load transportation in extreme environments.
With its modular design and high-strength non-load-bearing frame, the Beiben 6×6 off-road chassis can be flexibly adapted to various body requirements, such as dump trucks, oil tankers, firefighting equipment, or military shelters. With high ground clearance and optimized approach and departure angles, it is well-suited for long-distance transportation on unpaved roads. Whether for civilian heavy-load transport or specialized industry modifications, this chassis demonstrates robust reliability and environmental adaptability, making it a preferred platform for heavy-duty commercial vehicles in right-hand drive regions.
Ⅱ. Product Specifications
|
BEIBEN 6x6 RHD heavy-duty chassis Specifications |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis model |
ND3260 |
|
Driving Type |
6×6, AWD，right hand drive |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
Approx. 9960×2500×3348 |
|
Weight parameters |
|
|
GVW(kg) |
26,000kgs |
|
Curb weight(kg) |
Approx. 10,800kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
Front wheel track(mm) |
1940 |
|
Rear wheel track(mm) |
1847/1847 |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle(°) |
34 |
|
Departure angle(°) |
24 |
|
Max speed(km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP12.420E32 |
|
Engine type |
Straight in-line, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine |
|
No. of cylinders |
6 cylinders |
|
Displacement(L) |
11.596 L |
|
Max. output (KW) |
309kw (420hp) |
|
Fuel type |
Diesel |
|
Rated speed |
2100 rpm |
|
Max torque |
1750 N.m |
|
Tire specification |
12.00R24, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
φ430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarders, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|

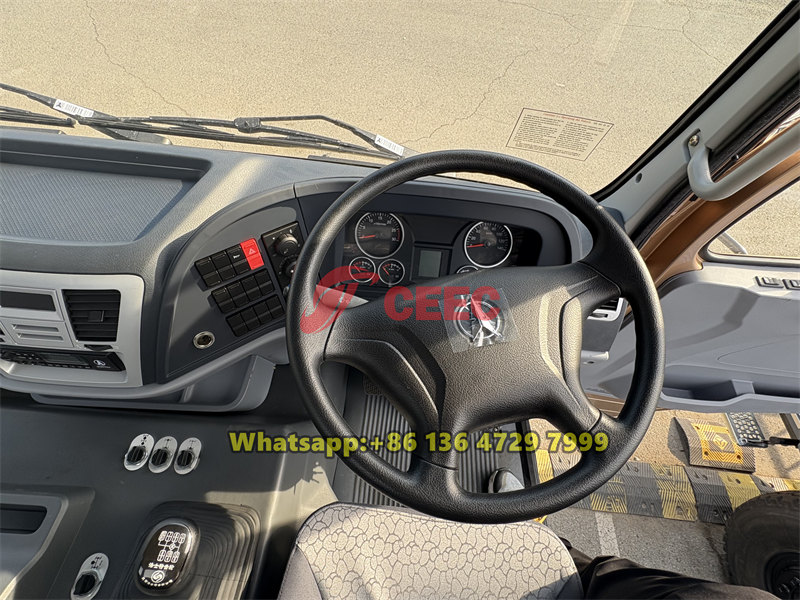

NG80 long cab, with one sleeper, cooling and heating air-conditioner, hydraulic suspension driver's seat, safety belt for driver and co-driver, with FM/AM radio player, USB interface |
|

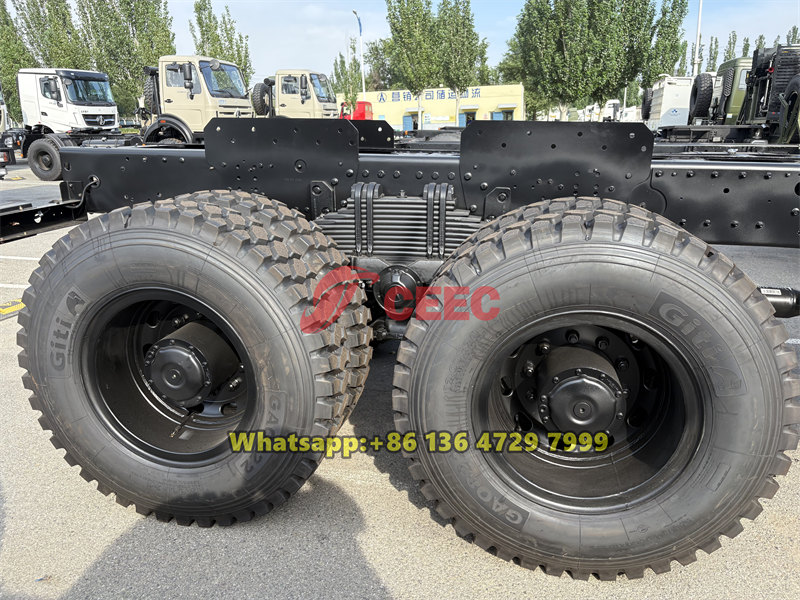

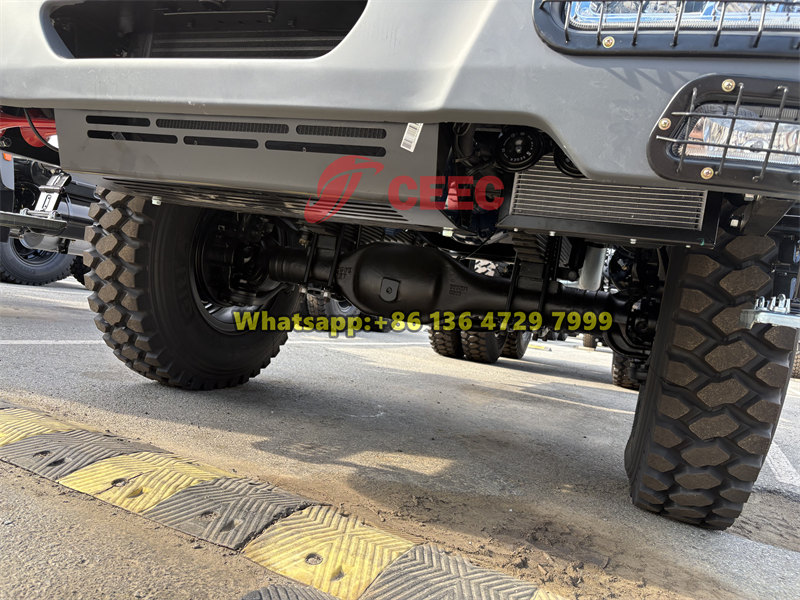

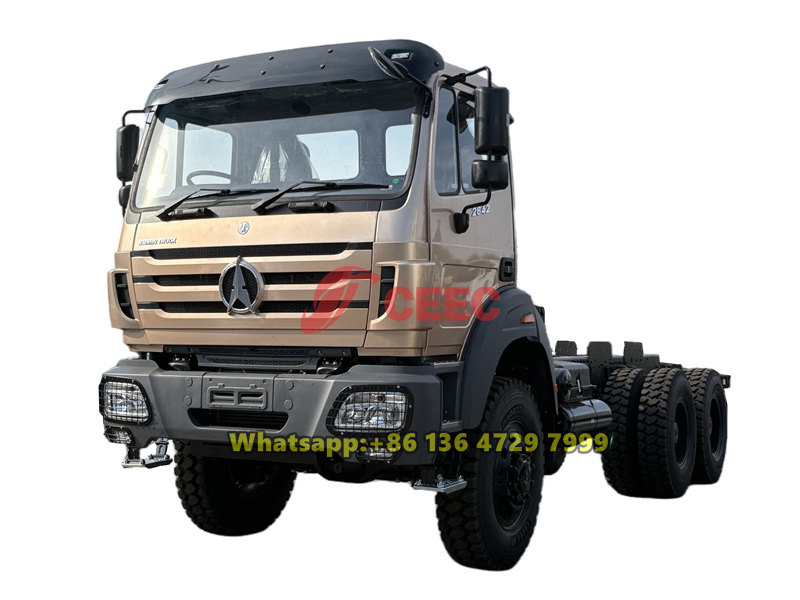

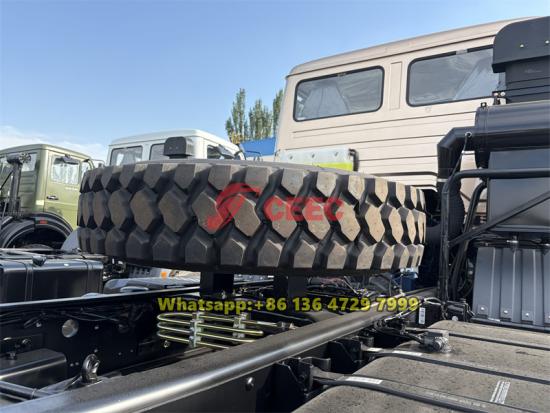

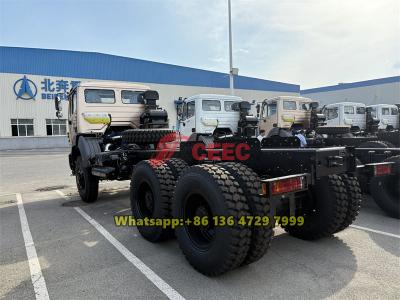

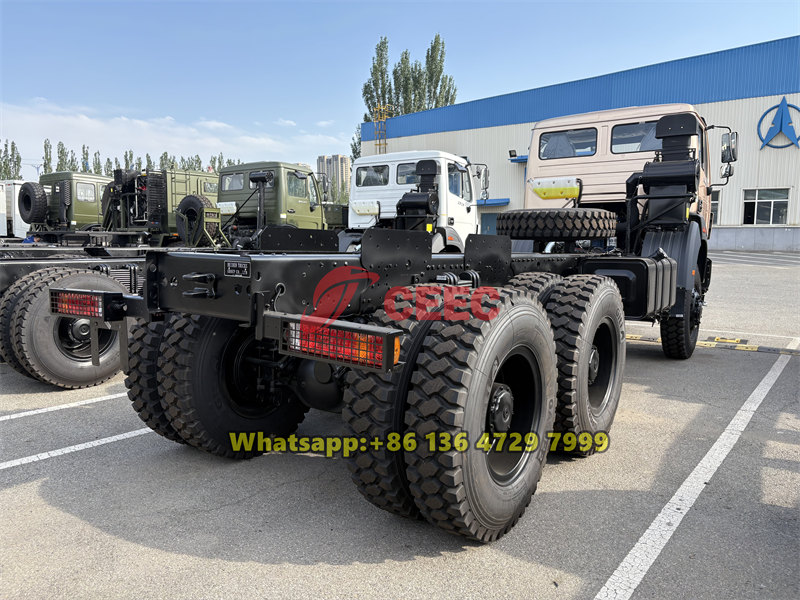

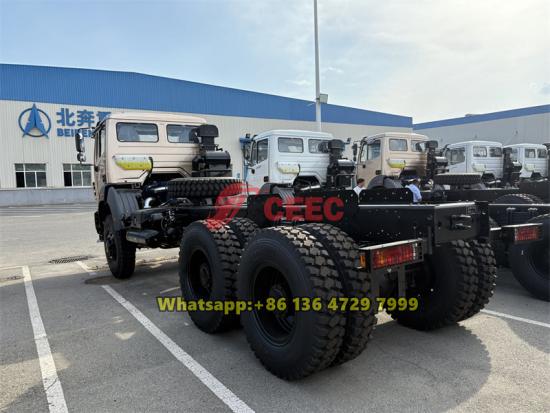

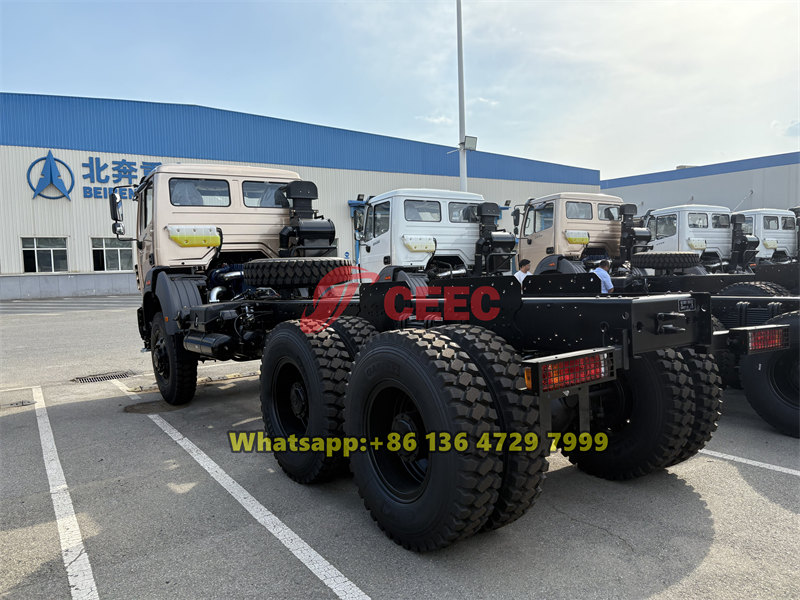

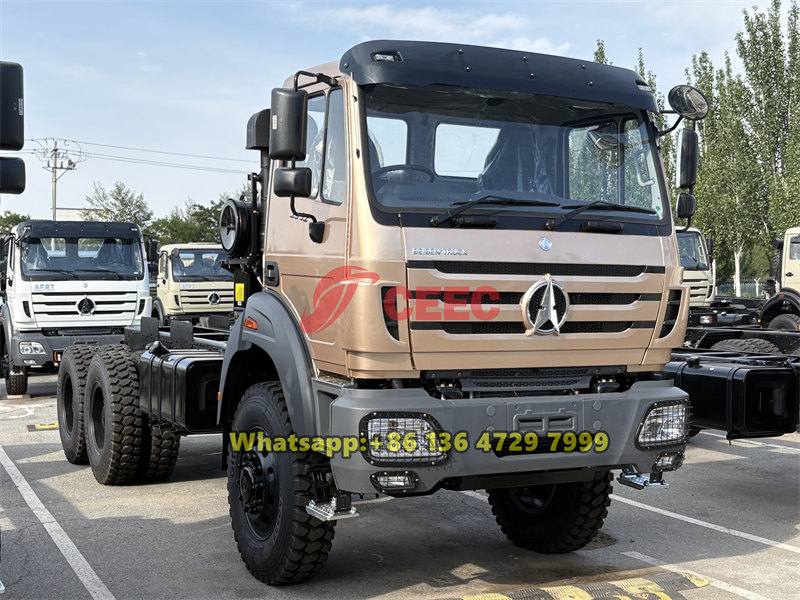

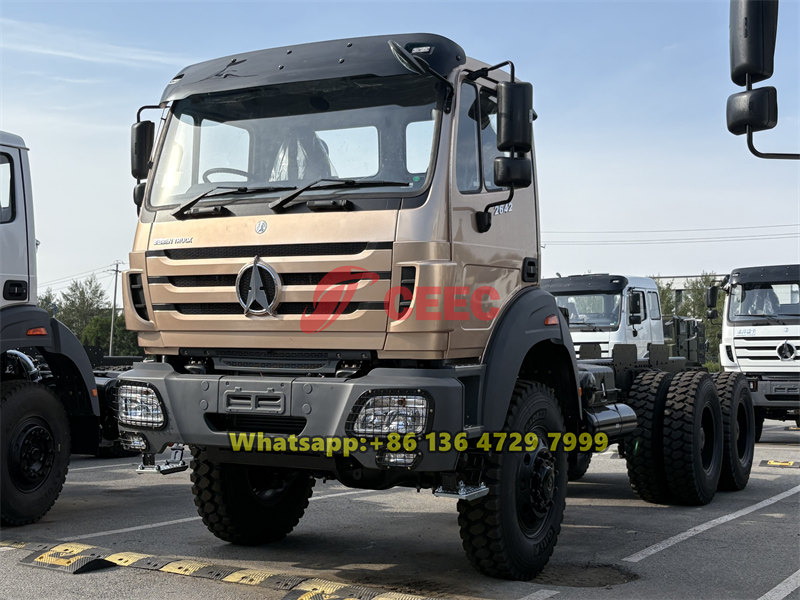

Ⅲ. Product Pictures
6x6 drivetrain (all six wheels are powered) gives it excellent traction, making it ideal for off-road and rough terrain use. Beiben 6x6 off road V3 truck is commonly used in regions or industries where road infrastructure is poor or where vehicles need to travel across fields, mud, sand, snow, and unpaved terrain. Beiben V3 V3 6x6 variant is often adapted for military purposes, serving as troop carriers, equipment transports, or even as platforms for specialized military hardware.
Beiben 6x6 drive tractor truck is a heavy-duty truck manufactured by Beiben (also known as North Benz), beiben 6x6 tractor truck is equipped with WEICHAI 380 hp diesel engine, Fast 12JS200T transmission, BENZ 7.5 T front axle, benz 13 T double rear axle, mercedes benz technology NG80B cabin. It suitable for difficult terrains and off-road applications. The primary function is to serve as tractor unit, meaning it is used to tow semi-trailers, tankers, and other heavy equipment. It provides the power and traction needed to haul large and heavy load.
Beiben 6x6 drive mining dump truck is equipped with WEICHAI WP12.420E32 diesel engine, which can provide strong engine power during in the drive situation. Fast 12JS200T transmission is very reliable for difficult terrains and off-road applications. Its 6x6 off road system can challenge different kinds of bad road, such as forest, desert, rock terrain. The primary function of beiben 6x6 dumper is to transport sand, mining rock, logging material.
