The Beiben 8×8 heavy-duty chassis adopts all-wheel drive and Mercedes-Benz technology dual-reduction axles, paired with a 420-horsepower engine and a 12-speed transmission. Equipped with a fish-belly frame and multi-leaf spring suspension, it delivers superior load-bearing capacity. The dual-circuit braking system and exhaust auxiliary braking guarantee safety under heavy loads. Designed for harsh road conditions such as oilfields, mines and African terrains, it stands out for outstanding reliability and durability.
Working Capcity:
40 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
11530×2550×3450Drive System:
8×8Wheelbase (mm):
1500+4750+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
LHD/RHD, 14.00R20 tyre is optionalBeiben 8×8 chassis is an all-wheel-drive special vehicle chassis engineered exclusively for extreme road conditions and heavy-duty operations. Its core feature lies in eight wheels across three axles all delivering driving power. Combined with Mercedes-Benz front and rear axles as well as wheel reducers, it can tackle unpaved roads, muddy ground, steep slopes and other complex terrains.
The Beiben 8x8 off-road chassis is fitted with a Weichai 420HP diesel engine, matched with a 12-speed mechanical transmission and dual 400L fuel tanks, it balances powerful performance and long driving range. The braking system integrates dual-circuit air service braking and engine exhaust auxiliary braking to ensure reliable braking performance under heavy loads. It features a fish-belly variable-section frame and leaf-spring dependent suspension, offering excellent load rigidity and torsion resistance. Boasting exceptional off-road capability, high load capacity and long service life, this Beiben 8×8 AWD chassis has become a preferred choice for many African clients.

CEEC factory is authorized supplier for Beiben 8x8 off-road trucks,
guarantee all Beiben 8x8 heavy trucks Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Wheel base (mm) |
1500+4750+1450 |
|
|
Engine |
Model |
WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
|
Fuel type |
Diesel |
|
|
Hose Power |
420HP |
|
|
Rated Power / rotating(kw/(r/min) |
309Kw/2100rpm |
|
|
Emission Standard |
EURO 3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1750Nm/1200-1500rpm |
|
|
Displacement (ml) |
11596 |
|
|

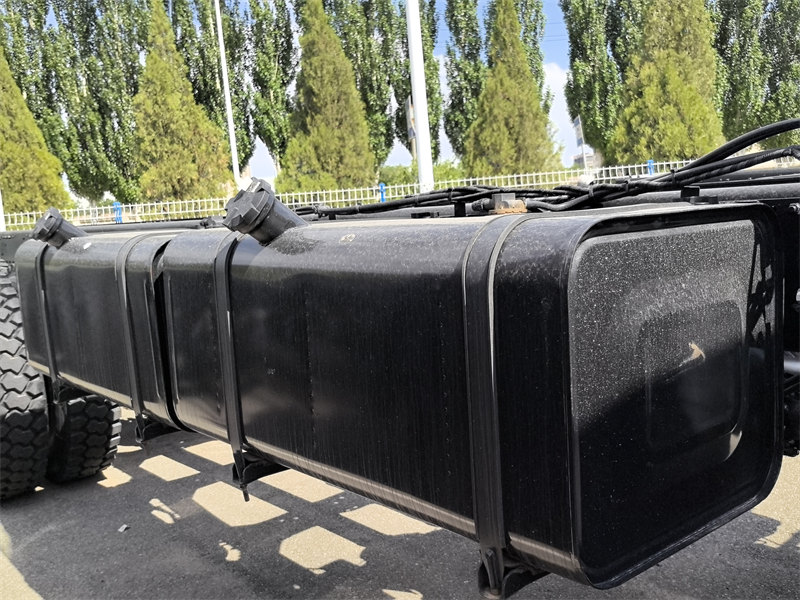

Fuel tanker capacity (L) |
400+400 |
|
|
Transfer Case |
LF200 |
|
|
Clutch |
Model |
GFX430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T, mechanical type, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
|

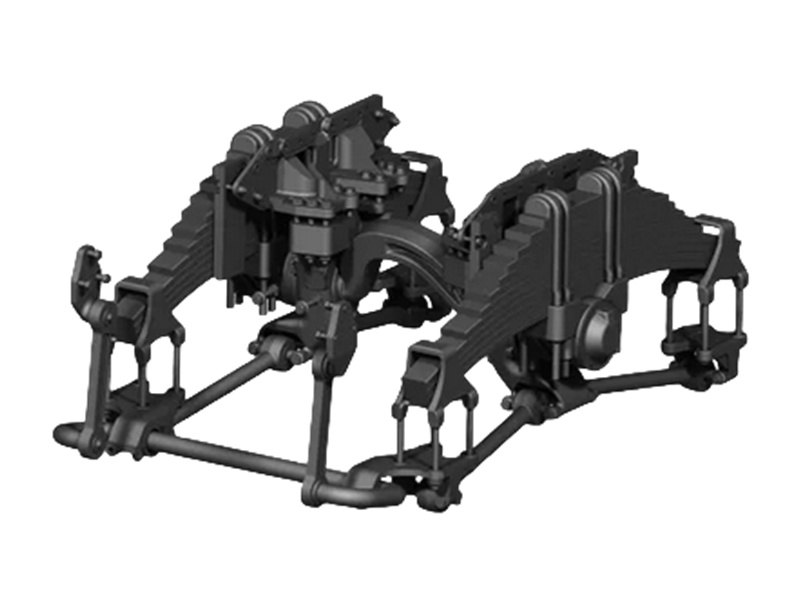

Suspension system |

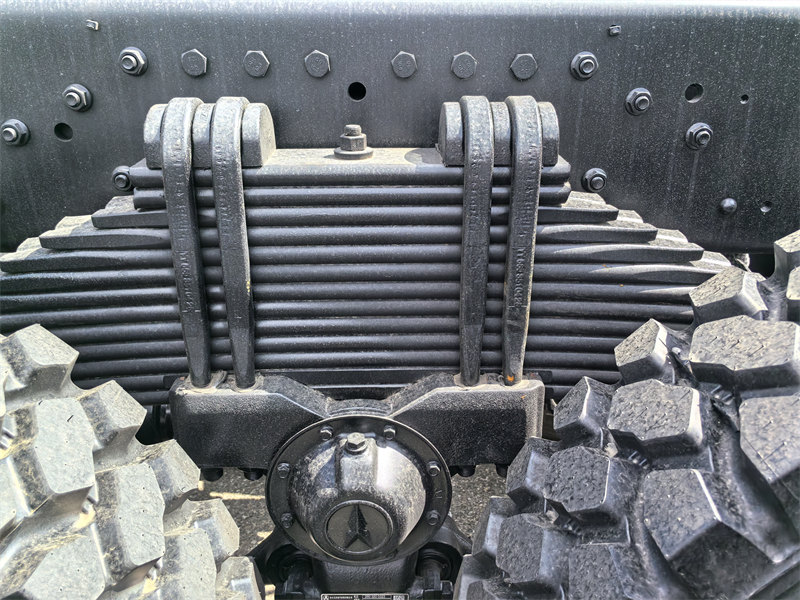

Rear Suspension |
Non-free standing stabilization spring, stabilization suspension, 13pcs |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|

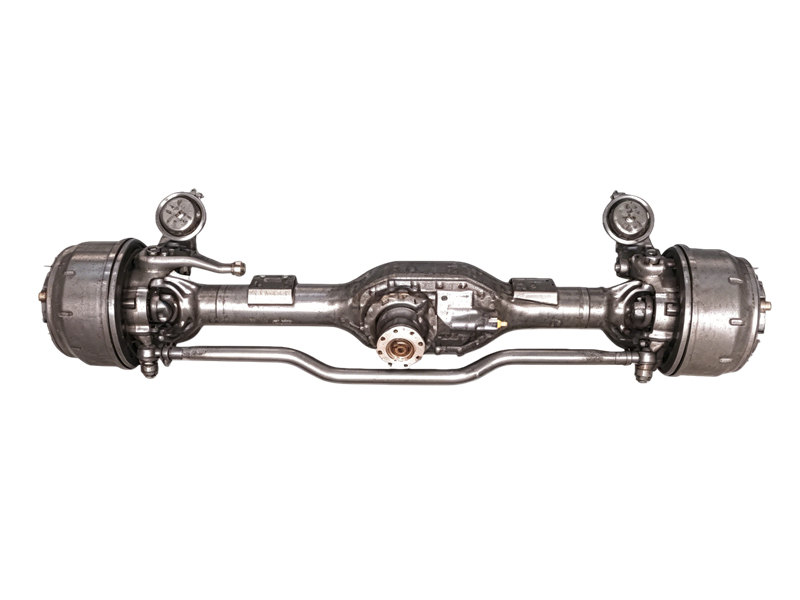

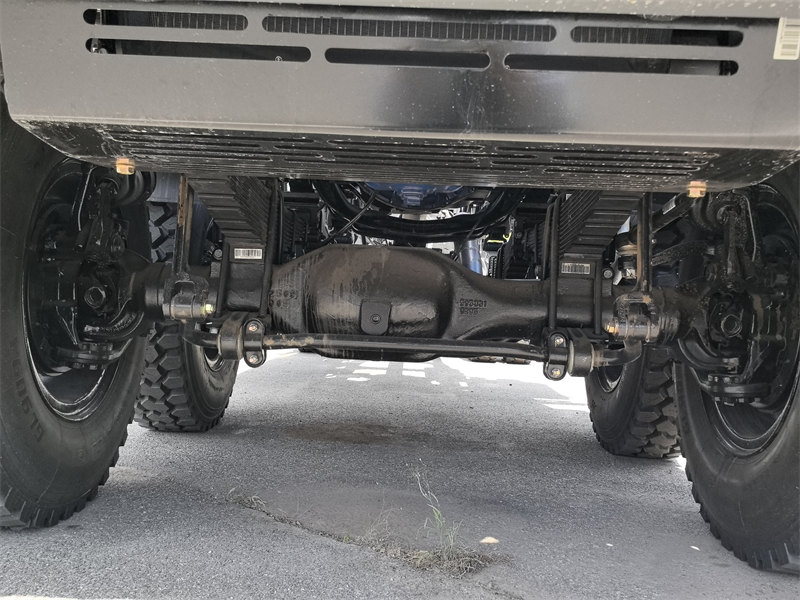

Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, all driving steering axle, 7T+7T |
|
|

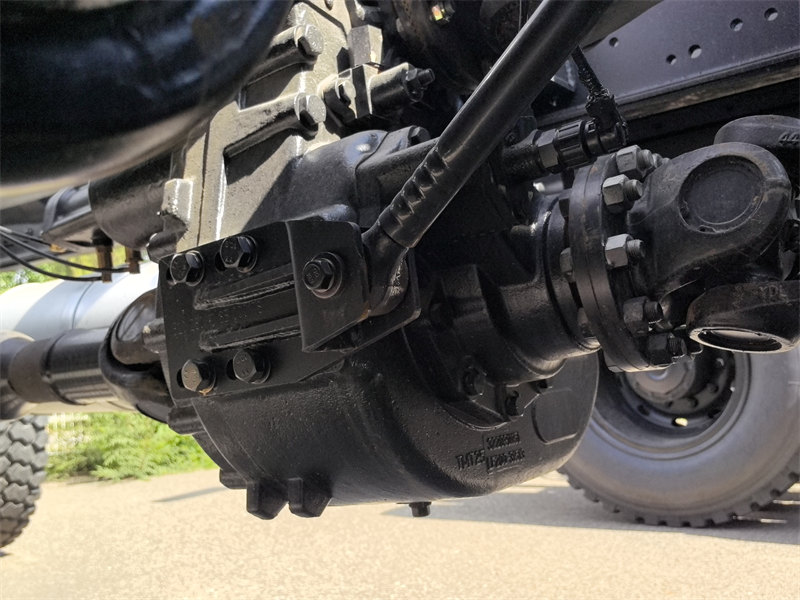

Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, 13T+13T |
|
|
Tire |
12.00R24 |
|
|
Qty of tire |
13 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
Beiben NG80 long cab, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With Tropical thermostat |
|
|

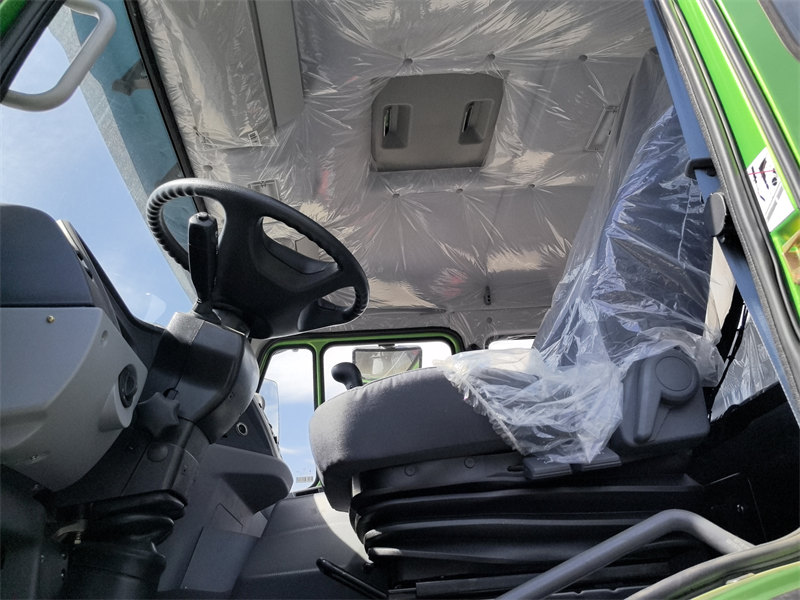

Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. |
||
|

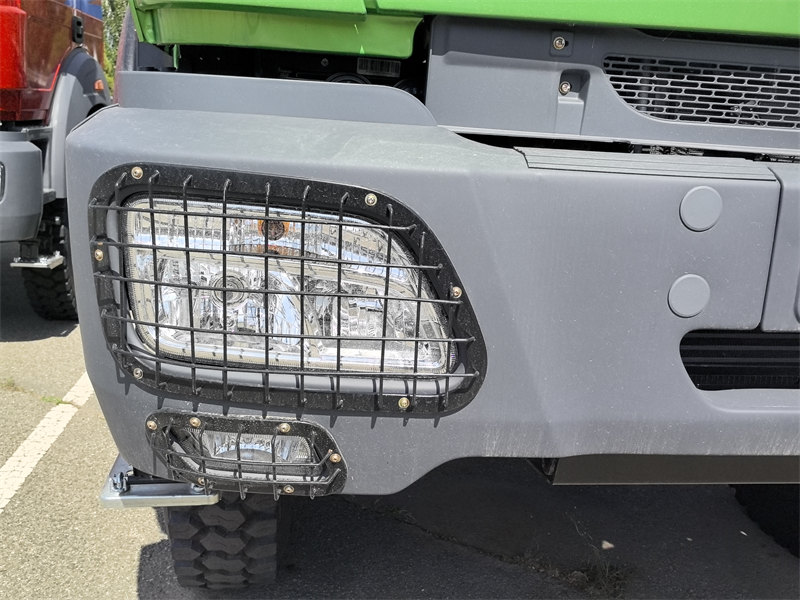

Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
||

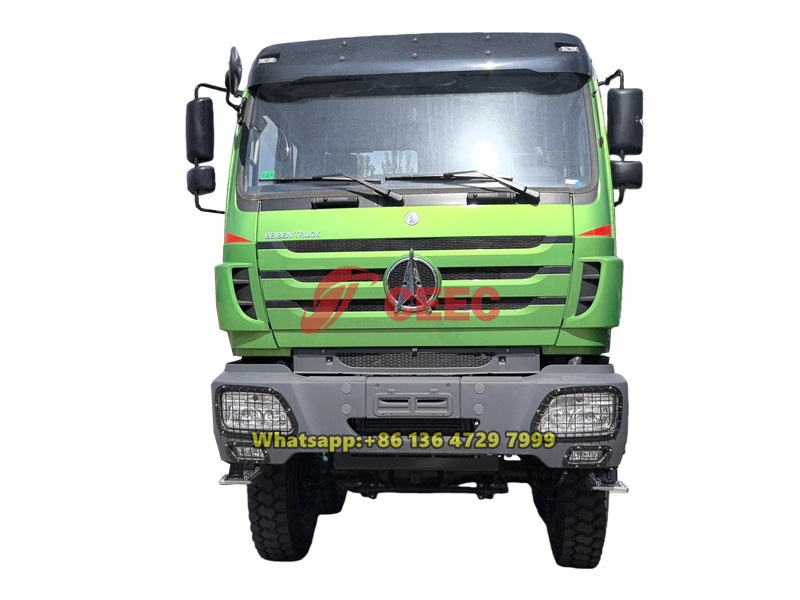

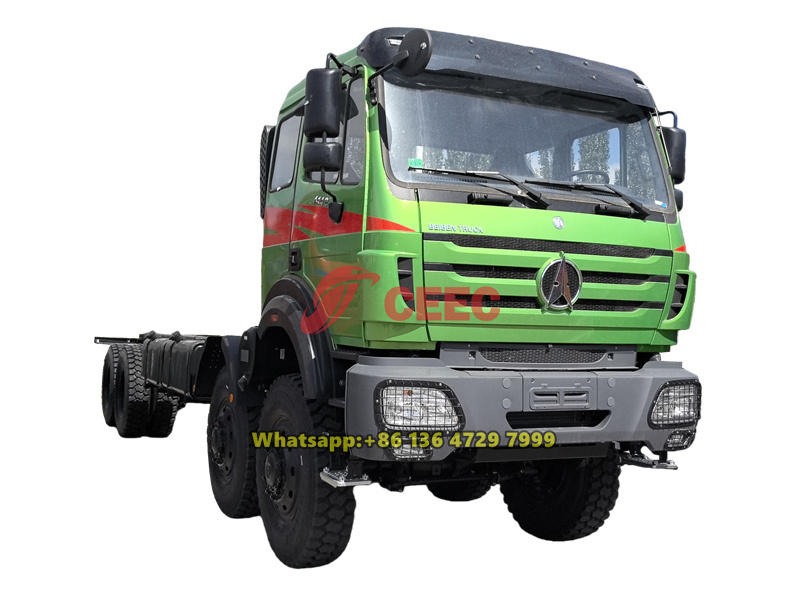

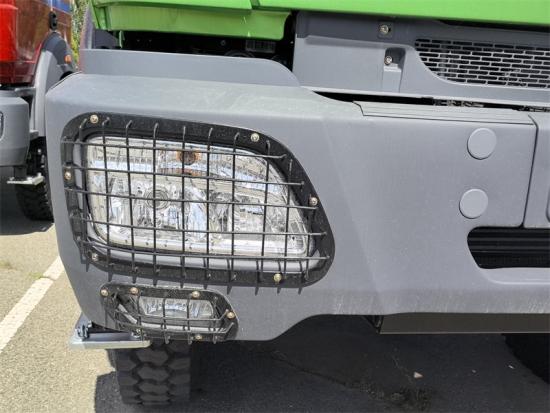

» Ⅲ. Product Details:
» Ⅳ. Advantages of Beiben 8x8 heavy chassis:

1. Reliable Power & Drivetrain System
Equipped with the Weichai WP12.420E32 engine, delivering a maximum power of 420HP, paired with a 12-speed manual transmission and LF200 transfer case, providing smooth power delivery suitable for sustained heavy-load operations.
2. Superior Load-Bearing and Torsion Resistance
Features a fish-belly shaped variable-section frame with multi-leaf spring suspension, front axle 7+7 tons and middle/rear axle 13+13 tons. The robust structure adapts well to uneven terrain and eccentric loading conditions.

3. High Safety of Braking and Steering Systems
Dual-circuit air brakes with exhaust brake and spring-loaded parking brake, combined with ZF8098 hydraulic power steering, ensure stable handling and reliable brake response under heavy-load conditions.
4. Comfortable and safe cabin
NG80 long cab with all-steel skeleton and double-layer steel plate construction, tiltable forward for easy maintenance. Equipped with high-back shock-absorbing seats, digital instrument panel, metal bumper, and front under-ride guard, offering both operator comfort and impact protection.

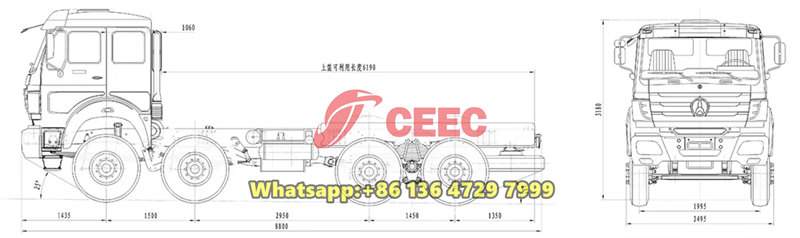

» Ⅴ. Product Drawing:

» Ⅵ. Beiben 8×8 chassis applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
