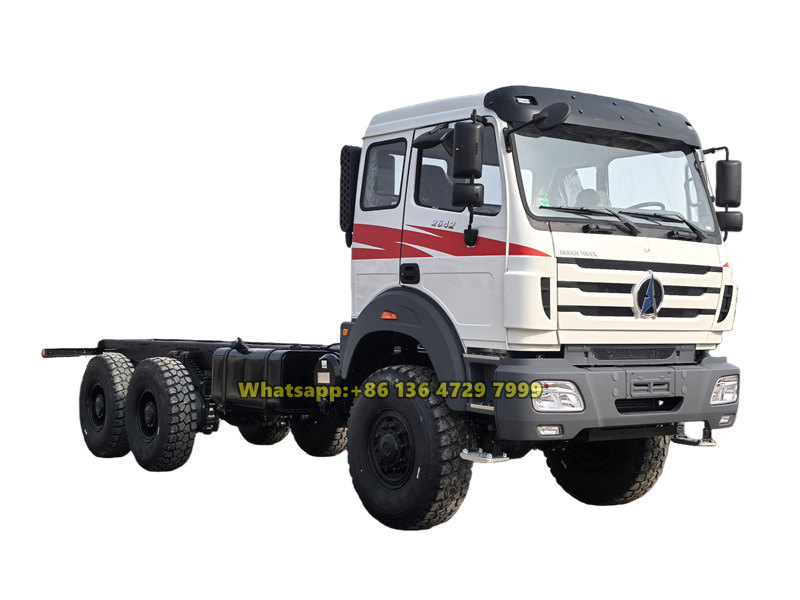

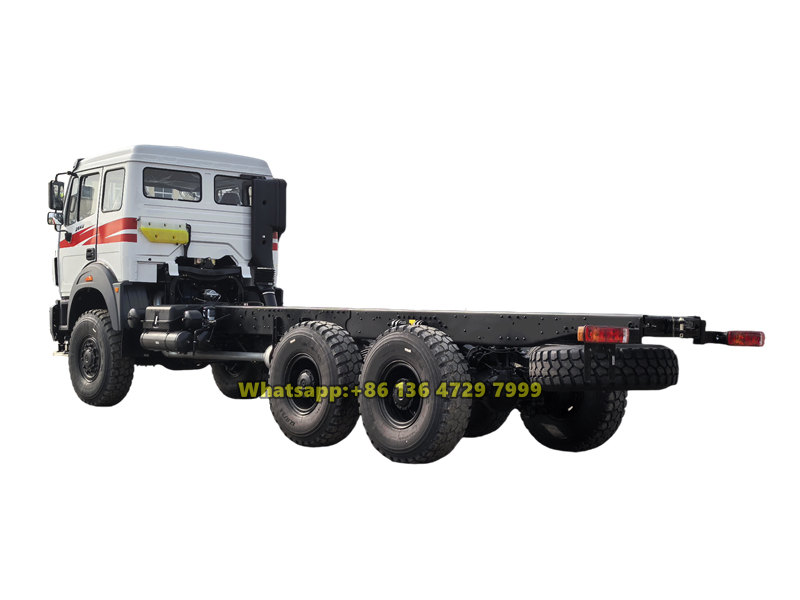

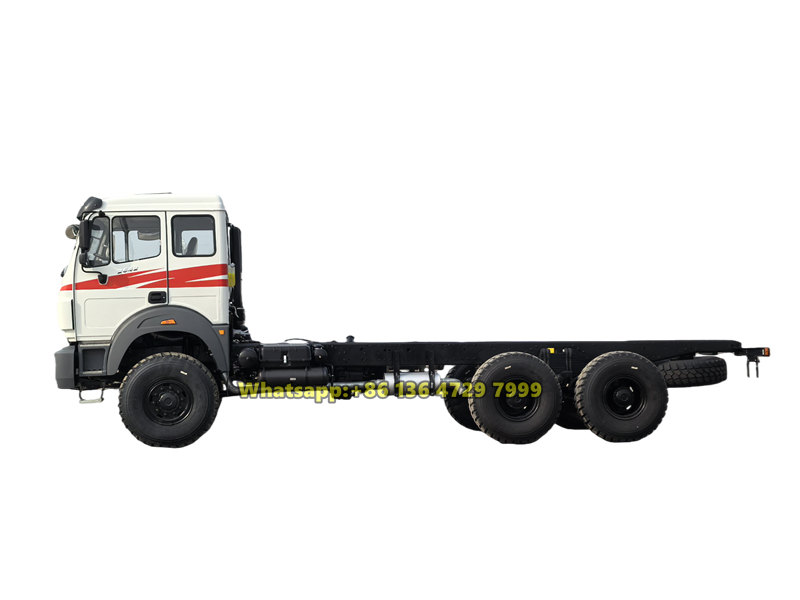

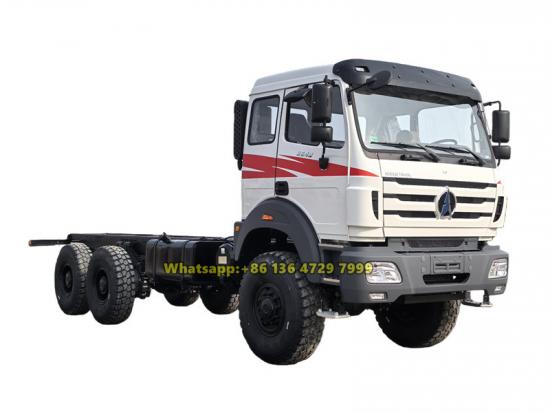

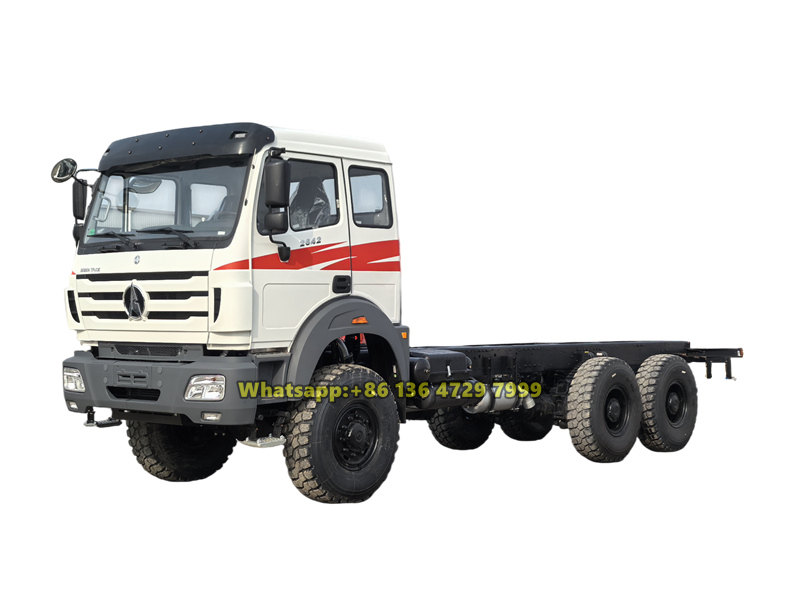

The Beiben 2642 6×6 all-wheel drive chassis is based on a Mercedes-Benz technology platform, equipped with a Weichai WP12.420E32 engine, supplying a maximum power of 420 HP, matched with a Fast 12-speed transmission and an LF200 transfer case. It features a 7-ton front drive axle and a 13-ton dual-reduction rear axle with a gear ratio of 5.263, paired with large 14.00R20 off-road tires, offering excellent load-bearing capacity and off-road capability.
Market Price:
$51100Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:

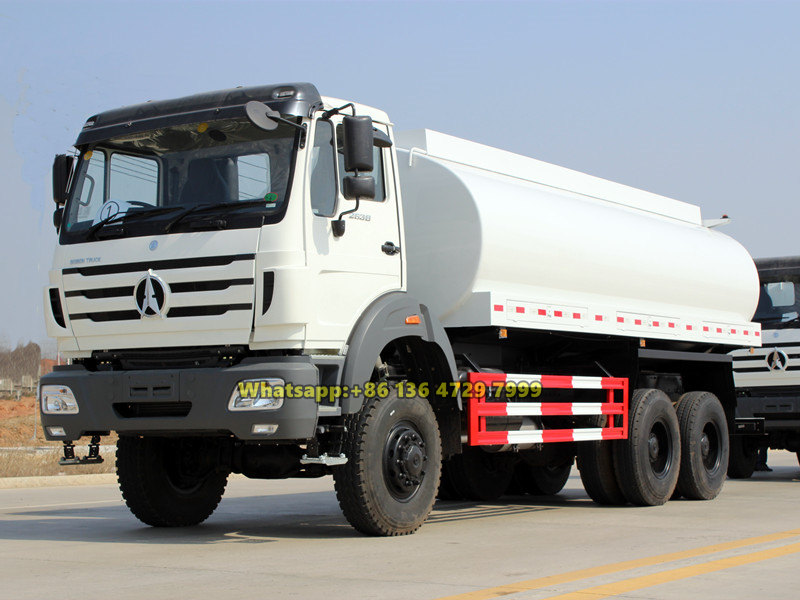

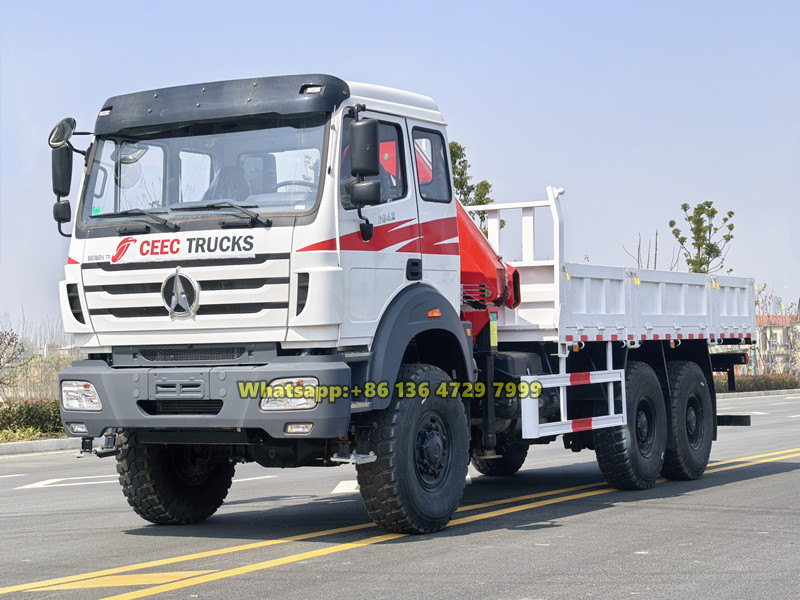

8×8, RHD drive is optionalThe Beiben 2642 6×6 chassis is a heavy-duty off-road chassis designed based on the German Mercedes-Benz technology platform. Due to its strong load-bearing capacity and excellent off-road performance, it is widely used in the modification of special vehicles, such as Beiben 6×6 water tanker trucks, oil tanker trucks, cargo trucks, and truck-mounted cranes.
CEEC factory is authorized supplier on beiben 6x6 AWD trucks,
guarantee all beiben 6x6 off-road trucks Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Beiben 6×6 Off-road Chassis Technical Specification |
||
|
Basic parameter |
Model |
2642/6×6 |
|
Length×width×height (mm) |
9920×2500×3380 |
|
|
Wheelbase(mm) |
4450+1450 |
|
|
Curb weight(kg) |
11050 |
|
|

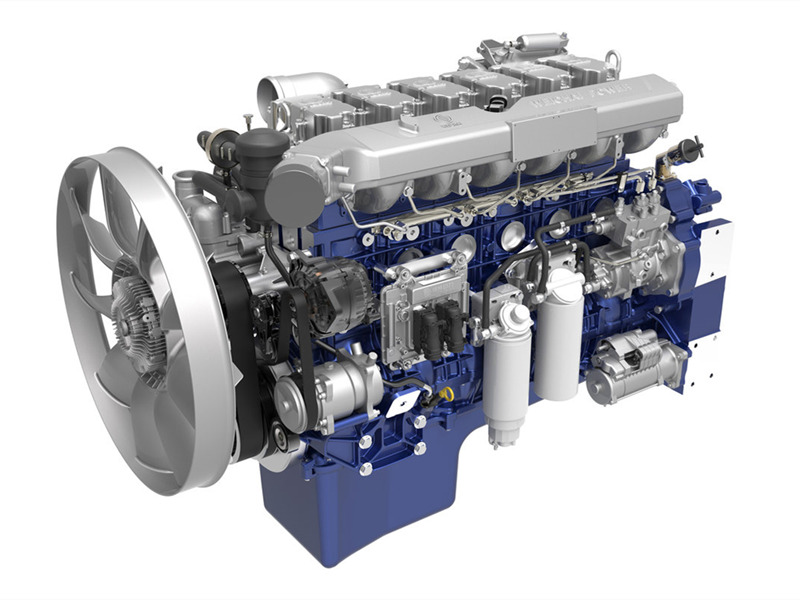

Engine parameter |
Model |

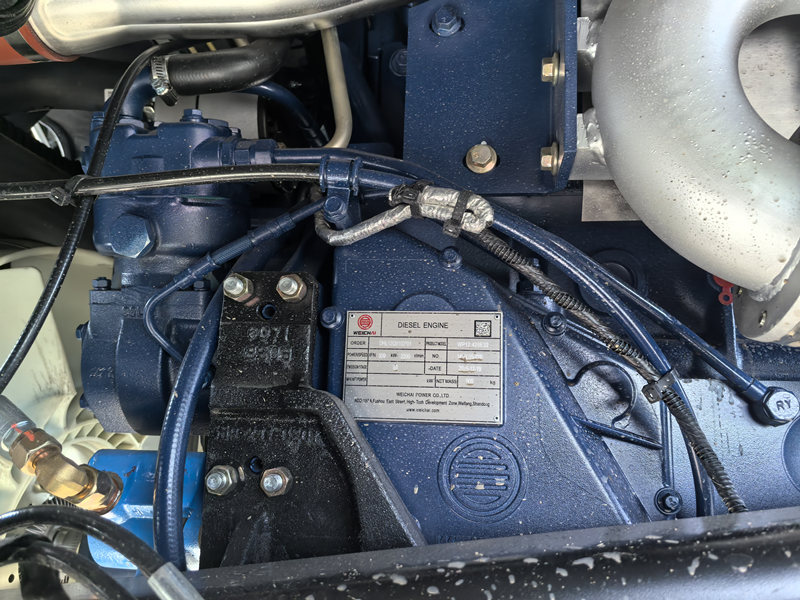

WP12.420E32 |
|
Number of cylinders |
6 |
|
|
Max. Power (HP) |
420HP(309kW) |
|
|
Rated speed (rpm) |
2100 |
|
|
Max. torque (N.m) |
1750 |
|
|
Max. torque speed (rpm) |
1200-1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron oil tanker |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
FAST 12JS200T, mechanical；12-speed forward and 2-speed reverse |
|
|
Transfer case |

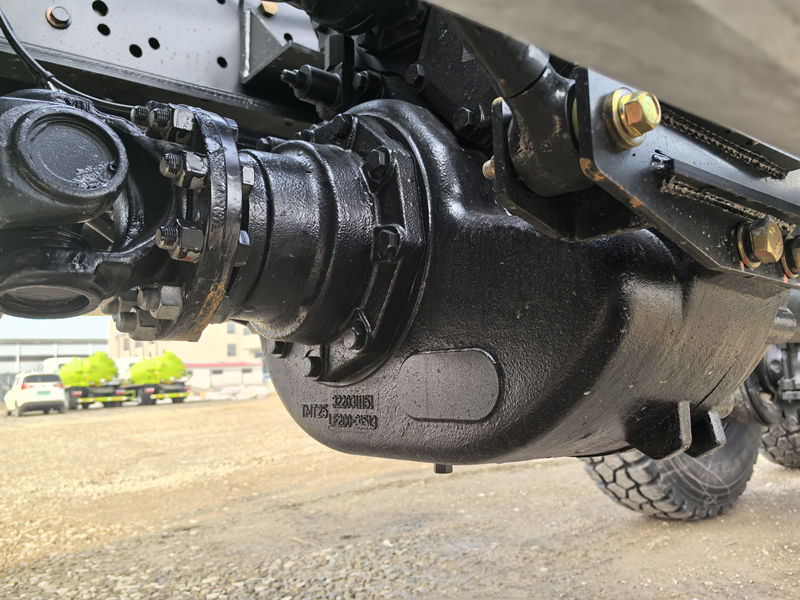

LF200 |
|
|
Steering system |
Steering gear |
ZF 8098, circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7 mm； |
|

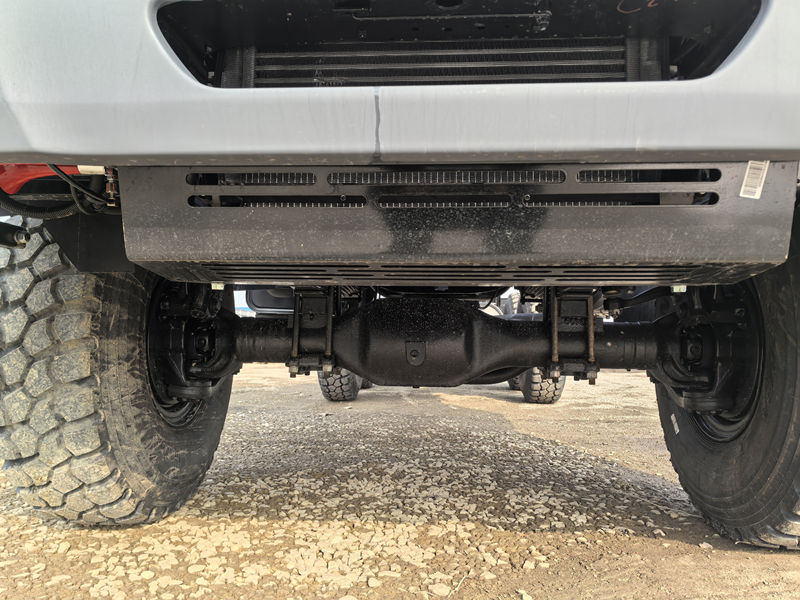

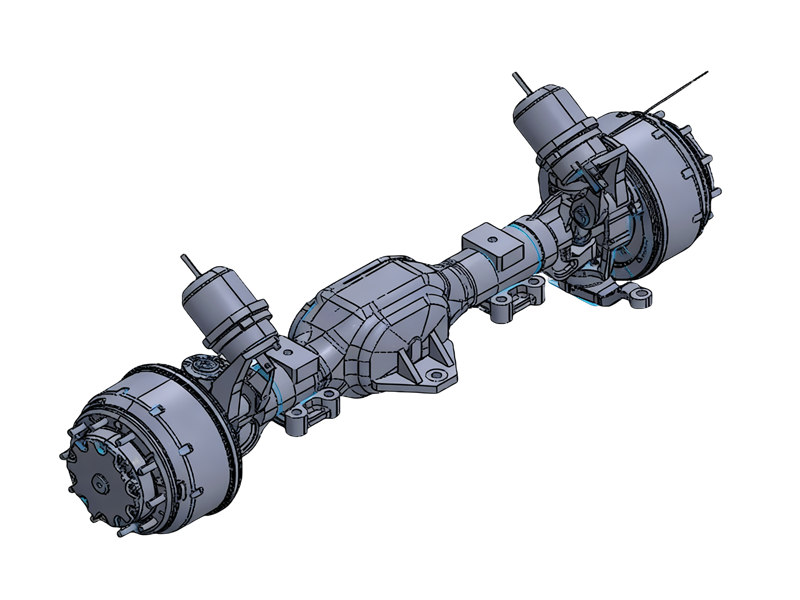

Front axle |
7 T, driving steering axle, drum brake； |
|
|

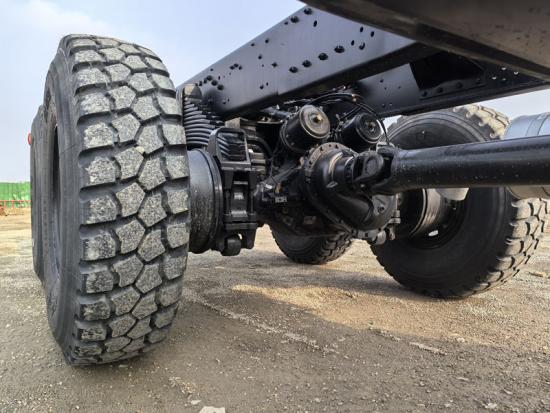

Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13pieces； |
|
|
Tire |

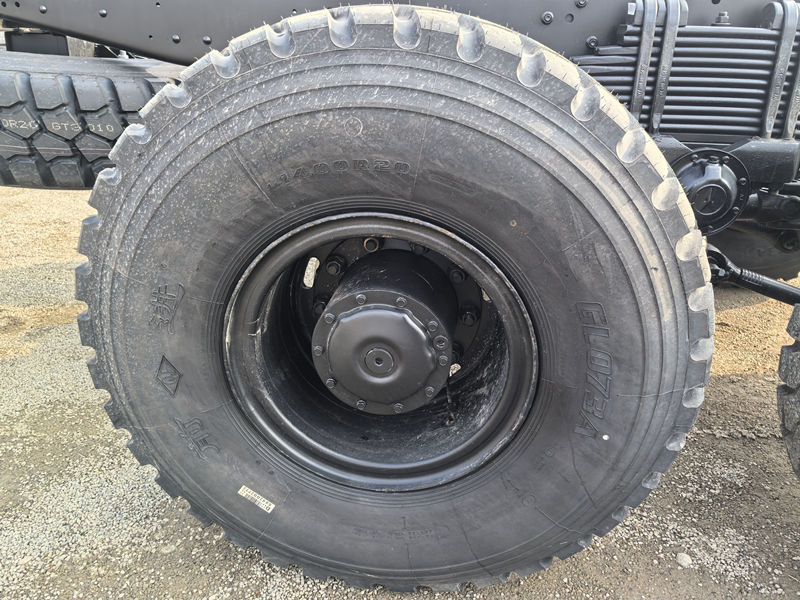

14.00R20, 6+1 pcs |
|
|
Cab |
NG80B long cabin/ flat roof. Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|

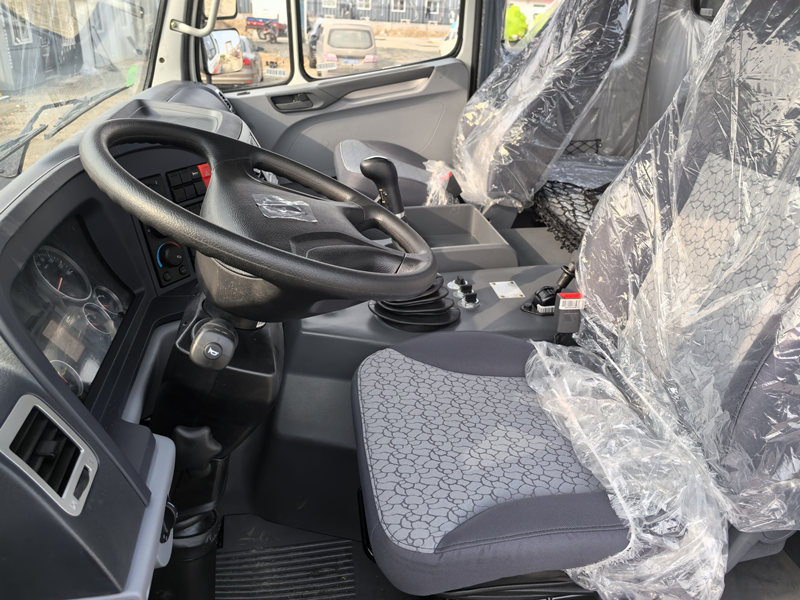

Interior trimming: Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
» Ⅲ. Product Advantages:

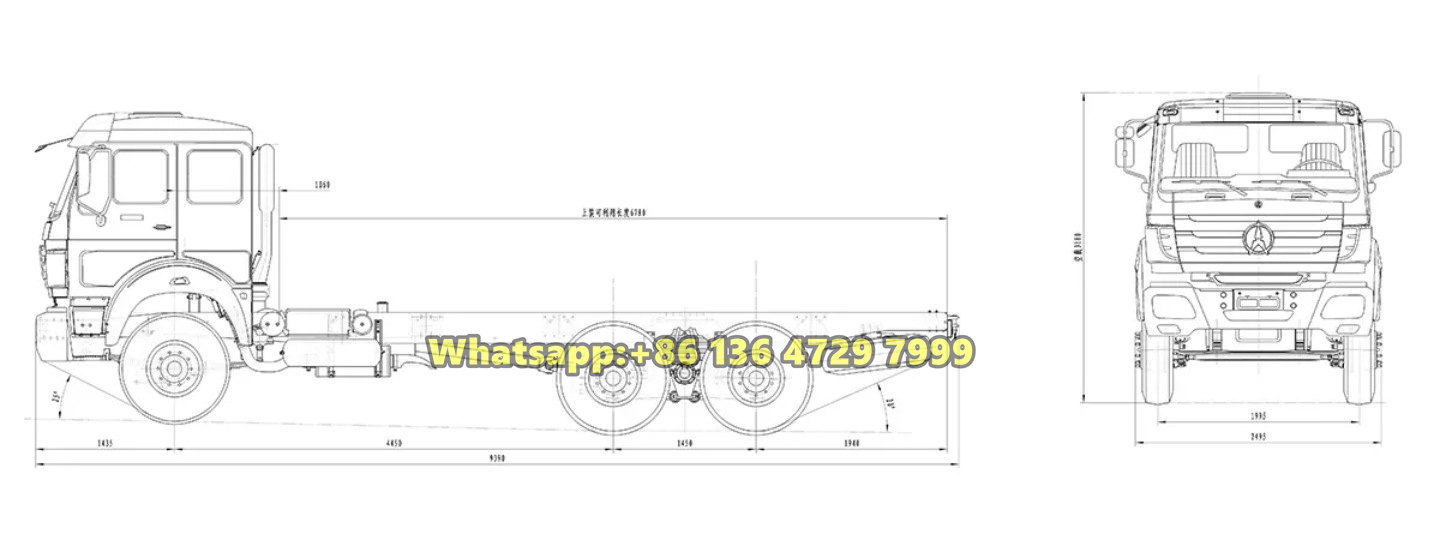

» Ⅳ. Product Drawing:

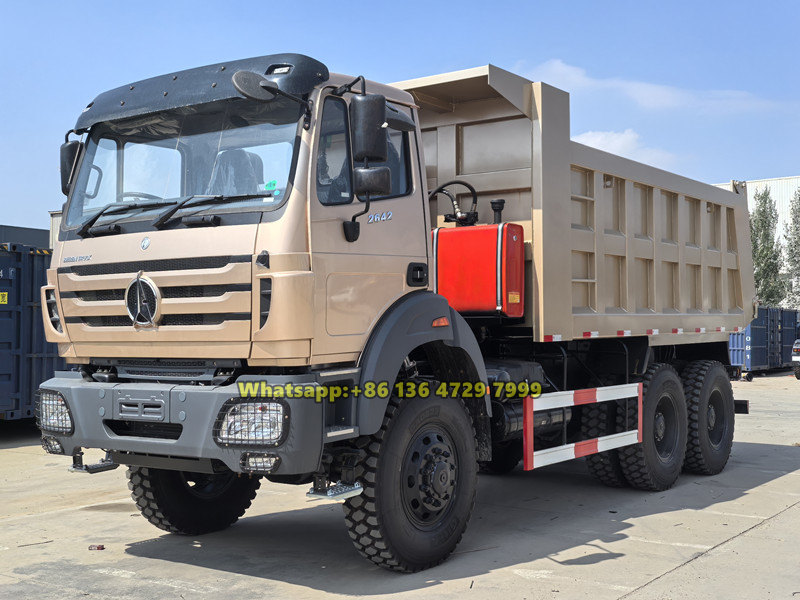

» Ⅴ. Beiben 6×6 chassis applications:
