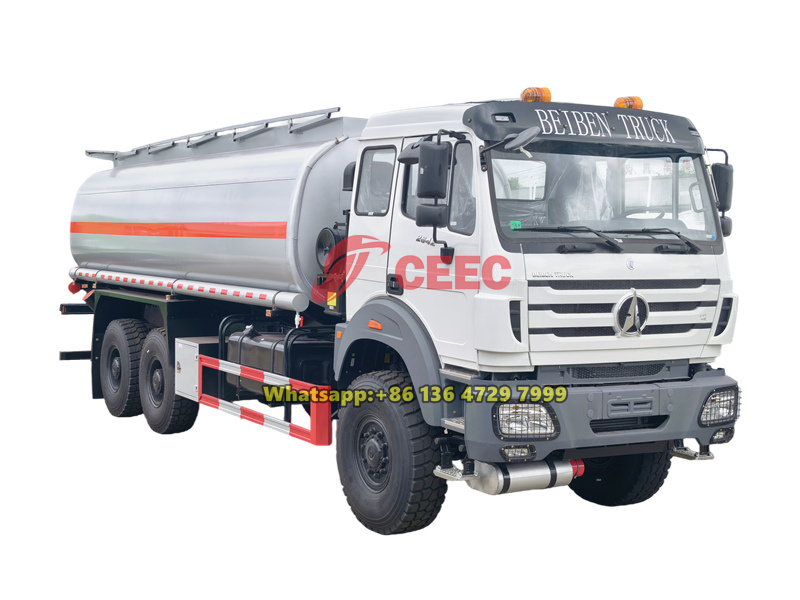

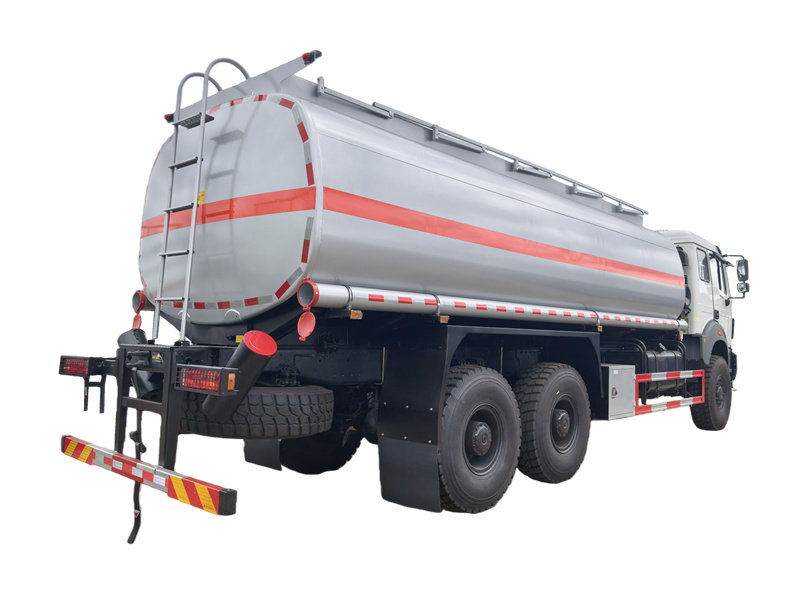

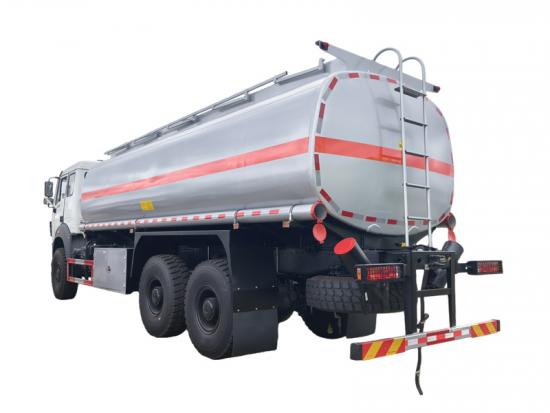

Beiben 2642 20,000-liter fuel tanker is a heavy-duty fuel transport vehicle. Its tank body is made of Q235 carbon steel and comes standard with European-standard manholes, bottom valves, and an emergency shut-off system, ensuring safety and reliability. The chassis is powered by a Weichai 420 hp engine and a Fast 12-speed transmission, paired with Mercedes-Benz technology axles, delivering a mature and durable powertrain. With a 20,000-liter capacity, it efficiently meets bulk fuel transfer and refueling needs in mining sites, construction sites, gas stations, and similar scenarios.
Working Capcity:
20000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9700×2550×3500Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
2 compartments, stainless steel, aluminum alloy tanker is optionalBeiben 2642 20,000-liter fuel bowser is a heavy-duty fuel transport vehicle built on a Beiben 6×4 drive chassis. It consists of five main parts: the tank body, chassis, piping system, refueling system and safety accessories. The tank is made of Q235 carbon steel and features internal anti‑slosh baffles to reduce liquid surge. It comes standard with European‑standard manholes, emergency valve, and pneumatic ball valves, complemented by an 80YHCB‑60 oil pump and a Censtar dispensing nozzle, enabling efficient loading, unloading, and refueling operations.
This Beiben heavy fuel tanker truck is primarily used for transporting diesel, gasoline, or chemical liquids to gas stations, mining areas, and construction sites. Its greatest advantages are its legal payload capacity and the reliability of Mercedes‑Benz technology axles. The chassis is powered by a Weichai 420 hp engine and a Fast 12‑speed manual transmission, forming a proven and durable powertrain. With an effective volume of 20,000 liters, it can replenish multiple pieces of construction machinery or transport vehicles in a single trip. Equipped with foldable guardrails, static grounding, and an emergency shut‑off system, it ensures both driving stability and daily operational safety. For work sites that require frequent and large‑volume fuel usage, this vehicle is a highly practical choice.
CEEC factory is authorized supplier on Beiben oil tanker trucks,
guarantee all Beiben fuel bowser trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 2642 chassis, Weichai 420HP diesel engine, FAST 12JS200T gearbox
▶ Cabin: Beiben NG80B long cabin, complies with EU crashsafety certification standards
▶ Fuel tanker: Made of 6mm thick carbon steel, 20000 liters capacity, anti‑slosh baffles inside
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed

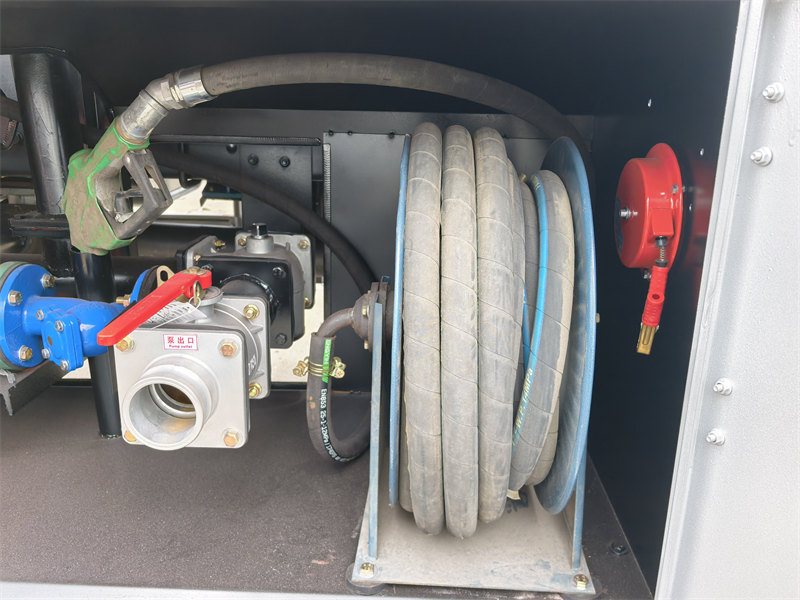

▶ Refueling system: 15m hose reel with refueling gun
» Ⅱ. Product Specifications:
|
Beiben 2642 20,000 Liters refueling truck |
||
|
Emission Standard |
EUR 3 |
|
|
Model |
CEEC5260GYY |
|
|
Chassis model |
Beiben 2642 |
|
|
Driving type |
6×4 |
|
|
Dimensions |
||
|
Wheelbase(mm) |
4450+1450 |
|
|
Overall Dimension(mm) |
9700×2550×3500 |
|
|
Fuel tanker size(mm) |
7000×2400×1660 |
|
|
Weights |
||
|
GVW (kg) |
26,000 |
|
|
Rated payload weight(kg) |
14,200 |
|
|
Curb weight(kg) |
11,800 |
|
|
Front axle (Mercedes Benz technology) |
7.5 Ton load capacity, Double shoe disc air break system |
|
|
Rear/middle axle (Mercedes Benz technology) |
13Ton/axle (2 axle combined), dual-circuit air braking system, driving axle,duct alloy axle cover, with wheel side reducer |
|
|
Front wheel base(mm) |
1,990 |
|
|
Rear wheel base(mm) |
1,800/1,800 |
|
|
Front/rear overhang(mm) |
1410/2530 |
|
|
Max speed(km/h) |
80 |
|
|
Engine |
||
|
Engine model |
WP12.420E32 (WEICHAI brand) |
|
|
Engine type |
6 cylinders, 4 stroke, water-cool, direct injection, turbo-charged with Inter-cooling diesel engine |
|
|
No. of cylinders |
straight-6 cylinders |
|
|
Displacement(L) |
11.596L |
|
|
Max. output (kw/Ps/rpm) |
309kw(420ps)/2100 rpm |
|
|
Max torque/Speed(N.m/rpm) |
1750 N.m/1200-1500 rpm |
|
|
Drive Line |
||
|
Clutch description |
¢430 Single disc, dry type, friction clutch |
|
|
Transmission |
Mechanical, FAST 12JS200T |
|
|
Braking system |
Service brake |
Double circulation air brake system equipped |
|
Assistant brake |
WEVB(Engine exhaust brake) |
|
|
Park brake |
Energy storage spring brake |
|
|
Suspension system |
||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
|
Tire specification |
||
|
Tire |
12.00R20,total 10 tire and 1 spare tire |
|
|
Superstructure Specification |
||
|
Fuel tank |
||
|
Volume of tank |
20000L |
|
|
Number of compartments |
1 |
|
|
Material of tanker |
High-quality carbon steel |
|
|
Thickness of tank |
6 mm |
|
|
Transport medium |
Diesel, gasoline or others |
|
|
Fuel pump |
Brand |
China famous brand |
|
Model |
80YHCB-60 |
|
|
Flow |
60 m3/h |
|
|
Speed |
970 rpm |
|
|
Pressure |
0.6 Mpa |
|
|
Refueling gun |
Brand |
Censtar |
|
Model |
11A120 |
|
|
QTY |
1 |
|
|
Flow rate |
10~120L/min |
|
|
Length of refueling reel |
15m |
|
|
Safety accessories |
||
|
Manhole cover |
European standard, aluminum alloy |
|
|
Anti-overflow probe |
||
|
Gas recovery joint |
||
|
Filling Device |
Discharge valve |
|
|
Pumping outlet & inlet |
||
|
Oil and gas recovery valve |
||
|
Anti-overflow anti-static socket |
||
|
Percolator |
||
|
Valve |
Emergency valve |
|
|
Fittings |
Discharging Pipe |
|
|
Discharging Pipe box fitted on both side of tank |
||
|
Fire extinguisher |
||
|
One spare tire |
||
|

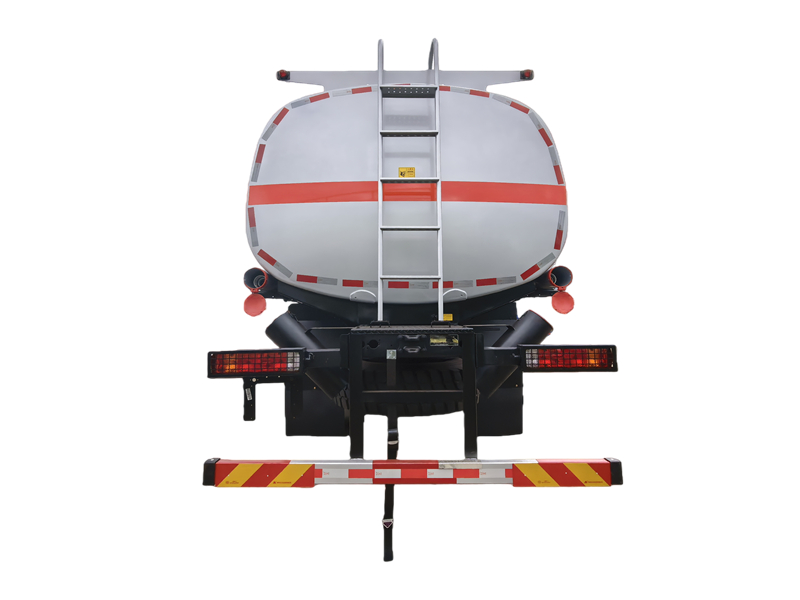

Ladder: For access to top of tank complete with cat walk on top of tank |
||
|
Heavy-duty rear bumper |
||
» Ⅲ. Key Features of the Beiben 20,000L Refueling Truck:
1. Sturdy Chassis and Mature Powertrain
o 6×4 drive configuration, powered by a Weichai 420 hp engine and a Fast 12 speed manual transmission – a reliable and durable powertrain.
o Front and rear axles adopt Mercedes Benz technology, offering strong load carrying capacity and suitability for heavy loads and challenging road conditions.
2. Large Tank Volume and High Operational Efficiency
o Effective tank volume of 20,000 liters, allowing a large single trip fuel load.
o Paired with a 60 m³/h oil pump and refueling gun, it enables rapid transfer and refueling of bulk fuel, reducing round trip frequency.
3. Comprehensive Safety Equipment
o Internal anti slosh baffles reduce liquid surge.
o Standard equipment includes European standard manholes, bottom valves (emergency shut off valves), static grounding reel, and flame arrestor.
o Both pneumatic and manual controls for pipeline shut off provide multiple layers of protection for driving, loading, and unloading safety.
4. Practical Superstructure Configuration
o Equipped with a 15 meter automatic reel refueling gun, side tool boxes and hose storage boxes, top foldable guardrails, and a rear access ladder.
o Facilitates daily operation and maintenance, balancing functionality and convenience.
 |
 |

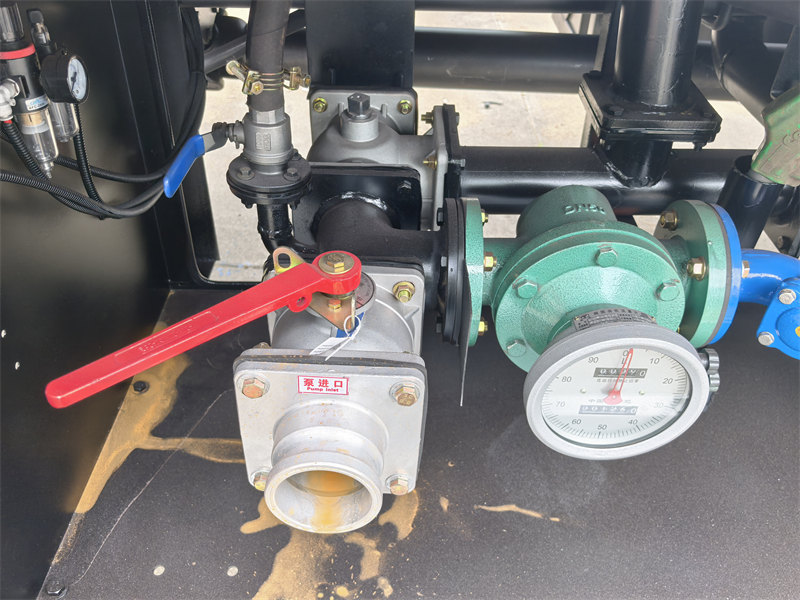

» Ⅳ. Product Details:
» Ⅴ. Beiben Oil Tank Trucks Drawing:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
Beiben 6*4 fuel tanker trucks are mostly produced on beiben 2527 fuel tanker truck chassis, this kind of beiben 10 wheeler fuel tanker truck can payload at least 15 cbm fuel , oil or gas.
China beiben 20 CBM fuel truck manufacturer is ceec trucks plant, we are 100% beiben 6*4 fuel tanker truck manufacturer, the most professional beiben 20 cbm fuel trucks supplier in china.
We are the best supplier of beiben fuel tanker trucks in congo. The most professional CONGO beiben fuel tanker trucks supplier, can supply the beiben 6*4 fuel tanker truck, beiben 8*4 fuel tanker. All the congo customer that buy the beiben oil trucks from us will have beiben spare parts for free of charage.
north benz NG80 truck chassis, 6*4 driving system, weichai 300 hp engine, 7 T benz front axle, 13 T double axle with reducer. 11.00R20 tyre. carbon steel fuel tanker capacity , 15,000 liters.
Beiben 2527 fuel tanker truck, with benz technology 2527 type fuel trucks chassis, china famous brand 270 hp diesel engine, fast 9 shift transmission, benz 7 T front axle, benz 13 T rear axles , with axle reducer, 12.00R20 tyre, with CEEC perfect 20 CBM fuel tanker
Beiben 2534 airport fuel tanker truck, widely used for refueling the airplane at the airport, based on beiben 340 Hp engine truck chassis, with Germnay technology upper structure system. very convenient and reliable for charge the air gas . 10 CBM fuel tanker capaicty .
Beiben 10 wheeler truck chassis, with famous germany benz technology, 4450+1350 mm wheelbase, china best brand weichai WP7.300 engine, 11.00R20 tyre. CEEC high technology on Beiben 20 CBM oil tanker truck manufacturing.
Beiben 20 CBM fuel truck supplier, china most professional beiben tanker truck manufacturer, supply benz technology 2530 fuel oil trucks, 4450+1350 mm wheelbase, 11.00R20 tyre.
north benz 2530 truck chassis, china best quality beiben fuel truck supplier, provide best beiben 6*4 drive truck , weichai 300 hp engine, fast 9 shift transmission, benz technology 7 T front axle and 16 T rear axle, 4450+1450 wheel base, 11.00R20 tyre.
