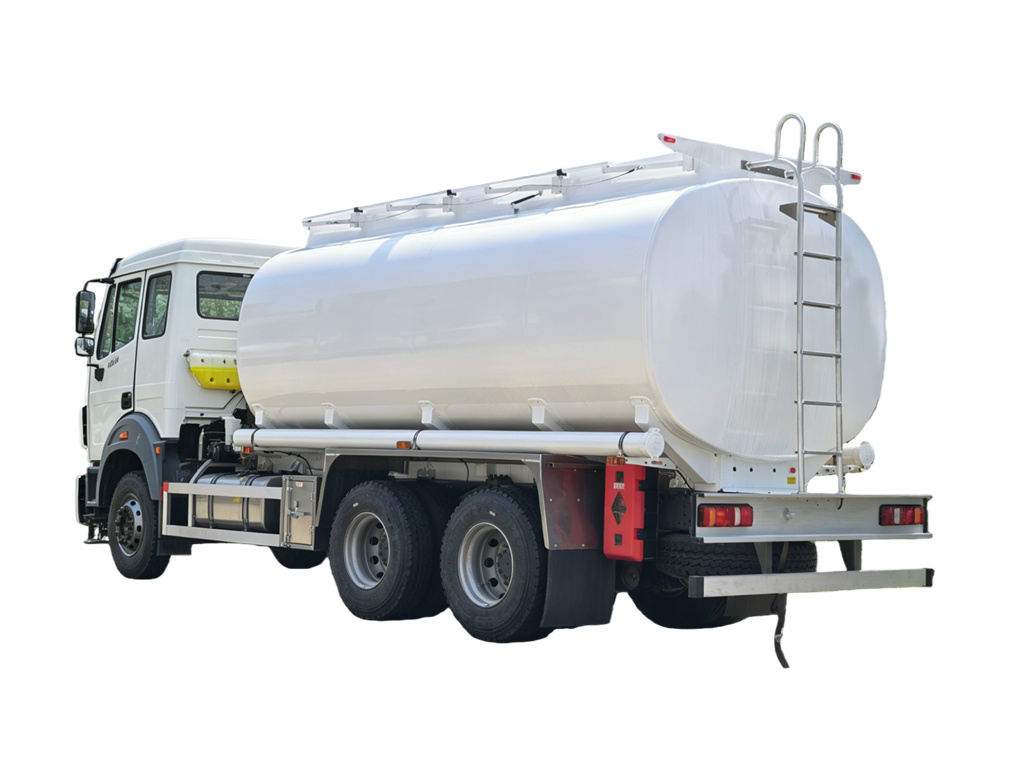

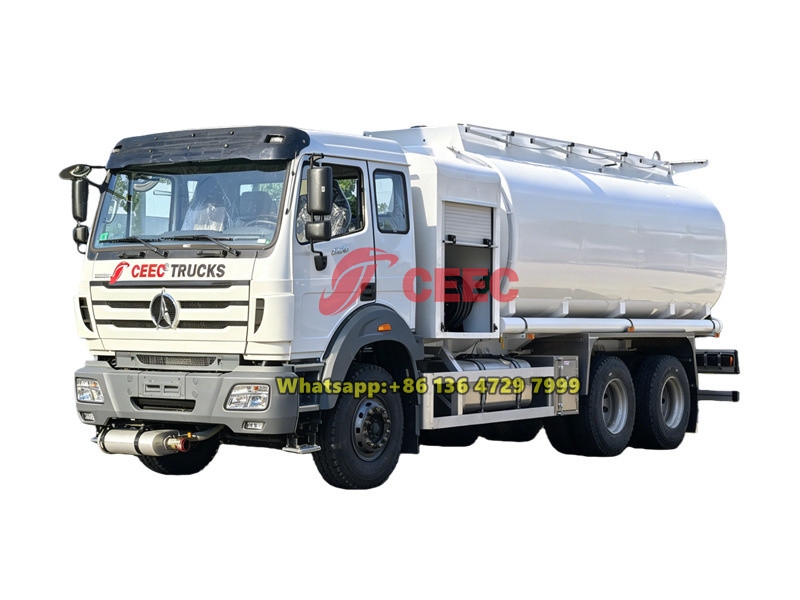

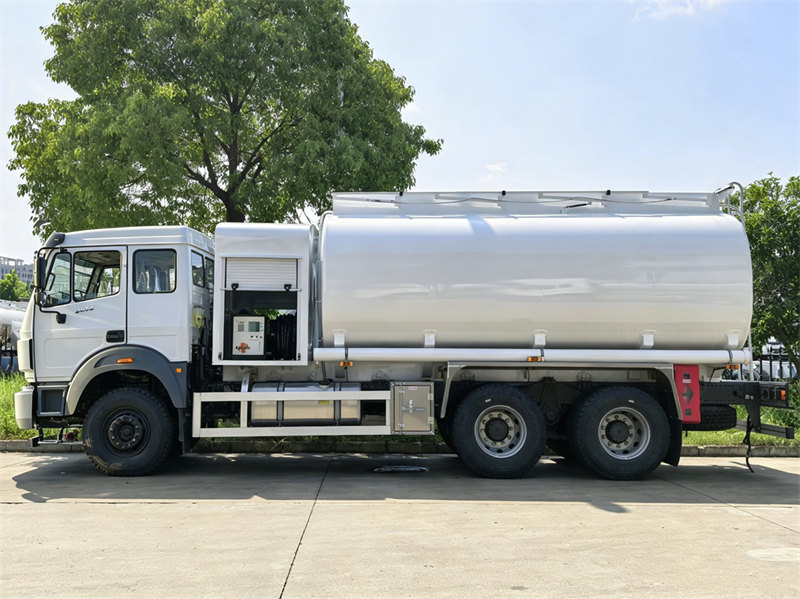

The Beiben 20,000L refueling truck is built on a Beiben 6×4 chassis, equipped with a 420HP engine. The tank body is made of carbon steel with a dual-compartment structure. It features a high-flow oil pump and two high-precision tax-controlled fuel dispensers, supporting the transport and on-site refueling of diesel and gasoline. It is suitable for use in construction sites, mining areas, gas stations, and other scenarios.
Working Capcity:
20000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9600×2550×3500Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
2 compartments, stainless steel, aluminum alloy tanker is optionalBeiben 20,000L refueling truck is a professional dangerous goods transport vehicle modified on a Beiben 6×4 heavy-duty chassis. The complete vehicle consists of the Beiben chassis, a 20,000L tank body, an oil pump, a piping system, and fuel dispensers. The tank is made of Q235 steel with a thickness of 5–6mm and is divided into two independent compartments, equipped with anti-wave baffles and emergency shut-off valves, ensuring a robust safety structure. The vehicle is equipped with an 80YHCB-60 high-flow oil pump and two CENSTAR tax-controlled fuel dispensers with a metering accuracy of ±0.25%. Together with a 25-meter automatic rewind hose reel, this Beiben mobile fuel bowser is suitable for long-distance transport and on-site refueling of refined oil, and is widely used in construction sites, mining areas, gas stations, and other scenarios.
CEEC factory is authorized supplier on Beiben fuel tanker trucks,
guarantee all Beiben oil tansfer trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS

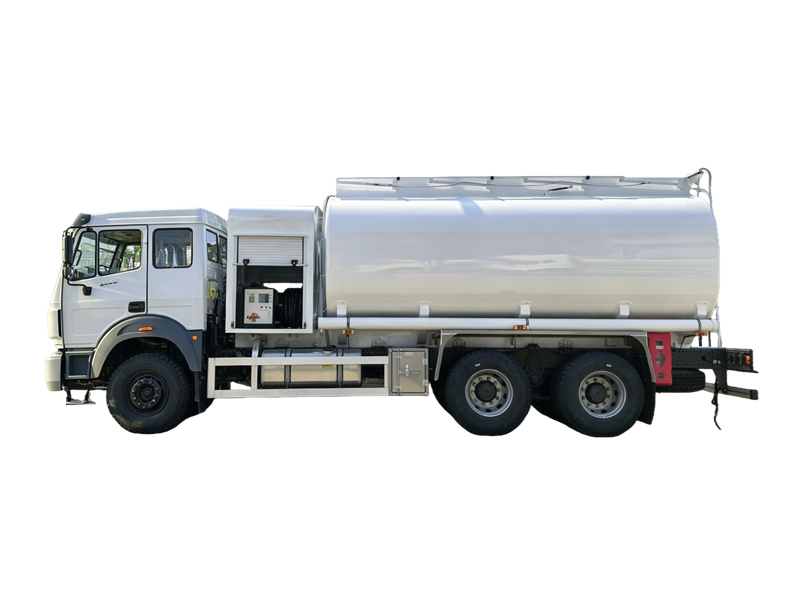

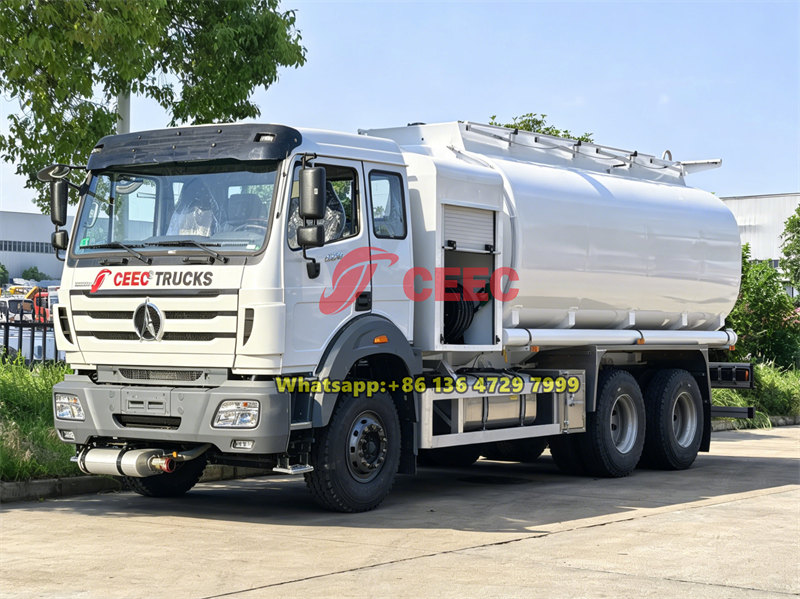

▶ Chassis: Beiben 2642 chassis, Weichai 420HP diesel engine, FAST 12JS200T gearbox
▶ Cabin: Beiben NG80B cabin, complies with EU crashsafety certification standards
▶ Fuel tanker: 200000 liters capacity, 2 compartments, suitable for carrying different media
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed
▶ Fuel dispenser: 2 units tax-controlled fuel dispensers, with 25-meter automatic rewind hose reels
» Ⅱ. Product Specifications:
|
Vehicle Specification |
||
|
Vehicle name |
Beiben 6×4 20CBM fuel bowser |
|
|
Overall dimensions (LxWxH) |
9600*2550*3500 mm |
|
|
GVW |
26000 kg |
|
|
Curb Weight |
11800 kg |
|
|
Rated Load Weight |
14000 kg |
|
|
Chassis Specification |
||
|
Cabin |
Beiben NG80B long cab with sleeper bed, 2 seats, power steering, air conditioner |
|
|
Drive Type |
6x4 |
|
|
Wheelbase |
4450+1450 mm |
|
|
Engine |
Model |
WP12.420E32 |
|
Maximum horsepower |
420HP |
|
|
Displacement |
11596 ml |
|
|
Type |
Diesel engine, 6 cylinders in-line, turbocharged water cooled. |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2100 rpm |
|
|
Max. torque |
1750 N.m |
|
|
Gearbox |
FAST 12JS200T, manual, 12 forward & 2 reverse |
|
|
Tire |
12.00R20, 10+1 spare tires. |
|
|
Upper body specification |
||
|
Oil Tank |
Capacity |
20000Liters |
|
Tank Material |
Q235 carbon steel |
|
|
Tank thickness |
5mm body/endplate 6mm |
|
|
Compartment |
2 compartments |
|
|
Transport medium |
Diesel oil, gasoline, or others |
|
|
Fuel pump |
Brand |
China famous brand |
|
Model |
80YHCB-60 |
|
|
Flow |
60 m3/h |
|
|
Speed |
970 rpm |
|
|
Pressure |
0.6 Mpa |
|
|
Fuel Dispenser |
Model |
CENSTAR CS20D1110F |
|
Qty |
2 sets |
|
|
Accuracy |
±0.25% |
|
|
Flow rate range |
5 to 50 liters per minute |
|
|
Hose reel |
25 meters |
|
|
Others |
Manhole |
On the top of the tanker, 2 pcs, European standard with a pressure relief valve |
|
Safety valve |
European standard |
|
|
Discharge valve |
Aluminum alloy ball valve type |
|
|

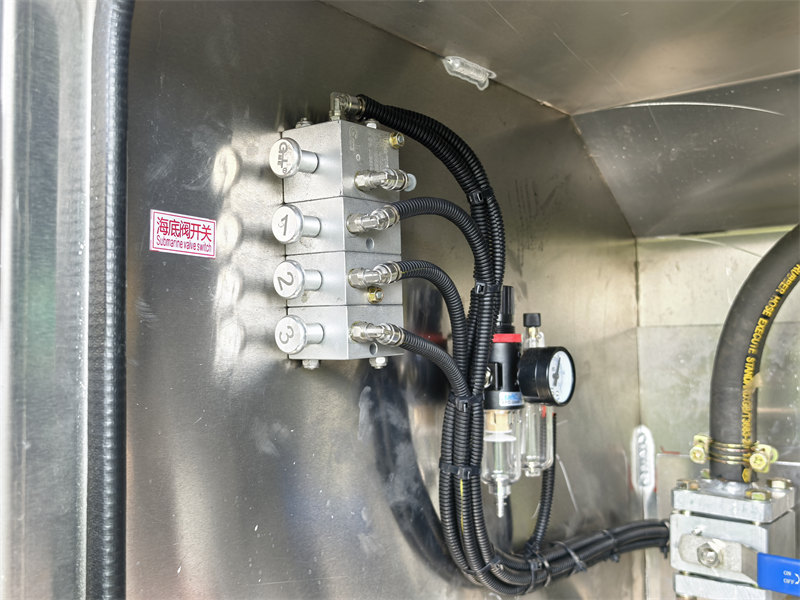

Emergency cutoff device |
Aluminum alloy bottom valve |
|
|
Standard configuration |

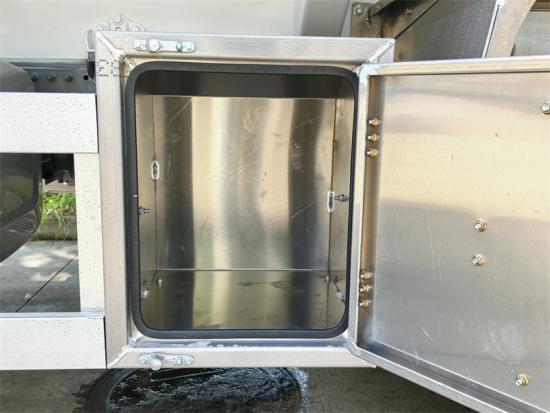

Toolbox, climbing ladder, handrail, fire extinguisher, oil hose, etc. |
|
» Ⅲ. Beiben refueler truck features:
• Reliable Chassis: Beiben 6×4 heavy-duty chassis with a 420HP engine and 12-speed transmission, offering strong load capacity and suitability for complex road conditions.
• Safe Tank Body: Q235 carbon steel tank, 5–6mm thick, with a dual-compartment independent design, built-in anti-wave baffles, and equipped with emergency shut-off valves and anti-static devices.

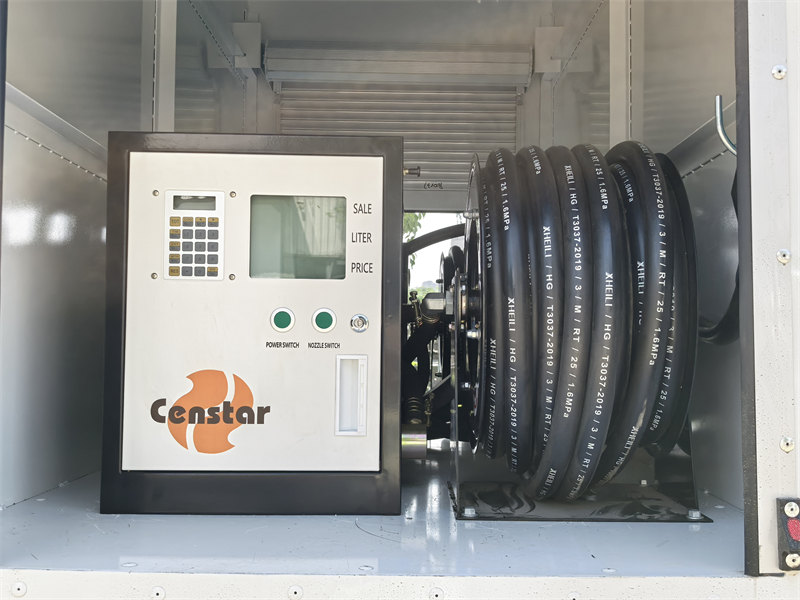

• Efficient Refueling: Two tax-controlled fuel dispensers with ±0.25% accuracy, paired with a 25-meter automatic rewind hose reel, providing a wide refueling range and accurate metering.
• Practical Functionality: Capable of suction, pumping, and compartment-separated transport. Standard accessories include toolboxes, fire extinguishers, and ladders, making it suitable for construction sites, mining areas, gas stations, and similar environments.
» Ⅳ. Product Details:

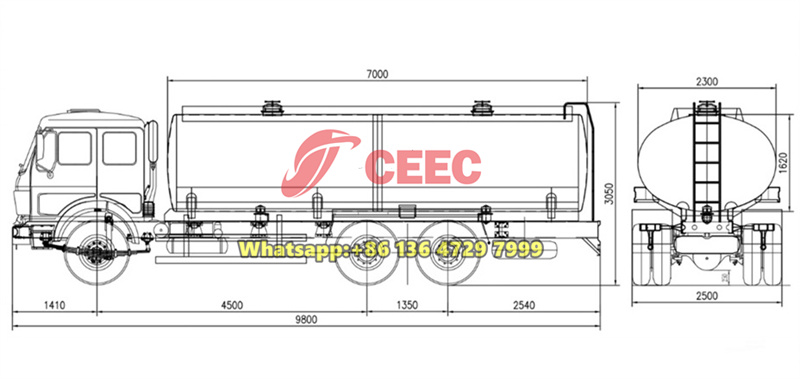

» Ⅴ. Beiben Oil Tank Trucks Drawing:

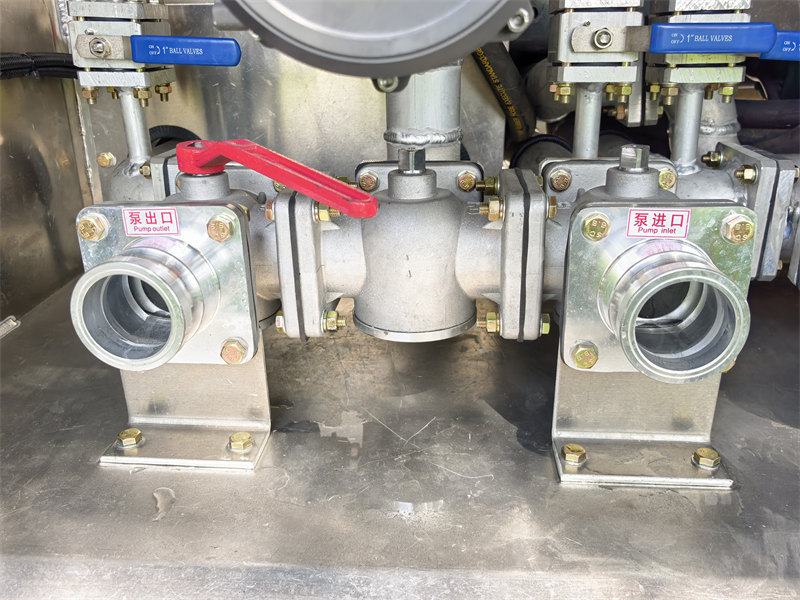

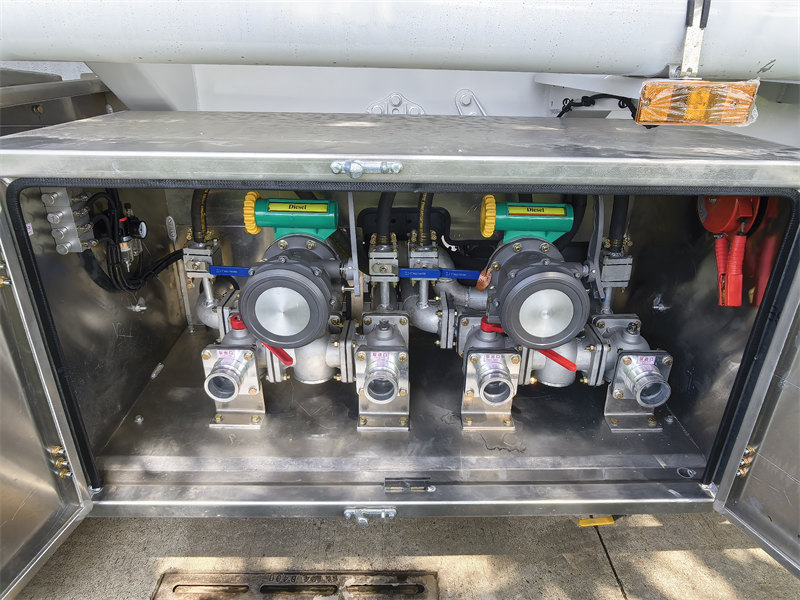

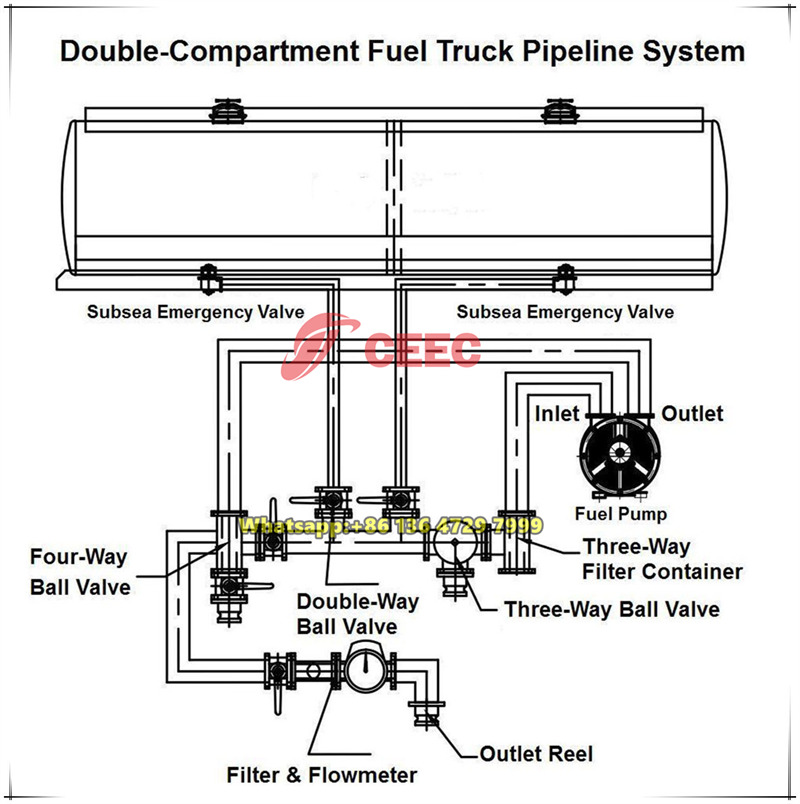

» Ⅵ. Beiben Diesel Tanker Pipeline System:
