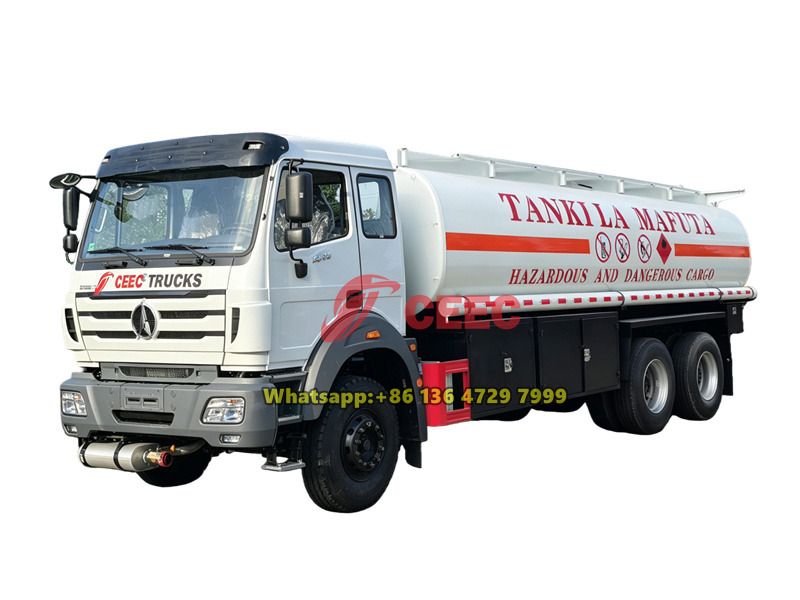

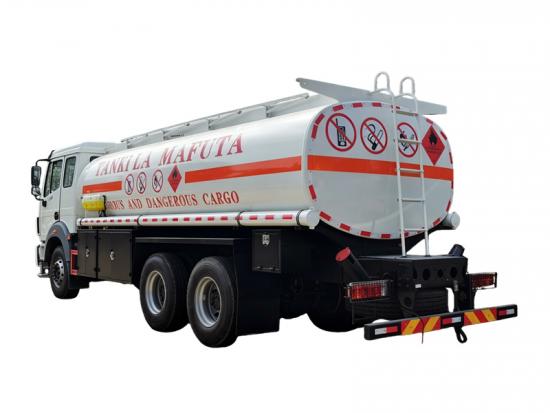

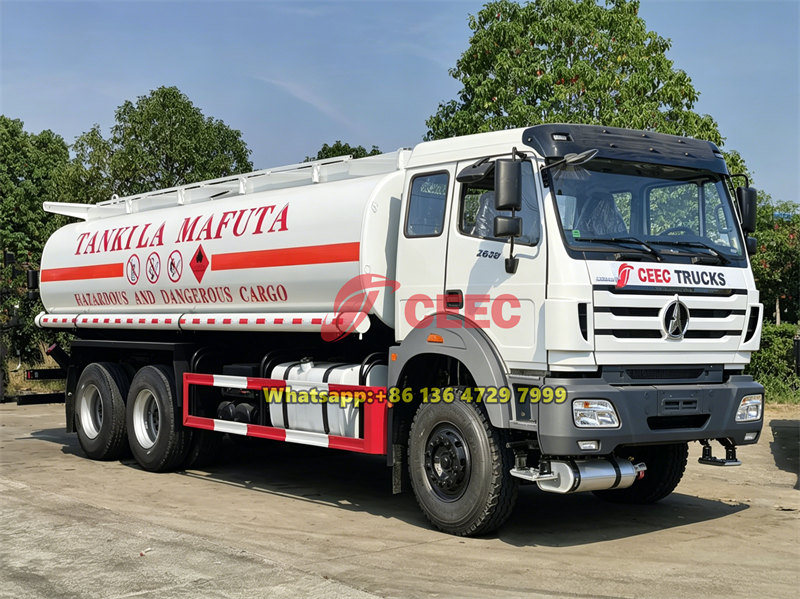

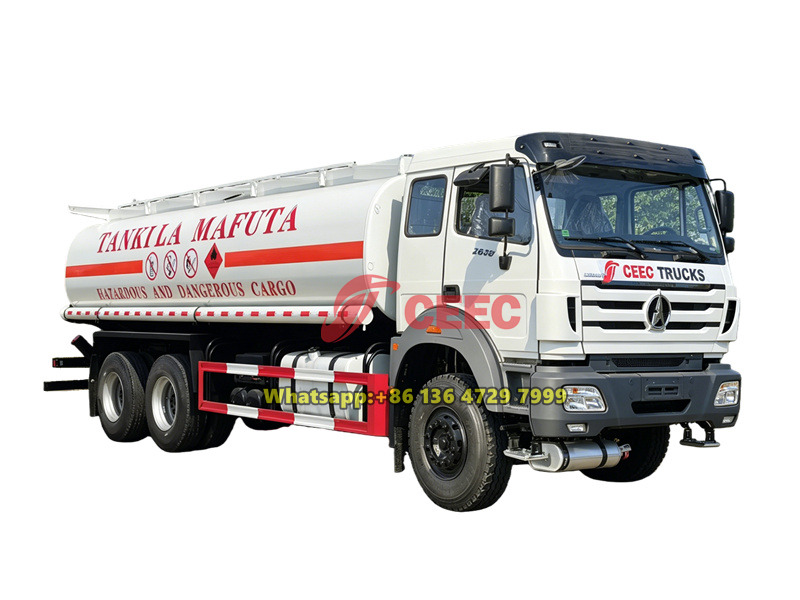

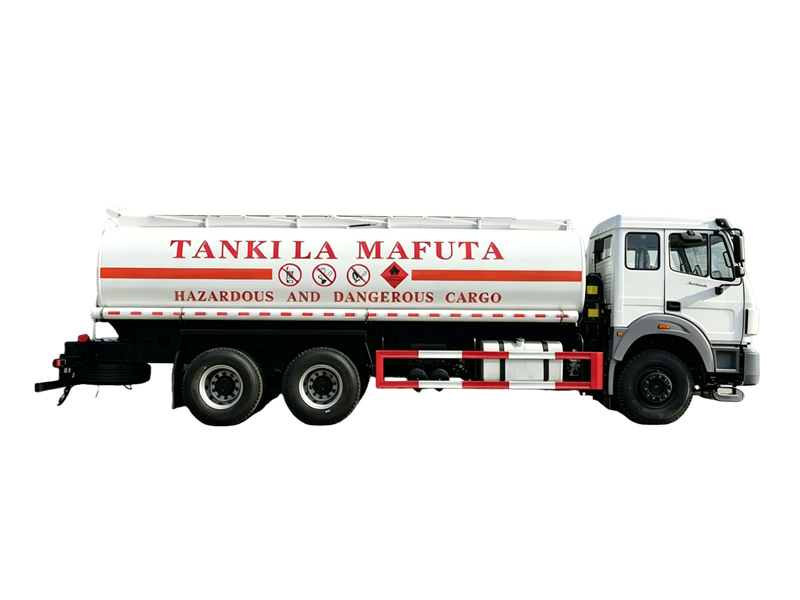

The Beiben 18,000L oil tank truck is modified on the Beiben 2638 heavy-duty chassis. It is powered by a Weichai 380 hp engine and a Fast 12-speed transmission, delivering strong power performance. The chassis adopts Mercedes-Benz technology with a 7.5-ton front axle and a 13-ton double-reduction rear axle, offering excellent load-carrying capacity. The tank body is made of 6mm carbon steel, divided into three compartments. It is equipped with a large flow fuel pump, bottom valve, vapor recovery system, and anti-static system, making it suitable for long-distance transportation of diesel and gasoline with high safety and efficiency.
Working Capcity:
18000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9600×2550×3300Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
3 compartments, stainless steel, aluminum alloy tanker is optionalThe Beiben 18,000L oil tank truck is a dangerous goods transport vehicle modified based on the Beiben 2638 chassis, mainly used for the safe transportation of gasoline, diesel, and other oil products. It is equipped with a Weichai 380 hp engine and a Fast 12-speed transmission, providing strong power and reliable performance in climbing and heavy-load starting. The chassis adopts Mercedes-Benz technology with a 7.5-ton front axle and a 13-ton double-reduction rear axle, offering high load capacity and a service life of up to 800,000KM. The tank body is made of 6mm carbon steel, divided into three compartments, and is equipped with an 80YHCB60 fuel pump, European standard manhole cover, bottom valve, anti-static device, and vapor recovery system, ensuring operational efficiency and safety. It is suitable for oil product distribution over long distances and under complex road conditions.
CEEC factory is authorized supplier on Beiben tanker trucks,
guarantee all Beiben oil tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 2638 chassis, Weichai 380HP diesel engine, Mercedes-Benz technology axles
▶ Cabin: Beiben classic NG80B cabin, 2 seats with sleeper bed
▶ Fuel tanker: 180000 liters capacity, 3 compartments, carbon steel with 6mm thickness
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed

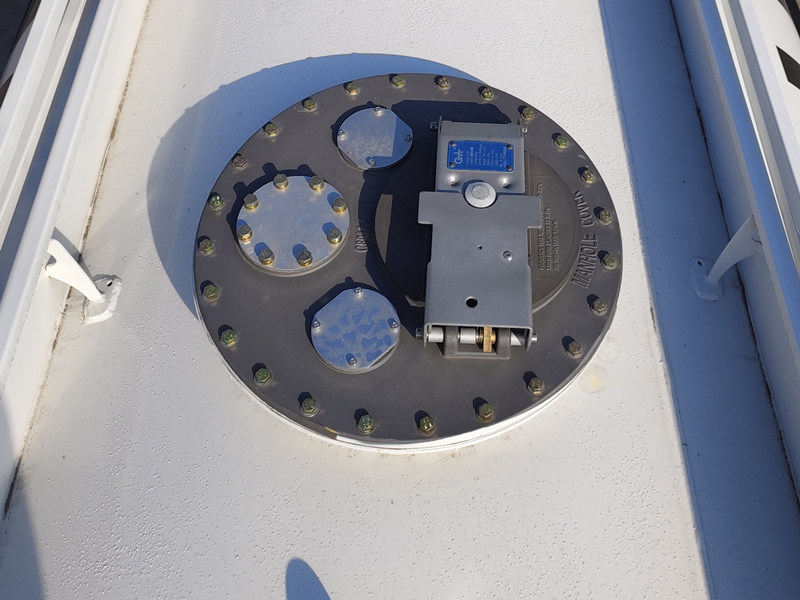

▶ Manhole cover: 3 units, European standard, DN500
» Ⅱ. Product Specifications:
|
Beiben 6×4 fuel tanker truck specifications |
||
|
Chassis Model |
Beiben 2638 |
|
|
Cabin |
Beiben NG80B Long Cabin, with two seats and one bed, with Air Conditioner and electric window. |
|
|
Overall dimensions |
9600×2550×3300 mm |
|
|
GVW |
26000 kg |
|
|
Curb weight |
11800 kg |
|
|
Wheelbase |
4450+1450 mm |
|
|

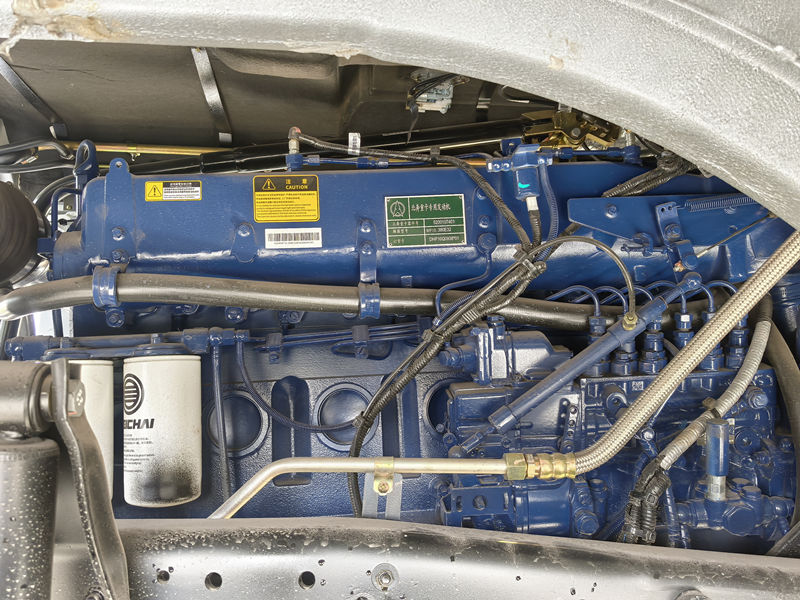

Engine |
Model |
WP10.380E32 |
|
Power |
380HP (280KW) |
|
|
Displacement |
9726 ml |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2200 rpm |
|
|
Max. Toruqe (Nm/rpm) |
1600/1500-1800 |
|
|
Type |
6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine |
|
|
Transmission |
FAST 12JS200T, 12 speeds forward and 2 speeds reverse. |
|
|
Front Axle |
7.5 T, no-driving steering axle, drum brake |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces |
|
|
Steering System |
8098 Circulating ball steering gear, hydraulic booster |
|
|
Brake System |
Service brake: Dual circuit compressed air brake; Parking brake: Energy storage spring brake; Auxiliary brake: Engine exhaust brake |
|
|
Tire |
12.00R20 |
|
|
Fuel Tank (L) |
400L |
|
|
Upper-body specifications |
||
|
Tank |
Tank Capacity(L) |
18,000 |
|
Tank Material |
Carbon Steel, 6mm thick |
|
|
Nos of Compartments |
3 |
|
|
Fuel pump |
Model |
80YHCB60 |
|
Flow rate |
60 m3/h |
|
|
Working pressure |
0.6 Mpa |
|
|
Speed |
900 rpm |
|
|
Self-suction height |
6 m |
|
|
Fittings |
Manhole cover |
3 units DN500 |
|
Breather Valve |
3 units |
|
|

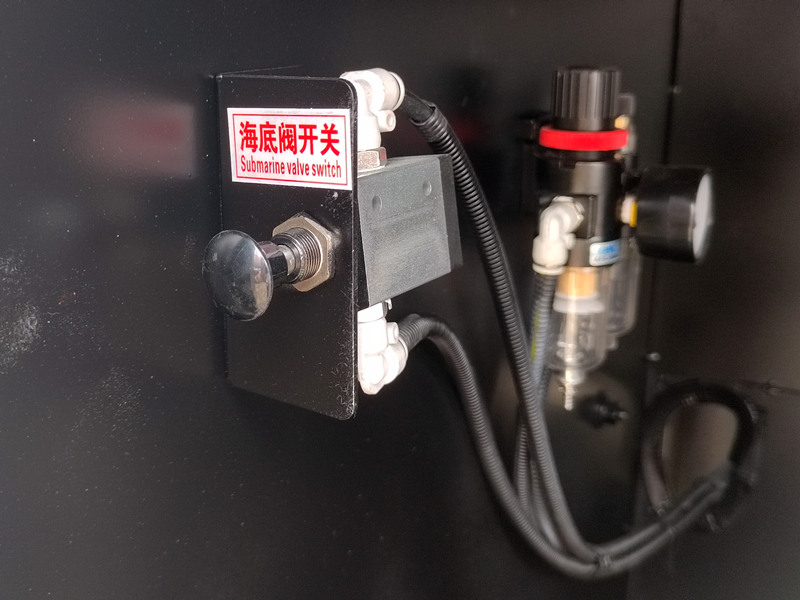

Bottom Valve |
3 units |
|
|
Discharge Valve |
3 units, ball valve |
|
|

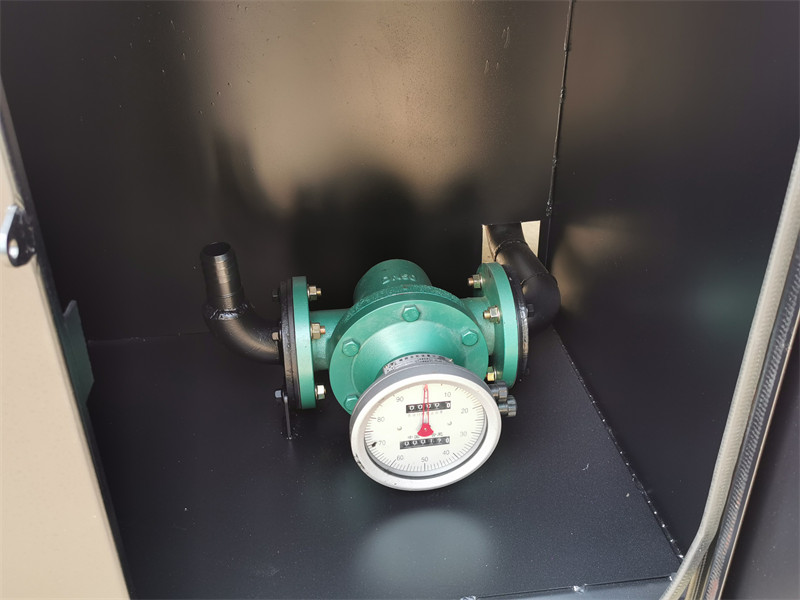

Flowmeter |
1 unit |
|
|
Anti-static rail |
1 piece |
|
|
Emergency Shut-off Device |
1 unit |
|
|
Vapor Recovery System |
Factory standard |
|
|
Overfill sensor |
Factory standard |
|
|
Tool Box |
1pcs |
|
|
Fire extinguisher |
2 pcs |
|
» Ⅲ. Beiben fuel tanker truck advantages:
• High-power engine: Equipped with a Weichai WP10 series 380 hp engine, providing ample power and adapting to heavy-load starting, climbing, and other complex road conditions.
• High-load chassis: Features a high-strength frame and Mercedes-Benz technology axles, offering strong load capacity.
• High-strength tank body: With a capacity of 18,000L, the tank is made of 6mm carbon steel, divided into three compartments with baffles, ensuring a robust structure and effectively reducing liquid surge during driving.
• High loading/unloading efficiency: Equipped with an 80YHCB60 fuel pump with a flow rate of 60 m³/h, together with three independent discharge valves, enabling fast separate loading/unloading.
• Comprehensive safety features: Equipped with European standard manhole covers, a bottom valve, an anti-static rail, and an emergency shut-off device, effectively preventing leakage and static risks during loading/unloading and transportation.

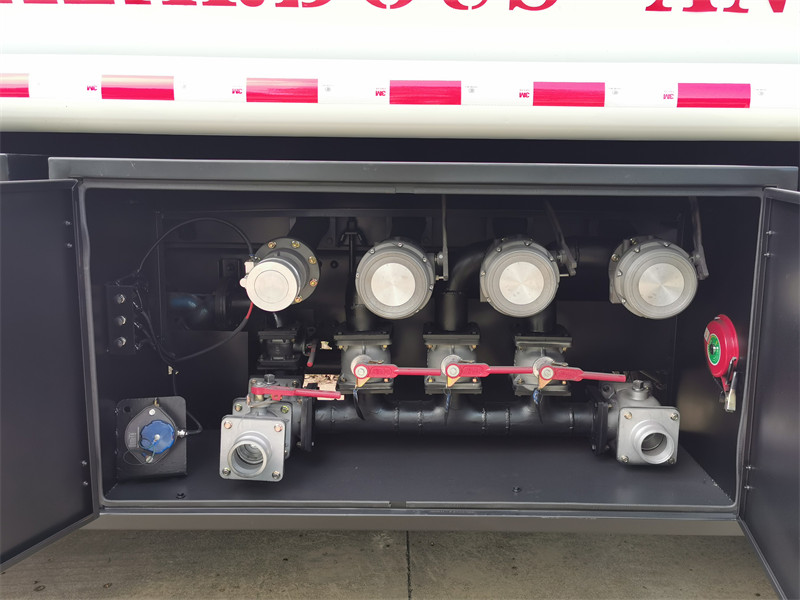

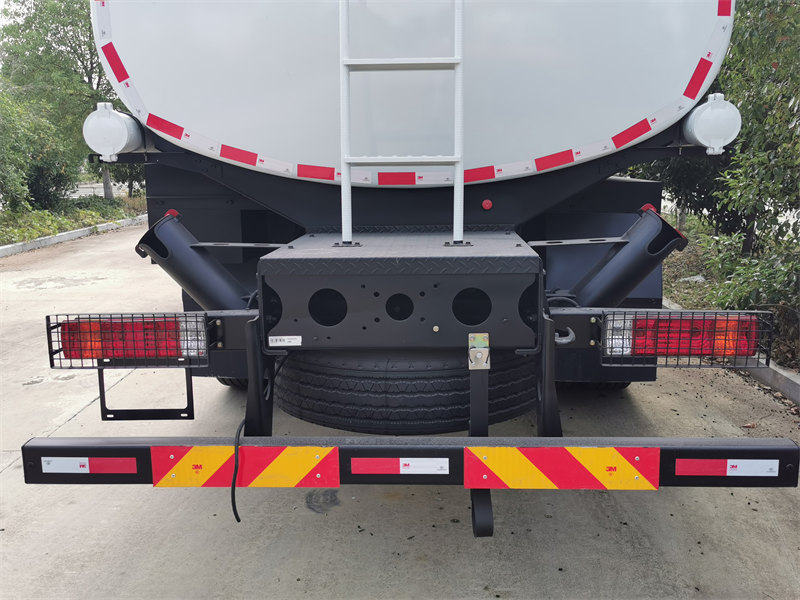

» Ⅳ. Product Details:

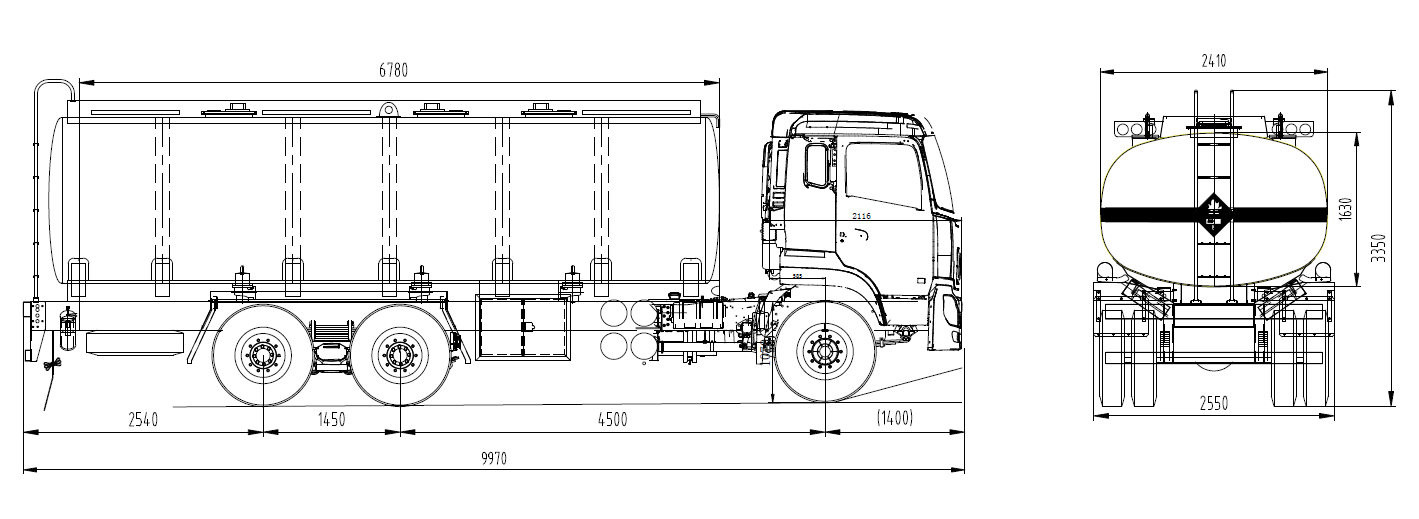

» Ⅴ. Beiben Fuel Tank Trucks Drawing:
