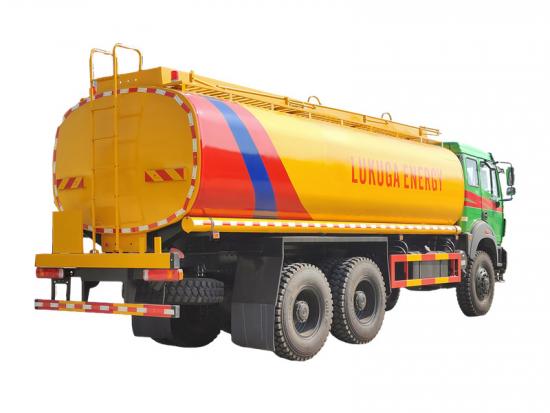

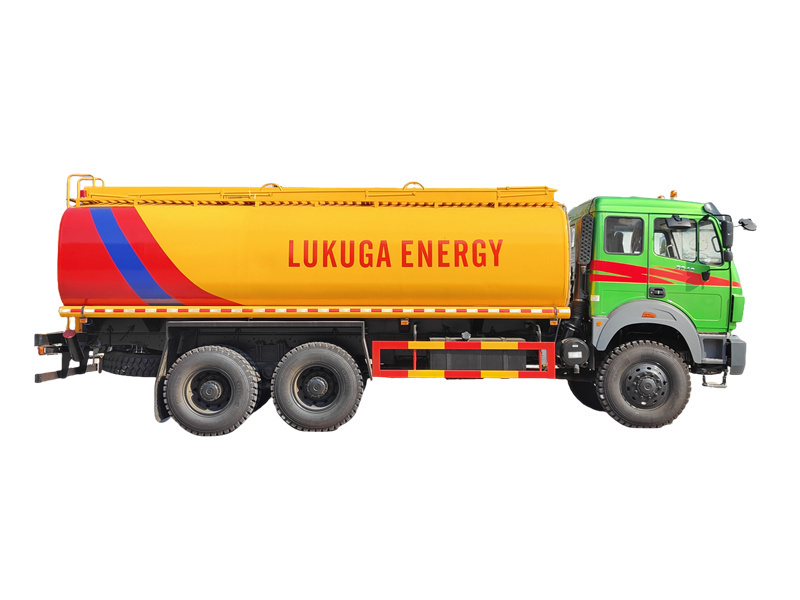

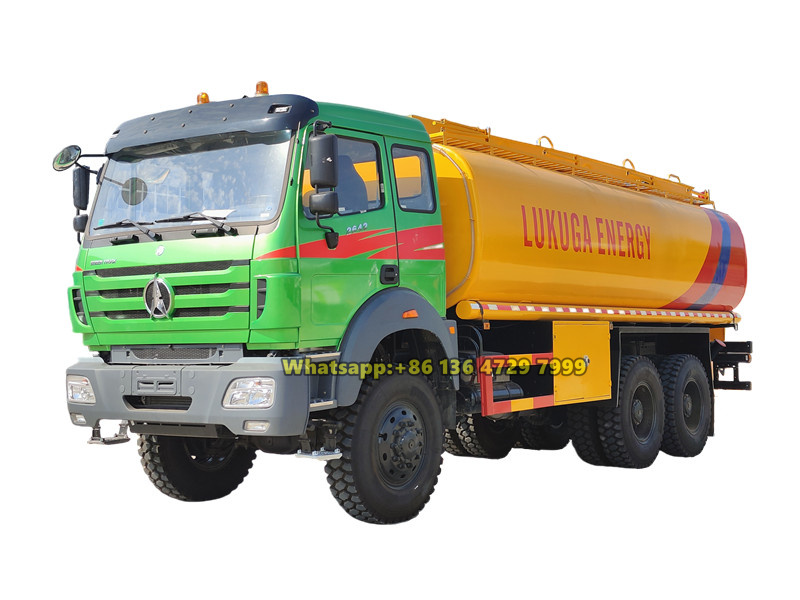

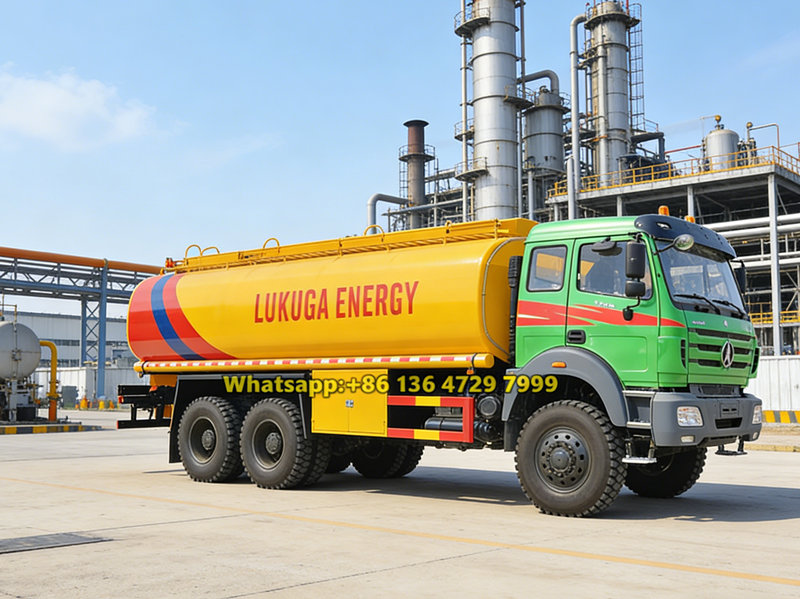

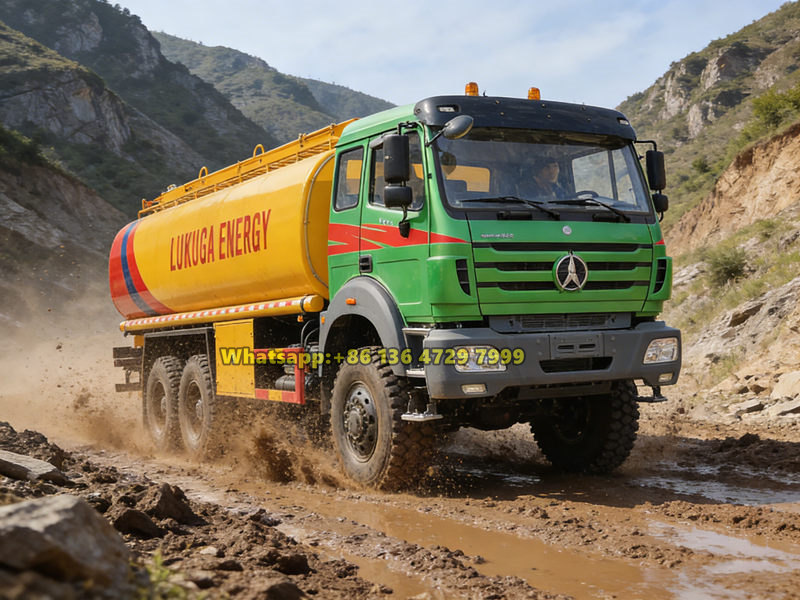

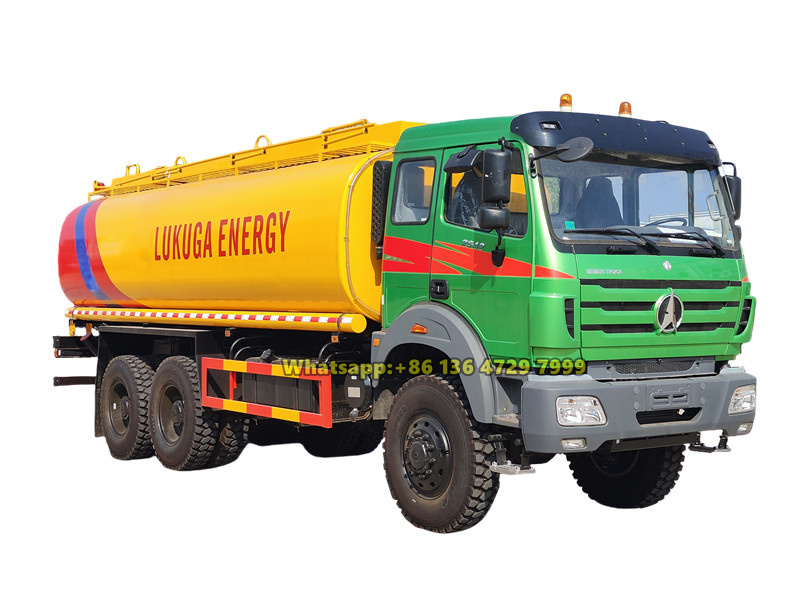

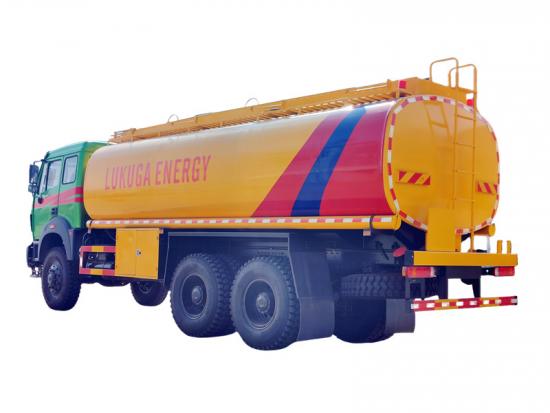

The Beiben 6×6 all-wheel-drive oil tanker is a high-performance specialized fuel transport vehicle designed for complex road conditions. Built on the Beiben 6×6 all-wheel-drive off-road chassis, it features a powerful 420-horsepower engine and a large-capacity 20,000-liter three-compartment oil tank. Integrating efficient pumping, precise metering, and multiple safety protections, this vehicle reliably meets the fuel supply challenges in demanding environments such as mining areas, construction sites, and long-haul routes.
Market Price:
$56600Working Capcity:
20000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9660×2500×3850Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
3 compartments, stainless steel, aluminum alloy tanker is optionalThe Beiben 6×6 all-wheel-drive oil tanker is a high-performance specialized vehicle designed for fuel transportation under complex road conditions. Its core advantages lie in the powerful Weichai 420-horsepower engine and the advanced 6×6 all-wheel-drive chassis, combined with professionally tuned suspension and transmission systems. These features ensure exceptional off-road capability, load-bearing capacity, and reliability even on rugged terrain, meeting the operational demands of harsh environments such as oil fields and construction sites.

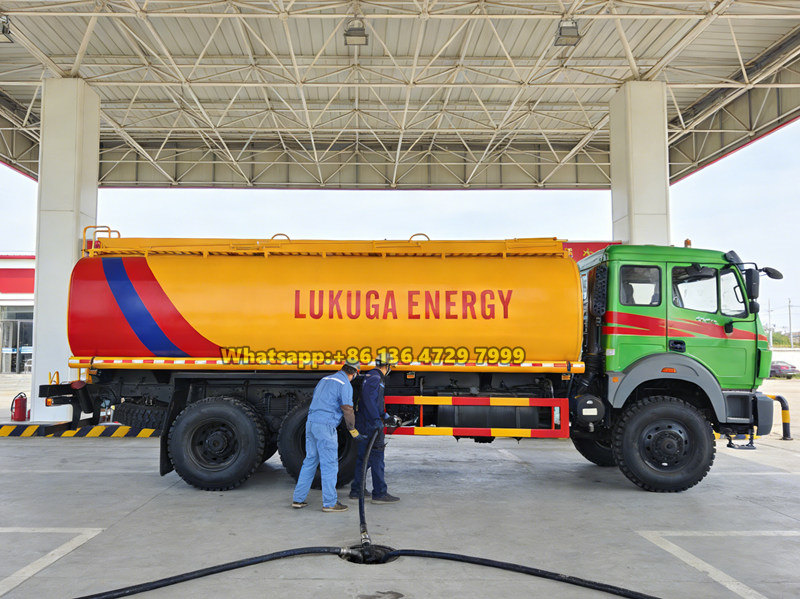

Equipped with a large-capacity 20,000-liter three-compartment oil tank made of high-strength steel, the Beiben 6x6 oil tanker truck enables the separate transportation of different types of oil. The complete oil delivery system includes safety configurations such as flow meters, anti-static devices, aluminum alloy European-standard manhole covers, vapor recovery systems, and emergency shut-off valves. Coupled with a high-flow pump capable of 60 m³/h, it ensures fast and safe fuel refueling operations in various field or fixed-site conditions.
CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 off-road chassis, NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Tank material: Carbon steel tanker body, with 5mm thickness
▶ Tank capacity: 20000 liters, 3 independent compartments
▶ Fuel pump: China top brand fuel pump, with flow rate 60 m3/h
▶ Manhole cover: Aluminum alloy European standard, 3 pcs
» Ⅱ. Product Specifications:
|
Beiben 6x6 Fuel Tanker Truck Specifications |
||
|
Cab |

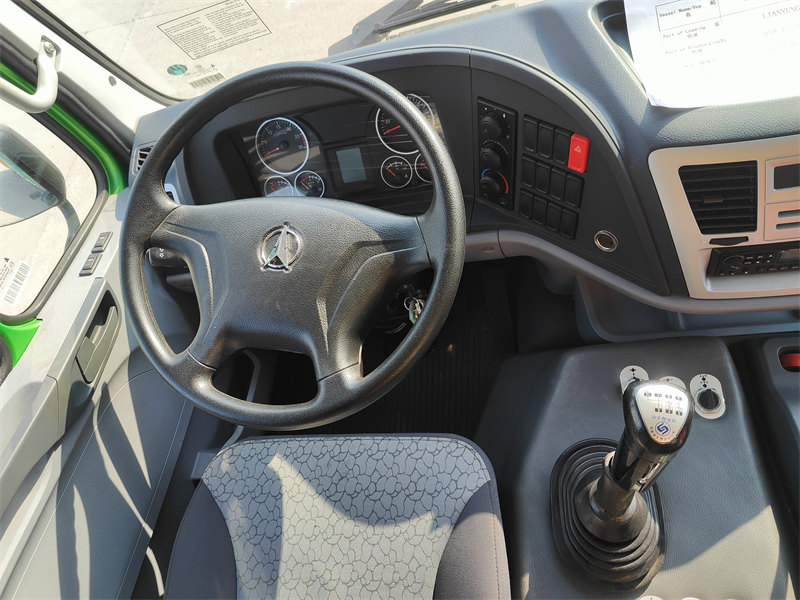

Beiben NG80B long cab, 2 seats and one sleeper bed, with A/C |
|
|
Driving Type |
6*6 Left hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Overall dimension (mm) |
9660×2500×3850 |
|
|
GVW (kg) |
26000 |
|
|
Curb weight (kg) |
15800 |
|
|
Wheelbase (mm) |
4450+1450 |
|
|
F/R wheel track (mm) |
1995; 1800/1800 |
|
|
F/R overhang (mm) |
1435/2055 |
|
|
Approach/Departure Angel |
25/22 |
|
|
Front/rear axle load (kg) |
7000/13000×2 |
|
|

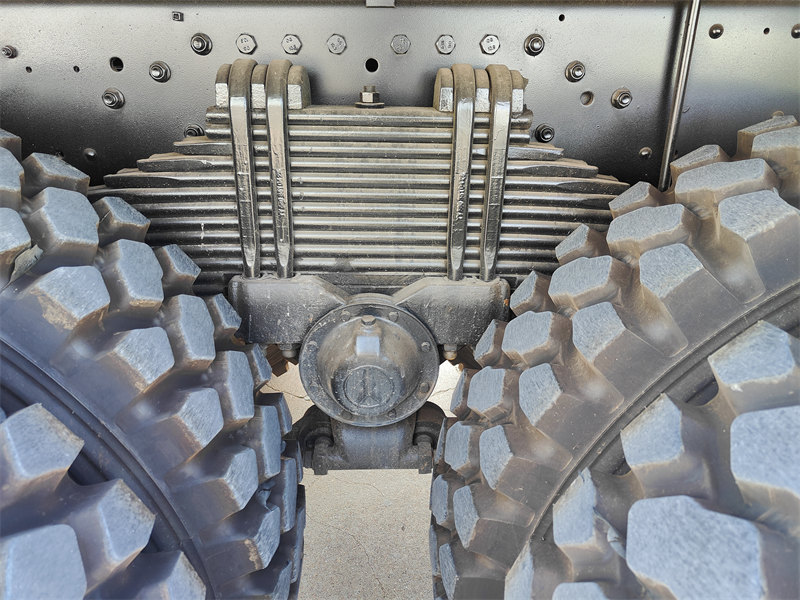

Number of leaf springs (pcs) |
10/13 |
|
|
Tire |
12.00R24 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
FAST, 12JS200T, manual, 12-speed forward and 2-speed reverse |
|
|
Engine |
Model |
Weichai WP12.420E32 |
|
Type |
6 cylinders in-line, four strokes, water-cooled, turbo-charged intercooling, direct injection |
|
|
Max. output power |
309 kW |
|
|
Horsepower |
420HP |
|
|
Displacement |
11.596 L |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2100rpm |
|
|
Max. torque |
1750N.m |
|
|

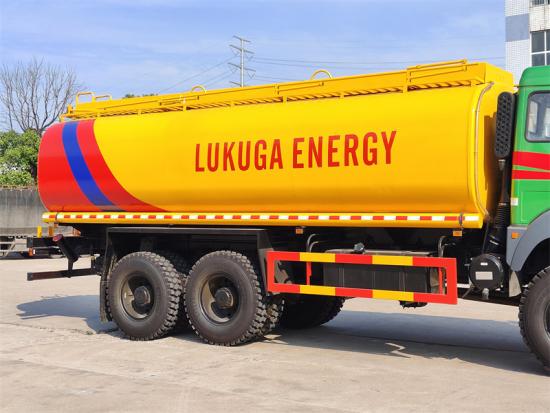

Fuel Tanker |
||
|
Tank |
Volume |
20000L, 3 compartments |
|
Material & Thick |
steel Q235B; 5mm |
|
|
Color & Logo |
customized |
|
|

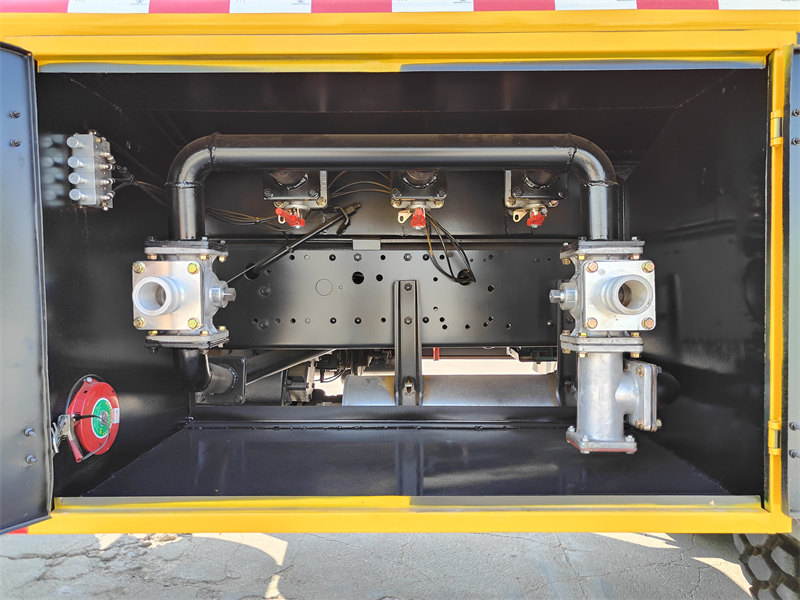

Fittings |
Manhole cover |
3 units DN500 |
|
Breather Valve |
3 units, DN50 |
|
|
Bottom Valve |
3 units |
|
|
Fuel Pump |
80YHCB-60, with flow rate 60m3/h |
|
|
Discharge Valve |
3 units, ball valve |
|
|
Flowmeter |
1 unit |
|
|

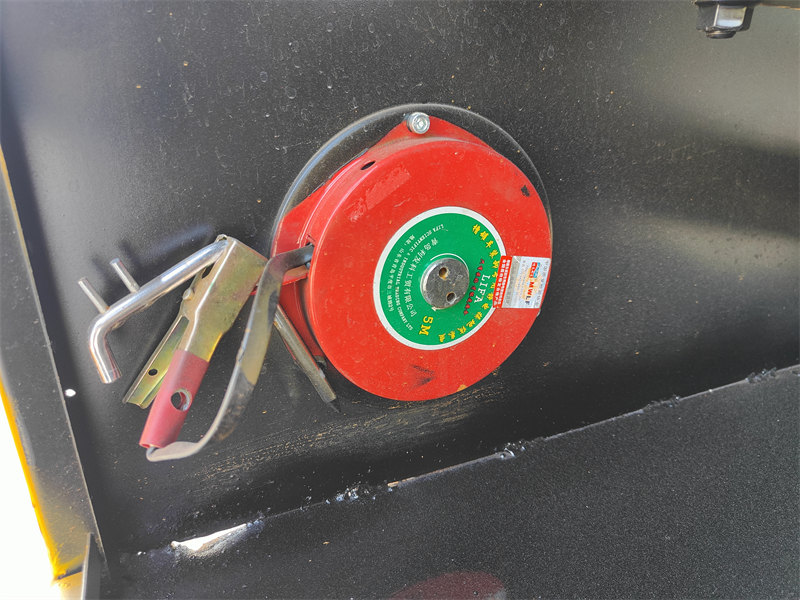

Anti-static rail |
1 piece |
|
|
Emergency Cutoff Device |
1 unit |
|
|
Vapor Recovery System |
Factory standard |
|
|
Overfill sensor |
Factory standard |
|
|
Tool Box |
1pcs |
|
|
Fire extinguisher |
1 pcs |
|
» Ⅲ. Chassis Advantages:
 |
 |

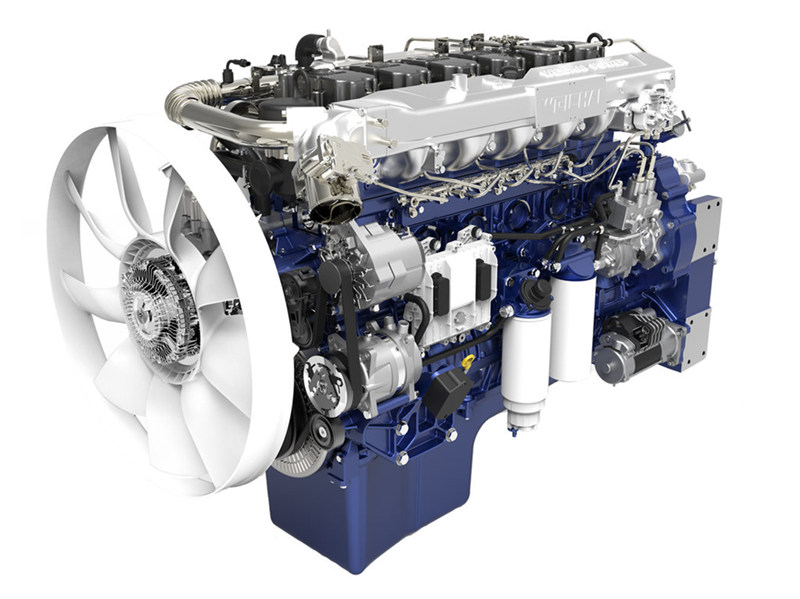

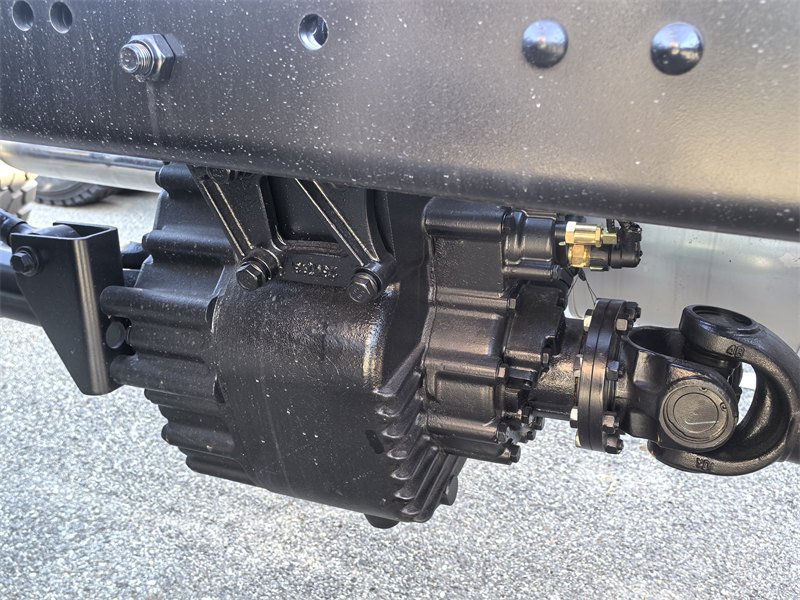

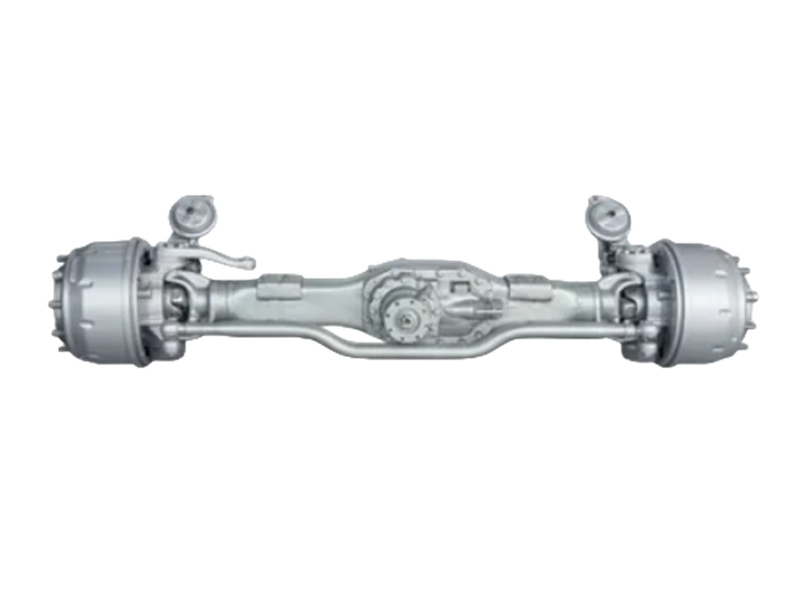

| Front driving axle | Weichai WP12.420E32 engine |
 |
 |

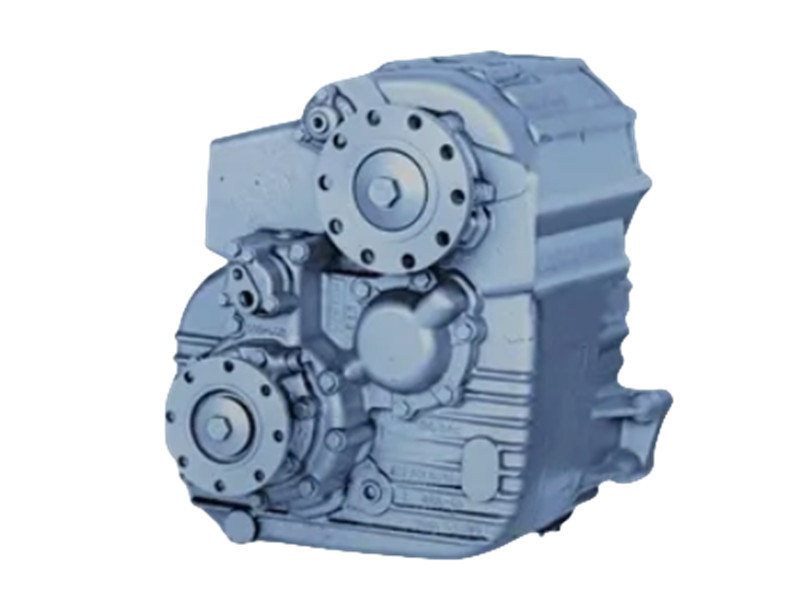

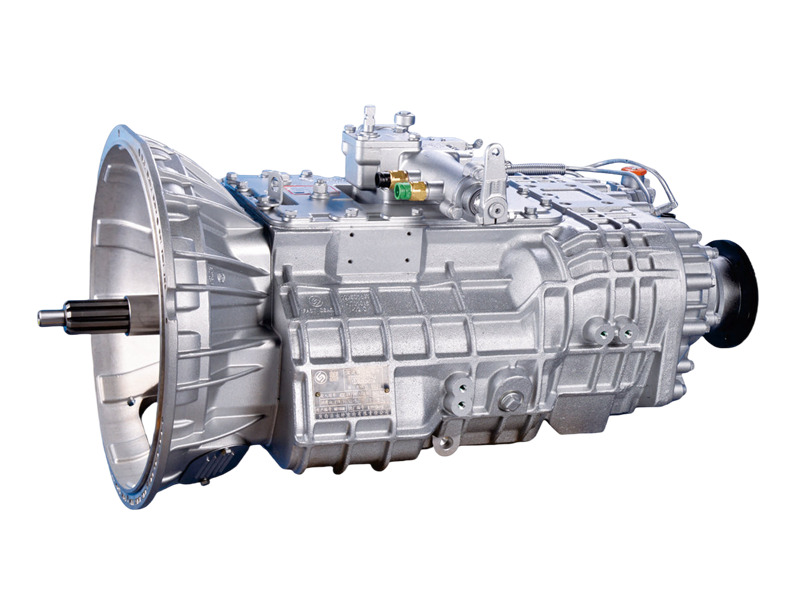

| FAST 12JS200T transmission | LF200 transfer case |
» Ⅳ. Feul Tanker Features:
Fuel pump
Model: 80YHCB60
Flow Rate : 60 m³/h
Working Pressure: 0.6 MPa
Rated Power: 11 kW
Rotational Speed: 970 r/min
Inlet/Outlet Diameter: 80 mm
Allowable Suction Lift: 7 m
Efficiency: Approx. 72%

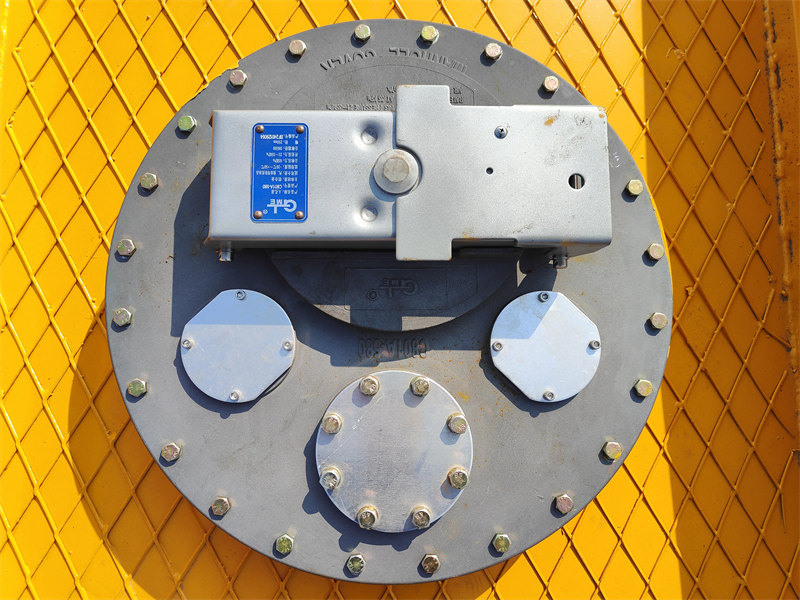

Manhole cover
Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃
API adaptor valve
Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃
Emergency shutt-off valve
Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃
Overflow prevention probe
Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil

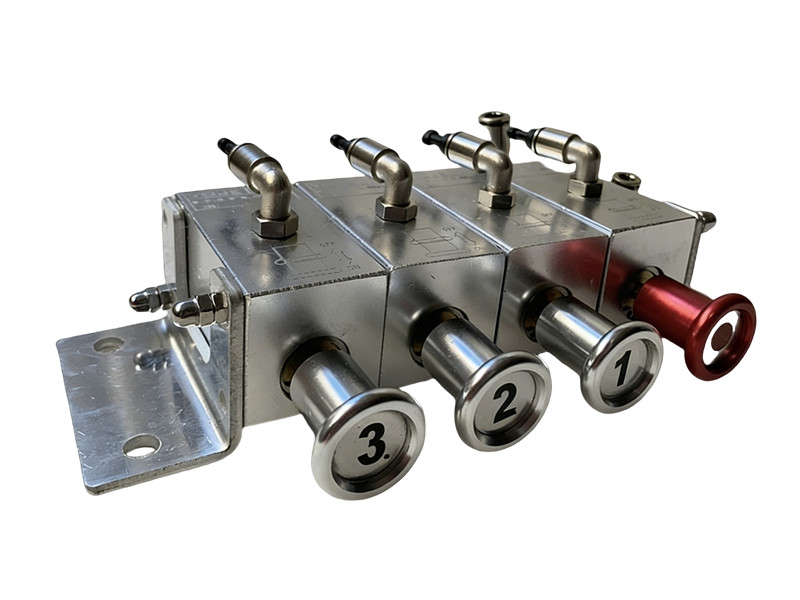

Aluminum alloy pneumatic switch
Pipe Specification: 6mm
Working Pressure: 0.5-0.8 MPa
Operation Method: Manual
Temperature Range: -20 °C to +50 °C
Connection Method: Quick Connect
Medium: Air
» Ⅴ. Product Details:

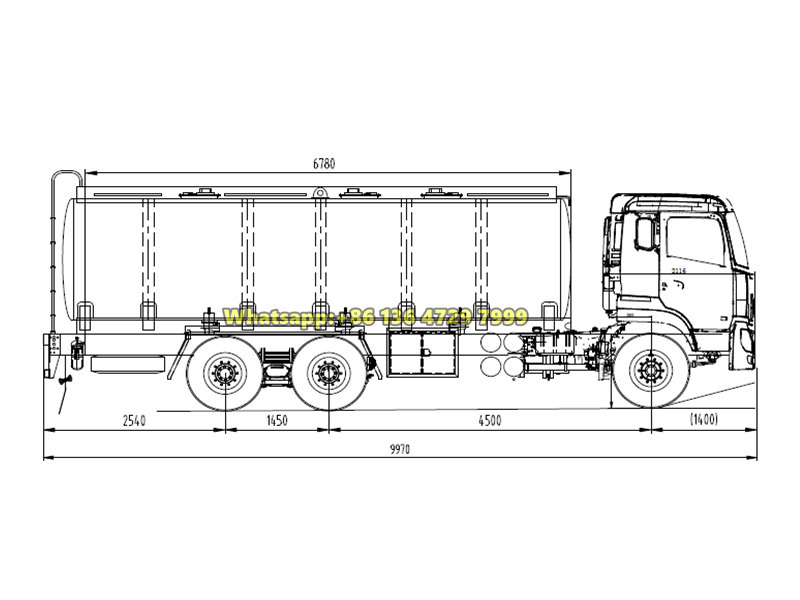

» Ⅵ. Product Drawing:
» Ⅶ. Tanker Production Line:
» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
