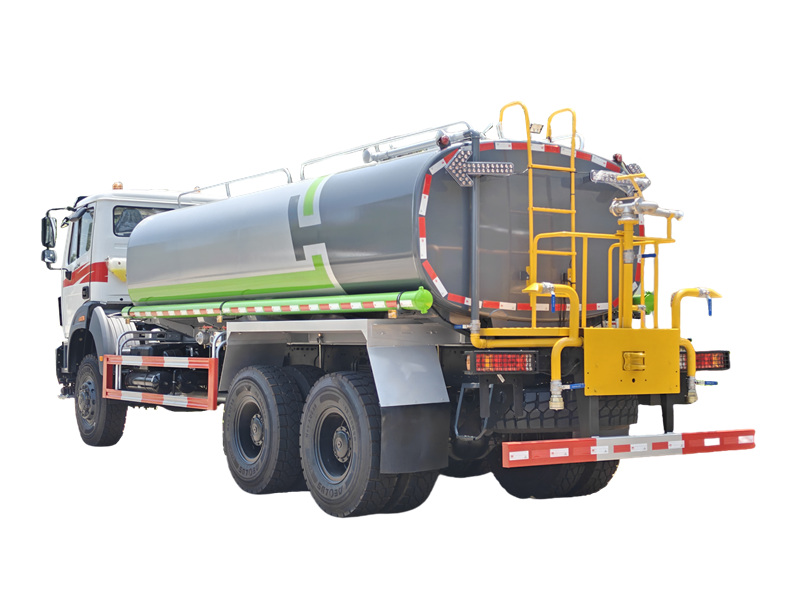

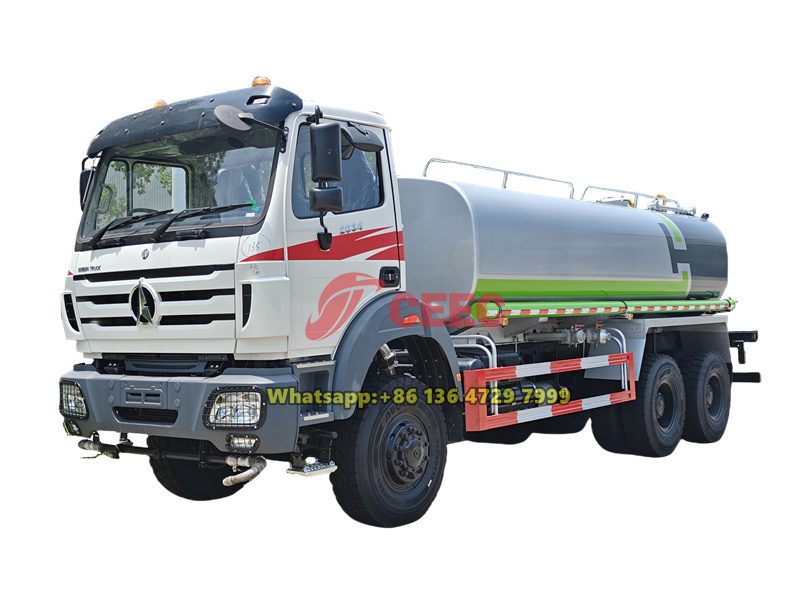

The Beiben 6×6 water sprinkler tank is a heavy-duty multi-functional vehicle built on an all-wheel-drive off-road chassis. It is equipped with a WEICHAI 340-horsepower engine, a large 20,000-liter water tank, and a professional water pump with a 90-meter head. With multiple functions such as front spraying, side spraying, and high-pressure water guns, the vehicle’s strong off-road capability and professional configuration enable it to excel in comprehensive tasks such as landscaping, road dust suppression, and emergency firefighting.
Working capcity:
20000 litersCabin type:
NG80B short cabinDimension ( mm ) :
9250×2500×3295Drive system:
6×6Wheelbase (mm):
4350+1450Engine power / Model:
340HP/WP10.340E32Gear Box:
9JS150Remark:
Stainless steel tank,12.00R24, 14.00R20 tyre, RHD drive for option» Ⅰ.Product Defination and Introduction:

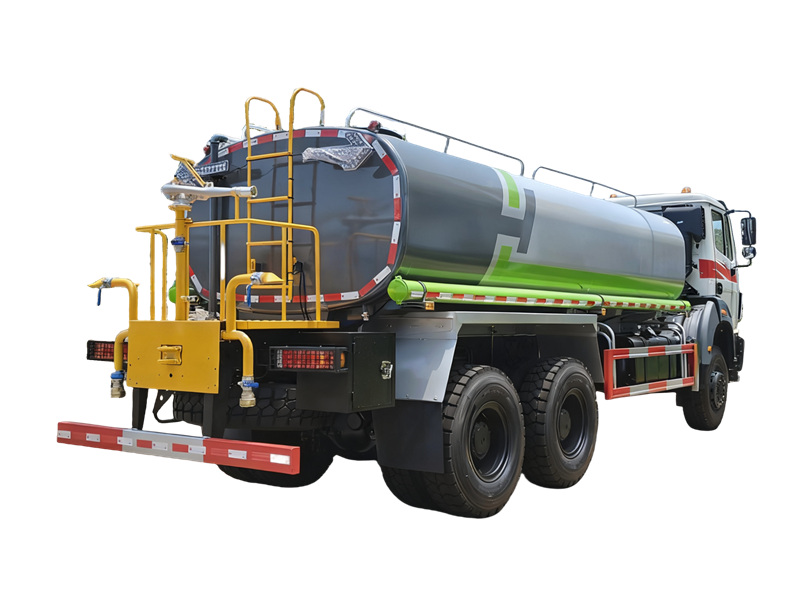

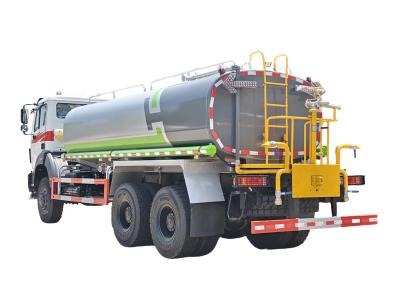

The Beiben 6×6 water sprinkler truck is a heavy-duty multi-functional greening and sprinkling vehicle built on an all-wheel-drive off-road chassis. It features an Beiben NG80B cab and a 6×6 drive configuration. With a wheelbase of 4350+1450 mm and 12.00R24 all-terrain tires, the vehicle offers exceptional road passage and adaptability to complex terrains. Building on traditional sprinkling functions, this sprinkler, through its all-wheel-drive system and specialized chassis design, is capable of performing comprehensive tasks such as sprinkling, dust suppression, greening, and emergency firefighting in harsh environments like wilderness areas, mining zones, and construction sites.
The Beiben 6×6 water tanker is powered by a Weichai WP10.340E32 diesel engine, delivering a maximum output of 340 horsepower. Paired with a 9-speed manual transmission, it ensures continuous power output under various working conditions. The core operational system includes a 20,000-liter carbon steel water tank, a professional water pump with a 90-meter head, and multiple spraying devices such as front sprays, side sprays, and a rear high-pressure water gun. These configurations allow the vehicle not only to perform daily sprinkling tasks but also to undertake specialized missions such as pesticide spraying and long-distance water transport, demonstrating its comprehensive operational capabilities.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
Cabin |
Beiben NG80 short cab, with A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions |
9250×2500×3295 |
|
Wheel base (mm) |
4350+1450 |
|
|
Wheel track (front/rear) (mm) |
1990;1800/1800 |
|
|
Weight in KGS |
Gross Vehicle Weight |
26000 |
|
Curb Weight |
12500 |
|
|
Front axles loading capacity |
7000 |
|
|
Rear axles loading capacity |
18000 of 2 axle combined |
|
|
Max. driving speed(km/h) |
80 |
|
|
Engine |
Brand |
Weichai Engine |
|
Model |
WP10.340E32 |
|
|
Max.torque/speed(N.m/rpm) |
1250N.m/1400-1600rpm |
|
|
Type |
4-stroke direct injection, 6 cylinders in-line, water cooling, turbo-charging and inter-cooling, diesel engine |
|
|
Power |
340HP/250KW |
|
|
Rated speed (rpm) |
2200 rpm |
|
|
Displacement (L) |
9.726 L |
|
|
Emission standard |
Euro 3 |
|
|
Gearbox |
Manual operation, FAST brand 9JS150A, 9 speed forward and 1 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance. RHD |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
12.00R24 tire, total 10 tires and 1 spare tire |
|
|
Superstructure Specifications |
||
|
Water tank |
20000liters |
|
|
Water tanker material |
High quality carbon steel (Q235) |
|
|
Description |
with water pump |
|
|
Manhole |
1 unit DN500mm manhole |
|
|
Hose |
2 pcs hose at each side of the truck |
|
|
Water pump |
Water pump model: 80QZF-60/90N (N/S) |
|
» Ⅲ. Product Features:
▶ Tank body is made of Q345 carbon steel, 304 stainless steel is optional
▶ Elliptical tank with baffles inside
▶ China top brand centrifugal water pump (60 m3/h)
▶ Water pump is driven by PTO
▶ Front, rear and side spray nozzles
» Ⅳ. Product Details:
 |
 |

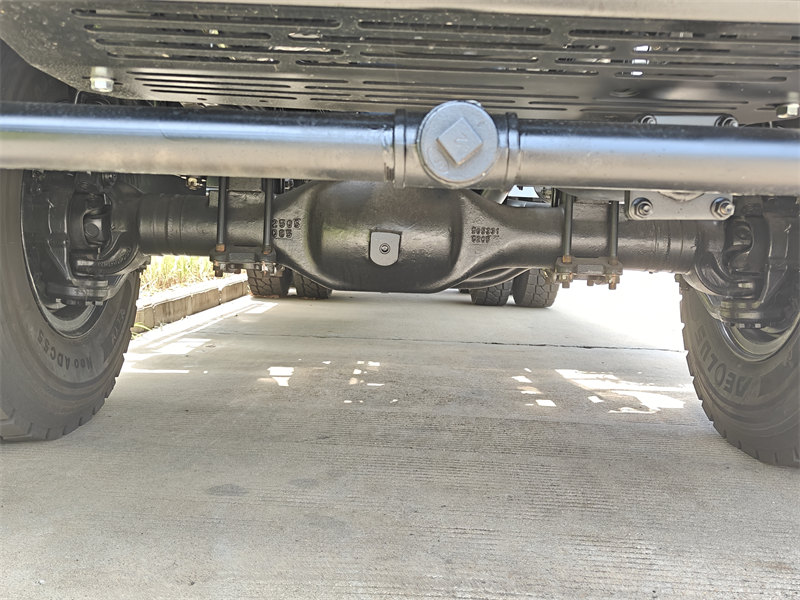

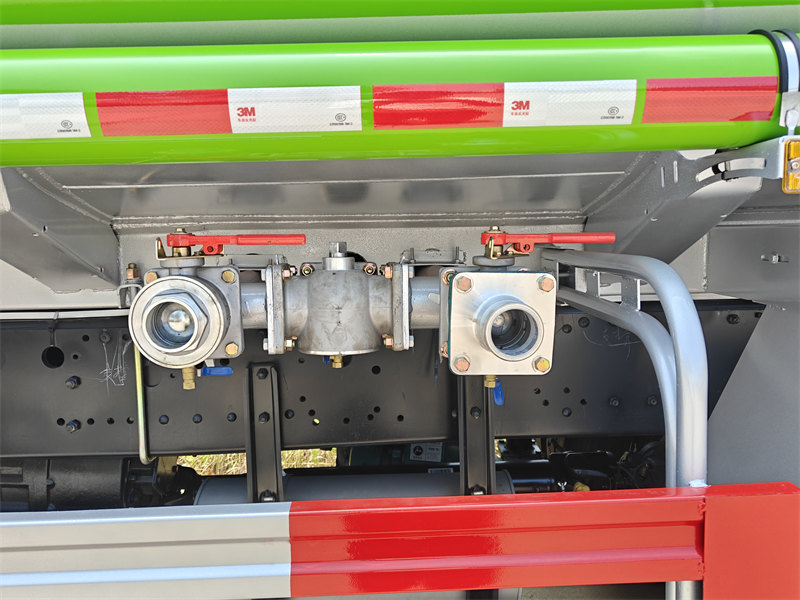

| 6×6 all-wheel-drive system | Pump in and pump out vavle |
 |
 |

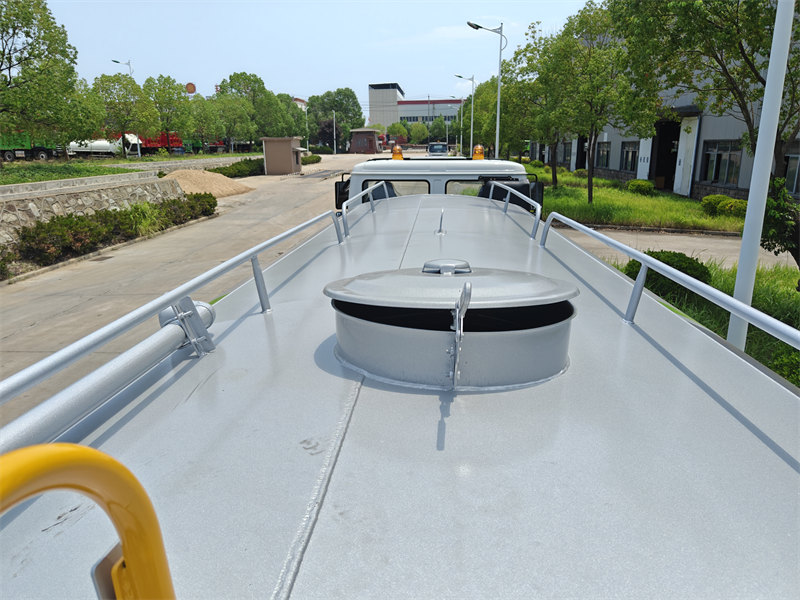

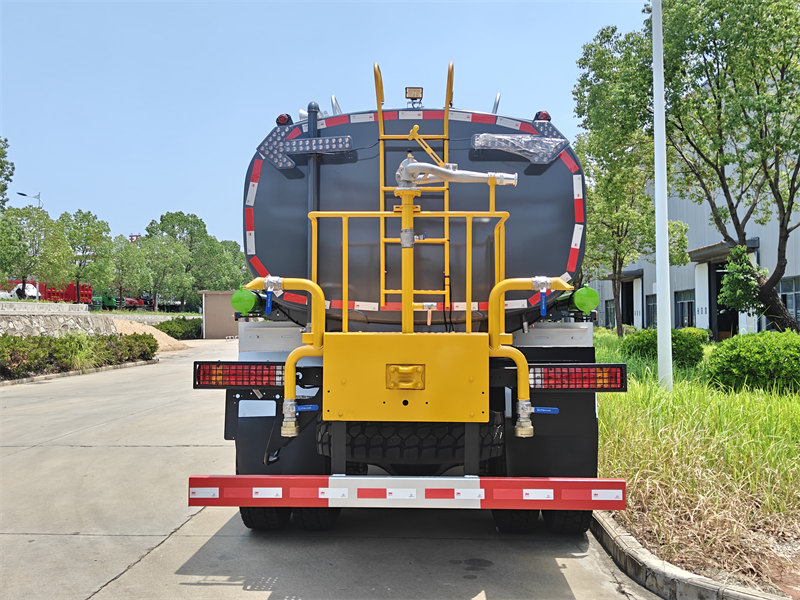

| Rear working platform | DN500 manhole cover |
» Ⅴ. Water Pump Specifications:
|
Model |
Flow rate (m³/h) |
Head (m) |
Speed (r/min) |
Shaft power (KW) |
NPSHr (m) |
Self-priming time (min/4m) |
Efficiency (%) |
|
80QZBF-60/90N(S) |
60 |
90 |
1180 |
22.5 |
4.5 |
1.5 |
70 |
|
65QZ-40/45N(S) |
40 |
45 |
1450 |
9.25 |
4.5 |
1.5 |
72 |
|
65QZ-50/50N |
50 |
50 |
1180 |
10.5 |
4.5 |
1.5 |
70 |
|
65QZBF-50/110N(S) |
50 |
110 |
1450 |
24 |
- |
- |
70 |

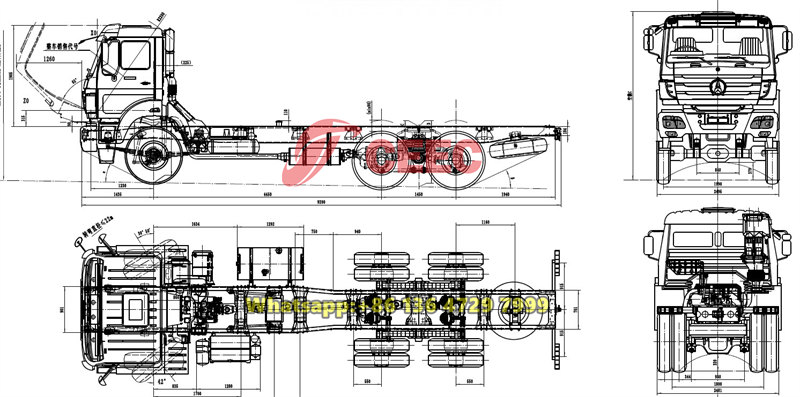

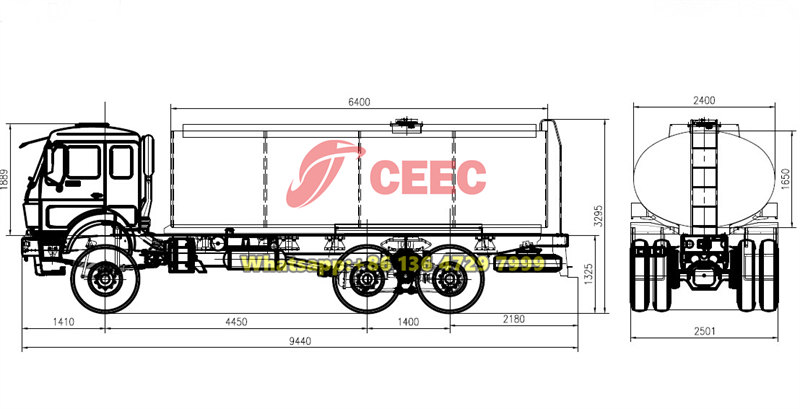

» Ⅵ. Product Drawing:

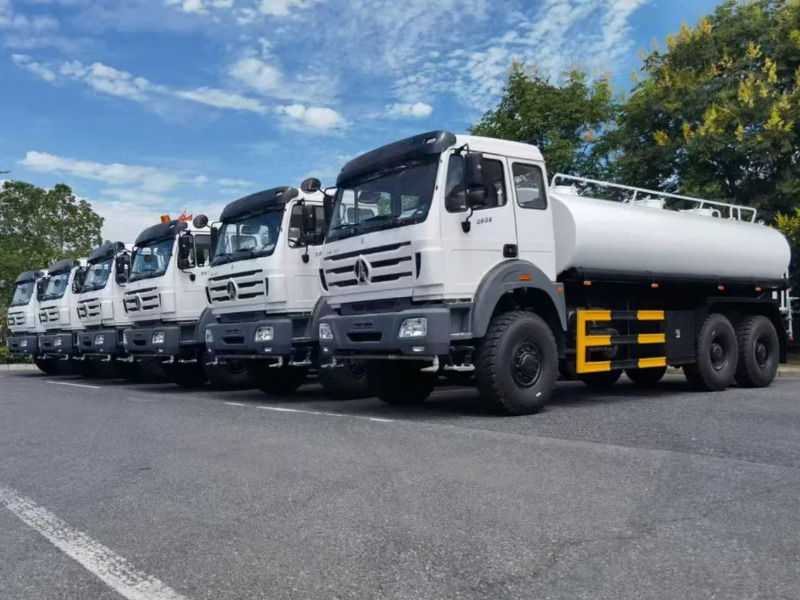

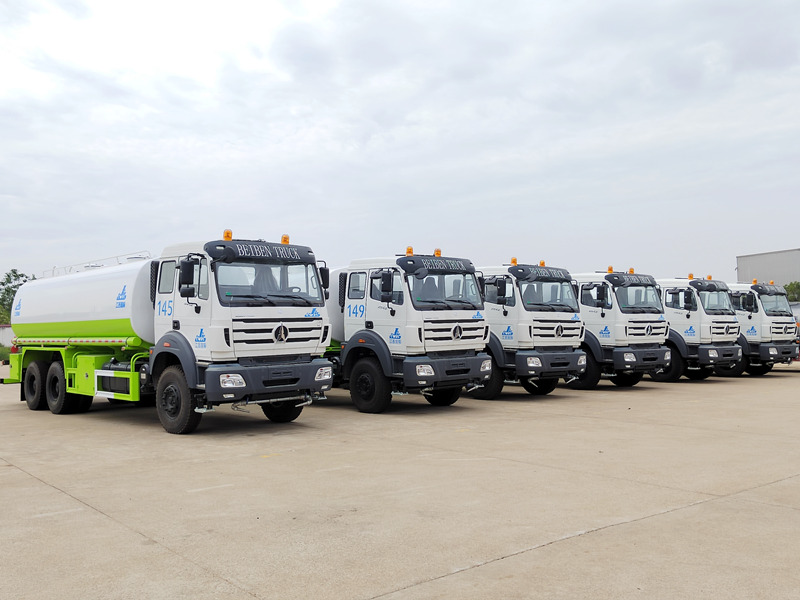

» Ⅶ. Batch delivery of Beiben Water Trucks:
Products--100% china beiben water truck factory!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive water trucks for option
2.Stainless steel, aluminum alloy tank body can be customized
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 40 days.
