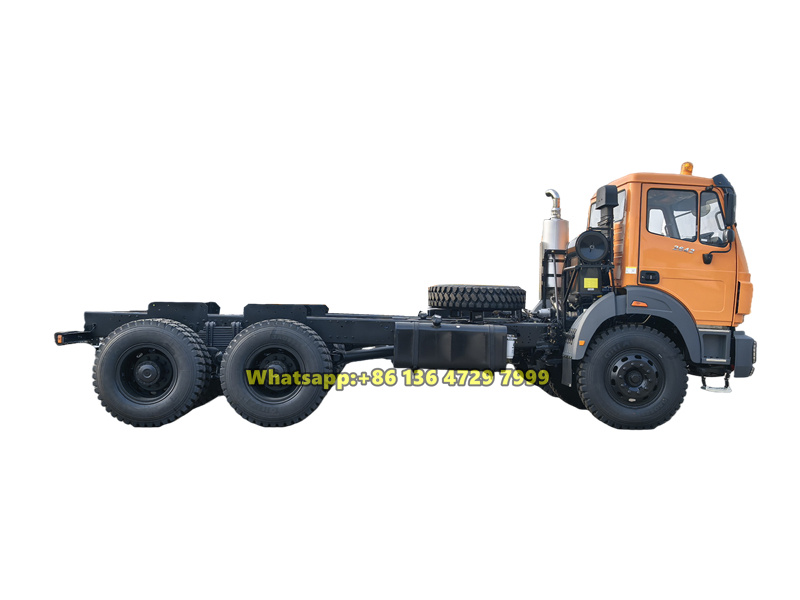

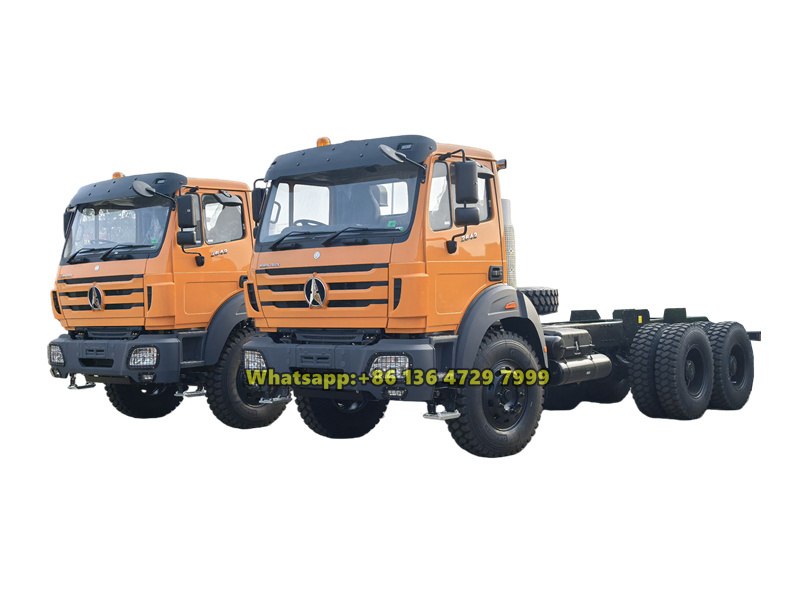

The Beiben 6x6 off-road chassis is a high-performance all-wheel-drive truck chassis designed for severe operating conditions. It features high passability, strong load-carrying capacity, and adaptability to complex terrains. It is equipped with a 420 hp diesel engine and a 12-speed transmission. Adopting a 6×6 all-wheel-drive design with a transfer case and inter-wheel differential locks, and fitted with 12.00R24 off-road tires as standard. The chassis frame is robust, making it suitable for modification into special vehicles such as firefighting trucks, tanker trucks, and crane trucks, with strong off-road capability.
Market Price:
$58100Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, 14.00R20 tyre is optionalThe Beiben 6×6 off-road chassis is a heavy-duty all-wheel-drive chassis built for extremely complex road conditions, with a total mass of 26 tons. It is powered by a WEICHAI 420 hp engine, paired with a 12-speed manual transmission and an LF200 transfer case. The frame adopts a reinforced structure, with a rear tandem axle ratio of 5.263 and differential locks, combined with 12.00R24 off-road tires for exceptional passability. This Beiben 6×6 chassis is widely used in modifications for fire trucks, dump trucks, tankers, cargo trucks, and crane trucks.
CEEC factory is authorized supplier for beiben 6x6 AWD trucks,
guarantee all beiben 6x6 off-road trucks Brand-New and High-Quality.
» Ⅰ.Product Features:
Manufacturer: CEEC TRUCKS
▲ All-Wheel Drive System: 6×6 drive form, with all three axles being drive axles, enhancing off-road and complex terrain passability.
▲ High Ground Clearance: Equipped with Beiben integral drive axles and large off-road tires, effectively increasing ground clearance and improving wading and obstacle-climbing abilities.
▲ Reinforced Chassis Structure: High-strength frame with section dimensions of 317×70×8.5+7+8.5 mm, enhancing load capacity and torsional resistance.
▲ Compatibility with Various Superstructures: Widely used for modifications of special vehicles such as dump trucks, fuel tankers, fire trucks, cargo trucks, and crane trucks.
» Ⅱ. Product Specifications:
|
Beiben 2642 6×6 all-wheel-drive chassis specifications |
||
|
Basic parameter |
Model |
2642APZ/6×6 |
|
Length×width×height(mm) |
9920×2500×3380 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
11050 |
|
| Engine parameter |

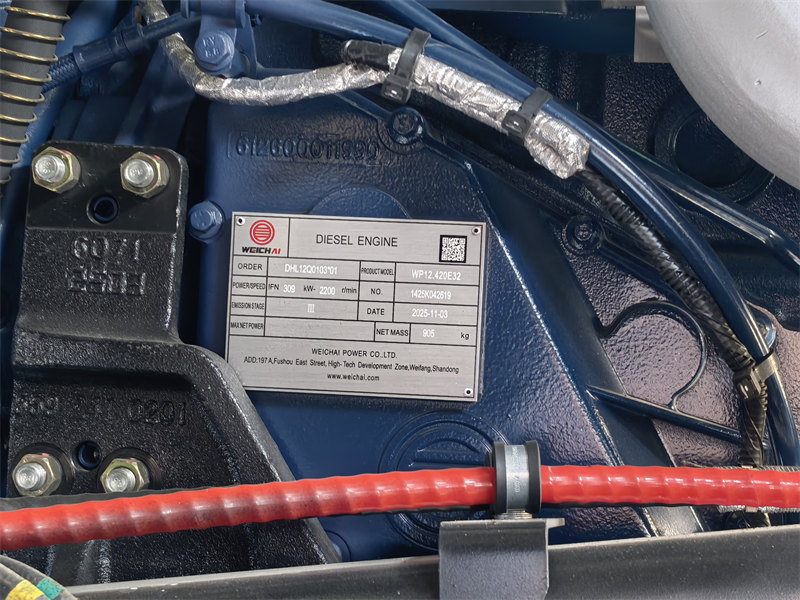

Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Transfer case |
Model |
LF200 |
|
Transmission ratio |
H: 0.890; L: 1.536 |
|
|
Torque ratio |
1:2.696 |
|
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7 T, driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R24 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|

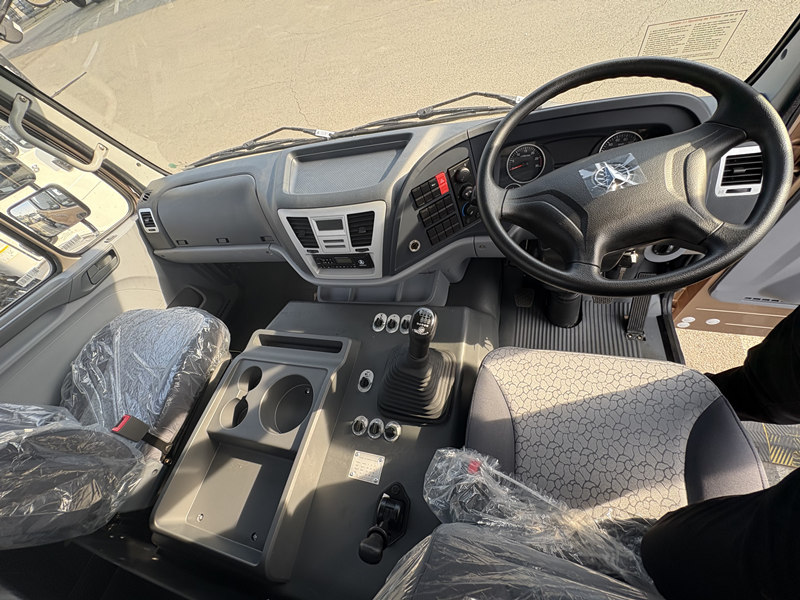

Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||

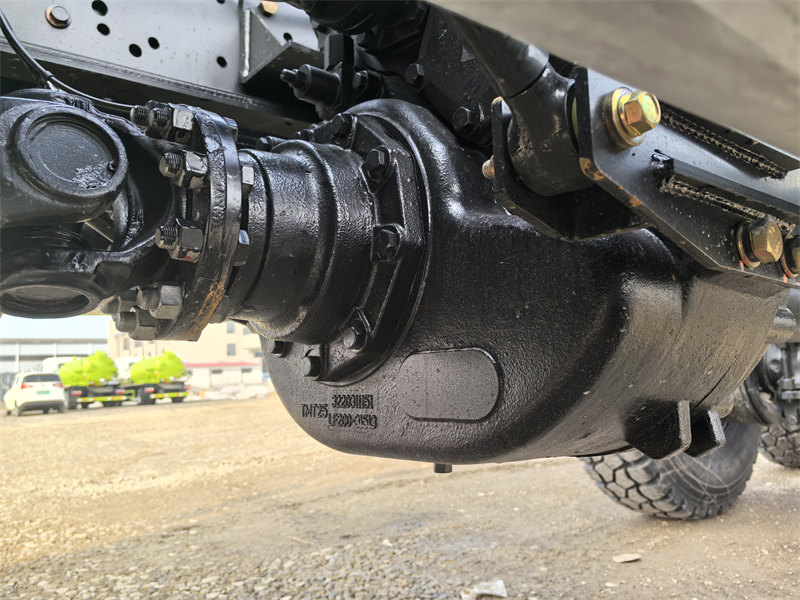

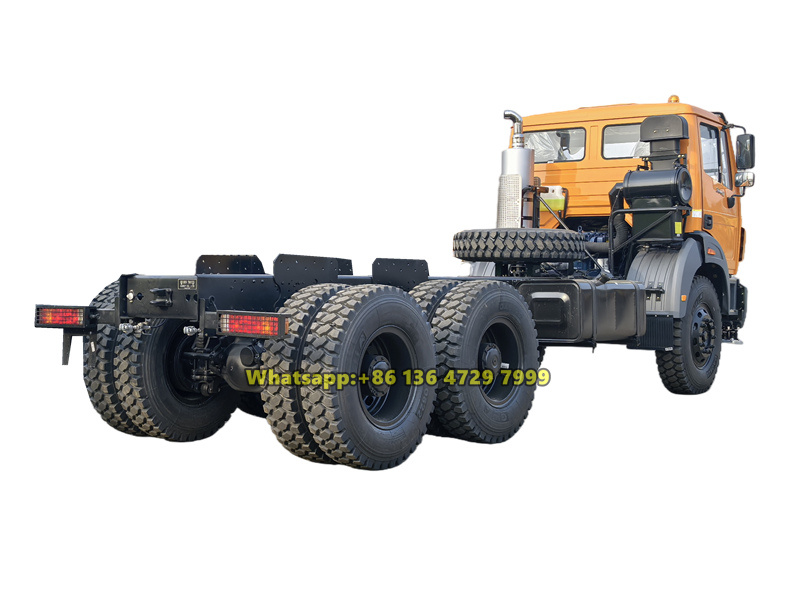

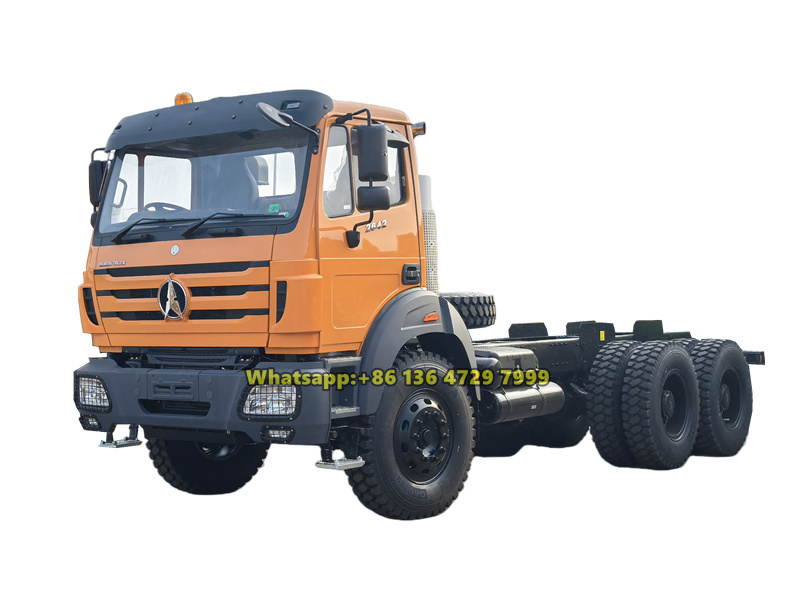

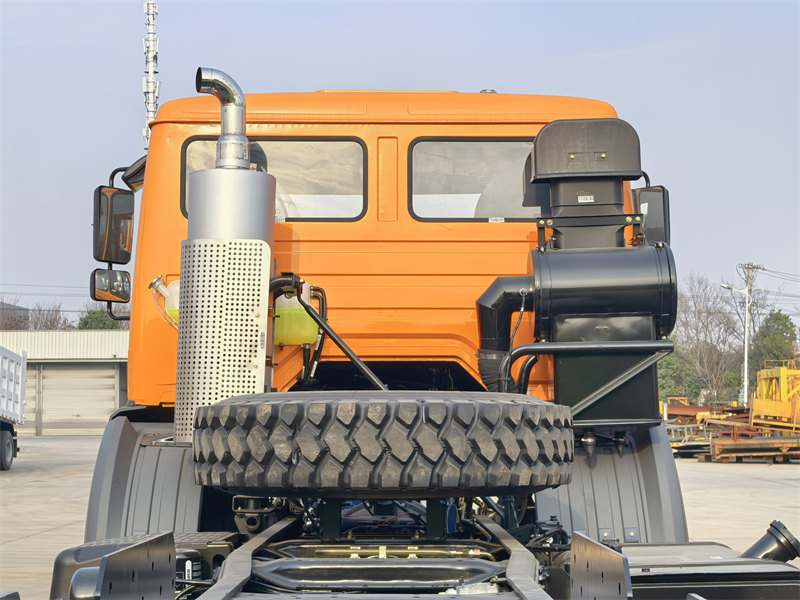

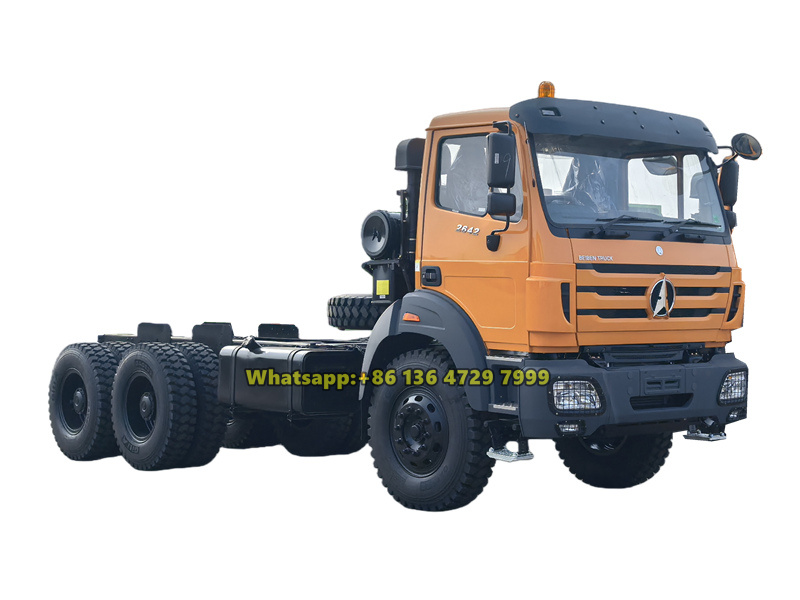

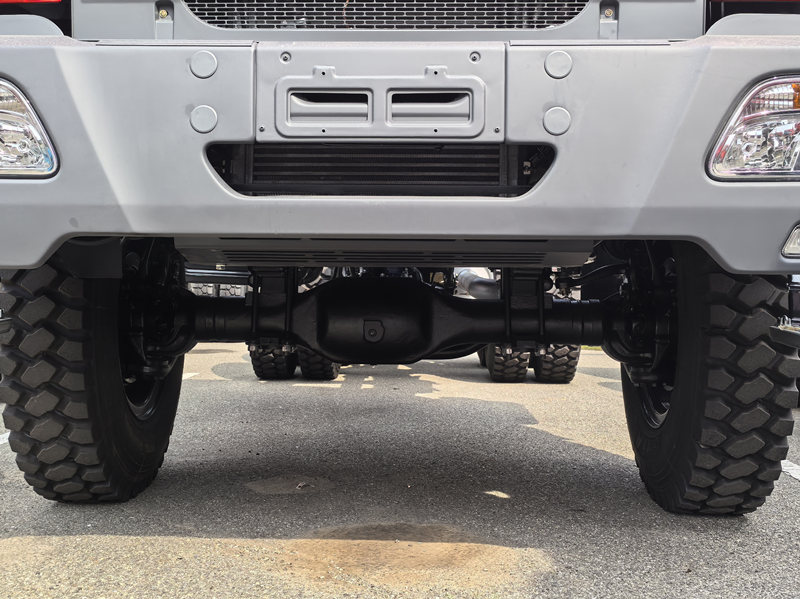

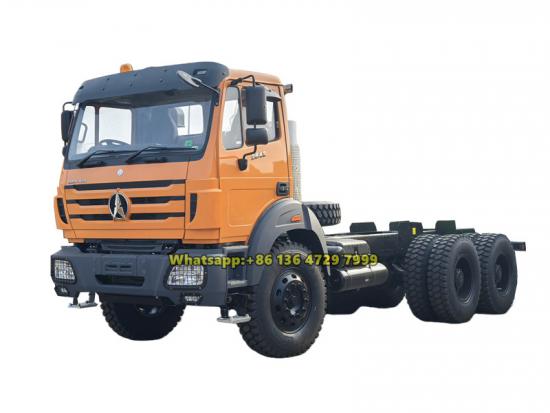

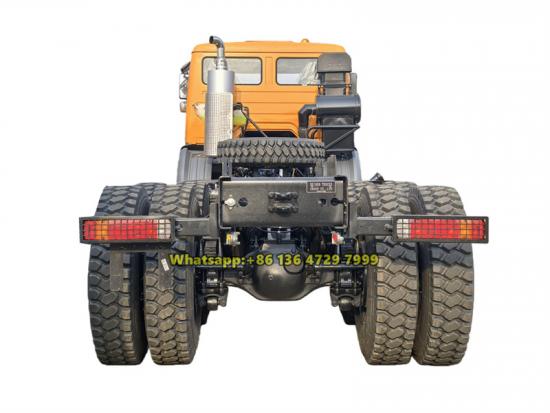

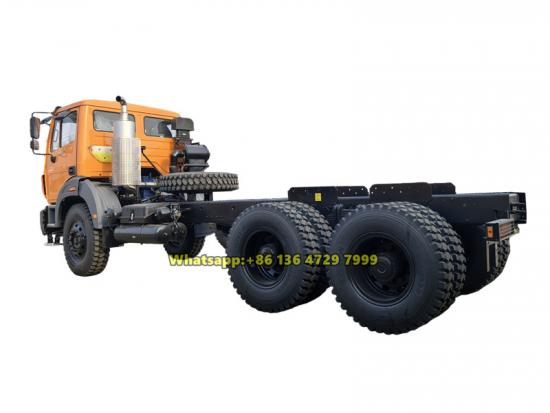

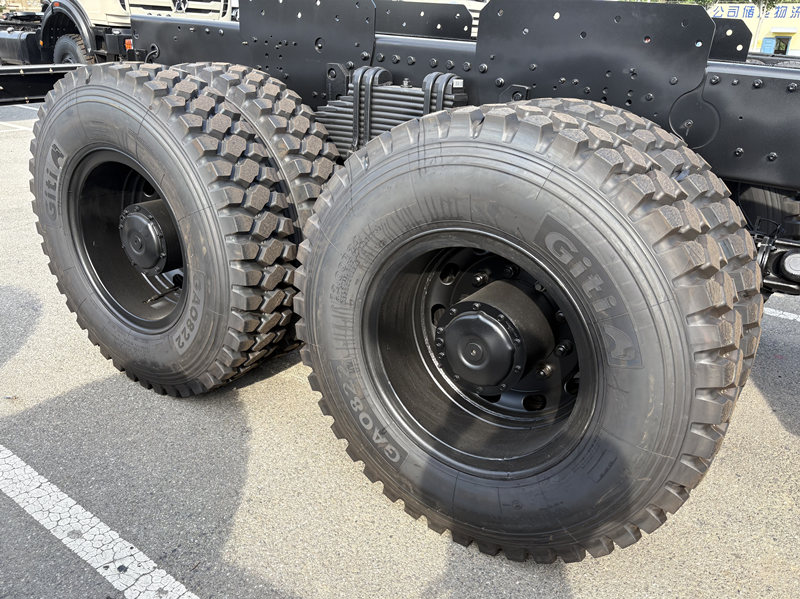

» Ⅲ. Product Details:

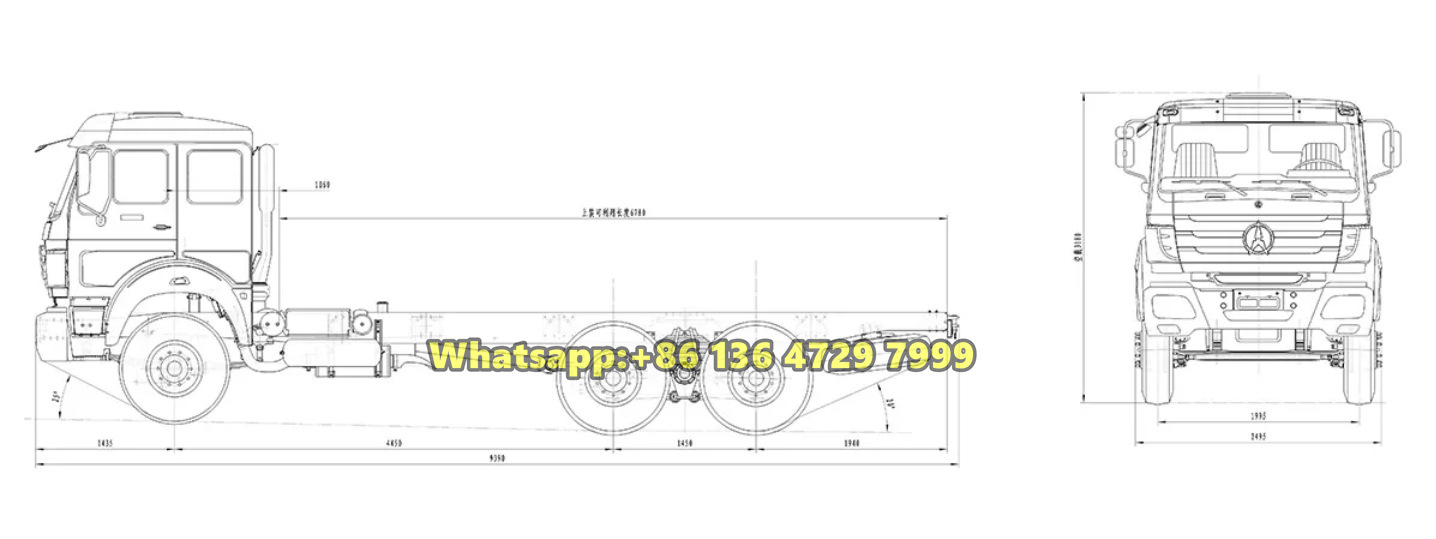

» Ⅳ. Product Drawing:

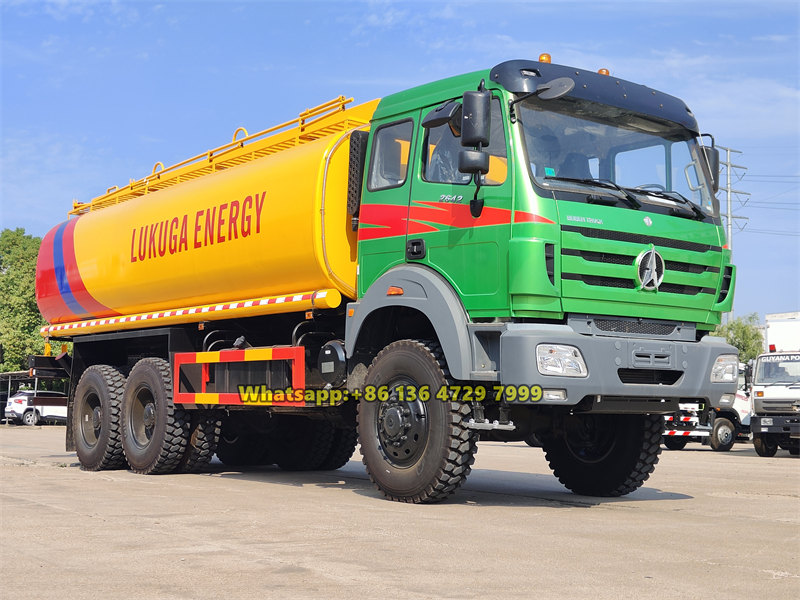

» Ⅴ. Beiben 6×6 chassis applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
Best beiben 6 wheel drive trucks with super benz trucks quality , beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
