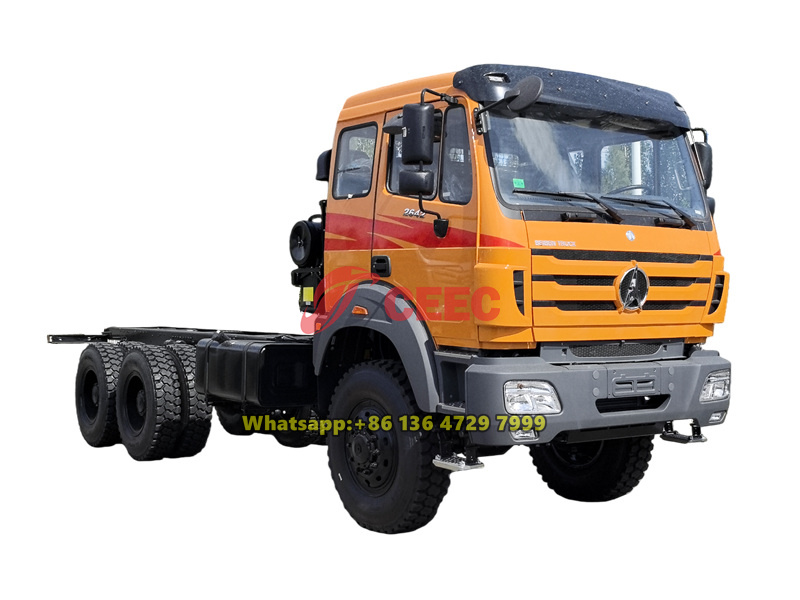

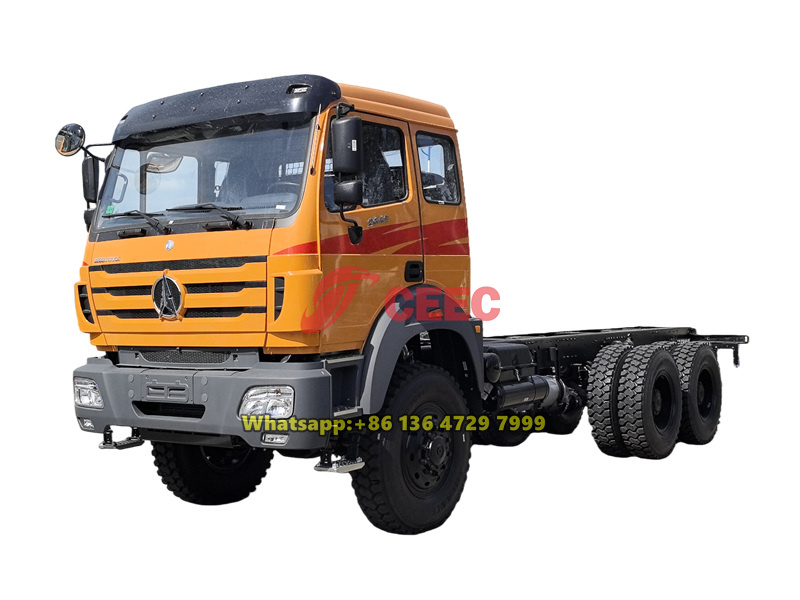

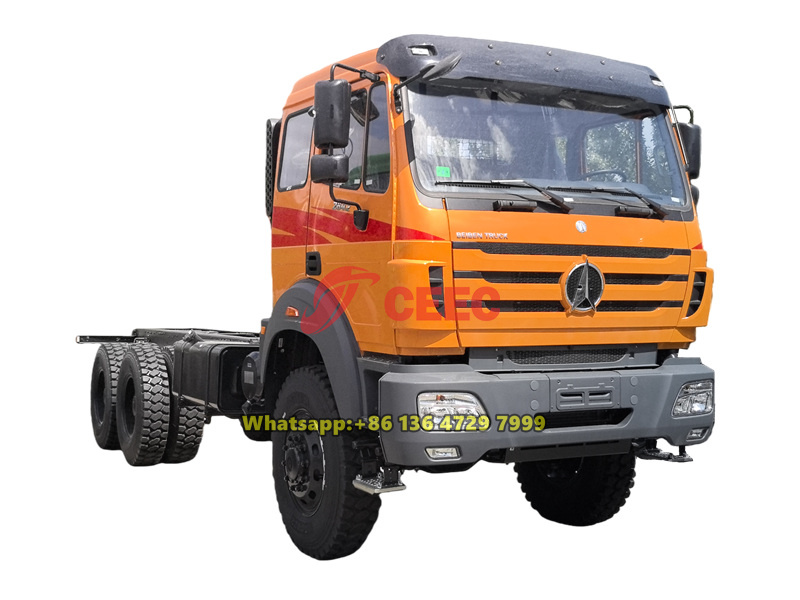

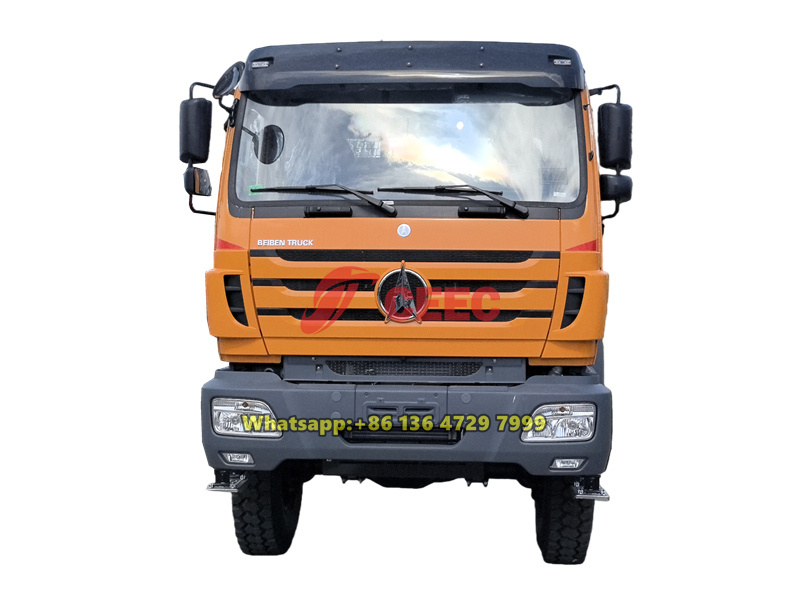

The Beiben 6×6 off-road chassis is built on the Beiben NG80 platform, inheriting the core technologies of Mercedes-Benz heavy-duty trucks. It is powered by a 420 hp engine paired with a 12-speed manual transmission, providing ample power reserves. The chassis features an all-wheel-drive configuration, equipped with differential locks, a multi-range transfer case, and high-performance suspension axles. The braking system is comprehensively designed, offering strong load-carrying capacity and excellent off-road mobility. With high reliability and wide adaptability, this chassis is commonly used to modify into tankers, construction service vehicles, military special-purpose vehicles, and various other specialized applications.
Market Price:
$58100Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:

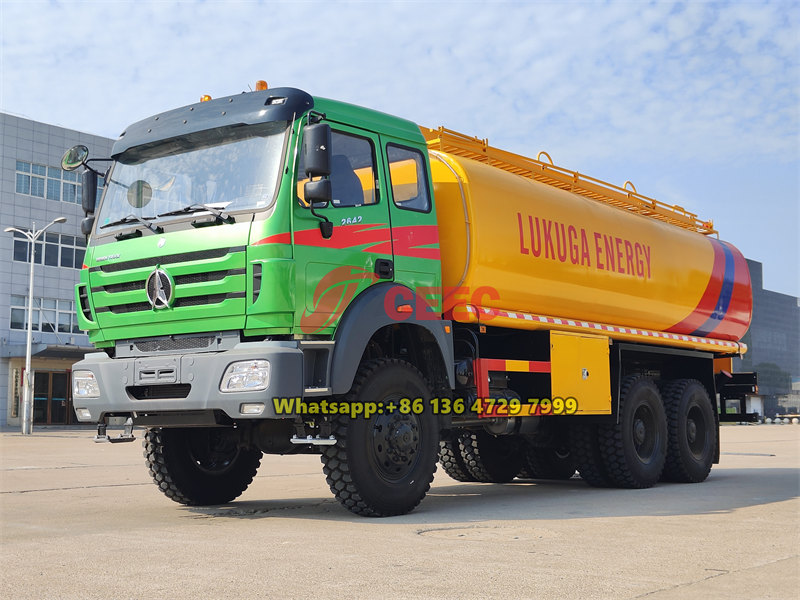

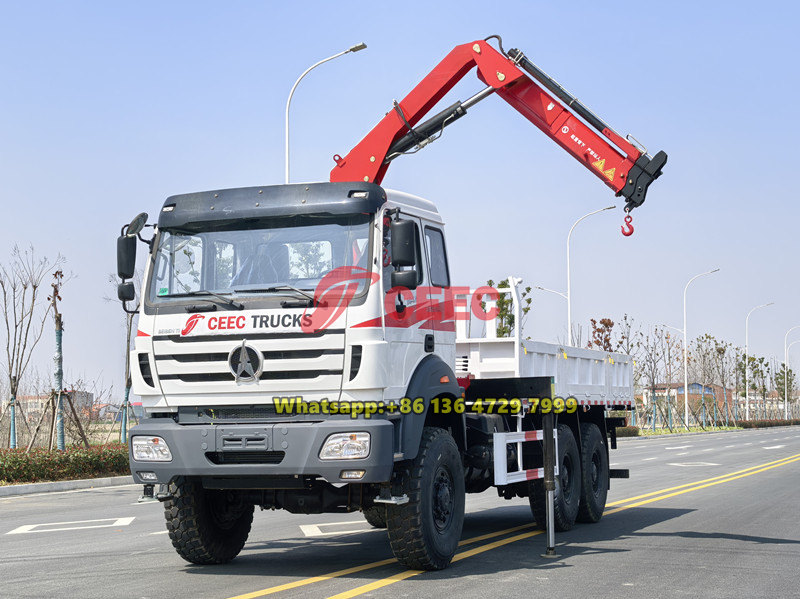

8×8, 14.00R20 tyre is optionalThe Beiben 6×6 all-wheel-drive chassis, derived from the German Mercedes-Benz heavy-truck technology platform, is a heavy-duty off-road chassis specifically designed for high mobility and harsh terrain. It is powered by a Weichai WP12.420E32 inline six-cylinder engine, delivering a maximum output of 420 horsepower. Equipped with a 12-speed manual gearbox and an LF200 transfer case with high/low ranges, featuring a low-range gear ratio of 1.536 and a torque multiplication factor of 2.696, efficiently transmitting power to all wheels. This powertrain endows the vehicle with exceptional capability in mud, sand, and steep-slope conditions. With a gross vehicle weight of 26 tons, the Beiben 6×6 off-road chassis is widely used for conversion into off-road refueling trucks, heavy-duty water tankers, construction dump trucks, crane trucks, and other special-purpose vehicles.
CEEC factory is authorized supplier for Beiben 6x6 AWD trucks,
guarantee all Beiben 6x6 off-road trucks Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Basic parameter |
Model |
2642APZ/6×6 |
|
Length×width×height(mm) |
9920×2500×3380 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
11050 |
|
|
Engine parameter |

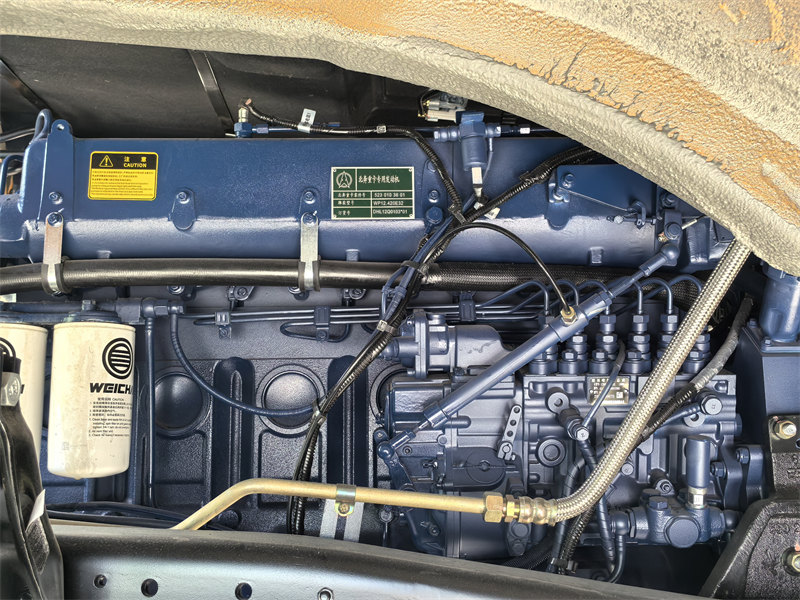

Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |

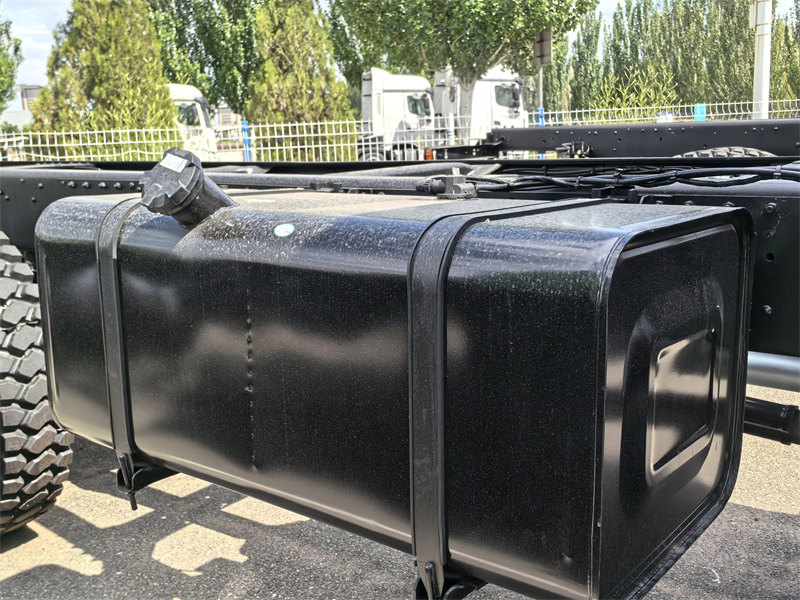

400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|

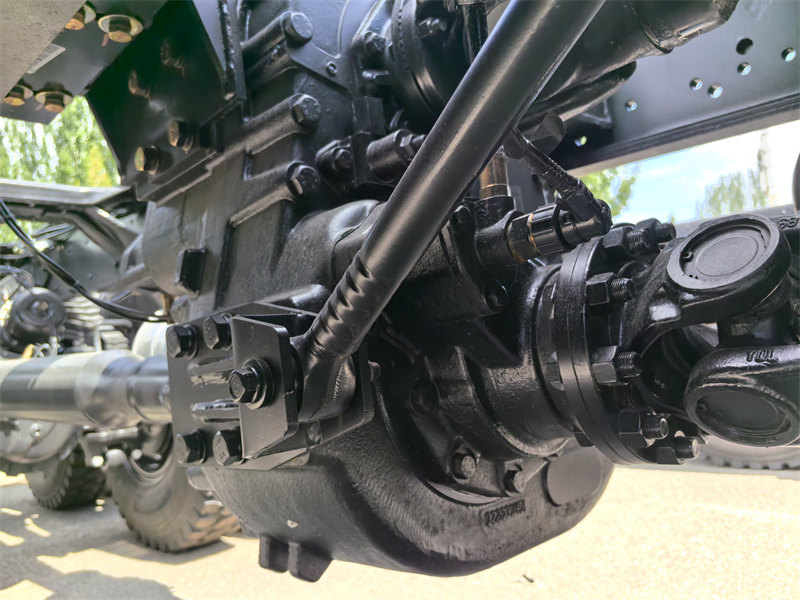

Transfer case |
Model |
LF200 |
|
Transmission ratio |
H: 0.890; L: 1.536 |
|
|
Torque ratio |
1:2.696 |
|
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|

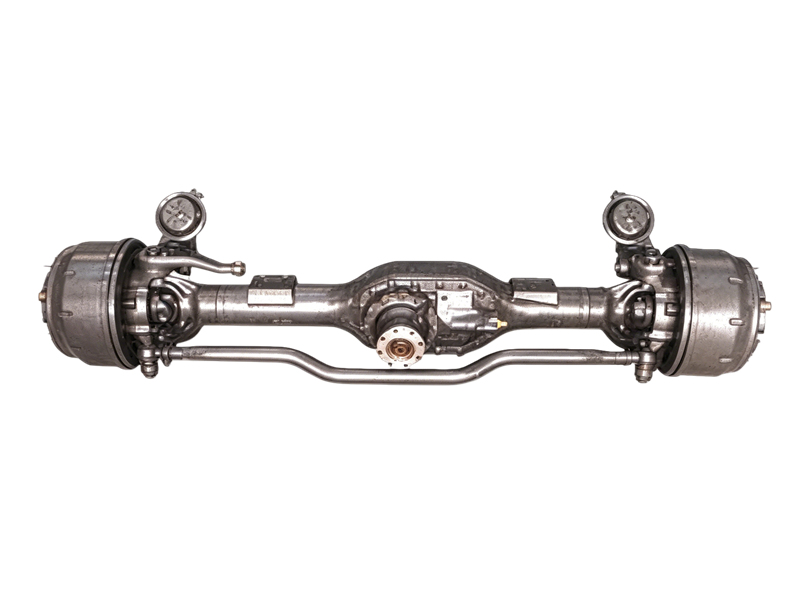

Front axle |
7 T, driving steering axle, drum brake； |
|
|

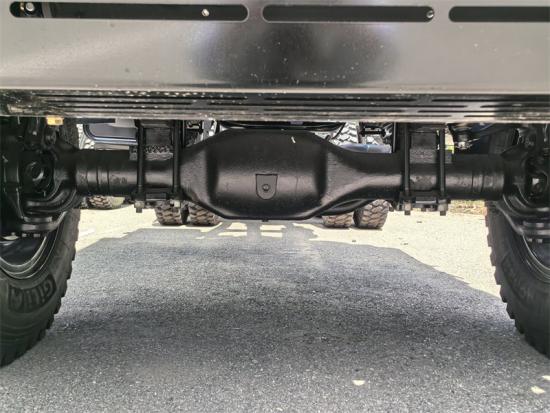

Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |

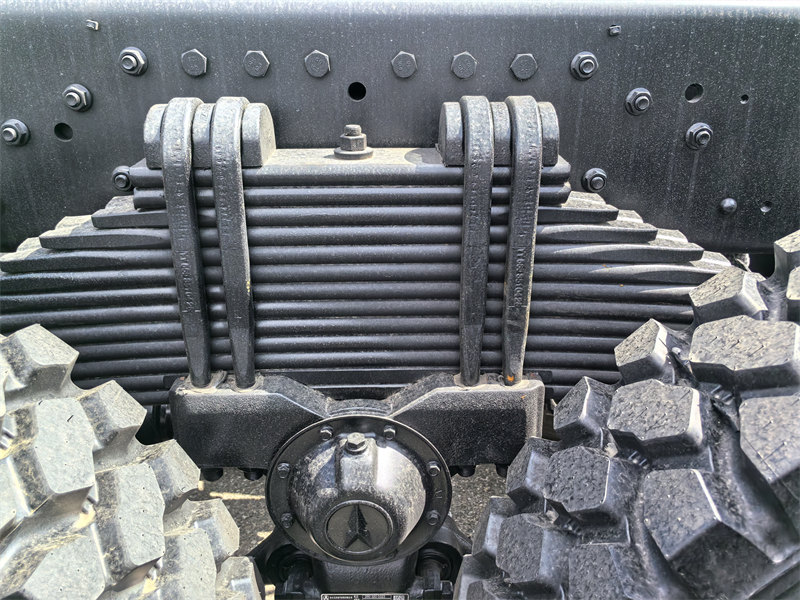

Front/rear: Leaf spring, 10/13 pieces； |
|
|

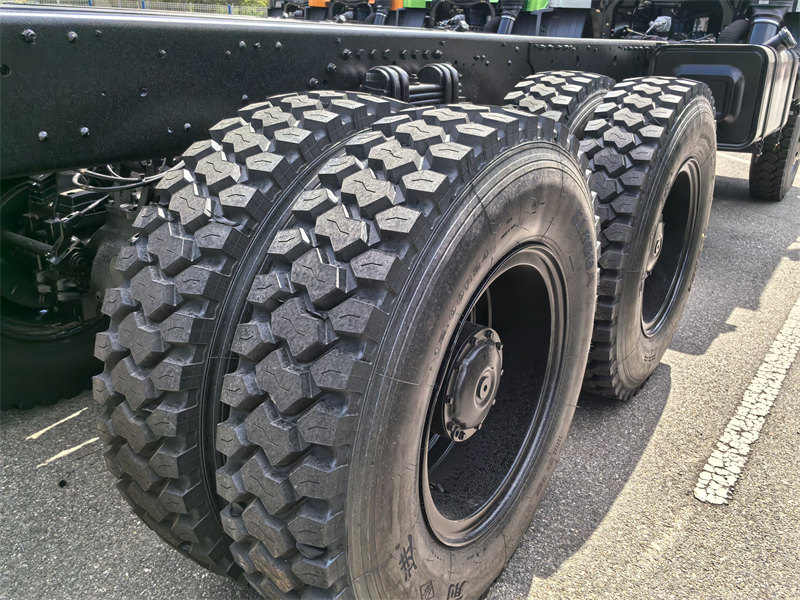

Tire |
12.00R24 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||

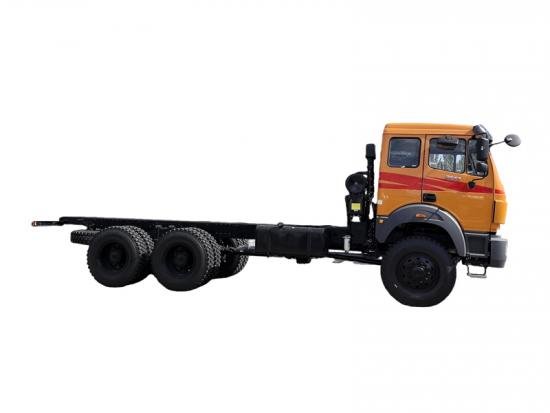

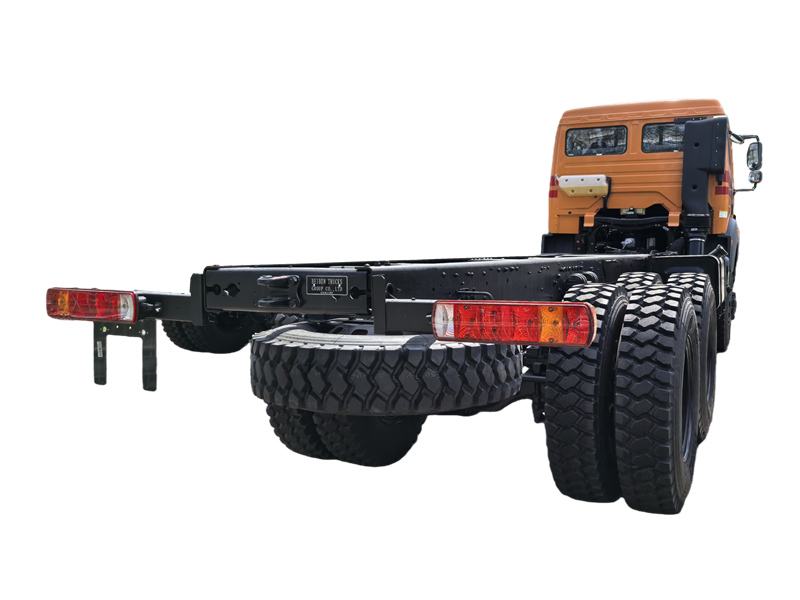

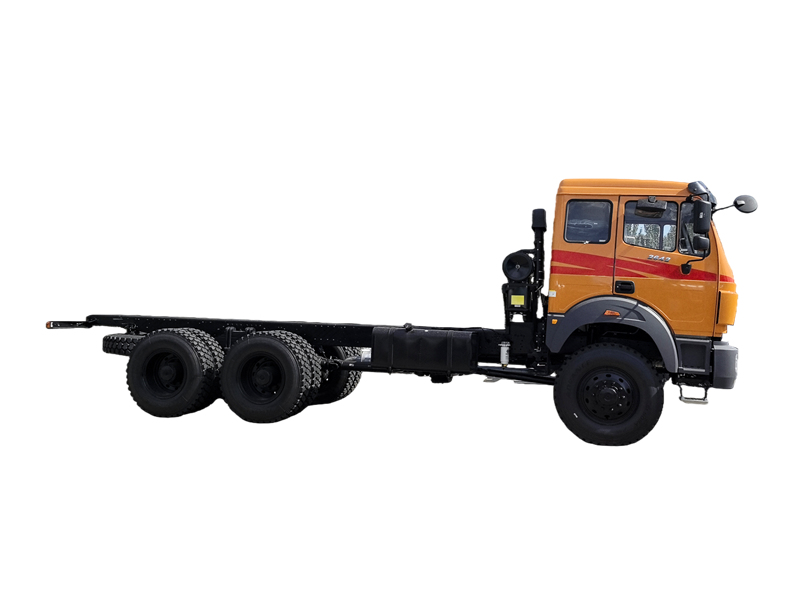

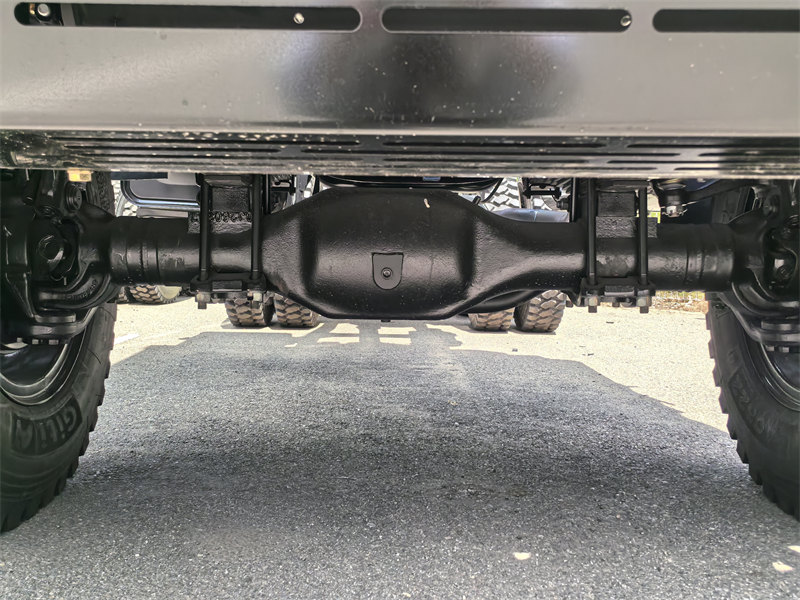

» Ⅲ. Product Details:
» Ⅳ. Beiben 6×6 chassis advantages:
• Proven Technology: Derived from the German Mercedes-Benz NG80 platform, offering high reliability and long-lasting durability.
• Superior Off-Road Capability: The 6×6 all-wheel drive, combined with large-sized tires and reinforced leaf springs, ensures excellent adaptability to harsh conditions such as mud and steep slopes.
• Powerful Performance: The Weichai 420 hp engine delivers strong low-end torque, matched with a 12-speed gearbox and a transfer case featuring 2.696× torque multiplication, providing ample pulling power for heavy-load climbing.
• High Load Capacity: Equipped with a 317 mm variable-section reinforced frame, Beiben-technology 7-ton front axle, and 13-ton-class middle and rear axles, offering superior heavy-load stability and torsional rigidity.
• Braking Safety: Dual-circuit pneumatic braking and exhaust braking provide multiple safeguards, ensuring more stable control during long descents and heavy-load operations.
» Ⅴ. Product Drawing:
» Ⅵ. Beiben 6×6 chassis applications:
