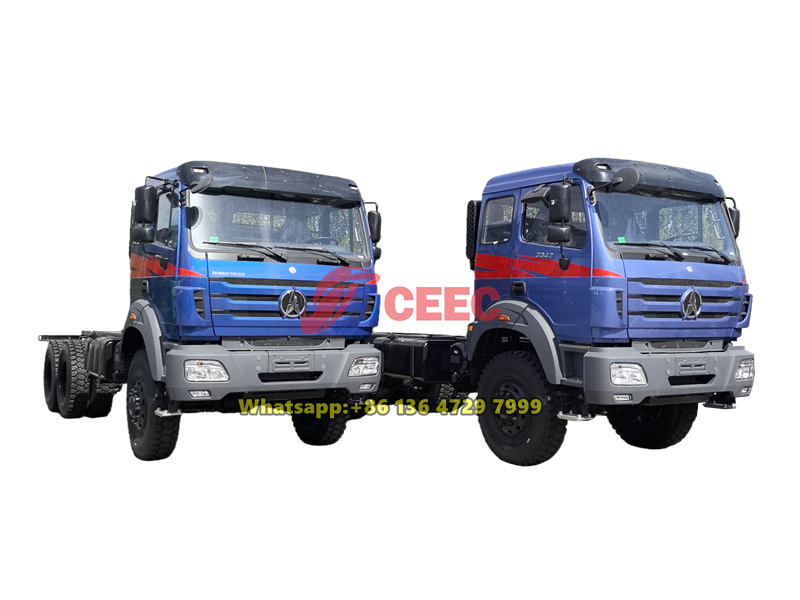

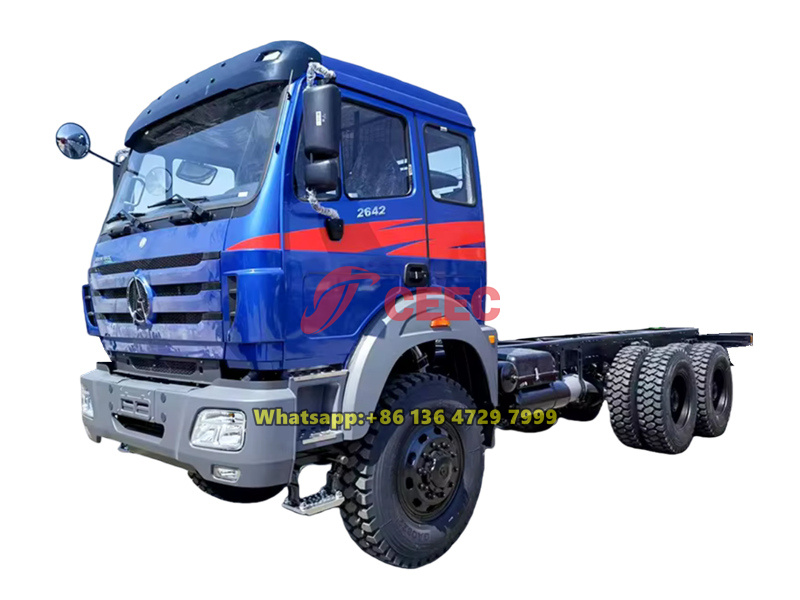

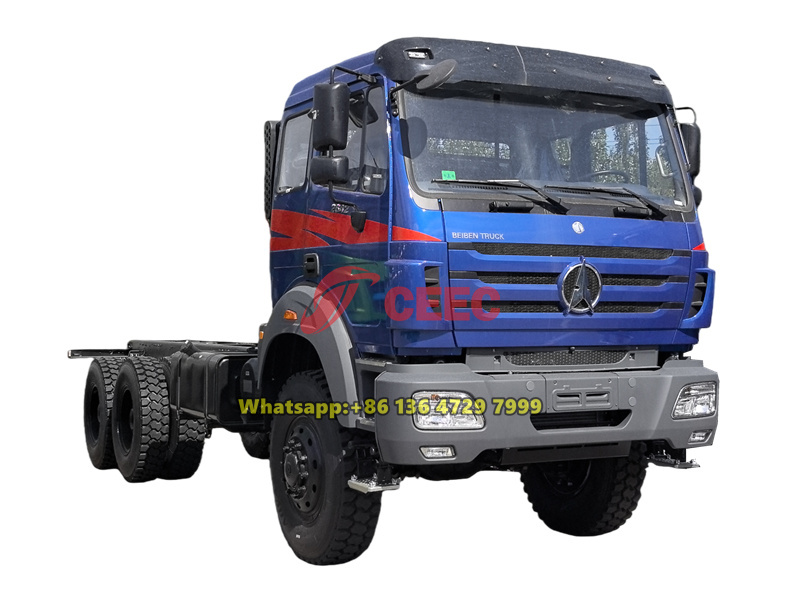

The Beiben NG80 6×6 all-wheel-drive chassis, built on the Mercedes-Benz NG80 technology platform, is a full-time six-wheel-drive cargo chassis specifically designed for extreme terrain conditions and heavy-duty operations. Powered by a Weichai 420 hp engine and paired with a Fast 12-speed manual transmission, it features a high-strength frame, multi-leaf spring suspension, and differential locks, delivering exceptional mobility, load capacity, and reliability. It is widely used in firefighting, oilfield, and engineering emergency rescue applications.
Market Price:
$58100Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, 14.00R20 tyre is optionalBeiben 6×6 off-road chassis is a specialized cargo chassis developed on the NG80 series heavy truck platform. With a full-time six-wheel-drive design, all three front and rear axles can deliver power, making it particularly suitable for large-tonnage material transport and special vehicle conversions in harsh conditions. Its frame employs a reinforced structure with variable cross-sections and variable widths, complemented by multi-leaf spring suspension, resulting in outstanding load-bearing capacity and torsional rigidity to withstand impacts from sandy, muddy, and gravelly terrains.
This chassis is equipped with a Weichai 420 hp engine and a Fast 12-speed manual transmission, offering ample torque reserves and stable performance in low-speed climbing and heavy-load starts. The rear axles are fitted with differential locks, and the hub reduction gearing provides a large gear ratio, further enhancing traction and self-recovery capability in extreme conditions. The cab is the classic NG80B model, featuring an air-suspended seat and twin bunk beds, suitable for long-distance or field operations. Thanks to its reliability, durability, and high mobility, this Beiben 6×6 heavy chassis is widely used in firefighting, oilfield, and engineering rescue applications.
CEEC factory is authorized supplier for Beiben 6x6 off-road trucks,
guarantee all Beiben 6x6 all wheel drive trucks Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Model |
Beiben NG80 6×6 Cargo Truck Chassis |
|
Gross vehicle weight (kg) |
26000 |
|
Overall dimension (mm) |
9920×2500×3380 |
|
Wheel base (mm) |
4450+1450 |
|

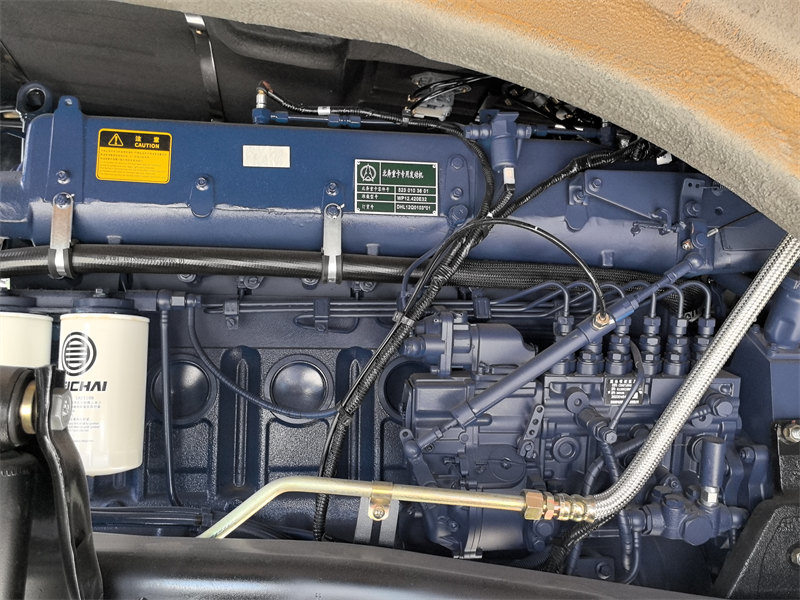

Engine |
Make: WEICHAI Max. power: 420HP Max. Torque(Nm/rpm): 1750/1200～1500 Displacement (L): 11.596 |
|
Transmission |
FAST 12JS200T, 12 forward & 2 reverse manual gearbox |
|
Steering Gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Clutch |
430 Single disc, dry type, friction clutch |
|
Number of axle |
3 |
|
Front axle |
7 T, driving steering axle, drum brake |
|

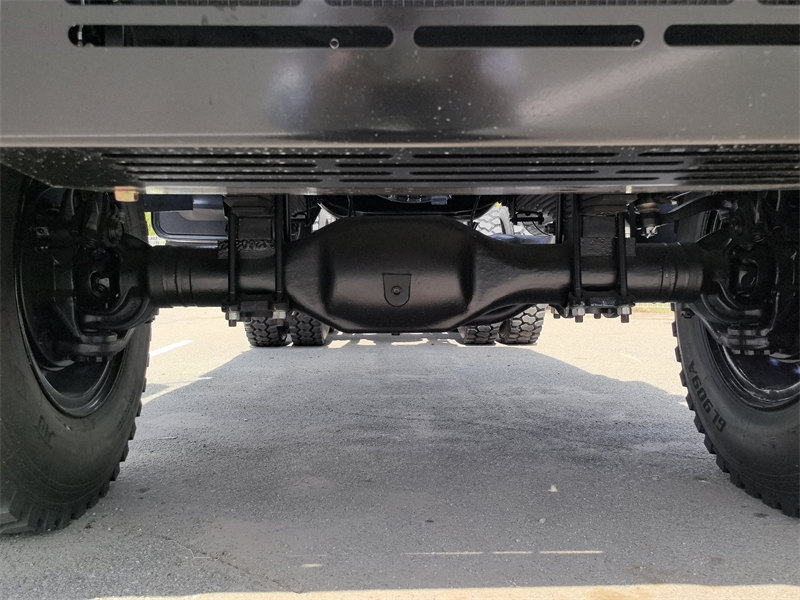

Rear axles |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|

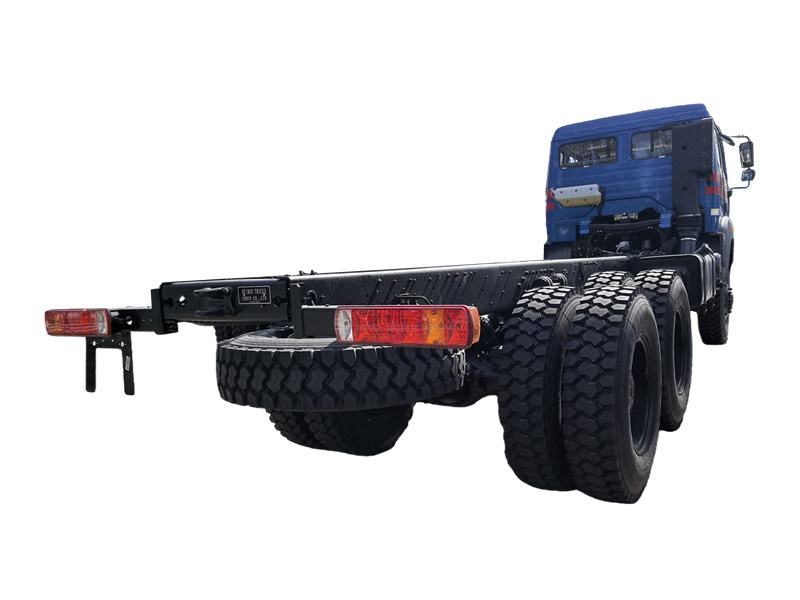

Frame |
Variable width and section 317×70×8.5+7+8.5 mm |
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces |
|
Tires |
12.00R24 off-road tires, 10+1 pcs |
|
Fuel Tank |
400L |
|
Electrical System |
Voltage: 24V |
|
Braking System |
Service brake: Dual-circuit air brake |
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|

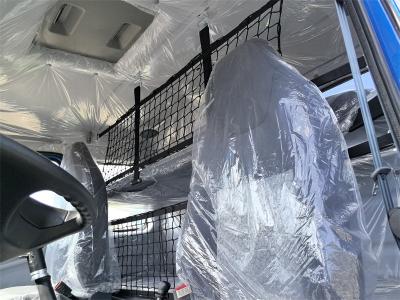

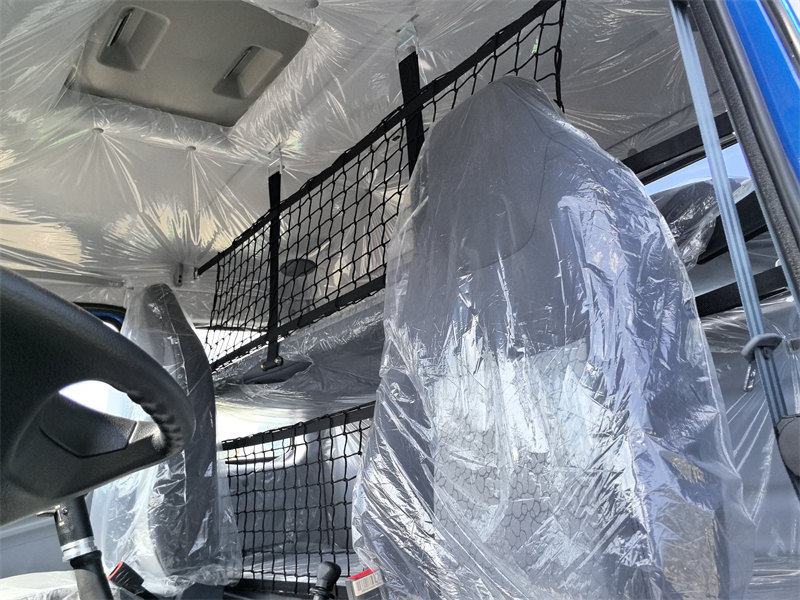

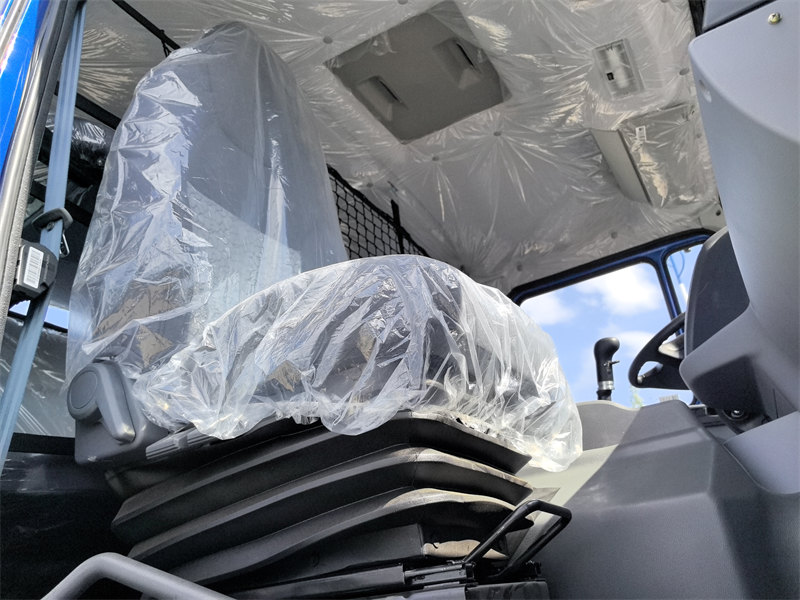

Interior trimming: Air suspension seat, 2 seats and 2 sleepers, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |

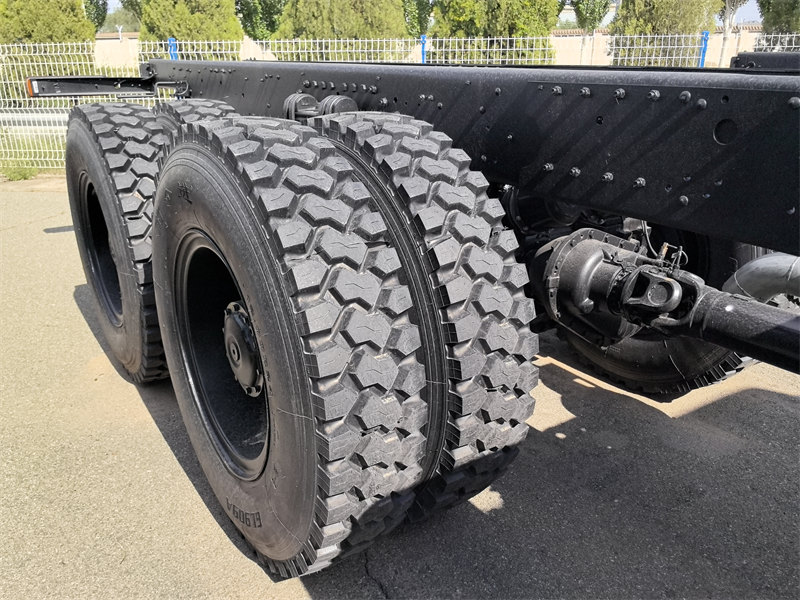

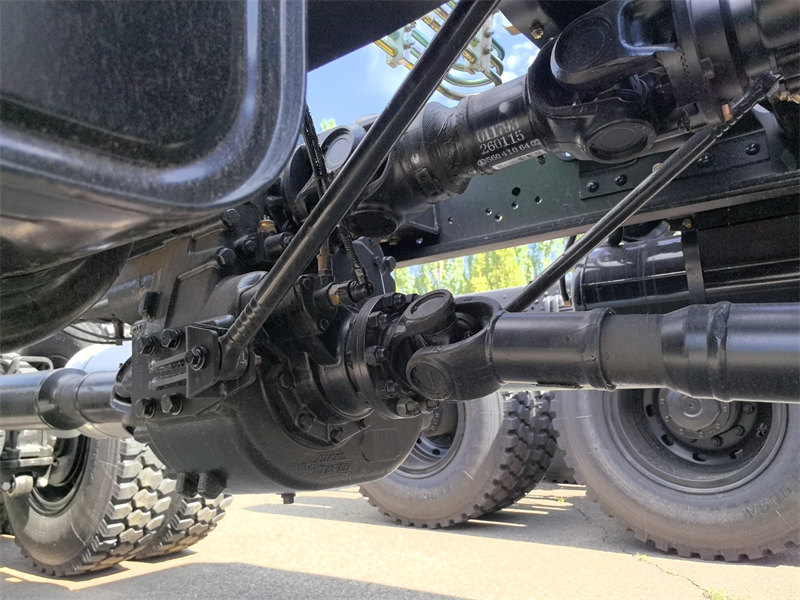

» Ⅲ. Product Details:

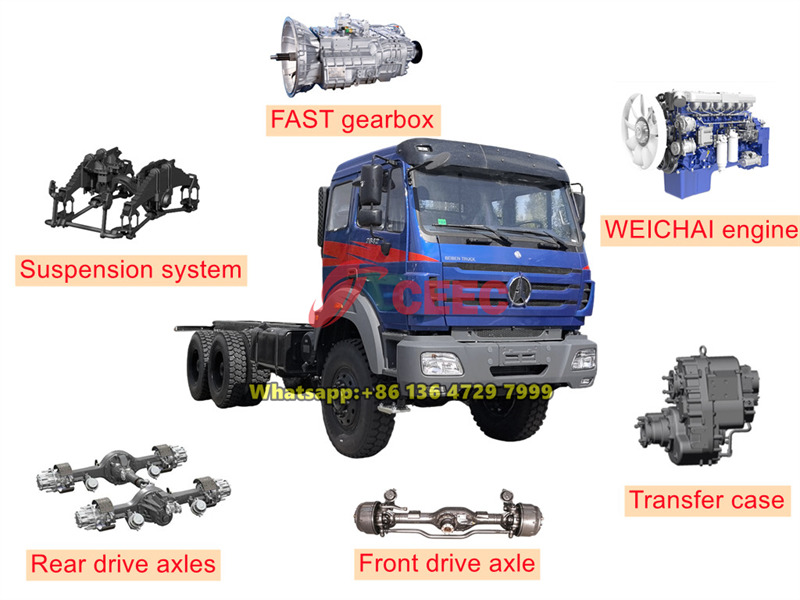

» Ⅳ. Beiben 6×6 chassis advantages:

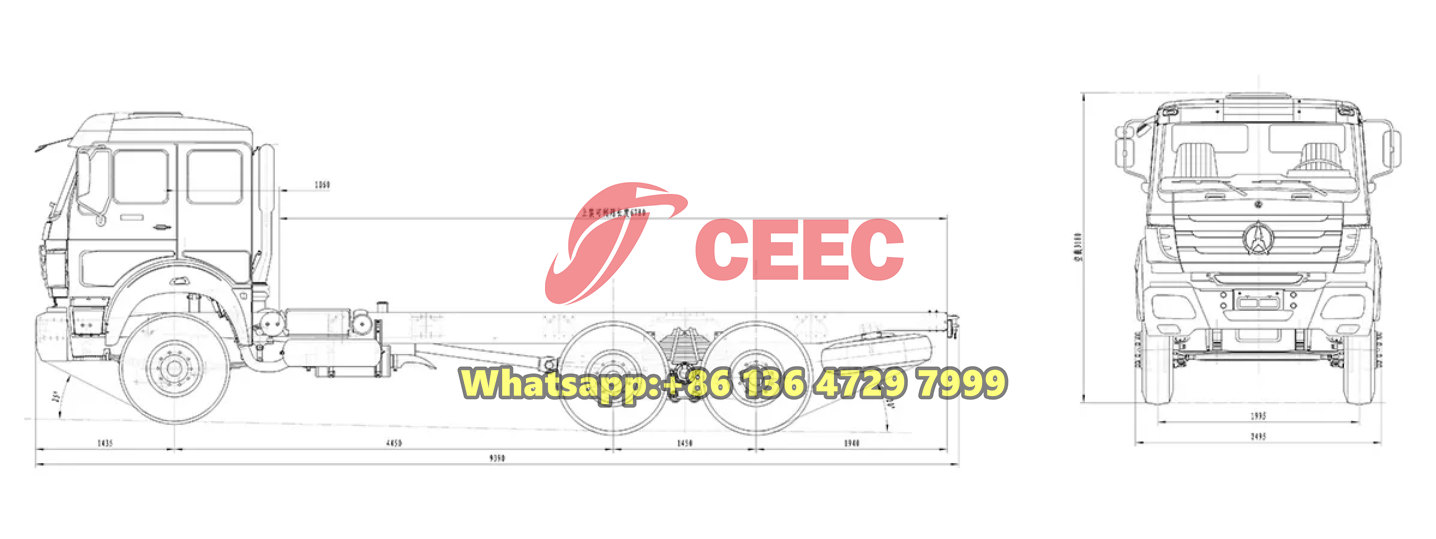

» Ⅴ. Product Drawing:
