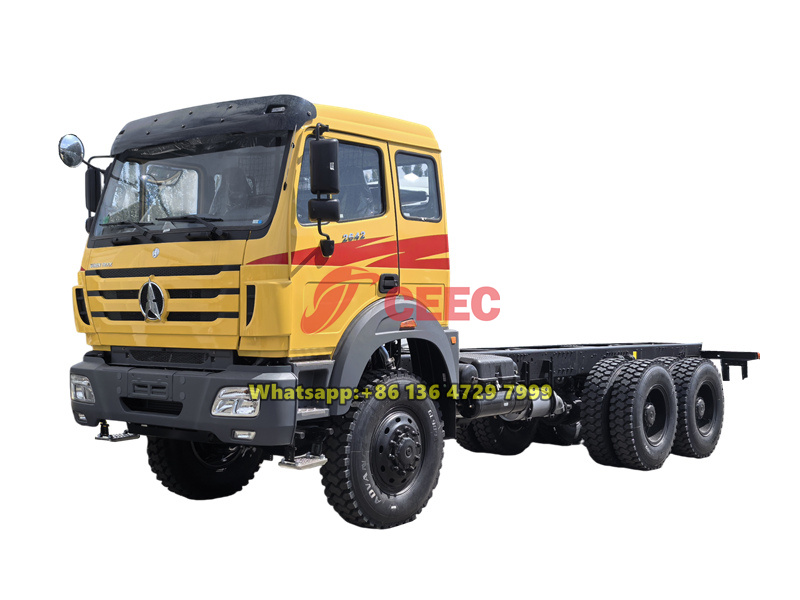

The Beiben 6×6 All-Wheel-Drive Cargo Chassis is derived from the German Mercedes-Benz NG80 technology platform. It is powered by a Weichai 420 hp engine paired with a 12-speed manual transmission, and features Mercedes-Benz technology heavy-duty axles, delivering exceptional off-road mobility and heavy-load carrying capacity. Its fish-belly frame, reinforced suspension, and dual-circuit braking system ensure reliability and safety under harsh operating conditions. It is widely used in heavy transport, construction infrastructure, special-purpose vehicle modification, and military shelter applications.
Market Price:
$40700Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, 14.00R20 tyre is optionalThe Beiben 6×6 All-Wheel-Drive Cargo Chassis is a heavy-duty specialized chassis developed on the Mercedes-Benz technology platform. Its core configuration is robust and reliable, equipped with a Weichai WP12 series 420 hp diesel engine and a FAST 12-speed manual transmission, offering ample power and excellent fuel economy. The vehicle adopts a 6×6 all-wheel-drive configuration, combined with Mercedes-Benz technology heavy-duty axles, reinforced suspension, and a high-strength fish-belly frame, providing outstanding load capacity, superior off-road performance, and exceptional durability. Built to military-grade quality, it is suited for a variety of harsh operating environments.
This Beiben 6×6 off-road chassis has passed rigorous field validation and offers strong adaptability. It is widely used in heavy material transport, construction trucks modification, and can also be configured as tankers, truck-mounted cranes, and other special-purpose vehicles. With its stable performance, it is also suitable for military transport, command operations, and other complex scenarios.
CEEC factory is authorized supplier for Beiben 6x6 off-road trucks,
guarantee all Beiben 6x6 all wheel drive trucks Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Wheel base(mm) |
4450+1450 |
|
|
Dimensions (L*W*H) (mm) |
9920×2500×3380 |
|
|
Curb weight (kg) |
9900 |
|
|
Front overhang/rear overhang (mm) |
1435/2505 |
|
|
Approach angle/Departure angle |
25/26 |
|
|
Max Speed (Km/h) |
80 |
|
|

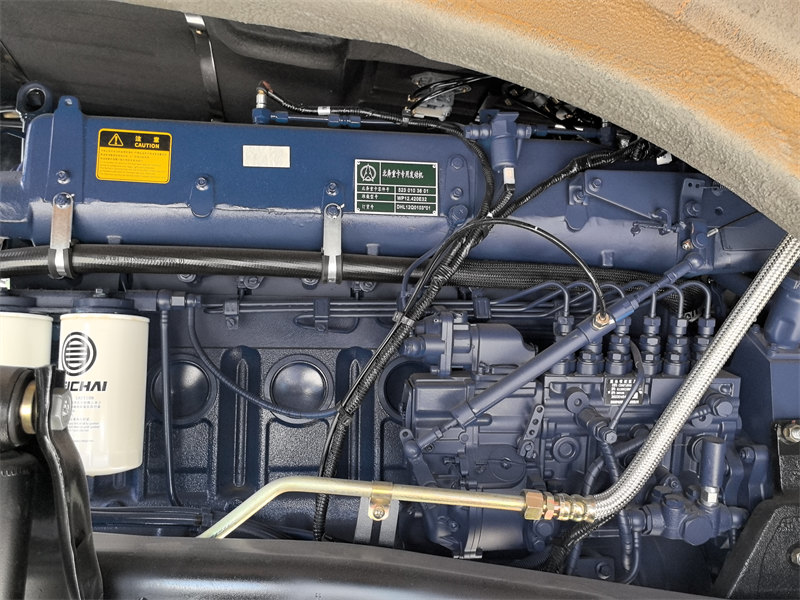

Model |
WP12.420E32, water-cooled, four strokes, 6 cylinders straight in line, turbocharged, |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
192g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
309Kw(420HP)/2200rpm |
|
|
Emission standard |
Euro 3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|

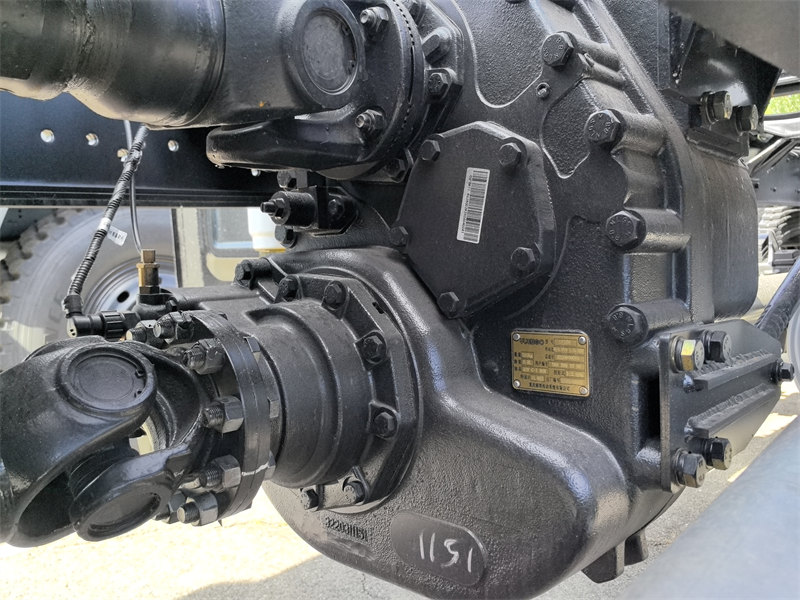

Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|

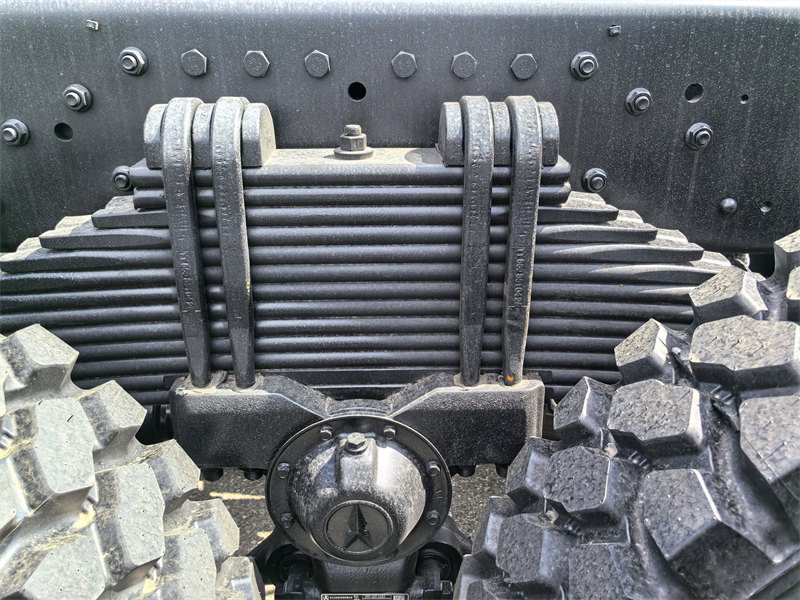

Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle & Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Length 7m |
|

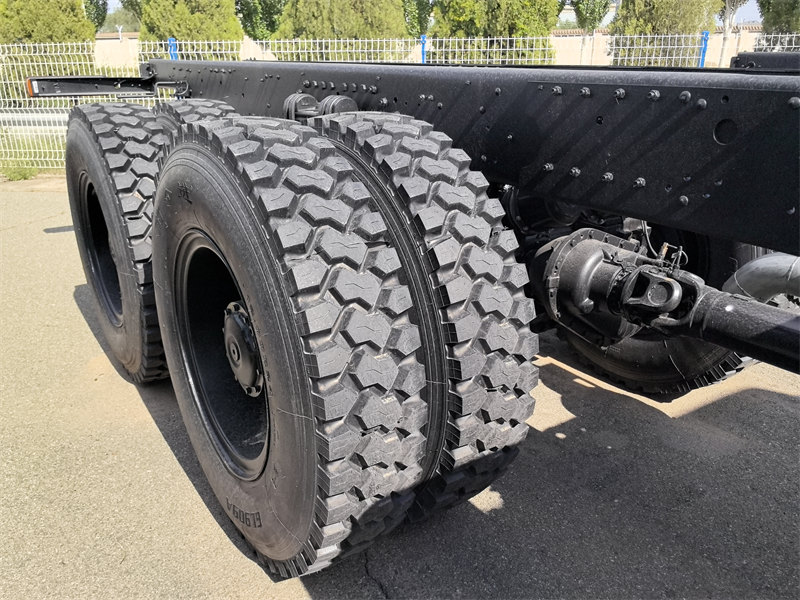

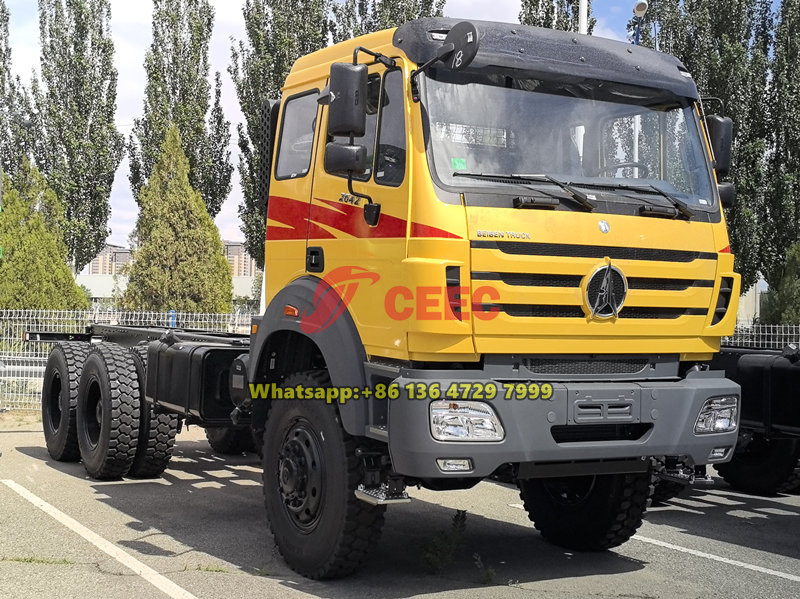

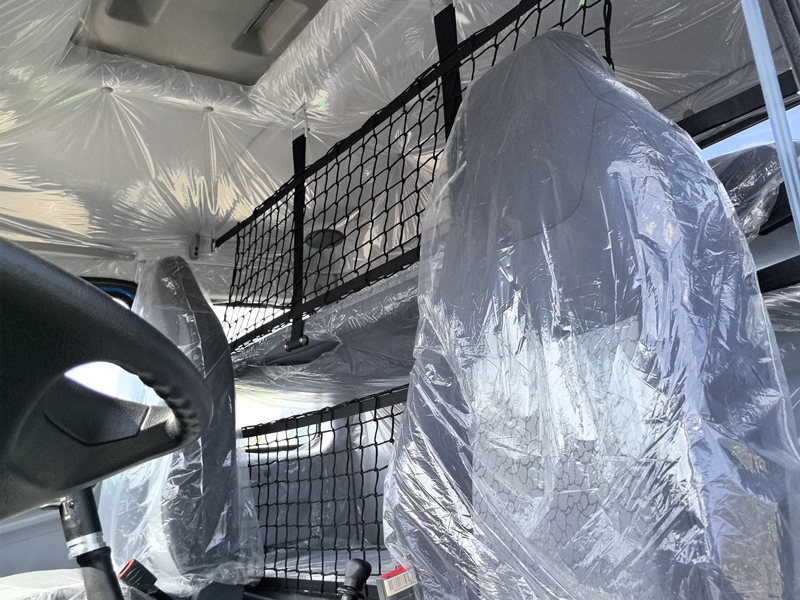

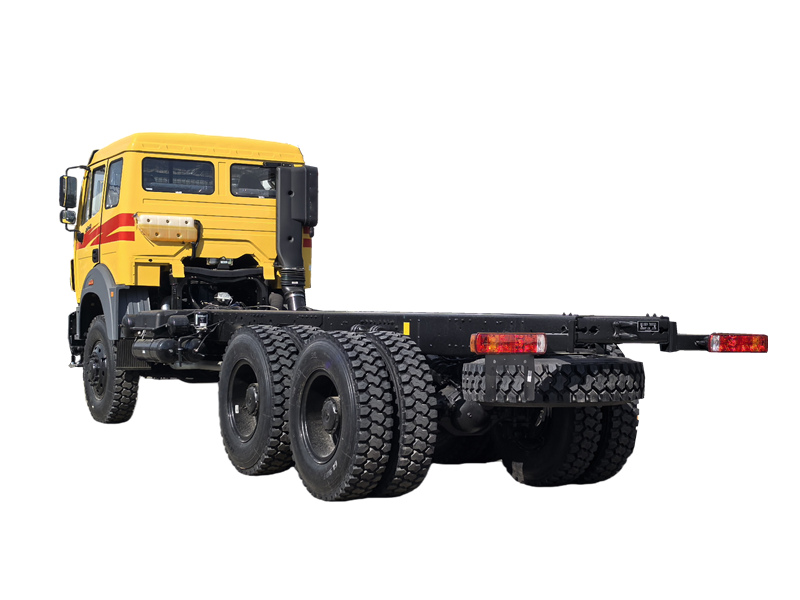

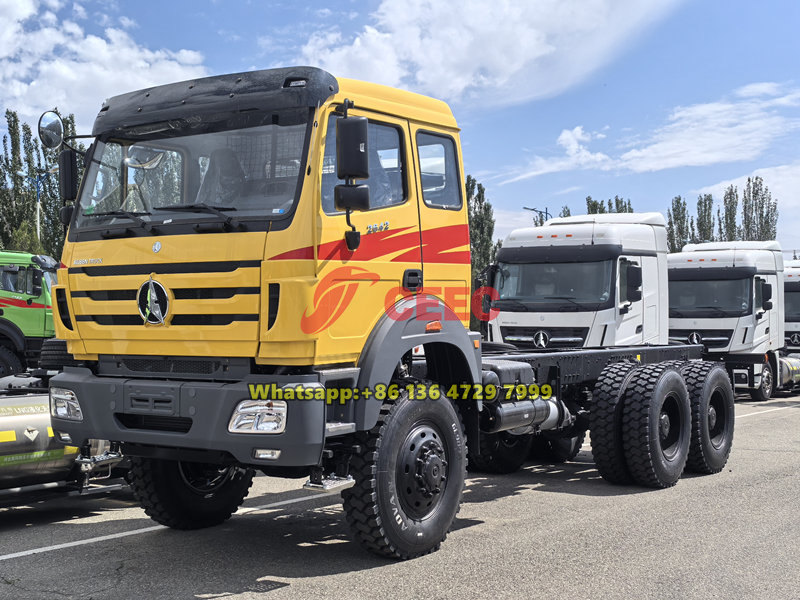

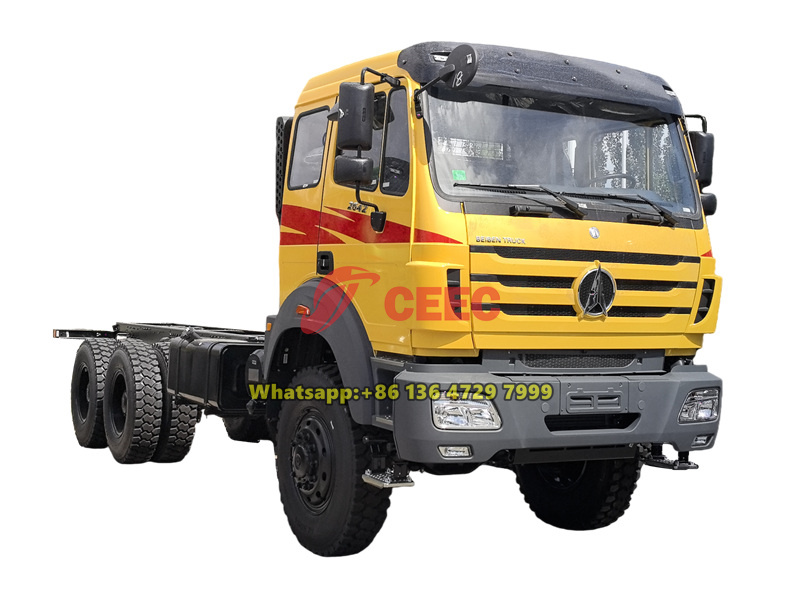

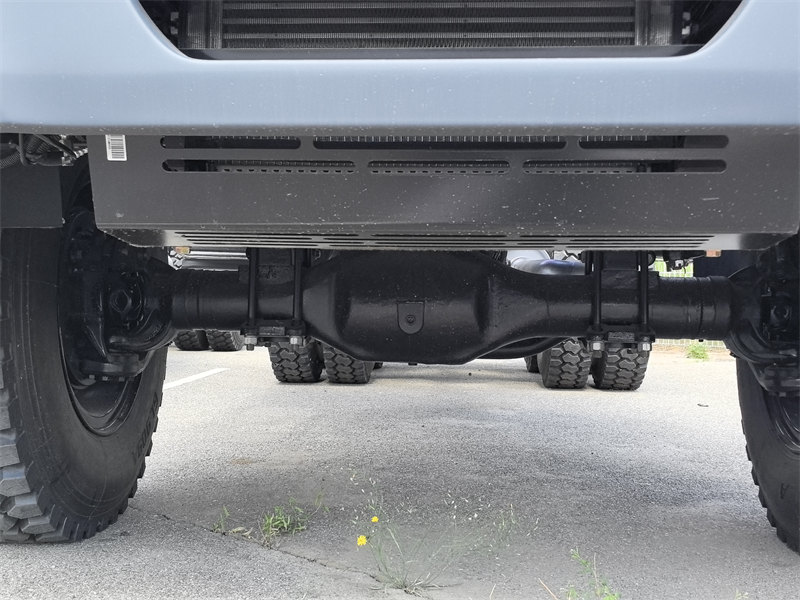

» Ⅲ. Product Details:
» Ⅳ. Beiben 6×6 chassis applications:
Thanks to its outstanding off-road and load-carrying performance, the Beiben 6×6 All-Wheel-Drive Chassis is primarily used in the following fields:
• Heavy Transport: Used for timber hauling, heavy equipment relocation, and similar tasks
• Construction & Infrastructure: Serves as the base chassis for dump trucks, concrete pump trucks, truck-mounted cranes, and other construction vehicles
• Special-Purpose Vehicle Modification: An ideal platform for fuel tankers, water trucks, truck-mounted cranes, off-road work vehicles, and other specialized upper-body installations
• Military Applications: Due to its high reliability and strong off-road capability, it is used in military shelter trucks for transport, command, medical, and other operational missions
 |
 |
» Ⅴ. Product Drawing:
