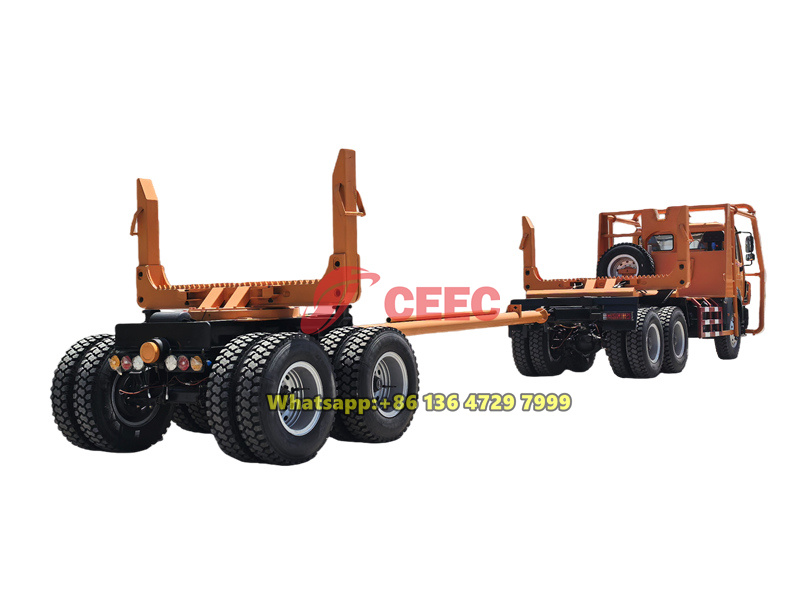

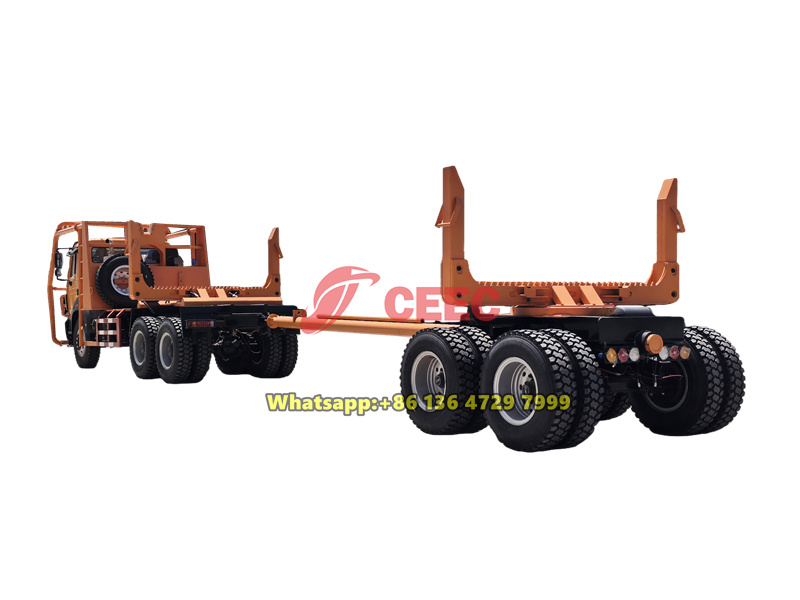

Beiben 6×6 Right-Hand Drive Log Transport Truck is specially designed for the Malaysian forestry region. It is equipped with a 420 hp engine and a 12-speed gearbox, and tows a Fuwa dual-axle trailer with a maximum load capacity of 50 tons. The vehicle comes with log fixing frames, anti-slip mats, and cab protection devices. With 6×6 all-wheel drive and differential locks, it offers strong passability on muddy and slippery roads, making it ideal for long-distance transportation of large-diameter logs.
Market Price:
$56200Working Capcity:
50 tonsCabin Type:
NG80B short cabin, 2 seatsDimension ( mm ) :
9800×2550×3850Drive System:
6×6, RHDWheelbase (mm):
4100+1450Engine Power:
420HP/WP12.420E32Gear Box:
16JSD200TAxle Type:
FUWA 16-ton, 2 pcsRemark:
6×6 drive, 12.00R24 tireThe Beiben 6×6 Right-Hand Drive Logging Truck is a specialized vehicle built for the forestry operations in Malaysia. It is powered by a WEICHAI 420 hp in-line six-cylinder engine paired with a FAST 16-speed manual gearbox. The three-axle chassis, combined with differential locks, is adapted to complex forest road conditions. With strong chassis load capacity and a rated load of up to 50 tons, it meets the demands of bulk log transportation.

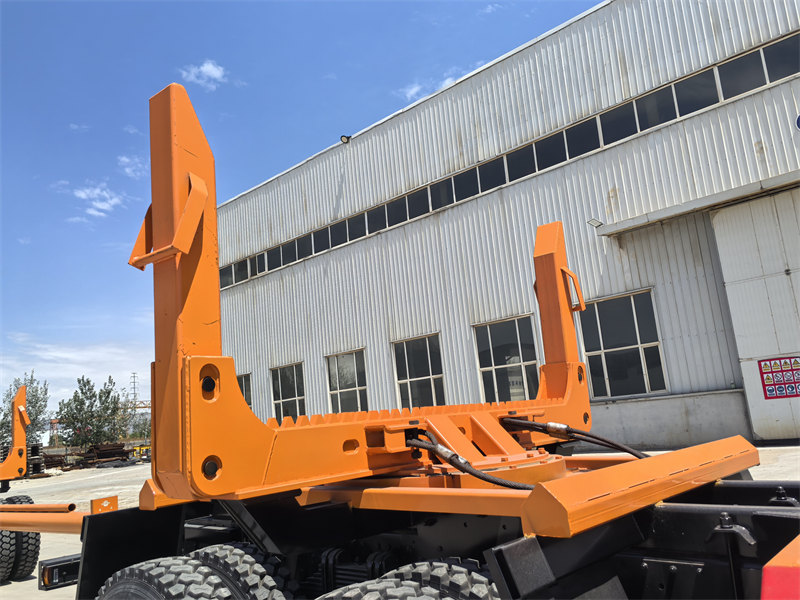

The vehicle is equipped with multiple braking systems, including exhaust braking and spring energy storage parking brakes, ensuring high driving safety. The cab features suspended seats and air conditioning for excellent driving comfort. Additionally, the Beiben 6×6 timer lorry is fitted with log fixing device, anti-slip mats, and other specialized accessories to securely hold logs, effectively preventing them from slipping during transport. It is a high-quality equipment choice for Malaysia’s forestry logistics.
CEEC factory is authorized supplier on Beiben log trucks,
guarantee all Beiben timber lorries Brand-New and High-Quality.
Product Introduction
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 RHD chassis, Weichai 420HP diesel engine, Fast 16-speed gearbox
▶ Cabin: Beiben NG80B short cabin, 2 seats, with A/C
▶ Tires: 12.00R24 off-road tires
▶ Trailer axles: FUWA 16-ton, 2 pcs
▶ Loading weight: 50 tons
Product Specifications
|
Basic parameter |
Model |
2642APZ/6×6 |
|
Length×width×height(mm) |
9800×2550×3850 |
|
|
Wheel-base(mm) |
4100+1450 |
|
|
Curb weight(kg) |
12600 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 16JSD200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7 T, driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R24 |
|
|
Cab |
NG80 Short Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|

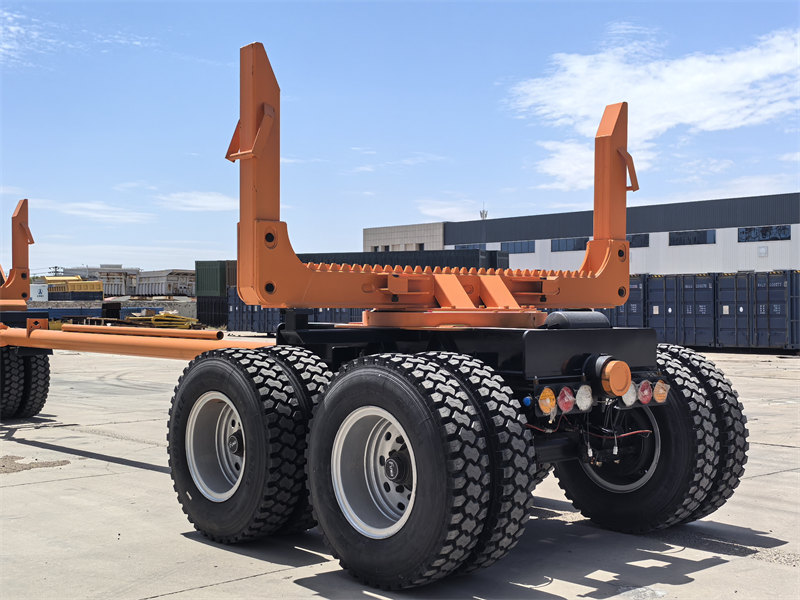

Trailer parameter |

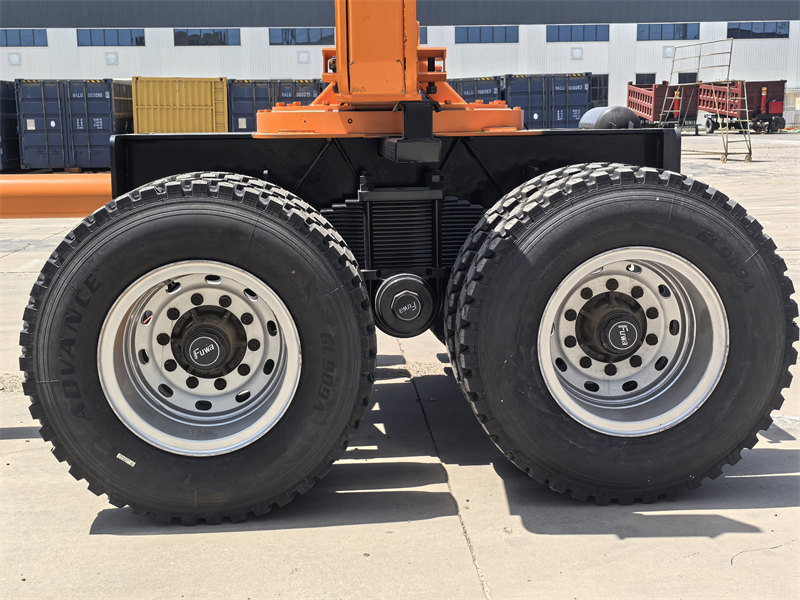

Axle brand |
FUWA |
|
Axle load weight (kg) |
2×16000 |
|
|
Tire |
12.00R24 |
|
|
Loading weight (kg) |
50000 |
|
|
Connecting bar length (mm) |
8750 |
|
|
Bearing beam (mm) |
Diameter:270mm; thickness:12mm |
|
|
Painting |
Primer, mid-coat and top coat |
|
Product Details
Product Pictures
 |
 |

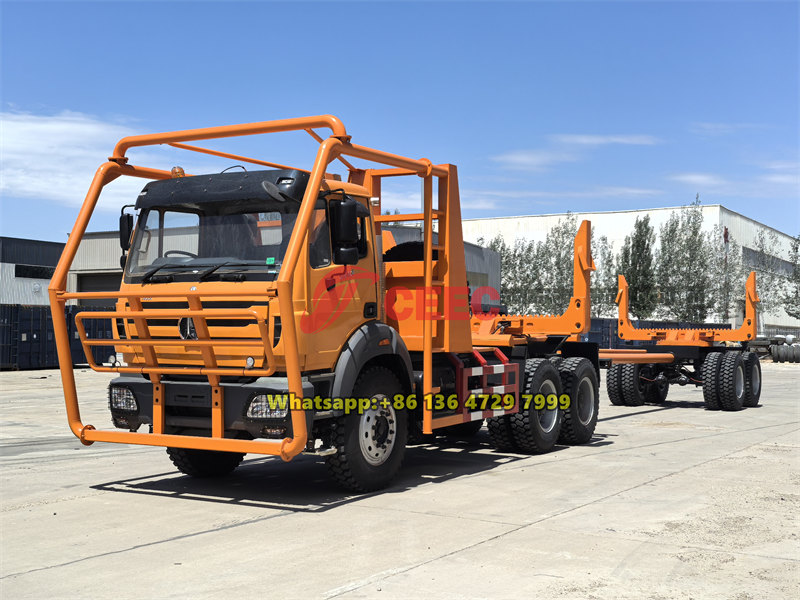

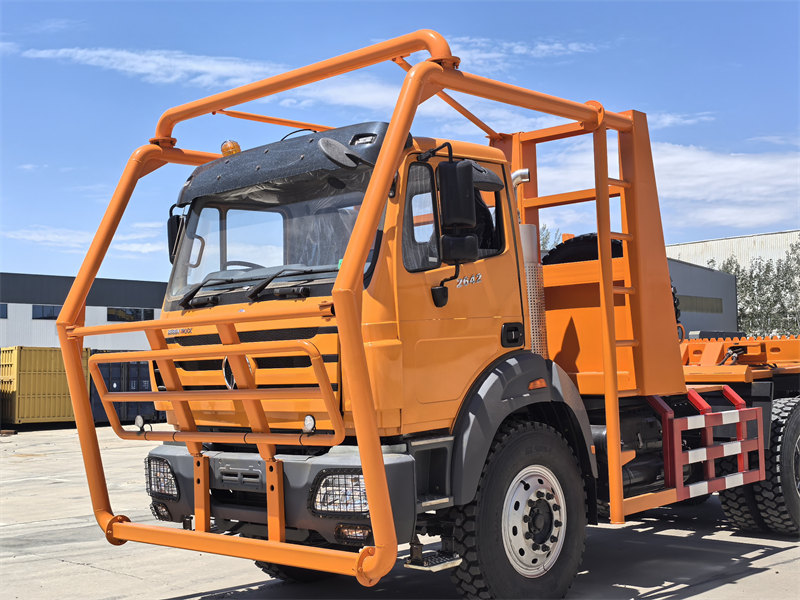

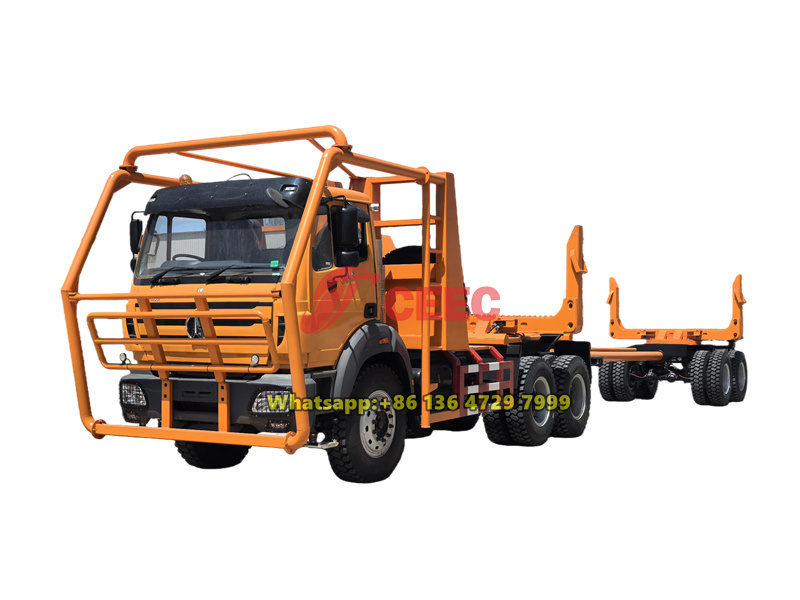

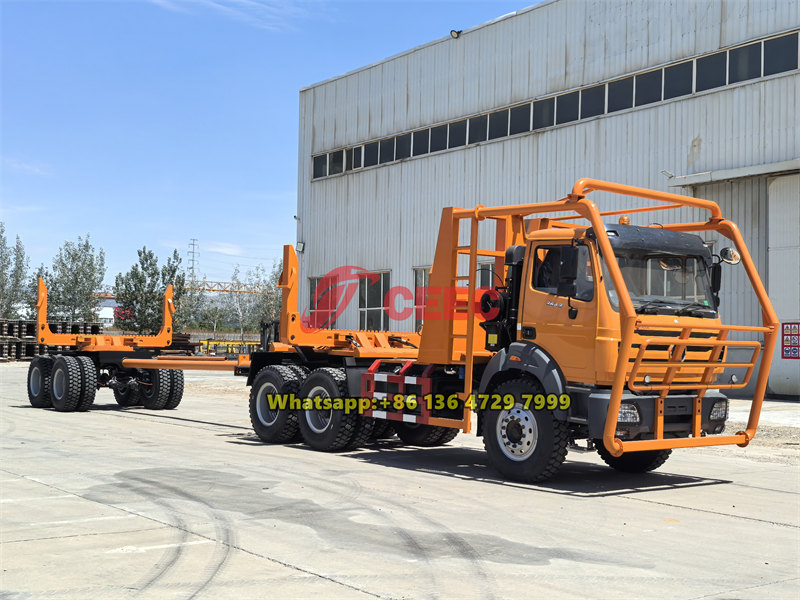

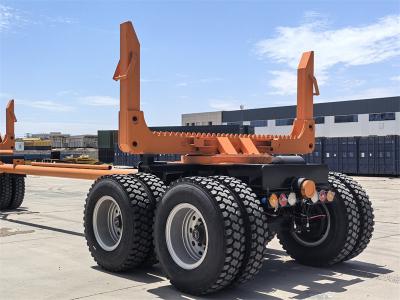

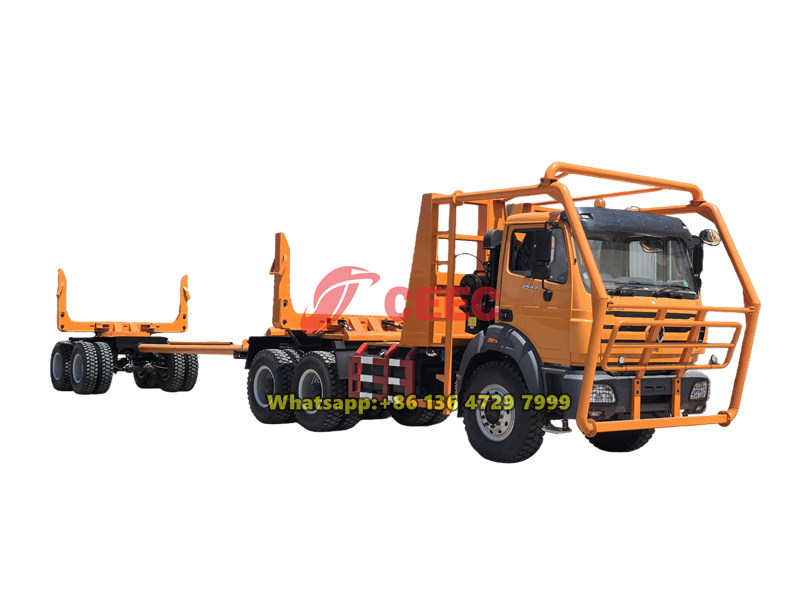

| Beiben 6×6 RHD logging truck | Beiben 6×6 off-road timber lorry |
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 6x4, 6x6, 8x4, 8x8 drive logging trucks for option
2. Factory direct supply, Beiben timber lorries at best price
3.FUWA/BPM and other brand axles are optional
4. WEICHAI 380HP/420HP engine, FAST 9-speeed and 12 speed gearbox is available.
Beiben all wheel drive 380 Hp engine logging truck, 6*6 military truck chassis, 380 hp europen engine, 5050+1350 mm wheelbase, 12.00-20 tyre. Specially for transporting wooden, logging in africa .
The Beiben 6×6 Log Transport Vehicle is a special-purpose vehicle designed for heavy-load transportation. It features a Beiben 2642 chassis with a gross vehicle weight of 26,000kg and is equipped with a WEICHAI brand WP12.420E32 engine with a rated power of 309KW/2100r/min. The trailer measures 9800x2500x3600mm and has a loading capacity of up to 40 tons. The vehicle employs a mechanical suspension system and a robust braking system, and is equipped with complete lighting fixtures and a tool box. With its multi-layer painting process, it is suitable for log transportation operations in various complex road conditions.

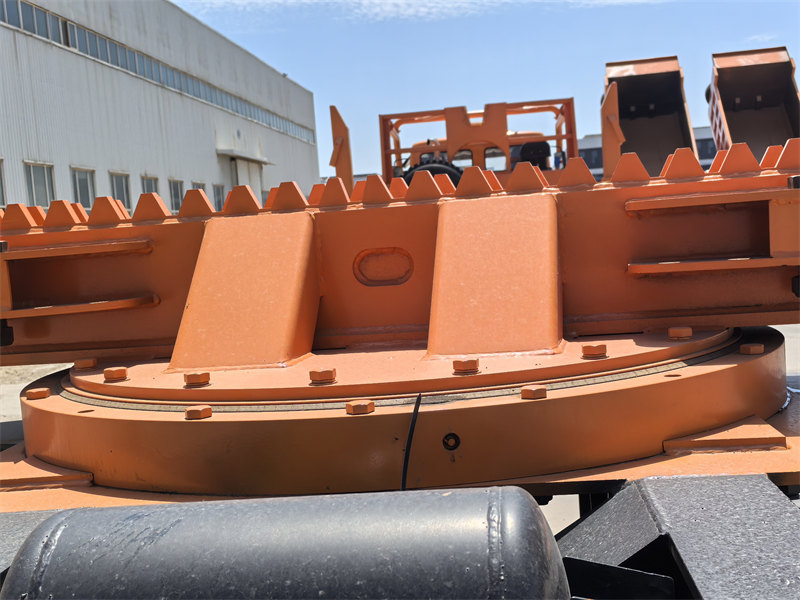

The Beiben 6×6 logging truck is a heavy-duty transport vehicle specifically engineered for forestry operations, offering a load capacity of up to 50 tons. It features a 6×6 all-wheel drive and right-hand drive configuration, powered by a WEICHAI 420HP high-performance engine to handle complex forest terrain. The matched trailer is equipped with a 360-degree rotating turntable, allowing for flexible adjustment of log orientation on narrow paths, thereby improving maneuverability and operational efficiency on forest roads.
