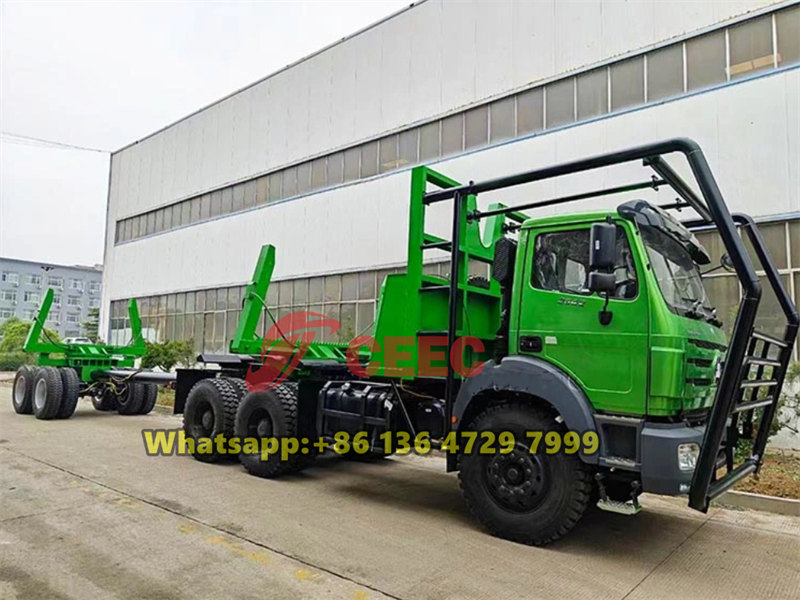

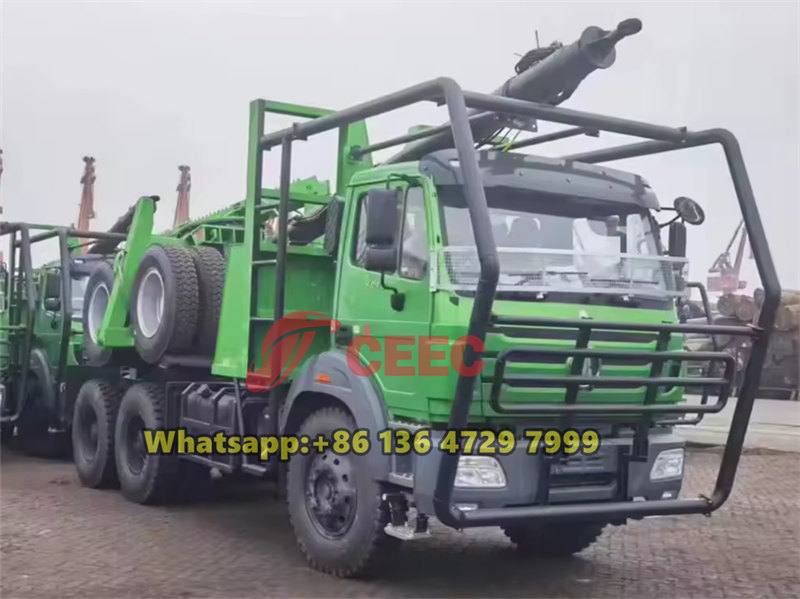

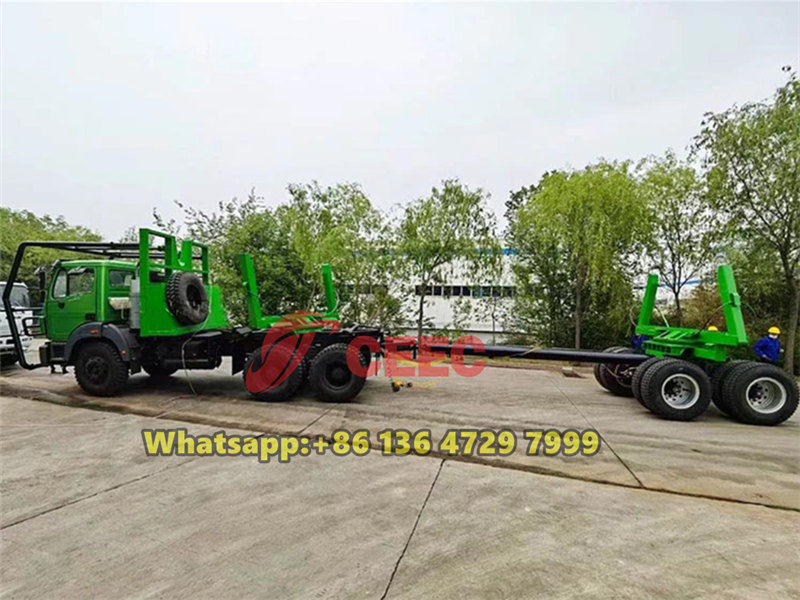

The Beiben 6×6 Log Transport Vehicle is a special-purpose vehicle designed for heavy-load transportation. It features a Beiben 2642 chassis with a gross vehicle weight of 26,000kg and is equipped with a WEICHAI brand WP12.420E32 engine with a rated power of 309KW/2100r/min. The trailer measures 9800x2500x3600mm and has a loading capacity of up to 40 tons. The vehicle employs a mechanical suspension system and a robust braking system, and is equipped with complete lighting fixtures and a tool box. With its multi-layer painting process, it is suitable for log transportation operations in various complex road conditions.
Working Capcity:
40 tonsCabin Type:
Beiben NG80 short cabinDimension ( mm ) :
9800x2500x3600Drive System:
6×6Wheelbase (mm):
3800+1450Engine Power:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD is optionalProduct Description
The Beiben 6×6 Log Transport Truck is a powerful vehicle specifically designed for heavy-load transportation. Its exceptional load-bearing capacity and stable driving performance make it a leader in the field of log transportation. The vehicle adopts the Beiben 2642 chassis, with a gross vehicle weight of 26,000kg, demonstrating its impressive load-bearing capability. It features a 6×6 drive configuration, meaning all six wheels have driving capability, providing excellent traction and driving stability.
The Beiben 6×6 logging truck is equipped with a WEICHAI brand WP12.420E32 engine, which meets Euro 3 emission standards and adopts a mechanical injection system. With a rated power of 309KW/2100r/min, it provides strong power output for the vehicle. The tire size is 12.00R20, with a configuration of 10+1 pcs, ensuring good grip and driving stability. The wheelbase of the chassis is configured as 3800+1450mm, and the transmission system adopts the FAST 12JS200T gearbox, which provides smooth shifting and high transmission efficiency. The front and rear axles have load-bearing capacities of 7500kg and 13000kg, respectively, ensuring the safety of the vehicle when carrying heavy loads.

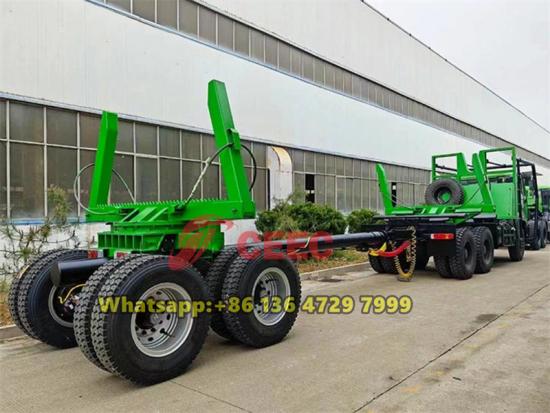

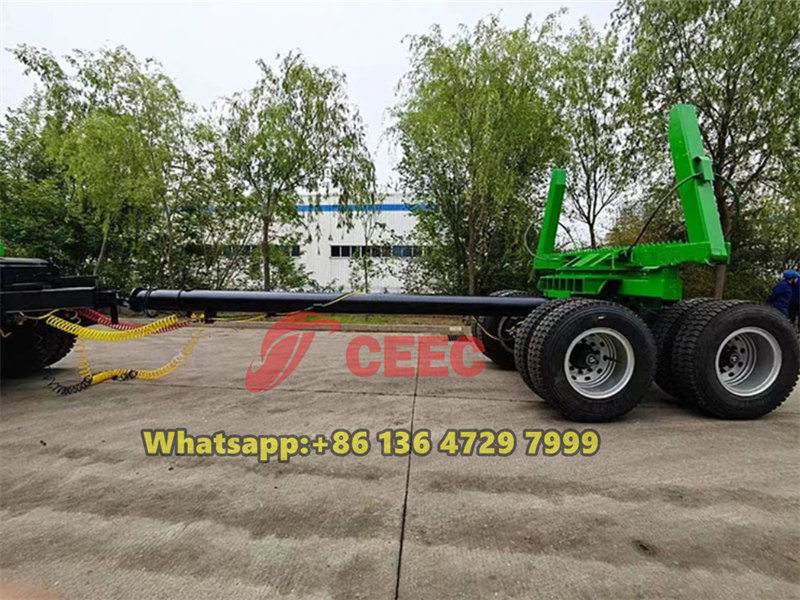

The trailer part of this Beiben 2642 Log Transport Truck adopts Fuwa brand axles with a load-bearing capacity of 13000kgx3, ensuring the stability of the trailer under heavy loads. The wheel hubs are made of steel with a size of 9.0-22.5, and the tire size is 12.00R22.5, providing good grip and wear resistance. The main beam of the trailer is made of Q345 steel, with a beam height of 500mm, an upper plate thickness of 14mm, a middle plate thickness of 8mm, and a lower plate thickness of 16mm, ensuring the load-bearing strength and stability of the trailer. The crossbeams and side beams adopt 16# and 25# channel steel, respectively, enhancing the overall structural strength of the trailer.
Product Specifications
|
Chassis specifications |
|||
|
Model |
Beiben 2642 |
Gross Vehicle Weight |
26000kg |
|
Driving type |
6×6 |
Driving Position |
RHD |
|
Engine |
Brand WEICHAI |
Dead Weight |
12600kg |
|
Model: WP12.420E32 Euro 3（Mechanical Injection System） |
Tyres |
12.00R20, 10+1 pcs |
|
|
Wheelbase(mm) |
3800+1450 |
Transmission |
FAST 12JS200T |
|
Rated engine power |
309/2100 |
Cab |
Beiben NG80B, no bed |
|
Air-condition |
|||
|
Front Axle |
Beiben, max. loading: 7,500kg |
Steering |
8090 |
|
Rear Axle |
Beiben, max loading: 13,000kg |
Color |
Green |
|
Log transport trailer specifications |
|||
|
Dimension |
Size(LxWxH) |
9800x2500x3600mm or customization |
|
|
Curb weight |
10.7Ton |
||
|
Loading weight |
40 Tons |
||
|
Chassis |
Main beam |
Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Down plate is 16mm. |
|
|
Cross beam |
16# channel steel |
||
|
Side beam |
25# channel steel |
||
|
King pin |
JOST 2'' or 3.5'' traction pin |
||
|
Floor |
3mm diamond steel plate |
||
|
Fence |
1.5m steel plate 600mm height, fence 500mm+200mm |
||
|
Support leg |
China brand 28Tons (Double speed) |
||
|
Suspension |
Type |
Common mechanical |
|
|
Steel spring |
90(W)mm*13(Thick)mm*10 Layer |
||
|
Axle |
Brand |
Fuwa(13000kgx3) |
|
|
Wheel rim |
9.0-22.5 steel wheel rim |
||
|
Tire |
12.00R22.5 |
||
|
Brake system |
Brake chamber |
WEBCO, 6 big chamber |
|
|
Brake valve |
KTL/WEBCO |
||
|
Brake system |
Dual line brake system,With ABS |
||
|
Other |
Light |
Tail lamp with tum signal, brake light & reflector, side lamp etc |
|
|
Landing gear |
28 Ton manual operating, heavy duty landing gear |
||
|
Tool box |
1 set standard tool box |
||
|
Spare tire carrier |
2 pcs |
||
|
Painting |
1 coat of anti-corrosive prime, 2 coats of final paint. |
||
Product Details
Beiben all wheel drive 380 Hp engine logging truck, 6*6 military truck chassis, 380 hp europen engine, 5050+1350 mm wheelbase, 12.00-20 tyre. Specially for transporting wooden, logging in africa .

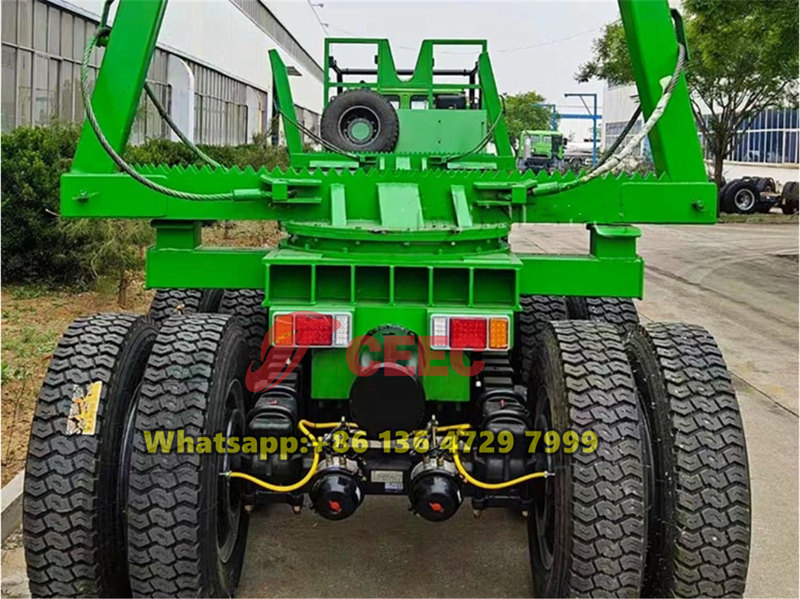

The Beiben 6×6 logging truck is a heavy-duty transport vehicle specifically engineered for forestry operations, offering a load capacity of up to 50 tons. It features a 6×6 all-wheel drive and right-hand drive configuration, powered by a WEICHAI 420HP high-performance engine to handle complex forest terrain. The matched trailer is equipped with a 360-degree rotating turntable, allowing for flexible adjustment of log orientation on narrow paths, thereby improving maneuverability and operational efficiency on forest roads.
Beiben 6×6 Right-Hand Drive Log Transport Truck is specially designed for the Malaysian forestry region. It is equipped with a 420 hp engine and a 12-speed gearbox, and tows a Fuwa dual-axle trailer with a maximum load capacity of 50 tons. The vehicle comes with log fixing frames, anti-slip mats, and cab protection devices. With 6×6 all-wheel drive and differential locks, it offers strong passability on muddy and slippery roads, making it ideal for long-distance transportation of large-diameter logs.
This beiben 2642 truck chassis is for congo RDC customer, it is beiben classic NG80B cabin, 5050+1450 mm wheelbase, fast 12JS200T transmission, with sleeper bed inside cabin. mercedes benz technology 7 T front axle, mercedes benz technology 13 T double rear axle. This beiben 2642 truck chassis can be produce beiben 2642 cargo truck, beiben 2642 van truck, beiben 2642 fuel tanker truck, beiben 2642 water tanker truck , and beiben 2642 dump trucks.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp 3142 dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.
Bei ben tractor truck for Congo, the best beiben tractor truck and beiben dump truck supplier in congo
Beiben 6x4 Strong Horse Power Tractor Truck In Low Price Sale 1Competive price 2Best after sale service 3Good quality,
The Beiben 10-ton swing arm garbage truck is an environmental sanitation vehicle built on a Beiben 4×2 chassis with an added hydraulic swing arm system for loading, unloading, and transporting garbage containers. Powered by a WEICHAI 290 HP engine, it has a maximum load capacity of 10 tons. Each loading/unloading cycle takes no more than 60 seconds. The truck supports a “one truck, multiple containers” cyclic operation mode, offering smooth and labor-saving handling with low maintenance costs, making it ideal for short-distance waste collection and transportation in towns and cities.
Beiben North Benz NG80 6x4 tractor truck High quality Low Price Best After-Sales Service 9year Experience ISO CCC SGS TUV BV
