Product Details

                                                                Congo beiben 2642 wheeler truck



beiben 2642 truck



 Applications:



beiben 2642 truck ,also called as beiben 2642 truck chassis,beiben 2642 cargo truck, beiben 2642 cargo van truck, north benz 2642 truck chassis, congo beiben 2642 truck chassis,   is designed for producing beiben 2642 cargo truck, beiben 2642 cargo van truck. beiben 2642 cargo truck supplier. This beiben heavy duty truck 420 hp engine chassis can  loading, transporting and discharging heavy duty material , also can be used in for earth, sand, rock and mining delivery.



china beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.



The north benz 2642 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz 2642 chassis, strong military driving system

---- Military quality , Mercedes benz technology

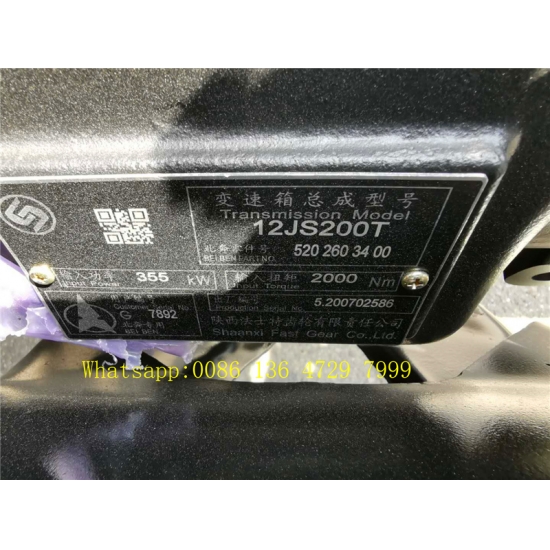

---- 12JS200T transmission, super combination.

---- Patented axle technology, with wheel reducer

---- Completely steel cabin , safety and reliable.



 Specifications:





NORTH BENZ BEIBEN 6X4 Cargo Chassis Truck 2642

Model

ND1255B50J

Driver's cab

Long cabin, one sleeper

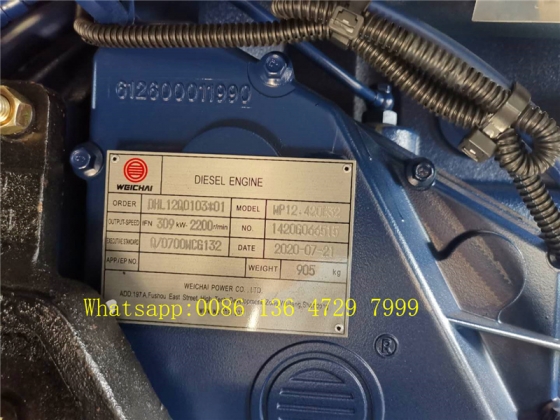

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

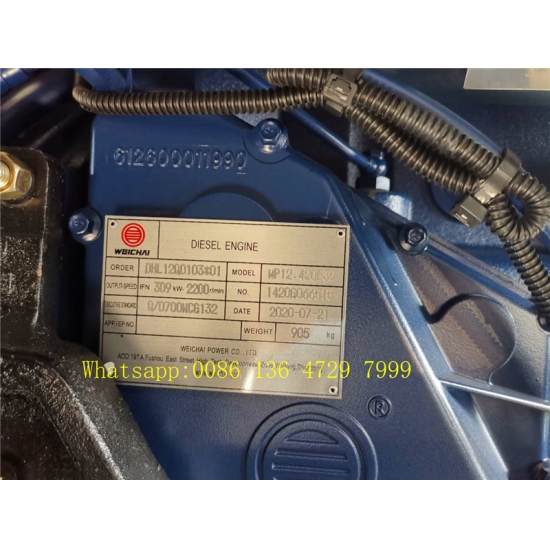

Engine model: WP102.420NE32
EURO II/EUROIII emission standard

Maximum output:420hp@2200rpm

Number of cylinder:6

Displacement: 11.986L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

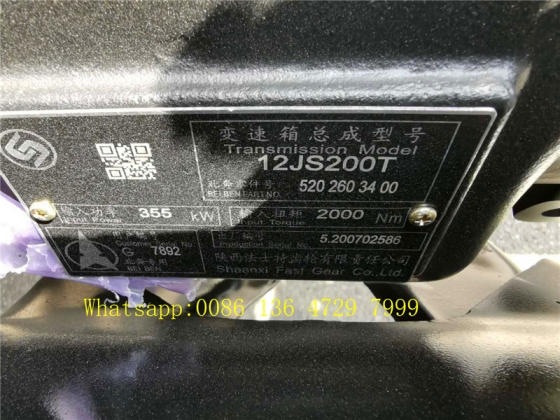

Fuller 12JS200T transmission.

Front Axle

Mercedes Benz, drum brake

Rear Axle

Mercedes Benz double reduction drive axle, ratio=5.2

Steering

ZF8098

Wheel & Types

Rims:8.5-20

Tyre:12.00R20 tube

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 5050+1450

Overall size: 10576x2500x3385

Weight in kg

Kerb. mass: 9800 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

7000x2300x800

The manufacture reserves the right of technical alteration/change for better improvement prior notice

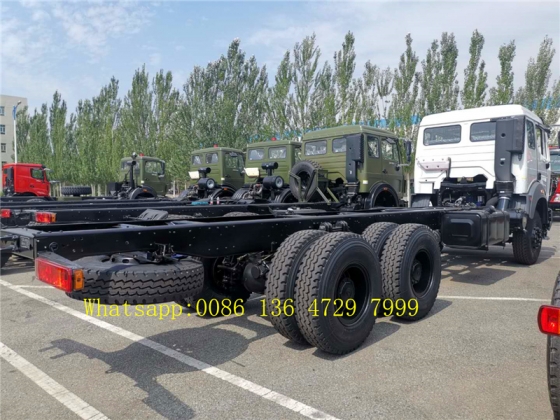

congo beiben 10 wheeler cargo truck chassis,2642 model

 beiben 2642 truck

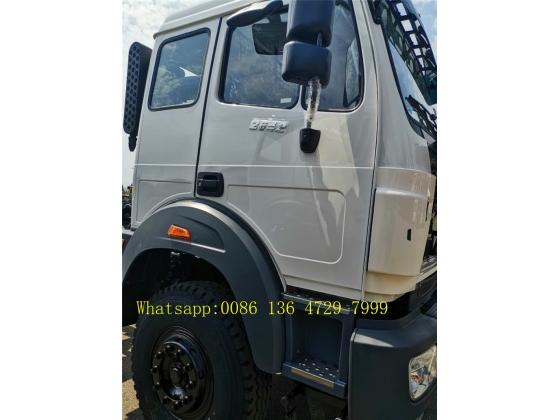

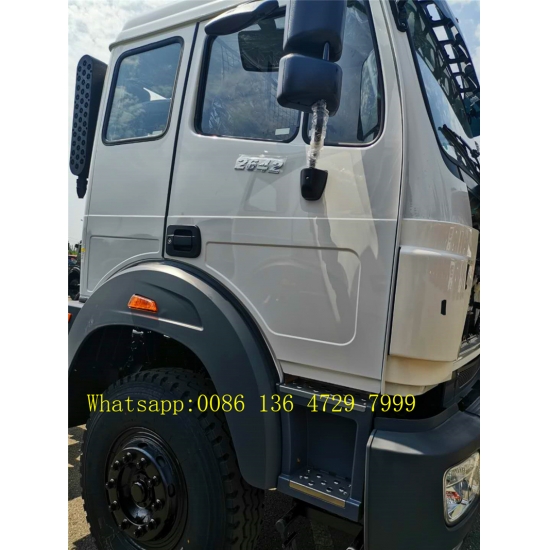

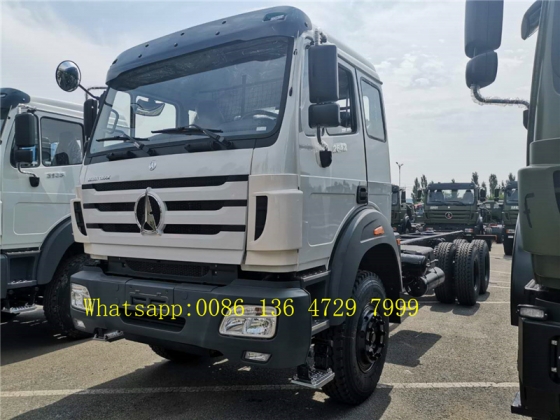

Classis beiben NG80B cabin, 5050+1450 mm wheelbase.

beiben 2642 truck

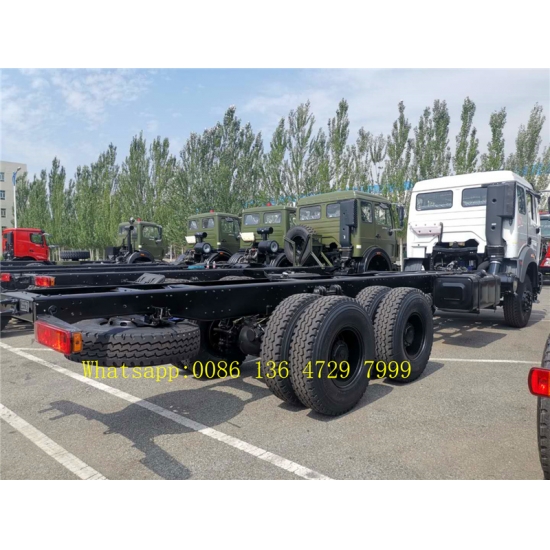

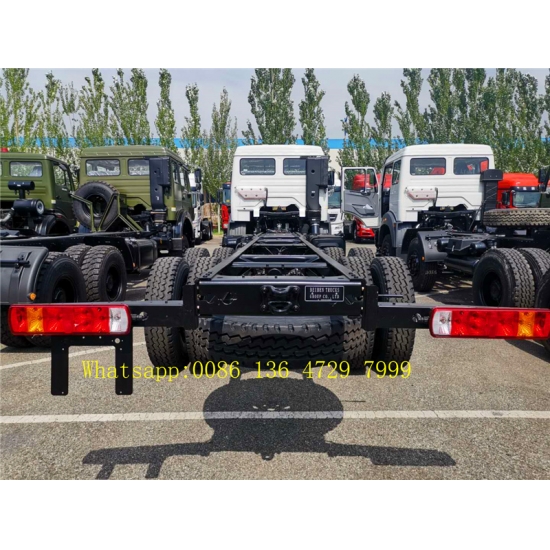

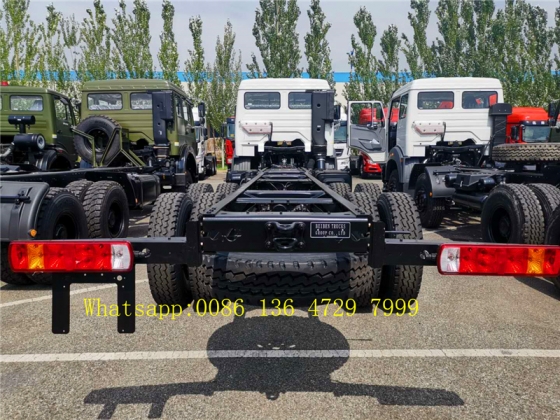

2642 cargo truck chassis, 7.5 meters long behind cabin, can put 8 meters cargo body and body on this chassis.

beiben 2642 truck

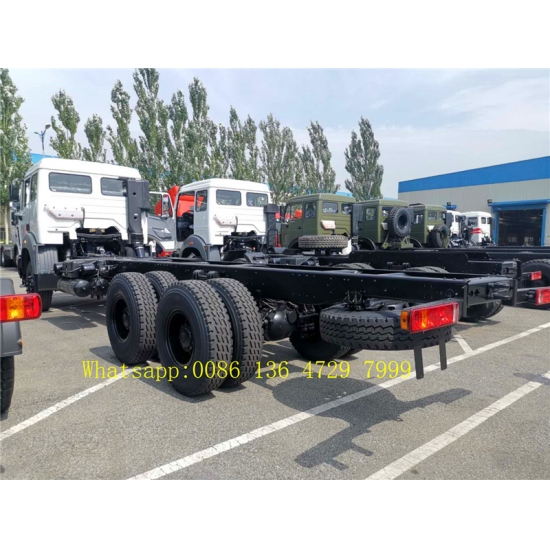

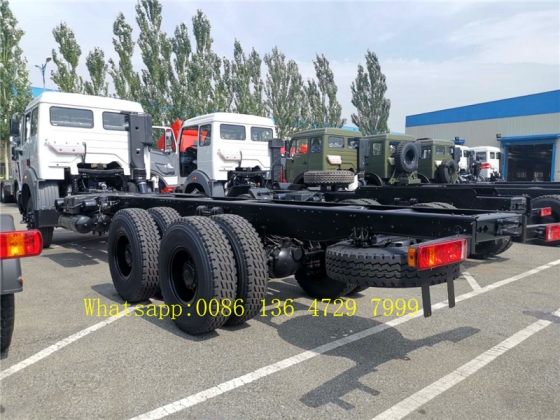

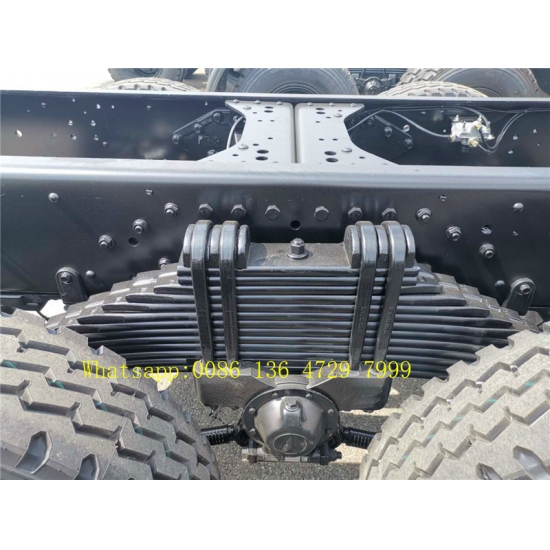

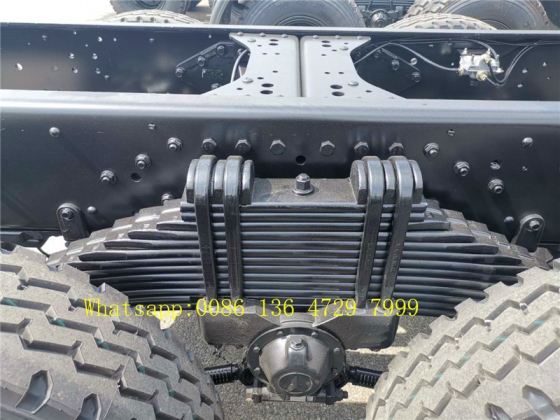

beiben heavy duty 4 u-bolt suspension , suitable for congo road.
