congo beiben 2642 cargo truck

  • FOB Price

    $ 49,500- $53,000

  • Production time

    40 days

  • Payment terms

    T/T

enquiry
Product Details

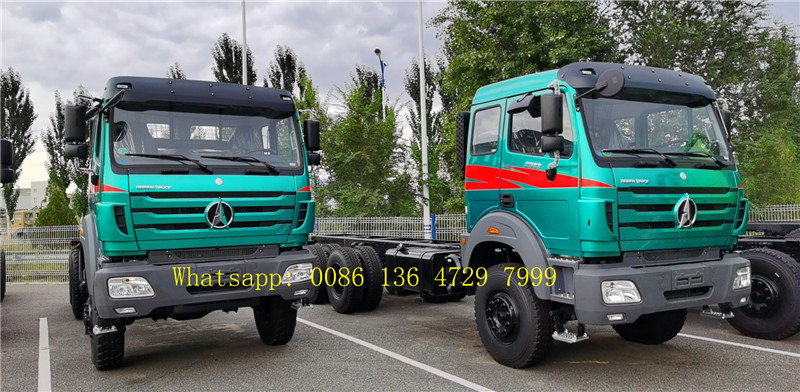

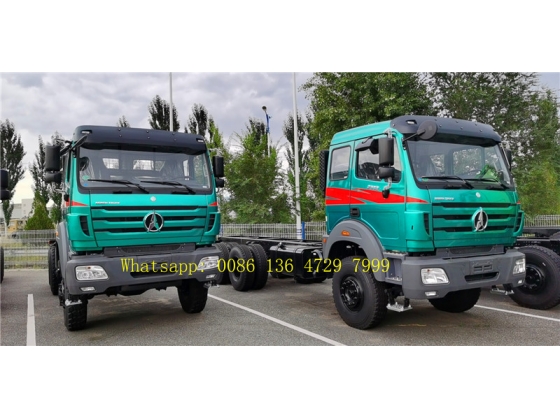

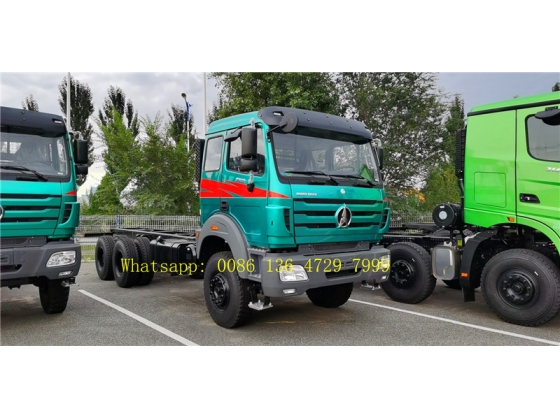

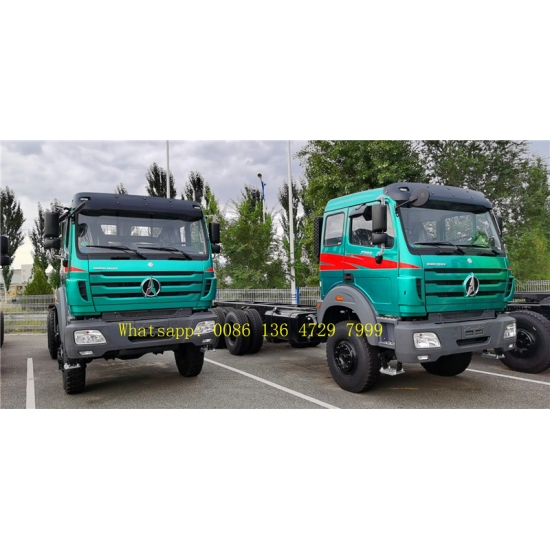

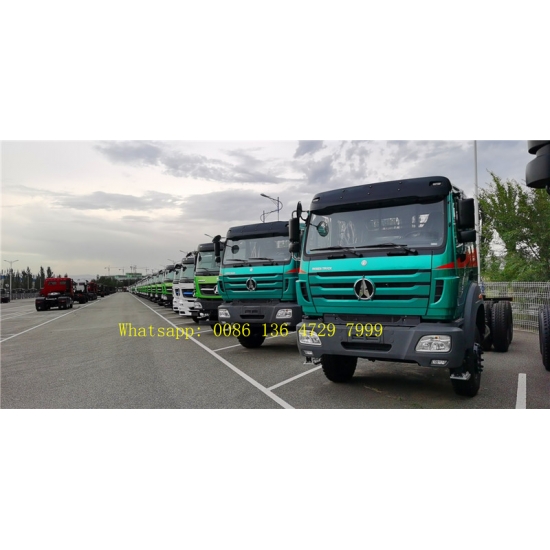

                                                                Congo beiben 2642 wheeler truck



congo beiben 2642 cargo truck



 Applications:



Congo beiben 2642 cargo truck ,also called as congo beiben 2642 cargo truck chassis, congo beiben 2642 trucks, congo north benz 2642 cargo truck, china beiben 2642 cargo truck congo, congo beiben 2642 truck chassis,   is designed for producing beiben 2642 cargo truck, beiben 2642 cargo van truck. beiben 2642 cargo truck supplier. This beiben heavy duty truck 420 hp engine chassis can  loading, transporting and discharging heavy duty material , also can be used in for earth, sand, rock and mining delivery.



Congo beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.



The north benz 2642 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz 2642 chassis, strong military driving system

---- Military quality , Mercedes benz technology

---- 12JS200T transmission, super combination.

---- Patented axle technology, with wheel reducer

---- Completely steel cabin , safety and reliable.



 Specifications:




NORTH BENZ Congo beiben 2642 cargo truck

Model

ND1255B50J

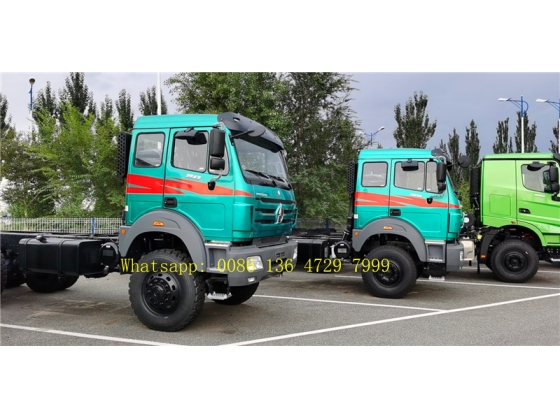

Driver's cab

Long cabin, one sleeper

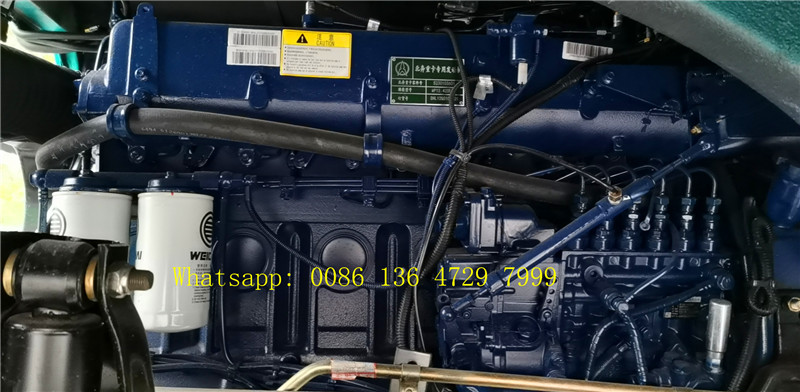

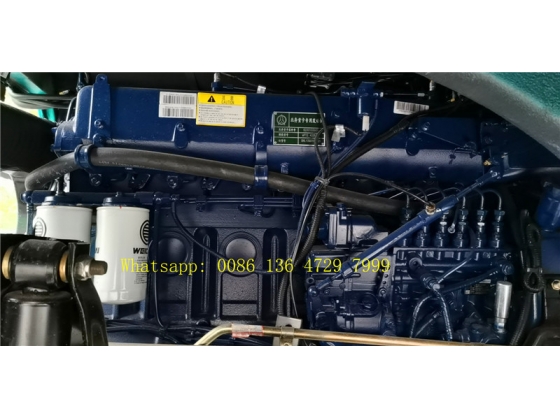

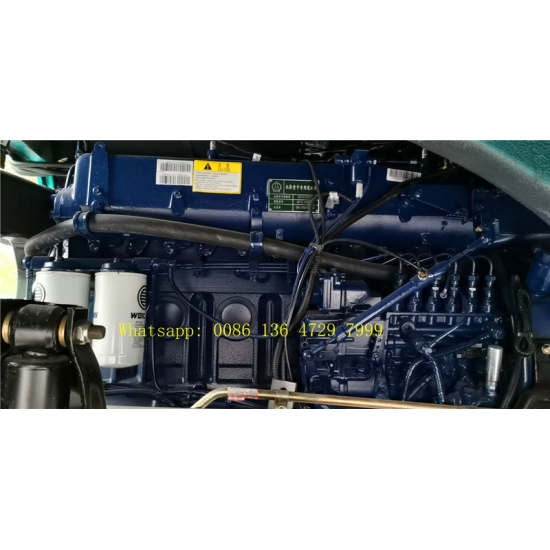

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP102.420NE32
EURO II/EUROIII emission standard

Maximum output:420hp@2200rpm

Number of cylinder:6

Displacement: 11.986L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 12JS200T transmission.

Front Axle

Mercedes Benz, drum brake

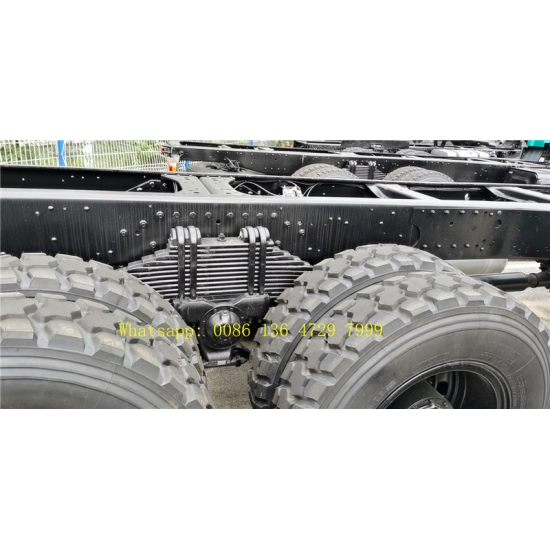

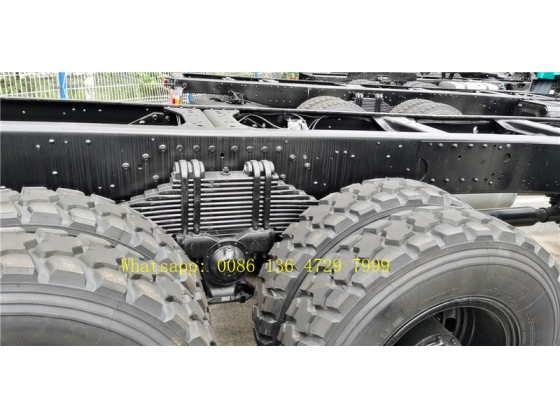

Rear Axle

Mercedes Benz double reduction drive axle, ratio=5.2

Steering

ZF8098

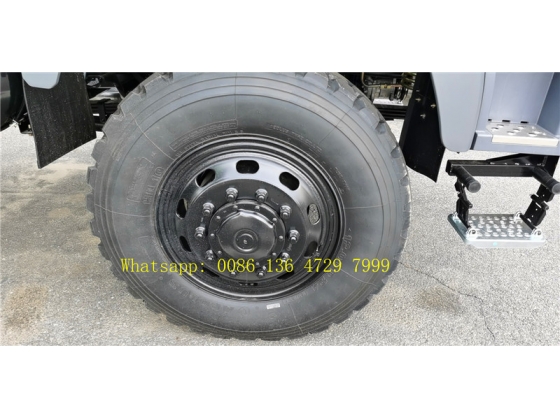

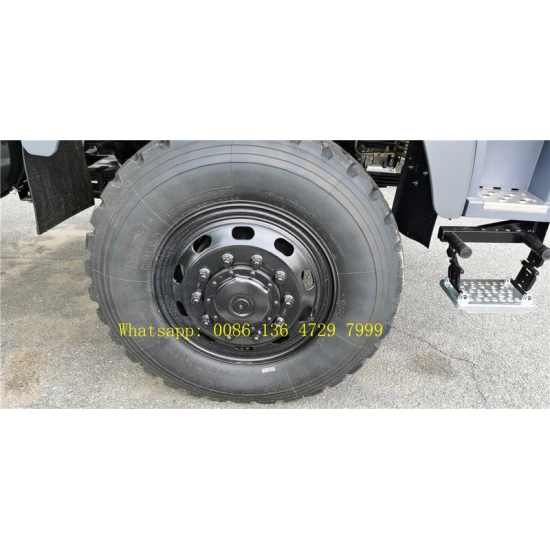

Wheel & Types

Rims:8.5-20

Tyre:12.00R20 tube

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 5050+1450

Overall size: 10576x2500x3385

Weight in kg

Kerb. mass: 9800 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

7000x2300x800

The manufacture reserves the right of technical alteration/change for better improvement prior notice

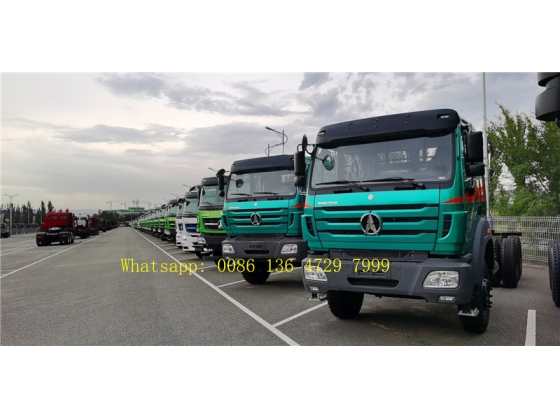

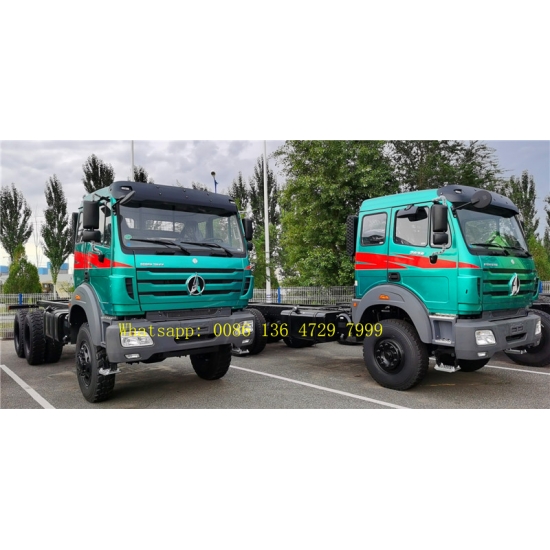

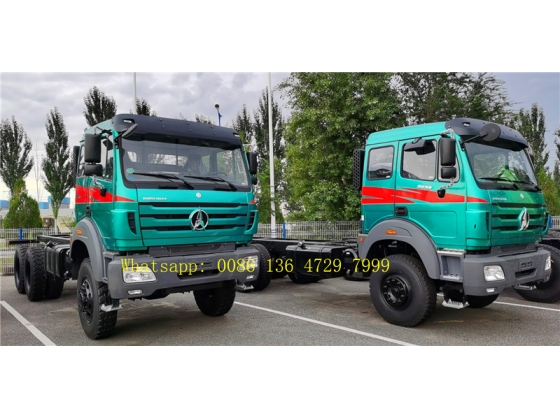

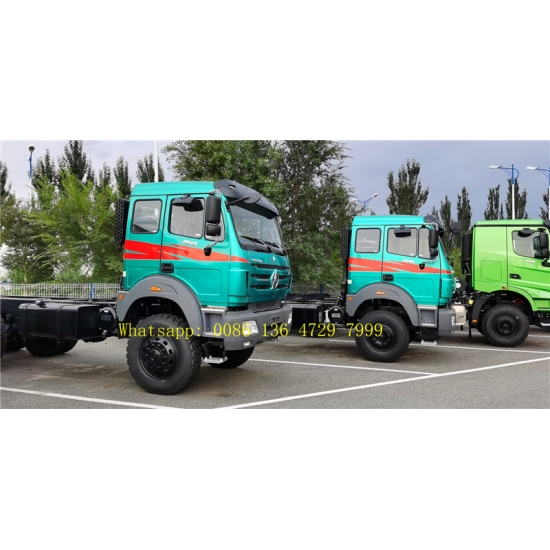

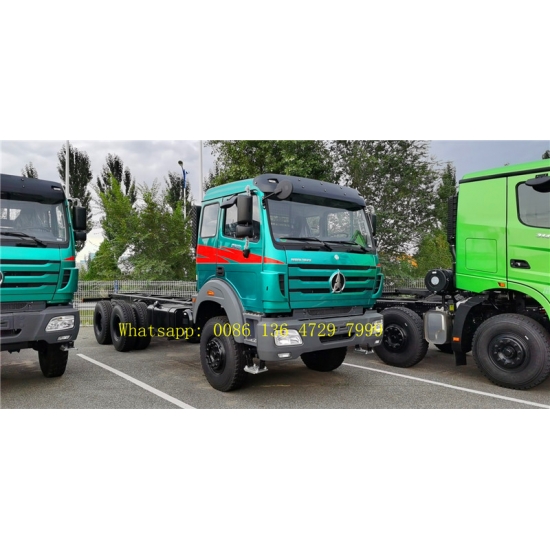

congo beiben 2642 cargo truck

congo beiben 2642 truck supplier

congo beiben 2642 cargo truck

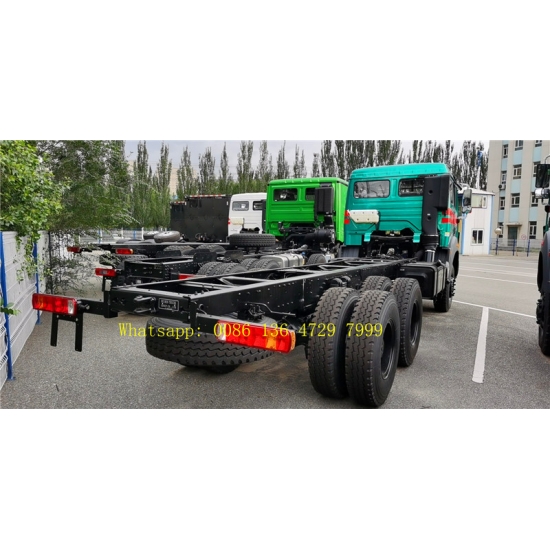

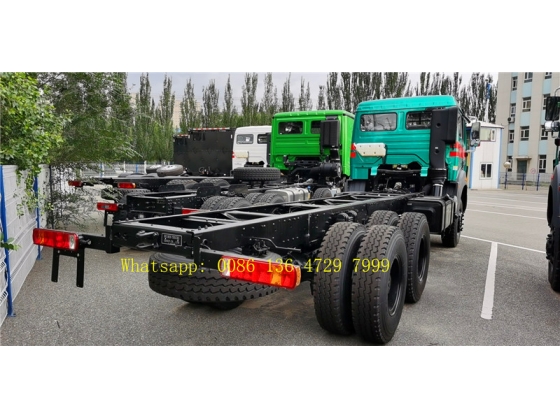

china beiben 2642 cargo truck chassis for congo customer.

          congo beiben 2642 cargo truck

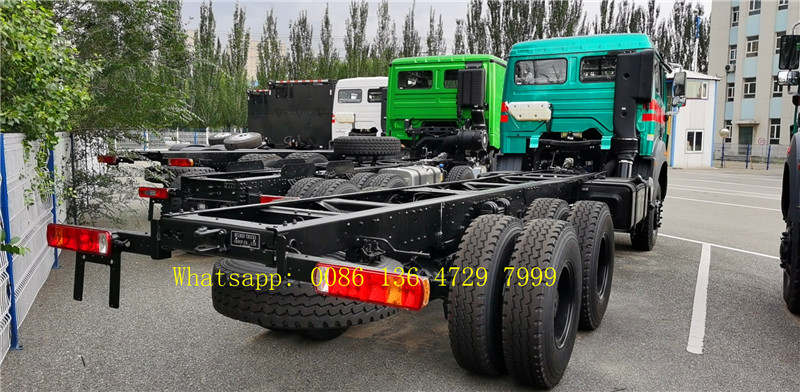

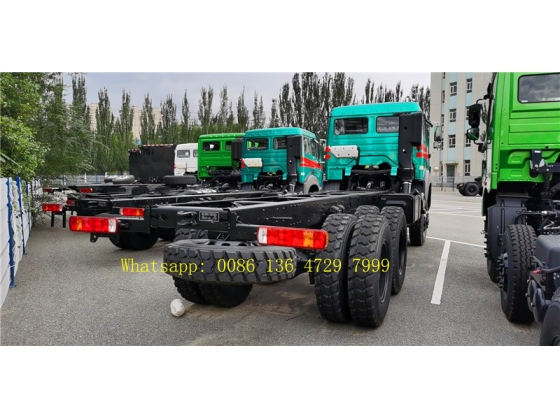

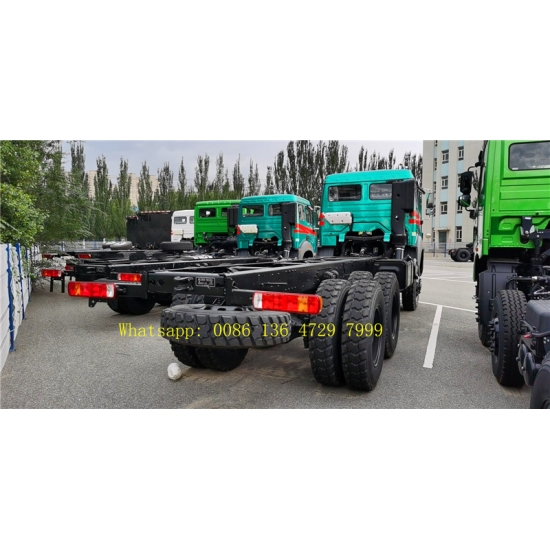

beiben long cargo truck chassis
