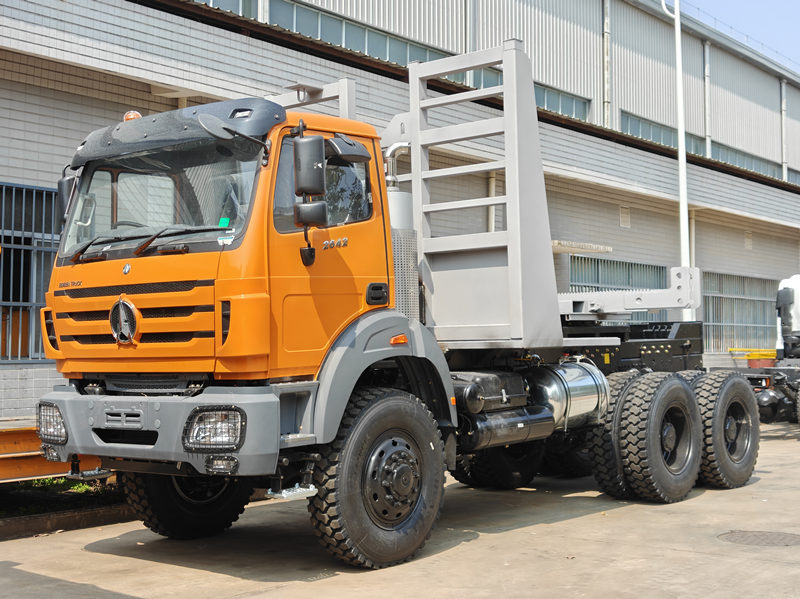

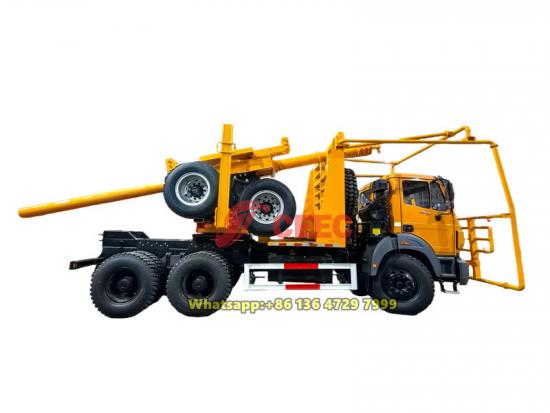

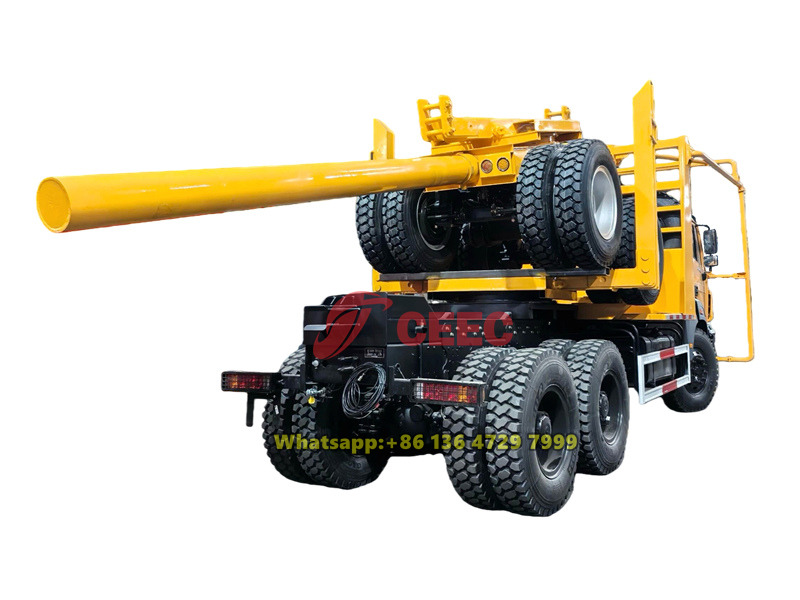

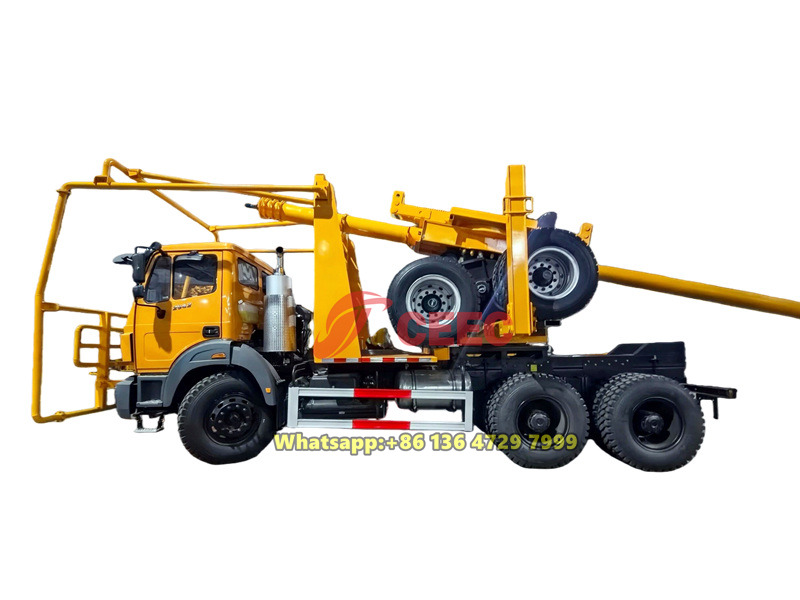

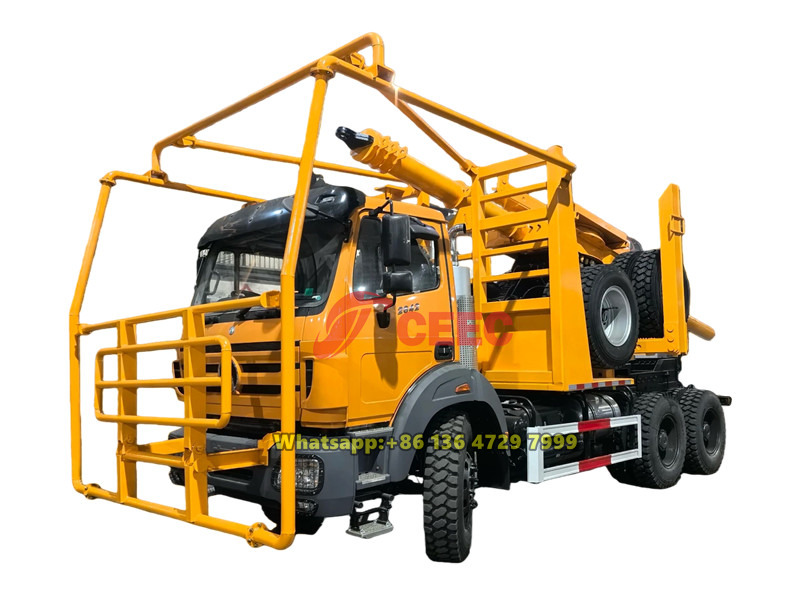

The Beiben 6×6 logging truck is a heavy-duty transport vehicle specifically engineered for forestry operations, offering a load capacity of up to 50 tons. It features a 6×6 all-wheel drive and right-hand drive configuration, powered by a WEICHAI 420HP high-performance engine to handle complex forest terrain. The matched trailer is equipped with a 360-degree rotating turntable, allowing for flexible adjustment of log orientation on narrow paths, thereby improving maneuverability and operational efficiency on forest roads.
Market Price:
$56200Working Capcity:
50 tonsCabin Type:
NG80B short cabin, 2 seatsDimension ( mm ) :
8500×2500×3250Drive System:
6×6, RHDWheelbase (mm):
4100+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
6×6 drive, 12.00R24 tireA log truck is a specialized vehicle designed for timber transportation, primarily used in forest areas, timber yards, and similar settings. The Beiben 6×6 logging truck, developed specifically for forest environments, has a load capacity of up to 50 tons. It is equipped with a 360-degree rotating turntable, allowing for flexible adjustment of the cargo's direction in narrow forest areas or along winding roads.
CEEC factory is authorized supplier on beiben logging trucks,
guarantee all beiben timber lorries Brand-New and High-Quality.
Product Introduction
Manufacturer: CEEC TRUCKS

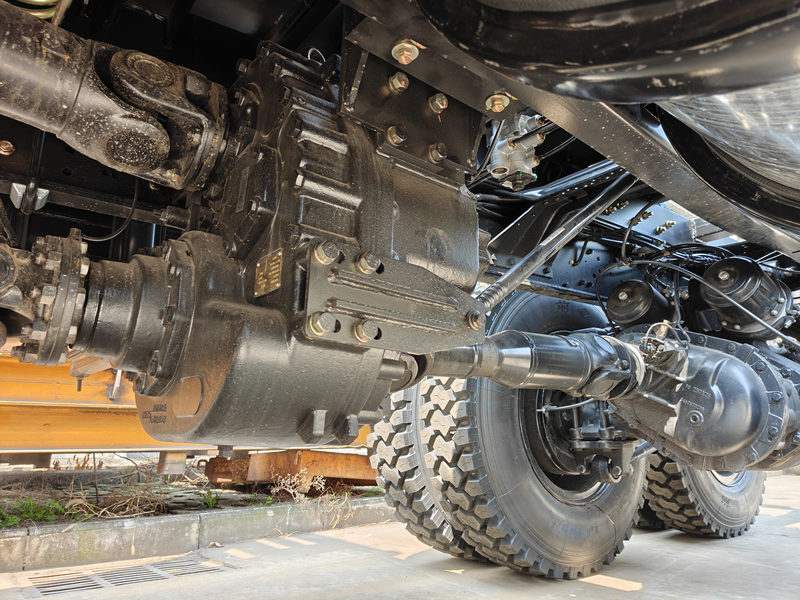

▶ Chassis: Beiben 6×6 RHD chassis, Weichai 420HP diesel engine, Fast 12-speed gearbox

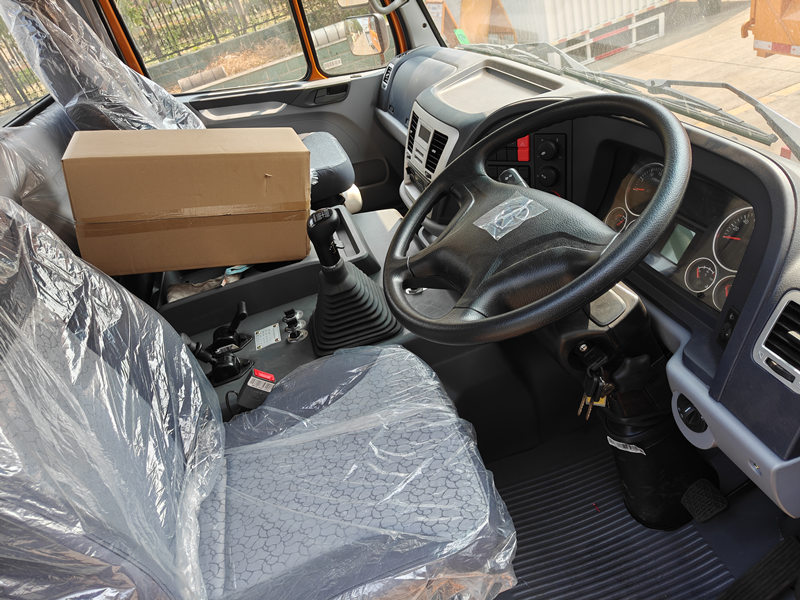

▶ Cabin: Beiben NG80B short cabin, 2 seats, with A/C
▶ Tires: 12.00R24 off-road tires
▶ Trailer axles: FUWA 16-ton, 2 pcs
▶ Loading weight: 50 tons
Product Specifications
|
Beiben 6×6 RHD Logging Transport Truck |
||
|
Chassis specifications |
||
|
Model |
Beiben 2642 |
|
|
Wheelbase (mm) |
4100+1450 |
|
|
Curb weight (kg) |
11800 |
|
|
Drive type |
6×6, RHD |
|
|
Engine |
Model |
WP12.420E32, water-cooled, four strokes, 6 cylinders straight in line, turbocharged, |
|
Fuel type |
Diesel |
|
|
Engine Power |
420HP |
|
|
Rated Power / rotating |
309Kw/2200rpm |
|
|
Emission standard |
EURO 3 |
|
|
Displacement(ml) |
11596 |
|
|
Clutch |
Model |
Φ430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
Model |
12JS200T, mechanical type, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle |
7-ton, driving axle |
|
|

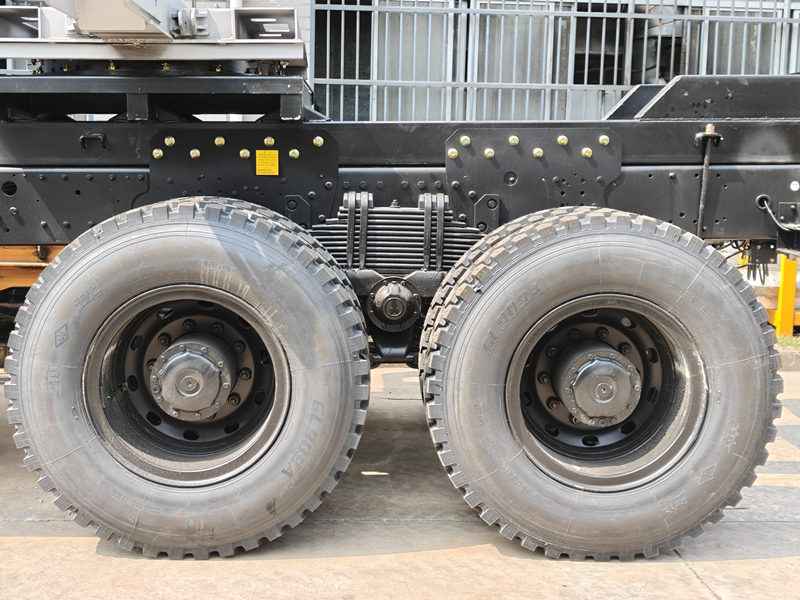

Middle and Rear axle (Use Mercedes Benz Technology) |
13-ton, double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tire |
12.00R24 Radial |
|
|
Qty of tire |
11 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
Type: NG80B short cab, no sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|
|
Interior trimming: |
||
|
Log Trailer Specifications |
||
|
Max.axle load weight |
2x16,000(kg), FUWA |
|
|
Tire |
12.00-24 |
|
|
Loading Weight（kg) |
50000kg |
|
|
Connecting bar length |
9660mm |
|
|
Color |
Orange |
|
|
Bearing beam |
Diameter: 270mm; thickness: 12mm |
|
Product Details
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 6x4, 6x6, 8x4, 8x8 drive logging trucks for option
2. Factory direct supply, Beiben timber lorries at best price
3.FUWA/BPM and other brand axles are optional
4. WEICHAI 380HP/420HP engine, FAST 9-speeed and 12 speed gearbox is available.
