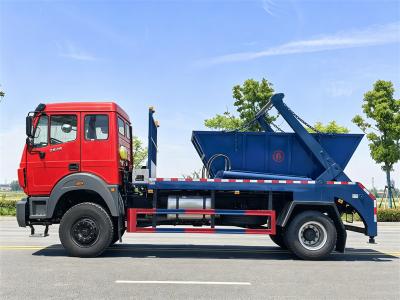

The Beiben 10-ton swing arm garbage truck is an environmental sanitation vehicle built on a Beiben 4×2 chassis with an added hydraulic swing arm system for loading, unloading, and transporting garbage containers. Powered by a WEICHAI 290 HP engine, it has a maximum load capacity of 10 tons. Each loading/unloading cycle takes no more than 60 seconds. The truck supports a “one truck, multiple containers” cyclic operation mode, offering smooth and labor-saving handling with low maintenance costs, making it ideal for short-distance waste collection and transportation in towns and cities.
Market Price:
$35200Working Capcity:
10 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
7500×2550×3500Drive System:
4×2Wheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
10-ton swing arm system, 8CBM garbage containerThe Beiben 10-ton skip loader truck is based on a Beiben 4×2 heavy-duty chassis with a hydraulic swing arm system specifically designed for loading, unloading, and transporting garbage containers. Equipped with a WEICHAI 290 HP engine and a FAST 9-speed transmission, the truck delivers powerful performance with a maximum load capacity of 10 tons. Each loading/unloading cycle takes no more than 60 seconds, making it highly suitable for efficient short-distance waste collection in urban and rural areas.
The Beiben skip bin loader truck adopts a “one truck, multiple containers” cyclic transport mode, allowing one truck to be used with several garbage containers, significantly improving operational efficiency. The hydraulic system supports both manual and electric control methods, and the rear hydraulic outriggers ensure safe and stable loading/unloading. The swing arm has strong lifting capacity. The overall structure is reliable, maintenance costs are low, and the truck can adapt to rapid waste collection needs in various regional environments.
CEEC factory is authorized supplier on Beiben garbage trucks,
guarantee all Beiben skip bin trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. High Load Capacity: Maximum load of 10 tons, meeting the waste collection demands of towns and cities.
2. High Efficiency: “One truck, multiple containers” cyclic operation mode, with each loading/unloading cycle taking no more than 60 seconds, greatly improving waste transport efficiency.
3. Labor-Saving Operation: Hydraulic system supports both manual and electric control, with rear hydraulic outriggers for safe and stable loading/unloading.
4. Strong Adaptability: Powerful swing arm lifting capacity, suitable for rapid waste collection in various regional environments.
5. Low Maintenance Cost: Reliable vehicle structure with well-known brand hydraulic components, ensuring long service life and low routine maintenance expenses.
» Ⅱ. Product Specifications:
|
Beiben 4×2 10 Ton Skip Loader Specifications |
||
|
Basic Parameter |
Drive model |
4x2, LHD |
|
Gross vehicle weight |
19000 kg |
|
|
Curb Weight |
8200 kg |
|
|
Loading Capacity |
8~10 tons |
|
|
Overall Dimensions |
7500*2500*3500 mm |
|
|
Wheel Base |
4800mm |
|
|
Leaf Spring |
13/9+8 pcs |
|
|
Tire Quantity |
7 (with 1 spare tire) |
|
|
Tire Type |
12.00R20 |
|
|
Max. Driving Speed |
89 km/h |
|
|
Cab |
Passenger |
2 |
|
Air Condition |
With AC |
|
|
Gearbox |
FAST 9JS150A, 9 forwards & 1 reverse |
|
|
Engine Parameter |
Engine Model |
WEICHAI WP10.290E32 |
|
Fuel |
Diesel |
|
|
Type |
Water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled. |
|
|
Max Power |
290HP (213kW) |
|
|
Emission standard |
Euro 3 |
|
|
Cylinder Number |
6 |
|
|
Rated Speed |
2200rpm |
|
|
MAX Torque |
1160N.m |
|
|
Displacement |
9.726 L |
|
|
Upper Body |
Garbage container volume |
8CBM |
|
Container material |
side and back 4mm ,floor 5mm carbon steel |
|
|
Standard Configuration |

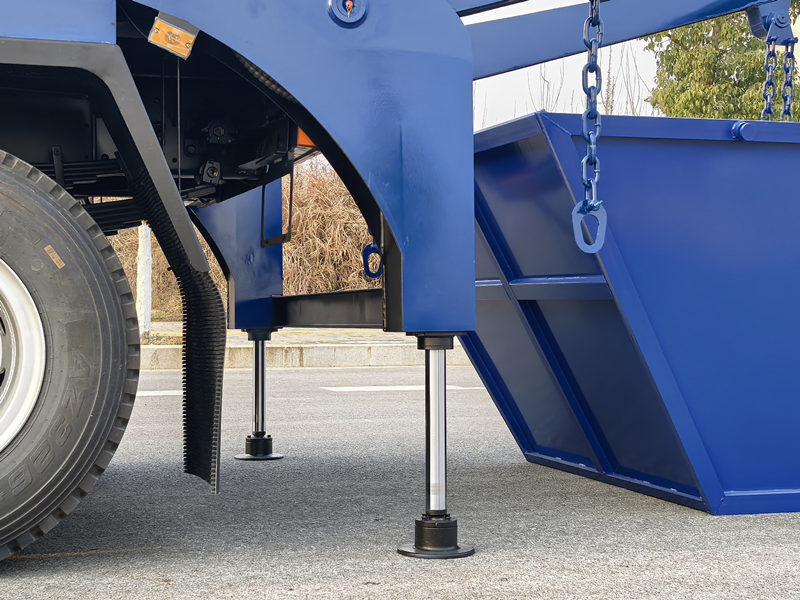

Hydraulic rear outriggers |
|
|
Dump type |
Hydraulic cylinder lifting self-loading |
|
|
Hydraulic system pressure(Mpa) |
18 Mpa |
|
|
Control method |

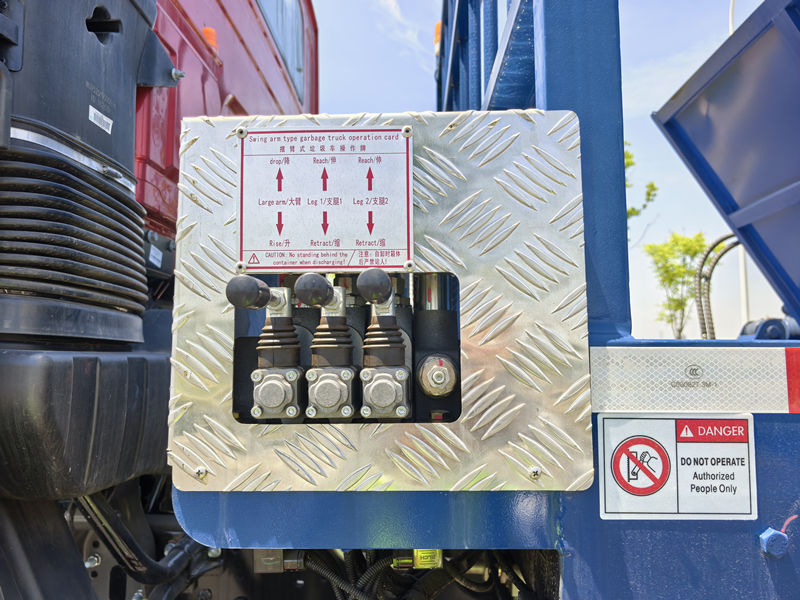

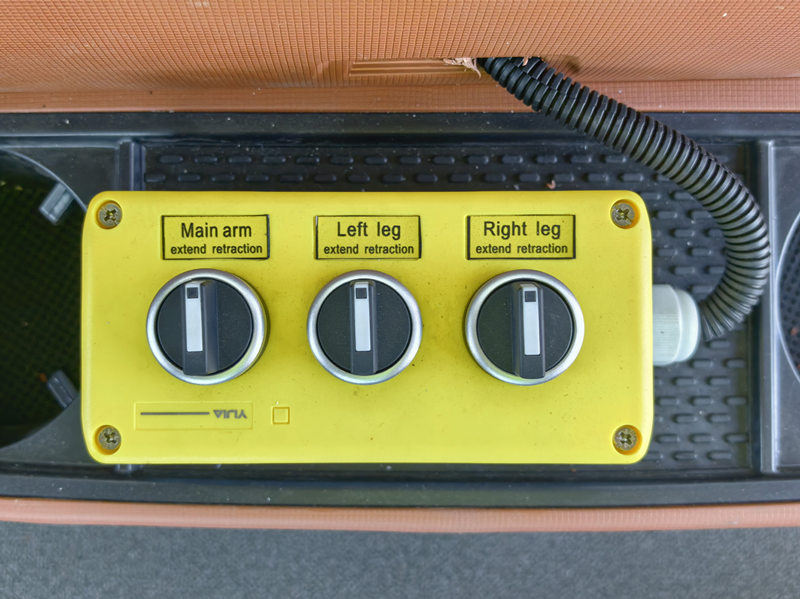

Manual hydraulic control + electric control |
|
|
Swing angle of arm |
≥145° |
|
|
Loading Time(s) |
≤60s |
|
|
Unloading time(s) |
≤60s |
|
|
Hydraulic cylinder |
2 sets |
|

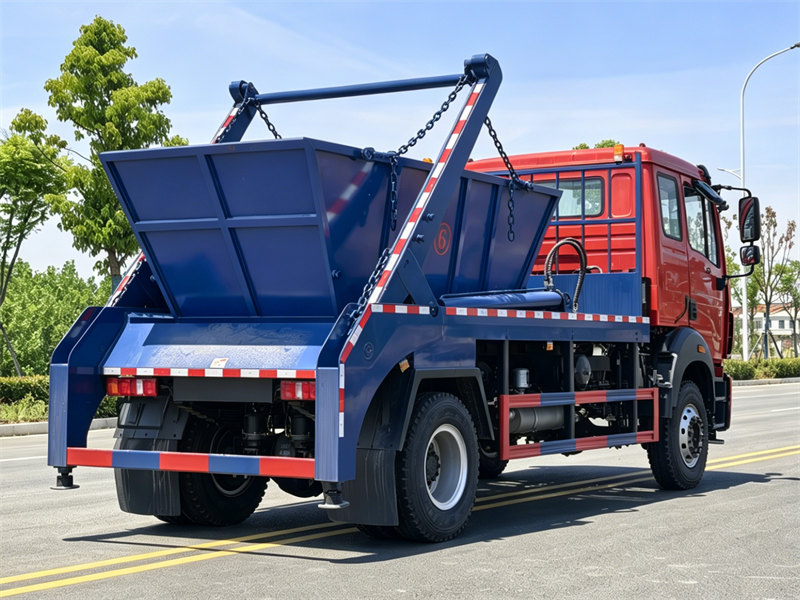

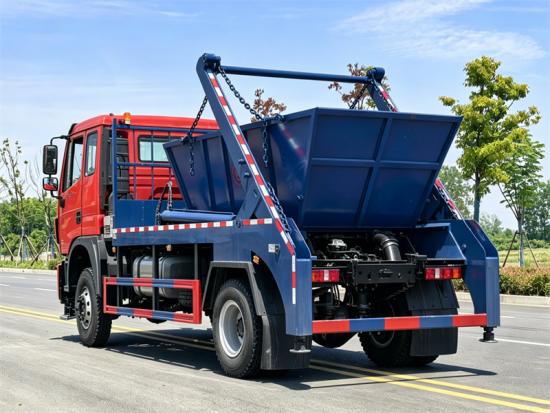

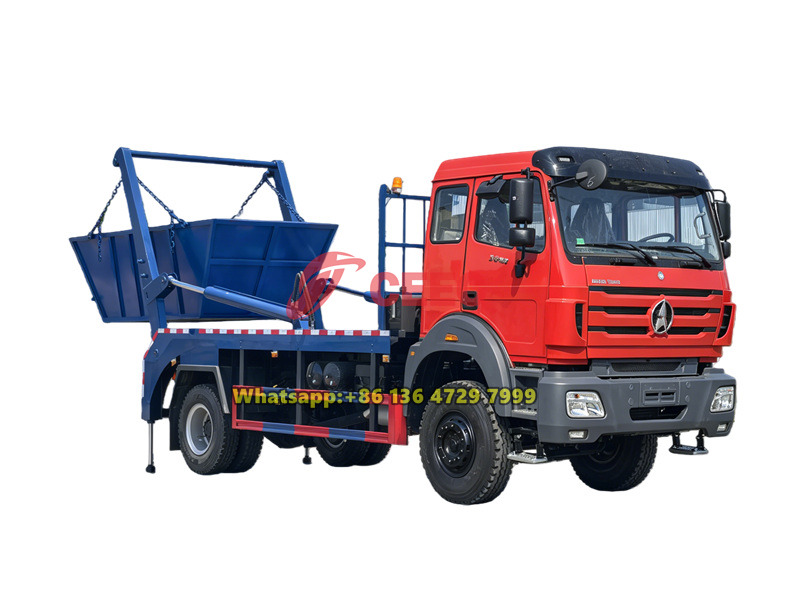

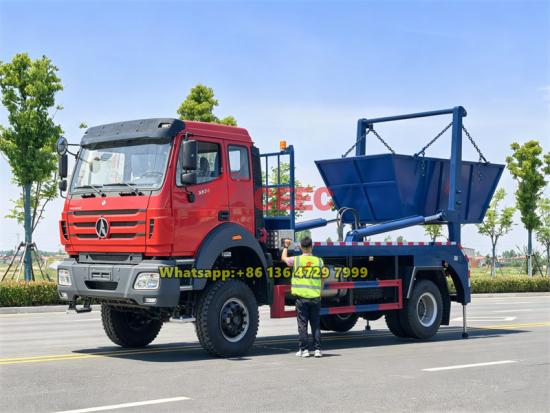

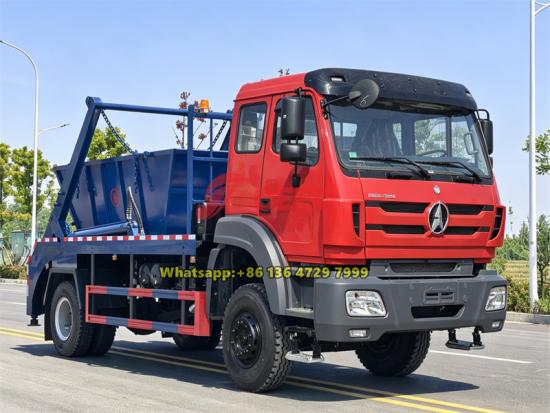

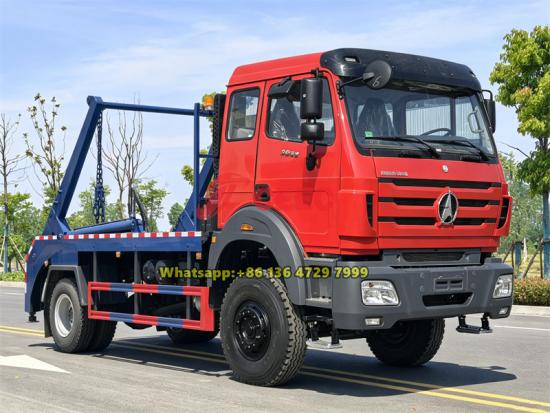

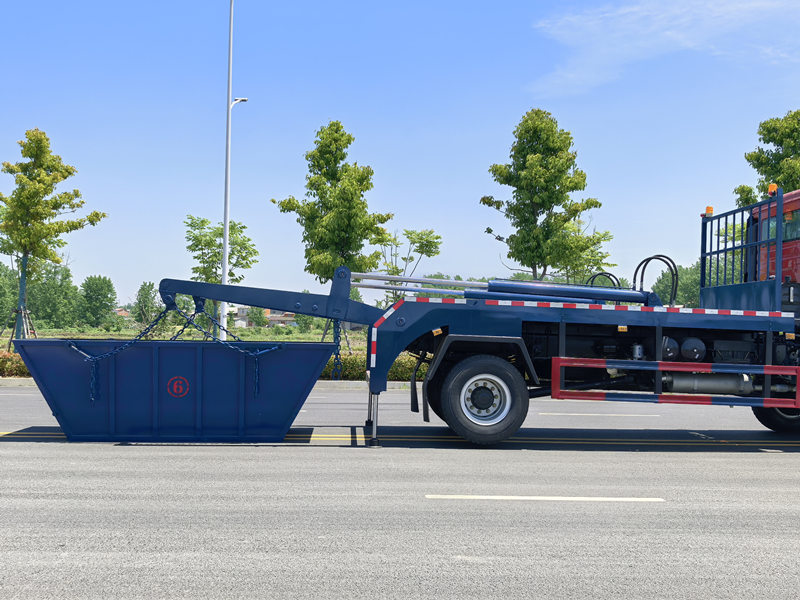

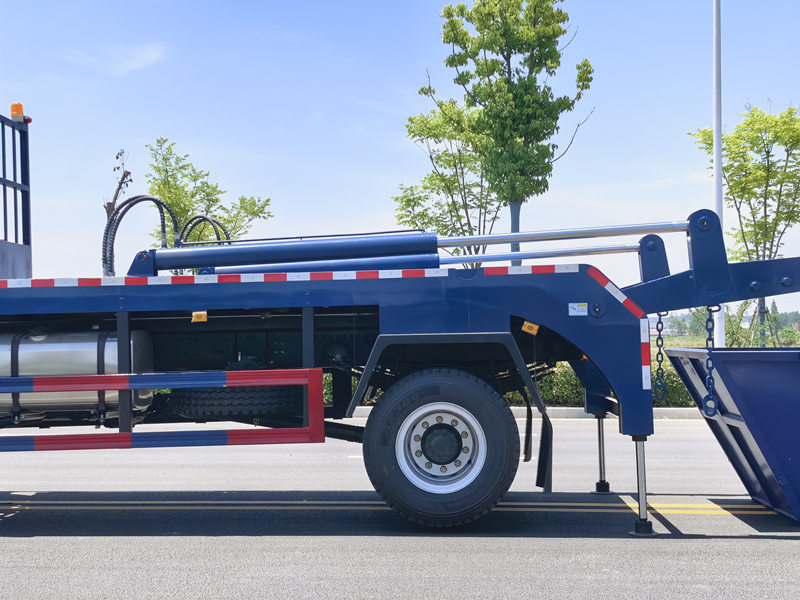

» Ⅲ. Product Details:

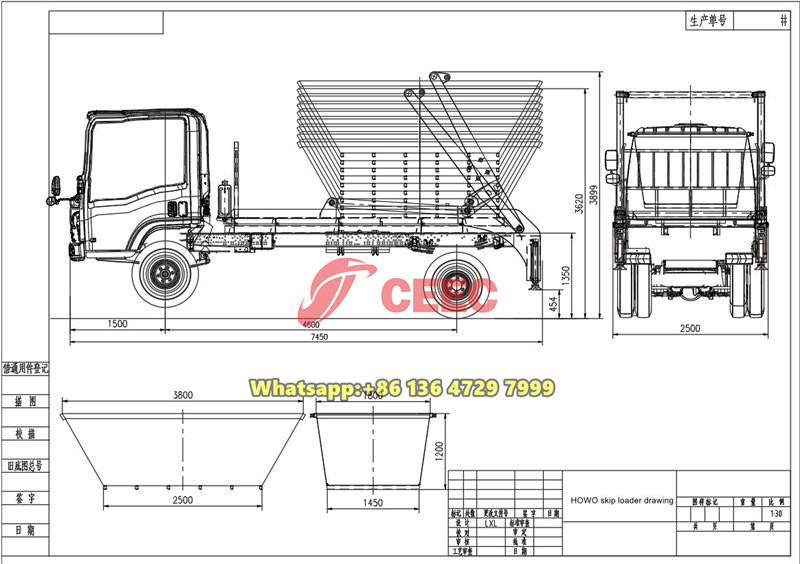

» Ⅳ. Beiben Skip Loader Drawing:

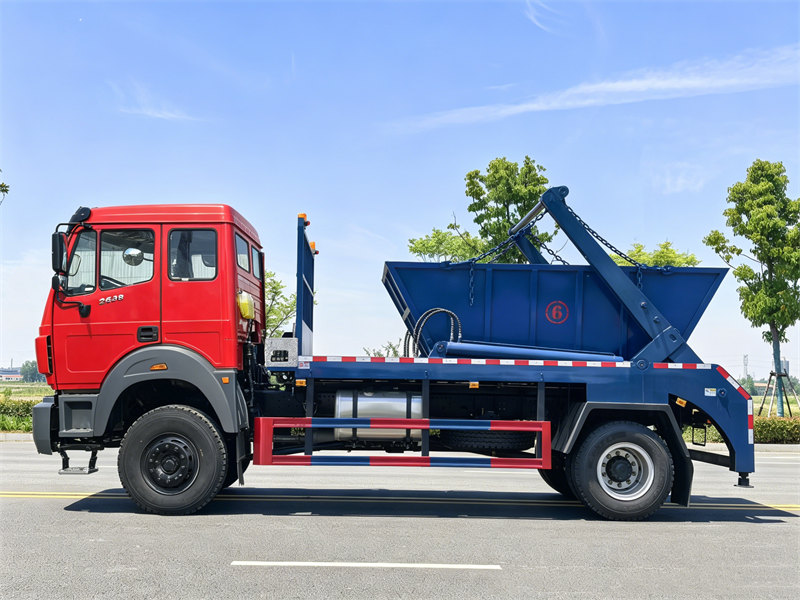

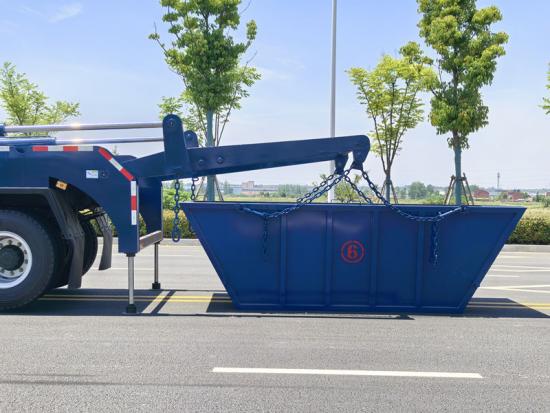

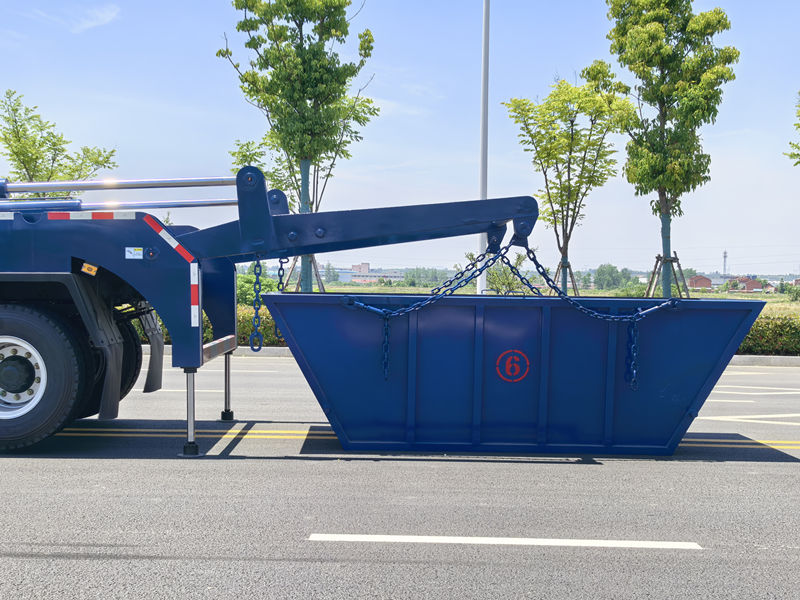

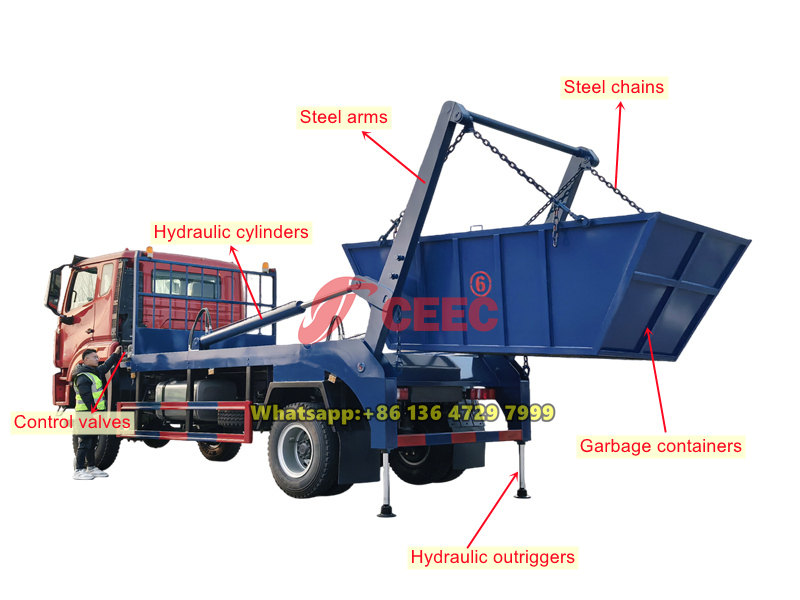

» Ⅴ. Skip Bin Truck Structure:

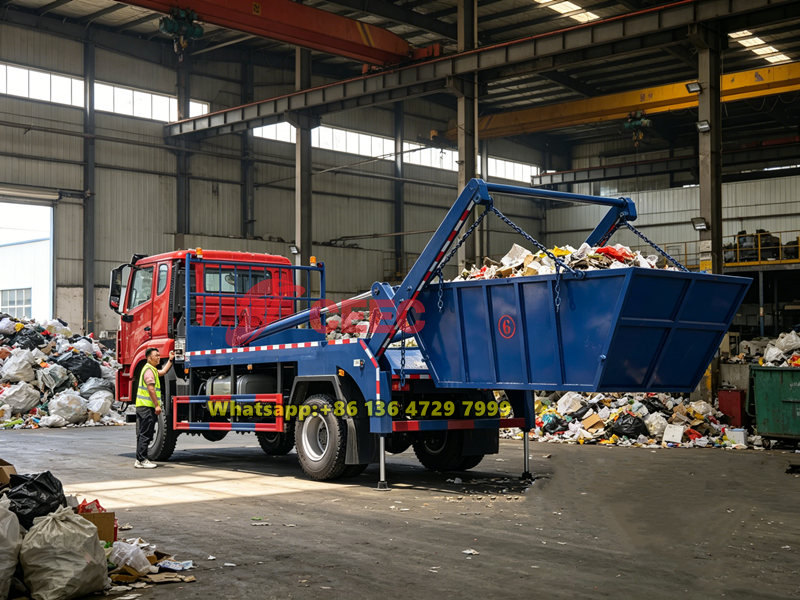

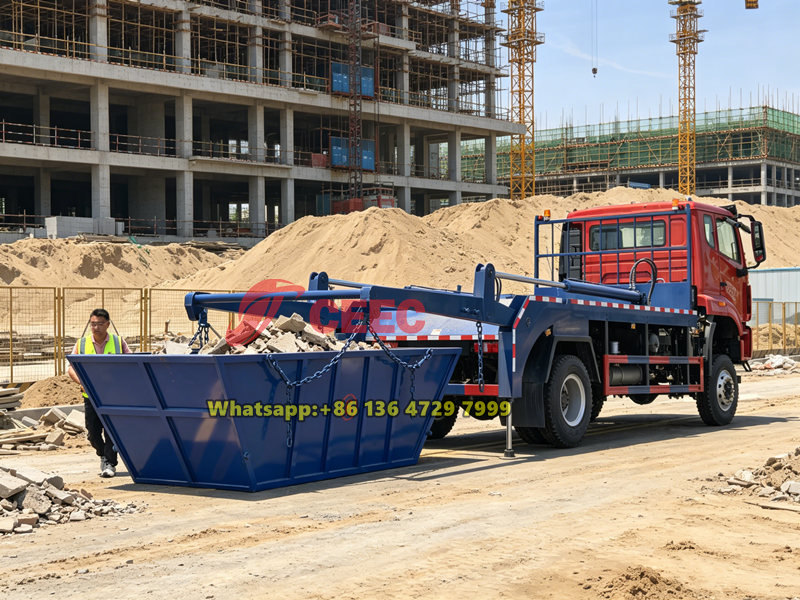

» Ⅵ. Product Applications:
 |
 |
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6 drive skip loader garbage trucks for option
2. Factory direct sale, supply Beiben skip loader trucks with 6CBM, 8CBM, 10CBM containers
3.12 months after sale service guarantee, quality assurance.
best beiben skip loader, 10 CBM skip bucket capacity ,we can supply beiben 8 CBM skip refuse truck, beiben 10 CBM skip loader truck.
Beiben Skip Loader Garbage Truck is a highly efficient sanitation equipment designed for urban communities and waste transfer stations. It operates on a "one truck with multiple garbage bins" model, significantly enhancing waste collection and transportation efficiency. Built on the robust Beiben NG80B chassis, it is powered by a 290-horsepower Weichai engine and can reach a maximum speed of 98 km/h. The superstructure features a 10-cubic-meter carbon steel waste container and a reliable hydraulic system, enabling garbage bin loading/unloading within 60 seconds. Its flexible operation makes it ideal for modern urban waste management.
