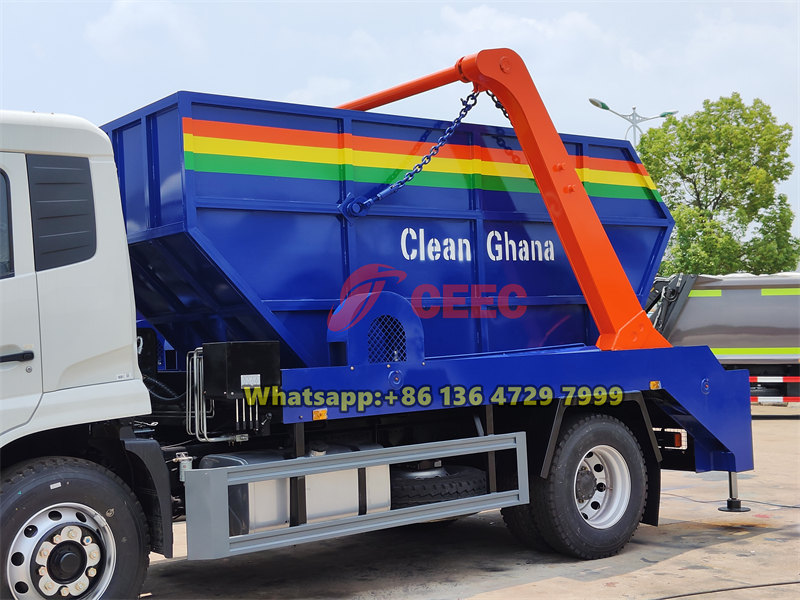

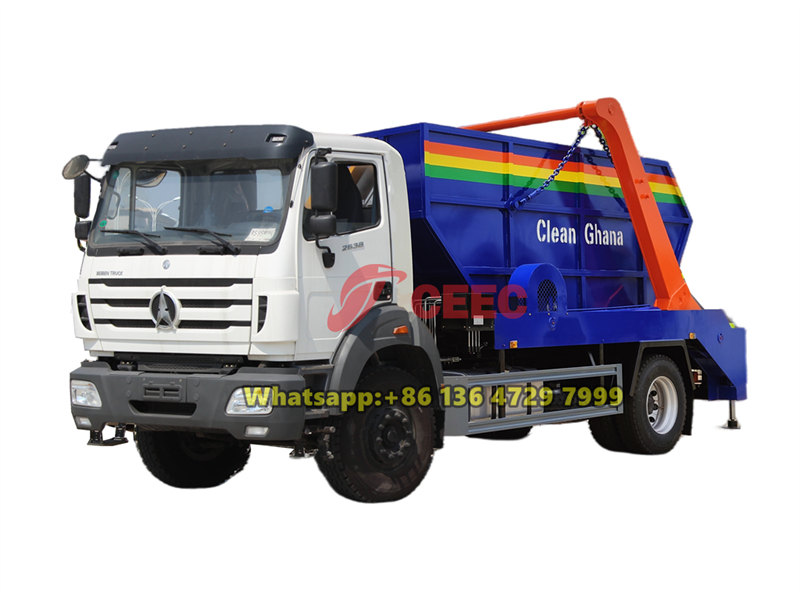

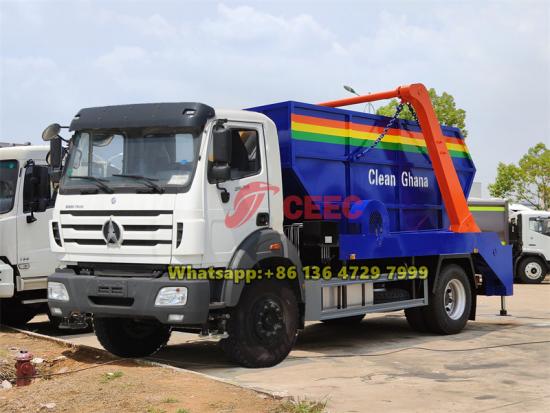

Beiben Skip Loader Garbage Truck is a highly efficient sanitation equipment designed for urban communities and waste transfer stations. It operates on a "one truck with multiple garbage bins" model, significantly enhancing waste collection and transportation efficiency. Built on the robust Beiben NG80B chassis, it is powered by a 290-horsepower Weichai engine and can reach a maximum speed of 98 km/h. The superstructure features a 10-cubic-meter carbon steel waste container and a reliable hydraulic system, enabling garbage bin loading/unloading within 60 seconds. Its flexible operation makes it ideal for modern urban waste management.
Working Capcity:
10 tonsCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
7650×2550×3300Drive System:
4×2, left hand driveWheelbase (mm):
4600Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4, RHD is optional»»Ⅰ Product Description
Beiben Skip Loader Truck is an efficient urban sanitation vehicle widely used for waste transportation in residential areas, towns, and waste transfer stations. Constructed on a durable Beiben NG80B chassis, it is equipped with a Weichai 290HP diesel engine and a 9-speed manual transmission. With a driving speed up to 98 km/h and a load capacity of 8-15 tons, the vehicle ensures reliability and adaptability in various waste collection scenarios.

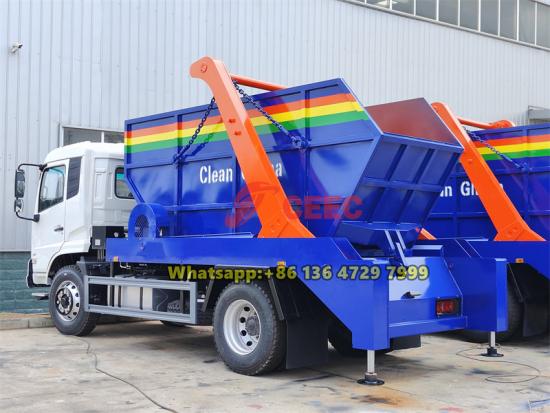

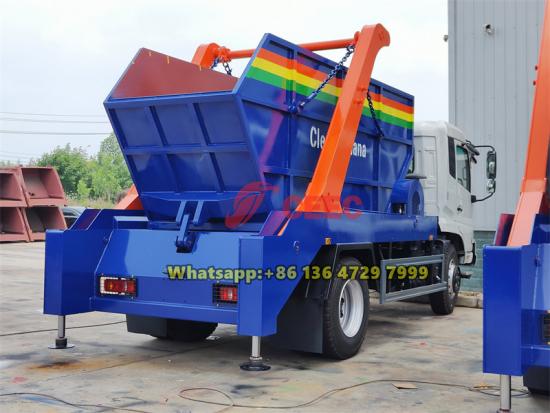

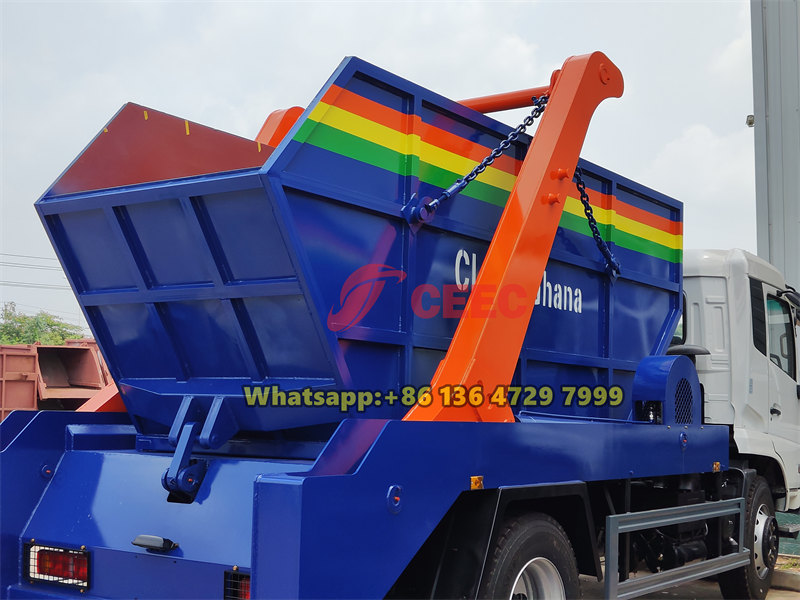

The Beiben Swing Arm Garbage Truck utilizes a hydraulic swing arm mechanism for rapid loading and unloading of garbage containers, greatly improving operational efficiency. The superstructure is made of Q345 carbon steel, with a 10-cubic-meter garbage container. The hydraulic system incorporates renowned Chinese gear pump and hydraulic cylinders, with working pressure 18 MPa, and is supported by a 90-liter fuel tank. A single operational cycle takes less than 60 seconds, with both manual and remote control options available. Thanks to its flexibility of supporting multiple garbage bins per truck, the Beiben Skip Bin Truck effectively reduces operational costs and enhances waste collection efficiency.
»» Ⅱ Product Parameters
|
Cabin |
Beiben NG80B cab，2 seats + one sleeper bed, with A/C |
|
|
Vehicle Dimensions |
Overall dimensions |
7650×2550×3300 |
|
Wheel base (mm) |
4600 |
|
|
Wheel track (front/rear) (mm) |
2015/1830 |
|
|
Truck weight (KGS) |
Tare weight |
8760 |
|
Recommend payload |
8000-15000 |
|
|
Front axle load capacity |
7000 |
|
|
Rear axle load capacity |
9000 |
|
|
Max. driving speed(km/h) |
98 |
|
|
Engine |
Manufacture |
WEICHAI engine |
|
Model |
WP10.290E32 |
|
|
Type |
Straight 6-cylinder in line, Turbocharged with inter-cooling, diesel engine |
|
|
Displacement(L) |
Engine displacement: 9.726L |
|
|
Emission standard |
Europe 3 |
|
|
Gearbox |
Manual operation, 9 forward gear, 1 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Tire |
10.00R20, 6+1 pcs (including one spare tire) |
|
|
Upper Body Specifications |
||
|
Garbage container effective volume (CBM) |
10 cubic meters |
|
|
Garbage container type |
Types of garbage container |
|
|
Advantages |
One truck can work with several garbage bucket |
|
|
The loading Capacity (T) |
8-15T |
|
|
The body material |
Q345 carbon steel |
|
|
Hydraulic system pressure (Mpa) |
18 |
|
|
Hydraulic gear pump |
China top brand |
|
|
Hydraulic oil tank capacity(L) |
90L |
|
|
Loading/unloading cycle time(S) |
≤60S |
|
|

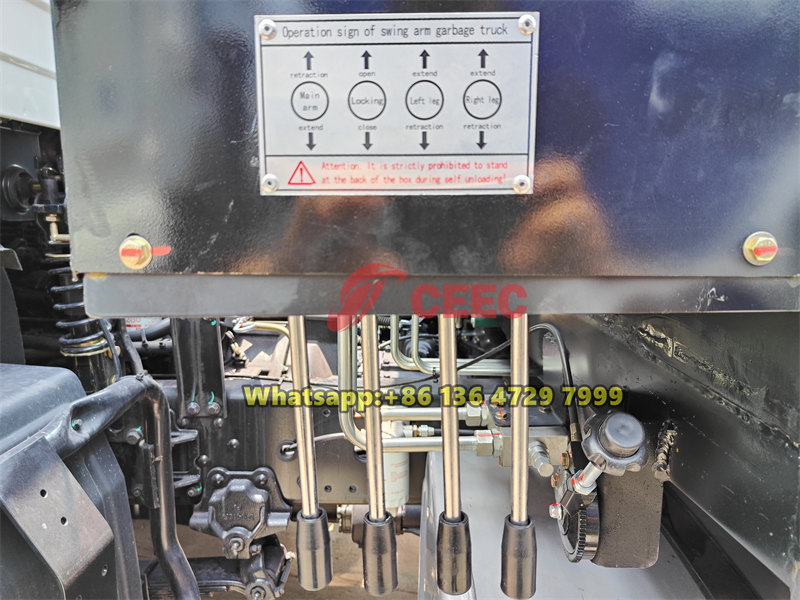

Control method |
Manual + remote control |
|

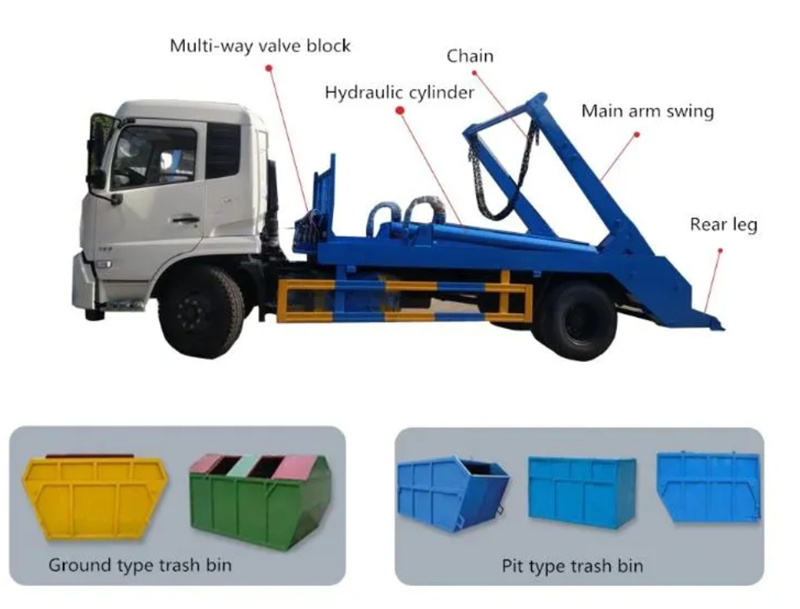

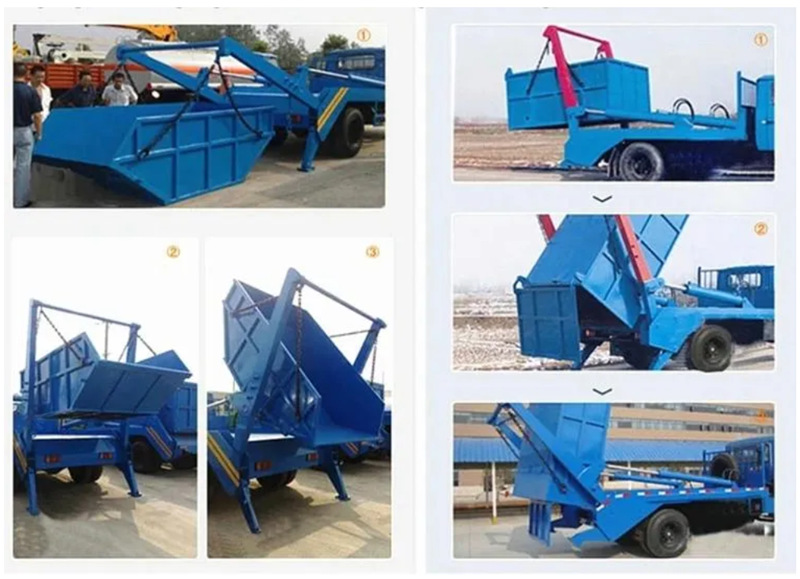

»» Ⅲ Product Structure
»» Ⅳ Product Features
best beiben skip loader, 10 CBM skip bucket capacity ,we can supply beiben 8 CBM skip refuse truck, beiben 10 CBM skip loader truck.

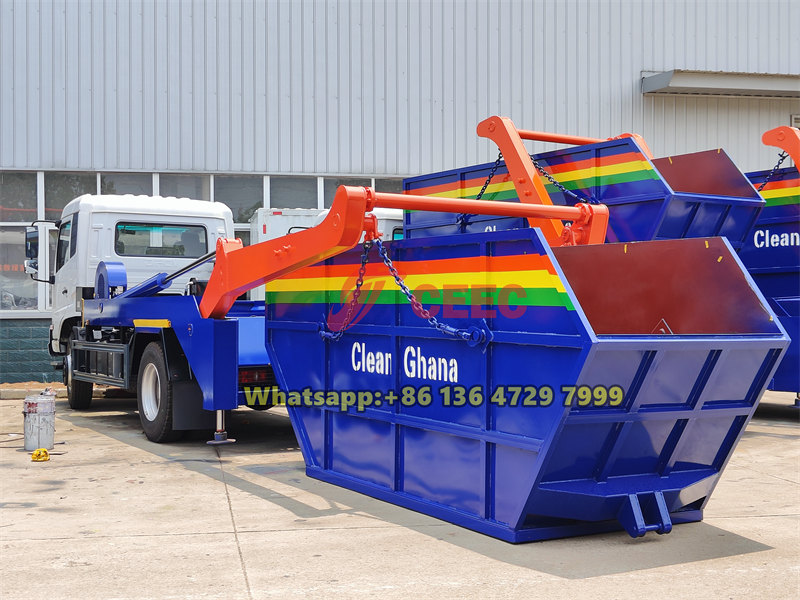

The Beiben 10-ton swing arm garbage truck is an environmental sanitation vehicle built on a Beiben 4×2 chassis with an added hydraulic swing arm system for loading, unloading, and transporting garbage containers. Powered by a WEICHAI 290 HP engine, it has a maximum load capacity of 10 tons. Each loading/unloading cycle takes no more than 60 seconds. The truck supports a “one truck, multiple containers” cyclic operation mode, offering smooth and labor-saving handling with low maintenance costs, making it ideal for short-distance waste collection and transportation in towns and cities.
