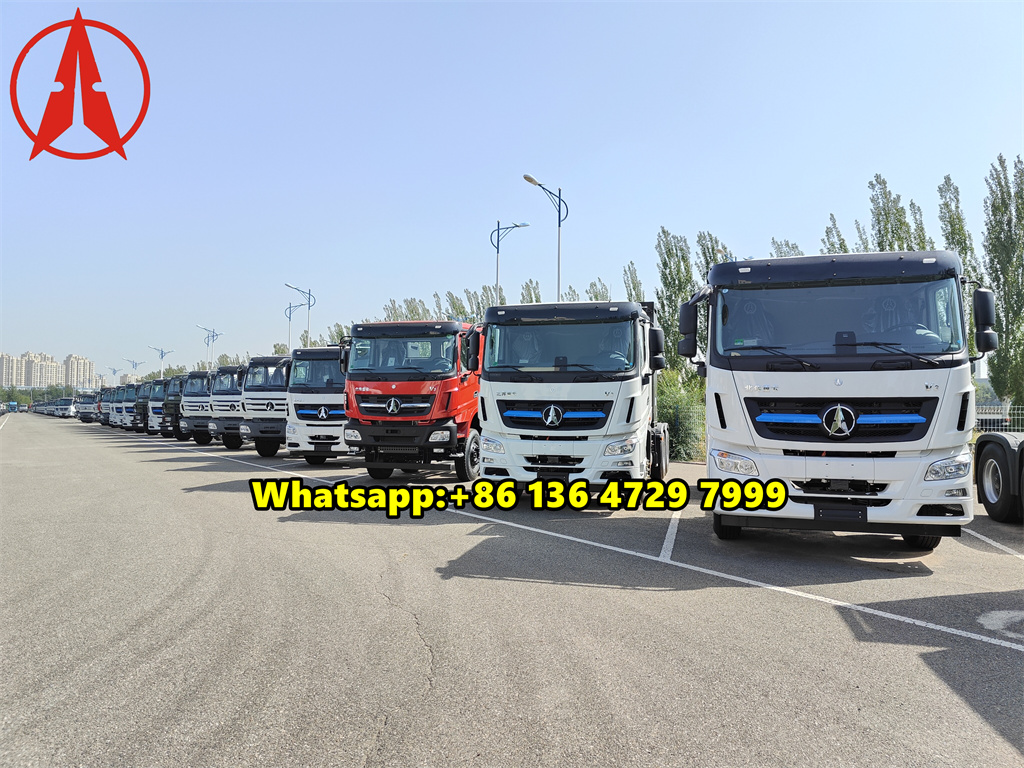

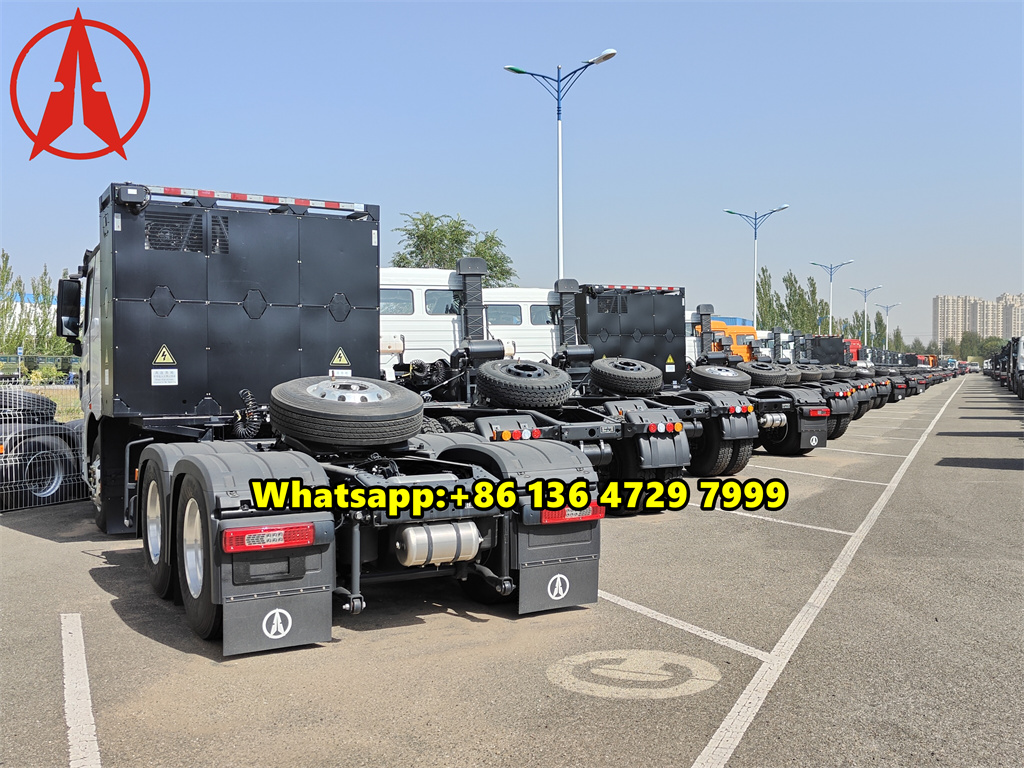

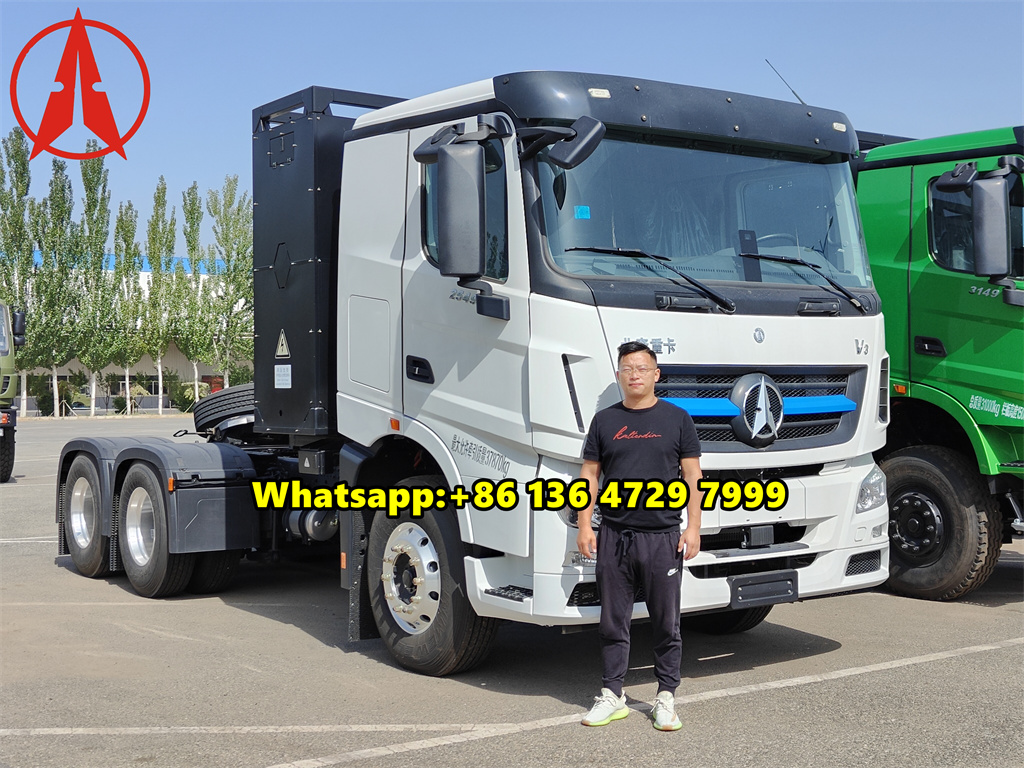

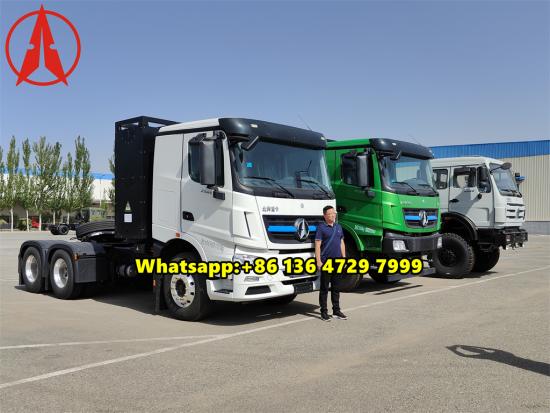

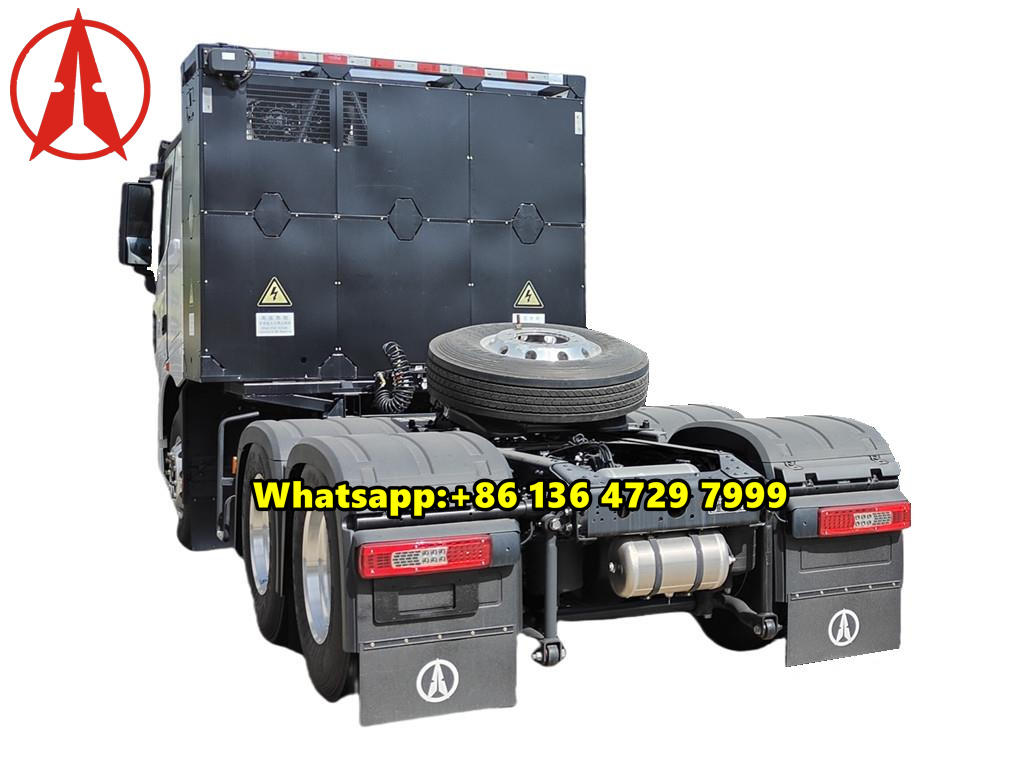

Beiben V3 electric tractor head 6x4 prime mover
On previously Beijing 2021 International Auto Show, beiben heavy truck showed its own V3 power replacement version of pure electric tractor. As a new pure electric product put into the market by beiben heavy truck, this Beiben V3 electric tractor showed beiben heavy truck's full sincerity both in hardware strength and software strength. First of all, this car still uses the cab shape of cash V3 in appearance, which is generally consistent with the cab of dump truck displayed at the auto show, but it has made some changes in color. In fact, this is also related to the differences of each city. Of course, it does not rule out the possibility that the color can be customized. As an electric vehicle, it is a permanent magnet synchronous motor that provides power for the vehicle. It is matched with the wheel reducer using Mercedes Benz technology. In fact, the majority of card friends can regard it as the shape of fuel vehicle and the chassis configuration of electric vehicle.
Working Capcity:
40-45 tonsCabin Type:
Beiben V3 cabinDimension ( mm ) :
7160*2500*3260Drive System:
6x4Wheelbase (mm):
3450+1450Engine Power:
440HPGear Box:
12JS200TARemark:
6×6 is optionalBEIBEN V3 electric tractor truck is a new energy heavy-duty tractor designed and launched by Beiben Heavy Duty Truck. It adopts an electric drive system to meet the needs of logistics, transportation and other industries for environmentally friendly and efficient transportation tools. BEIBEN V3 electric tractor head with below advanced features:
1. Electric drive: The North Benz V3 electric tractor adopts an electric motor as a power source, achieving zero or low emissions, which meets the requirements of current environmental protection policies.
2. High efficiency: Electric drive systems usually have a high energy efficiency ratio, which can effectively reduce energy consumption costs and improve transportation efficiency.
3. Intelligence: The Beiben V3 electric prime mover may be equipped with an advanced intelligent driving assistance system to improve driving convenience and safety.
4. Modular design: Benz 6x4 tractor truck with some models may adopt a modular design for easy maintenance and upgrading.
BEIBEN 6x4 V3 pure electric tractor trucks are available in a variety of specifications, including different horsepower, wheelbase, body size, etc., to meet the transportation needs of different users. Specifically, there may be the following specifications:
Horsepower: May range from 300 horsepower to 500 horsepower, users can choose according to actual needs.
Drive type: Mainly 6x4 drive, suitable for a variety of road conditions and transportation tasks.
Body dimensions: Body length, width and height may vary depending on the specific model.
BEIBEN V3 electric prime mover is suitable for a variety of transportation scenarios, including long-distance logistics, urban distribution, port transportation, etc. Especially in cities and regions with high environmental protection requirements, electric tractors have broader application prospects.
Stable performance: Most users believe that the vehicle has stable and reliable performance and can meet various transportation needs.
Energy saving and environmental protection: The application of the electric drive system gives the car significant advantages in energy saving and environmental protection.
Convenient operation: The intelligent and modular design makes vehicle operation more convenient.
|
No |
Specification |
Data |
|
|
1 |
Model |
2642SZ |
|
|
2 |
Wheel base |
3450+1450 |
|
|
3 |
Dimension |
7160*2500*3260 |
|
|
4 |
Curb weight |
10500 |
|
|
5 |
Cross towing trailer weight |
140000 |
|
|
6 |
Max speed |
75 |
|
|
7 8 |
Engine |
Model |
WP12.420E32 |
|
Emission |
EURO 3 |
||
|
9 |
kW/rpm |
309/2200 |
|
|
10 |
Hp/rpm |
420 |
|
|
11 |
Fuel system type |
Mechanical pump |
|
|
12 |
Air filter type |
Sand filter |
|
|
13 |
No. of cylinders |
6 |
|
|
14 |
Displacement |
11.596L |
|
|
15 |
Stroke |
4 |
|
|
16 |
Bore |
126*155 |
|
|
17 |
Compression ratio |
17：1 |
|
|
18 |
Economy revs |
1300-1400 |
|
|
19 |
Exhaust brake |
YES |
|
|
20 |
Oil change volume |
17L |
|
|
21 |
Oil change interval |
10000km |
|
|
22 |
Fuel prerequisites |
＞EURO 2 |
|
|
23 |
Fuel consume g/kWh |
192 |
|
|
24 |
Fuel tank capacity |
400L |
|
|
25 |
Fuel tank type |
Iron |
|
|
27 |
Clutch |
Model / mm |
430 |
|
28 |
Number |
1 |
|
|
29 |
Clutch system type |
Single dry frictional disc, Hydraulic boosting |
|
|
30 |
Transmission |
Model |
12JS200T |
|
31 |
Max torque Nm/rpm |
2000/2600 |
|
|
32 |
GCW approval (ton) |
—— |
|
|
33 |
1# gear ratio |
15.53 |
|
|
34 |
2# gear ratio |
12.08 |
|
|
35 |
3# gear ratio |
9.39 |
|
|
36 |
4# gear ratio |
7.33 |
|
|
37 |
5# gear ratio |
5.73 |
|
|
38 |
6# gear ratio |
4.46 |
|
|
39 |
7# gear ratio |
3.48 |
|
|
40 |
8# gear ratio |
2.71 |
|
|
41 |
9# gear ratio |
2.10 |
|
|
42 |
10# gear ratio |
1.64 |
|
|
43 |
11# gear ratio |
1.28 |
|
|
44 |
12# gear ratio |
1.00 |
|
|
45 |
13# gear ratio |
14.86 |
|
|
46 |
14# gear ratio |
3.33 |
|
|
47 48 |
Brake system |
Service brake |
double circulation air brake system |
|
Assistant brake |
Potential springs pressing on middle and rear wheels |
||
|
49 |
ABS |
WITHOUT/无 |
|
|
50 |
Steering system |
ZF8098 |
|
|
51 |
Front axle model / ton |
VL4/15D/7.5, Benz Technology |
|
|
52 |
Raer axle model / type |
HL7/015DS/13, Benz Technology |
|
|
53 |
Hub reduction type |
Double reduction |
|
|
54 |
Finel end drive Nm |
55000 |
|
|
55 |
Gear ratio |
5.921 |
|
|
56 |
Tyre size |
12.00R20 |
|
|
57 |
Spare tyre Qty |
1 |
|
|
58 59 60 |
Electrical system |
Battery |
180AH/2*12V |
|
Generator ampere (A) |
28V/70A |
||
|
Starter kW |
24V/5.58KW |
||
|
61 |
Cab |
Model |
NG80B Long cab |
|
62 |
Interior |
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), Air seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C |
|
|
63 |
Accessory |
Metal bumper, three steps, new mirror, sun visor |
|
|
65 |
Model |
#90 |
|
|
66 |
Series |
Strengthen model |
|
|
72 |
Overall height |
1426mm |
|
|
73 |
Overall weight |
—— |
|
|
74 |
Frame |
Main frame height |
317 |
|
75 |
Main frame thickness |
12 |
|
|
76 |
Inner frame thickness |
8.5+7 |
|
Beiben 2643 trailer tractor truck with V3 cabin, 460 hp diesel strong engine , Good performance and more convenient, China beiben latest V3 cabin , with double bed inside , easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle,3450+1450 mm, 12.00R20 tyre.
Beiben V3 2643 6x4 tractor is a high-performance heavy-duty truck, powered by a 430-horsepower Weichai Euro V engine that delivers a robust torque of 2060 N·m, paired with a 12-speed transmission. The vehicle features Mercedes-Benz technology wheel-edge reduction axles and a durable front and rear leaf spring suspension, offering a strong towing capacity of 40 tons. It is suitable for heavy-duty transport scenarios such as oil tank semi-trailers, balancing power, off-road capability, and durability.
beiben 2534 dump truck,weichai 340 hp diesel engine, fast 9 shift transmission, benz technology 7 T front axle, benz technology 16 T rear axle with double reducer, 12.00R20. Hyva 149 lifting system, 40 T loading capacity.
beiben 3138 all wheel drive camions benne for exporting , best quality china 50 T heavy duty dump truck supplier for congo country. Benz unique axle technique High EFFICIENCY

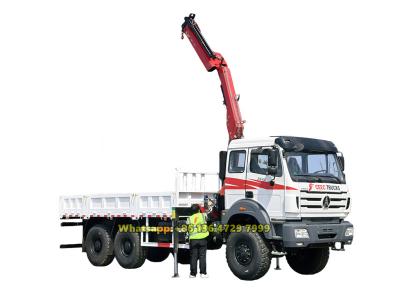

Beiben V3 crane truck with 10 T crane, with Beiben international performance V3 cabin, China weichai diesel 340 Hp engine, fast 9 shift transmission. 12.00R20 type. With XCMG 10 T telescopic crane.
New Beiben NG80 truck 420hp trailer truck head Mercedes Benz technology Engine: WEICHAI Driving type: 6x4 double reduction driving axle

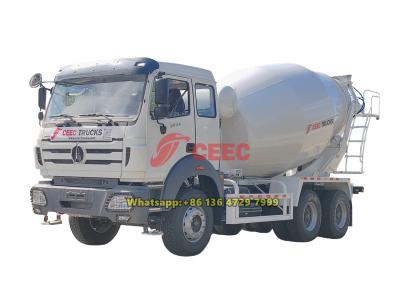

North benz 8cbm 6x4 concrete mixer truck sale in Africa PRODUCTS ADVANTAGE * Original Price: FOB, CNF/CFR, CIF * Certificates: CCC, ISO, BV, GJB, CQC * Promptly Delivery: 15-30 days * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type
Beiben V3 6x4 340hp Left Hand Driving Tractor Truck,Left Hand Driving Tractor Truck Weichai Engine 380hp Gear box Fast 12JS160T Mercedes Benz Technology 10 yeas experiences Truck WIth Best Trucking Service, Beiben Tractor Head Weichai Engine 340hp Gear box Fast 12JS160T Mercedes Benz Technology 10 yeas experiences
2015 new BEIBEN V3 480hp big heavy duty 6x4 tractor head truck
