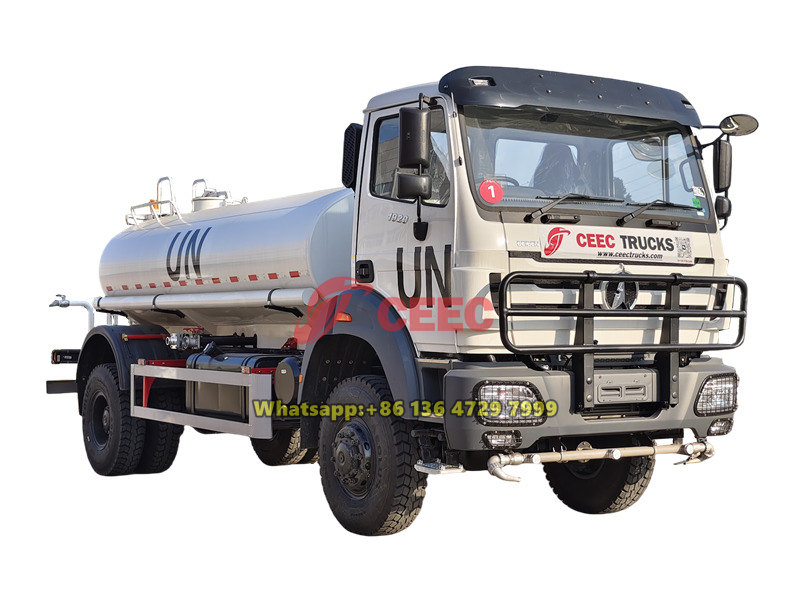

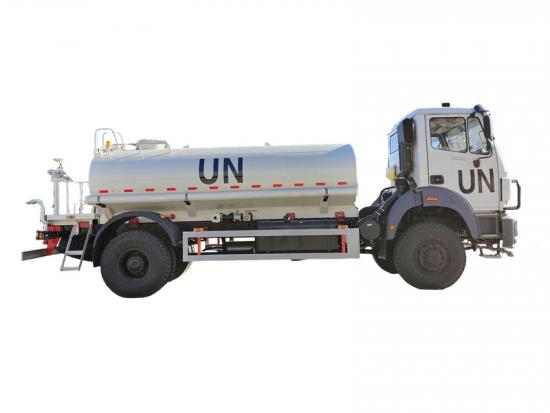

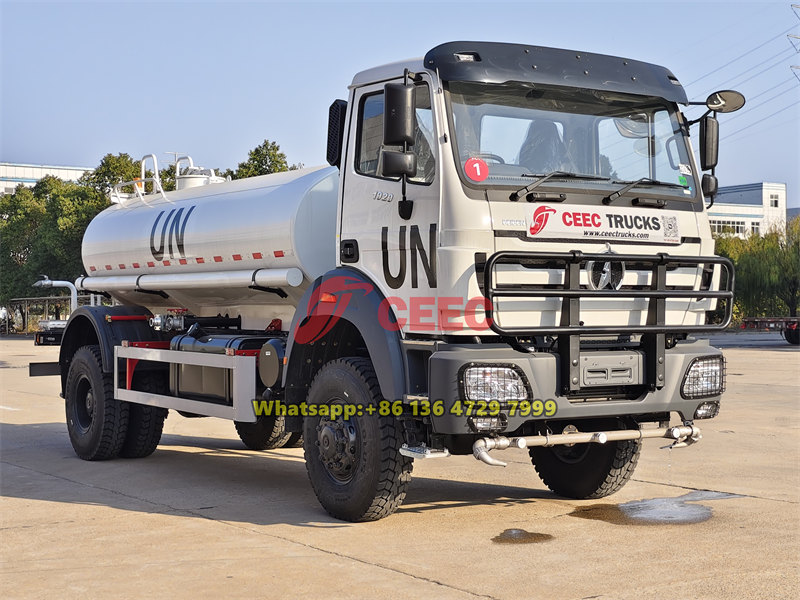

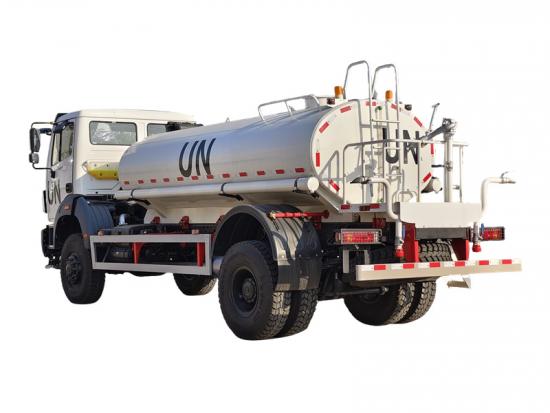

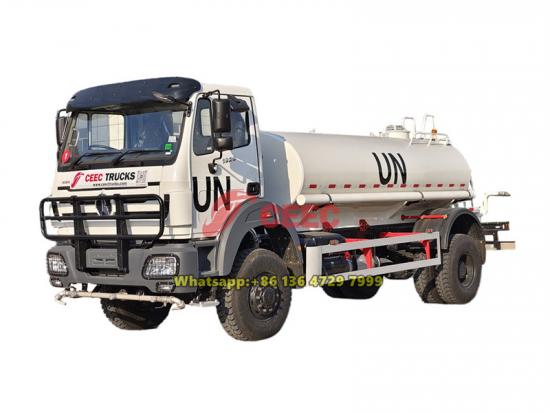

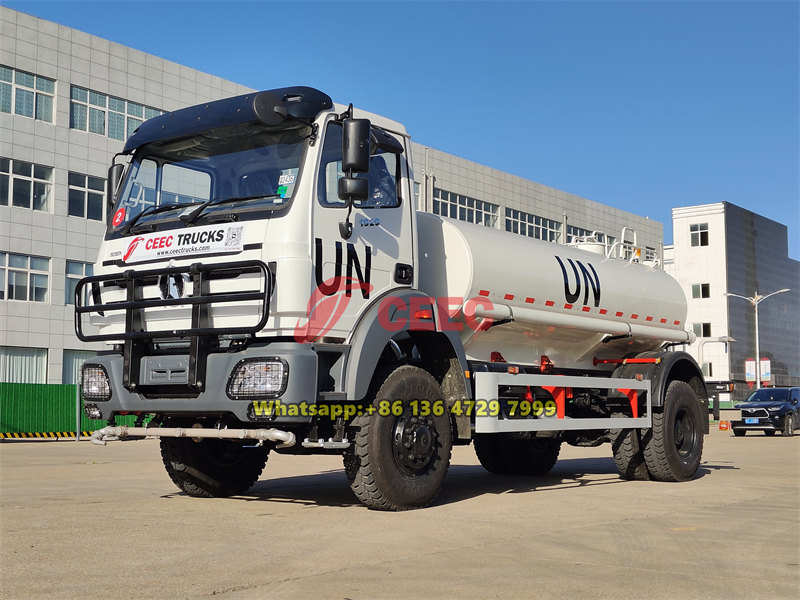

The Beiben 4×4 Off-Road Water Sprinkler Truck is a professional equipment with strong power and excellent passability. Equipped with a high-torque engine and a professional 4WD chassis, it can easily handle harsh road conditions such as mines and construction sites. The vehicle is fitted with a large-capacity 10,000-liter water tank and a high-efficiency water pump, and features multiple functions including front flushing, rear sprinkling, and long-range spraying. It can meet the needs of various scenarios such as road cleaning, landscape greening, mine dust suppression, and emergency fire-fighting.
Working capcity:
10000 litersCabin type:
NG80B short cabinDimension ( mm ) :
8300×2550×3000Drive system:
4×4Wheelbase (mm):
4800 mmEngine power / Model:
290HP/WP10.290E32Gear Box:
9JS150Remark:
12.00R24, 14.00R20 tyre, RHD drive» Ⅰ.Product Defination and Introduction:
The Beiben 4×4 Off-Road Water Truck is a multi-functional special operation vehicle designed specifically for complex terrains. It is equipped with a Weichai WP10.290E32 engine, which has a rated power of 213 kW and a strong torque of 1,160 N·m, providing sufficient power for harsh working conditions. The vehicle adopts a professional 4WD system and leaf spring suspension, maintaining excellent passability on muddy slopes, mine sites, and other road conditions. The 10,000-liter carbon steel water tank is manufactured using one-time tank forming technology and robotic welding, and is combined with a multi-layer anti-corrosion coating to ensure long-term durability of the equipment.
The vehicle is equipped with a high-efficiency water pump with a flow rate of 60 m³/h, supporting multiple spraying modes such as front flushing and rear sprinkling. The front flushing nozzles can be adjusted 360 degrees, with a maximum sprinkling coverage width of 25 meters, which can effectively wash gravel on the road and water tall trees; the rear sprinkling device can realize fan-shaped dust suppression operation with a width of 15 meters. The Beiben 4×4 AWD Water Bowser Truck also has the functions of greening spraying and road cooling. Through the combination of the chassis' off-road performance and the professional water sprinkling system, it has become a reliable equipment to meet the needs of various scenarios such as mine dust suppression, landscape greening, and emergency fire-fighting.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
General Specification |
||
|
Chassis Model |
Beiben 1929 |
|
|
Series |
NG80 |
|
|
Wheel Traction / Drive Style |
4×4 |
|
|
Gross Vehicle Weight |
kg |
19000 |
|
Steering Wheel Position |
LHD/RHD |
RHD (Right Hand Drive) |
|
Engine |
||
|
Model |
WP10.290E32 |
|
|
Brand |
WEICHAI |
|
|
Displacement |
9.726L |
|
|
Type |
In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine |
|
|
Engine Classification / Standard |
EURO III EGR |
|
|
Bore/Stroke |
mm |
126/130 |
|
Rated Horse Power |
hp |
290 |
|
Net Power |
KW/rpm |
213KW/2200rpm |
|
Torque (Nm/rpm): |
Nm/rpm |
1160Nm @ 1200-1600rpm |
|
Clutch & Gear Box Systems |
||
|
Clutch |
BEIBEN's 430 diaphragm spring clutch |
|
|
Gear Box |
9JS150A |
|
|
Gear Speed/Lever |
9 forward/ 1 reverse |
|
|
Gear Ratio |
12.57,8.39,6.15,4.59,3.4,2.47,1.81,1.35 |
|
|
Steering Model |
8098 |
|
|
Front Axle |
7T |
|
|
Rear Axle |
13T , Drum Brake |
|
|
Ratio of Rear Axle |
5.263 |
|
|
Loading Capacity per Axle |
front |
7000kg |
|
rear |
13000kg |
|
|
Brake System & Suspension |
||
|
Service Brake |
dual circuit compressed air brake |
|
|
Auxiliary Brake |
engine exhaust valve brake |
|
|
Parking Brake |
front |
spring energy |
|
rear |
compressed air |
|
|
Suspension Type |
front |
10pcs leaf spring |
|
rear |
13pcs leaf spring |
|
|
Wheels & Tires |
||
|
Wheel Type |
Radial Tires |
|
|
Number of Tires |
6+1 (spare tire) |
|
|
Tire Type/Size |
12.00R24 |
|
|
Track |
front |
1995mm |
|
rear |
1800mm |
|
|
Upper body specifications |
||
|
Tank |
Capacity |
10000 liters |
|
Material |
4mm carbon steel |
|
|
Water pump |
Flow |
60m3/h |
|
Vertical Suction |
≥6 m |
|
|
Priming Time |
<5 min |
|
|
Lift of pump |
45m |
|
|
Spraying system |
Spray width |
≥14 |
|
Water cannon range |
≥23 |
|
|
Nozzles |
Front and rear nozzles |
|
» Ⅲ. Product Features:
Beiben 4WD off-road chassis
It has strong power and is suitable for driving on roads with complex terrains, with strong passability and excellent off-road capability.

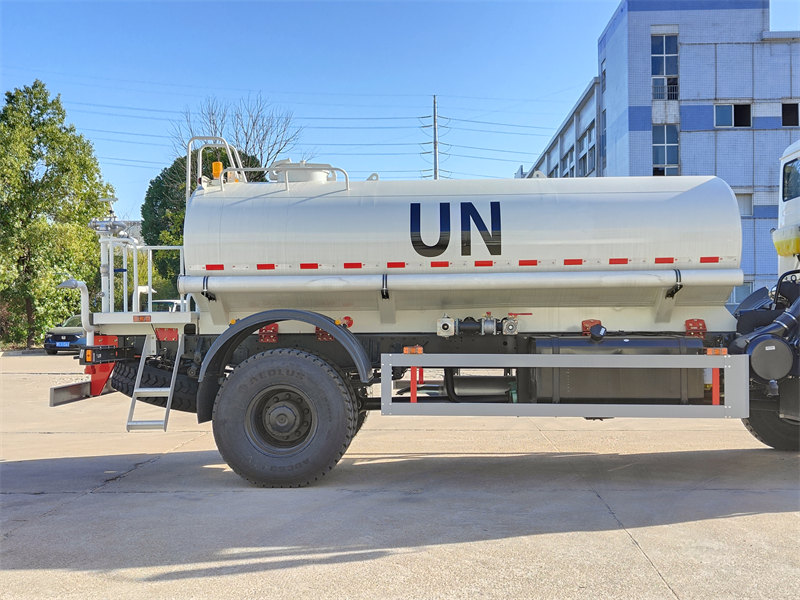

Tank Body
Utilizes advanced single-piece wrap-around molding technology and robotic automatic welding, resulting in minimal weld seams.
The sandblasting process, fully automatic painting, and multiple anti-corrosion coatings give the tank a high gloss finish and a longer service life.

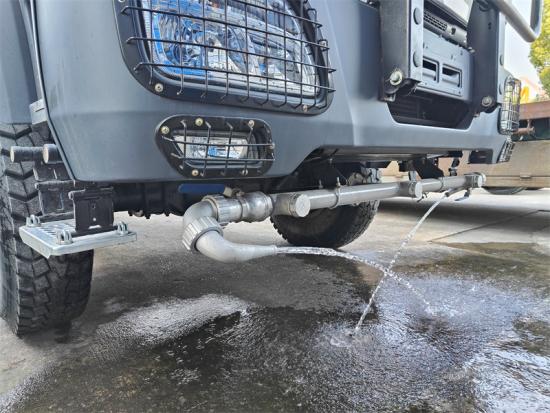

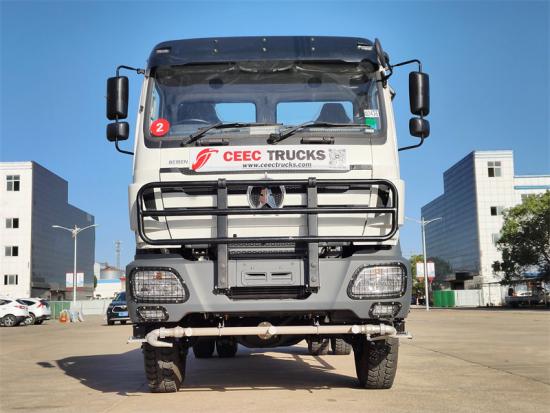

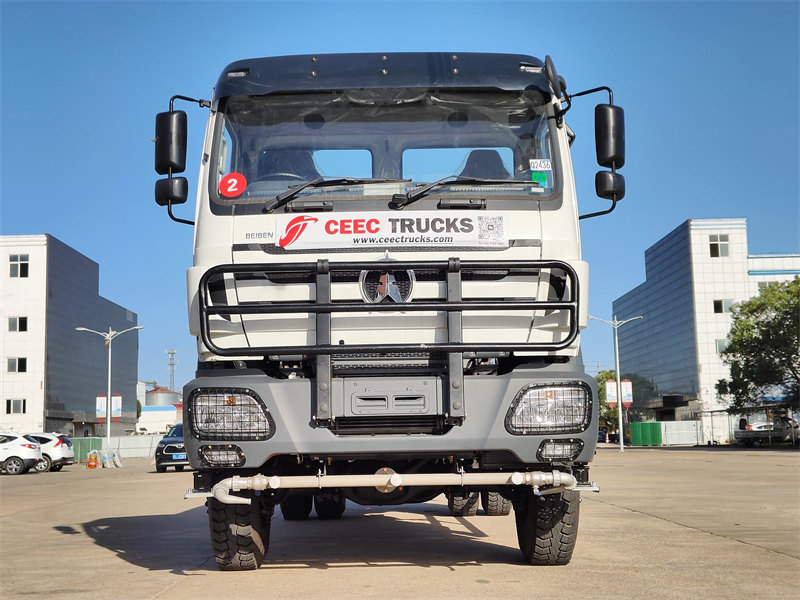

Front Nozzles
Mounted under the front bumper, the two left and right direct-flow nozzles are adjustable up to 360 degrees. Their primary function is to wash away stones and sand from the road surface. When adjusted to a 45-degree angle, they can also rinse tall trees on both sides of the road, with a watering width exceeding 25 meters.

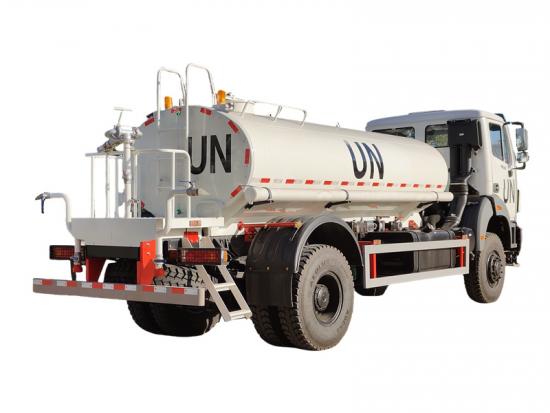

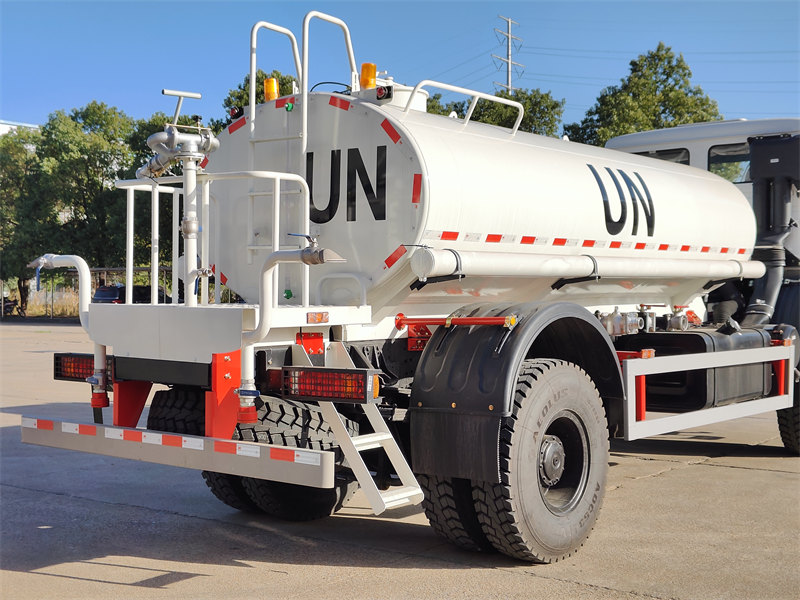

Rear Sprinklers
Installed at the lower part of the rear platform, the rear sprinkling system consists of two left and right sprinkling units. It is primarily used for dust suppression on the road surface. When operating in fan-shaped sprinkling mode, the water spray can achieve a width of over 15 meters.

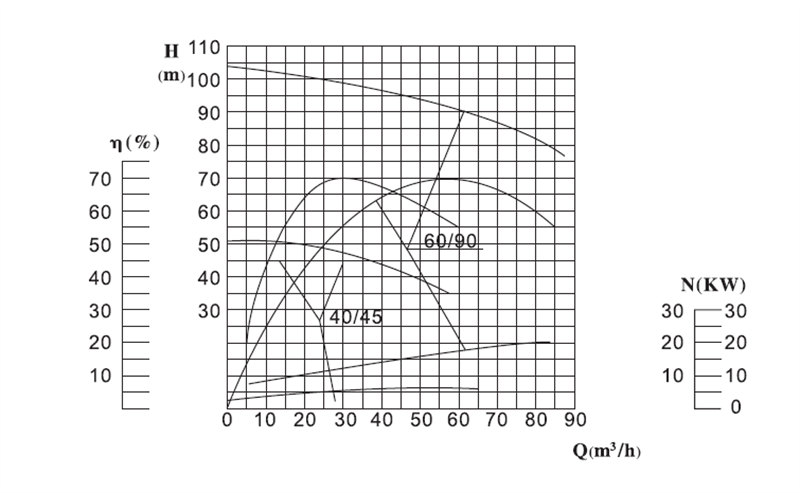

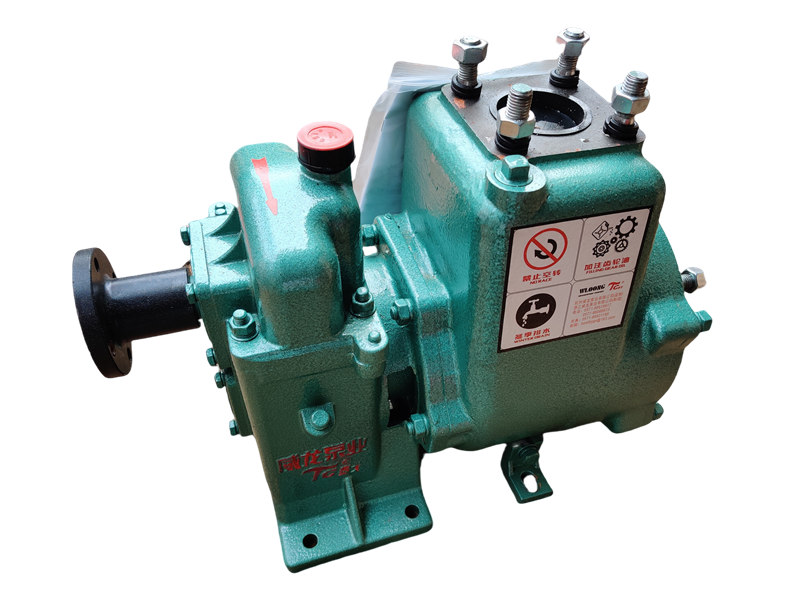

» Ⅳ. Water Pump Specifications:
|
Model |
Flow rate (m³/h) |
Head (m) |
Speed (r/min) |
Shaft power (KW) |
NPSHr (m) |
Self-priming time (min/4m) |
Efficiency (%) |
|
80QZBF-60/90N(S) |
60 |
90 |
1180 |
22.5 |
4.5 |
1.5 |
70 |
|
65QZ-40/45N(S) |
40 |
45 |
1450 |
9.25 |
4.5 |
1.5 |
72 |
|
65QZ-50/50N |
50 |
50 |
1180 |
10.5 |
4.5 |
1.5 |
70 |
|
65QZBF-50/110N(S) |
50 |
110 |
1450 |
24 |
- |
- |
70 |

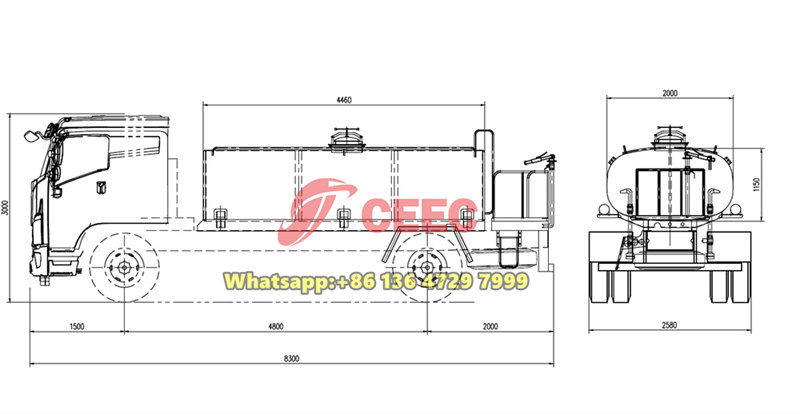

» Ⅴ. Product Drawing:

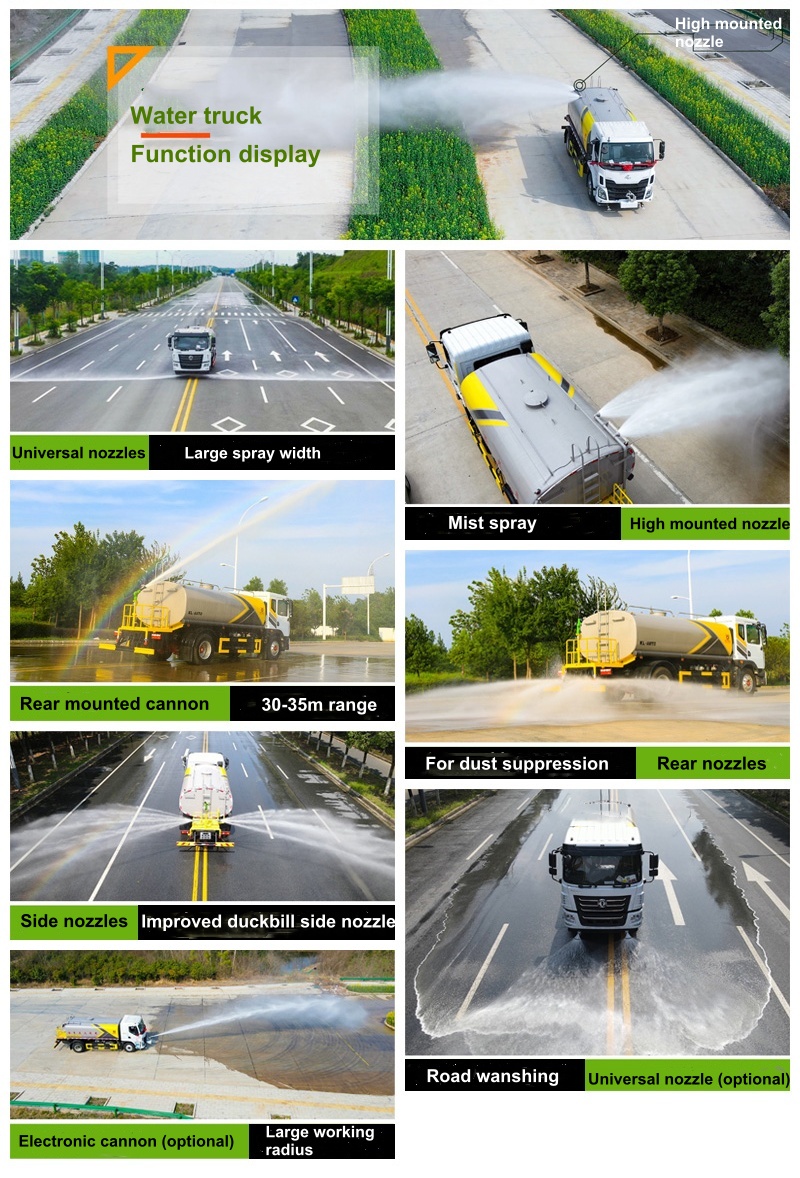

» Ⅵ. Product Fuction Display:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive tractor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Best beiben 4 wheel drive truck supplier in china, Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Beiben 4*4 drive cargo truck with crane , china weichai diesel 300HP engine, fast 9 shift transmissin. benz truck technology,
Best Beiben ND12502B41J all wheel drive truck 300 hp for kenya country, tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
Beiben ND1290 military truck for exporting , tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
China 4 wheel drive military truck supplier for beiben truck, military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
North benz V3 cabin 4 drive military truck supplier for beiben truck, Germany technology military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
UN 4*4 wheel drive military truck, special benz technology quality ensurance for UN force using, very reliable for UN military from china baotou beiben heavy duty truck co.,limited
The Beiben 4×4 Water Tank Truck, modified based on the Beiben 4×4 all-wheel-drive chassis, is equipped with a 290-horsepower Weichai diesel engine, a 10,000-liter carbon steel anti-corrosion water tank, and a 60m³/h high-efficiency water pump. Its excellent all-wheel-drive performance, large-capacity design, efficient spraying system, and high-quality materials and craftsmanship make it an ideal choice for urban road cleaning, green space irrigation, construction site dust suppression, and emergency firefighting. The luxurious and comfortable cab, coupled with easy operation, makes it a valuable assistant for urban cleaning and green space maintenance.
