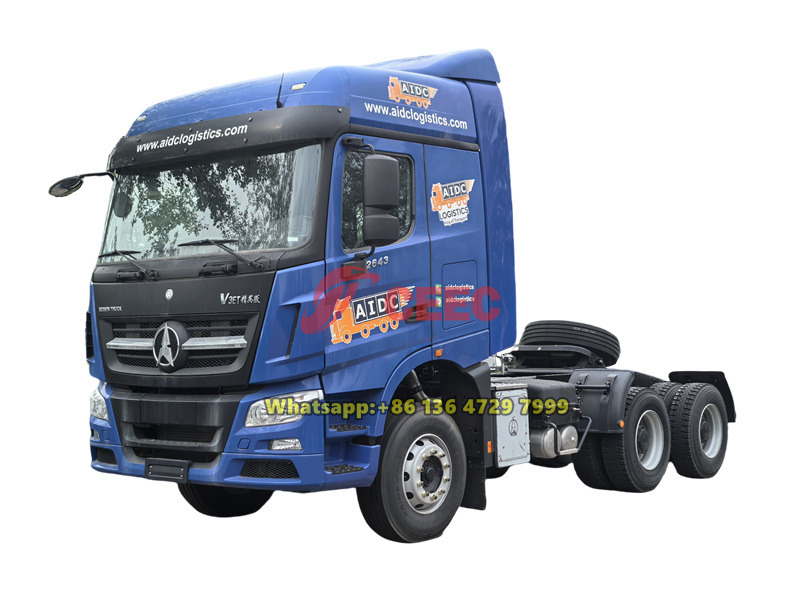

Beiben V3 2643 6x4 tractor is a high-performance heavy-duty truck, powered by a 430-horsepower Weichai Euro V engine that delivers a robust torque of 2060 N·m, paired with a 12-speed transmission. The vehicle features Mercedes-Benz technology wheel-edge reduction axles and a durable front and rear leaf spring suspension, offering a strong towing capacity of 40 tons. It is suitable for heavy-duty transport scenarios such as oil tank semi-trailers, balancing power, off-road capability, and durability.
Working Capcity:
40 tonsCabin Type:
V3 cabinDimension ( mm ) :
7100×2495×3380Drive System:
6×4Wheelbase (mm):
3450+1450Engine Power:
430HP/WP12.430E50Gear Box:
12JS200TRemark:
12.00R24, 14.00R20 tyre, 6×6, RHD drive is optionalBeiben V3 2643 tractor truck is a premium 6x4 heavy-duty towing equipment, with core advantages in powerful performance and reliable load-bearing capacity. It is equipped with a Weichai WP12.430 engine, with a displacement of 11.6 liters, delivering a maximum power of 430 horsepower and a peak torque of 2060 N·m, mated to a 12-speed transmission, providing ample pulling force for heavy-duty transport. The chassis adopts a front 7.5-ton and rear dual 13-ton axle configuration, incorporating Mercedes-Benz technology axles with wheel-edge reduction, significantly enhancing off-road capability and durability in complex road conditions.
The Beiben V3 trailer tractor head is designed with a maximum towing capacity of 40 tons, fully meeting the demands of heavy transport tasks such as large oil tank semi-trailers. It emphasizes practicality and driving experience, featuring amenities like an air-suspension seat, double-layer bunk, and air conditioning to ensure comfort during long-distance journeys. The vehicle’s robust suspension system, combined with an optimized powertrain, ensures outstanding climbing ability and reliable transport efficiency even under heavy-load conditions, making it an ideal choice in the heavy-duty transport sector.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
★ Durable chassis and axles
Equipped with Mercedes-Benz technology wheel-side reduction axles, adaptable to complex road conditions and strong durability
★ Beiben V3 cabin
Developed in collaboration with EDAG Germany, the V3 wide-body cab isdesigned based on Mercedes-Benz standards.
★ High performance engine
Equipped with Weichai engines, known for their strong reliability and high-performance output. The max. output is up to 430HP.
★ FAST gearbox
Equipped with FAST brand gearbox, delivering provenperformance across a wide range of applications.
» Ⅱ. Product Specifications:
|
Model |
Beiben 2643 |
|
Driving Type |
6x4 |
|
Towing Weight |
40 ton |
|
Cab |
Cab Exterior |
|
Highway double layer bumper |
|
|
Three-step ladder |
|
|
Rear view mirror (manual adjustment) |
|
|
Exterior sun visor |
|
|
Cab Interior |
|
|
Air-spring suspension driver's seat |
|
|
2 sleeper berths |
|
|
Air-conditioner, Electric window regulator |
|
|
Adjustable steering wheel |
|
|
24V power supply |
|
|
Radio (with MP3 player) |
|
|
Digital instruments |
|
|
Engine |
Type: WP12.430E50 |
|
Version: EURO 5 |
|
|
Displacement (l): 11.596 |
|
|
Max. Power (HP/rpm): 430/1900 |
|
|
Max. Torque (N.m/rpm): 2060/1000-1400 |
|
|
Cylinder: 6 in-line |
|
|
Transmission |
12JS200T / 15.53-1 |
|
Gears: 12 speed forward |
|
|
Synchromesh or Constant Mesh: Synchromesh |
|
|
Transfer Box: not available |
|
|
Steering System |
8098 Recirculating ball steering gear, hydraulic booster |
|
Clutch |
Ø430mm single dry friction disc, diaphragm spring, pushing type |
|
Fuel Tank |
400L (iron) |
|
Front Axle |
7500kg, non-drive steering |
|
Middle & Rear Axle |
13000kg+13000kg, double reduction driving axle, differential lock |
|
Suspension |
Front 13pcs / Rear 13pcs hard parabolic spring |
|
Brakes |
Service: dual circuit air brakes, |
|
Emergency/Parking: spring potential brake, |
|
|
Auxiliary: EVB (optional ABS) |
|
|
Electrical Equipment |
Alternator: 70Amp, Starter Motor: 5.5kW, Batteries: 2x12V - 135AH |
|
Performance Data |
Gradeability@GVM: 30% |
|
Max. Geared Road Speed: 80km/h |
|
|
Final Drive Ratio: 5.263 (optional 4.769, 5.921) |
|
|
Tyre |
Size and Ply Rating: 12.00R20-18PR |
|
Steel Rim |
|
|
Dimensions |
Wheel Base (WB): 3450+1450mm |
|
Overall Length (OL): 7100mm |
|
|
Overall Width (OW): 2550mm |
|
|
Overall Height (OH): 3380mm |
|
|
Front Overhang (FOH): 1515mm |
|
|
Rear Overhang (ROH): 625mm |
|
|
Front fitting radius of semi-trailer: 2500mm |
|
|
Rear fitting radius of semi-trailer: 2300mm |
|
|
Total Vehicle Weight |
10400kg |
» Ⅲ. Product Details:

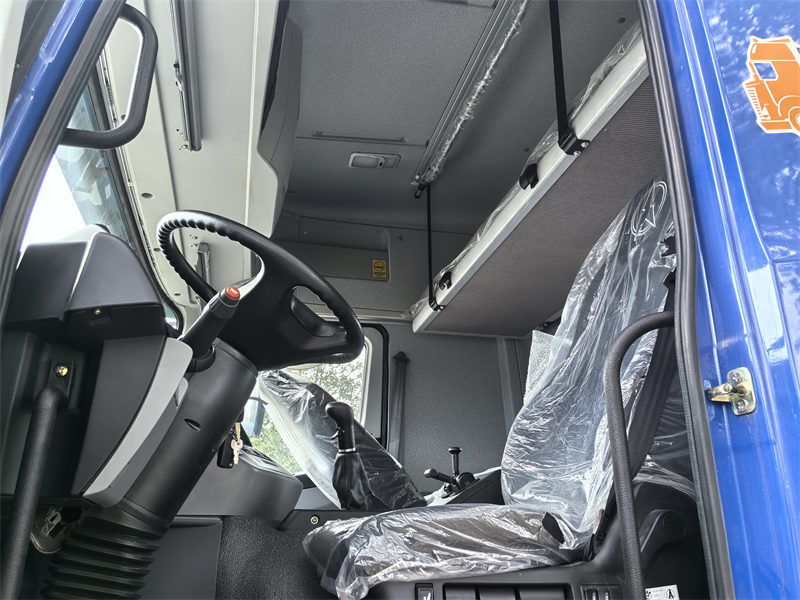

V3 Cab
Built with high-strength steel through integrated stamping, and reinforcedwith a composite cavity structure for increased durability.
With 2 seats and 2 sleeping berths
WEICHAI Engine
The Beiben V3 tractor truck is equipped with Weichai engine, known for their strong reliability and high-performance output. 420HP, 430HP, 480HP and 550HP for option.

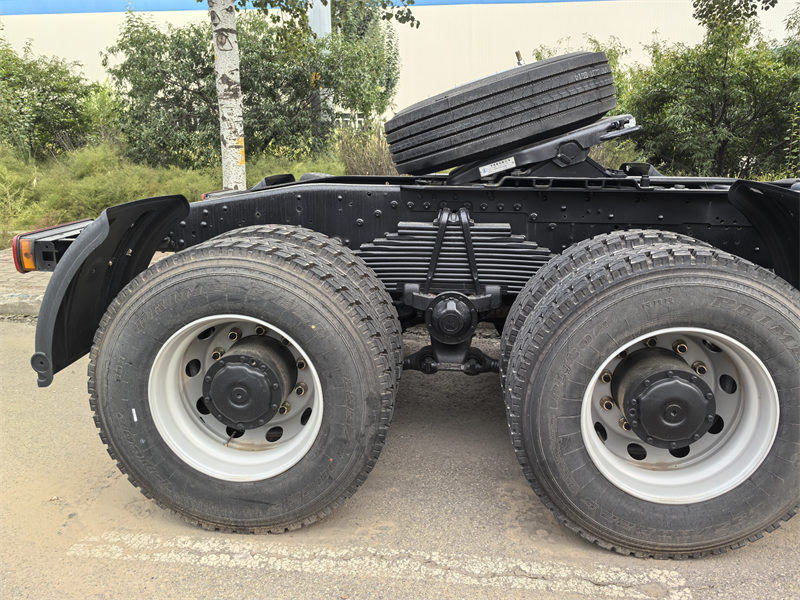

Reliable Suspension
The suspension adopts a combination of leaf springs, balance suspension,thrust rods, and stabilizer bars to ensure stability under load.
Fith Wheel
Equipped with 50# JOST fifth wheel. 90# is optional.

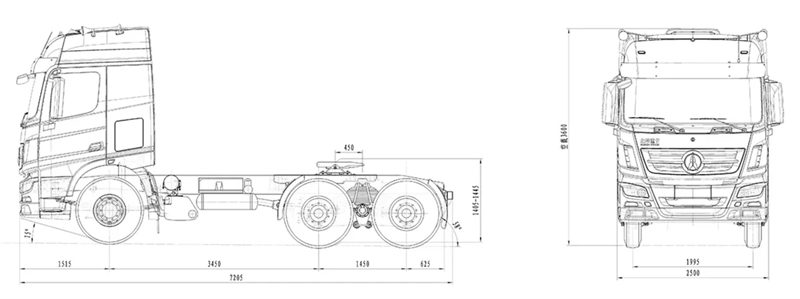

» Ⅳ. Product Drawing:
» Ⅴ. Customer Case:

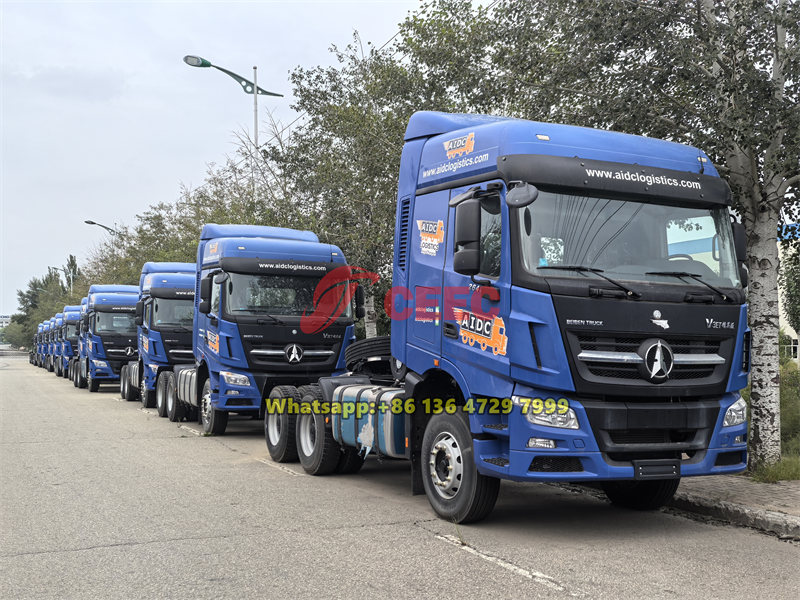

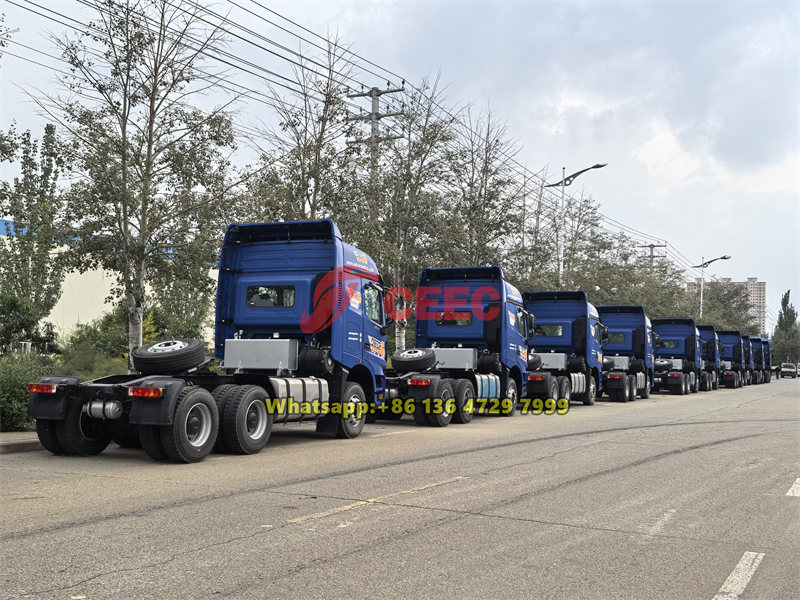

Beiben V3 tractor trucks ready for export
Beiben V3 trailer tractors are ready for shipment
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive tractor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
