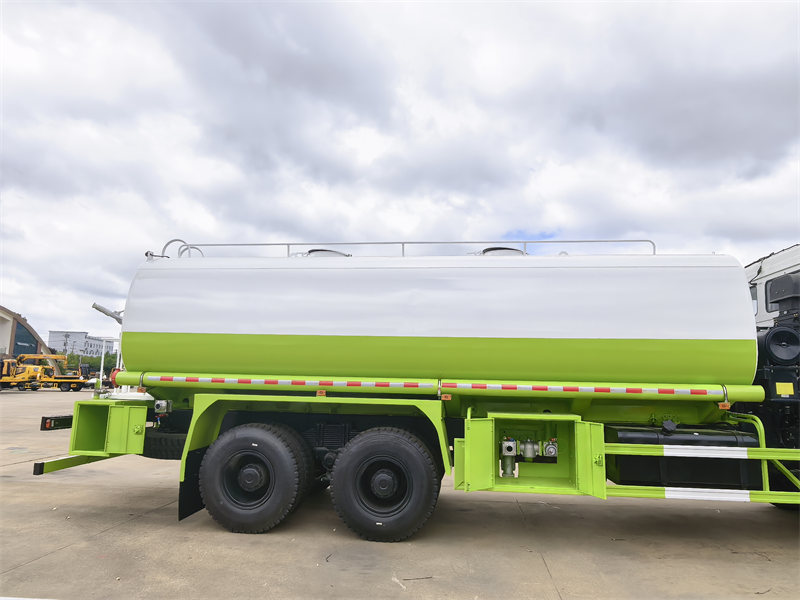

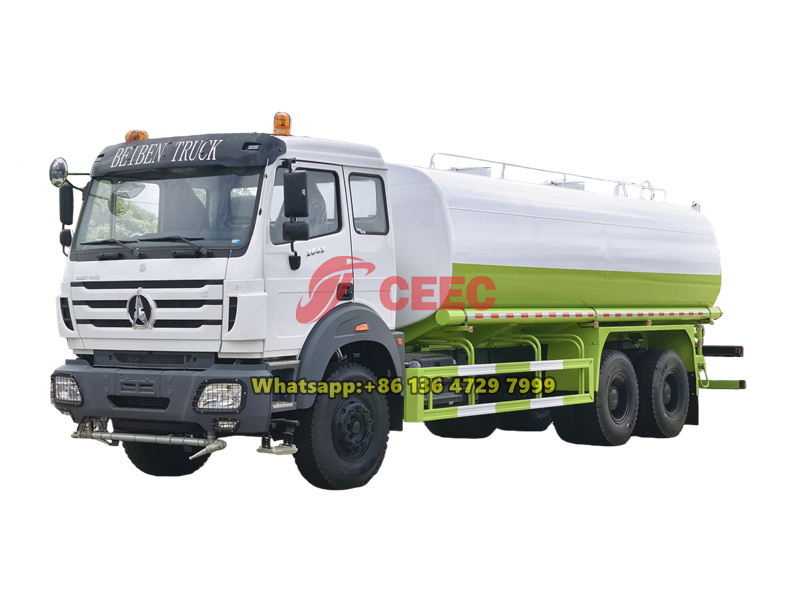

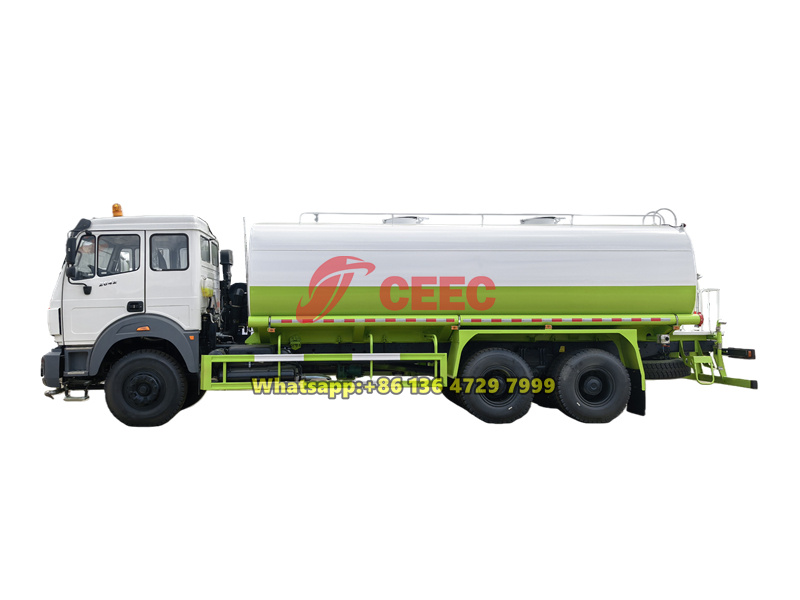

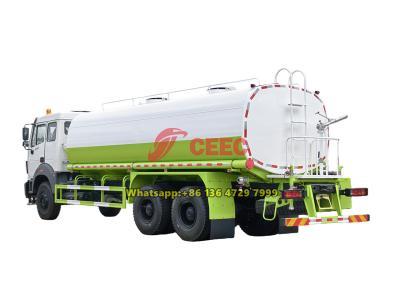

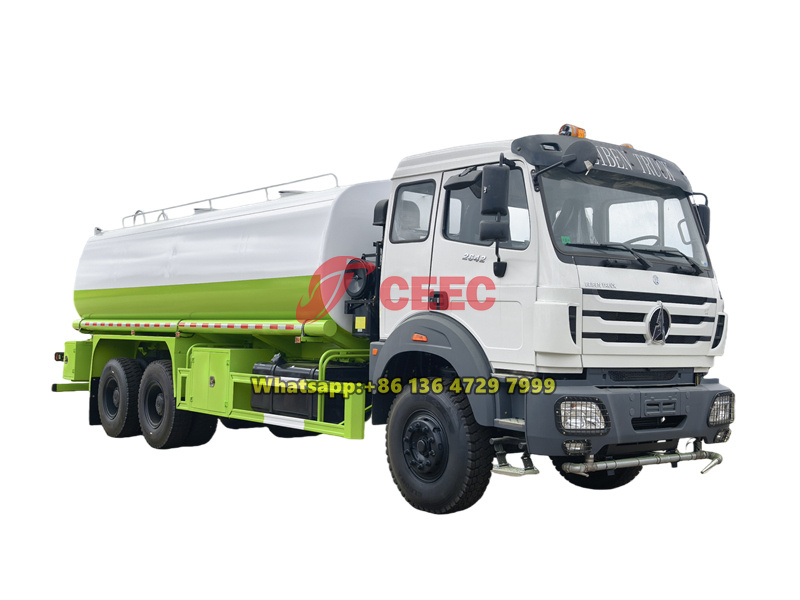

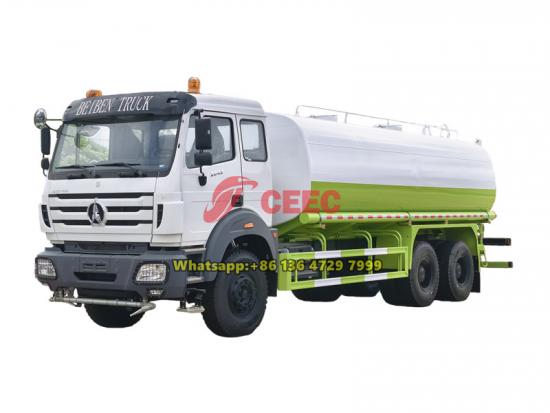

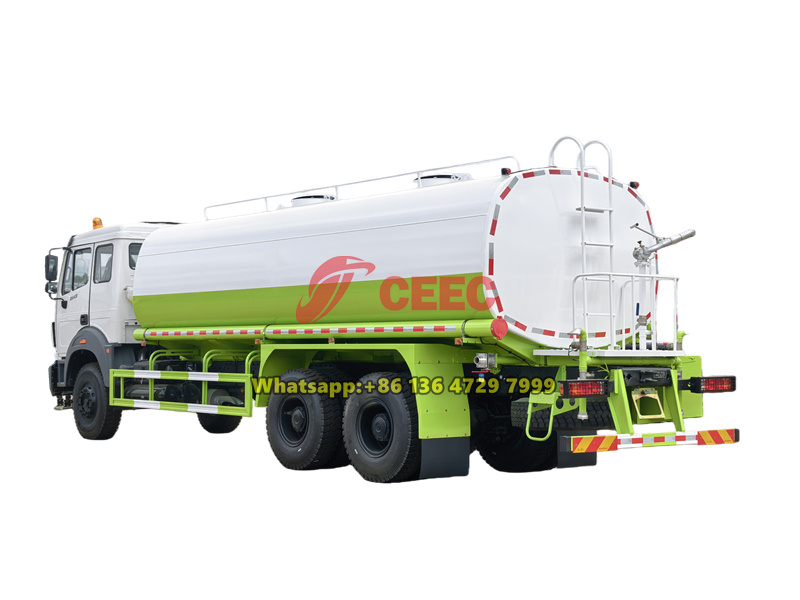

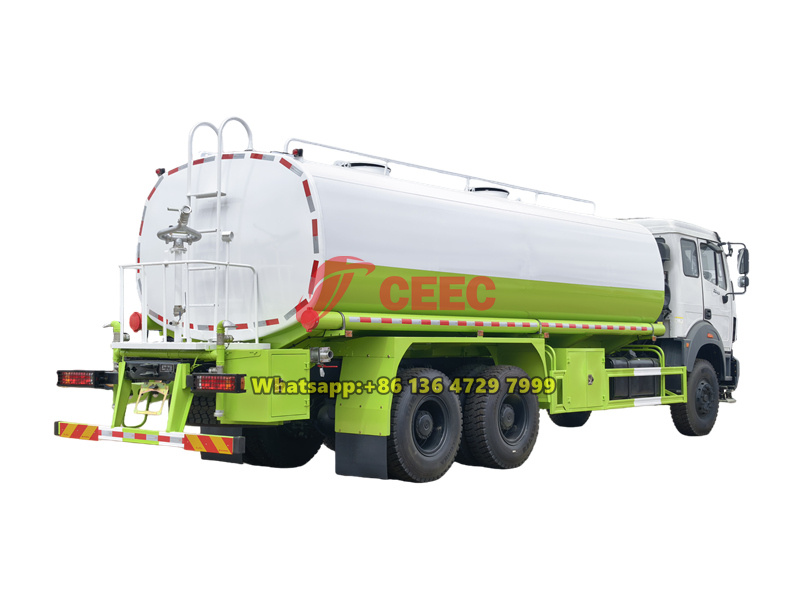

The Beiben 2642 water sprinkler truck is a multi-purpose special-purpose vehicle built on a Beiben 6×4 heavy-duty chassis. It is powered by a WP12 high-performance engine and features a 20,000-liter Q235B carbon steel anti-corrosion tank with internal baffle plates for enhanced driving stability. Equipped with a high-flow self-priming sprinkler pump, a full set of spraying devices, and a rotatable high-pressure water cannon as standard, the vehicle is suitable for road flushing, greenbelt dust suppression, and can also serve as an emergency firefighting unit, adapting to a variety of operational scenarios.
Working Capcity:
20000 litersCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :

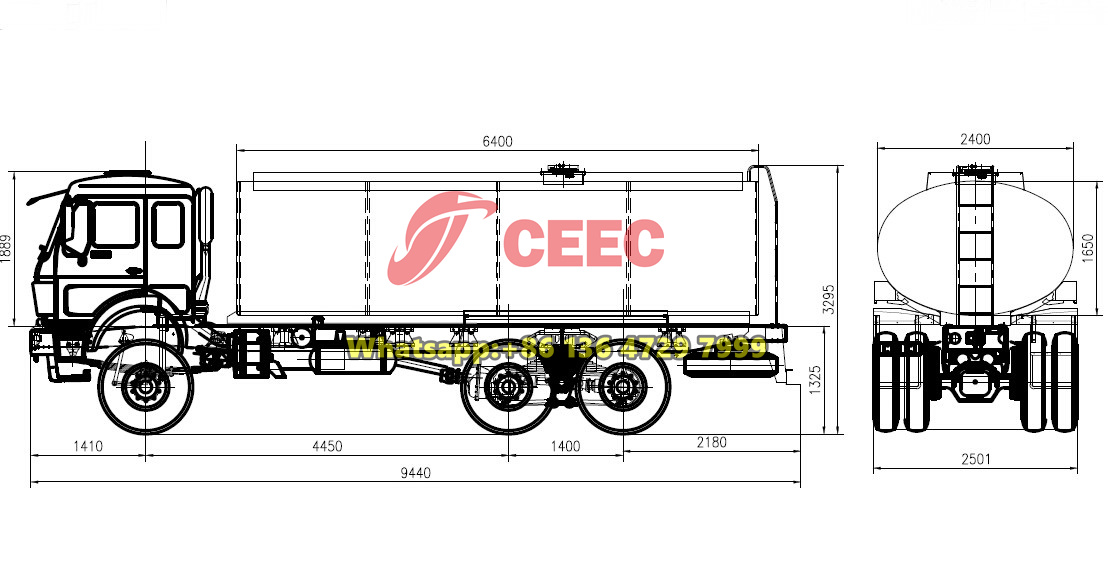

9950×2550×3200Drive System:
6×6, LHDWheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
6×6 drive, RHD, stainless steel water tanker is optionalThe Beiben 2642 water bowser truck is developed on the Beiben 6×4 heavy-duty chassis and powered by a WP12.420E32 in-line 6-cylinder engine, delivering a maximum output of 420 horsepower and a peak torque of 1,750 N·m. It is mated to a 12JS200T manual transmission, ensuring strong power delivery as well as reliable driving stability. The vehicle is equipped with a 20,000-liter carbon steel tank made of high-quality Q235B steel, with built-in baffle plates that effectively mitigate water surge impact, providing excellent load-bearing performance.
This Beiben heavy-duty water tanker truck is fully equipped with a wide range of efficient operating functions. As standard, it features a high-power self-priming sprinkler pump with a suction depth exceeding 7 meters, ensuring high working efficiency. It is also equipped with front flush, rear spray, side sprinkler, and a 360° rotatable high-pressure water cannon, offering broad coverage and long-range spraying. It can meet the requirements of road flushing, greenbelt irrigation, dust suppression, and can also serve as an emergency firefighting unit, making it suitable for municipal, industrial park, and various other applications.
CEEC factory is authorized supplier on Beiben water tanker trucks,
guarantee all Beiben water spraying trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 heavy-duty chassis, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Cabin: Beiben NG80B long cabin, 2 seats and sleeper bed, with A/C
▶ Water Tank: 20000 liters, 5mm thick carbon steel, with baffles and anti-rust treatment inside
▶ Water Pump: China well-known brand water pump, with flow rate 60m3/h

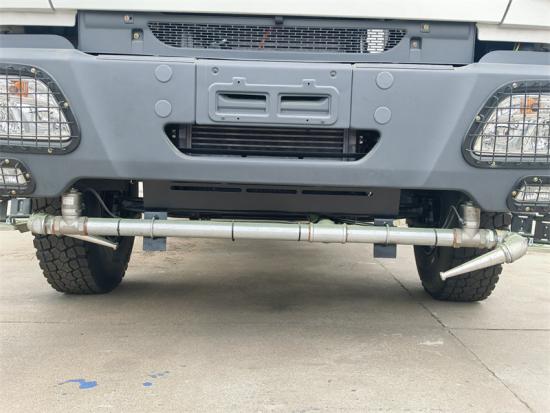

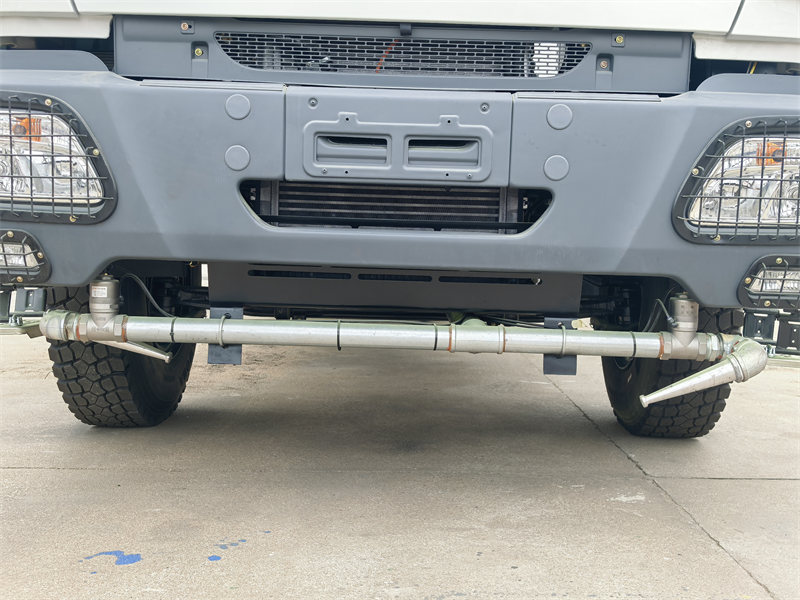

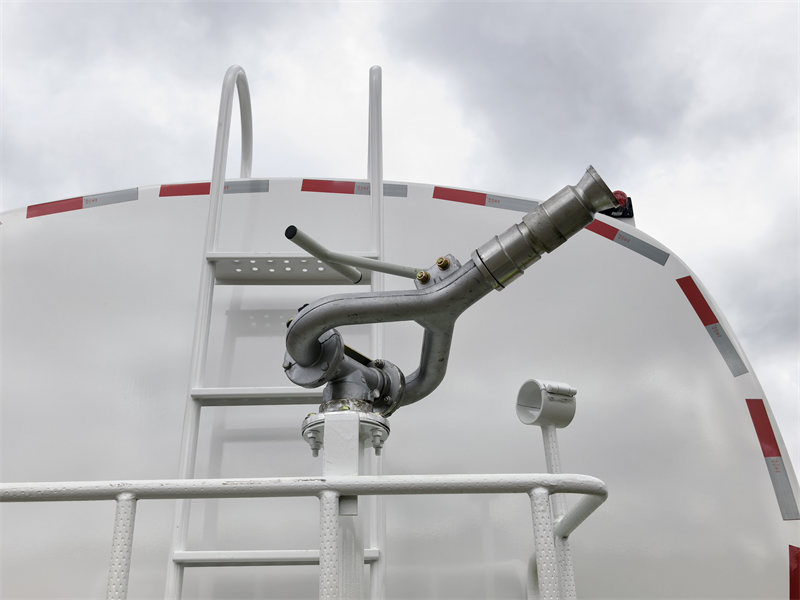

▶ Spray nozzles: Front/rear/side spray nozzles and rear mounted high-pressure water cannon
» Ⅱ. Product Specifications:
|
Basic parameter |
Model |
2642/6×4 |
|
|
Overall dimension(mm) |
9950×2550×3200 |
||
|
Wheel-base(mm) |
4450+1450 |
||
|
Curb weight(kg) |
12500 |
||
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
|
Max. Power (HP/rpm) |
420 |
||
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
||
|
Displacement(lit) |
11.596 L |
||
|
Fuel tank capacity |
400L Iron fuel tank |
||
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
|
Gearbox |
Mechanical, 12JS200T |
||
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
|
Parking brake |
Energy storage spring brake； |
||
|
Assisted brake |
Engine exhaust brake； |
||
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
||
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
||
|
Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
||
|
Tire |
12.00R20, 10+1 pcs |
||
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
||
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
|||
|
Water tank |
Volume |
20000 liters |
|
|
Material |
Carbon steel |
||
|
Water pump |
Model |
80QZ60/90 |
|
|
Flow |
60m ³/h |
||
|
Sprinkler system |
Suction height of Pump |
>7m |
|
|
Full Tank Suction Time |
<15 minutes |
||
|
Sprinkling width of front/rear/side Sprinkler |
≥14m |
||
|
Range of Water Cannon |
≥28m |
||
» Ⅲ. Product Features:
1. Powerful output: Weichai 420 hp engine with 1,750 N·m high torque, delivering strong low-end response for heavy-load climbing without difficulty.
2. Reliable load capacity and driving safety: Dual 13-ton rear axles with reinforced frame; braking system features dual-circuit air brakes, exhaust brake, and spring-loaded parking brake as triple safeguards, ensuring stable braking under heavy loads.
3. Comfortable driving experience: Air-suspension seat, air conditioning, and a single sleeper berth allow shift rest during long-distance operations, with practical basic amenities.

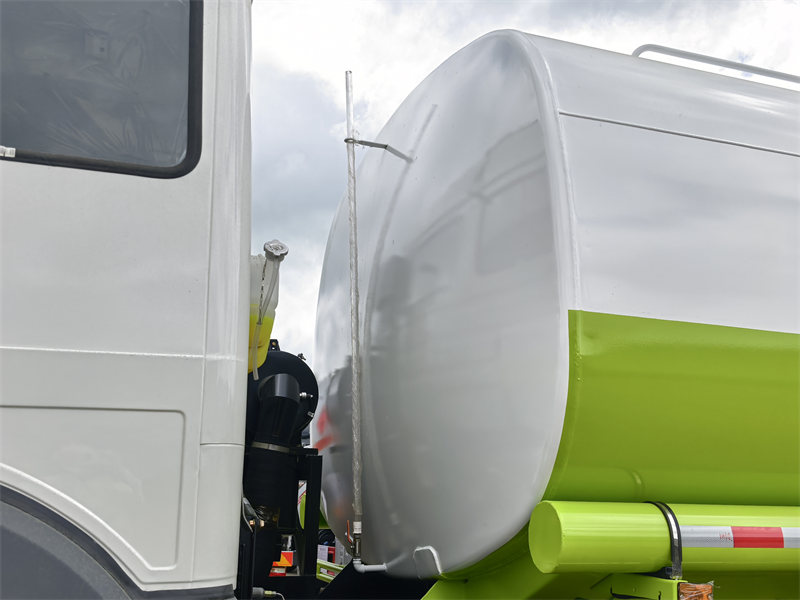

4. Durable and corrosion-resistant tank: Made of Q235B steel with 5 mm wall thickness and 6 mm head thickness, featuring multiple internal baffle plates to reduce liquid surge, offering durability and corrosion resistance.
5. Comprehensive and efficient operation: Self-priming pump with suction depth over 7 meters, sprinkling width ≥ 14 meters, and high-pressure water cannon range reaching over 28 meters, adjustable between jet and mist modes, suitable for flushing, dust suppression, irrigation, and emergency firefighting.
» Ⅳ. Product Details:

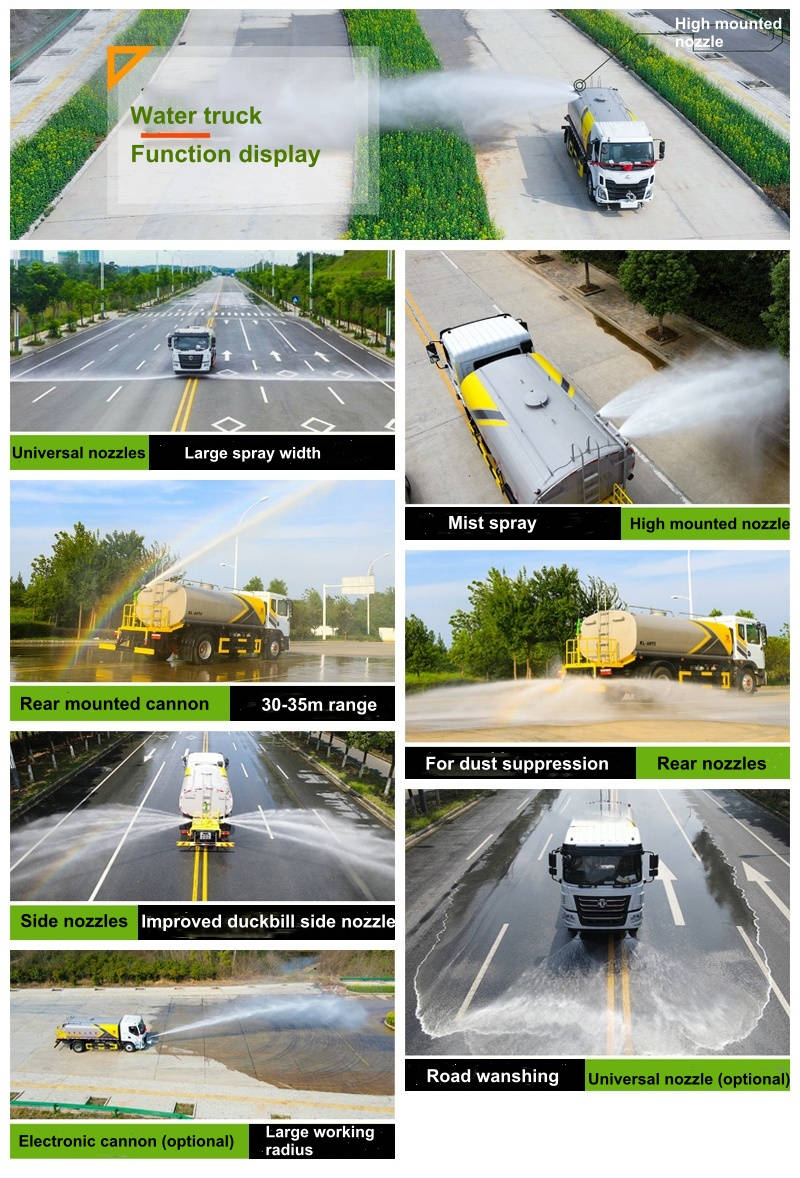

» Ⅵ. Beiben water truck function display:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive water tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters water trucks at best price
3.Front, rear, side spraying nozzles are optional for different applications
4. Carbon steel, stainless steel tank and stainless steel water pump is optional.
