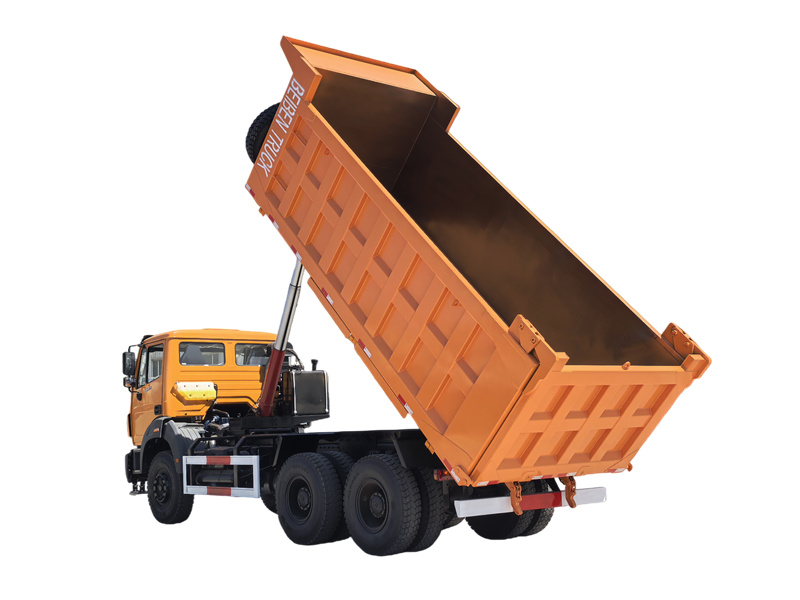

The BeiBen 6×4 dumper truck is powered by a 380 hp Weichai engine and a 9-speed transmission. It features a German-designed tapered frame and Mercedes-Benz technology dual-reduction axles. The cargo body is made of Q345 high-strength steel, with wall plate thickness of 6 mm and bottom plate thickness of 8 mm. The front-mounted lifting hydraulic system achieves a dumping angle of 55°, specially designed for high-intensity heavy-load conditions in mining and infrastructure projects.
Working Capcity:
30 tonsCabin Type:
NG80B short cabinDimension ( mm ) :
8600×2600×3250Drive System:
6×4Wheelbase (mm):
3800+1450Engine Power:
380HP/WP10.380E32Gear Box:
9JS150ARemark:
12.00R24, 14.00R20 tyre, 6×6, RHD drive optionalThe Beiben 6×4 construction dump truck is an engineering vehicle developed for heavy-load operations in mining and infrastructure projects. It is built on the BeiBen 2638KZ chassis, equipped with a 380 hp Weichai engine and a FAST 9-speed manual transmission. The German-designed tapered frame, Mercedes-Benz technology 13-ton dual-reduction axles (gear ratio 5.263), and front-mounted lifting hydraulic system (cylinder diameter 180 mm) ensure excellent load capacity and dumping performance. The cargo body is made of Q345 high-strength steel, with 6 mm thick side walls and 8 mm thick bottom plate, offering outstanding durability, especially suitable for long-term high-intensity earthmoving and ore transportation.
CEEC factory is authorized supplier on Beiben heavy duty dumping trucks,
guarantee all Beiben tipper trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 2638 chassis, NG80B short cabin, Weichai 380HP diesel engine, Fast 9-speed gearbox
▶ Axles: Front axle 7.5T, non-driving steering axle, drum brake；rear axles 13T, double reduction driving axle, speed ratio 5.263
▶ Steering: 8098, circulating ball steering gear, hydraulic booster
▶ Cargo body: 20CBM, Q345 high-strength steel, walls 6mm, floor 8mm

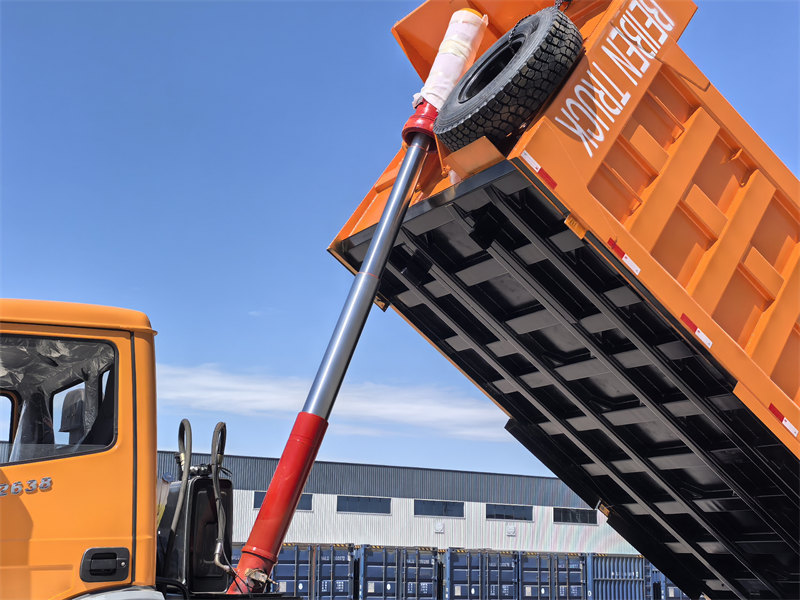

▶ Lifting system: Telescopic hydraulic cylinder, front lifting
» Ⅱ. Product Specifications:
|
Technical Specification |
||
|
Basic parameter |
Chassis model |
2638KZ/6×4 |
|
Overall dimensions (mm) |
8600×2600×3250 |
|
|
Wheel-base(mm) |
3800+1450 |
|
|
Curb weight(kg) |
14700 |
|
|
Cargo box |
Size |
5600×2300×1500 mm |
|
Material |
High strength steel Q345 |
|
|
Thickness |
Walls: 6mm; Floor: 8mm |
|
|
Lifting system |
Front lifting, telescopic hydraulic cylinder diameter 180mm |
|
|
Lifting angle |
55° |
|
|
Engine parameter |
Model (six cylinder in line) |
WP10.380E32 |
|
Max. Power (HP/rpm) |
380 |
|
|
Max. Torque(Nm/rpm) |
1500/1400～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L （Iron） |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
9JS150A+QH50 Mechanical, 9 forward gear, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|
Front and rear suspension |

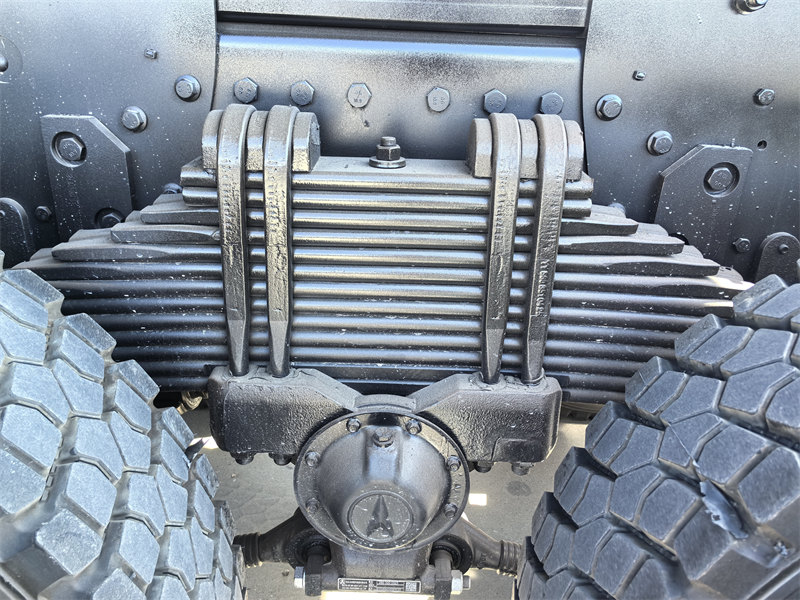

Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |

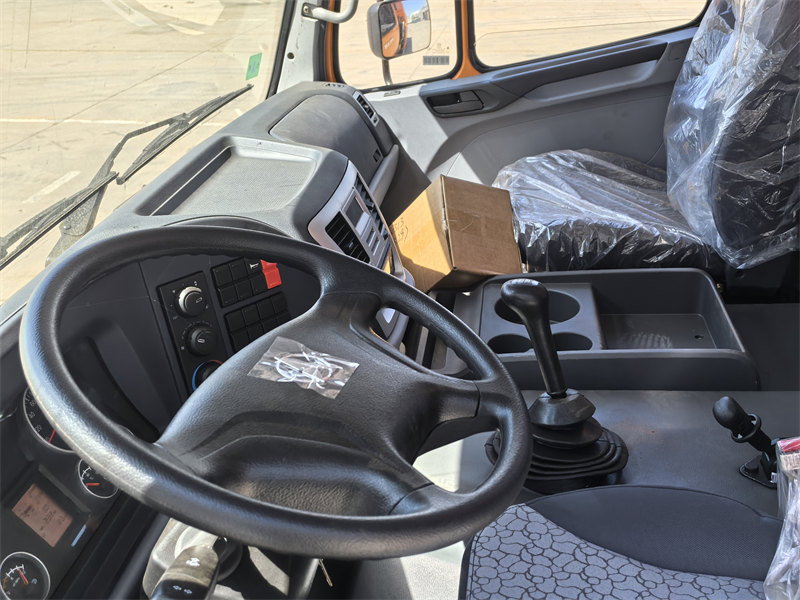

NG80B Short Cabin Flat roof Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
||

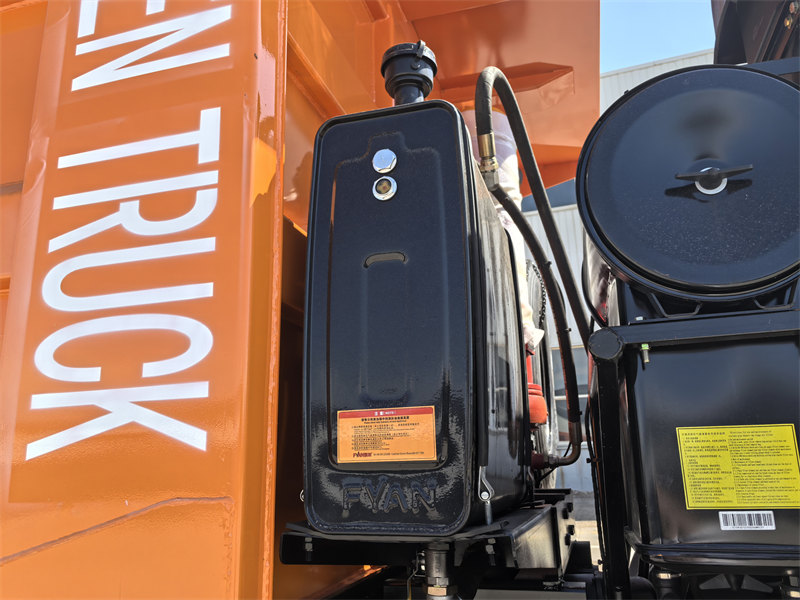

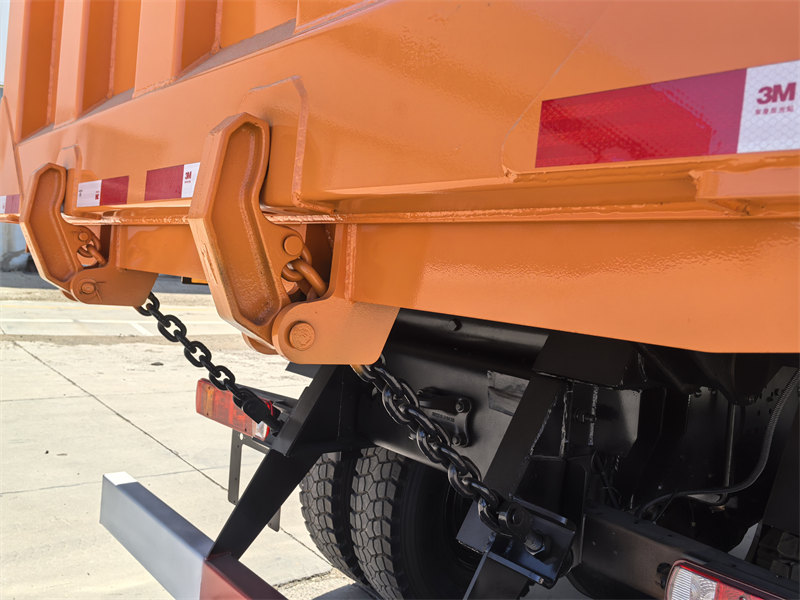

» Ⅲ. Product Details:

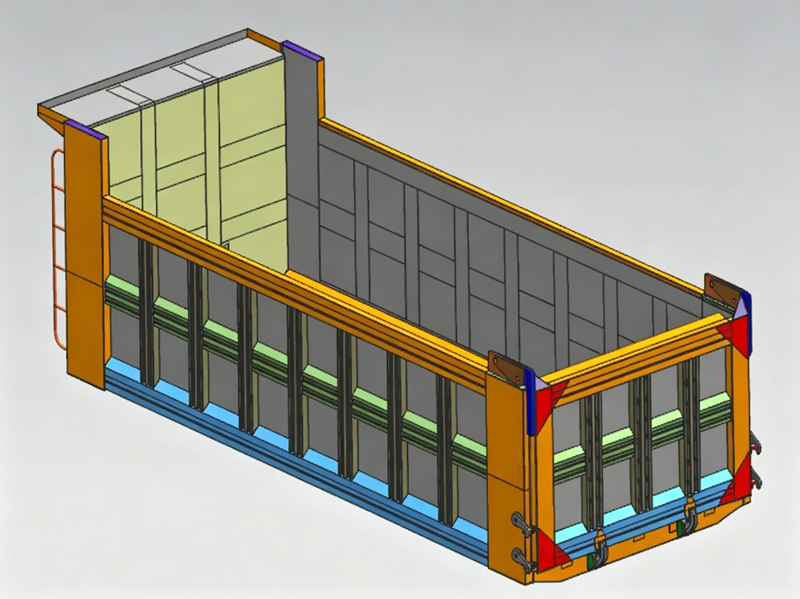

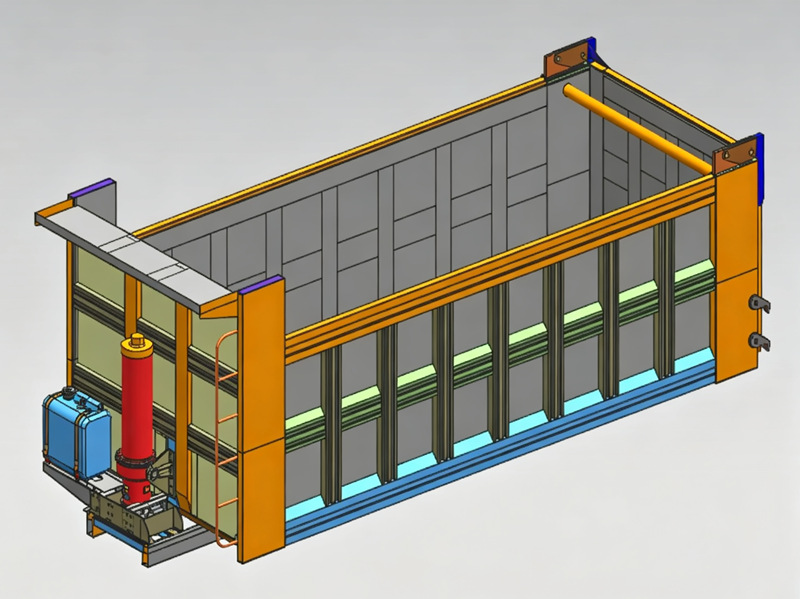

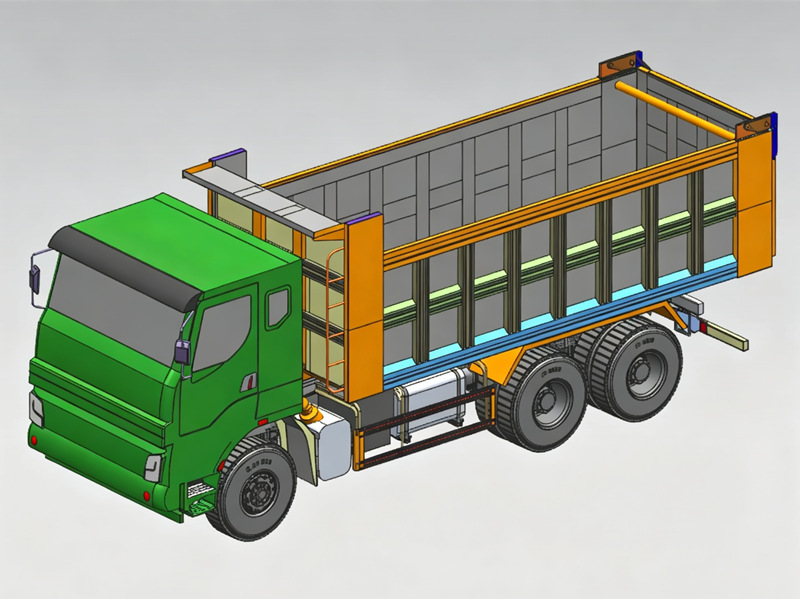

» Ⅳ. Product Drawing
» Ⅳ. Beiben 2638 Tipper Lorry Features
1. Powerful Engine: Equipped with a Weichai WP10 series 380 hp engine, delivering a maximum torque of 1500 N·m, with strong low-speed climbing ability, ideal for heavy-load starts and complex road conditions.
2. Sturdy Chassis: Features a German-designed front-wide, rear-narrow tapered frame with excellent torsional resistance; paired with reinforced leaf springs for high load capacity.
3. Reliable Load Capacity: Standard with Mercedes-Benz technology 13-ton wheel-hub reduction axles (gear ratio 5.263) and 12.00R20 tires, suitable for muddy, gravel, and other harsh road conditions.

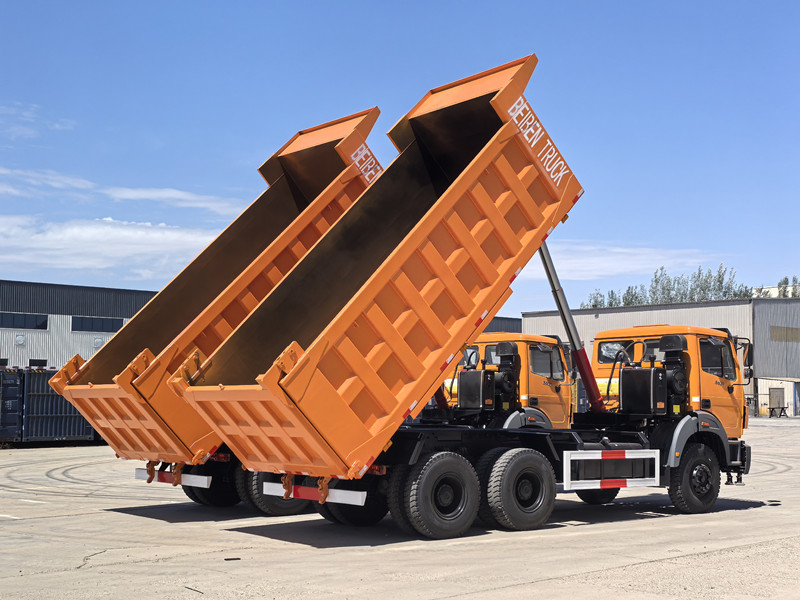

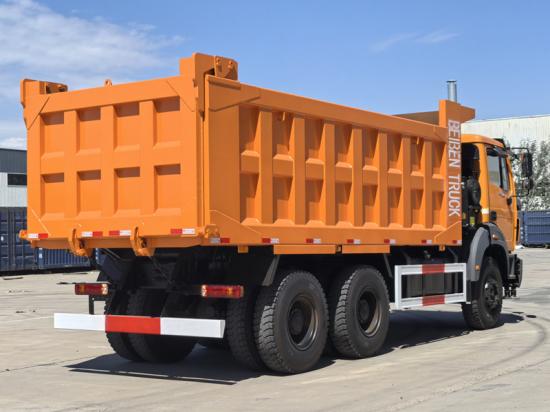

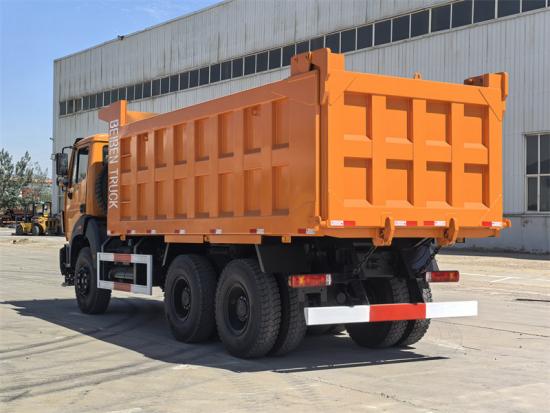

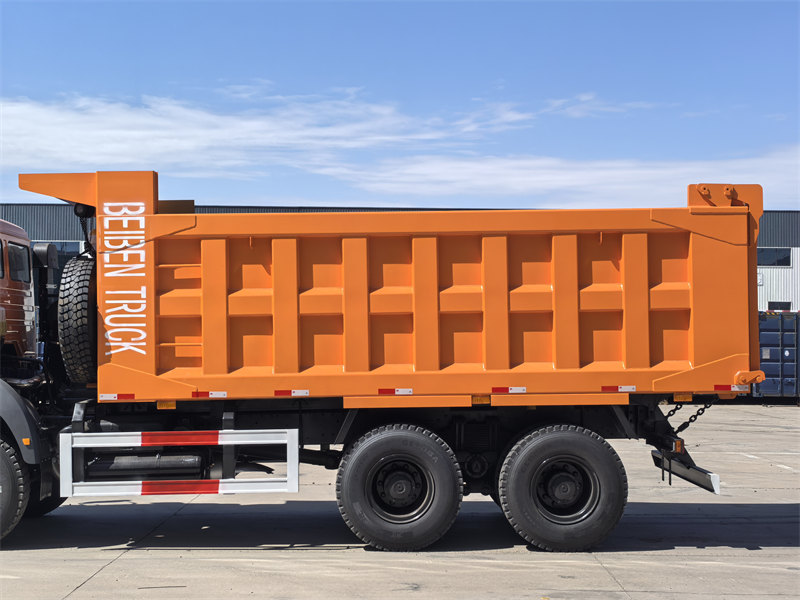

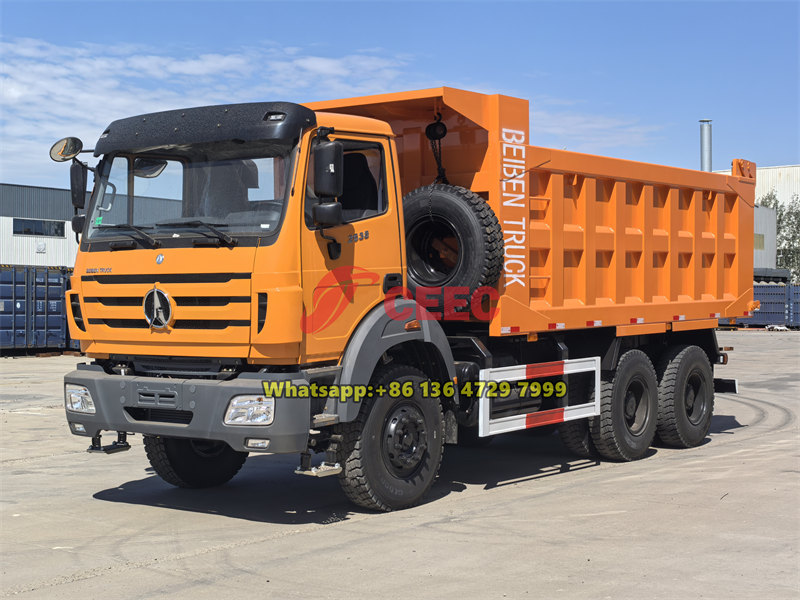

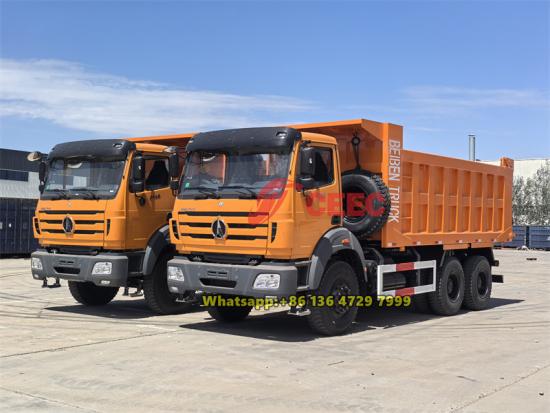

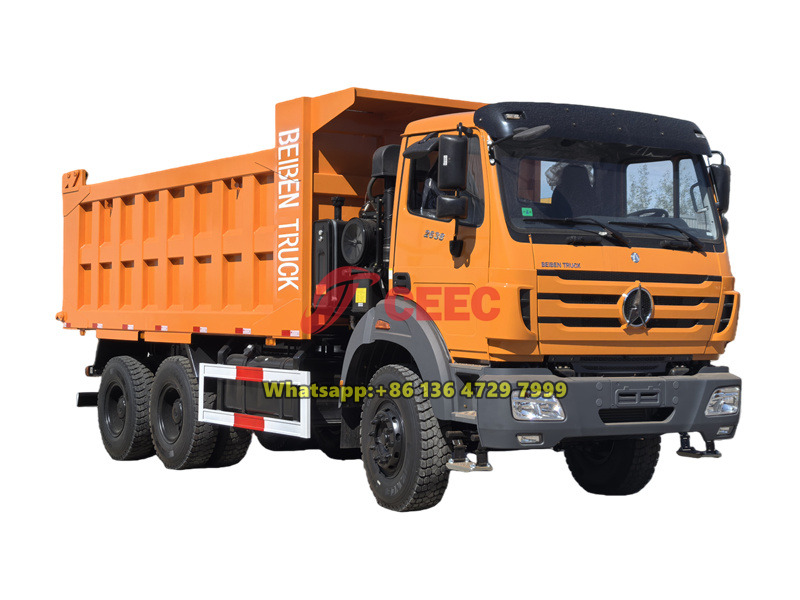

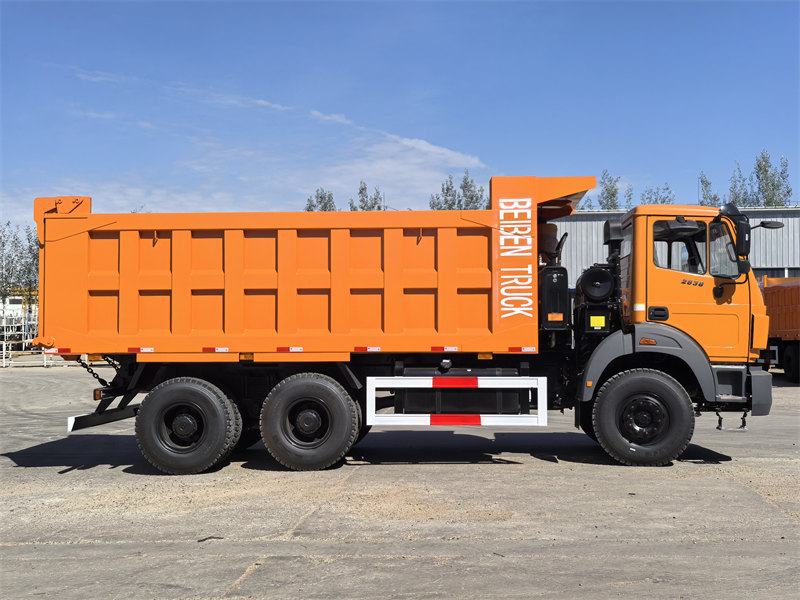

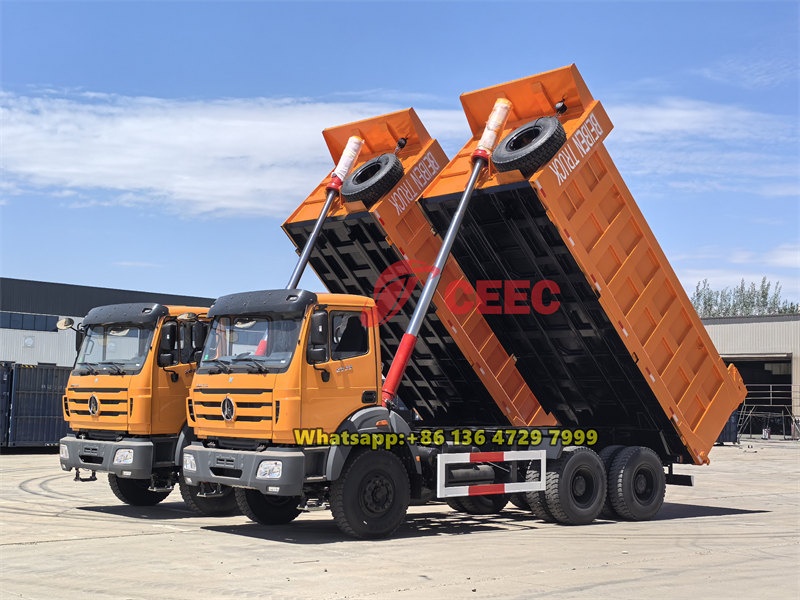

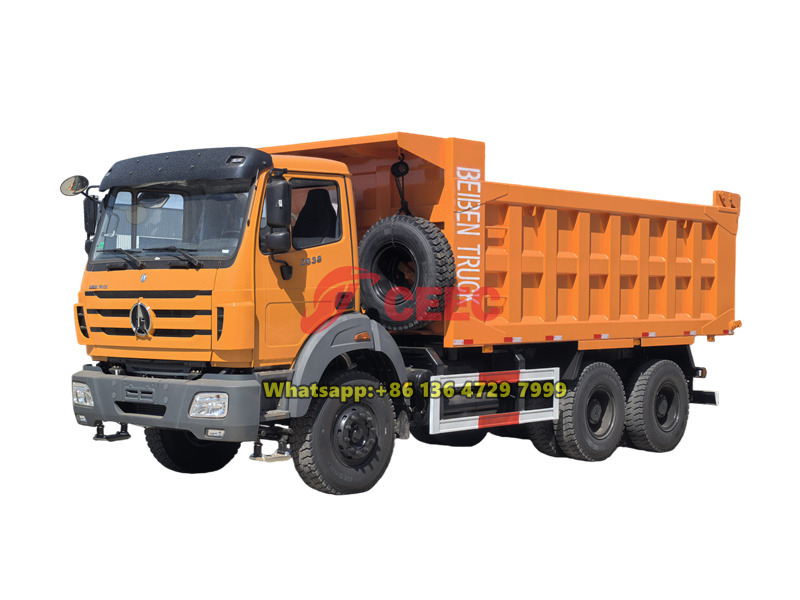

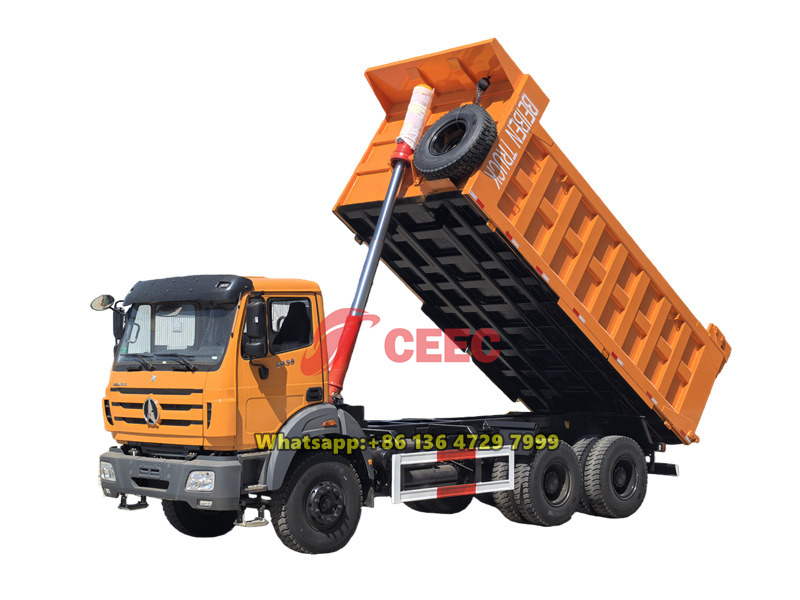

»Ⅴ. Beiben 2638 Heavy Tipper Truck Pictures
 |
 |
 |
 |
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x4, 6x6, 8x4 drive tipper truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
As the biggest manufacturer of NG80B 380 hp dump trucks ,we continue designing the super quality for beiben NG80B 10 wheeler dump truck. Beiben NG80B 380 hp dump trucks are with china famous weichai diesel engine, 6*4 driving sytem and fast 12 shift transmission.
North Benz 2538 K dump truck for sale , weichai 380 Hp diesel engine fast 9 shift transmission ,12,00R20 radial tires , HYVA 157 lifting system
Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.
China beiben 380 hp dump truck manufacturer, 6*4 driving system, weichai brand 380 diesel engine, fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre. 20 CBM dump cargo box capacity.
beiben 50 T heavy duty dump truck,The unique structure of the tray is part of the essence of beiben dump truck, the structure to replace the traditional side frame dumper, cancelled the container underframe,U shaped and U shaped container tightly combined tray,enlarge the contact area
Beiben 6*4 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , With 10 years experience in beiben dump trucks producing experience, Germany benz technology axle, and Q550 steel cargo box.
Beiben 2638 6×4 dump truck, equipped with WEICHAI 280kw/380hp engine, FAST 9JS180 gearbox, 9 forward gears and 1 reverse gear, has strong power and flexible speed selection. The vehicle adopts a short cab design, with a maximum length of 9880mm and a cargo box size of 5600mm×2500mm×1500mm, which can meet various engineering transportation needs. It has excellent safety performance and is equipped with a dual-circuit compressed air brake system, making it a powerful assistant in engineering projects.
