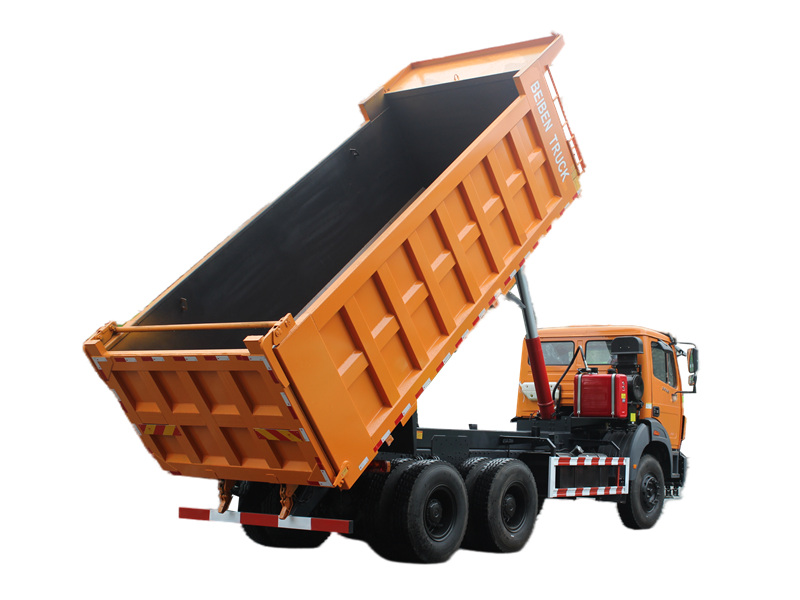

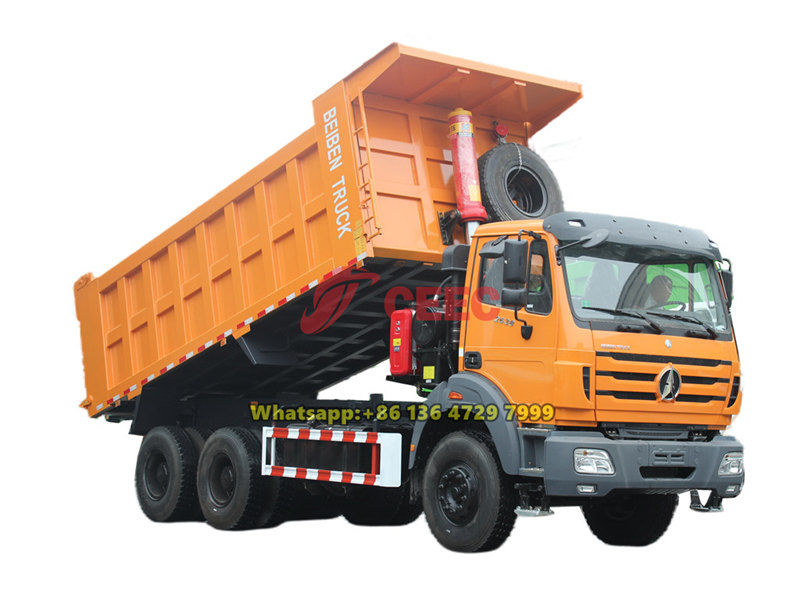

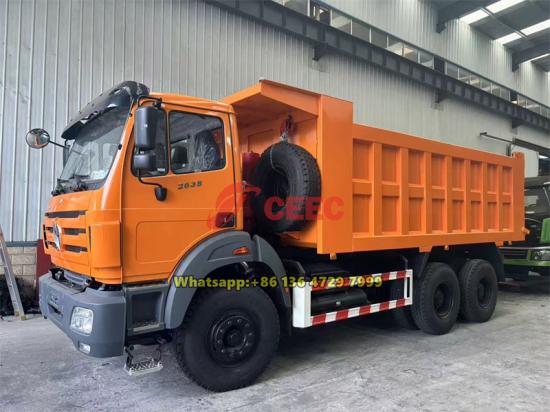

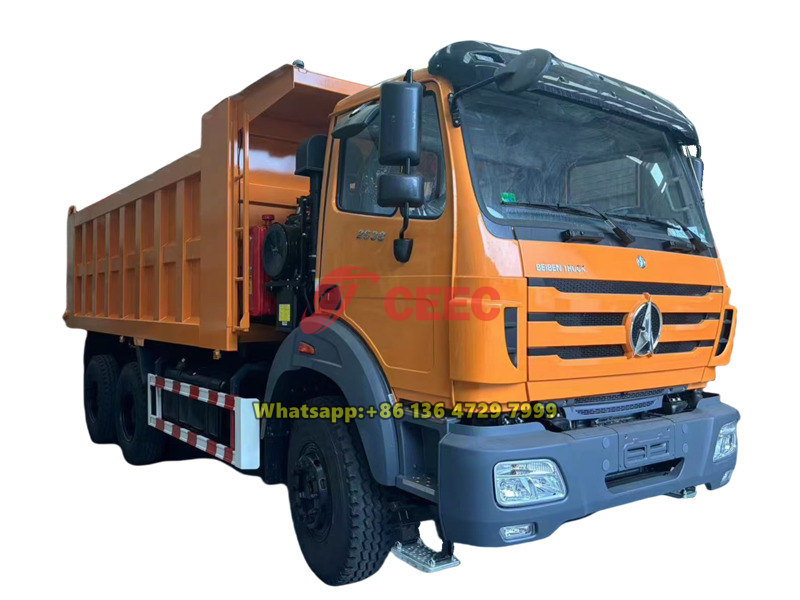

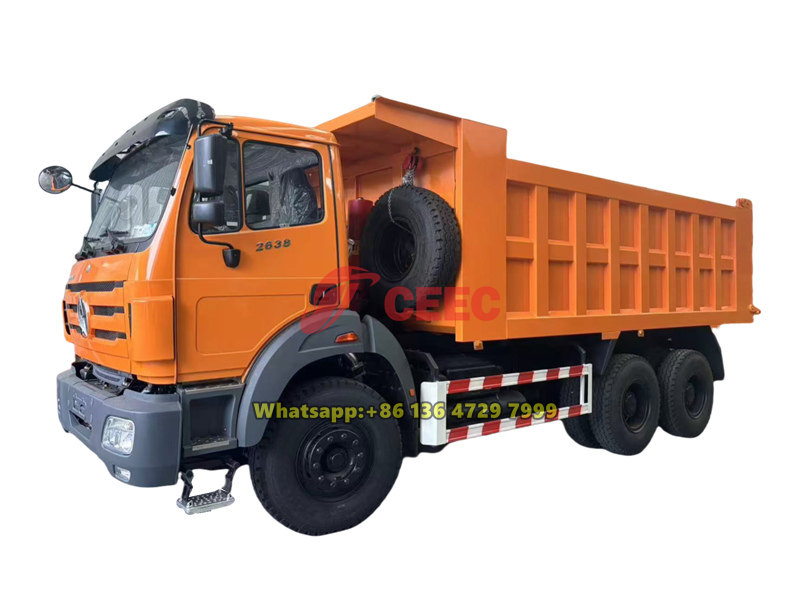

The Beiben 2638 dump truck is a high-performance 6×4 heavy-duty engineering vehicle. It is equipped with a 380-horsepower engine and has an effective load capacity of over 30 tons. Its robust cargo box is specially designed for heavy-load working conditions. The vehicle has a strong climbing capacity of 30%, enabling it to easily handle harsh road conditions such as construction sites and mining areas. With its excellent load-bearing capacity and passability, the Beiben 2638 tipper truck has become a reliable partner in various earth and stone transportation tasks.
Working capcity:
30 tonsCabin type:
NG80B short cabinDimension ( mm ) :
8600×2600×3250Drive system:
6×4Wheelbase (mm):
3800+1450Engine power / Model:
380HP/WP10.380E32Gear Box:
9JS150ARemark:

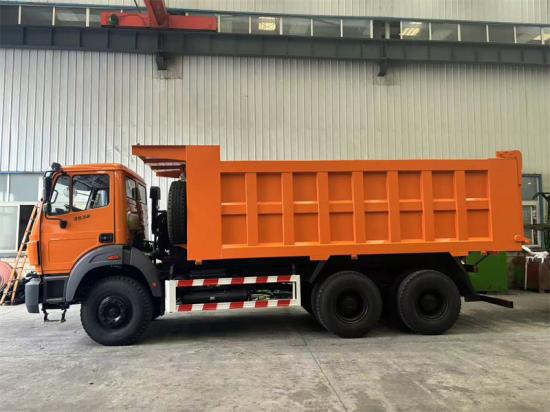

12.00R24, 14.00R20 tyre, 6×6, RHD drive is optionalBeiben 2638 construction dump truck is a heavy-duty vehicle specially designed for construction transportation, with its core features being strong load-carrying performance and adaptability to harsh road conditions. The vehicle adopts a short-cab layout, is equipped with a 380-horsepower Weichai engine and a 9-speed gearbox, and has a load capacity of over 30 tons. Its 5600×2500×1500mm cargo box adopts a front-top dump design, combined with a reinforced steel plate structure, ensuring reliability and operational efficiency under heavy-load working conditions.
The Beiben 2638 heavy-duty tipper truck has outstanding advantages in performance. Its 30% climbing capacity and maximum speed of 80km/h allow it to flexibly cope with complex road conditions such as construction sites and mining areas. The entire vehicle uses Mercedes-Benz technology axles and a reinforced suspension system, combined with 12.00R20 engineering tires, ensuring stability during heavy-load transportation. With its solid load-bearing performance and passability, this Beiben tipper lorry has become an indispensable transportation equipment in infrastructure construction.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
Efficient and reliable Beiben trucks
» Ⅱ. Product Specifications:
|
Drive Type |
6x4 LHD |
|
Cab Type |
Beiben NG80B Short Cabin |
|
Equipment |
With Air Condition, no bed |
|
Weight |
|
|
Kerb mass(kg) |
12800 |
|
GVW(kg) |
26000 |
|
Dimensions |
|
|
Max. length(mm) |
8600 |
|
Max. width(mm) |
2600 |
|
Max. height(mm) |
3250 |
|
Front/Rear overhang(chassis) |
1435/1600 |
|
Wheel base(mm) |
3800+1450 |
|
Track width(mm) |
1995/1808 |
|
Box size |
|
|
Length (mm) |
5600 |
|
Width (mm) |
2500 |
|
Height (mm) |
1500 |
|
Thickness of Steel |
Floor 8mm, side 6mm |
|
Tipping type |
Front tipping |
|
Performance |
|
|
Max. speed (km/h) |
80 |
|
Max. gradeability (%) |
30 |
|
Approach/Departure angel (°) |
26/32 |
|
Engine |
|
|
Brand |
WEICHAI BRAND |
|
Model |
WP10.380E32 |
|
Power (kw/hp) |
280kw/380hp |
|
Max torque (N.M)/rpm |
1460 |
|
Displacement (L) |
9.726 |
|
Emission Standards |
Euro III |
|
Transmission |
|
|
Brand |
FAST |
|
Model |
9JS150A |
|
Control type |
Manual |
|
Gear Shift |
9-forward & 1-reverse speeds |
|
Clutch |
|
|
Type |
Single plate, diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
Action |
Hydraulically operating with air assistance |
|
Brakes |
|
|
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
Park Brake |
Power spring brake acting on rear wheel |
|
Auxiliary Brake |
WEVB |
|
Steering |
8098 Recirculating ball steering gear, hydraulic booster |
|
Chassis |
Ladder structure with parallel straight |
|
Dimensions (mm) |
300x90x8+6+8 |
|
Suspension |
|
|
Front |
Longitudinal leaf spring |
|
Rear |
Inverted leaf spring stabilizator suspension |
|
Axles |
BENZ TECHNOLOGY |
|
Front |
BENZ TYPE: 7.5 tons |
|
Rear |
BENZ TYPE: 13tons |
|
Ratio |
5.921 |
|
Tyre |
12.00R20 radial tire |
|
Fuel tank |
|
|
Tank capacity(L) |
400 |
|
Material |
Iron |
|
Electrics |
|
|
Type |
24V |
|
Starter |
5.58kw (24) |
|
Generator |
2.0kw (28V 70A) |
|
Battery |
2x135Ah |
» Ⅲ. Product Advantages:

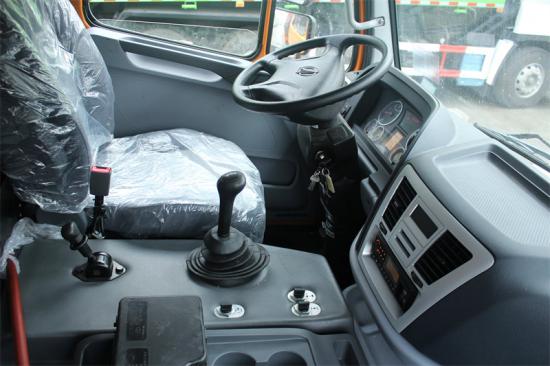

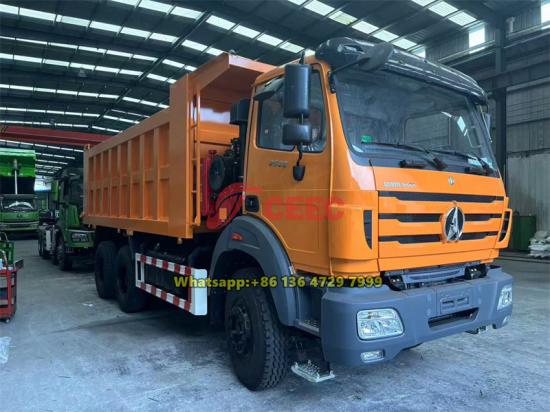

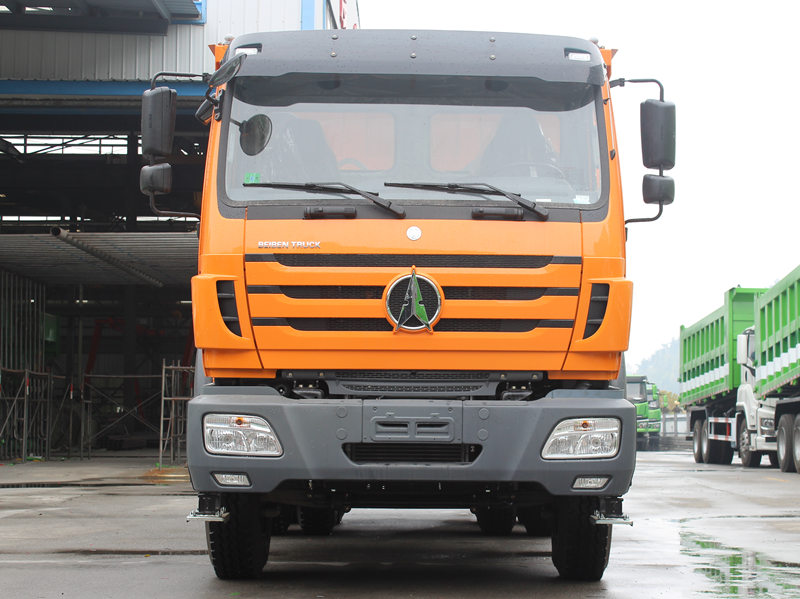

NG80 Cab
The NG80 cab features a semi-floating suspension system with highstructural rigidity and energy absorption, providing enhanced driverprotection.
WEICHAI Engine
The Beiben tipper trucks are equipped with Weichai engines, known for their strong reliability and high-performance output. The engine power can be 340HP, 380HP and 420HP.
Reinforced Chassis
Benz frame technology with proven load-bearing performance
Dual reduction drive axle technology licensed from Benz
Integrated balance suspension system based on Benz design

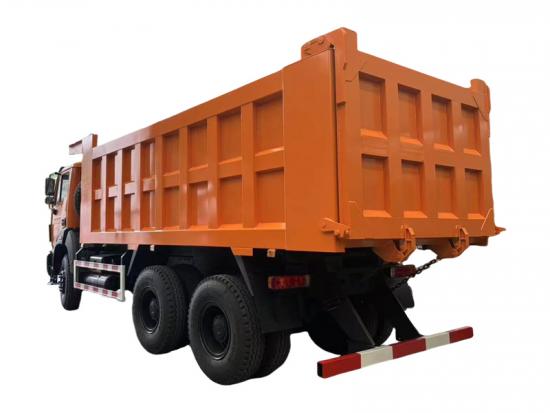

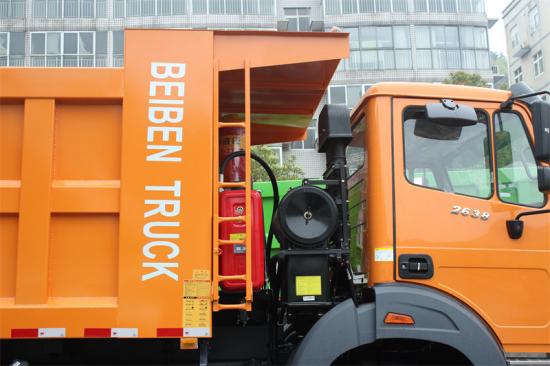

Cargo Box
The cargo box is made of high-strength steel plate, with 6mm side walls and 8mm floor, offering superior strength, wear resistance, and corrosion resistance compared to ordinary carbon steel plate cargo box.

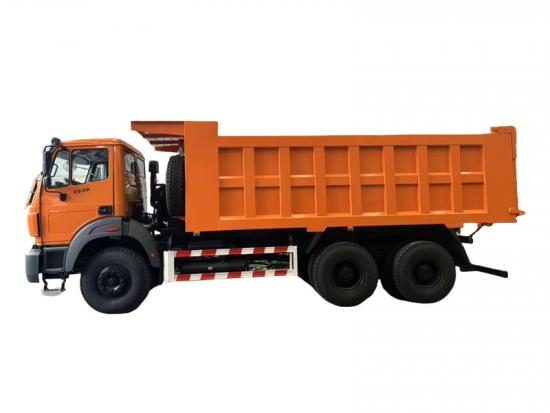

» Ⅳ. Product Drawing

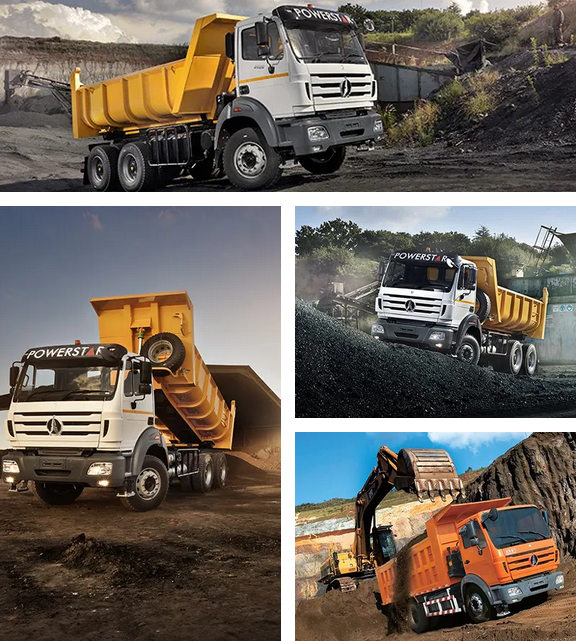

» Ⅴ. Product Applications
1. Construction sites: It efficiently transports and unloads construction materials such as sand, gravel, concrete and bricks, meeting the needs of rapid construction at construction sites.
2. Residue cleaning: It is used to clean up residue, construction waste, etc. in cities, ensuring the cleanliness and safety of roads.
3. Ore transportation: It undertakes the transportation task of heavy materials such as ore and coal in the mining industry, improving production efficiency.
4. Garbage disposal: It is responsible for collecting and transferring domestic garbage and waste, and is a key link in maintaining the environmental hygiene of cities.
5. Building materials transportation: It specially transports bulk building materials such as cement and steel, and its rapid unloading capacity can effectively save time and labor.
