Beiben 1840 prime mover

Product Details

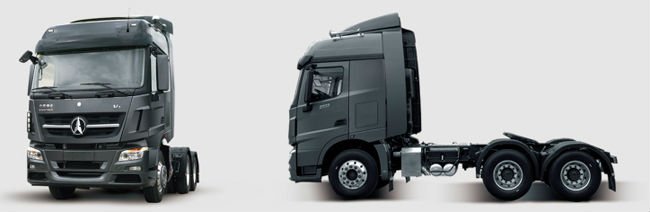

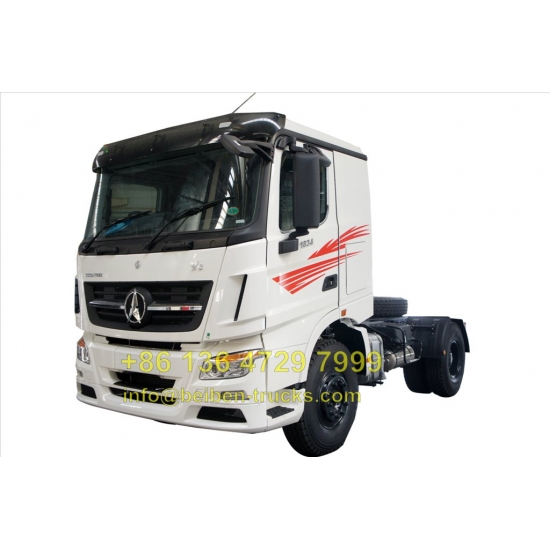

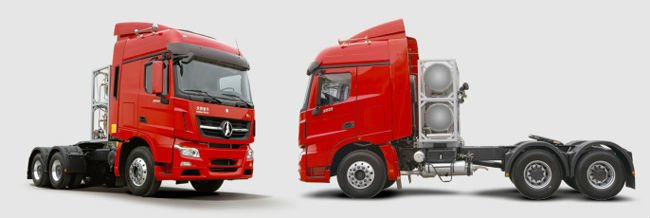

Beiben V3 1840 prime mover

beiben 1840 tractor truck supplier

Function:


Heavy duty Construction,  Mining and quarries,

Normal material transportation

Dry Bulk,  Building Material, Waste

Agriculture,  FreightPlant Hire, Military


Kenya and tanzania best supplier of beiben V3 cabin 4*2 tractor truck and 6*4 tractor truck. we supply beiben 1834,1840,1842 heavy duty tractor truck. Customrized beiben LHD and RHD V3 cabin tractor trucks.


Feature:

German BENZ actros CABIN .The beiben V3 tractor truck cabin was designed by the same design team of the Mercedes Actros, and is similar to the Actros. Clean, simplistic and comfortable with a full sleeper cabin.


World famous  Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12 engine is designed with Austria's AVL and utilizes BOSCH Common Rail as its fuel system, similar to MAN and Cummins.


ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT

Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle.  The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.


ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania and Volvo trucks.



Specification:


Similar key words beiben 1840 V3 tractor truck, beiben V3 1840 tractor truck, beiben V3 1840 tractor truck, north benz V3 tractor truck supplier, kenya beiben V3 tractor.

China famous brand beiben 2528 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Beiben 1840 V3 prime mover

Dimension 6100*2500*3600mm
Approaching angle/Departure angle 16/43°
Overhang(front/rear) 1515/1085mm
Wheel base 3500mm
Max speed 110km/h
Curb weight 5800kg
Standard towing weight 34260kg
Max loading on fifth wheel, Permitted(kg) 12070kg
Slope climbing capability Max.40%
Engine Model WP12.400,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 11.596L/Diesel
Stroke 126/155mm
Max. power 290/1900 (kw/rpm)(375 HP)
Max.torque 1800/1000-1400(Nm/rpm)
Emission stantard EuroV with OBD
Fuel tanker capacity 300L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting.WABCO Clutch
Gearbox 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension
Rear Non-free standing stablization spring, balance suspension system
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system D50,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
The Fifth wheel Model JOST ∮90 single direction
Height of fifth wheel(mm) (unload) 1410
Radius of front gap (mm) 2300
Radius of rear slew (mm) 2600
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 315/80R22.5
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

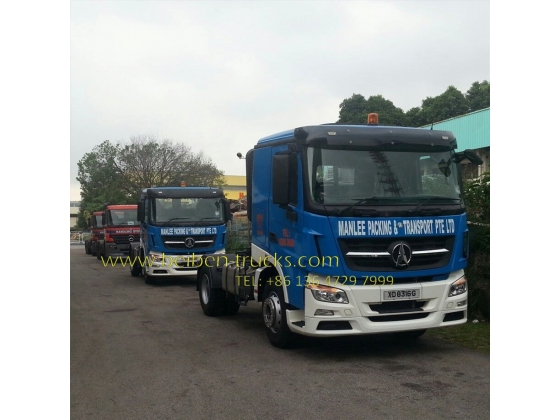

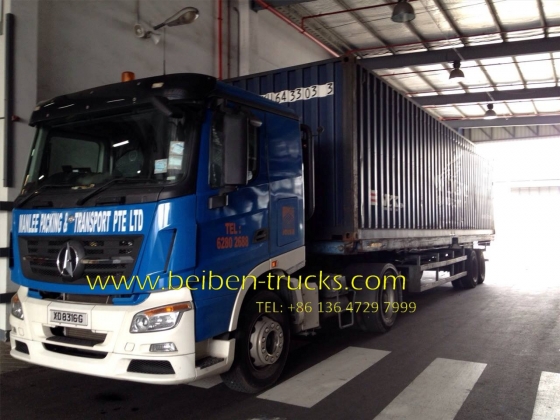

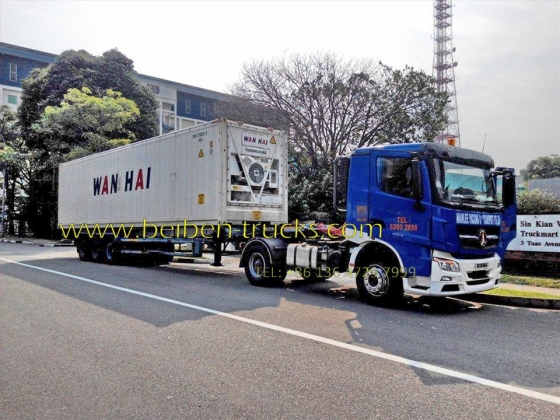

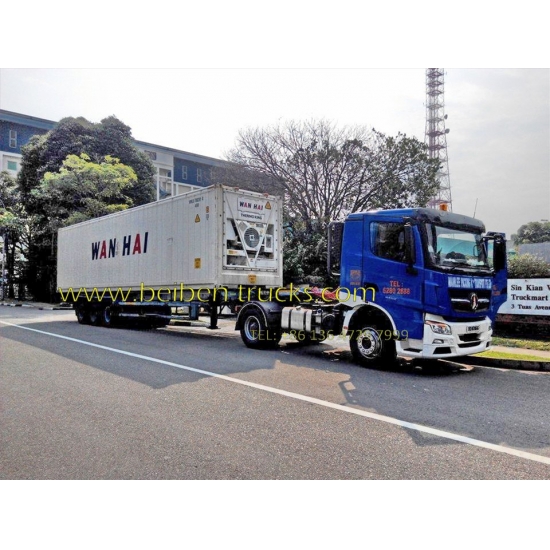

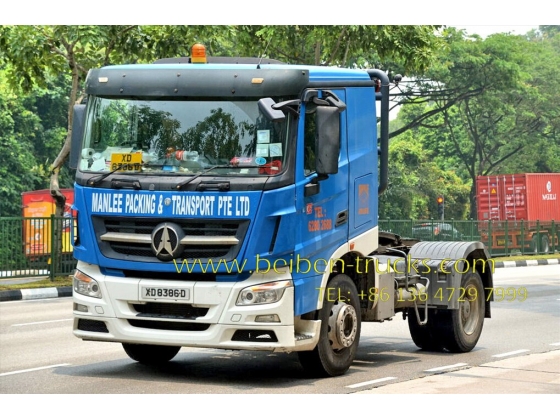

beiben 1840 tractor truck supplier

beiben 1840 tractor truck supplier

beiben 1840 tractor truck supplier



North benz V3 tractor truck exporter and supplier.

Beiben tracteur camions and semitrailer

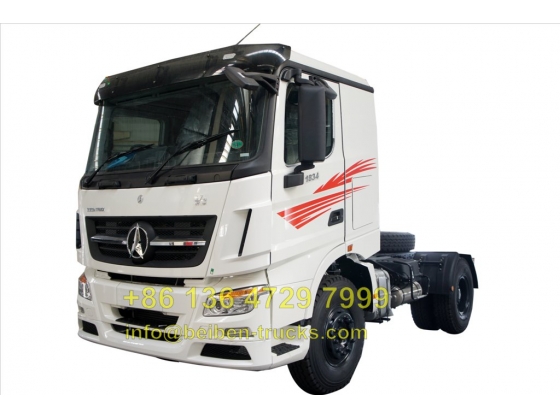

NextBeiben V3 1834 tractor truck
