340hp Beiben camion benne 10 roues for Congo
Product Details

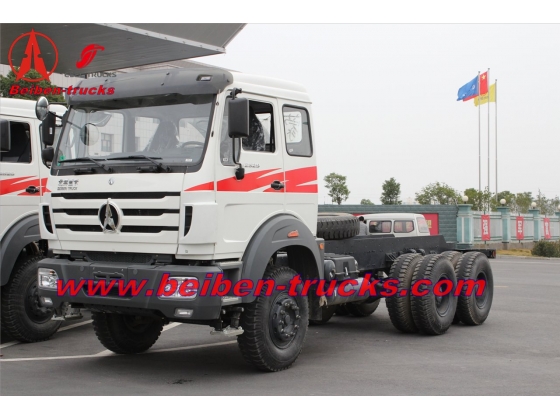

BEIBEN CAMION BENNE 10 ROUES FOR CONGO
| 2534KY /6×4/4450+1450/Long Cab/LHD | ||||||
| Dimension | 9110*2500*3430mm | |||||
| Upper body inner dimension | 6500x2300x1050 sand body, Hyva hydralic lifting system,thickness: bottom 8mm, side 6mm | |||||
| Approaching angle/Departure angle | 26/45° | |||||
| Overhang(front/rear) | 1410/1800mm | |||||
| Wheel base | 4450+1450mm | |||||
| Max speed | 85km/h | |||||
| Curb weight | 12190kg | |||||
| Loading capacity | 12680kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.340E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 250/2200 (kw/rpm) | |||||
| Max.torque | 1350/1200-1600(Nm/rpm) | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | 430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated, | |||||
| Gear ratio of gear box | 12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00 R:13.14 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | ZJ120D,whole circulation in ball, hydraulic booster | |||||
| Frame | Strengthened Streight beam | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B Long cabin with single sleeper ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
|||||
