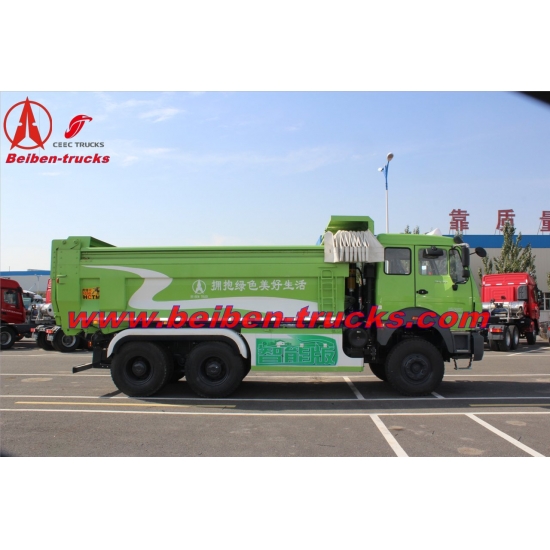

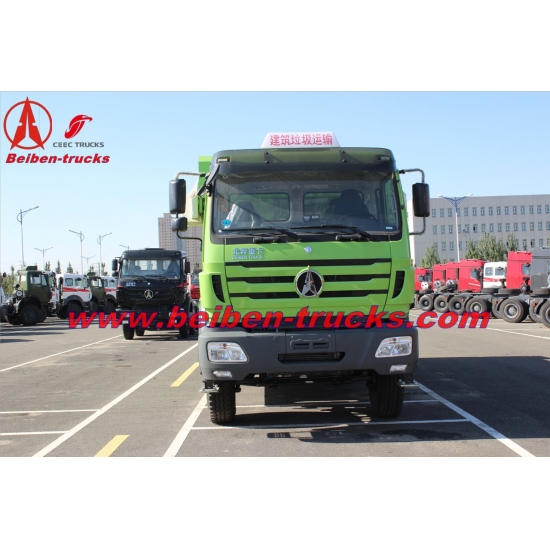

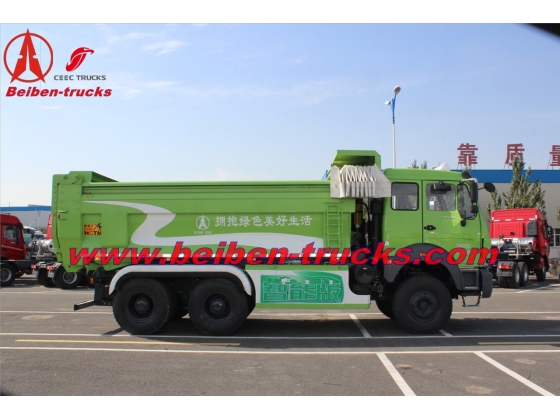

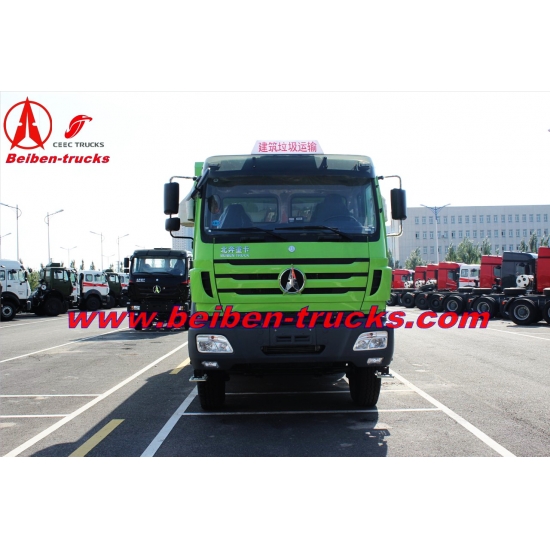

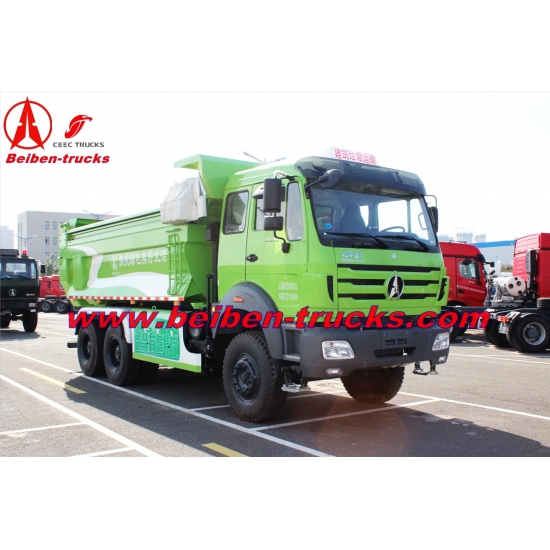

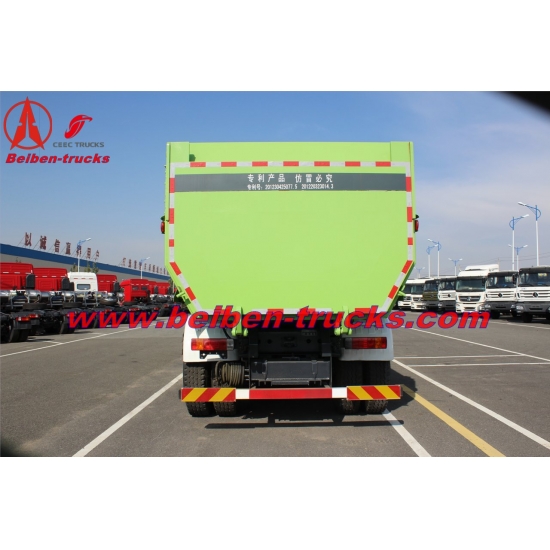

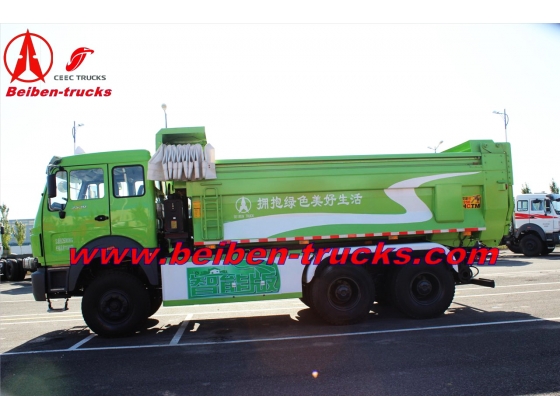

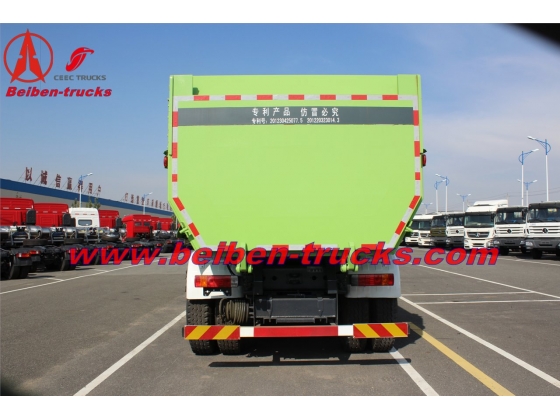

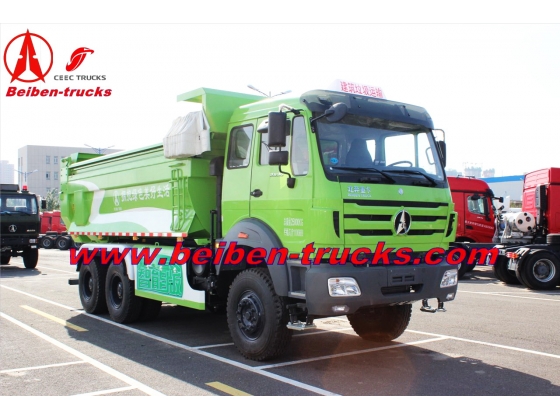

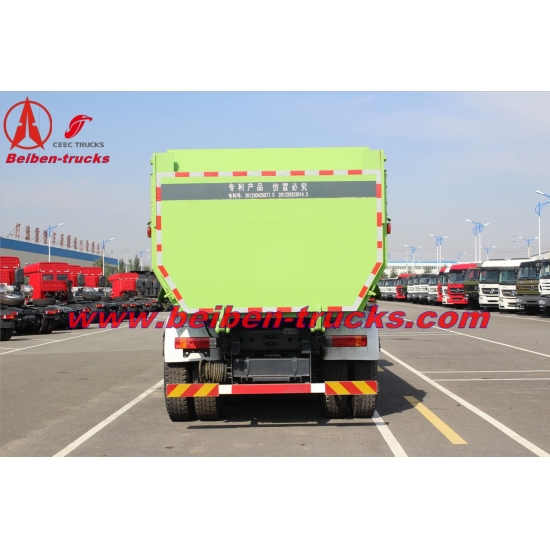

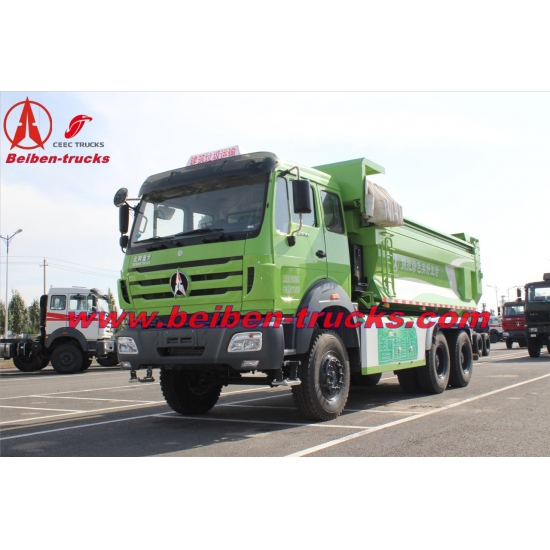

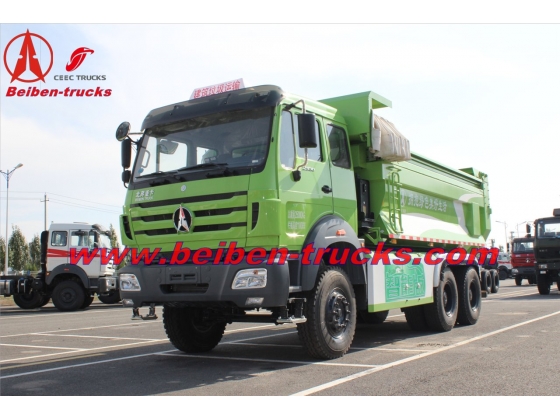

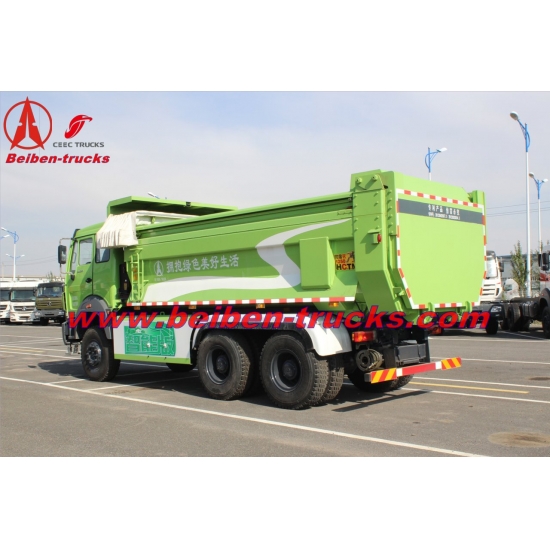

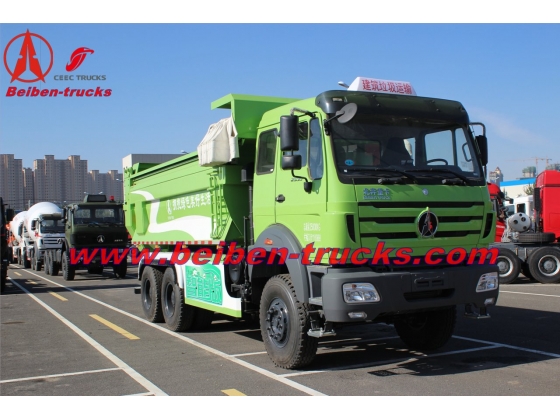

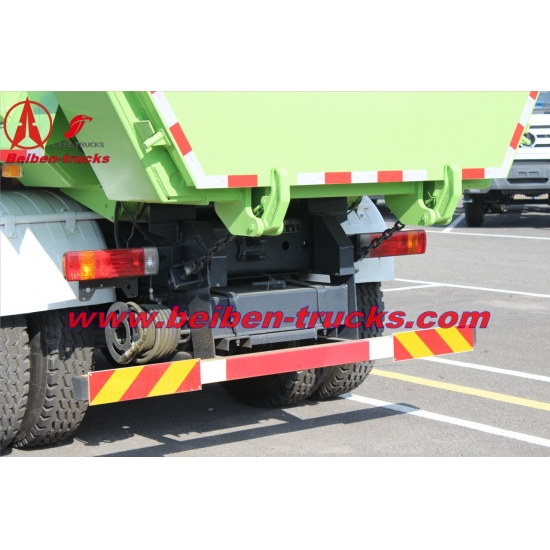

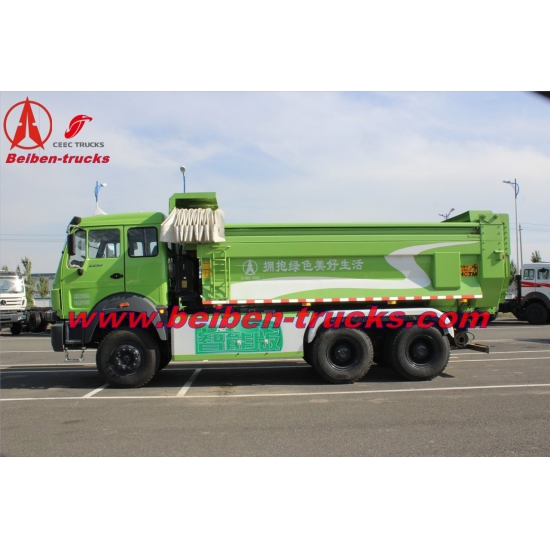

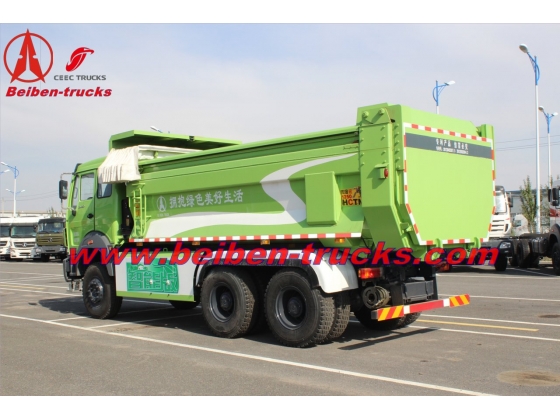

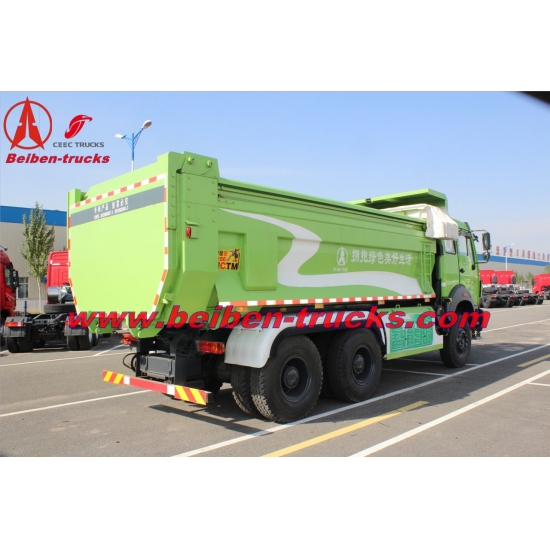

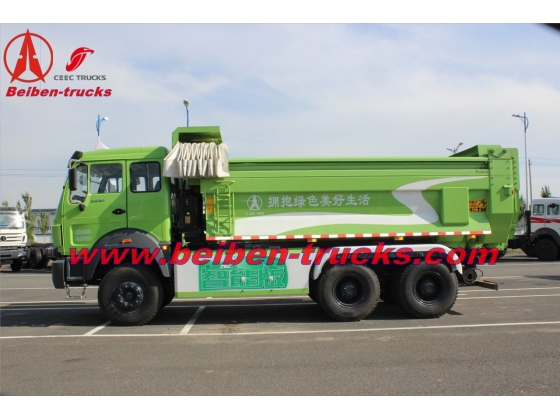

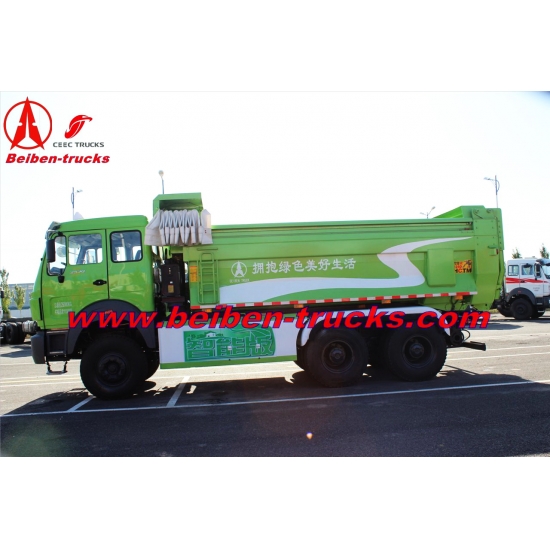

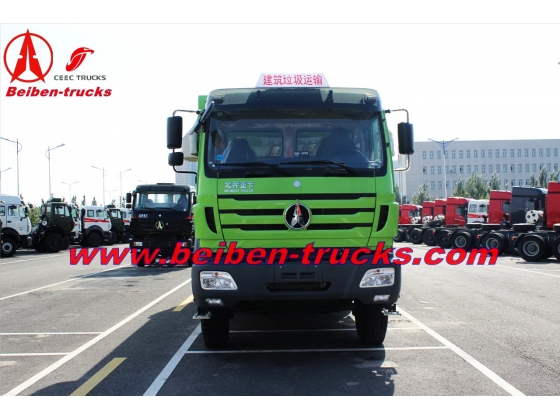

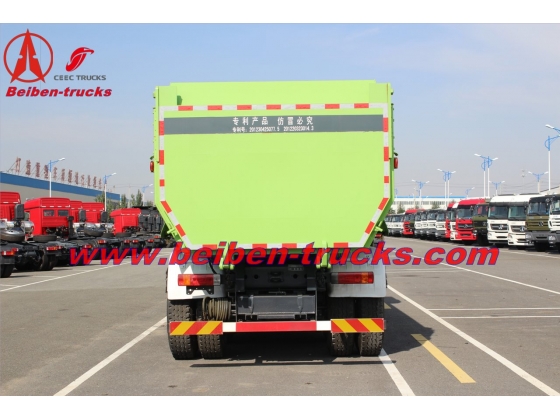

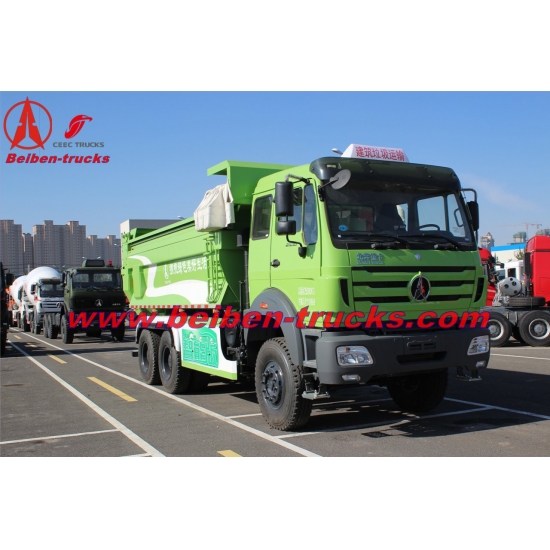

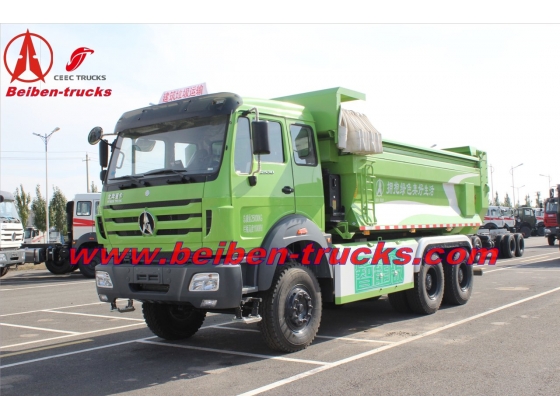

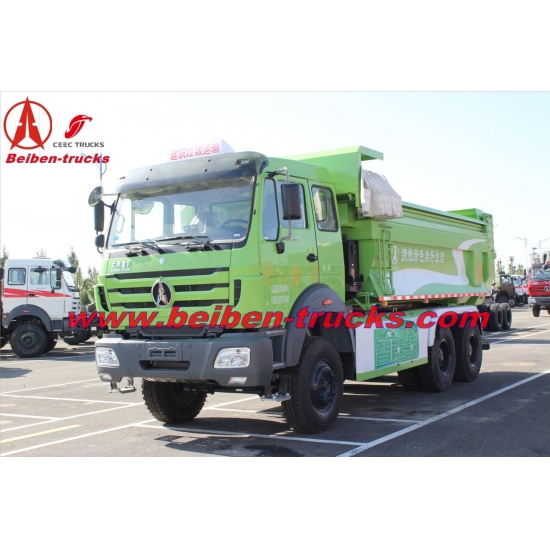

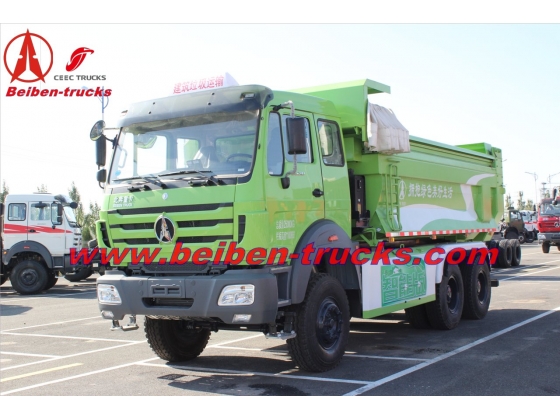

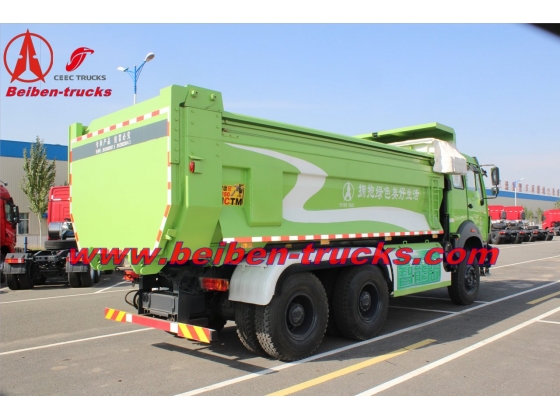

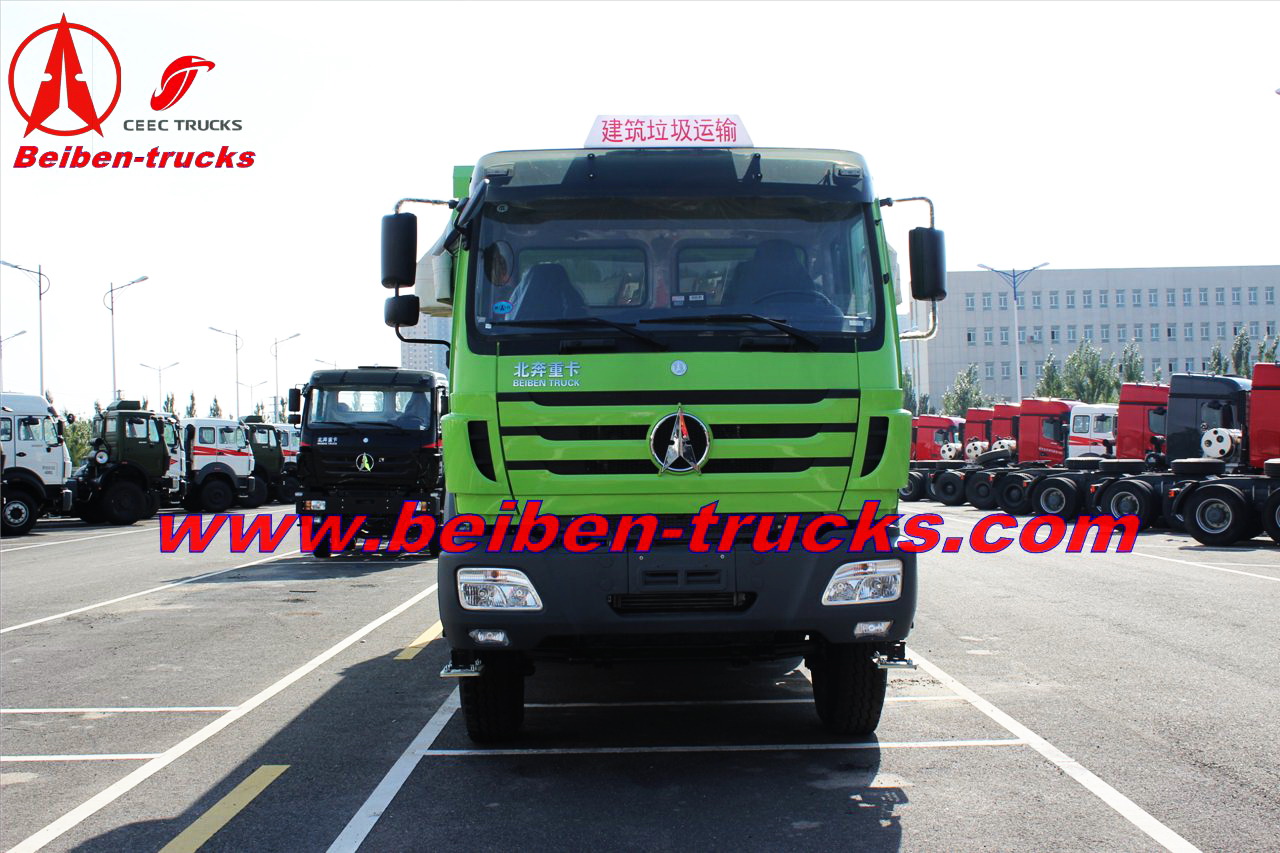

BEIBEN tipper truck 2530K 6x4 truck

Wheel base (mm)

3800+1450 wheel

Curb weight kg

12200

Engine

Model

WP10.336 6 cylinders in line, turbo charged, water cool.

Power,
max HP/rpm

340/2200

Torque

1250 Nm

Emission standard

EUROIII

Fuel tanker capacity L

300

Clutch

Model

GFX420, Single dry frictional disc, Hydraulic boosting

Gearbox

Model

FAST 9JS150A (9+1 gear)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system, with 600L air bottle.

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels.

Steering system

Model

TAS85

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

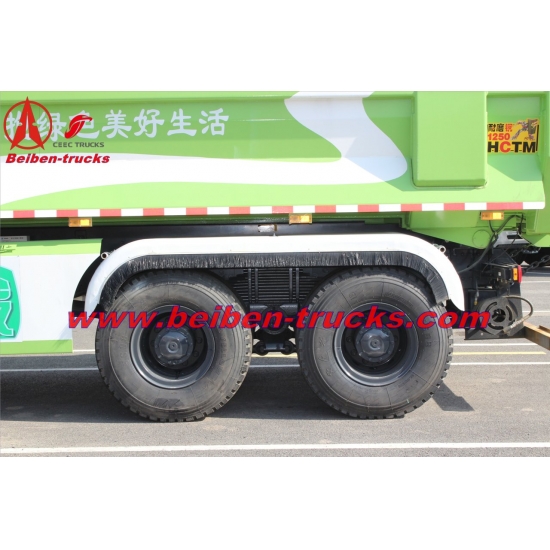

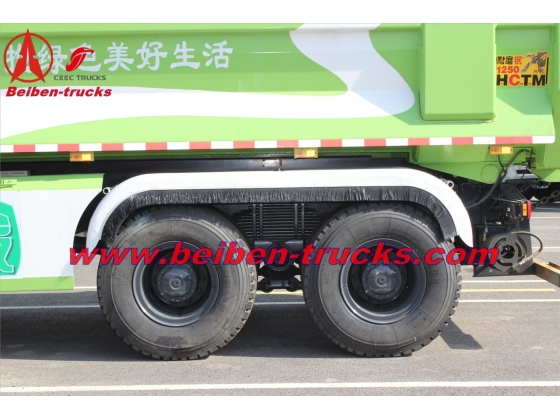

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle,

Suspension

Front two axles with 10 steel spring each wheel, thickness 15mm/ pic.
Rear two axles with 13 steel spring. ( 9 pic with 25mm, 4 pic with 22mm).
4 strengthen U bolts, with strengthen thrust shank ).
