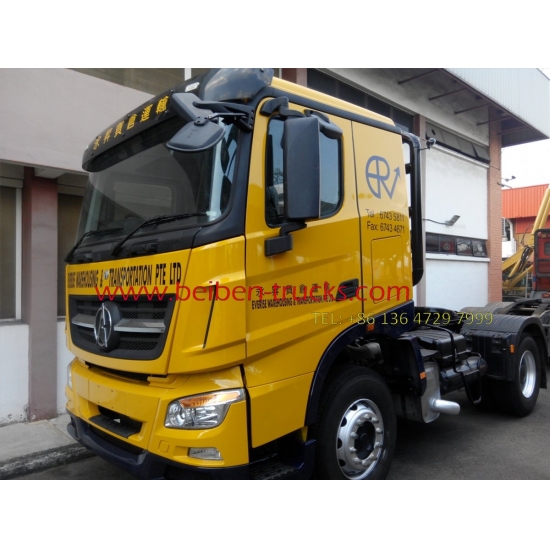

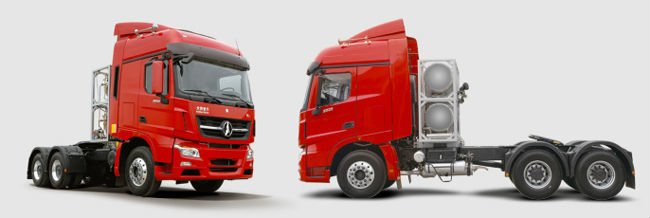

Beiben 1834 V3 prime mover

  • FOB Price

    $37,300-41,500

  • Production time

    30 days

  • Payment terms

    T/T, West union

enquiry
Product Details

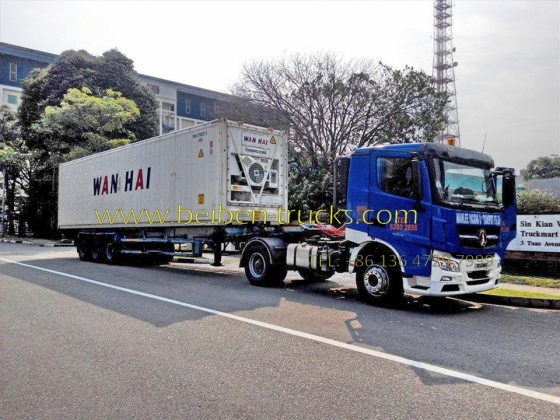

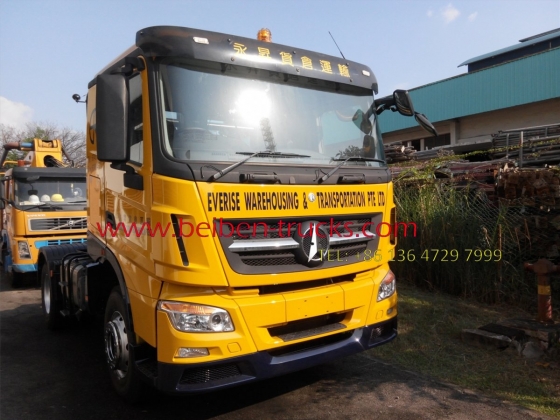

Beiben 1834 prime mover

beiben V3 1834 tractor truck supplier

Function:


Heavy duty Construction,  Mining and quarries,

Normal material transportation

Dry Bulk,  Building Material, Waste

Agriculture,  FreightPlant Hire, Military

Best supplier of beiben V3 tractor truck, beiben 4*2 tractor truck, beiben V3 6*4 tractor truck, north benz 1834,2534,2538 prime mover with V3 cabin,. CEEC TRUCKS is the best supplier of beiben 2534,2536,2538 V3  tracteur camions . supply lots of beiben Right hand drive  2534,2538,2542,2546 prime mover for east africa customer.


Feature:

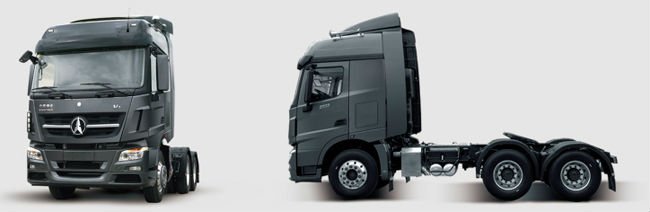

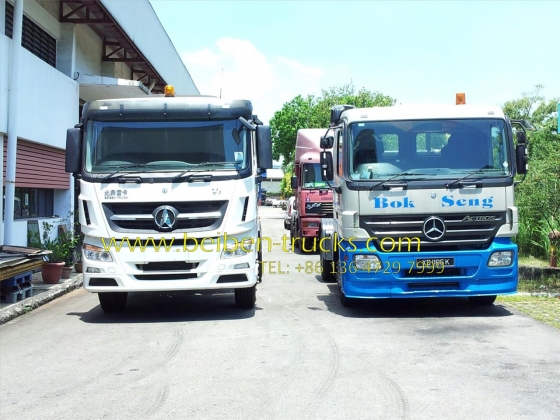

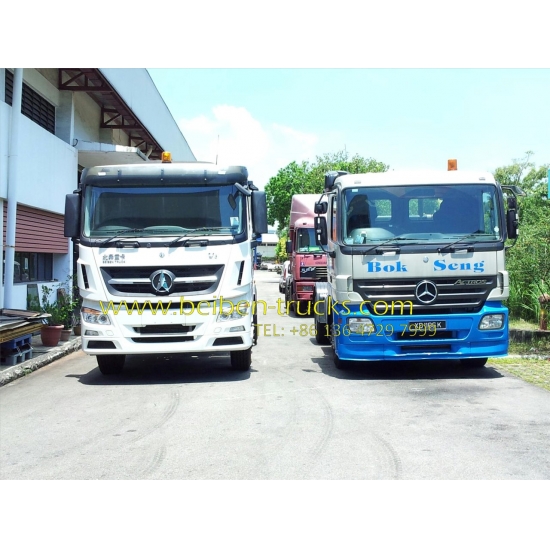

German BENZ actros CABIN .The beiben V3 tractor truck cabin was designed by the same design team of the Mercedes Actros, and is similar to the Actros. Clean, simplistic and comfortable with a full sleeper cabin.


World famous  Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12 engine is designed with Austria's AVL and utilizes BOSCH Common Rail as its fuel system, similar to MAN and Cummins.


ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT

Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle.  The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.


ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania and Volvo trucks.



Specification:


Similar key words beiben 1834 V3 tractor truck, beiben V3 2534 tractor truck, beiben V3 2538 tractor truck, north benz V3 tractor truck supplier, kenya beiben V3 tractor.

China famous brand beiben 2528 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Beiben 1834 V3 prime mover

Dimension 6100*2500*3600mm
Approaching angle/Departure angle 16/43°
Overhang(front/rear) 1515/1085mm
Wheel base 3500mm
Max speed 110km/h
Curb weight 5800kg
Standard towing weight 34260kg
Max loading on fifth wheel, Permitted(kg) 12070kg
Slope climbing capability Max.40%
Engine Model WP10.340,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 11.596L/Diesel
Stroke 126/155mm
Max. power 250/1900 (kw/rpm)(375 HP)
Max.torque 1800/1000-1400(Nm/rpm)
Emission stantard EuroV with OBD
Fuel tanker capacity 300L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting.WABCO Clutch
Gearbox 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension
Rear Non-free standing stablization spring, balance suspension system
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system D50,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
The Fifth wheel Model JOST ∮90 single direction
Height of fifth wheel(mm) (unload) 1410
Radius of front gap (mm) 2300
Radius of rear slew (mm) 2600
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 315/80R22.5
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

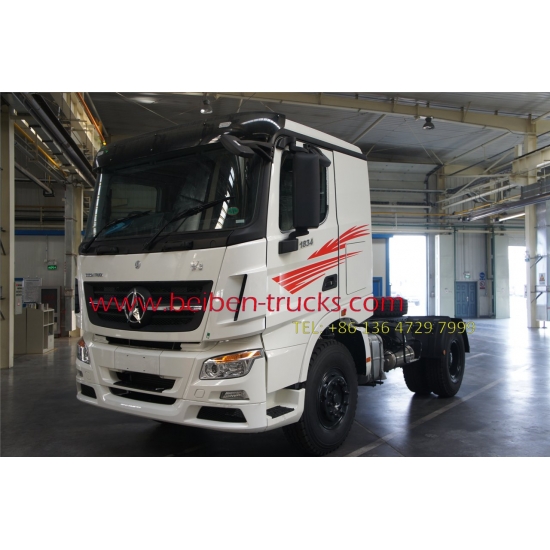

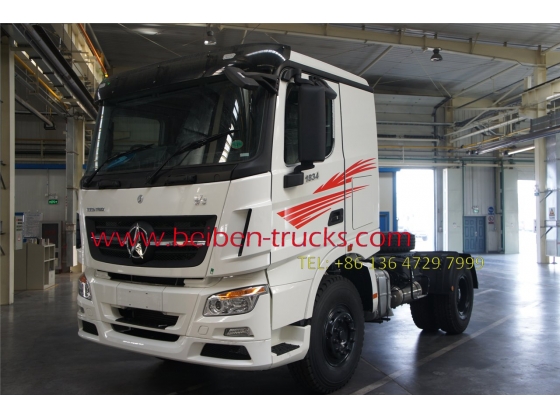

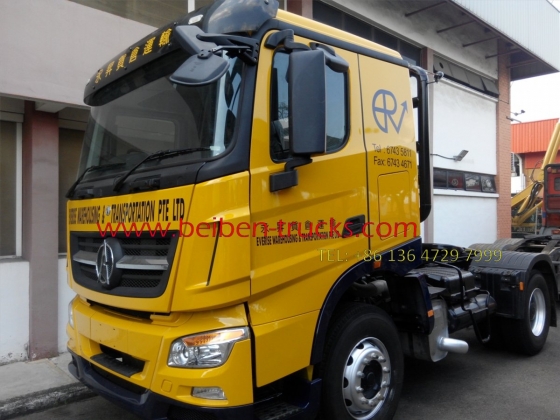

beiben V3 1834 tractor truck

beiben V3 1834 tractor truck supplier

Beiben 1834 V3 prime mover

North benz V3 tractor truck exporter and supplier.

Beiben tracteur camions and semitrailer




  • Beiben Tractor Beiben NG80B tractor trucksBeiben V3 tractor trucksBogie suspension Container semitrailer

fuel tanker semitrailer Low bed semitrailer



Beiben Construction trucks

Beiben V3 dump truck Beiben mixer truckBeiben bulk cement truckBeiben trucks mounted craneBeiben water trucksBeiben 12 wheeler dump trucksBeiben 10 wheeler dump trucks



Beiben all wheel drive trucks



Beiben 6 wheel drive truckBeiben fuel trucksBeiben 4 wheel drive truckbeiben camions galerie grumierBeiben road sweeper truckBeiben cesspit emptier

Model Engine Model Rated Power Payload

Driving Mode

Beiben 1834S
WD615.34 340Hp 40Ton 4x2
Beiben 2538 WP10.380 380 Hp 45 Ton 6x4
Beiben 2634 WP10.340 340 Hp 40Ton 6x4
Beiben 2642 WP12.420 420 Hp 48 Ton 6x4
Beiben 2642 WP10.420 420 Hp 50 Ton 6x4
Beiben 2638S WP 10.380 380 hP 48 T 6x4
Beiben 2638 WP10.380 380 Hp 45 Ton 6x4
Beiben 2638S WP 10.380 380 hP 50 T 6x4
Beiben2642 WP 10.420 420 Hp 60 T 6x4
Beiben 2542S WP12.420E32 420 Hp 50 T 6x4
Beiben 1630A WP10.300N 300 Hp 30 T 4x4
Beiben 2534 WP 10.336 336 Hp 50 Ton 6x6
Beiben 2638 WP10.380 380 Hp 50 Ton 6x4
