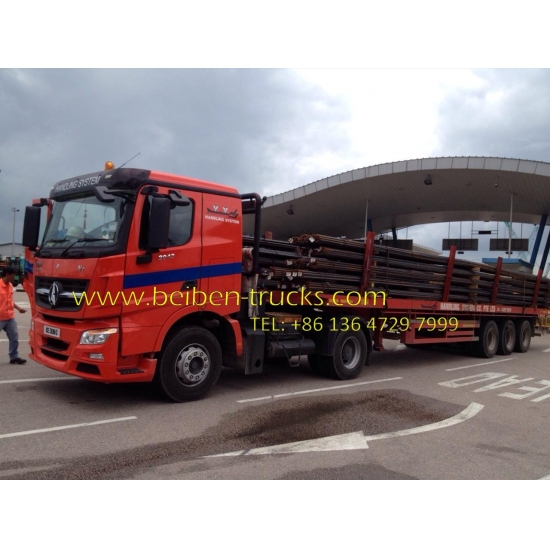

Beiben 1842 tractor trucks
-
FOB Price
$36,000-43,000
-
Production time
30 days
-
Payment terms
T/T, West union
Beiben V3 420 hp tractor truck
Function:
Heavy duty Construction, Mining
and quarries,
Normal material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Kenya and tanzania best supplier of beiben 1842 V3 cabin 4*2 tractor truck and 6*4 tractor truck. we supply beiben 1834,1840,1842 heavy duty tractor truck. Customrized beiben LHD and RHD V3 cabin tractor trucks.
Feature:
★World famous Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 /
WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12
engine is designed with Austria's AVL and utilizes BOSCH Common Rail as
its fuel system, similar to MAN and Cummins.
★ ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT
★Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle. The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.
★ ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with
ZF 8098 steering gear. This is the same steering gear equipped on
certain Mercedes, MAN, IVECO, Scania and Volvo trucks.
Specification:
Similar key words beiben 1842 V3 tractor truck, beiben V3 1842 tractor truck, beiben V3 1842 tractor truck, north benz V3 tractor truck supplier, kenya beiben V3 1842 tractor.
China famous brand beiben 2528 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation.
| Dimension | 6100*2500*3600mm | |||||
| Approaching angle/Departure angle | 16/43° | |||||
| Overhang(front/rear) | 1515/1085mm | |||||
| Wheel base | 3500mm | |||||
| Max speed | 110km/h | |||||
| Curb weight | 5800kg | |||||
| Standard towing weight | 34260kg | |||||
| Max loading on fifth wheel, Permitted(kg) | 12070kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP12.420，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 11.596L/Diesel | |||||
| Stroke | 126/155mm | |||||
| Max. power | 308/1900 (kw/rpm)(375 HP) | |||||
| Max.torque | 1800/1000-1400（Nm/rpm） | |||||
| Emission stantard | EuroV with OBD | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting.WABCO Clutch | |||||
| Gearbox | 16JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension | ||||
| Rear | Non-free standing stablization spring, balance suspension system | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | D50,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| The Fifth wheel | Model | JOST ∮90 single direction | ||||
| Height of fifth wheel(mm) (unload) | 1410 | |||||
| Radius of front gap (mm) | 2300 | |||||
| Radius of rear slew (mm) | 2600 | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 315/80R22.5 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
V3 Long-high roof cabin with double sleepers Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
North benz V3 tractor truck exporter and supplier.
Beiben tracteur camions and semitrailer
Beiben Construction trucks
Beiben all wheel drive trucks
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
