Order(MOQ):
1
Function:
Heavy duty Construction, Mining
and quarries,
Normal material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Feature:

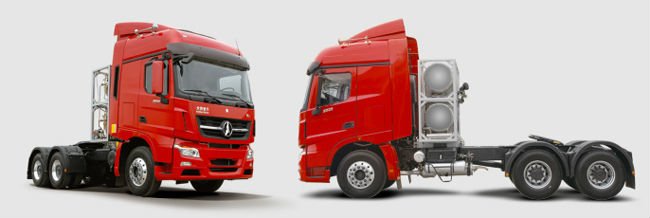

★World famous Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 /
WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12
engine is designed with Austria's AVL and utilizes BOSCH Common Rail as
its fuel system, similar to MAN and Cummins.
★ ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT
★Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle. The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.
★ ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with
ZF 8098 steering gear. This is the same steering gear equipped on
certain Mercedes, MAN, IVECO, Scania and Volvo trucks.
Specification:
Similar key words north benz 6*4 drive V3 tractor truck, north benz V3 prime mover, beiben V3 tractor truck price, china beiben V3 tractor supplier, kenya beiben V3 tractor truck supplier, tanzania beiben V3 tractor truck dealer.

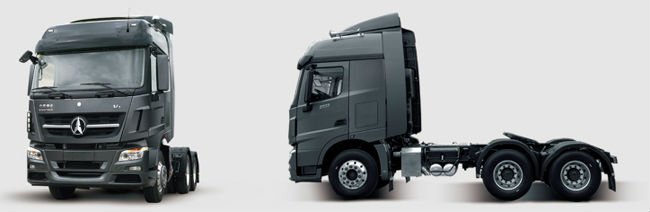

China famous brand beiben 2542 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation.
| Dimension | 7240*2500*3600mm | |||||
| Approaching angle/Departure angle | 16/60° | |||||
| Overhang(front/rear) | 1515/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 120km/h | |||||
| Curb weight | 8800kg | |||||
| Max towing weight | 40000kg | |||||
| Max loading on fifth wheel, Permitted(kg) | 16070kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP12.430E40，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 11.596L/Diesel | |||||
| Stroke | 126/155mm | |||||
| Max. power | 316/2200 (kw/rpm) | |||||
| Max.torque | 2060/1000—1400（Nm/rpm） | |||||
| Emission stantard | EuroIV with OBD | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension 13PCS | ||||
| Rear | Non-free standing stablization spring, balance suspension system 13PCS | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | D50,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| The Fifth wheel | Model | JOST ∮90 single direction | ||||
| Height of fifth wheel(mm) (unload) | 1410 | |||||
| Radius of front gap (mm) | 2300 | |||||
| Radius of rear slew (mm) | 2600 | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 315/80R22.5 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
V3 Long-high roof cabin with double sleepers Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||

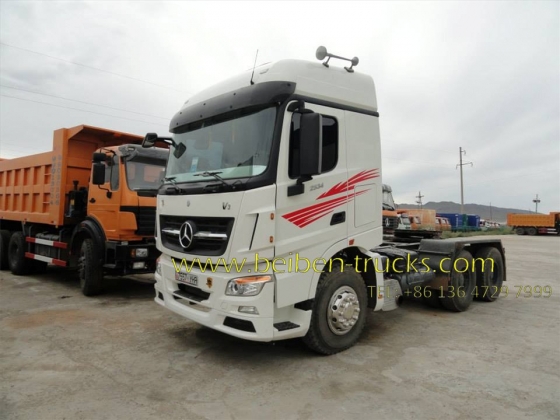

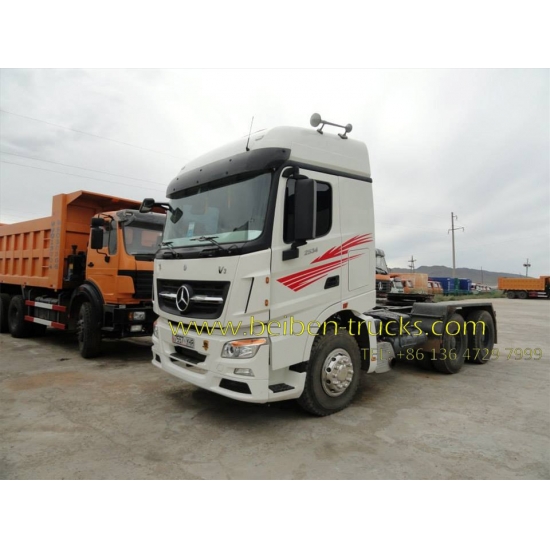

North benz V3 tractor truck exporter and supplier
Beiben tracteur camions and semitrailer
| Model | Engine Model | Rated Power | Payload | Driving Mode |

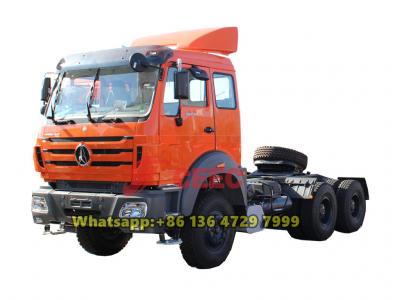

| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |

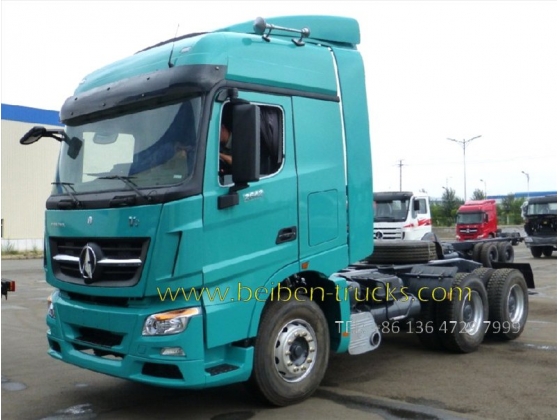

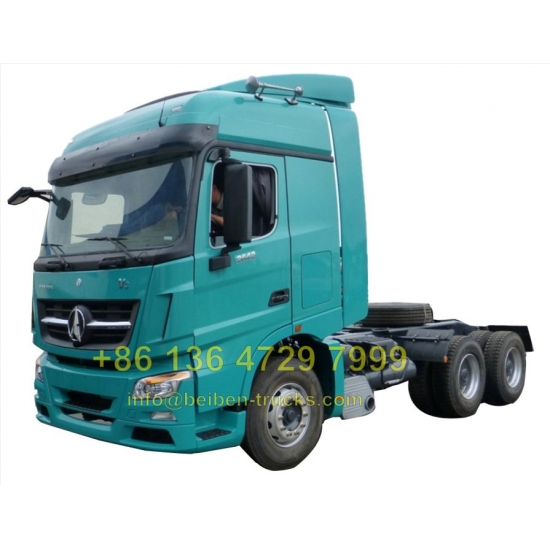

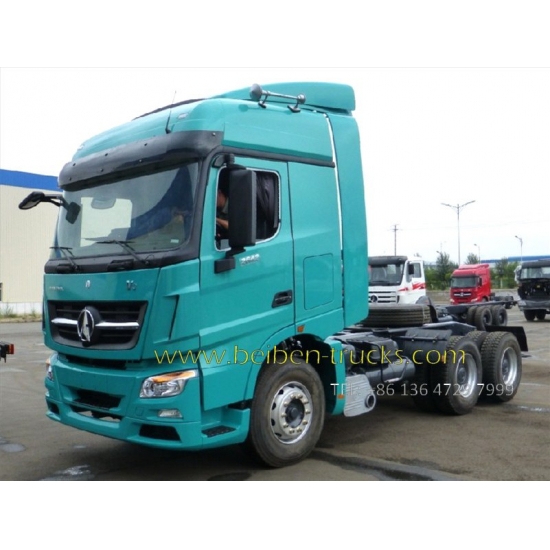

Beiben 2542 V3 tracteur camion, 420 strong weichai diesel engine, WP12.420, ZF 16 shift transmssion, 3450+1450 mm wheelbase, benz licensed 7 T front axle, 16 T double rear axle, 12.00R20 tyre. China beiben V3 new model cabin.
Beiben 2543 V3 tracteur camion, 6*4 drive system, 430 strong weichai diesel engine, WP12.420, ZF 16 shift transmssion, 3450+1450 mm wheelbase, benz licensed 7 T front axle, 16 T double rear axle, 12.00R20 tyre. China beiben V3 new model cabin.
Beiben 1848 tractor head is a high-efficiency highway tractor equipped with a 480-horsepower Weichai WP13 engine and a FAST automatic transmission, offering a maximum towing capacity of 44 tons. It features an ECAS electronically controlled suspension, dual fuel tanks (700+400 liters), and a Mercedes-Benz-inspired cab with a double-layer sleeper and digital instrument panel. Integrated with an intelligent safety system, it is ideal for long-haul, high-efficiency transportation.
Beiben 2534 off road bulk cement truck, based on beiben 6*6 drive truck chassis, 7 T front benz technology axle, 16 T benz technology rear axle with doubel reducer, benz ECR29 technology cabin, 340 Hp engine, with CEEC TRUCKS latest technology on beiben bulk cement trucks technology.
China Bei ben prime mover price, supply the cheapest price for beiben congo tractor trucks.

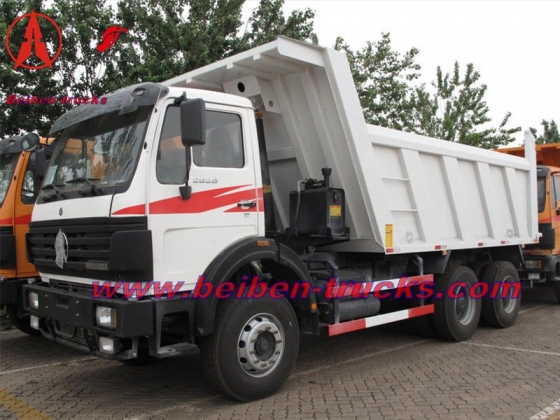

Beiben 2538 V3 dumper manufacturer in china, benz technology , china north benz 380 hp engine dump truck
The refrigerated van semi-trailer uses heavy-duty I-beams and BPW brand 13-ton axles, equipped with spring suspension and JOST brand outriggers to ensure stable load-bearing. The interior dimensions of the compartment are 13750×2410×2650mm, and it is insulated with high-density polyurethane. It is equipped with a Termo King independent cooling system that supports temperature control from -20℃ to +27℃.
Beiben 10 wheels tractor truck 6x4 380hp tractor truck for sale, beiben 2638 tractor truck , 6*4 driving system , weichai diesel engine 380 horse power.
North benz 8cbm 6x4 concrete mixer truck sale in Africa PRODUCTS ADVANTAGE * Original Price: FOB, CNF/CFR, CIF * Certificates: CCC, ISO, BV, GJB, CQC * Promptly Delivery: 15-30 days * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type
