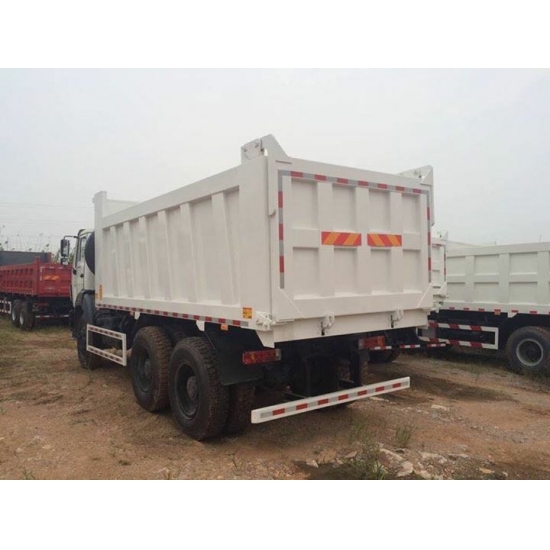

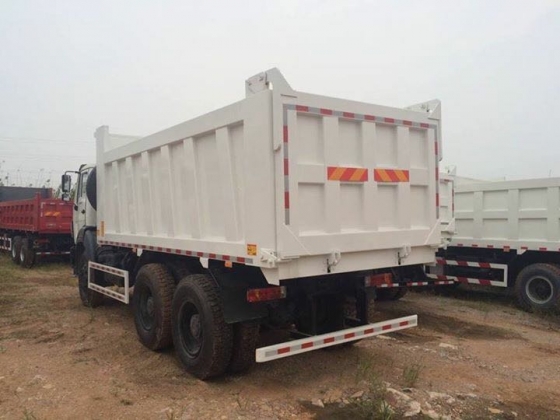

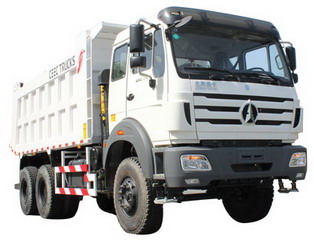

congo north benz 2538 dump truck

  • FOB Price

    $40,000-50,000

  • Production time

    40 days

  • Payment terms

    T/T, West union

enquiry
Product Details

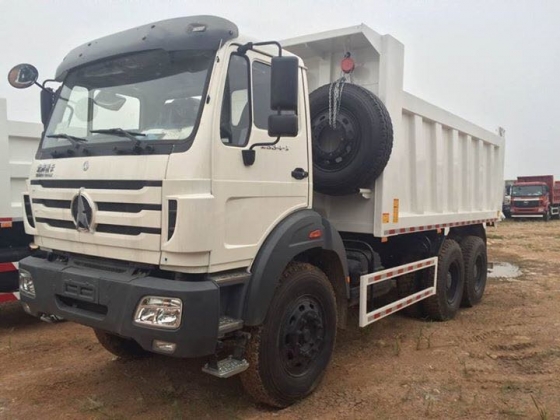

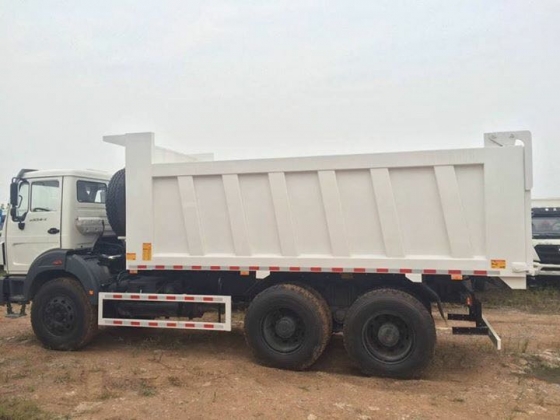

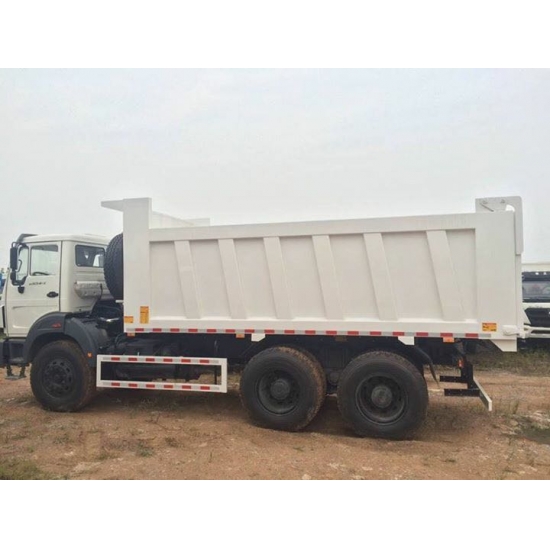

North benz 2538 dump truck

beiben 2529 dump truck supplier

Function:


  Sand, earth, Gravel transportation

  Construction site project.

  Municipal road construction

  Transport of light density stone, sand, gravel


Feature:


  Super reliable benz dumper technology, 100 years quality assurance.

Famous weichai engine combined with original benz typerear axle reducer gear and differential gear

Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

Special beiben tipper Body Design are optional

15 years great experiences on beiben dump truck upper structures designing and supplying.



Specification:


Similar key words: beiben 2536 dump truck, beiben 2536 tipper, congo beiben dumper supplier, congo beiben tractor truck supplier, north benz 2536 dump truck, north benz 2536 dump truck supplier, china beiben dump truck supplier.

beiben 2529 dump truck supplier


Authorized beiben 2529dump truck manufacturer in china, we produce good quality beiben 290 hp engine tipper truck, north benz 2529 dump truck. CEEC TRUCKS plant supply more than 200 units kind of beiben earth transportation truck to congo, kenya, ghana, algeria, nigeria, ethopia, myanmar,thailand. We welcome foreign customer to visit our beiben dump truck plant.

  beiben 2529 dump truck supplier

  The best north benz dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .

 Beiben 2536 dumper


Beiben Dumper Body

Body type

Rectangle reinforced standard body

(more body type refer to using environment)

Inner size

5600x2250x1400 mm

Side/front/tail plate thickness

  4 mm Q235A carbon steel

Deck plate thickness

  6 mmQ235A carbon steel

Lifting system,

HYVA 149 famous hydraulic lifting system

Lifting Type

Middle tipping

Tipper body lifting time,

≤ 20 S

Tipper body Falling Time

≤ 20 S

Max. lifting angle

52°

Sales No.

2636

Dimension(mm) Long 8250

Wide 2500

High 3690
Wheel base(mm) 3800+1450
Drive 6×4
Engine Model WP10.360E32
Cabin NG80B/Long cab
Clutch(mm) Φ430
Front Axle 7.5T
Rear/Mid Axle Model/speed radio Double Reduction Driving Axle /5.263
Steering System ZF8098
Braking System Dual Circulation Air Brake System
Fuel Tank(L) 400L
Frame/mm 317×70×8.5+7+8mm
Tire 12.00R20
Front/Rear Overhang 1410/1590
Transmission Fuller 9JS150TA
Curb Weight(kg) 12470
Up Body Volume(m³) 5.6mx2.3mx1.3m
Max Speed(km/h) 90


 beiben 2538 dumper

beiben 2538 dumper

beiben 2538 dumper













Beiben dump truck



Model

Engine Model

Rated Power

Payload

Driving Mode

Beiben 2538

WP10.380N

380 Hp

60 Ton

6*4

Beiben 2534 KY

WP10.340

340 hP

50 Ton

6*4

Beiben 2534

WP10.340

340 Hp

30 Ton

6x4

Beiben 2534k

WP10.340

340 Hp

36 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2529

WP10.290

290 Hp

45 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2538

WP10.380N

380 Hp

45 Ton

6*4

Beiben 2529

WP10.290N

290 hp

30 Ton

6*4

Power star 2628

WP 10.280N

280 Hp

40 Ton

6*4

Beiben 2629

WP 10.290N

290 Hp

40 Ton

6*4

Beiben 2634

WP 10.340N

340 Hp

35 Ton

6*4

Beiben 2629 dumper

WP 10.290N

290 Hp

35 Ton

6*4

Beiben 2629 A

WP10.340

340 Hp

40 T

6x4

Beiben 2629 A

WP10.290

290 Hp

25-30 T

6x4


Watch Beiben 2529 tipper on YOUTUBE.

Beiben 2529 dumper in shipping :

http://www.beiben-trucks.com/CONGO-customer-order-26-units-Beiben-NG80B-340-hp-dump-truck_n21

Congo customer use the beiben 2529 dumper:

http://www.beiben-trucks.com/Congo-Pointe-Noire-customer-purchase-18-units-beiben-dump-trucks_n20

http://www.beiben-trucks.com/Congo-loyal-customer-give-great-empression-on-north-benz-2534-dump-trucks_n96

http://www.beiben-trucks.com/Best-supplier-for-China-beiben-dump-trucks-in-CONGO-pointe-noire_n104

http://www.beiben-trucks.com/Beiben-2529-dumper-in-congo-customer-working-site_n28
