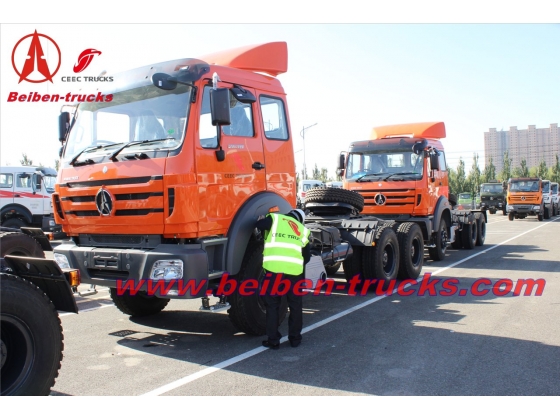

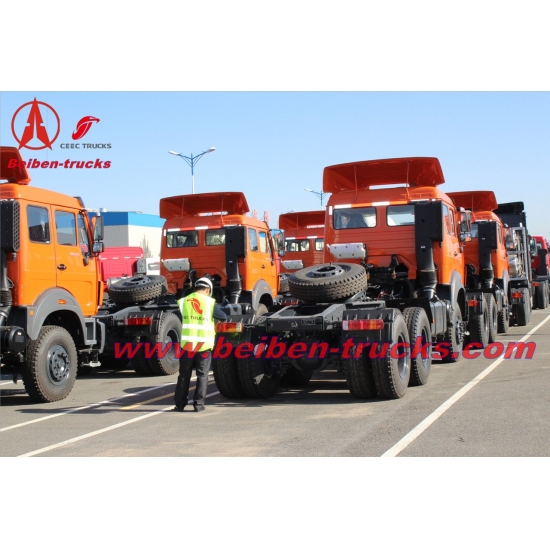

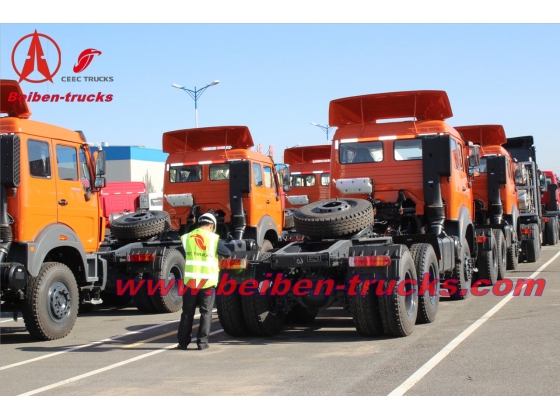

Bei ben truck head heavy tractor for quarry
Beiben tractor truck 2642S with Benz technology for container trailer/lowbed trailer/dump trailer
Wheel base (mm) | 3 8 50+1450 | ||
Curb weight kg | 9300 | ||
Engine | Model | WP12.420E32 (WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line, turbocharged, directly injection |
|
Displacement L | 12/Diesel | ||
Power, max kw/rpm | 308/2200 | ||
Emission | EURO3 | ||
Fuel tanker capacity L | 300 | ||
Clutch | Model | φ430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox | Model | 12JS200T | |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake | Engine exhaust brake | ||
Park brake | Potential springs pressing on middle and rear wheels |
||
Steering system | Model | ZF8098 | |
Frame | Fish belly shape, variable width, variable sections | ||
Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle | ||
Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||
Tyre | 12.00R20 | ||
Electrical system | Battery | 2X12V/135Ah | |
Generator | 28V-35A | ||
Starter | 5.4Kw/24V | ||
Cab | Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. | ||
The Fifth wheel | 50/90 #single (JOST) |
