Beiben 3138 dumper

Product Details

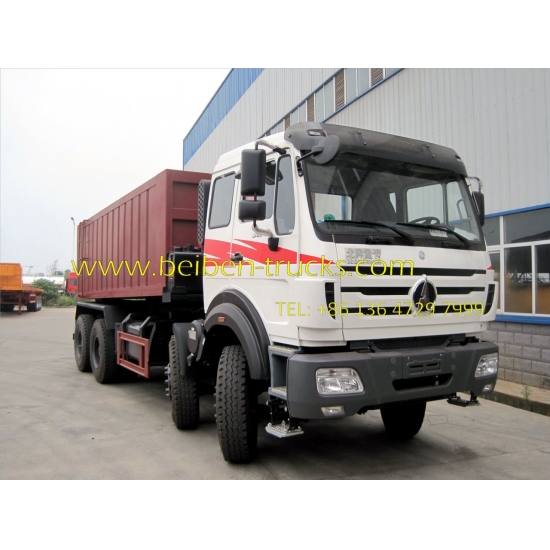

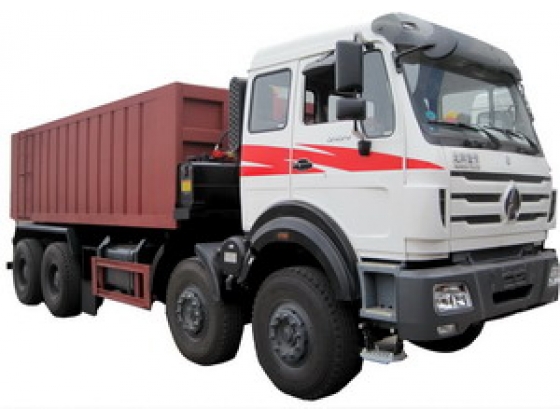

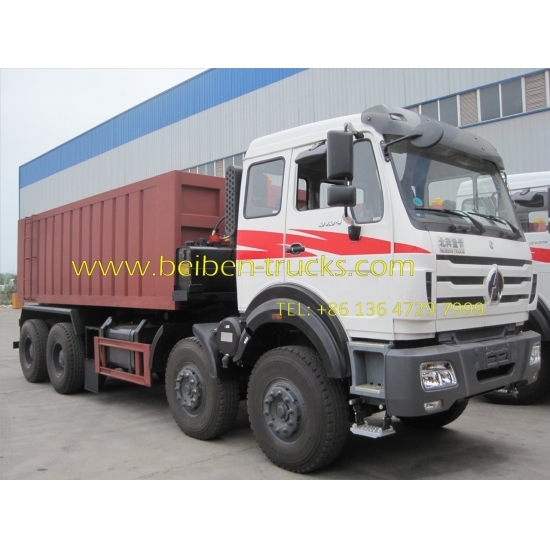

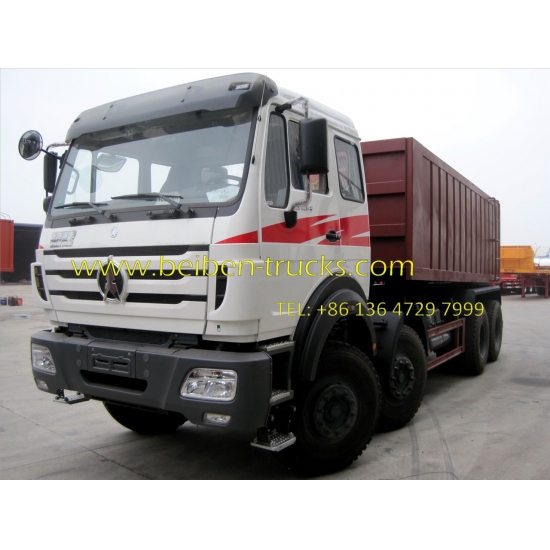

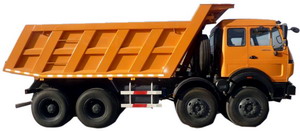

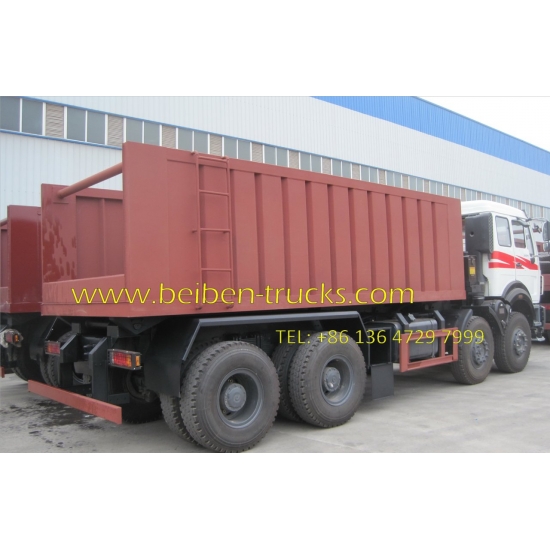

Beiben 3138 dump truck

beiben 3138 dump truck supplier

Function:


  Heavy duty Mining area

  Construction site

  Municipal road construction

  Transport of heavy density stone, sand, gravel,mine


Feature:


  The beiben 3134,3138,3142  dump body are densely distributed to ensure powerful anti-expansion performance of the beiben dump trucks dump body.

The thickened channel steel of beiben dumper rear body + full welds guarantee high strength and impact / wear resistance

Ultra-large cast steel lock hook + manual hook feature good sealing performance and high reliability

Enhanced Q550A U type north benz dumper body, and the motherboard adopts variable cross-section beams.

he subframe adopts rectangular tube longitudinal beams and the integral structure features high strength for all beiben tipper trucks.

Beiben 380 Hp engine 12 wheeler dump truck Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and durability.

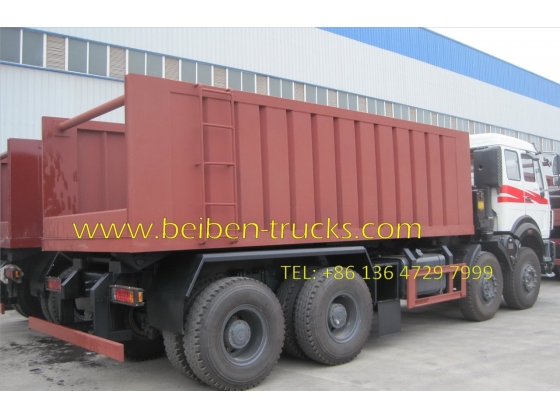

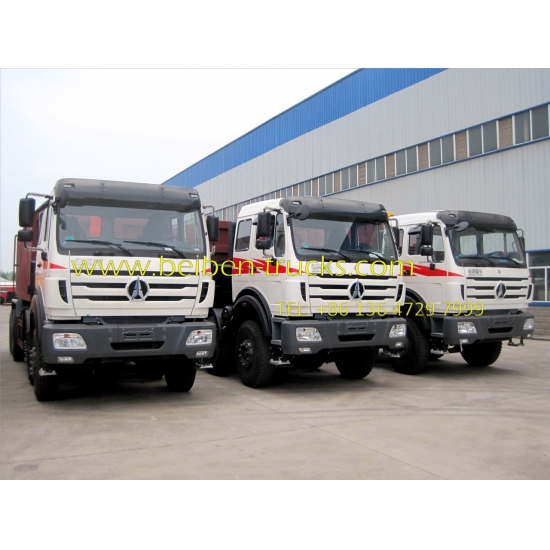

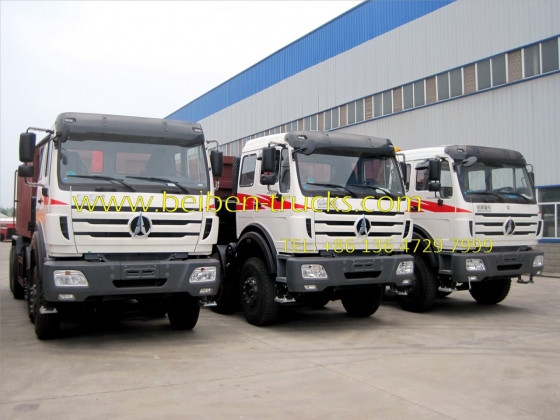

 beiben 3138 dump truck supplier

Specification:


Similar key words: Beiben 3138 dump truck supplier, china north benz 3138 dumper, beiben 3138 tipper truck manufacturer, beiben 12 wheeler 8*4 dump truck, beiben 3138 tipping truck supplier, beiben 3134 dumper supplier. north benz 12 wheeler price,


Authorized beiben 12 wheeler dump truck manufacturer in china, we can supply beiben 3129,3130,3134,3138 dumper with competetive price and reliable quality. Currently we produce beiben 60 T, 70 T, 80 T, 90 T 12 wheeler dump truck. these north benz dump trucks are mainly used for transporting sand, earth, gravel, mine, and other material.

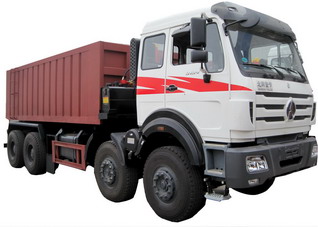

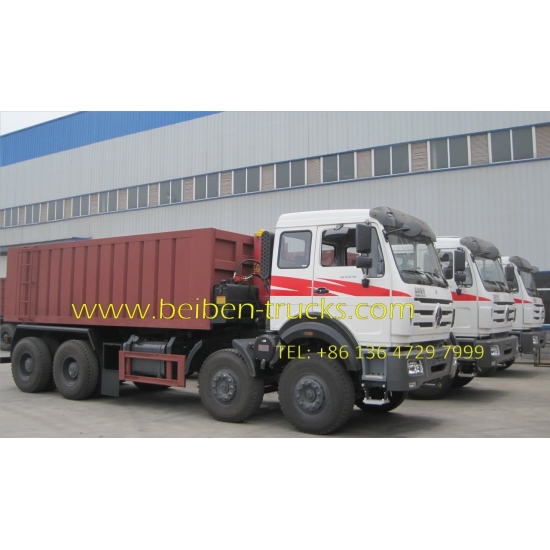

Beiben 8x4 dump truck





 We are the most professinal beiben 12 wheeler dump trucks manufacturer in china. More than 10 years great experience on manufacturer beiben 3134,3138,3129,3142 dumpers. We can produce the common cargo box, heavy duty cargo box, reinforced cargo box based on beiben 8*4 trucks chassis. Our beien 8*4 tippers are enjoy great reputation in all over the world , such as CONGO, NIGERIA, ALGERIA, CHILE, ANGOLA, South africa and other countries

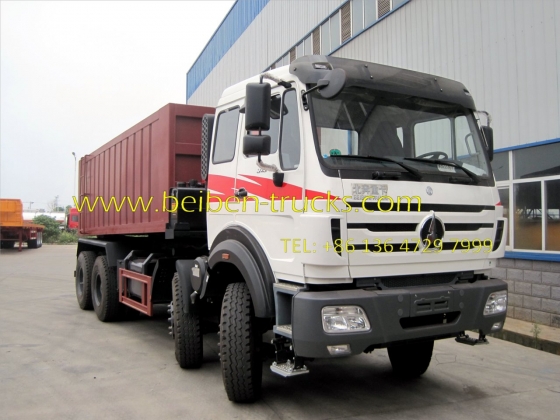

 Beiben 3138 dumper



Beiben 3138KY /8×4/1500+3550+1450/Long Cab
Dimension 9630*2500*3484mm
Upper body inner dimension 7150x2300x1150 sand body, Hyva hydralic lifting system, thickness:bottom 8mm, side 6mm
Approaching angle/Departure angle 33/25°
Overhang(front/rear) 1410/1720mm
Wheel base 1500+3550+1450mm
Max speed 80km/h
Curb weight 14765kg
Loading capacity 16105kg
Slope climbing capability Max.40%
Engine Model WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1350/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox 12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated,
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system ZF8098,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00R20 Radial
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B long cabin with single sleeper ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

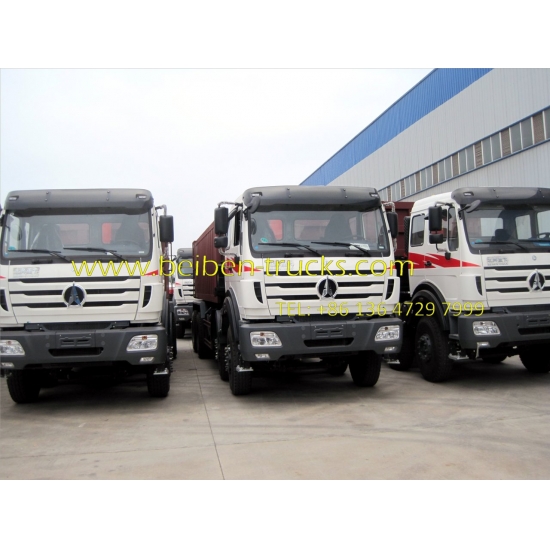

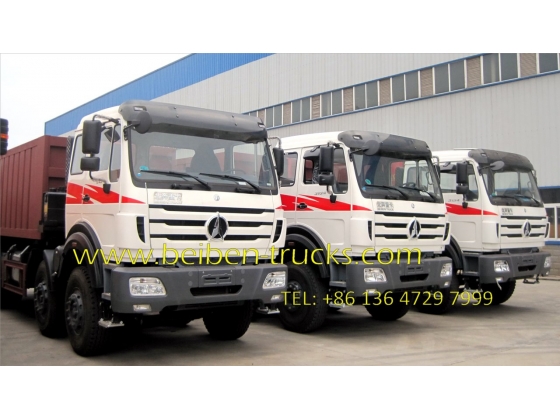

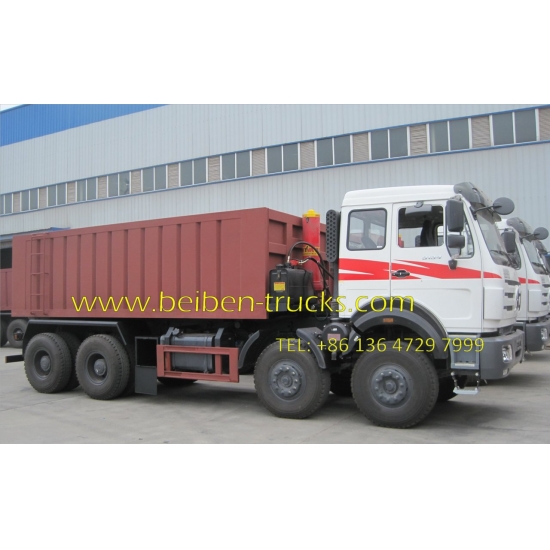

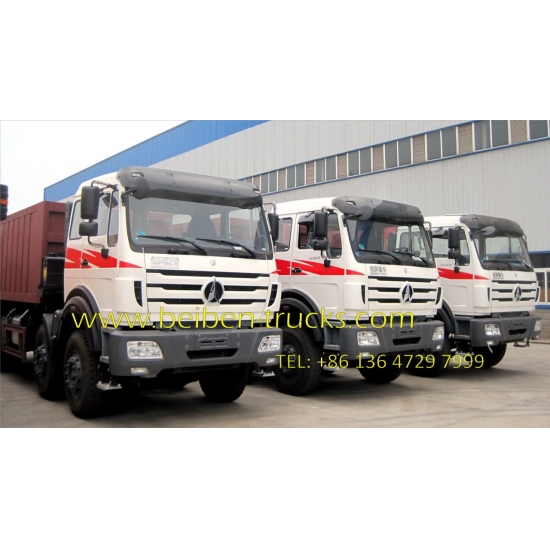

beiben 3138 dump truck supplier

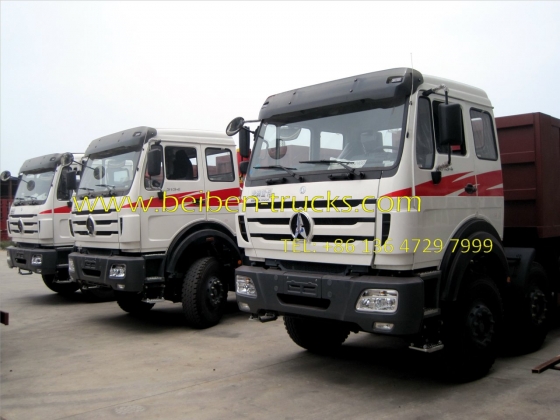

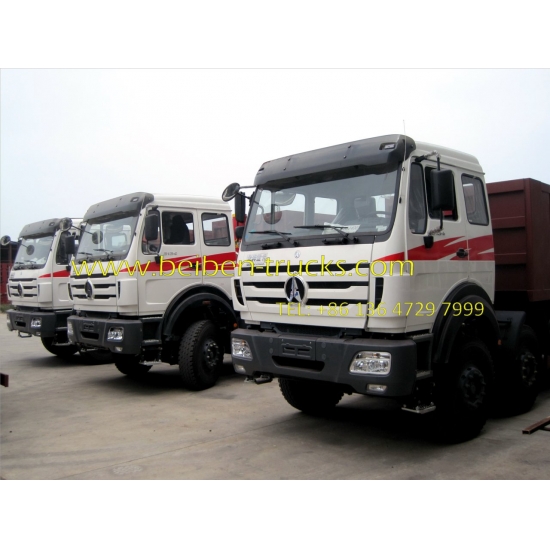

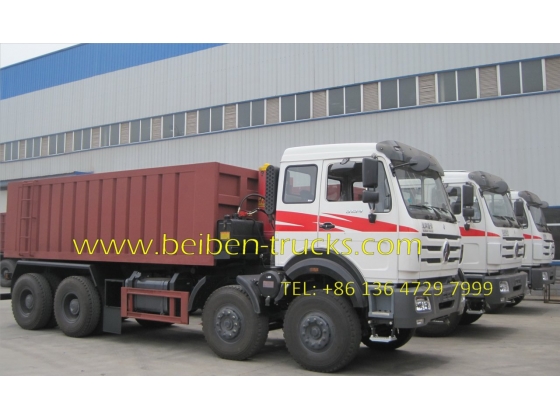

beiben 3138 dump truck supplier

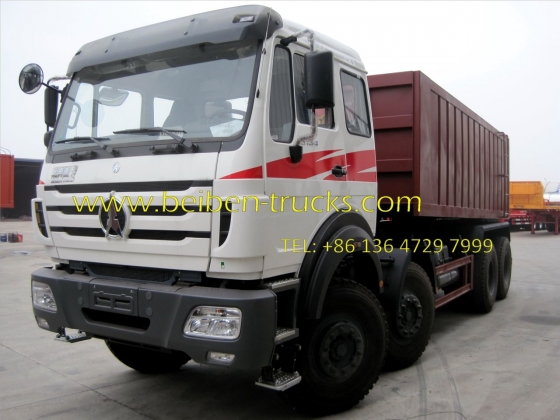

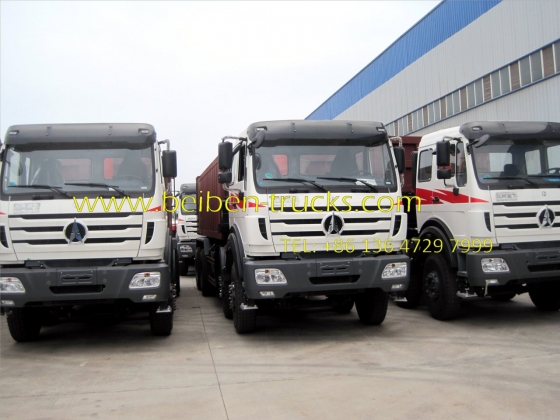

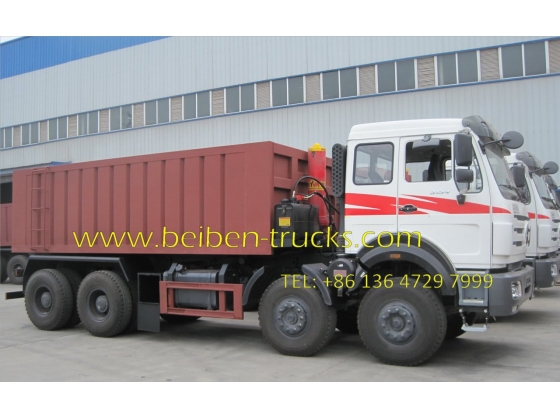

beiben 3138 dump truck supplier

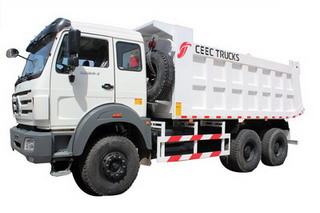

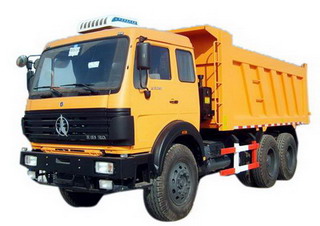

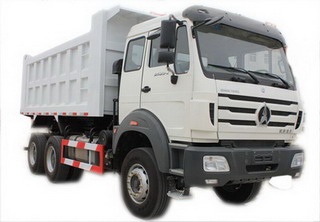

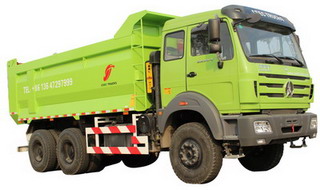

                                 Beiben 6x4 dump truck



Model Engine Model Rated Power Payload Driving Mode
Beiben 3140 WP12.400 400 Hp 50 Ton 8*4
Beiben 3314 WP10.340 340 Hp 45 Ton 8*4
Beiben 3138 WP10.380 380 Hp 60 Ton 8*4
Beiben 3146 WP12.460 460 Hp 70 Ton 8*4
Beiben 3134 WP10.340 340 Hp 45 Ton 8*4
Beiben 3142 WP12.420 420 Hp 50 Ton 8*4
Beiben 3142
WP12.420E32 420 Hp 50 Ton 8x4
Beiben 3140
WP 10.420 420 hP 50 T 8x4
Beiben 3138
WP 10.380 380 Hp 40 T 8x4
Beiben 3138K
WP10.380E32 380 Hp 45 Ton 8x4
