BEIBEN V3 big tractor truck head for Tanzania

Product Details

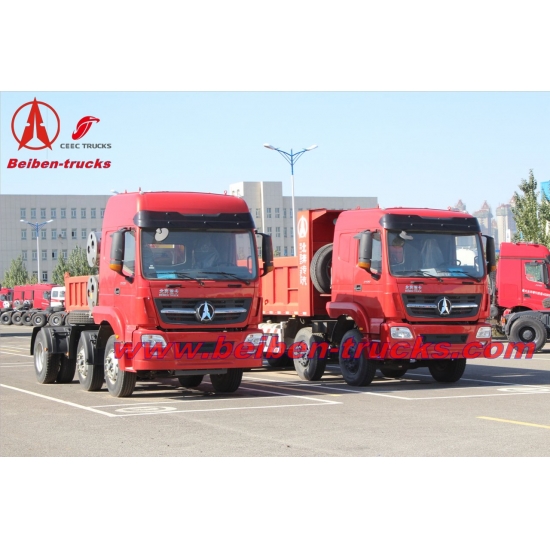

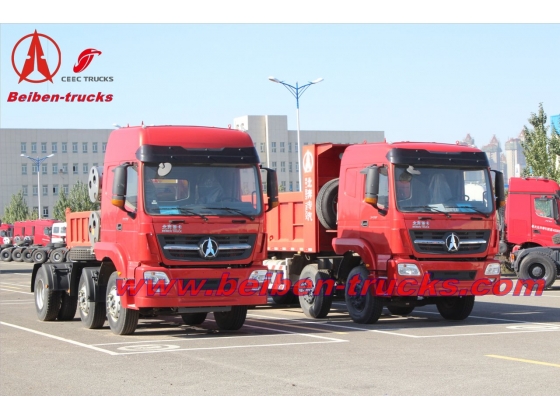

BEIBEN V3 big tractor truck head for Tanzania





BEIBEN

TRACTOR   TRUCK

ND42500B34J7



Traction type

LHD&RHD

Drive System

6×4

Cabin

V3 high   cab, air conditioner ,two sleepers

Engine

Brand

WEICHAI

Model

WP12.480 EuroIII

Rated power

480hp

Engine displacement

11.596   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

ZF8098

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

80

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

8800

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1515/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

16/60

Overall Dimensions(L*W*H)(mm)

7240×2500×3750

5th wheel

90#
