Best Price For North Benz/ Beiben Tractors 6x4 NG80 Trailer Truck

Product Details

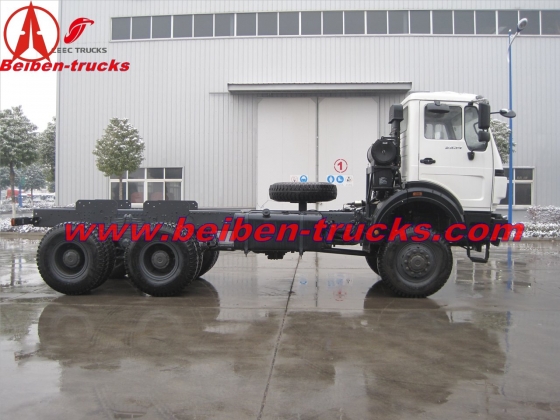

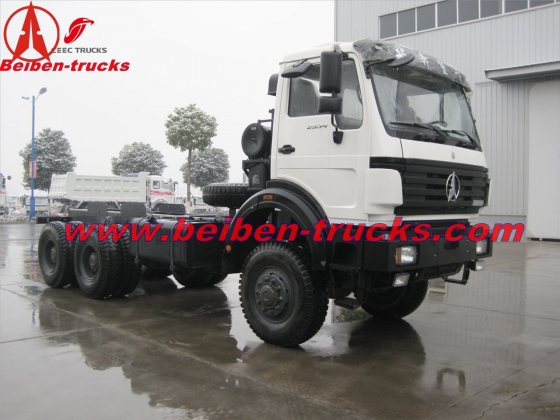

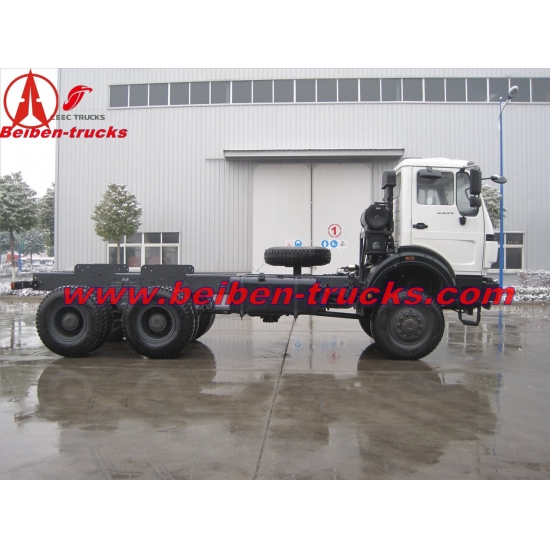

Best Price For North Benz/ Beiben Tractors 6x4 NG80 Trailer Truck

Mercedes Benz/ Beiben 6X4 V3 Tractor Truck/ Prime Mover

Tractor Trucks on Hot Sale –NORTH BENZ, SINOTRUK, SHACMAN, IVECO, FAW … …

Trucks on Hot Sale– Dump truck, tractor truck, concrete mixing truck, etc.

Advantages:

1. We own trucks with Euro 2/ Euro 3/Euro 4 emission standard, major in tractor truck, dump truck, oil tank, concrete mixer truck, special truck etc.

2. Engine Model: WEICHAI, CUMMINS; Power scope: 270HP-480HP; Drive model: 4x2, 6x2, 6x4, 8x4, etc.

3. According to different area and road situation, we will recommend the suitable product for you.

Engine:

Engine

Brand

   WEICHAI

Model

   WD10.375

Power (kw/HP)

275/ 375

Max. torque (N.m)/rpm

1460/1200-1600

Displacement (L)

9.726

Emission standard

Euro III

Axle:

Axles

Brand

NORTH BENZ

Front axle

7500kg

Rear axle

BENZ strengthened axle, (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio

5.263

Specifications and main performance:

Model

North Benz Tractor Truck

ND4251B34J7-2538SZ

Driving type

6x4

Weight

Complete kerb mass (kg)

9700

Total mass (kg)

25000

Dimensions

LxWxH (mm)

7240x2500x3600

Front/rear overhang(chassis)

1410/825

Wheel base (mm)

3450+1450

Track width (mm)

1995/1800/1800

Performance

Max. speed ( km/h)

100

Max. Grad ability (%)

33

Approach/Departure angle(°)

26/ 60

Transmission

Brand

FULLER

Model

12JS200TA

Control type

Manual

Gear shift

12-forward and 2-reverse speeds

Optional

----

Clutch

Type

Spring plate, diaphragm spring

Diameter (mm)

D-430

Brakes

Type

Drum

Service brake

With dual-circuit compressed air brake

Park brake

Power spring brake acting on rear wheel

Auxiliary brake

WEVB

Optional

ABS

Steering

Type

TAS85,D50

Chassis

Type

Ladder structure with parallel straight

300x800x(8+7)

Suspension

Front suspension

Longitudinal leaf spring

Rear suspension

Inverted leaf spring stabilizator suspension

Tyres

Type(standard)

315/80R22.5

Optional

12.00R20/11.00R20/11.00-20/12R22.5

Fuel tank

Tank capacity (L)

400

Material

Metal/ Aluminum

Electrics

Type

24V

Starter

5.58kw (24V)

Generator

1.54kw (28V55A)

Battery

2x135Ah

Cab

Type

Mercedes Benz, two sleeper, long cabin, latest design, high roof

Equipments

hydraulic suspension, hydraulic seats cab, 2 sleeper bed, A/C

Optional

Electric windows, electricity heated, GPS/ CD,

Other

The fifth wheel

2 inch/ 3.5 inch

 Why choosing us:

Price

Competitive price (we have established a good relationship with the domestic manufacturers such as Shacman/ SINOTRUK/ North Benz/ Iveco Genlyon etc.)

Quality

Quality insurance( Assembly line production, international standard and strict quality control system)

Delivery time

Short delivery time (we have 4 warehouses of more than 1000 square meters)

Customer Service

Always at your service whenever you need( Trade Manager/ mobile phone 24 hours on)
