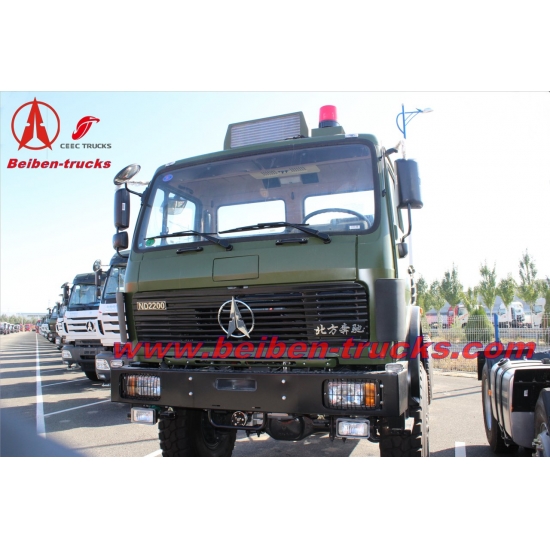

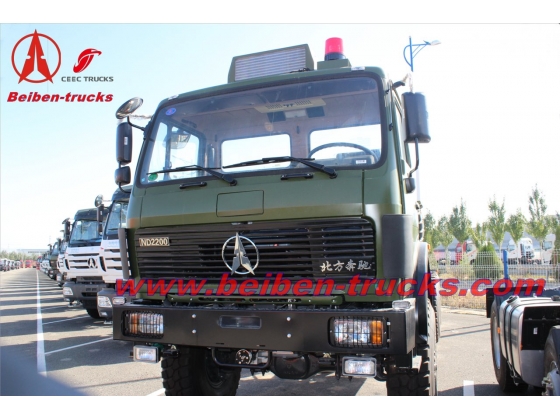

North Benz truck head 380hp camion tracteur Beiben

Product Details

North Benz truck head/camion tracteur Beiben

2538S /6×4/3450+1450/Long Cab/LHD
Dimension 6935*2495*3340mm
Approaching angle/Departure angle 20/64°
Overhang(front/rear) 1410/625mm
Wheel base 3450+1450mm
Max speed 100km/h
Curb weight 9200kg
Max towing weight 39670kg

Max loading on fifth wheel, Permitted(kg)

15670kg

Slope climbing capability Max.40%
Engine Model WP12.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 309/2200 (kw/rpm)
Max.torque 1750/1300-1400(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch 430, Single dry frictional disc,Hydraulic boosting
Gearbox

12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer

Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections

Model

JOST 90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00-R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
