Powerful Beiben Tractor,NG80 tractor truck

Product Details

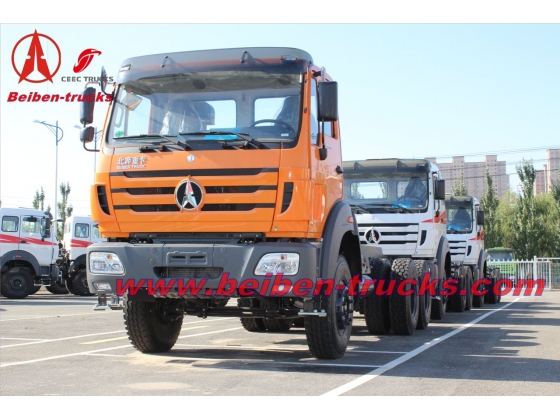

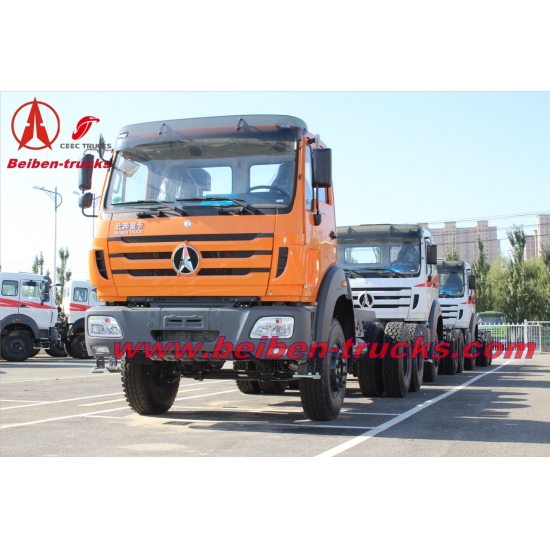

BEIBEN(NORTH BENZ) 330HP 6x4 10WHEELER EURO2 TRACTOR TRUCK ND42601B34J



· Descriptions

 This truck is designed for long-haul transportation; Combined with different semitrailer, it can used to load different bulk cargo on the premise of good road condition, one notable advantage of this truck is   double rear axle, a fuel-saving accessory of this truck. Tire: Tubeless tire,heat dispersion designTransmission: 12JS160T, 14 gears, 12 forward gears, 2 backward gears. One luxury sleeper in cab, humanity design, more comfortable.

 For more details and information, please read the following items.

SPECIFICATIONS FOR TRACTOR TRUCK

Vehicle Specifications

Model

ND42601B34J

Traction 4X2,6X4,8X4

6X4

Power

330HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

8800

Maximum authorized total mass (kg)

26000

Dimension Parameter

External Dimensions(mm)

Length (mm)

7135

Width(mm)

2495

Height(mm)

3100

wheelbase(mm)

3450+1450

Performance Parameter

Maximum Speed(km/h)

90

Maximum Grade ability(%)

35

Turning diameter(m)

20

Recommended Configuration

Engine

Engine Type

WD615.44

Rated power(kW)/Rev(r/min)

243/2200

Horse power

330HP

Torque(N*m)/Rev(r/min)

1600/1400-1600

Transmission

12JS160T

gearbox

12 forward gears/ 2 reverse gears

Clutch(mm)

Φ430

Axle

Front Axle

BENZ AXLE

Rear Axle

BENZ AXLE

Axle load-bearing

Front axle(kg)

7500

Front axle(kg)

18000

Fuel Tank(L)

400

Track(mm)

1995/1800/1800

Front overhang/rear overhang(mm)

1410/825

Tyre

12.00R20

Cabin

Sleeper

one

Fifth wheeler

diameter

3.5inch/2inch

OTHER

Engine horse power

290hp,340hp and 360hp,380hp is optional

Tyre

nylon,radial and tubeless is optional

ABS

 optional

COLOR

 optional
