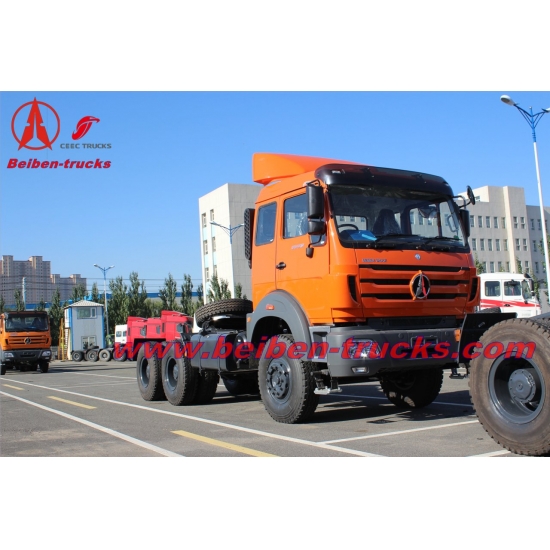

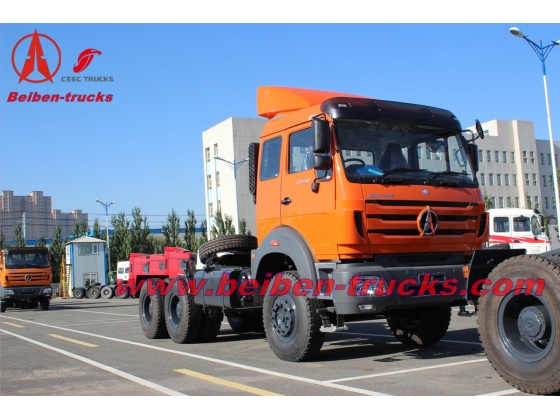

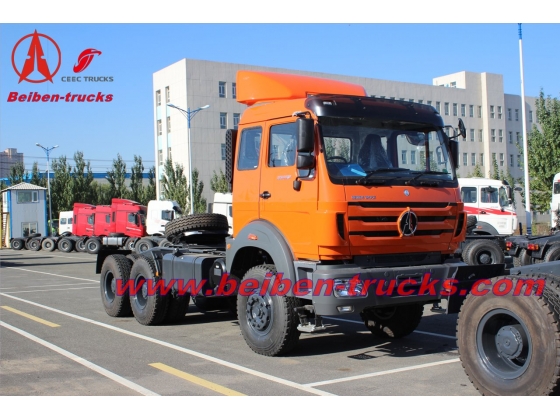

Beiben NG80 tractor truck 6x4 10 wheel prime mover 380hp truck head Benz technology

Product Details

BEIBEN NG80 380HP BENZ TECHNOLOGY TRACTOR TRUCK GOOD PRICE

 china beiben trucks

Traction type: 6x4
Driving type: LHD
Cabin: Mercedes Benz, single bed with radio(USB device is available). A/C is equipped.

Engine brand: Steyr (Weichai) EURO III
Engine model: WP12.420NE32 EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 420HP@2200rpm
Max torque: 1750NM@1350-1600rpm
Bore/Stroke(mm): 126/130

Gear box: Fuller 12 speeds (12JS200T)
Clutch: GF420 spring type
Steering: TAS85
Front axles: Benz 7.5T
Drive axle: Benz double reduction drive axle, ratio=5.921
Frame: Strengthened
Tyre: 12.00R20 radial tire 10+1
Fuel consumption (L/ 100km): 36
Spring suspension: 13/13
Fuel tank capacity (L): 400
Max. Speed (km/h): 99/120
Max. Grade ability(%): 28
Kerb. Mass: 9200 kg
Total mass: 39600kg
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Rear track (mm): 1800
Approach angle: 20 degree
Departure angle: 64 degree
Dimension (mm): 7135x2500x3340
