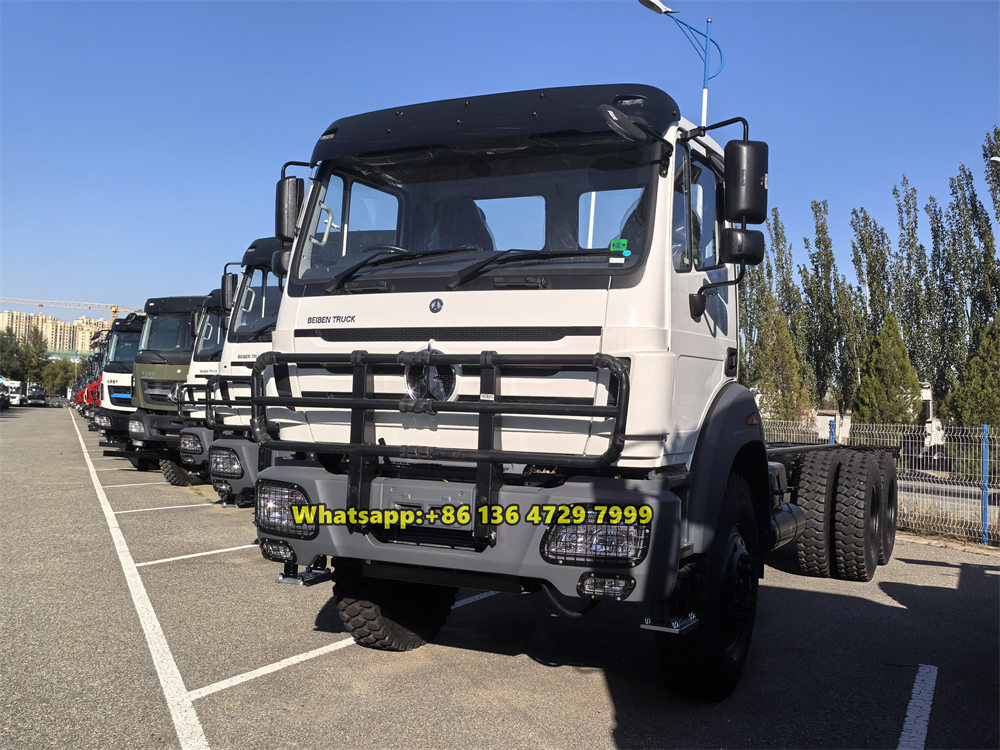

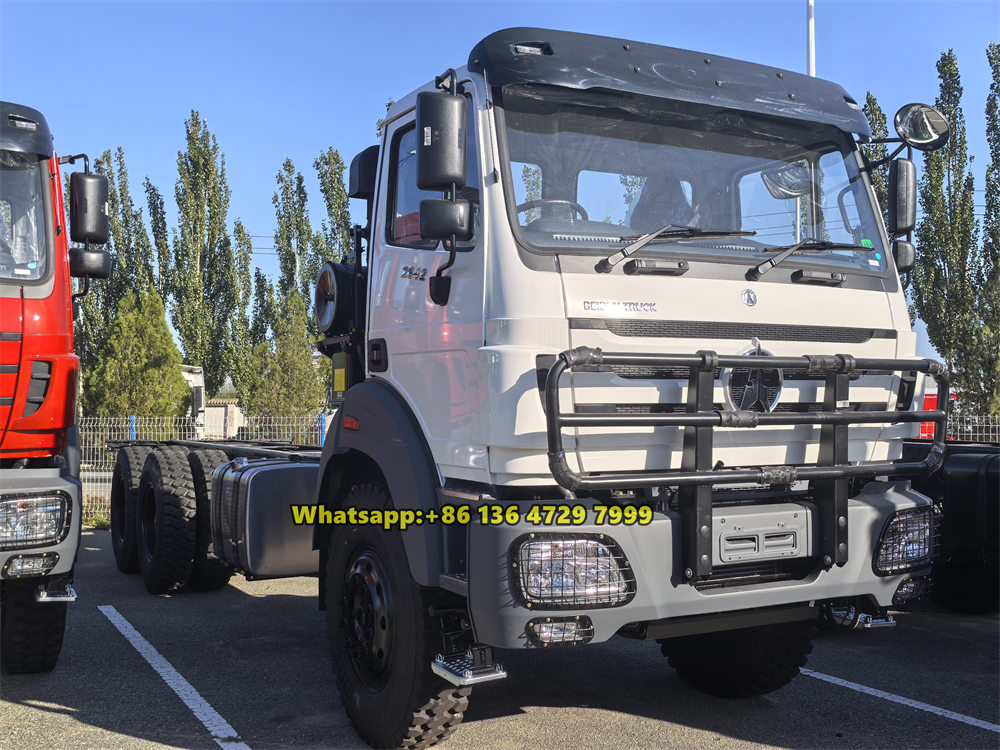

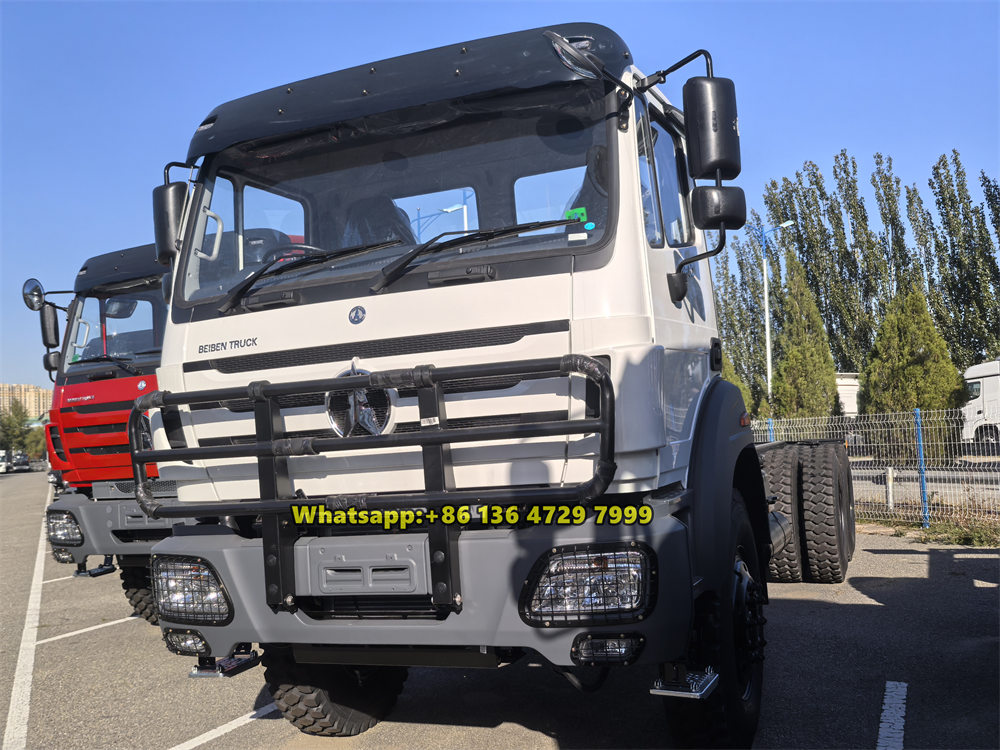

Beiben 2642 long cargo truck with 12.00R24 tyre

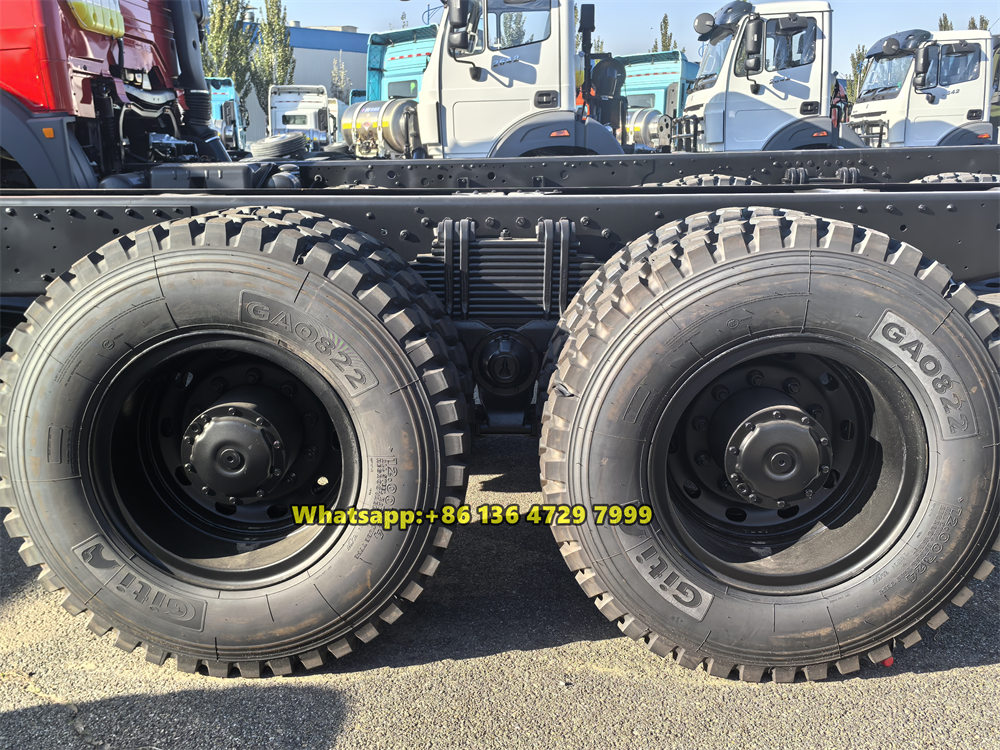

Beiben 2642 cargo truck is a robust heavy-duty vehicle engineered for demanding transportation tasks. Equipped with 12.00R24 tires, this truck combines durability, load-bearing capacity, and off-road adaptability. The 12.00R24 tire specification indicates a nominal width of 12 inches (305 mm), a radial construction for enhanced stability, and a 24-inch rim diameter. These tires feature a high ply rating, ensuring resistance to punctures and wear in challenging terrains, while their deep tread patterns optimize traction on loose surfaces like gravel, mud, or uneven construction sites.

Beiben 2642 Cargo Truck: Technical Overview

1. Chassis and Tire Configuration

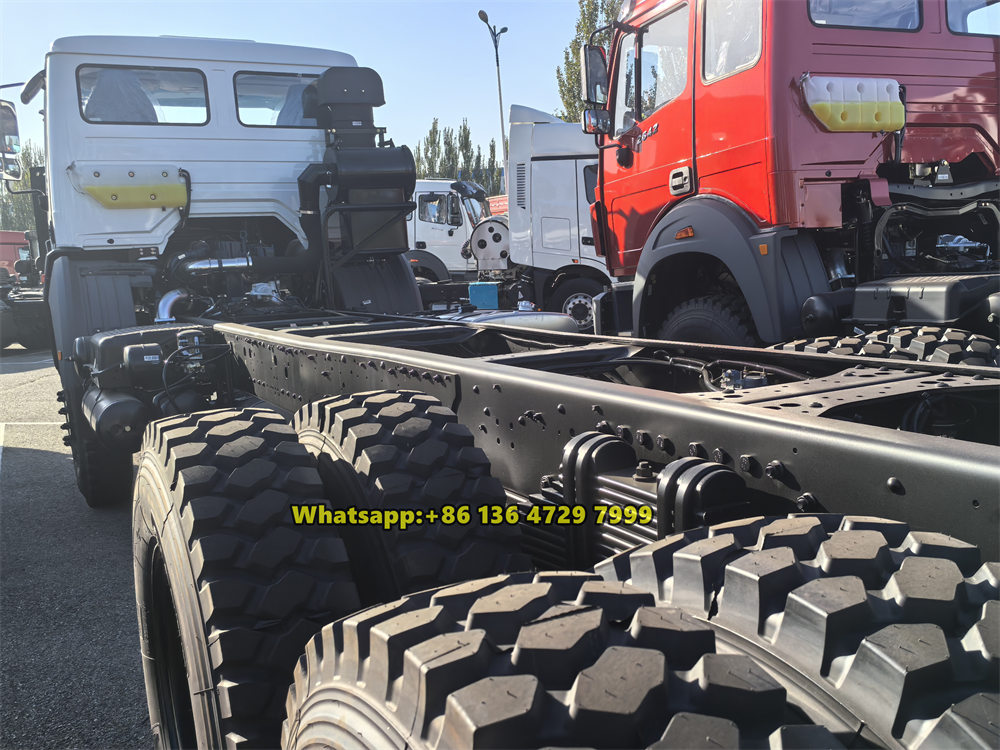

The Beiben 2642 cargo truck is engineered with a robust chassis structure, optimized for heavy-duty transportation. It features 12.00R24 tires, designed to ensure durability and load-bearing efficiency. The 12.00-inch tread width enhances road grip, while the 24-inch rim diameter supports high payload capacity. These radial tires are suitable for diverse terrains, offering stability and reduced rolling resistance, which contributes to fuel efficiency.

2. Powertrain: WP12.420E Engine
At its core lies the WP12.420E engine, a 12-liter inline-six-cylinder diesel powerplant. Delivering 420 horsepower and a peak torque of 2,100 Nm at 1,200–1,500 rpm, this engine combines high output with compliance to Euro V emission standards. Its advanced fuel injection system and optimized combustion chamber design ensure lower fuel consumption and reduced particulate emissions. The engine’s reliability in extreme conditions makes it ideal for long-haul logistics and construction applications.

3. Transmission System: 12JS200T
The truck integrates the 12JS200T manual transmission, featuring 12 forward gears and 2 reverse gears. This synchronized gearbox supports a maximum input torque of 2,000 Nm, ensuring smooth gear shifts under heavy loads. The multi-gear configuration allows drivers to adapt to varying road gradients and cargo weights efficiently. Its overdrive design enhances highway driving performance by reducing engine RPM at cruising speeds, further optimizing fuel economy.

4. Performance and Applications

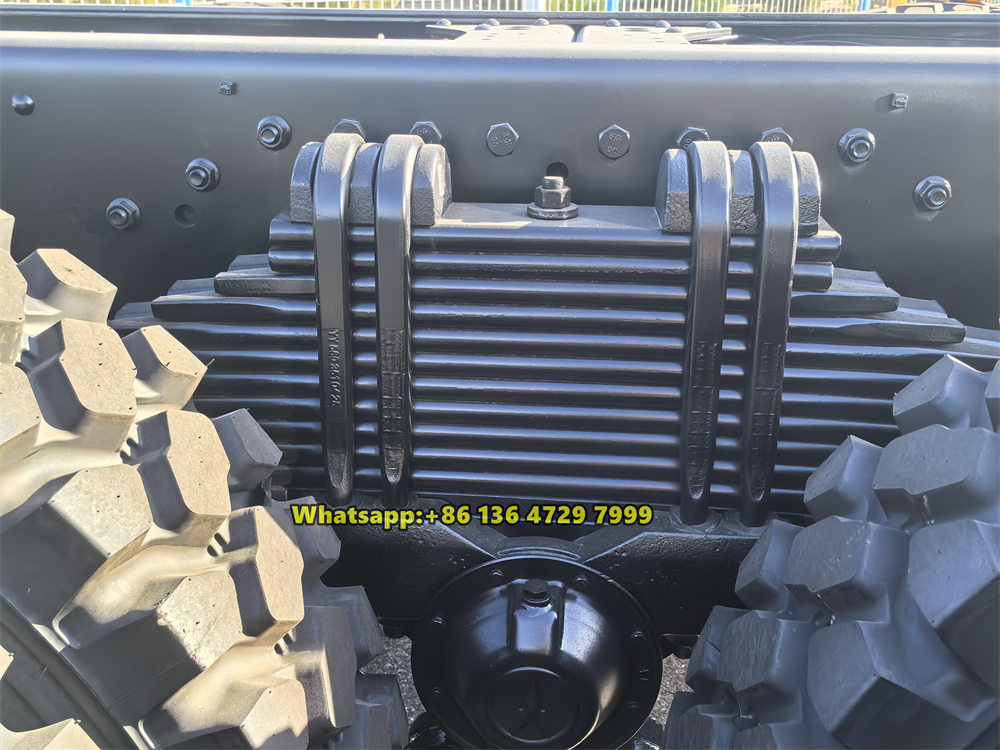

With a gross vehicle weight (GVW) exceeding 25 tons, the Beiben 2642 excels in transporting bulk cargo, containers, and construction materials. The combination of the WP12.420E engine and 12JS200T transmission ensures a balanced power-to-weight ratio, enabling rapid acceleration and consistent torque delivery. The vehicle’s reinforced suspension system and aerodynamic cab design enhance driver comfort and operational safety during extended missions.

5. Key Advantages

• High Payload Capacity: Optimized chassis and tire design for maximum load efficiency.
• Fuel Efficiency: Engine and transmission synergy reduces operational costs.
• Emission Compliance: Meets stringent environmental regulations without compromising power.
• Versatility: Suitable for mining, logistics, and infrastructure sectors.
