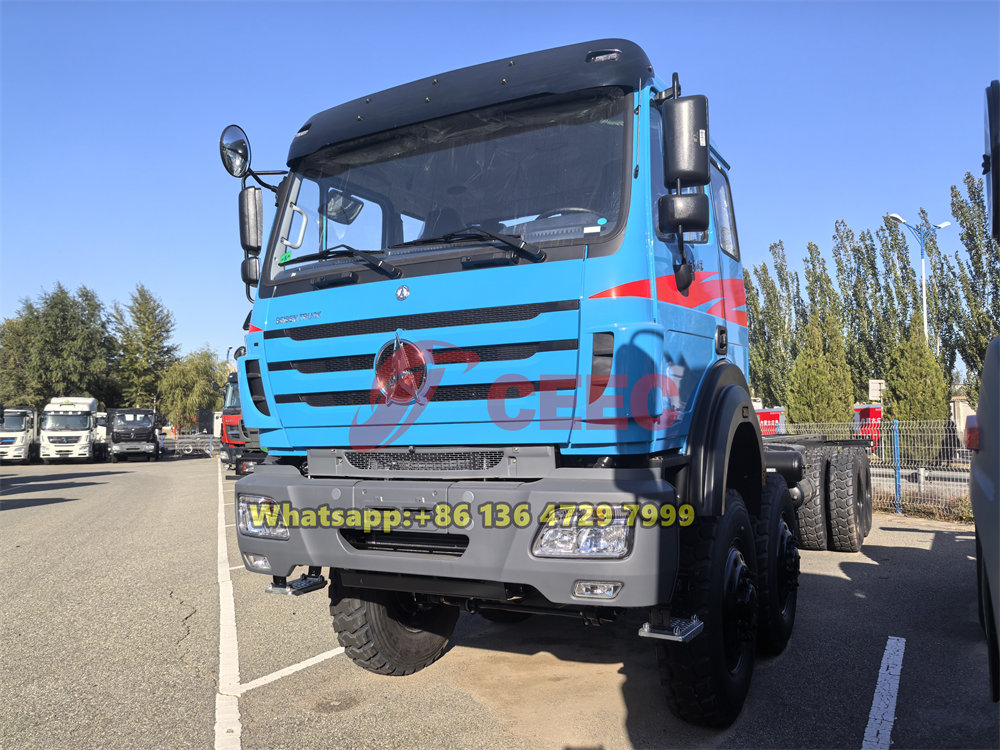

Beiben 3142 cabin 8x8 drive truck with 12.00R24 tyre

Beiben 3142 8×8 all-wheel-drive fuel truck is engineered for extreme off-road performance and heavy-duty operations. Powered by a Weichai WP12.420E diesel engine, this robust vehicle delivers 420 horsepower (309 kW) at 1,900 rpm, with a 12.0-liter displacement and peak torque of 1,900 Nm at 1,100–1,400 rpm, compliant with Euro V emission standards. The drivetrain integrates a FAST 12JS200T manual transmission, featuring 12 forward gears and 2 reverse gears, optimized for seamless power distribution across challenging terrains.

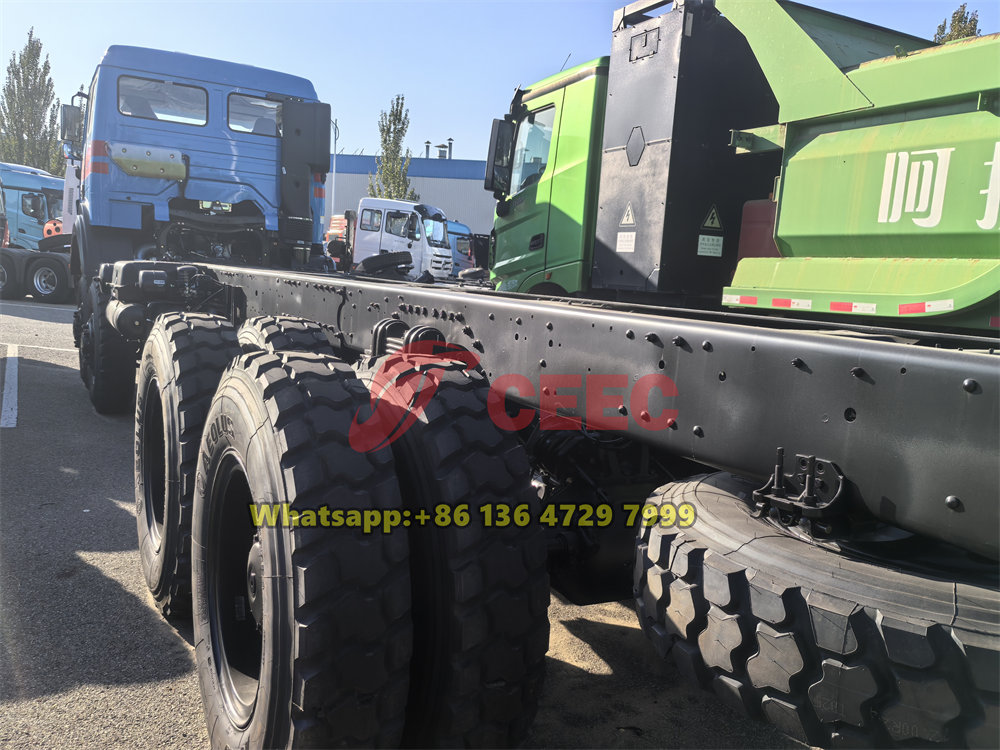

Beiben 3142 model off road truck with 12.00R24 tyres

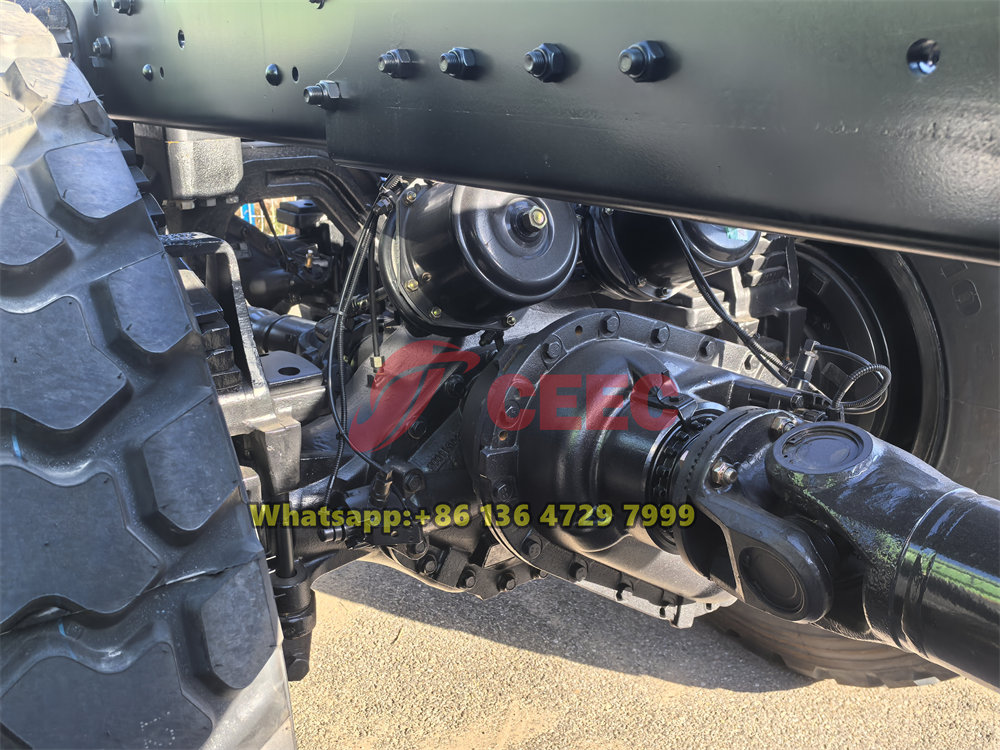

The 8×8 drive system employs Benz-derived axle technology for superior load-bearing capacity. The front axle utilizes a Mercedes-Benz 7.5-ton unit with a single reduction gear and hypoid gear design, ensuring durability. The dual rear axles adopt a 13-ton Mercedes-Benz tandem configuration with inter-axle differential locks, enhancing traction and stability. All axles are reinforced with steel alloy housings and integrated planetary gear hubs.

Mounted on 12.00R24 off-road radial tires, the truck features deep-tread patterns and reinforced sidewalls for optimal grip on mud, sand, and rocky surfaces. The 24-inch steel wheels are fitted with central tire inflation systems (CTIS) for real-time pressure adjustment. The chassis incorporates a high-strength steel ladder frame with 360-mm ground clearance, supported by multi-leaf parabolic springs and hydraulic shock absorbers.

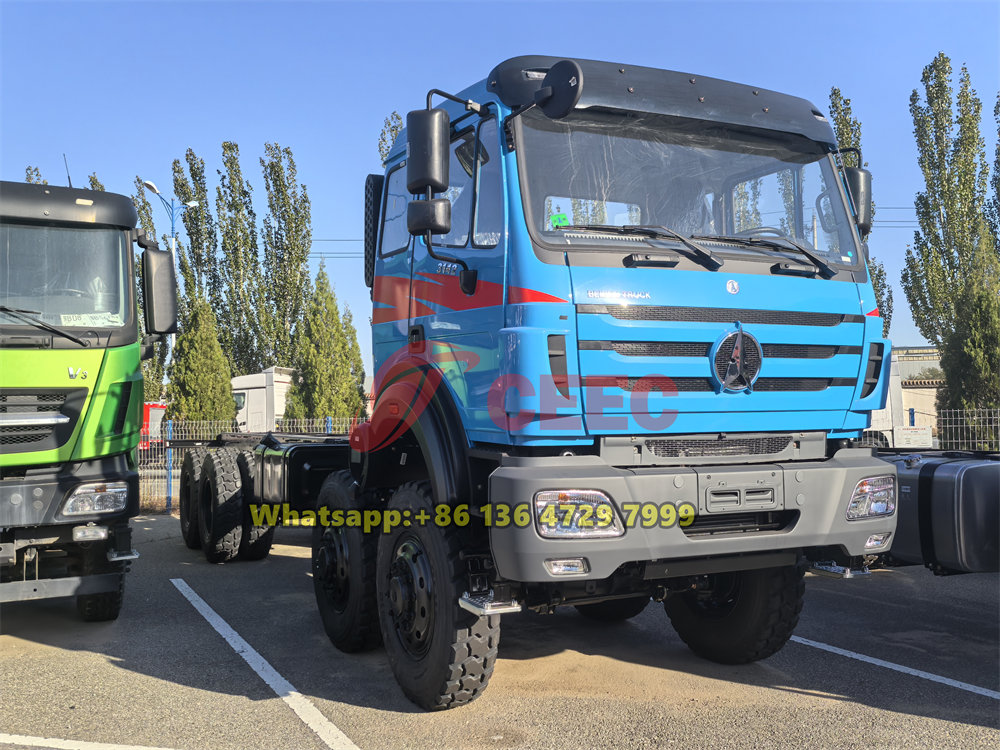

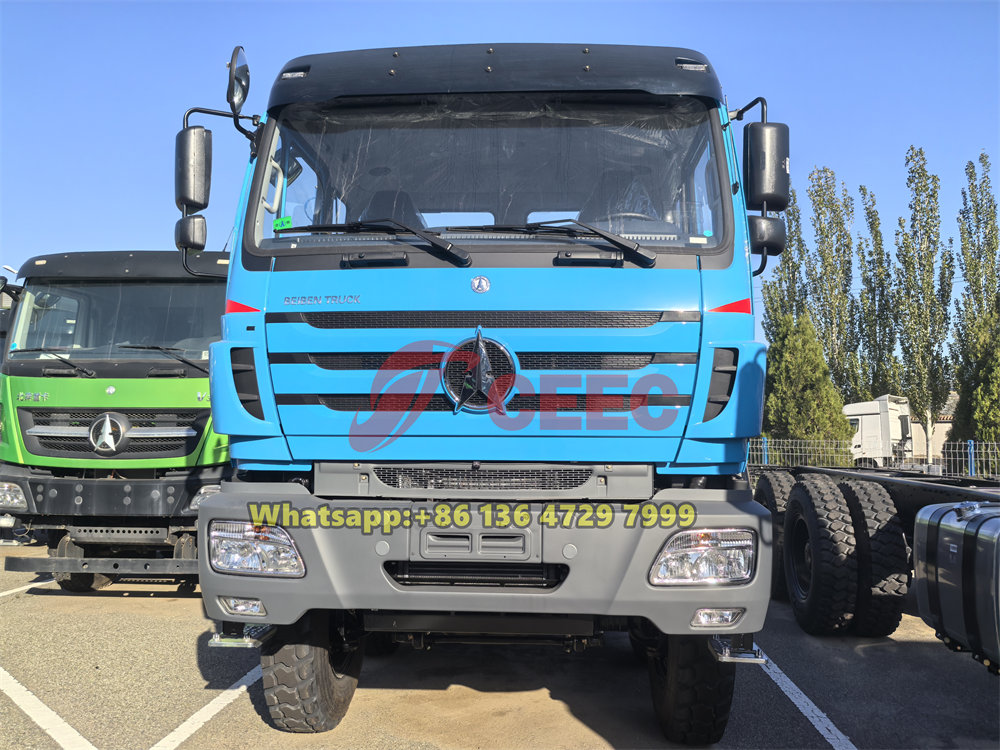

beiben NG80B classic cabin with off road tyre, WP12.420E engine

Beiben 3142 all-wheel-drive (8x8) fuel truck is a robust off-road vehicle engineered for extreme terrain and heavy-duty operations. Equipped with a WP12.420E engine, this truck delivers a reliable 420 horsepower and 2,100 Nm of torque, optimized for low-speed efficiency and high-altitude performance. Its advanced high-pressure common rail fuel injection system ensures compliance with stringent emission standards while maintaining fuel economy. The Fast 12JS200T manual transmission features 12 forward gears and 2 reverse gears, enabling seamless power transfer across diverse driving conditions and rapid gear shifts under heavy loads.

Built with Benz-derived technology, the 7.5-ton front axle and 13-ton double rear axle provide exceptional load distribution and structural durability. The 8x8 drive system, coupled with 12.00R24 off-road tires, offers superior traction on muddy, sandy, or uneven surfaces through optimized tread patterns and puncture-resistant construction. Hydraulic shock absorbers and reinforced suspension components enhance stability during high-GVW operations.

Key applications include:

1. Energy Sector Logistics: Transports diesel or liquid fuels to remote oil/gas fields, leveraging its off-road capability to access drilling sites.
2. Military Support: Serves as a frontline refueler for armored vehicles and aircraft, utilizing its rapid deployment features and armored cabin options.
3. Mining Operations: Delivers bulk fuel to heavy machinery in quarries, with corrosion-resistant tanks for abrasive environments.
4. Disaster Relief: Functions as emergency fuel supply transport during floods/earthquakes, featuring auxiliary power units for on-site electricity generation.

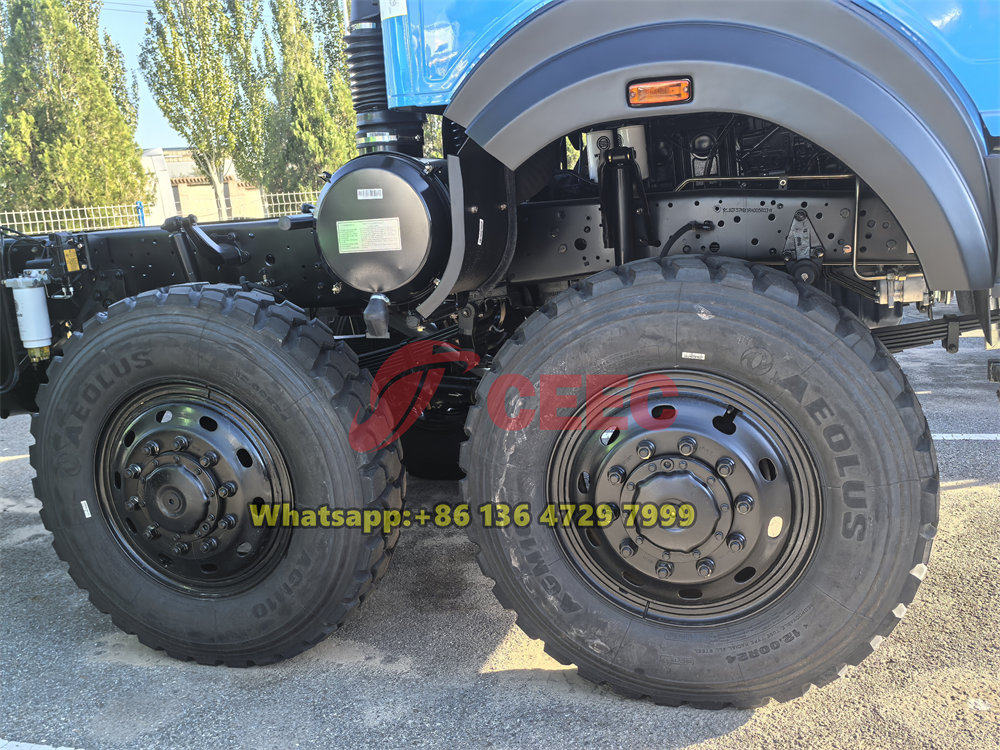

Beiben 3142 truck with 12 wheeler tyres

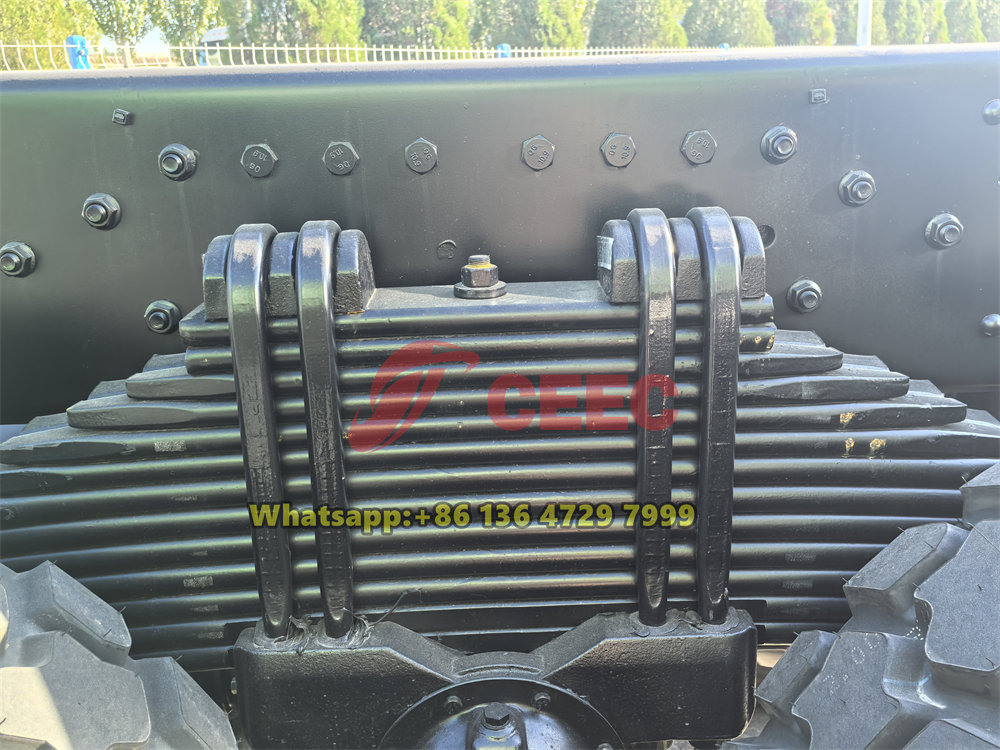

heavy duty suspension for beiben 3142 military truck

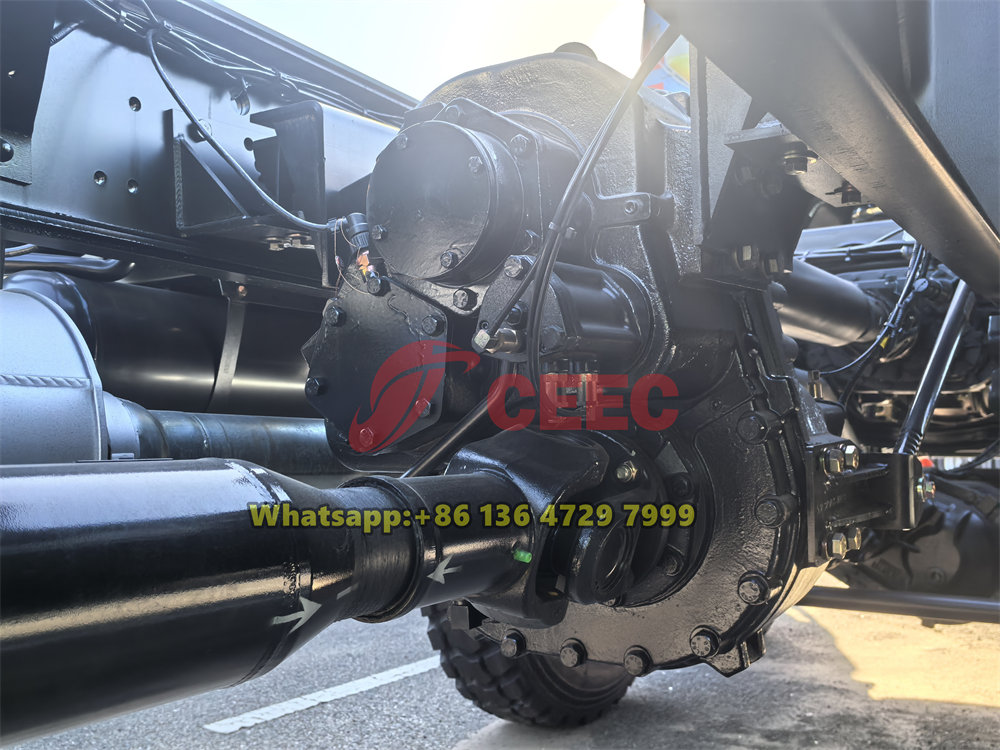

transfer box for beiben 3142 off road truck chassis
